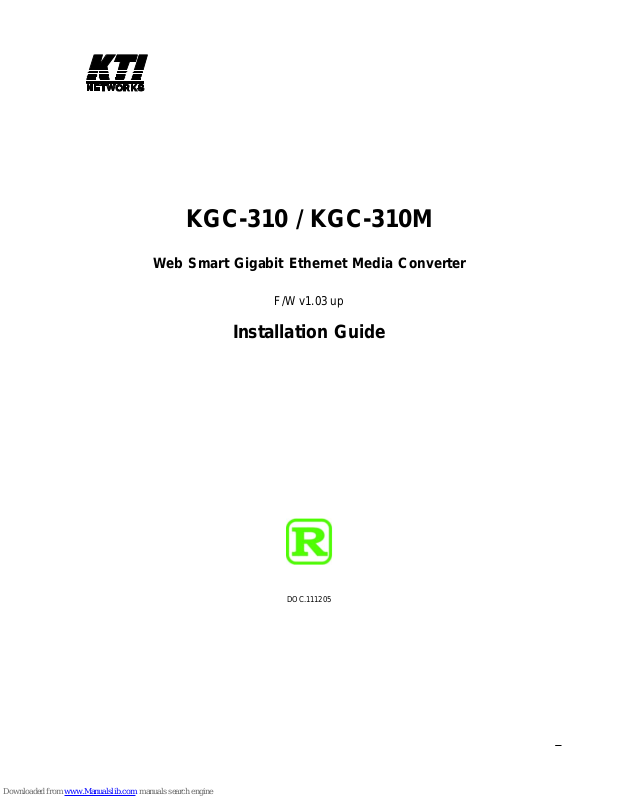

KTI Networks KGC-310, KGC-310M Installation Manual

KGC-310 / KGC-310M

Web Smart Gigabit Ethernet Media Converter

F/W v1.03 up

Installation Guide

DOC.111205

-1-

(C) 2005 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced in
any form or by any means or used to make any directive work (such as translation or transformation)
without permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to make changes in content
from time to time without obligation on the part of KTI Networks Inc. to provide notification of such
revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008
Houston, T exas 77263-1008

Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
URL: http://www.ktinet.com/

International Fax: [phone]

E-mail: [e-mail]
URL: http://www.ktinet.com.tw/

-2-

The information contained in this document is subject to cha nge without prior notice. Copyright (C). All
Rights Reserved.

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

WAR NING:

This equipment ha s been tested and f ound to comply with the limits for a Cla ss B digital device, pursua nt
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and if not installed and used in accordance with the
instruction manual may cause harmful interference in which case the user will be required to correct the
interference at his own expense.

NOTICE:

(1 ) The changes or modifications not expressively approved by the party responsible for compliance
could void the user's authority to operate the equipment.
(2) Shielded interface cables and AC power cord, if any, must be used in order to comply with the
emission limits.

CISPR 22 CLASS B COMPLIANCE

This device complies with EMC directive of the European Community and meets or exceeds the following
technical standard.
EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information
T echnology Equi pment. This device complies with CISPR 22 Cla ss B.
WARNING: This is a Cla ss A product. In a domestic environment this product may cause radio interfer­ence in which case the user may be required to take adequate measures.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the European
Community. Such marking is indicative that this equipment meets or exceeds the following technical
standards:

EMI

EN55022:2006 + A1:2007 CISPR22:2006 Class B
EN61000-3-2:2006 IEC61000-3-2:2005
EN61000-3-3:1995+A1:2001+A2:2005 IEC61000-3-3:1994+A1:2001+A2:2005

EMS

EN55024:1998 + A1:2001 + A2:2003 CISPR24:1997
EN61000-4-2:2001 IEC61000-4-2:2001
EN61000-4-3:2002 + A1:2002 IEC61000-4-3:2002 + A1:2002
EN61000-4-4:2004 IEC61000-4-4:2004
EN61000-4-5:2001 IEC61000-4-5:2001
EN61000-4-6:2003 IEC61000-4-6:2003
EN61000-4-8:2001 IEC61000-4-8:2001
EN61000-4-11:2001 IEC61000-4-11:2001

C-Tick COMPLIANCE

AS/NZS CISPR 22:2006

-3-

Ta ble of Contents

1. Introduction.................................................................................................. 6

1.1 Features ...................................................................................................................7

1.2 Product Panels.........................................................................................................8

1.3 Specifications...........................................................................................................8

2. Installation .................................................................................................. 11

2.1 Un packing...............................................................................................................1 1

2.2 Safety Cautions ...................................................................................................... 1 1

2.3 Mounting the Media Converter .................................................................................12

2.4 Applying Power ........................................................................................................13

2.5 Making UTP Connections .......................................................................................1 4

2.6 Making Fiber Conne ction ........................................................................................15

2.7 Loopback Te st Push Button.....................................................................................16

2.8 Configuration DIP SW .............................................................................................17

2.9 LED Indication .........................................................................................................18

2.10 Configuring IP Address and Password for the Device ...........................................1 9

3. Functions .................................................................................................... 20

3.1 Abbreviation .............................................................................................................2 0

3.2 Converter Function..................................................................................................20

3.3 Link Fault Pa ss Through Function...........................................................................21

3.4 Remote TP Status Monitoring Function...................................................................22

3.5 802.1Q Control Function .........................................................................................23

3.6 QoS Function ..........................................................................................................25

3.6.1 Packet Priority Classification ................................................................................26

3.6.2 Priority Class Queues ..........................................................................................26

3.6.3 Egress Service Policy ..........................................................................................26

3.7 SNMP T ra p Function................................................................................................27

4. Web Ma nagement ....................................................................................... 28

4.1 Start Browser Software and Ma king Conne ction .....................................................28

4.2 Login to the Device U nit ...........................................................................................28

4.3 Main Man agement Menu..........................................................................................29

4.4 System ....................................................................................................................30

4.4.1 Man agement VLAN ...............................................................................................32

4.5 Ports........................................................................................................................33

4.5.1 802.1Q Filtering ....................................................................................................3 6

4.5.2 802.1p Ma pping ....................................................................................................37

4.5.3 DSCP Mapping .....................................................................................................38

4.6 Statistics ..................................................................................................................39

4.7 Loopback Test .........................................................................................................40

-4-

4.8 Reboot System .......................................................................................................40

4.9 Restore Default .......................................................................................................40

4.10 Update Firmware...................................................................................................41

4.11 Logout....................................................................................................................41

Appendix A. Factory Default Settings ........................................................... 42

Appendix B. Models & Optical Specifications.............................................. 44

-5-

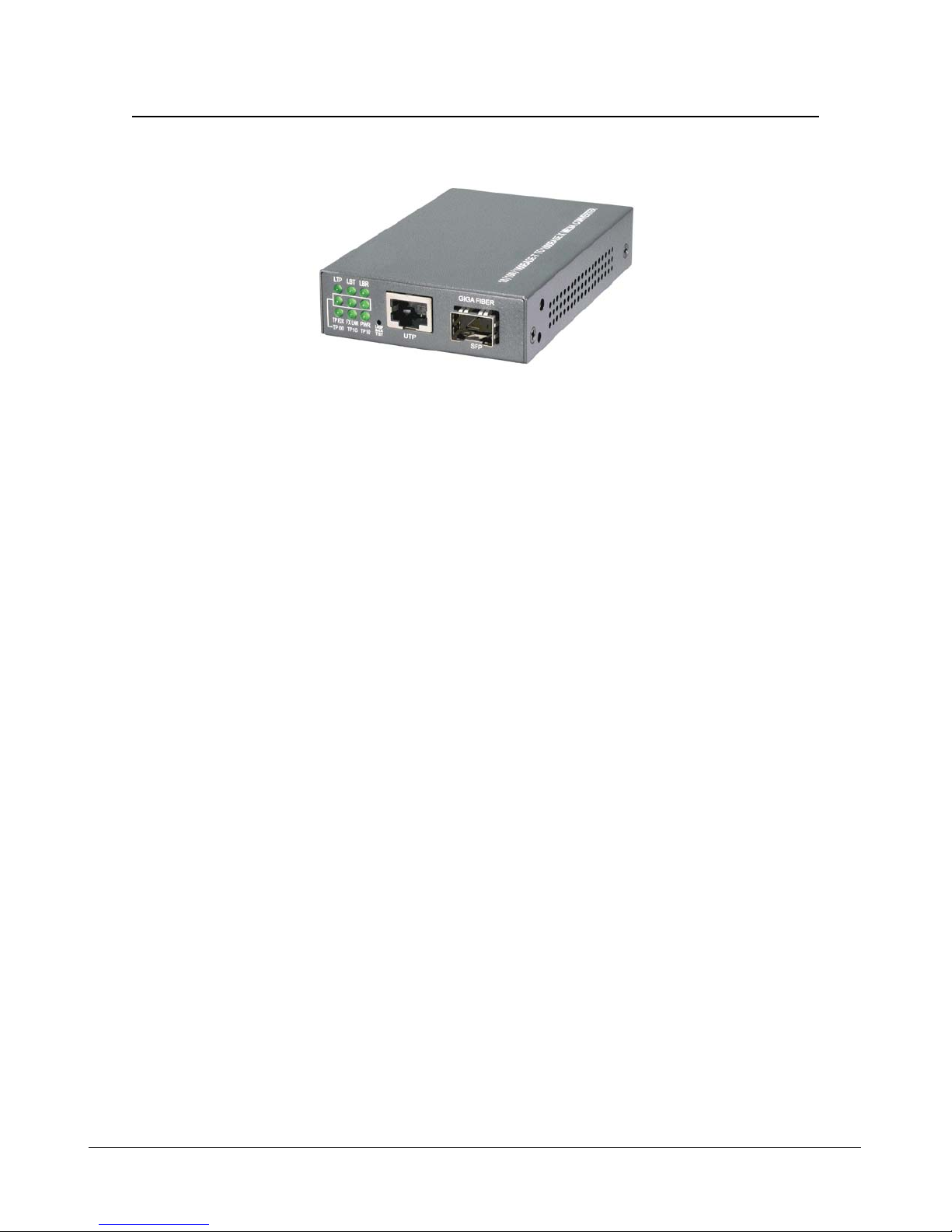

1. Introduction

The KGC-310 is Giga bit Ethernet medi a converter series which provide the f ollowing features :

Data Conversion between different Media types and Speed

The media converter supports the following conversions:

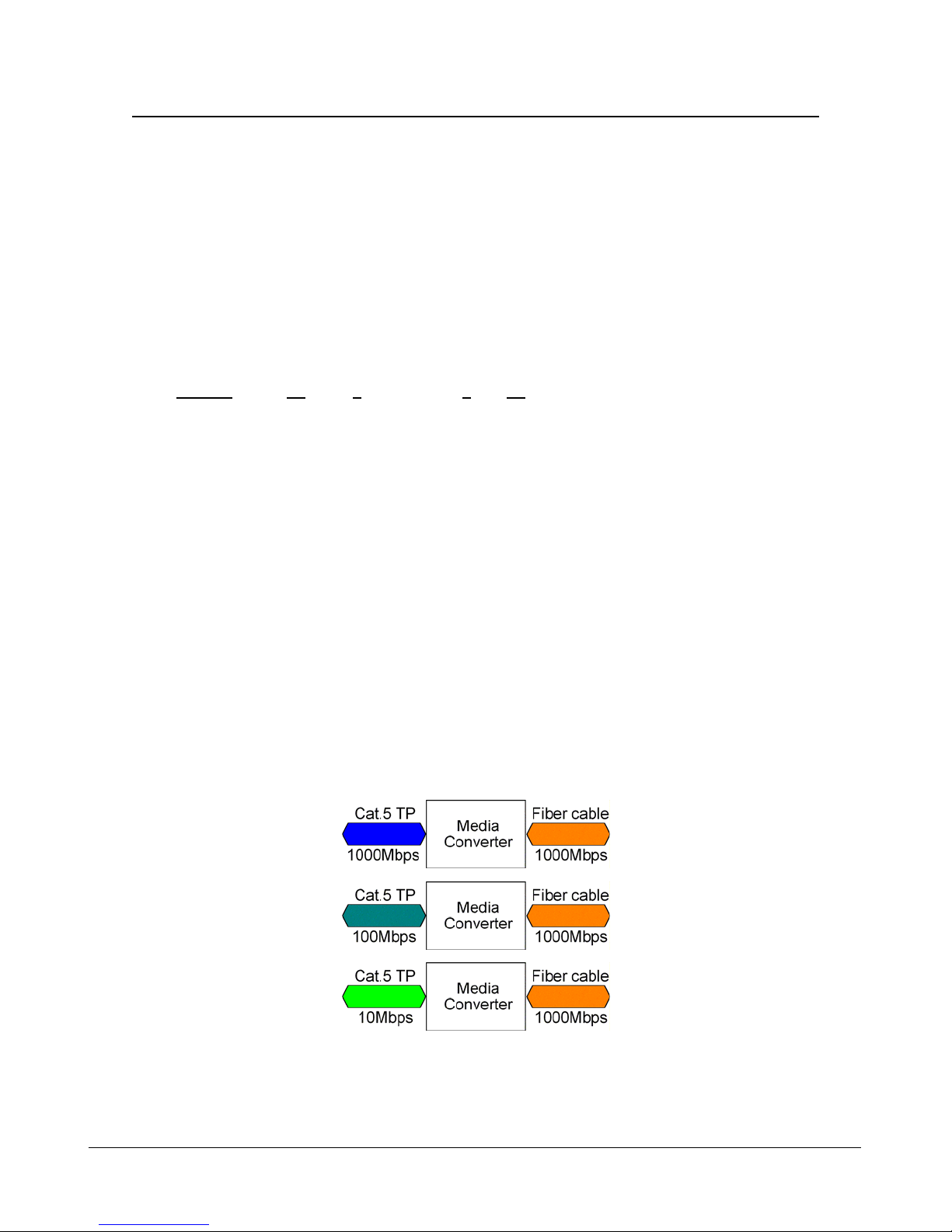

z 1000Mbps (1000BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber
z 100Mbps (1000BASE-TX) copper to/from 1000Mbps (1000BASE-X) fiber
z 10Mbps (10BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber

Mini-GBIC (SFP) Fiber Connectivity

The mini-GBIC (SFP) port can be installed with different optional SFP optical fiber transceiver to
support multimode or single mode fiber for short rea ch up to long rea ch distance.

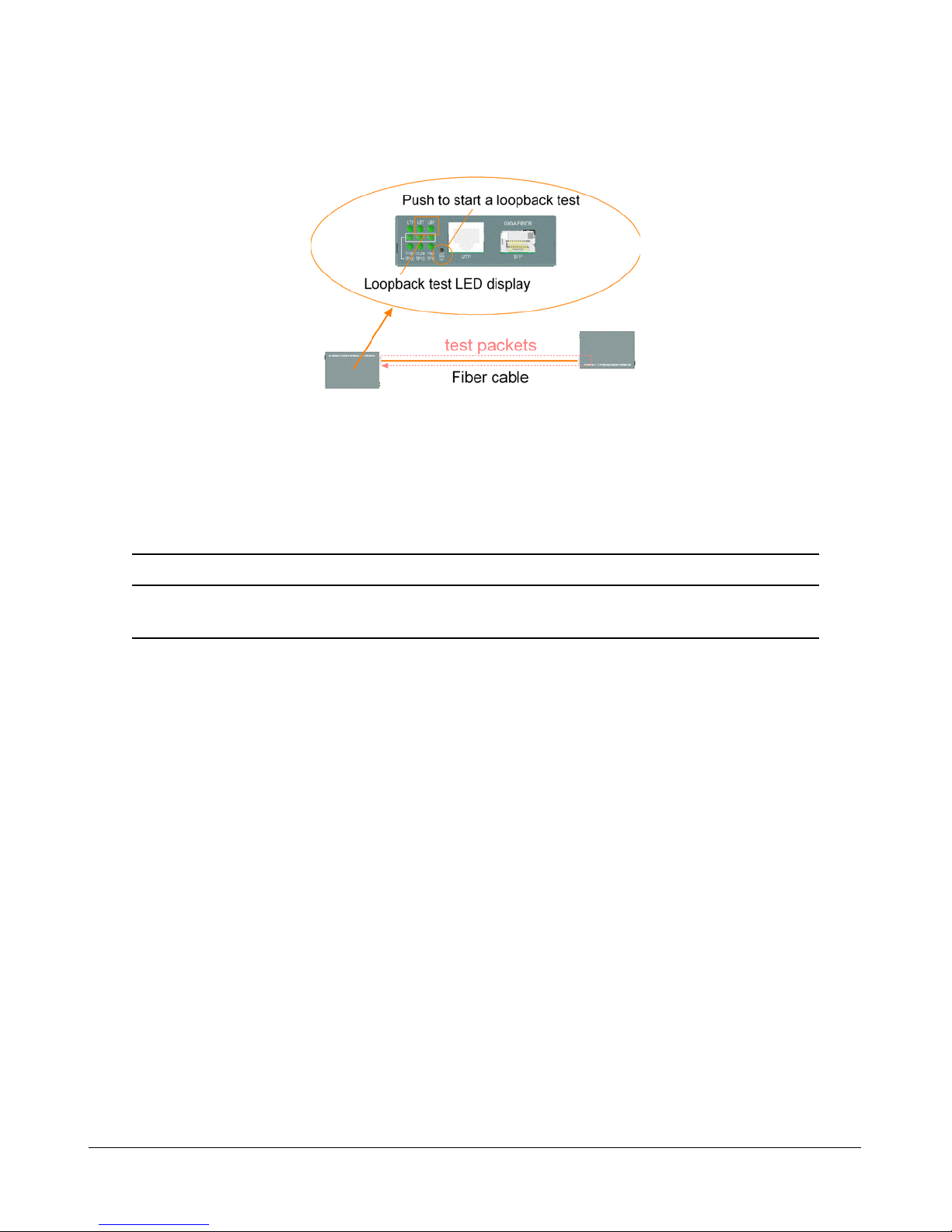

Loopback Test Support

The media converter provides loopba ck test function which ca n verify the fiber link with its link partner
by sending test packets to the link partner and verifying the echo packets sent back. This feature is
helpful in checking connection quality of fiber link during installation.

Link Fault Pass-Through

This feature ca n f orce the link to shut down a s soon a s it notices that the other link ha s failed. It allows
a link partner on one cable segment can notice a link fault occurred on the other segment and give
application a chance to react.

Remote TP Port Status Monitoring

When two devices are connected with each other vi a fiber link. The device can monitor a nd display the
twisted-pair port status of the remote fiber link partner. The status display can be on the local LED
indicators or web management interface.

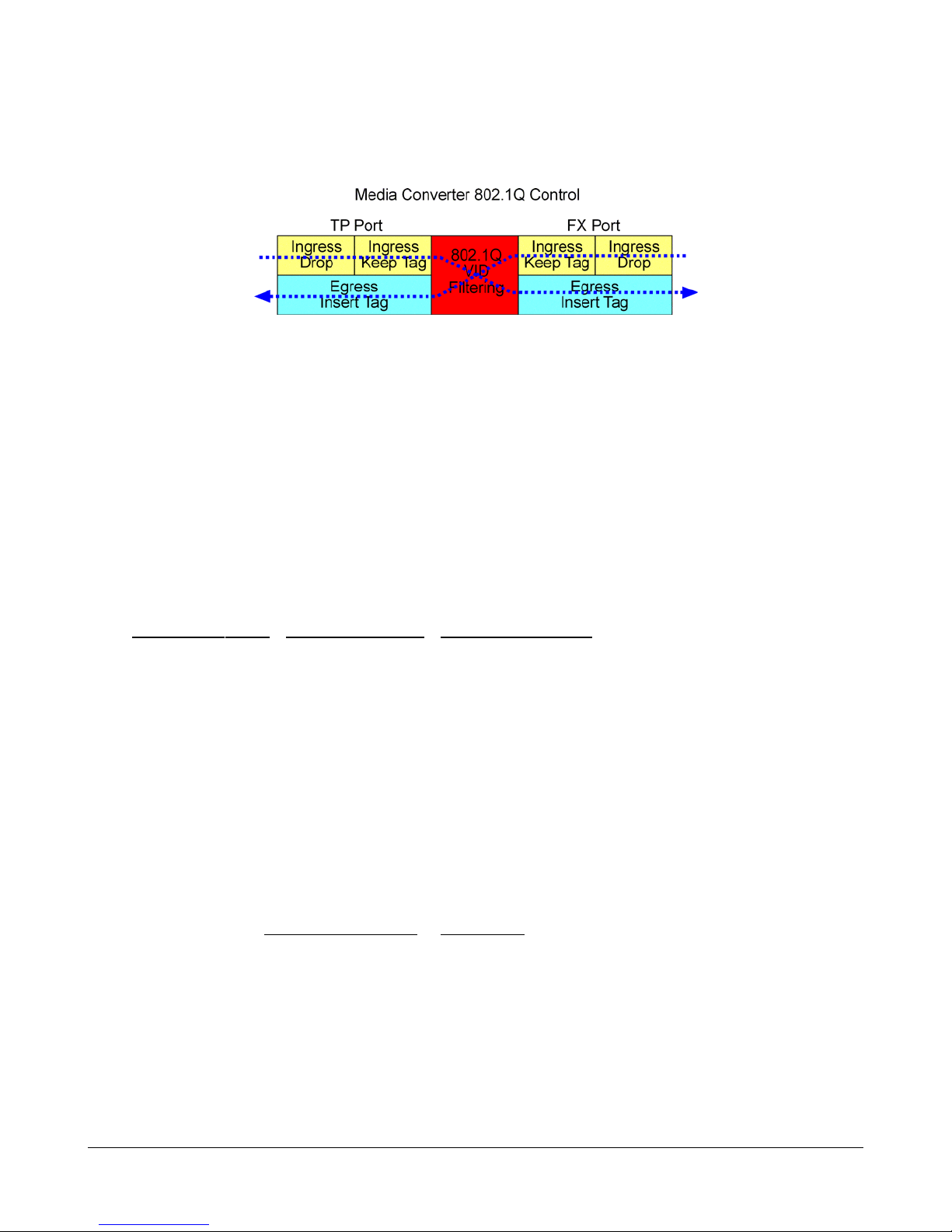

802.1Q Control

With software configuration support, the device is enhanced with more 802.1Q control features for
VLAN a pplications rather than just a typical media converter function. The optional feature s include:

z Filtering all untagged packets
z Filtering all tagged packets
z Filtering tagged packets with certain VID
z Packet Tag removal (Untagging)
z Packet T ag insertion (Tagging)

-6-

Quality of Service

For conversion between two different speeds, the device is featured with powerful Quality of Service
(QoS) function which can classify the priority for received network frames based on the ingress port
a nd frame contents. Furthermore, many service priority policies ca n be configured for egress operation.

Web Management

The device is embedded with an Http server which provides management functions for advanced
network functions including Port Control, Quality of Service, a nd V irtual LAN functions. The manage­ment can be performed via Web browser based interface over TCP/IP network.

1.1 Features

Basic functions

z Provides tri-speed 10/100/1000Mbps copper to 1000Mbps fiber conversion
z Provides mini-GBIC SFP design for the fiber port to a ccommodate a ny type of SFP fiber tra nsceiver

when needed.

z Support full wire speed Giga bit copper to Gigabit fiber conversion
z The copper port supports auto-negotiation and auto-MDI/MDI-X detection
z Copper port auto-negotiation mode, speed a nd duplex configuration by DIP switch settings
z Link Fault Pass Through function allows link fault status passes through between copper link and

fiber link tra nsparently .

z Far End Fault function on fiber port
z Supports 802.3x flow control for full-duplex a nd backpre ssure for half-duplex
z Supports loopback test between two devices over fiber link
z Supports remote twisted-pair status monitoring
z Diversified mounting support : desktop, wall, center rack, a nd optional Din-Rail support
z Center chassis installation : support installation in a center chassis rack with benefits of central

software management and redundant power backup.

z Support wide range of fiber options : multimode fiber, single mode fiber (short reach up to long

reach), Bi-directional single fiber , a nd CWDM

Management functions

z Port configuration control and status monitoring
z Supports Jumbo frame conversion
z Packet filtering
z 802.1Q Control between two ports
z Quality of Service (QoS) control for packet traffic
z Supports loopback test
z Supports remote twisted-pair status monitoring
z In-band e mbedded firmware upgrade function
z Web-based browsing interface

-7-

1.2 Product Panels

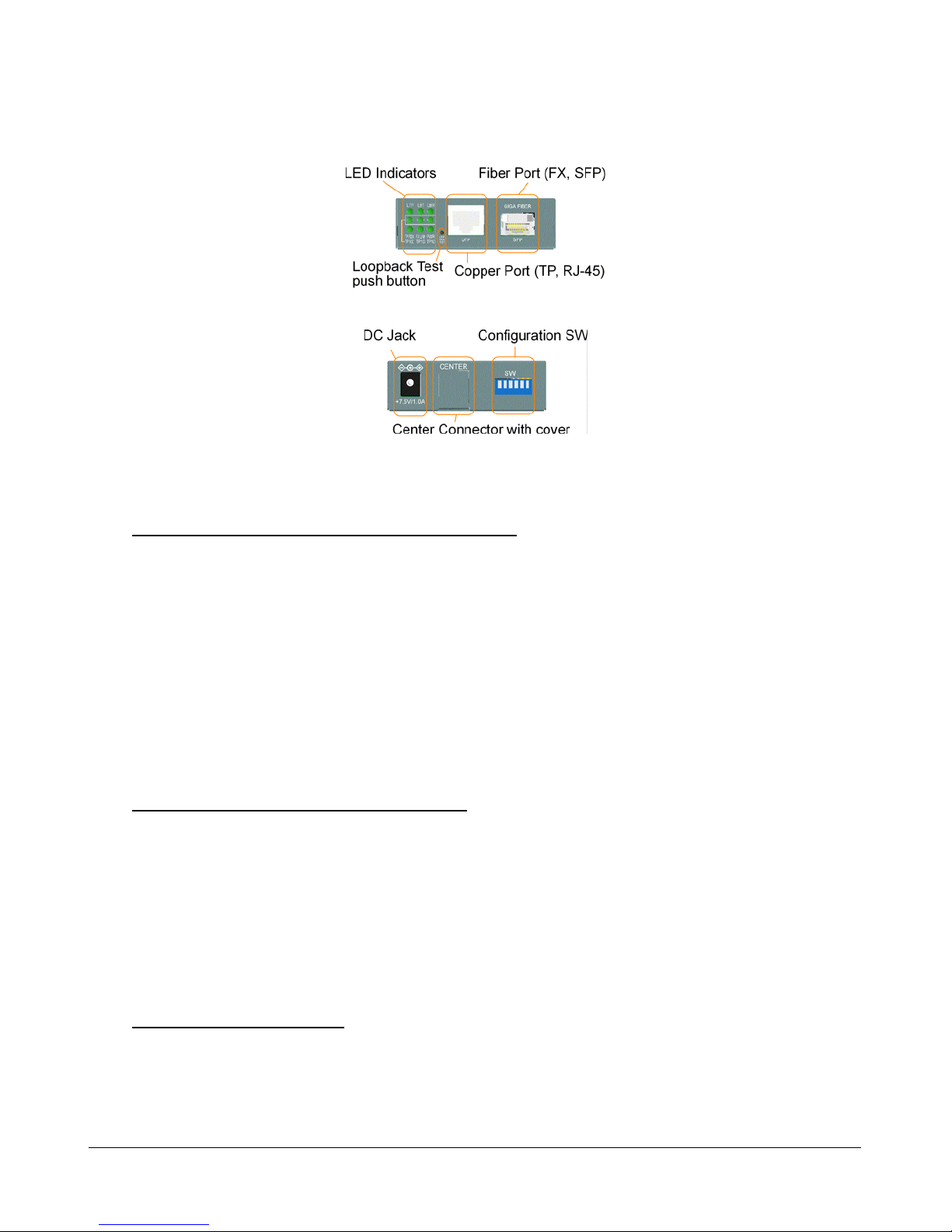

The following figure illustrates the front panel and rear panel of the device:

1.3 Specifications

10/100/1000 Twisted-pair Copper Port (TP, RJ-45)

Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,

IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation, ma nual settings or software control
Tra nsmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP

1000Mbps Fiber Port (FX, Mini-GBIC SFP)

Compliance IEEE 802.3z 1000Base-SX/LX (mini-GBIC)
Connectors SFP for optional SFP type fiber transceivers
Configuration Auto/Forced, 1000Mbps, Full duplex
Tra nsmission rate 1000Mbps
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 compliant

Loopback Test Push Button

LOOPBACK TEST Push button to start loopback test

-8-

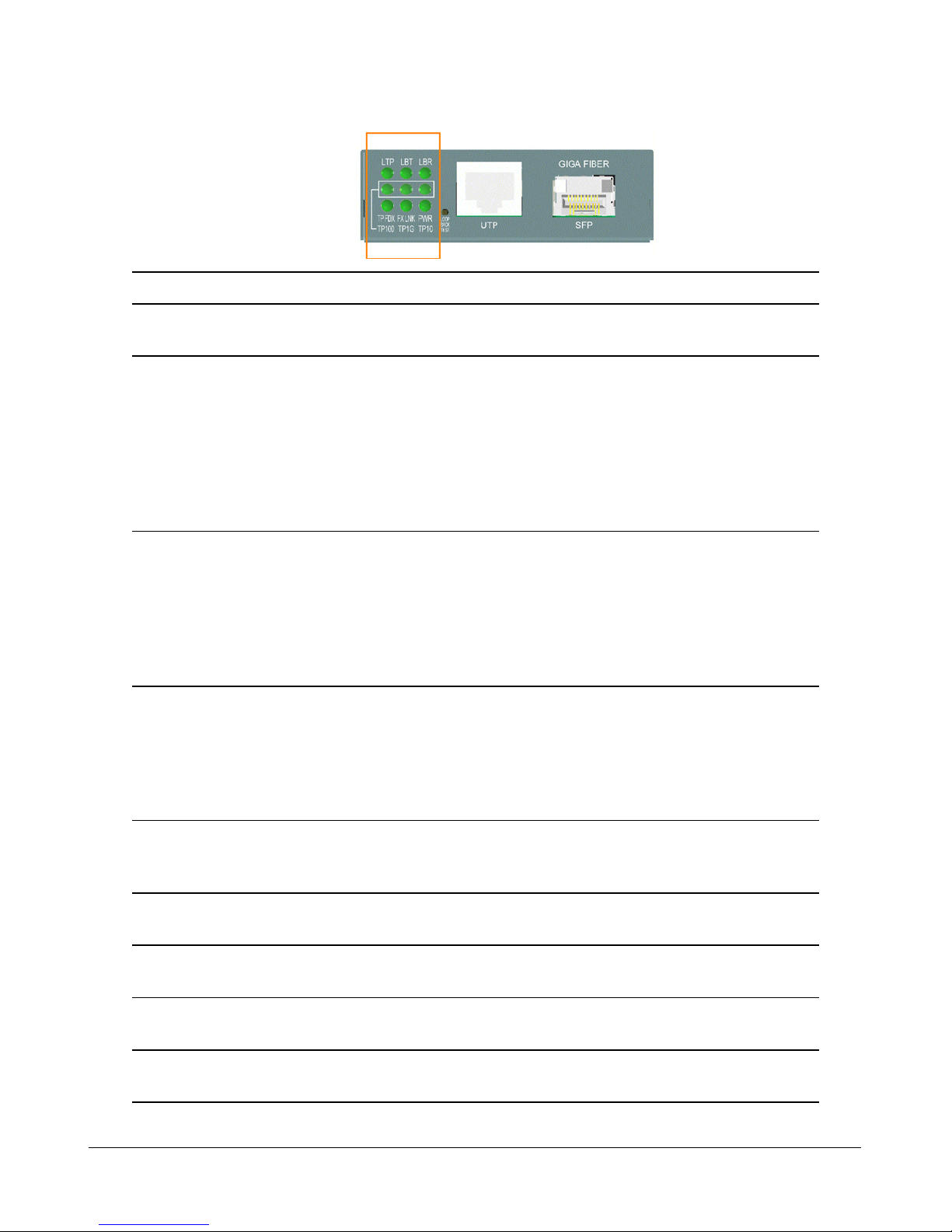

LED Indicators

PWR Power status
LTP Local or remote TP indication on TP LEDs
LBT Loopback test in-progress LED
LBR Loopback test result LED
FXLNK Fiber port link a nd activity status
TP1G T wisted-pair copper port 1000Mbps a nd link status
TP100 T wisted-pair copper port 100Mbps and link status
TP10 T wisted-pair copper port 10Mbps and link status
TPFDX T wisted-pair copper port duplex status

Configuration DIP Switches

SW1-SW3 Twisted-pair copper port configuration
SW4 Flow control setting
SW5 Remote Twisted-pair copper port monitoring
SW6 Link fault pass through function setting

Center Interface

Interface For center chassis mounting
Connector FutureBus

Basic Functions

MAC Addresses Support up to 8K
Forwarding technology Store and forward
Maxi mum packet length Jumbo frame support up to 9600 bytes
Flow control IEEE 802.3x pause frame base for full duplex operation

Back pressure f or half duplex operation

DC Power Input

Interfaces DC Jack ( -D 6.3mm / + D 2.0mm)
Operating Input Voltages +5 ~ +12VDC(+/-5%)
Power consumption 2.5W max. @7.5V

Mechanical

Dimension (ba se) 108 x 72.5 x 23 mm
Housing Enclosed metal with no fan
Mounting Desktop mounting, wall mounting, optional Rin-rail mounting

-9-

Environmental

Operating Temperature Typical -5
Storage Temperature -20

o

o

C ~ 55oC

C ~ 85oC

Relative Humidity 10% ~ 90%

Electrical Approvals

FCC Part 15 rule Class B
CE EMC, CISPR22 Class B
C-Tick AS/NZS

Software Management Functions

Interfaces Web browser
Management objects System configuration - IP settings, Name, Password

Port configuration control a nd status

802.1Q control settings

QoS settings

Reboot, restore factory default, update firmware

Models

Special Features Unmanaged model Managed model
Configuration DIP SW Y es Y es
Link fault pass through Y es Yes
Loopback test support Y es Yes
Remote TP monitorng Yes Y es
Web management No Yes
Jumbo frame support No Y es

802.1Q Control No Yes
QoS Control No Yes

-10-

2. Installation

2.1 Unpacking

The product package contains:

• The media converter unit

• One product CD-ROM

2.2 Safety Cautions

T o reduce the risk of bodily injury , electrical shock, fire, a nd damage to the product, observe the f ollow­ing precautions.

• Do not service a ny product exce pt as explained in your system documentation.

• Opening or removing covers may expose you to electrical shock.

• Only a trained service technician should service components inside these compartments.

• If a ny of the following conditions occur , unplug the product from the electrical outlet and replace

the part or contact your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

• Do not push any objects into the openings of your system. Doing so can cause fire or electric

shock by shorting out interior components.

• Operate the product only from the type of external power source indicated on the electrical

ratings label. If you are not sure of the type of power source required, consult your service
provider or local power compa ny.

-11-

2.3 Mounting the Media Converter

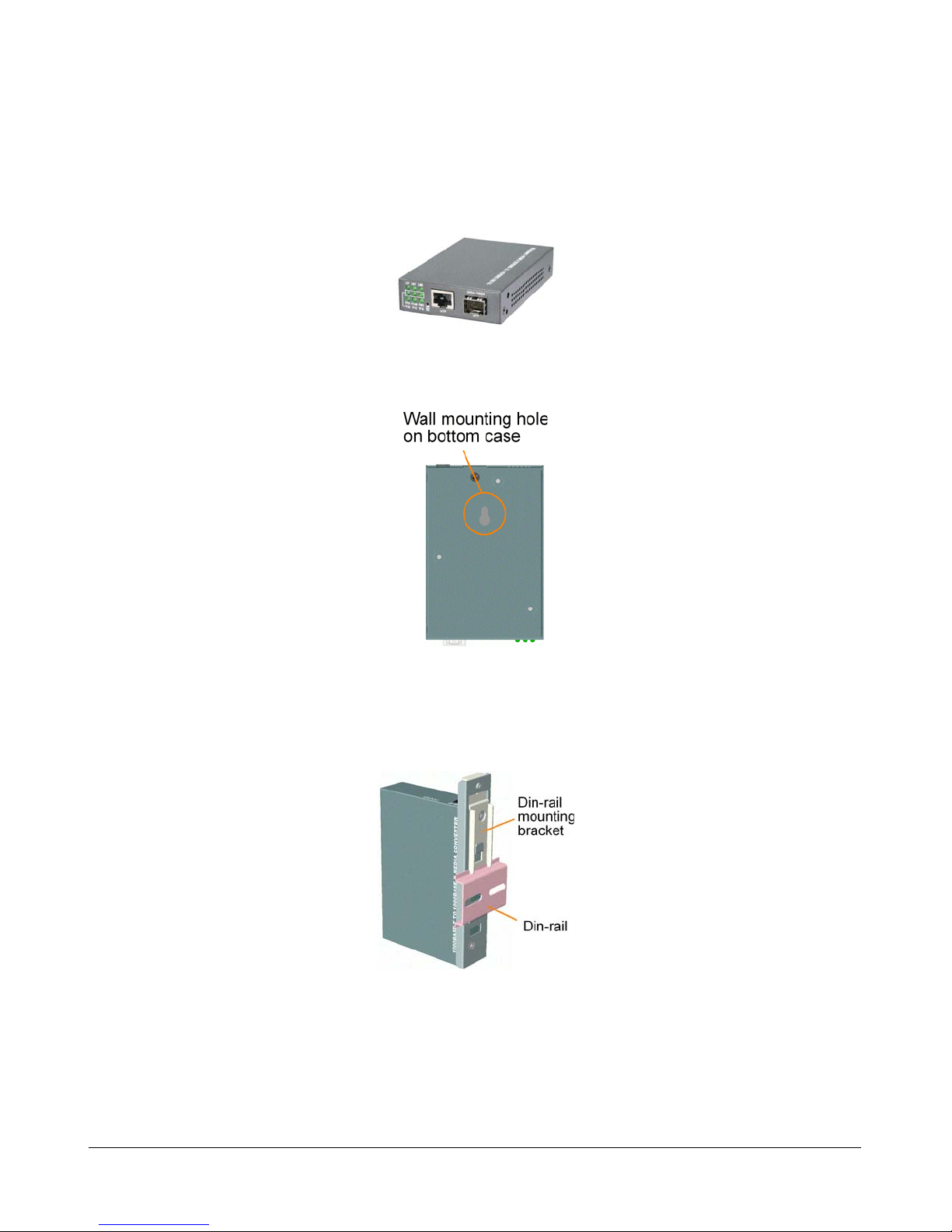

The media converter can be mounted on a desktop or shelf or a wall. Make sure that there is proper
heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the
device.

Desktop mounting

Wall mounting

The device has one mounting wall on the bottom side to support wall mounting.

Din-Rail mounting

For a Din-Rail chassis, the device can support mounting on a Din-Rail. An optional Din-Rail bracket,
KC-3DR can be purchased separately. The following figure shows an example after bracket installa­tion:

-12-

Center rack mounting

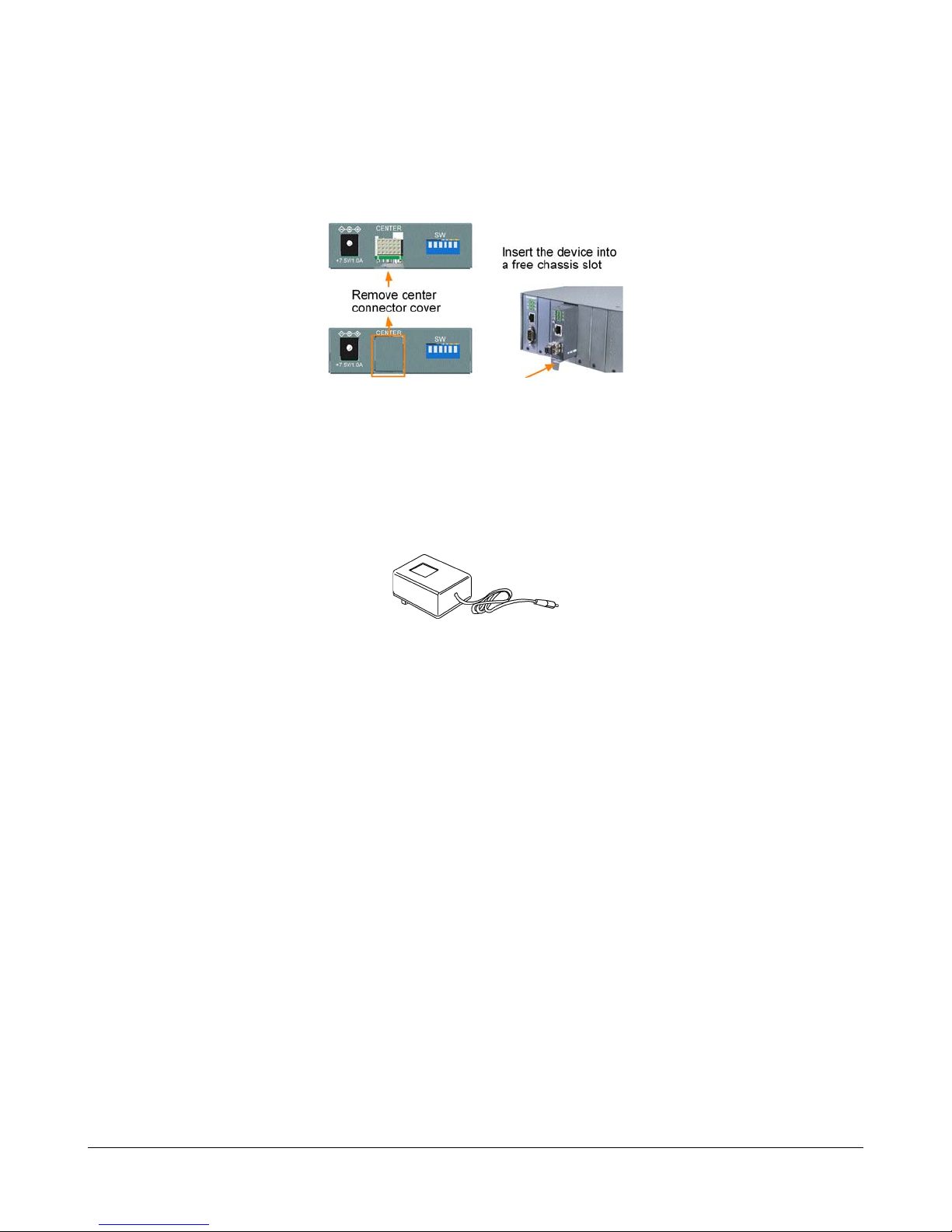

The media converter can also be installed in KC-1300 center chassis. The center chassis provides the
power supply to the converter also with optional power redunda ncy. Up to 16 units can be installed in
one chassis. Unscrew and remove the cover of the center connector before inserting the converter into
the chassis. Refer to the operation manual of center chassis KC-1300 for more information.

2.4 Applying Power

Before you begin the installation, check the AC voltage of your area. The AC power ada pter which is used
to supply the DC power for the unit should have the AC voltage matching the commercial power voltage in
your area.

The AC Power Adapter Specifications

AC input power: AC power voltage of your area, options -

Rated AC120V/60Hz DC7.5V 1A
Rated AC230V/50Hz DC7.5V 1A
Rated AC100V/50-60Hz DC7.5V 1A
Rated AC100V/50-60Hz DC5V 1A
Rated AC240V/50Hz DC7.5V 1A

Steps to apply the power to the device are:

1. Connect power adapter DC plug to the DC input jack located on the back of the unit before

connecting to the AC outlet.

2. Connect the power adapter to the AC outlet.

3. Check Power LED indication.

Note: Before you begin the installation, check the AC voltage of your area. The AC power

adapter which is used to supply the DC power for the unit should have the AC voltage
matching the commercial power voltage in your area.

-13-

2.5 Making UTP Connections

The 10/100/1000 twisted-pair copper (TP) port supports the following connection types a nd distances:

Network Cables

10BASE-T: 2-pair UTP Cat. 3,4,5 , EIA/TIA-568B 100-ohm
100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm
1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm
Link distance: Up to 100 meters

Auto MDI/MDI-X Function

This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid
MDI to MDI-X connection with the remote connected device automatically. No matter a straight
through cable or crossover cable is connected, the ports can sense the receiving pair automatically and
configure itself to match the rule for MDI to MDI-X connection. It simplifies the cable installation.

Auto-negotiation Function

The port is featured with auto-negotiation function and full capability to support connection to any
Ethernet devices. The port performs a negoti ation proce ss for the speed and duplex configuration with
the connected device automatically when each ti me a link is being esta blished. If the connected device
is also auto-negotiation capable, both devices will come out the best configuration after negotiation
process. If the connected device is incapable in auto-negotiation, the port will sense the speed and use
half duplex for the connection.

Port Configuration Management

For making proper connection to an auto-negotiation INCAPABLE device, it is suggested to set port
configuration to one of non-auto (forced) operating modes and specify speed and duplex mode which
match the configuration used by the connected device.

T wo methods for setting copper port configuration are as follows:

Model Methods

Unmanaged model DIP SW (switches) SW1, SW2, SW3
Managed model DIP SW (switches) SW1, SW2, SW3

Software management via web interface

Configuration -> Ports -> TP Mode

-14-

2.6 Making Fiber Connection

The mini-GBIC SFP (FX) port must be installed with an SFP fiber transceiver for making fiber
connection. Your device unit may come with an SFP transceiver pre-installed when it is shipped.

Installing SFP Fiber Transceiver

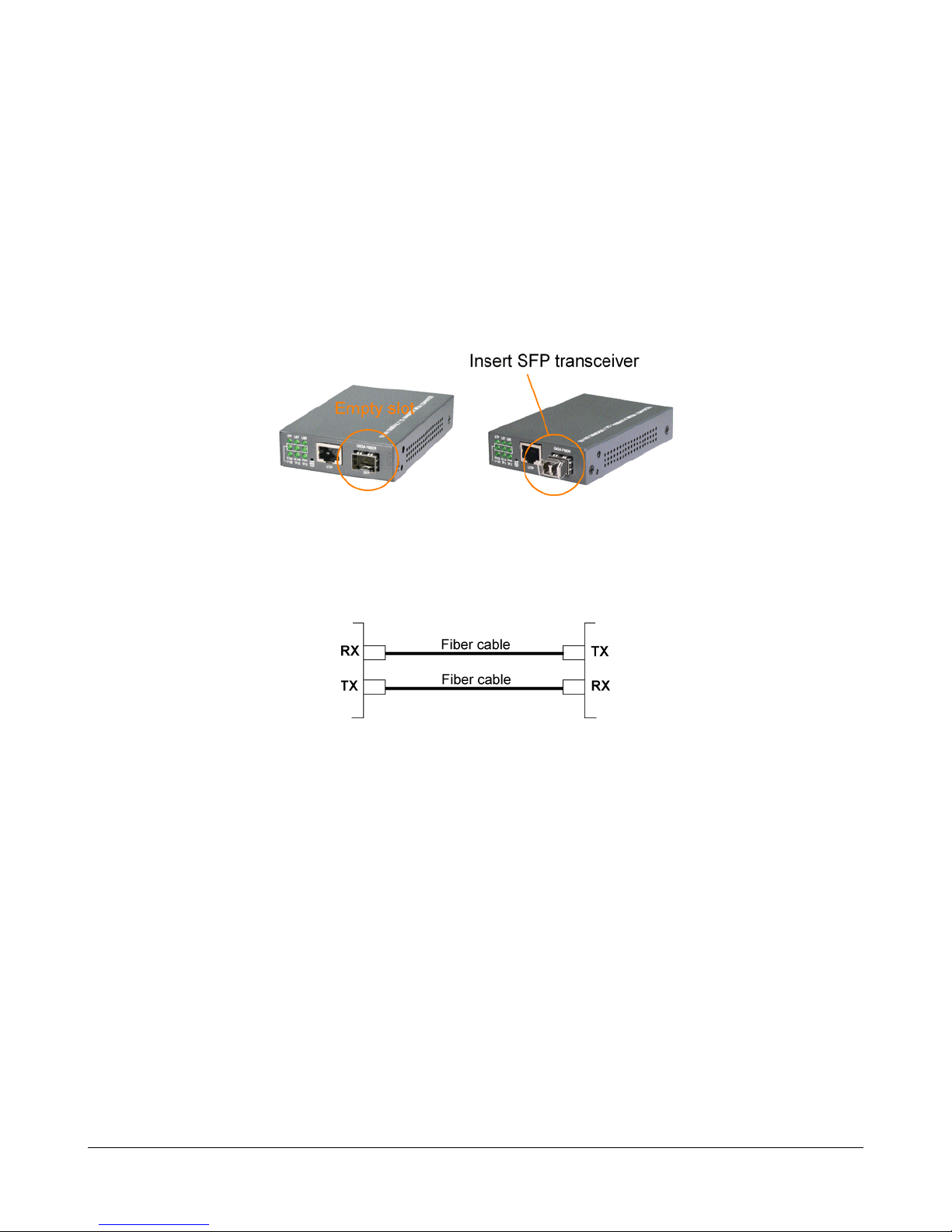

T o install an SFP fiber transceiver into mini-GBIC SFP port, the steps are:

1. Turn off the power to the device unit.

2. Insert the SFP fiber transce iver into the mini-GBIC port. Normally, a bail is provided f or every

SFP transceiver. Hold the bail and make insertion.

3. Until the SFP transceiver is seated securely in the slot, pla ce the bail in lock position.

Connecting Fiber Cables

LC connectors are commonly equipped on most SFP transceiver modules. Identify TX and RX
connector before making cable connection. The following figure illustrates a connection example
between two fiber ports:

Make sure the Rx-to-Tx connection rule is followed on the both ends of the fiber cable.

Network Cables

Multimode (MMF) - 50/125, 62.5/125
Single mode (SMF) - 9/125

-15-

2.7 Loopback Test Push Button

The push button is used to perform loopback te st between two media converters connected with fiber
cable a s shown below:

It allows installer to perform diagnostic to the fiber link during installation and check the test result
displayed on the LED indicators.

The button may also be used to restore the software configuration settings to factory default values.

The operations are:

Operations Functions

Press the button and release in normal operation Perform loopba ck test over fiber cable
Press the button about 5 seconds when power up Restore all factory default settings

-16-

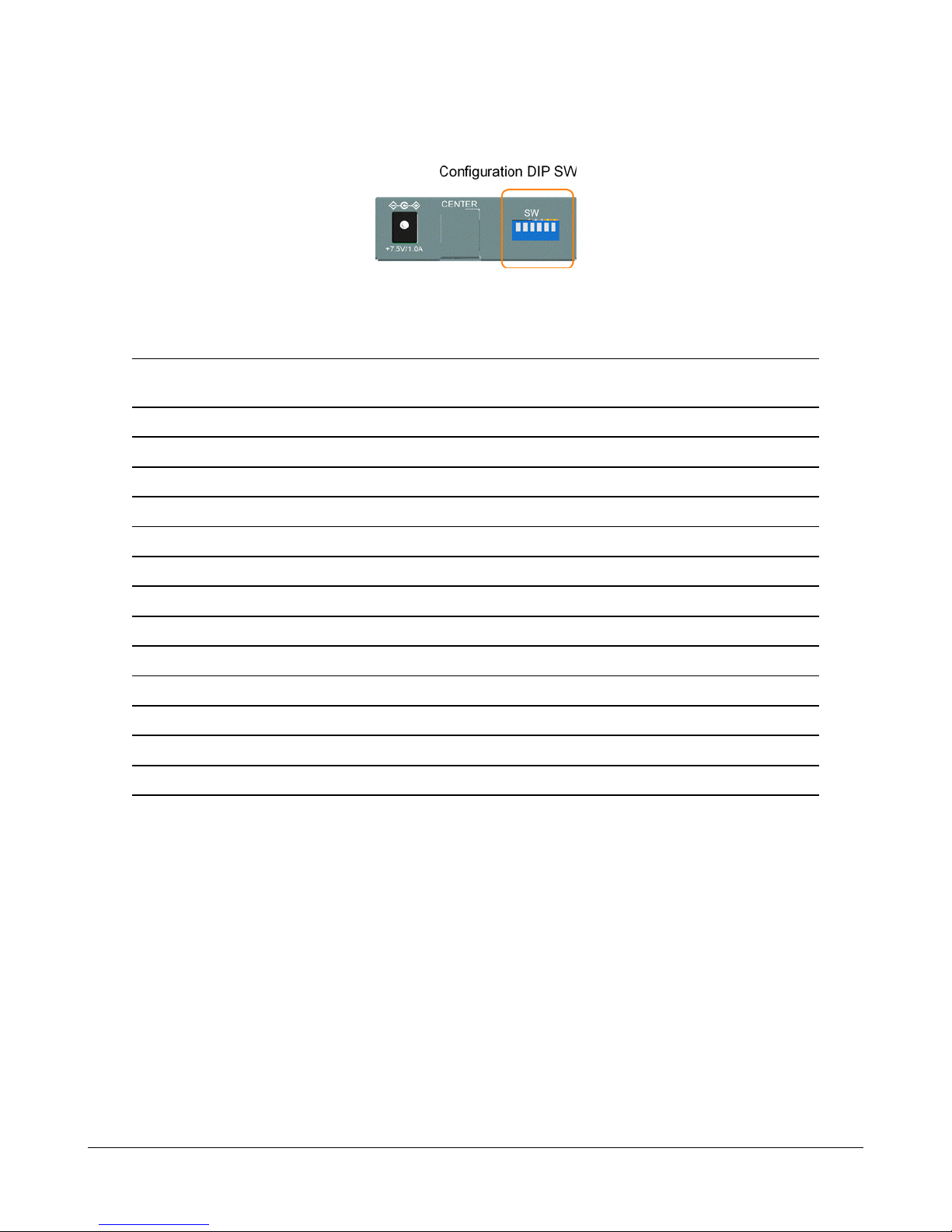

2.8 Configuration DIP SW

The configuration DIP SW (switches) are used for setting operation configuration manually.

The functions of each DIP SW states are:

SW1 SW2 SW3 SW4 SW5 SW6 Function

OFF OFF OFF ------ ------ ------ Ignore DIP SW6 SW5 SW4 settings

(Use software configuration for ma naged model)
ON OFF OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Full duplex mode
OFF ON OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Half duplex mode
ON ON OFF ------ ------ ------ Set TP Port in non-auto, 100Mbps, Full duplex mode
OFF OFF ON ------ ------ ------ Set TP Port in non-auto, 100Mbps, Half duplex mode
ON OFF ON ------ ------ ------ Set TP Port in auto, 1000Mbps, Full duplex mode
OFF ON ON ------ ------ ------ Disa ble TP Port function
ON ON ON ------ ------ ------ Set TP Port in auto, 10/100/1000Mbps, Half/Full duplex

------ ------ ------ OFF ------ ------ Enable flow control

------ ------ ------ ON ------ ------ Disable flow control

------ ------ ------ ------ OFF ------ Disable remote TP status auto-report function

------ ------ ------ ------ ON ------ Enable remote TP status auto-re port on TP LEDs

------ ------ ------ ------ ------ OFF Disable Link Fault Pass Through function

------ ------ ------ ------ ------ ON Enable Link Fault Pass Through function

-17-

2.9 LED Indication

LED Function State Interpretation

PWR Power status ON The power is supplied to the unit.

OFF The power is not supplied to the unit.

LTP Local TP status ON Local TP port status displayed on TPxxx LEDs

OFF Remote TP port status displayed on TPxxx LEDs
Blink Fail to display remote TP port status

Remark: 1. LTP is always ON if remote TP status auto-report function is disabled.

2. When remote TP status auto-report function is enabled, LTP is ON and
OFF for ten seconds respectively.

LBT Loopback Test Blink Loopback Test in operation

ON Loopback Test Result is displayed on LBR LED.
OFF Loopback Test stops

Remark: 1. LBT blinks to indicate loopback test in operation.

2 . LBT is ON for 10 seconds to indicate a test result is displayed on LBR.

LBR Loop Back TestResult ON Loopback Test OK

Blink Loopback Test failed

Remark: 1. LBR display is valid only when LBT is ON.

2. LBR is displayed for 10 seconds to indicate a loopback test result.

FXLNK FX port link status ON A 1000M link is established on FX port. (No traffic)

Blink Port link is up and there is traffic.
OFF FX port link is down.

TP1G TP 1000M link status ON A 1000M link is established on TP port.

OFF TP port link is down.

TP100 TP 100M link status ON A 100M link is esta blished on TP port.

OFF TP port link is down.

TP10 TP 10M link status ON A 10M link is established on TP port.

TPFDX TP duplex status ON Full duplex on TP port

OFF TP port link is down.

OFF Half duplex on TP port

-18-

2.10 Configuring IP Address and Password for the Device

For ma naged model, the device unit is shi pped with the f ollowing fa ctory default settings for software
ma nage ment :

Default IP address of the device : 192.168.0.2 / 255.255.255.0

The IP Address is an identification of the device unit in a TCP/IP network. Each unit should be desig­nated a new and unique IP address in the network. Refer to Web management interface for System
Configuration.

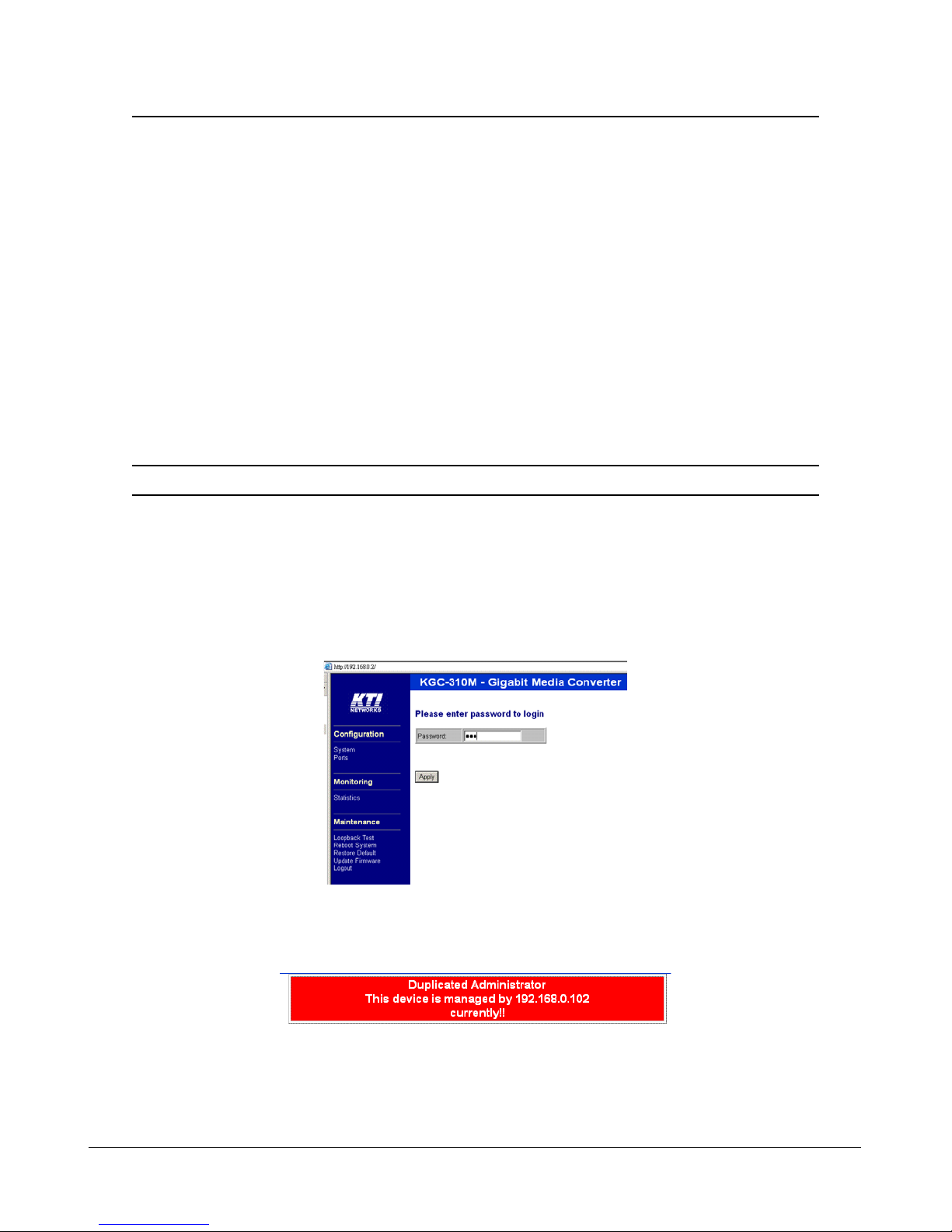

The managed device is shipped with factory default password 123 for software management. The
password is used for authentication in accessing to the device via web-based interface. For security
reason, it is recommended to change the default settings for the device unit before deploying it to your
network. Refer to Web management interface for System Configuration.

-19-

3. Functions

T o help a better understanding about the software management interfaces, this cha pter describe s some
a dvanced functions provided by the media converter .

3.1 Abbreviation

TP Port : The twisted-pair copper port of the media converter device.
FX Port : The optical fiber port of the medi a converter device.
Ingress Port : Ingress port is the input port on which a packet is received.
Egress Port : Egress port is the output port from which a packet is sent out.
IEEE 802.1Q Packets : A packet which is embedded with a VLAN Tag field
VLAN T ag : In IEEE 802.1Q packet format, 4-byte tag field is inserted in the original Ethernet frame

between the Source Address and Type/Length fields. The tag is composed of :

#of bits 16 3 1 12

Frame field TPID User priority CFI VID

TPID : 16-bit field is set to 0x8100 to identify a frame as an IEEE 802.1Q tagged pa cket
User Priority : 3-bit field refer to the 802.1p priority
CFI : The Canonical Format Indicator for the MAC address is a 1 bit field.
VID : VLAN identifier , 12-bit field identifie s the VLAN to which the fra me belongs to.
Untagged packet : A standard Ethernet frame with no VLAN Tag field
Priority-tagged packet : An IEEE 802.1Q packet which VID field value is zero (VID=0)

In the device, this packet is also treated as untagged packet.

VLAN-Tagged packet : An IEEE 802.1Q packet which VID field value is not zero (VID<>0)
PVID (Port VID)

PVID is the default VID of an ingress port. It is used in 802.1Q filtering for untagged pa ckets. It is also
often used as [Default Tag - VID] for egress tagging operation.
DSCP : Dif ferentiated Service Code Point, 6-bit value field in an IP packet

3.2 Converter Function

The device supports the following data conversions between fiber cable and twisted-pair Cat.5 (cop­per) cable:

The data rate on twisted-pair segment depends on the link speed finally esta blished with the link part­ner.

-20-

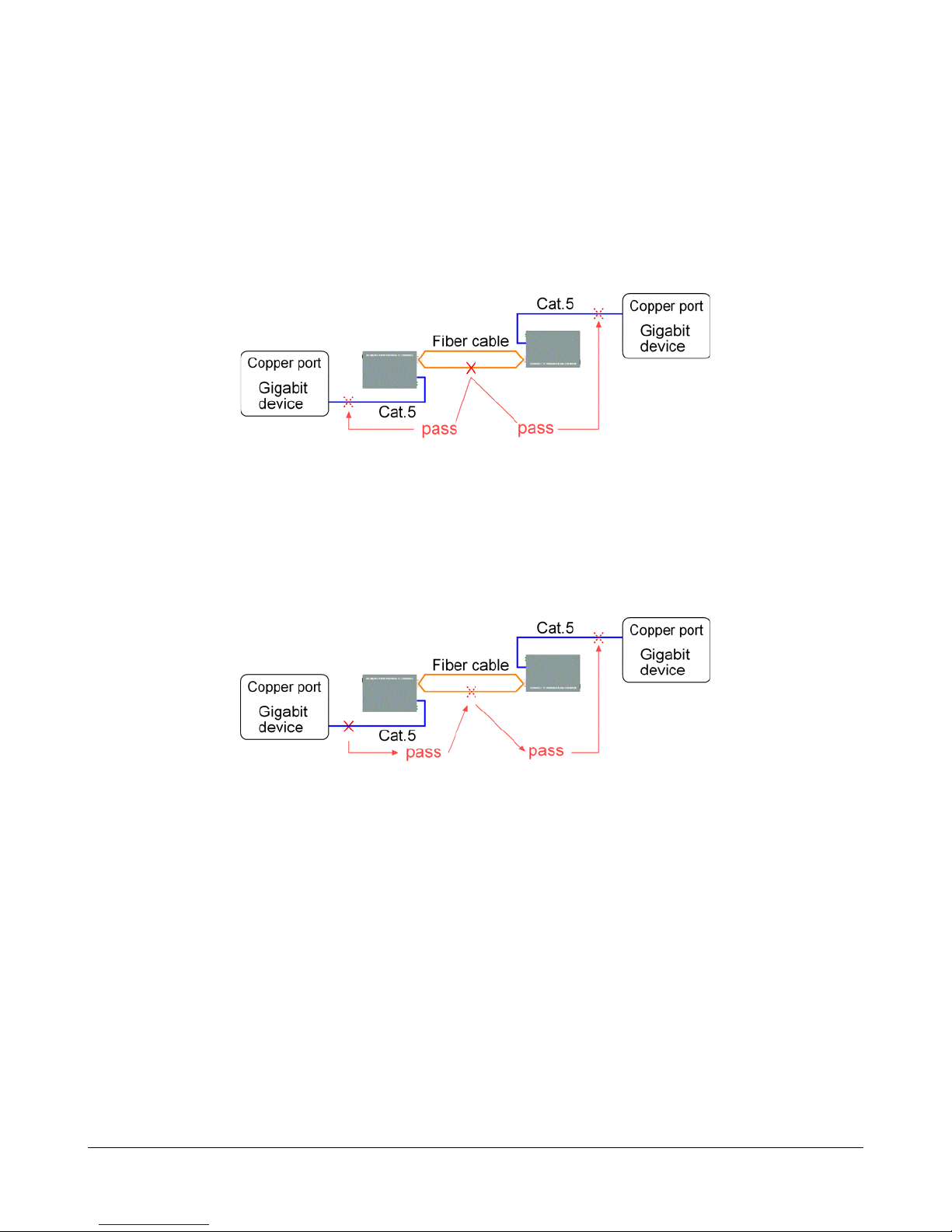

3.3 Link Fault Pass Through Function

Description

When the Link Fault Pass Through (LFPT) function is enabled and the media converter detects a link
fault on one port segment, it will force the other port segment link down. It looks like that a link fault is
passed from one port to the other.

The following example illustrates a link fault occurs on the fiber cable (any one ca ble in a duplex fiber
connection). The link fault is forwarded to both Giga bit link partners finally by LFPT operation of two
media converters.

Both Gigabit devices will also detect a link fault on ea ch Cat.5 connection, although the real fault occurs
on the fiber connection exactly.

The following example illustrate s a real link fault occurs on one Cat.5 a nd the link fault is pa ssed to the
other Cat.5 over two converters and the fiber cable by LFPT operation. Finally, the other link partner
also detects a link fault.

Advantage

The function allows two remote link partners of the media converters detect the link fault finally no
matter where the exact fault occurs. It allows the upper application takes necessary action in case a
real link fault occurs in a ny cable segment.

Methods to enable the function

The LFPT function can be enabled by:

Hardware setting: DIP SW6 is set to ON position
Software setting: W eb management ->

Configuration -> System -> [Link fault pass through]

-21-

3.4 Remote TP Status Monitoring Function

Description

The local media converter can monitor the TP port link status of its remote link partner connected on
the fiber cable. The status are displayed on the local LED indicators as follows:

Methods to enable the function

Hardware setting: DIP SW5 is set to ON position
Software setting: W eb management ->

Configuration -> System -> [Remote TP auto report ]

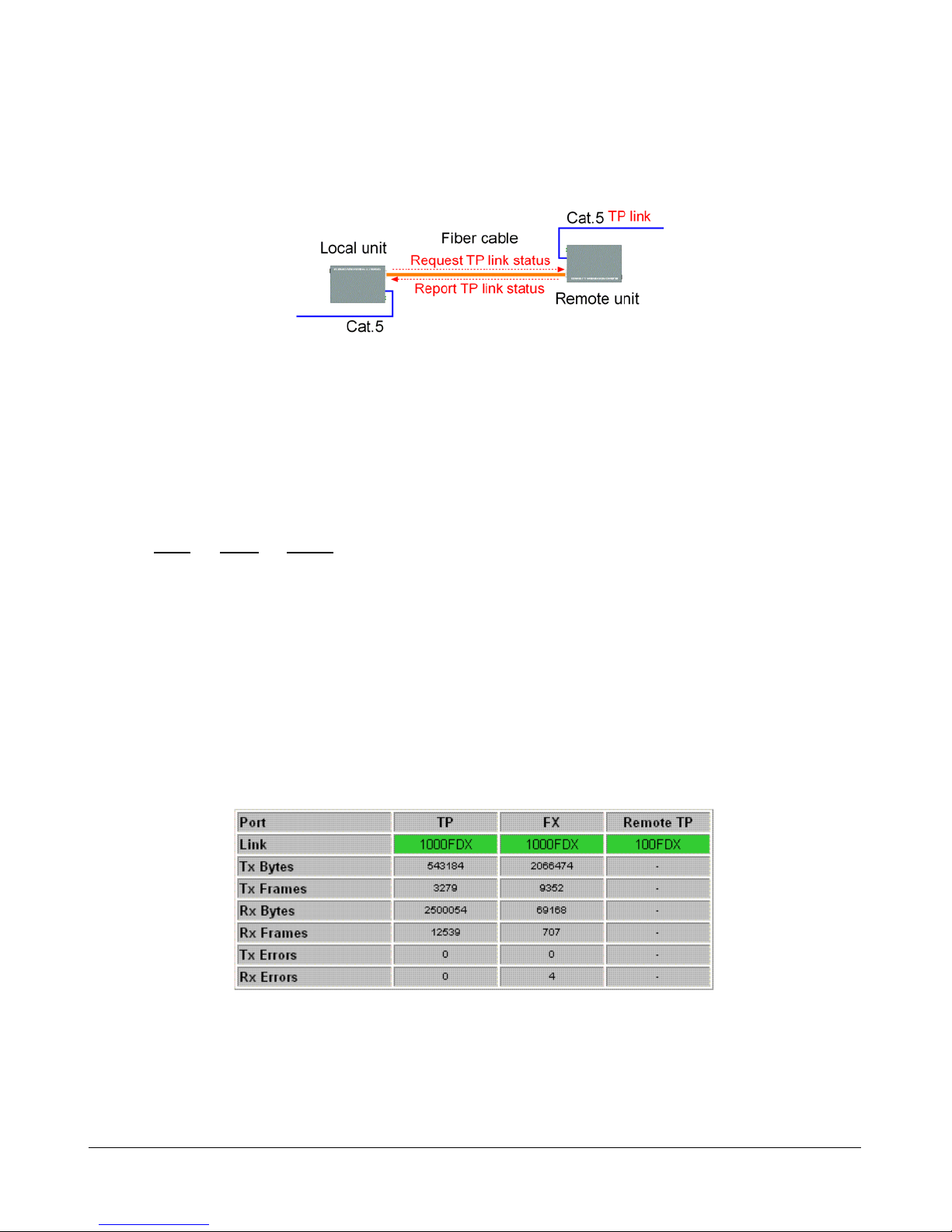

Remote TP Status Display

1. The status are displayed on local LEDs - TP1G, TP100, TP10, TPFDX when LTP is OFF.

LED State Status
LT P OF F Remote TP status is valid on the following LEDs

TP1G ON Remote TP link in 1000Mbps

OFF Remote TP link down

TP100 ON Remote TP link in 100Mbps

OFF Remote TP link down

TP10 ON Remote TP link in 10Mbps

OFF Remote TP link down

TPF D X ON Remote TP link in full duplex

OFF Remote TP link in half duplex

2. Web management -> Monitoring -> Statistics -> Remote TP [Link]

-22-

3.5 802.1Q Control Function

802.1Q Control function allows to perform 802.1Q VLAN related operation to the packets passing
through the media converter a ccording pa cket contents as follows:

[Ingress Drop] setting

The setting is the first filtering mecha nism to filter all incoming untagged packets or to filter all incoming
VLAN-tagged packets. The options are:

Disable - Disable port ingress drop function
Untag Only - All incoming untagged pa ckets a nd priority-tagged pa ckets are dropped.

Only VLAN-tagged packets are admitted.

Tag Only - All incoming VLAN-tagged packets are dropped.

Only untagged packets and priority-tagged packets are a dmitted.

[Ingress Keep Tag], [Egress Insert Tag] settings

The settings are used together for packet egress tagging or untagging as table listed below:

Ingress Keep Tag Egress Insert Tag Packet Modification

Enable Disable All packets are with no modification.
Disable Disable All packets are untagged in egress.
Disable Enable All packets are tagged in egress.
Enable Enable Settings not recommended (possible double-tagging)

[Ingress Keep Tag] options:
Enable - The VLAN tag in the received VLAN-tagged packet will be kept as it is and is

not stripped in whole conversion operation.

Disable - The VLAN tag data in the received VLAN-tagged packet is stripped (removed).

[Egress Insert Tag] options:
Enable - Insert a tag into the packet in egress. The tag inserted is based on the rule below:

Incoming Packet Type Tag inserted
Untagged Ingress port Default Tag
Priority-tagged Ingress port Default Tag
VLAN-tagged Received packet own tag

Disable - No tagging is performed.

-23-

[Default Tag -VID], [Default Tag - CFI], [Default Tag - Priority] settings

These settings compose one ingress port Default Tag. This tag is used when a tag insertion is required
for untagged packets.

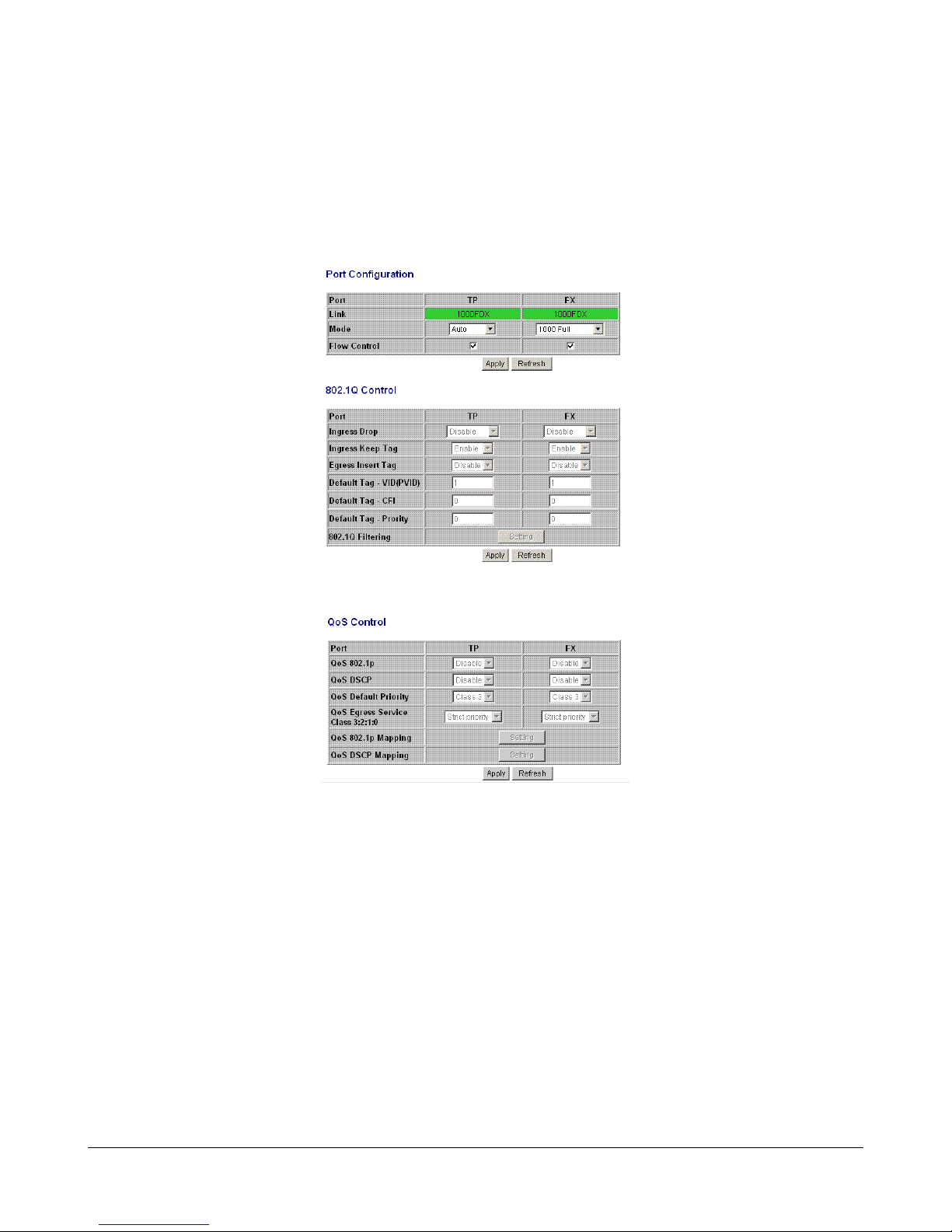

802.1Q Filtering

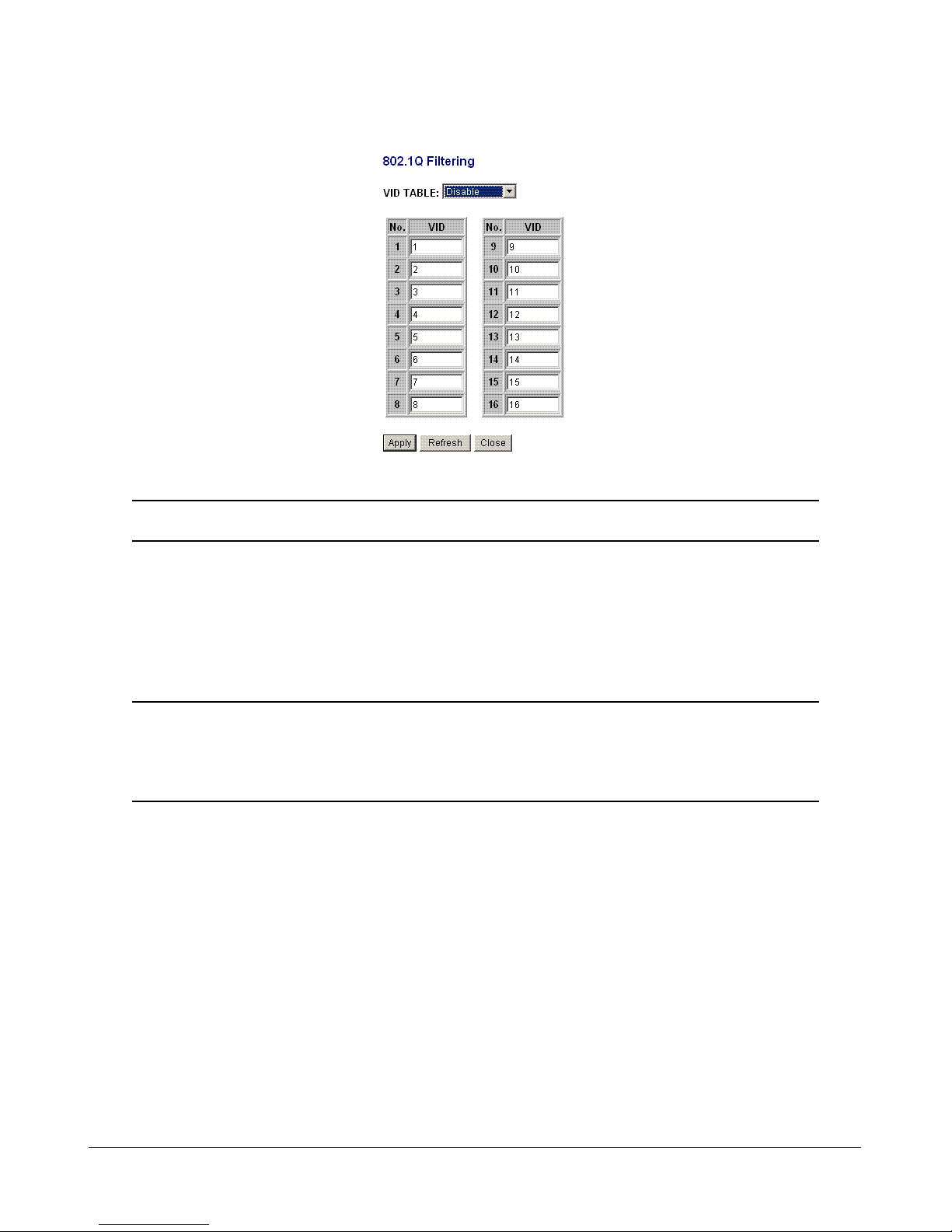

802.1Q VID Filtering function allows to admit or reject certain VID tagged packets. Up to 16 allowed
(positive list) or rejected (negative list) VIDs can be configured. This function allows to limit certain
packets to pass from one link segment to another one.

[VID Table] options

Disable - 802.1Q VID filtering is disa bled.
Allowed VID - Only the VLAN-tagged packets with VIDs in VID table are admitted.
Rejected VID - The VLAN-tagged packets with VIDs in VID table are rejected and dropped.

For untagged a nd priority-tagged packets, the ingre ss [Default T ag - VID], also called PVID is used for
VID filtering. If it is in Allowed VID ta ble, the untagged packet is allowed to pa ss; otherwise, dropped.
If it is in Rejected VID table, the untagged packet is dropped.

-24-

3.6 QoS Function

The device provides a powerful Quality of Service (QoS) function to guide the packet forwarding in
four priority cla sses. The versatile cla ssification methods can meet most of the application needs.

The function is useful for guiding the incoming traffic on high data rate port into low data rate port in

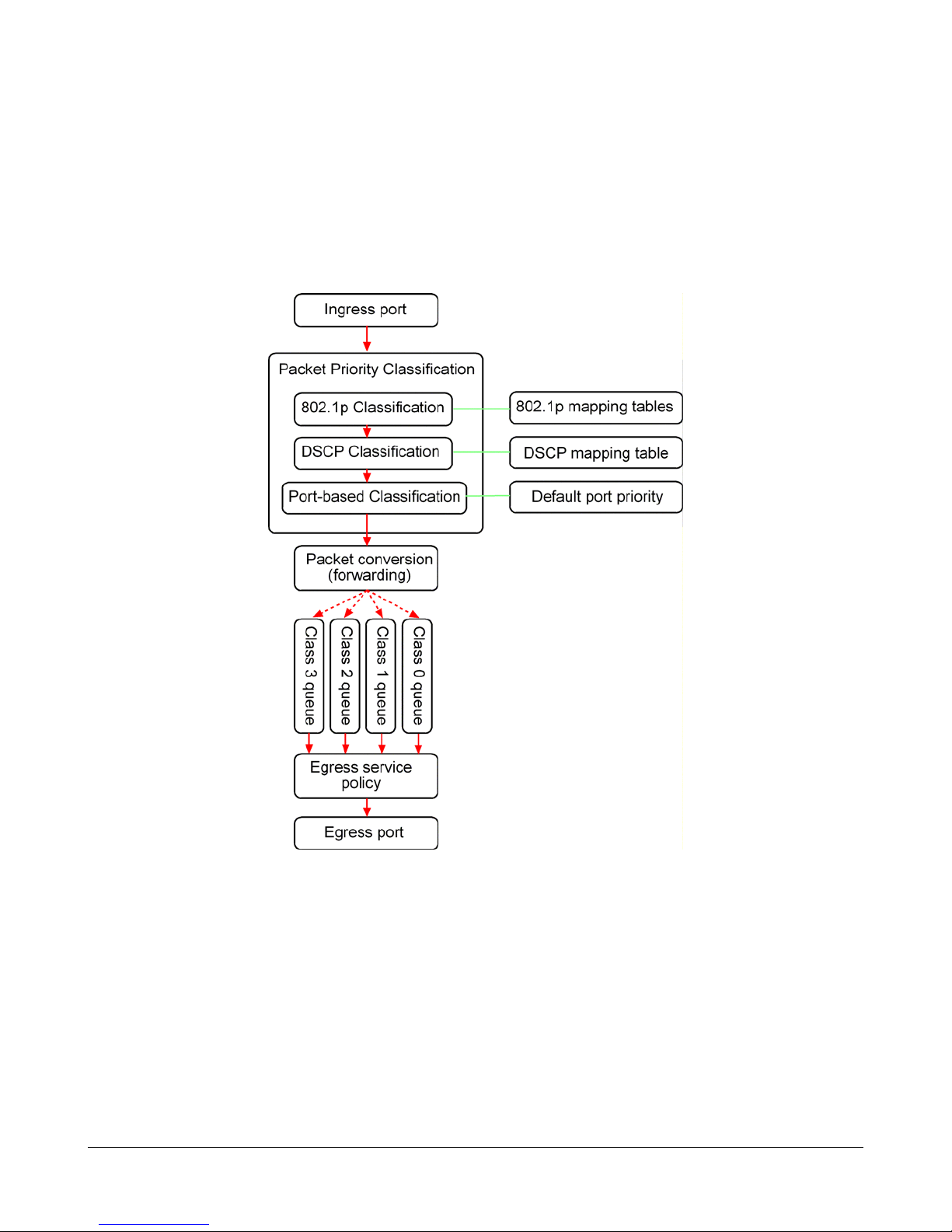

priority . The f ollowing figure illustrates the QoS operation flow when a pa cket received on the ingre ss
port until it is tra nsmitted out from the egress port:

Since the media converter can support full wire speed conversion for 1000Mbps to 1000Mbps, QoS
function is not essential for such a pplication. It is suggested to disa ble the QoS function f or 1000Mbps
to 1000Mbps conversion.

-25-

3.6.1 Packet Priority Classification

Each received packet is examined and classified into one of four priority classes, Class 3, Class 2,
Class 1 a nd Cla ss 0 upon rece ption. The device provides the f ollowing classification methods:

802.1p classification : use User Priority tag value in the received IEEE 802.1Q packet to map to one
priority class

DSCP classification : use DSCP value in the received IP packet to map to one priority class
Port-based classification : used when 802.1p and DSCP are disabled or fail to be applied

They all can be configured to be activated or not. More than one classification methods can be enabled
at the same time. However, 802.1p classification is superior than DSCP classification.

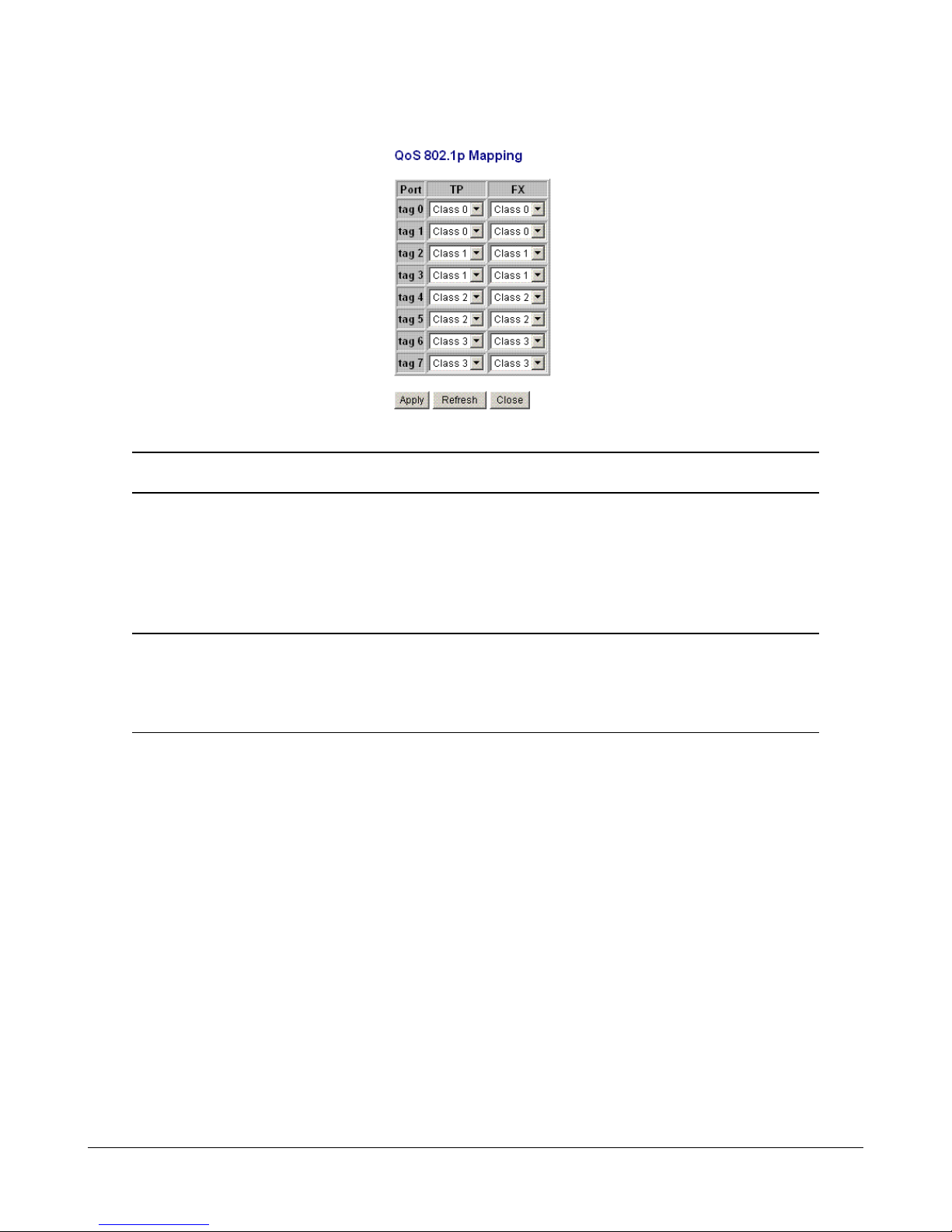

802.1p mapping tables : Each port has its own mapping table for 802.1p classification.

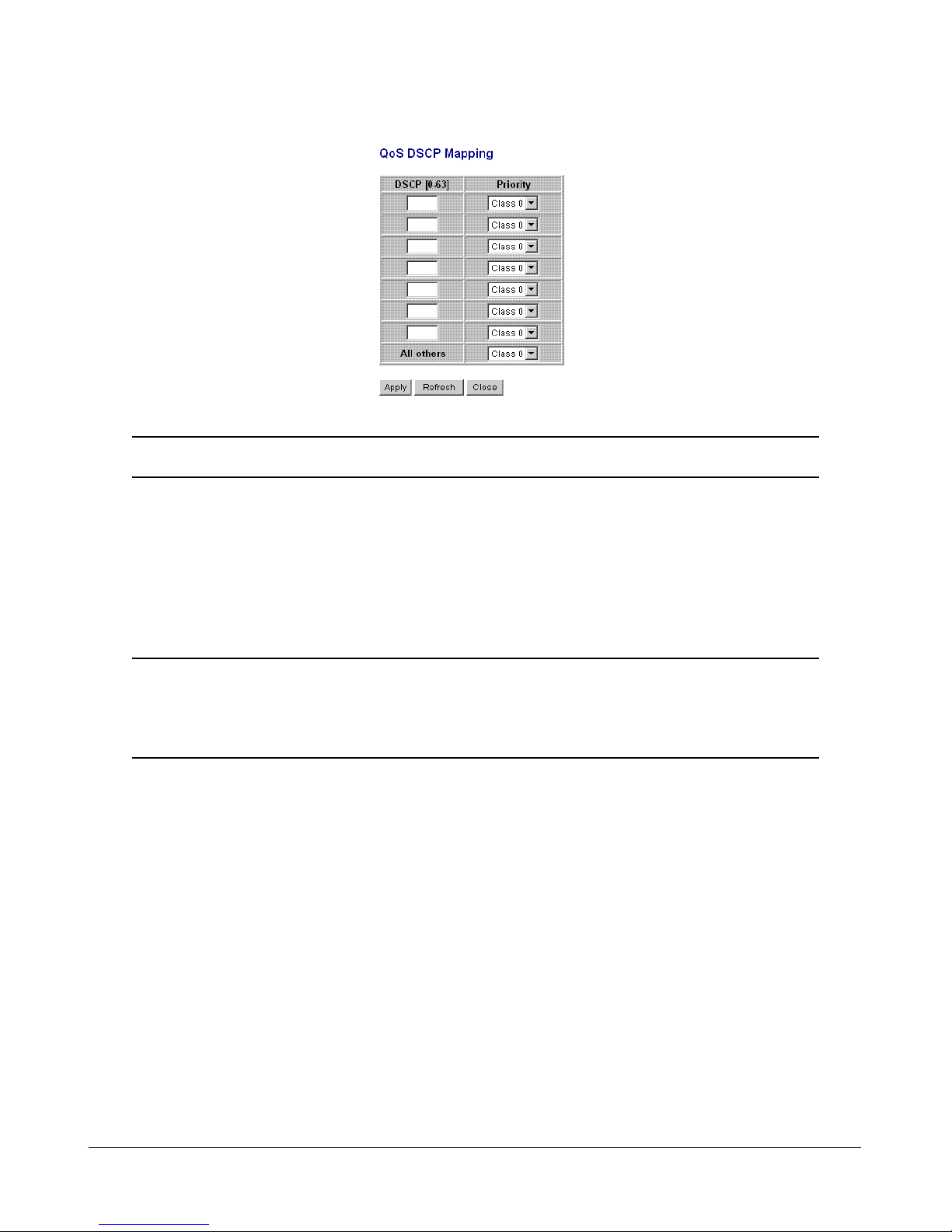

DSCP mapping table : Two ports share one DSCP mapping table for DSCP classification.
Default port priority : A port default priority class is used when port-based classification is applied

All configuration settings are in per port basis except that DSCP mapping table is global to all ports. A
received packet is classified into one of four priority class before it is forwarded to an egress port.

3.6.2 Priority Class Queues

Each port in the device is equipped with four priority class egress queues to store the packets for
tra nsmission. A pa cket is stored into the cla ss queue which is associated to the classified priority cla ss.
For example, a pa cket is stored into Class 3 egress queue if it is classified a s priority Class 3.

3.6.3 Egress Service Policy

Each port can be configured with an egress service policy to determine the transmission priority among
four class queues. By default, higher class number has higher priority than the lower class numbers.

Four policies are provided for selection as follows:

• Strict priority : Packets in high priority class queue are sent first until the queue is empty

• Weighted ratio priority Class 3:2:1:0 = 4:3:2:1 : four queues are served in 4:3:2:1 ratio

• Weighted ratio priority Class 3:2:1:0 = 5:3:1:1 : four queues are served in 5:3:1:1 ratio

• Weighted ratio priority Class 3:2:1:0 = 1:1:1:1 : four queues are served equally

Strict priority policy lets high priority class queue is served first until it is empty. Lower priority queue
may not get any service (or egress bandwidth) when higher priority traffic is heavy for long time. Three
weighted ratio policies are provided to resolve such problem. Four class queues are served in weighted
round robin basis. Every priority class can get a guaranteed ratio for the egress bandwidth.

-26-

3.7 SNMP Trap Function

SNMP tra p function allows the device to send tra p message to a n SNMP trap host over SNMP protocol
when the associated trap event occurs.

SNMP Trap settings

The settings are used to configure a trap host who can receive the SNMP trap message issued from a
media converter device unit.

[SNNP Tra p] Enable / disa ble SNMP tra p function
[Community Name] The community string bound in a trap message
[Trap IP Address] The IP address of the target SNMP trap host who is allowed to receive the

traps.

SNMP Trap events

The following events are defined for generating a trap message when the event occurs on the unit.

z The device boot up.
z TP copper port link down
z TP copper port link up (link recovery).
z FX fiber port link down
z FX fiber port link up (link recovery).

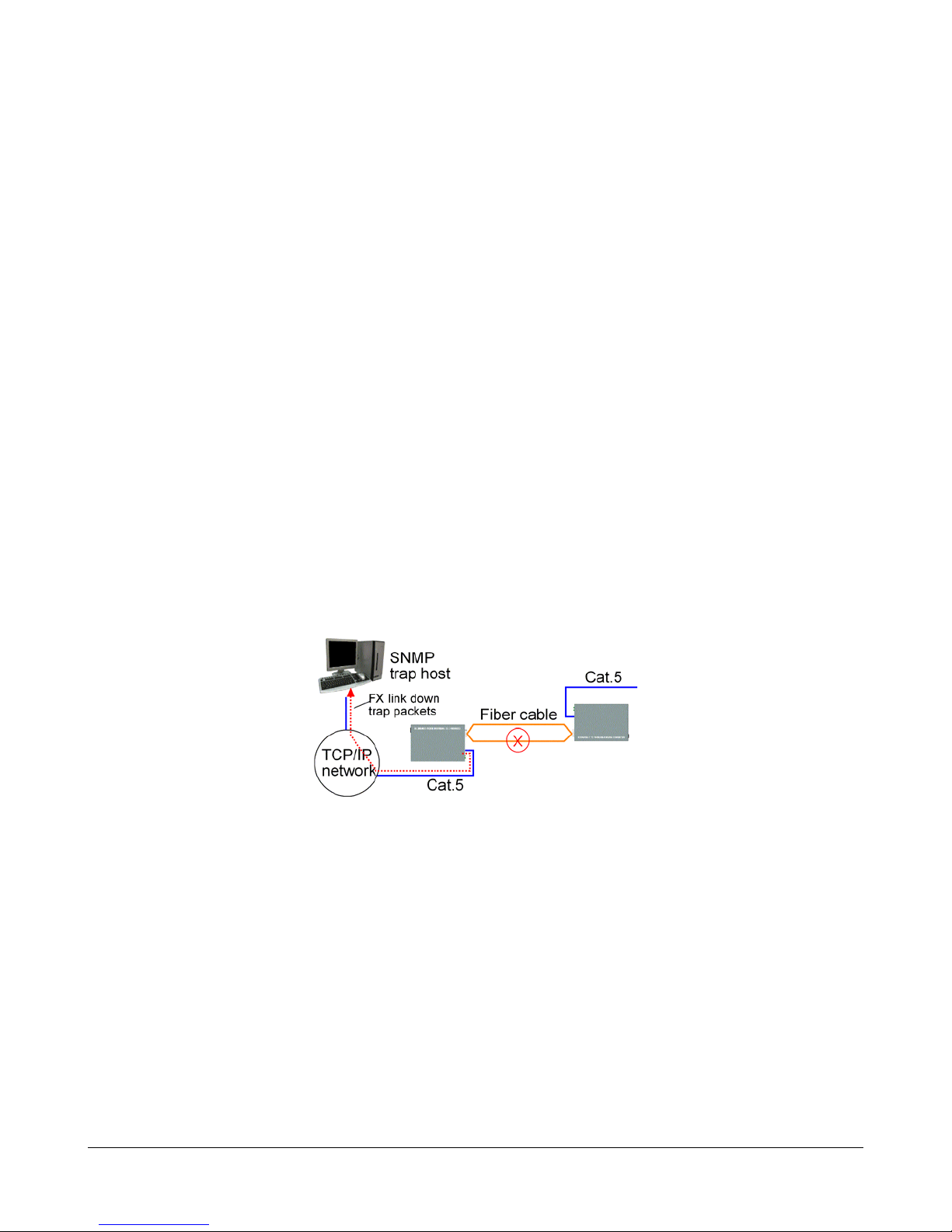

The following exa mple illustrates an event of FX port link down occurs a nd is detected by the device.
Then, it generates a trap message to the SNMP trap host PC.

-27-

4. Web Management

The media converter features an http server which can serve the management requests coming from
any web browser software over TCP/IP network.

Web Browser

Compatible web browser software with JAVA script support
Microsoft Internet Explorer 4.0 or later
Netscape Communicator 4.x or later

Set IP Address for the System Unit

Before the device unit can be managed from a web browser software, make sure a unique IP address
is configured for the unit.

4.1 Start Browser Software and Making Connection

Start your browser software a nd enter the IP address of the unit to which you want to connect. The IP
address is used as URL for the browser software to search the device.

URL : http://xxx.xxx.xxx.xxx/

Factory default IP address : 192.168.0.2

4.2 Login to the Device Unit

When browser software connects to the device unit successfully , a Login screen is provided for you to
login to the device as follows:

The device will accept only one successful management connection at the same time. The other con­nection attempts will be prompted with a warning message.

A new connection will be accepted when the current user logout successfully or auto logout by the
device due to no access for time out of 3 minutes. System Configuration is displayed after a success-
ful login.

-28-

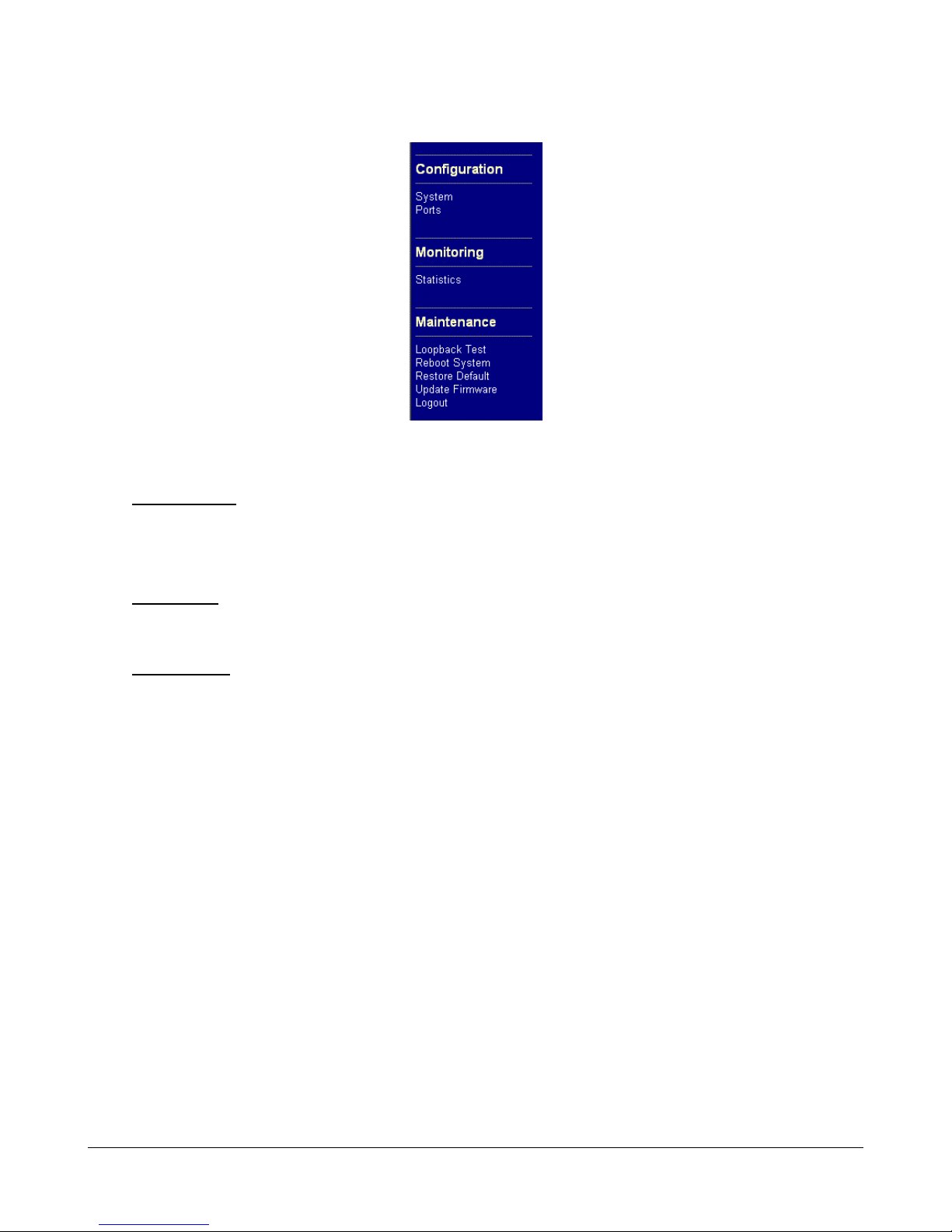

4.3 Main Management Menu

The following information describe s the basic functions of the main menu.

Configuration

System Device information, system and IP related settings
Ports Port link status, operation mode configuration and other per port settings

Monitoring

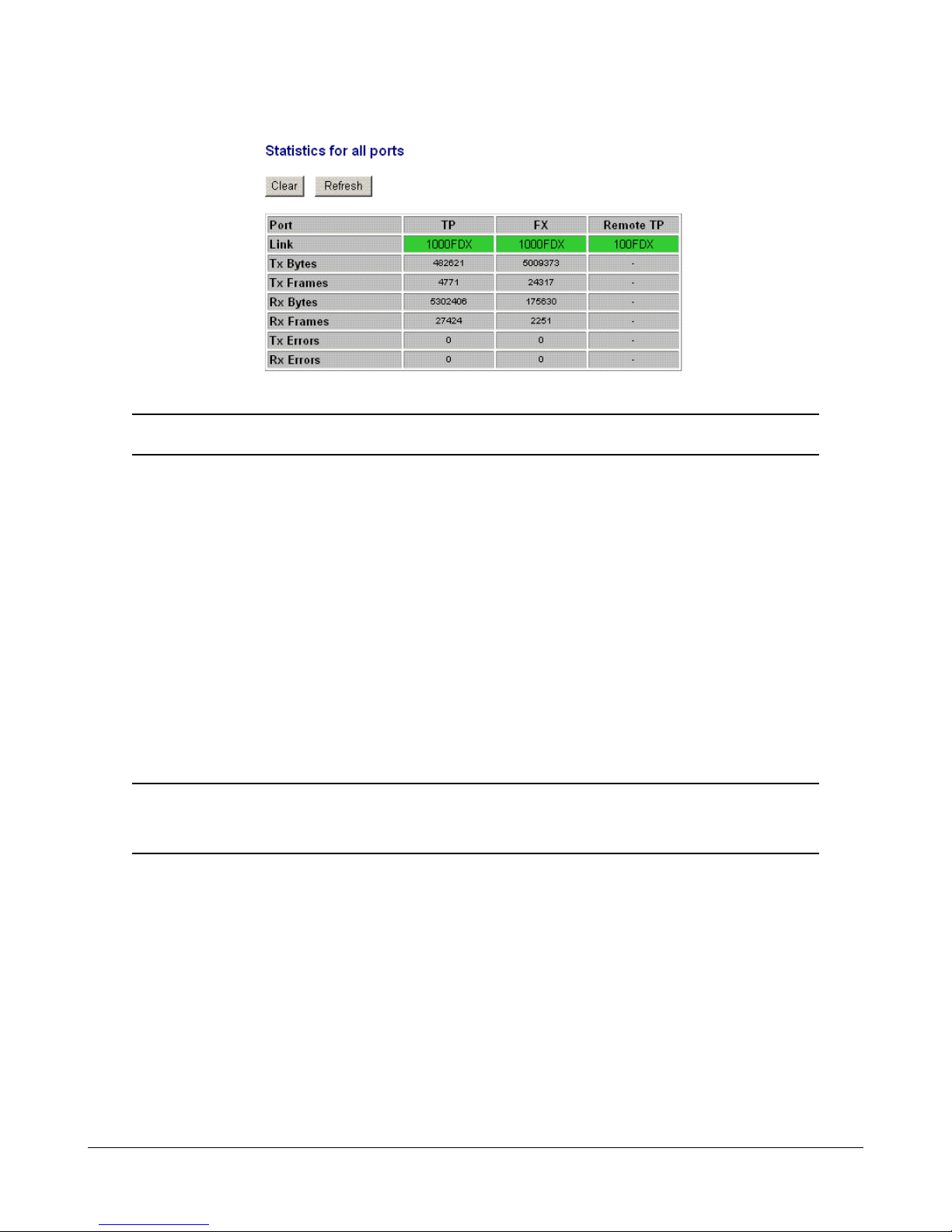

Statistics List statistics for the local ports and remote TP port link status

Maintenance

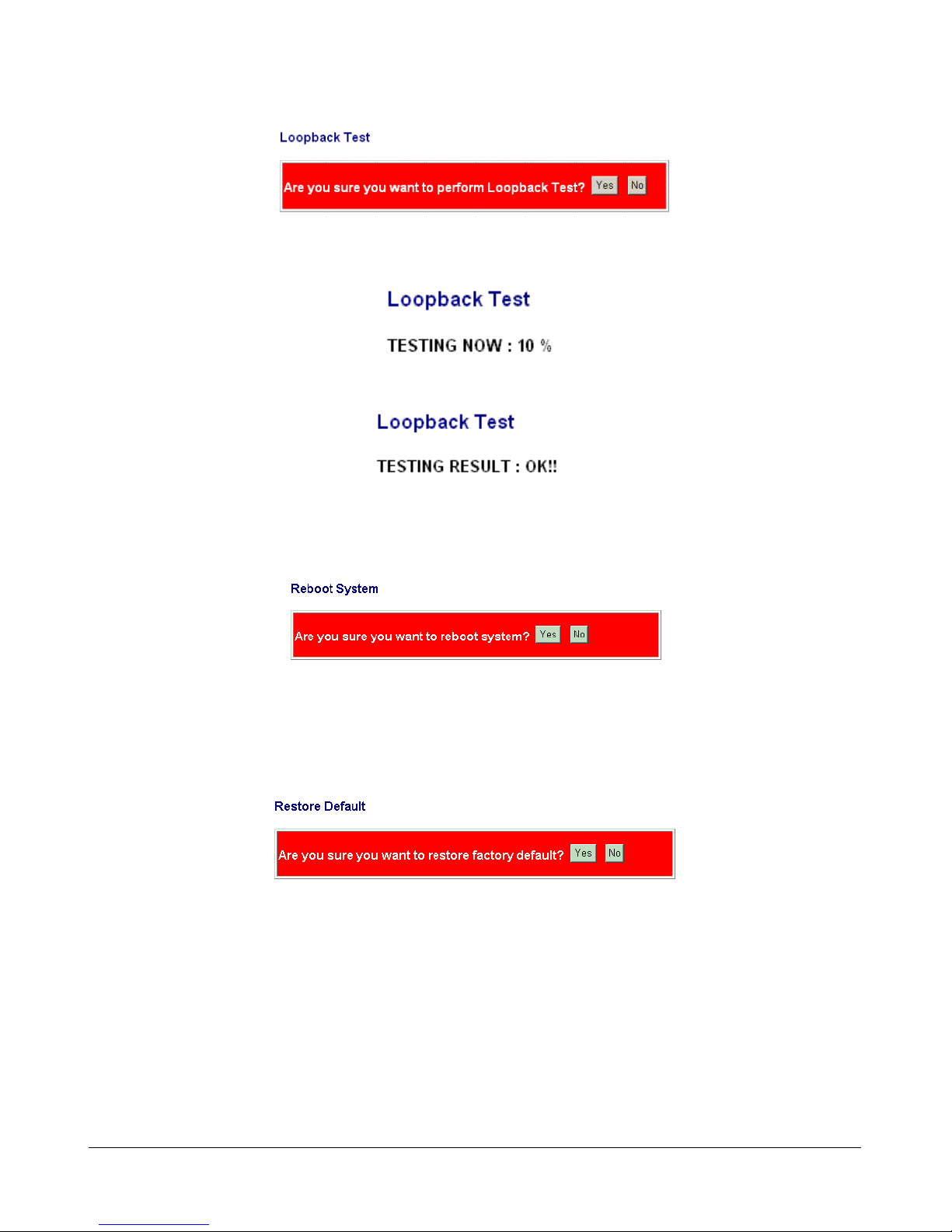

Loopback T est Command to perf orm loopba ck test on fiber link
Reboot System Comma nd to reboot the device unit
Restore Default Command to restore the device unit with factory default settings

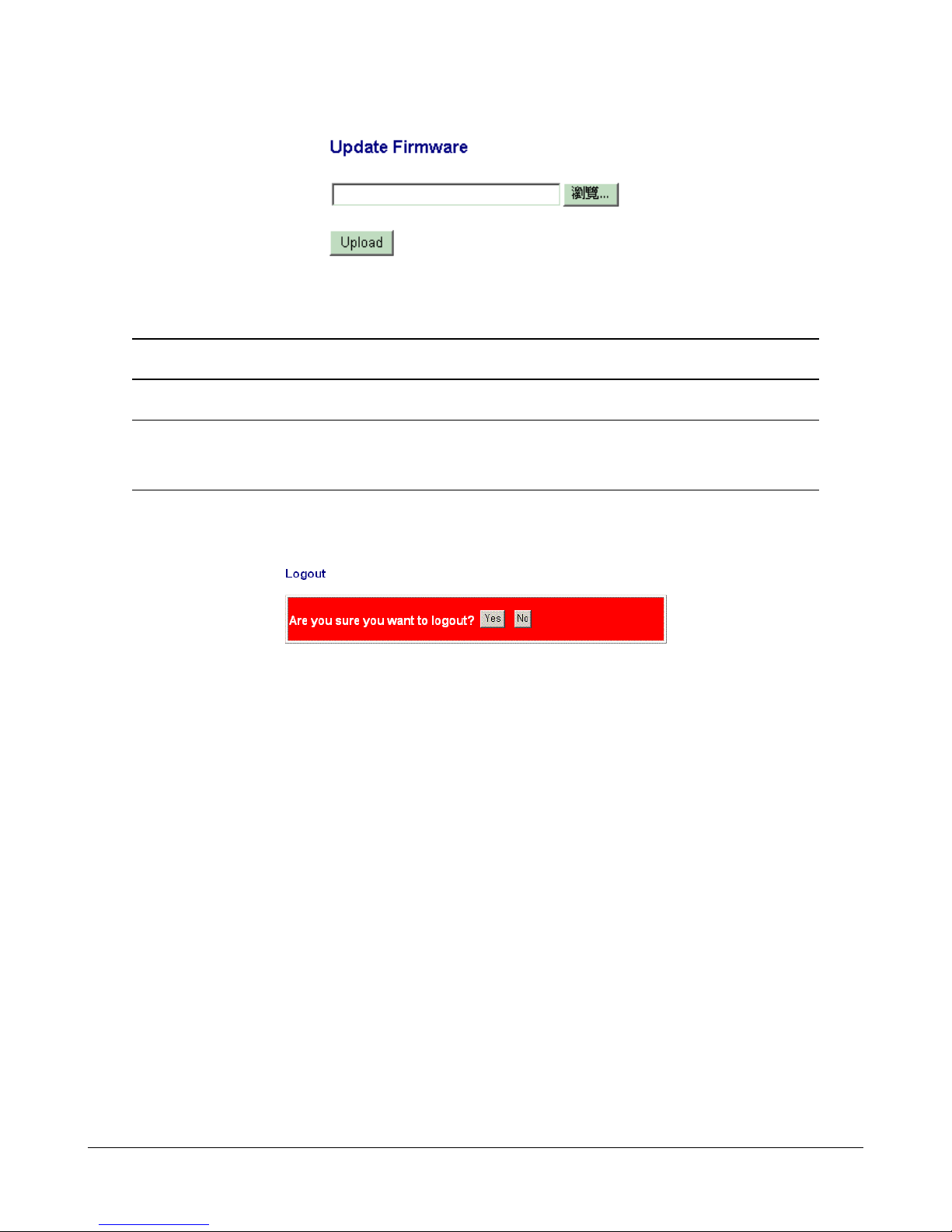

Update Firmware Command to update the device firmware
Logout Command to logout from current web manage ment

-29-

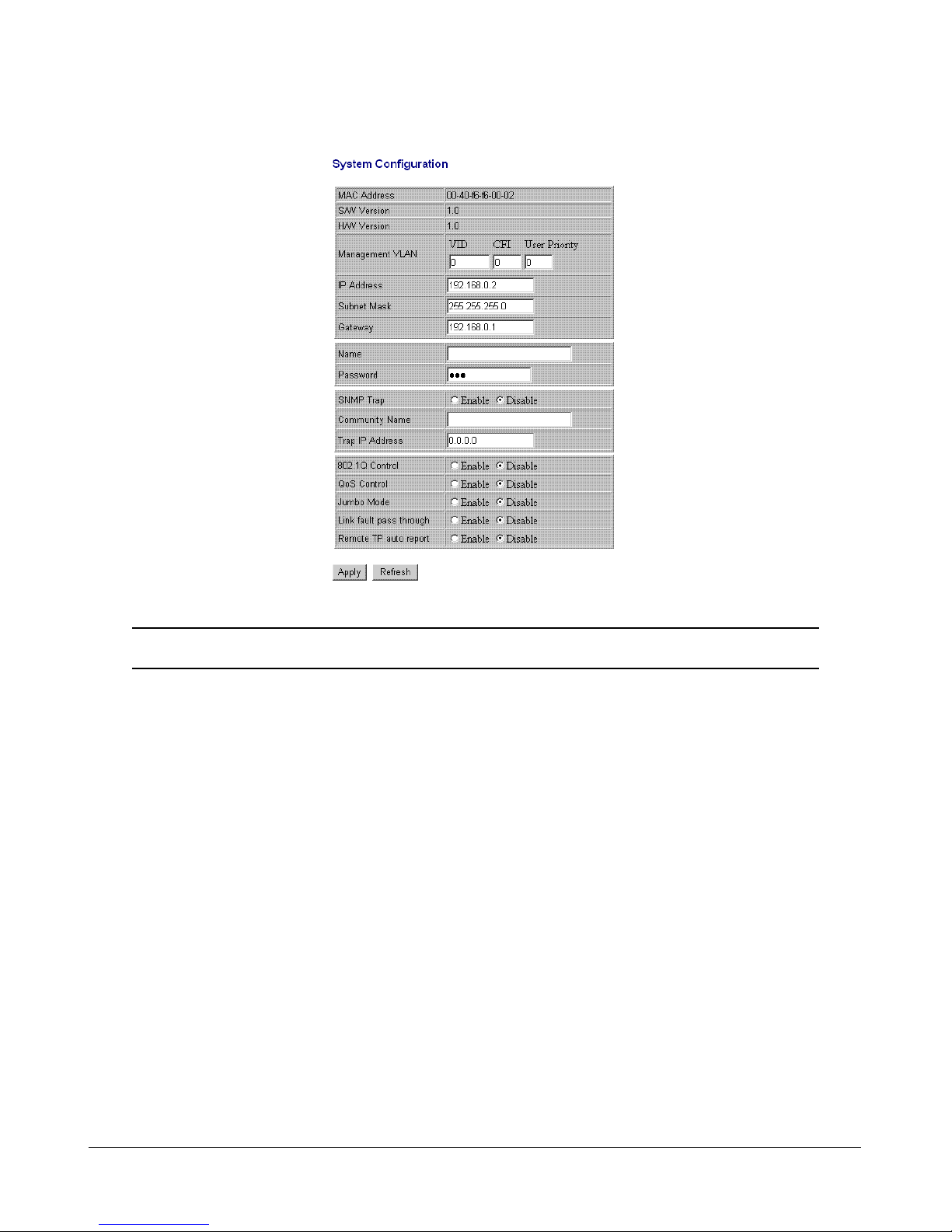

4.4 System

Configuration Description

MAC Address The MAC address factory configured for the unit

It can not be changed in any cases.
S/W V ersion The firmware version currently running
H/W Version The hardware version currently operating
Management VLAN Set management VLAN information (See next section)

- VID VLAN ID configured for web management to the device

- CFI CFI value for web reply packets from the device

- User priority Priority value for web reply packets from the device
IP Address Set IP address for the device web management
Subnet Mask Set Subnet mask for IP address for the web management
Gateway Set Default gateway IP address for the web management
Name Set the system name for this device unit
Password Set new password

-30-

SNMP Trap SNMP tra p function configuration

Disable - the device is disable to send SNMP trap messages.

Enable - the device is enable to send SNMP trap messages.

Community Name Set community string to be bound with trap packets
Trap IP Address Set IP address of the SNMP trap host

802.1Q Control 802.1Q Control function main configuration

Disable - all packets are allowed to pass with no 802.1Q control.

Enable - 802.1Q control mechanism is activated for the conversion.

QoS Control Enable / disa ble QoS Control function main configuration

Disable - Pa cket priority cla ssification function is disa bled.

Enable - Packet priority classification function is enabled.

Jumbo Mode Enable / disa ble Jumbo mode to support jumbo packets

Disable - support maxi mum packet size up to 1526 bytes

Enable - support maximum packet size up to 9600 bytes

Link fault pass through Enable / disa ble link fault pass through function
Remote TP auto report Enable / disable remote TP port link status function

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

Note: It is suggested to give each device unit a system name as an alternative unique

identification beside IP address.

-31-

4.4.1 Management VLAN

Management VLAN settings allow administrator to access the device and perform the web manage­ment over a dedicated VLAN only.

The following rules are a pplied with the M anagement VLAN:

1. If the 802.1Q Control function is disabled, Management VLAN settings are ignored and no

VLAN li mitation is applied in accessing the web management interface. The http server only
accepts untagged management packets and replies untagged packets to the management host.

2. If [Management VLAN - VID] settings is zero, no VLAN limitation is applied in accessing the

web management interface. The http server only accepts untagged management packets and
replies untagged packets to the management host.

3. If [Management VLAN - VID] settings is not zero, The http server only accepts tagged manage-

ment packets matched [Management VLAN -VID] and replies tagged packets with tag com­posed of [Management VLAN] VID, CFI and User Priority settings to the management host.

Summary of the rules:

802.1Q Control Management VLAN VID Embedded Http (Web) Server operation
Disabled Ignore Accept untagged web packets

Reply untagged packets

Enabled VID=0 Accept untagged web packets

Reply untagged packets

Enabled VID<>0 Accept matched tagged web packets only

( 1 ~ 4095) Reply tagged packets with the configured tag

Notes:

1. No matter how management VLAN is configured, login password authentication is still

required.

2 . Default [Management VLAN - VID] is equal to zero. It is allowed to access the device from

any untagged PC web browser.

3. Most of the PCs are tag-incapable for LAN access. Be sure the rules are followed before

setting [Management VLAN - VID] not equal to zero.

-32-

4.5 Ports

Ports Configuration has three ma jor parts a s f ollows:

Port Configuration Port link status, port operating mode, port flow control

802.1Q Control 802.1Q Control per port settings
QoS Control QoS Control per port settings

-33-

Port Configuration Function

Port TP - Twisted-Pair copper port

FX - Fiber port
Link Port link status

Speed and duplex status with green background - port is link on

Down with red background - port is link down

Mode Select port operating mode

Disabled - disable the port operation

TP Mode Auto-negotiation Speed capability Duplex capability

Disable Disable port operation

Auto Enable 10, 100, 1000M Full, Half

10 Half Disable 10M Half

10 Full Disable 10M Full

100 Half Disable 100M Half

100 Full Disable 100M Full

1000 Full Enable 1000M Full

FX Mode Auto-negotiation Speed capability Duplex capability

Disable Disable port operation

1000 Full Enable 1000M Full

Force 1000 Full Disable 1000M Full

Flow Control Set port flow control function

V - set to enable 802.3x pause flow control for ingress and egress

802.1Q Control Function

Ingress Drop Disable - disable port ingress drop and admit all packet types

Untag Only - Drop both untagged and priority-tagged packets

Tag Only - Drop VLAN-tagged packets (VID<>0)

Ingress Keep Tag Tag is removed from the received packet if it exists.

Enable - set to activate tag removal for VLAN-tagged packets

Disable - set to disable tag removal function

Egress Insert Tag Tag is inserted into the outgoing pa cket in egress operation.

Enable - set to activate tagging

Disable - set to disa ble tagging function

Default Tag - VID Port VID, VID for Ingress Default Tag

1 ~ 4095 - decimal 12-bit VID value
Default Tag - CFI CFI for Ingress Default Tag

0, 1 - 1-bit CFI value
Default Tag -Priority User priority for Ingress Default Tag

0 ~ 7 - decimal 3-bit value

[802.1Q Filtering] Click to set VID filtering ta ble

-34-

QoS Control D escription

QoS 802.1p 802.1p priority classification

Enable - set to ena ble this classification to the port for priority-tagged and

VLAN-tagged packets

Disable - 802.1p cla ssification is not a pplied to the port
QoS DSCP DSCP classification

Enable - set to enable DSCP classification to the port for IP packets

Disable - DSCP classification is not applied to the port.

QoS Default Priority Default priority cla ss, it is used when 802.1p and DSCP classifications are

disabled. It is also used as default priority class for the received packet

when both 802.1p a nd DSCP cla ssification failed in classification.

Class 3 ~ Class 0 - priority class
QoS Egress Service Service policy for egress priority among four egress class queues

Strict priority - high class queue is served first always till it is empty

Ratio 4:3:2:1 - W eighted ratio priority Cla ss 3:2:1:0 = 4:3:2:1

Ratio 5:3:1:1 - W eighted ratio priority Cla ss 3:2:1:0 = 5:3:1:1

Ratio 1:1:1:1 - W eighted ratio priority Cla ss 3:2:1:0 = 1:1:1:1

[802.1p Ma pping] Click to configure 802.1p mapping table s.
[DSCP M apping] Click to configure DSCP mapping ta ble.
[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration

Notes:

1. 802.1p classification is superior over DSCP classification if both are en abled. That means

if a received packet is classified successfully in 802.1p classification, the classified priority
class is used directly for the packet and the result of DSCP classification is ignored.

2. Queue with higher class number has higher priority than queue with lower class number.

That means Class 3 > Class 2 > Class 1 > Class 0 by default.

3. In weighted ratio policies, a weighted fairness round robin service is guaranteed normally.

However, when excess bandwidth exists higher class queue will take advantage on band­width allocation.

4. It is suggested to apply QoS Control function only on 1000M to 100M conversion. Under

1000M to 1000M full wire speed conversion, the effect of QoS control function is not
obvious.

5. The function of all three [Apply] buttons are identical. Click any one to apply the change.

6. The function of all three [Refresh] buttons are identical. Click any one to refresh settings.

-35-

4.5.1 802.1Q Filtering

Configuration Description

VID TABLE Specify the characteristic of the VID table.

Disable - set to disa ble 802.1Q filtering function.

Allowed VID - the VID table specifies the allowed VIDs

rejected VID - the VID table specifies the rejected VIDs

No. Entry of VID table - up to 16 VIDs can be configured in VID table
VID 1 ~ 4095 - decimal 12-bit VID value

[Apply] Click to apply the configuration cha nge.
[Refresh] Click to refresh current configuration.
[Close] Click to close this window.

Notes:

1. VID table is referred for filtering VLAN-tagged packets according to the VID value embed-

ded in the packet. For untagged or priority-tagged packet, [Default Tag - VID], also
called PVID is used instead in referring VID table.

2. [Allowed VID] setting is useful when only certain VIDs are allowed to pass the device.

3. [Rejected VID] setting is useful when only certain VIDs are not allowed to pass the device.

-36-

4.5.2 802.1p Mapping

Configuration Description

Port TP - Twisted-Pair copper port

FX - Fiber port
tag m 3-bit User priority tag value m ( range : 0 ~ 7 )
Priority class Mapped priority class for tag m on Port

Class 3 ~ Class 0

[Apply] Click to apply the configuration cha nge
[Refresh] Click to refresh current configuration
[Close] Click to close the window

Notes:

1. Each port has its own 802.1p mapping table.

2. The ingress port table is referred in 802.1p priority classification for a received packet.

-37-

4.5.3 DSCP Mapping

Configuration Description

DSCP [0-63] Seven user-defined DSCP values which are configured with a priority class

0 ~ 63 - 6-bit DSCP value in decimal
Priority The priority class configured for the user-defined DSCP value

Class 3 ~ Class 0

All others The other DSCP values not in the seven user-defined values are assigned a

default priority class

Class 3 ~ Class 0

[Apply] Click to apply the configuration change
[Refresh] Click to refresh current configuration
[Close] Click to close the window

Notes:

1. Only one DSCP mapping table is configured and applied to both ports.

2. The table is referred in DSCP priority classification for a received packet.

-38-

4.6 Statistics

Configuration Description

Port TP - Twisted-Pair copper port on local unit

FX - Fiber port on local unit

Remote TP - TP port of the remote unit connected on the fiber link
Link Port link status

Speed a nd duplex status with green ba ckground - port is link on

Down with red background - port is link down
Tx Bytes Total of bytes transmitted on the port
Tx Frames Total of packet frames transmitted on the port
Rx Bytes Total of bytes received on the port
Rx Frames Total of packet frames received on the port
Tx Errors Total of error packet frames transmitted on the port
Rx Errors Total of error packet frames received on the port

[Clear] Click to reset all statistic counters
[Refresh] Click to refresh all statistic counters

-39-

4.7 Loopback Test

This menu is used to start a loopback test operation with the link partner unit over the fiber link. The
message displayed during test is:

The result message displayed after a test finished is:

The test result is also displayed on LEDs - LBT and LBR.

4.8 Reboot System

This menu is used to reboot the device unit remotely with current configuration. Starting this menu will
make your current http connection lost. You must rebuild the connection to perform any management
operation to the unit.

4.9 Restore Default

This menu is used to restore all settings of the device unit with factory default values exce pt current IP
configuration a nd M anagement VLAN configuration.

-40-

4.10 Update Firmware

This menu is used to perform in-band firmware (software) upgrade. Enter the path and file name of
new firmware image file f or uploa ding.

Configuration Description

Filename Path and filename (warp format)

[Browse] Click to browse your computer file system for the firmware image file
[Upload] Click to start upload

4.11 Logout

This menu is used to perform a logout from the web ma nage ment. If current user does not perform any
management operation over 3 minutes, the device will execute an auto logout and abort the current
connection.

-41-

Appendix A. Factory Default Settings

Configuration DIP SW Unmanaged Model Managed Model

SW3 SW2 SW1 ON ON ON OFF OFF OFF

Auto,10/100/100,Full/Half Web configuration

SW4 OFF (Enable flow control) OFF
SW5 OFF (Disable remote TP auto report) O FF
SW6 O FF (Disable link fault pass through) O FF

System Configuration

Management VLAN - VID 0
Management VLAN - CFI 0
Management VLAN - User priority 0
IP Address 192.168.0.2
IP Subnet mask 255.255.255.0
Gateway IP 192.168.0.1
Name Null
Password 123
SNMP Trap Disable
Community Name Null

(SW4-6 ignored)

Trap IP Address 0.0.0.0

802.1Q Control Disable
QoS Control Disable
Jumbo Mode Disable
Link fault pass through Disable
Remote TP auto report Disable

Ports Configuration

Mode Auto for TP port, 1000 Full for FX port
Flow Control v : Enable
Ingress Drop Disable

-42-

Ingress Keep Tag Enable
Egress Insert Tag Disable
Default Tag - VID (PVID) 1
Default Tag - CFI 0
Default Tag - Priority 0
QoS 802.1p Disable
QoS DSCP Disable
QoS Default Priority Class 3
QoS Egress Service Strict priority

802.1Q Filtering

VID TABLE Disable
VID n (n=1-16) n

802.1p Mapping

tag 0 Class 0
tag 1 Class 0
tag 2 Class 1
tag 3 Class 1
tag 4 Class 2
tag 5 Class 2
tag 6 Class 3
tag 7 Class 3

DSCP Mapping

DSCP / Priority 1 -7 Null / Class 0
All others Class 0

-43-

Appendix B. Models & Optical Specifications

Model Definition

KGC-310 U nmanaged model with no pre-installed SFP tran sce iver
KGC-310-xxxx Unmanaged model with pre-installed SFP transce iver
KGC-310M Managed model with no pre-installed SFP transceiver
KGC-310M-xxxx Managed model with pre-installed SFP tra n sceiver

Model Ext. FiberCon. Reference Fiber Distance (Typ.)

-SX LC Duplex MMF 500m

-LX LC Duplex MMF 550m, SMF 10km

-LX20 LC Duplex SMF 20km

-LX30 LC Duplex SMF 30km

-LX50 LC Duplex SMF 50km

-LX70 LC Duplex SMF 70km

Bi-directional WDM over single SMF

-W3510 LC Simplex SMF 10km

-W5310 LC Simplex SMF 10km

-W3520 LC Simplex SMF 20km

-W5320 LC Simplex SMF 20km

-W3410 LC Simplex SMF 10km

-W4310 LC Simplex SMF 10km

-W3410S S C Simplex SMF 10km

-W4310S S C Simplex SMF 10km

Optical Specifications

Model Ext. Wavelength Tx Power*1Rx Sen.*2Max.Rx*

-SX 850nm -9.5~ -4 -18 0

-LX 1310nm -9.5~ -3 -20 -3

-LX20 1310nm -8~ -2 -23 -1

-LX30 1310nm -4~ +1 -24 -3

-LX50 1550nm -4~ +1 -24 -3

-LX70 1550nm 0~ +5 -24 -3

Bi-Direction WDM over single SMF

-W3510 T1310/R1550 -9~ -3 -21 -1

-W5310 T1550/R1310 -9~ -3 -21 -1

-W3520 T1310/R1550 -8~ -3 -23 -1

-W5320 T1550/R1310 -8~ -3 -23 -1

-W3410 T1310/R1550 -9~ -3 -21 -1

-W4310 T1550/R1310 -9~ -3 -21 -1

-W3410S T1310/R1550 -9~ -3 -21 -1

-W4310S T1550/R1310 -9~ -3 -21 -1

1

*

Tx Power : Transmitter power (min. ~ max., unit: dBm)
*2 Rx Sen. : Receiver sensitivity (unit :dBm)
*3 Max.Rx. : Maximal Received power (unit : dBm)

3

-44-
