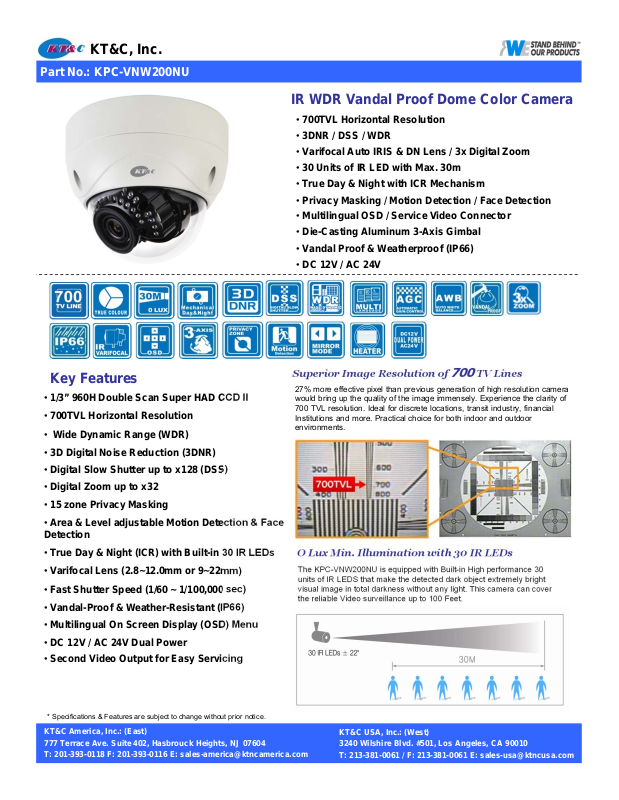

KT&C KPC-VNW200NUV18 Specsheet

KT&C, Inc.

Part No.: KPC-VNW200NU

IR WDR Vandal Proof Dome Color Camera

• 700TVL Horizontal Resolution

• 3DNR / DSS / WDR

• Varifocal Auto IRIS & DN Lens / 3x Digital Zoom

• 30 Units of IR LED with Max. 30m

• True Day & Night with ICR Mechanism

• Privacy Masking / Motion Detection / Face Detection

• Multilingual OSD / Service Video Connector

• Die-Casting Aluminum 3-Axis Gimbal

• Vandal Proof & Weatherproof (IP66)

• DC 12V / AC 24V

Key Features

• 1/3” 960H Double Scan Super HAD CCD II

• 700TVL Horizontal Resolution

• Wide Dynamic Range (WDR)

• 3D Digital Noise Reduction (3DNR)

• Digital Slow Shutter up to x128 (DSS)

• Digital Zoom up to x32

• 15 zone Privacy Masking

• Area & Level adjustable Motion Detection & Face

Detection

• True Day & Night (ICR) with Built-in 30 IR LEDs

• Varifocal Lens (2.8~12.0mm or 9~22mm)

• Fast Shutter Speed (1/60 ~ 1/100,000 sec)

• Vandal-Proof & Weather-Resista nt (IP66)

• Multilingual On Screen Display (OSD) Menu

• DC 12V / AC 24V Dual Po wer

• Second Video Output for Easy Servicing

Superior Image Resolution of

27% more effective pixel than previous generation of high resolution camera
would bring up the quality of the image immensely. Experience the clarity of
700 TVL resolution. Ideal for discrete locations, transit industry, financial
Institutions and more. Practical choice for both indoor and outdoor
environments.

700

TV Lines

O Lux Min. Illumination with 30 IR LEDs

The KPC-VNW200NU is equipped with Built-in High performance 30
units of IR LEDS that make the detected dark object extremely bright
visual image in total darkness without any light. This camera can cover
the reliable Video surveillance up to 100 Feet.

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-VNW200NU

WDR (Wide Dynamic Range)

To get detailed information from dark and bright combination
Image without any saturation, the WDR Technology is required.
It combines bright areas with high shutter speed exposure and
dark areas with low shutter speed exposure into one composite

High Color Reproduction

KPC-VNW200NU is equipped with excellent color reproduction a
nd wide range of ATW mode.(1,800K to 10,500K)

Color Chart
Under Halogen
Lamp

Still Object under
Artificial Sunlight

Conventional 960H 700 TVL Camera

Vandal-Proof Dome Housing

The die-casting aluminum dome housing and
polycarbonate dome cover ensures the perfect
camera durability and protects the camera from
external shock.

IP66 Rating (Weather Resistant)

With Dust and Rain Resistant Design, this camera
boasts IP66 rating that resist dust and rain of
outdoor environment. It can be a perfect solution
for outdoor surveillance, such as building eaves ,
loading docks, factories, storage yards and so on.

3

-Axis Rotating Mechanism

This camera is mounted on a 3-axis rotating platform which allows an installer
to easily adjust the field of view horizontally, vertically, and/or with a rotary
movement. With this feature, you don’t need to worry about where the camera
is attached and/or how it is oriented.

Convenient OSD Menu

All camera operation can be controlled by OSD (On-Screen Display)
menu on the monitor screen so that users can adjust this camera for
optimal setting with great convenience.

Privacy Image Masking

For the privacy protection in the open area observation, some
particular area can be masked for privacy purposes. Users can
easily setup the masking areas of the desired zones.
15 Privacy Zone available.

Motion Detection

KPC-VNW200NU detects motion of any objects on the screen and

General Feature Diagram

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

transmits alert signal into the external alarm to have user’s attention
on the screen.

(Unit: mm)

* Specifications & Features are subject to change without prior notice.
