M099-VDE101-004
HIGH RESOLUTION
VANDAL DOME CAMERA
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow
these instructions.
CONTENTS
1. Cautions
2. Features
3. Equipment and Accessories
4. Overview and function
5. Installation
6. Connection
7. Dimensions
8. Specifications
9. OSD Menu Structure
3
1. CAUTIONS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / tv technician for help.
Caution
Any changes or modications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal componets.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.
4
1. CAUTIONS
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.
5
2.Features
• 1/3 960H SONY EXview HAD CCD II
• High Resolution of 700TV Lines
• OSD Function
• Multi Language
(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)
• 2DNR
• Privacy Zone
• Motion Detect
• DC12V / AC24V Dual Voltage
• ATR(Adaptive Tone-curve Reproduction / Digital WDR)
The function provides gradation compensation to improve the contrast of subjects both
low-luminance areas and high luminance areas exist in the same picture
• 3-Axis Gimbal
Pan Rotation Horizontal RotationTilt Rotation
CAUTION panning the bracket in excess of 3 rotations in one direction maycause damage to the cable.
• Service Video connector
The Service Video Connector also provides the installer with an easy way of conguring the
camera.
6

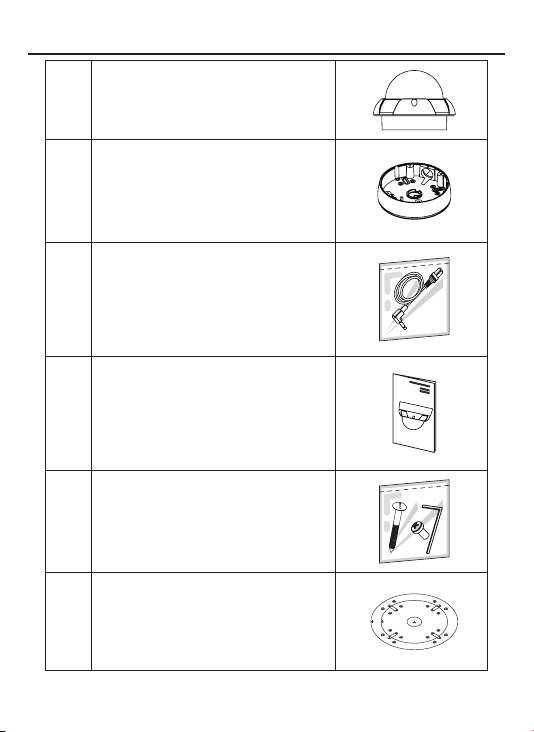

3. Equipment and Accessories
1 VANDAL DOME CAMERA
2 SURFACE MOUNT
3 VIDEO OUTPUT TEST CABLE
4 OPERATION MANUAL
SCREW(M4x10) - 4ea
SCREW(5x30) - 4ea
5
SCREW(M4x40.SUS) - 4ea
L WRENCH - T20
6 MOUNT GUIDE
7
4.Overview and function
• Led Type
OSD Joystick
• Standard Type
OSD Joystick
• CONTROL FUNCTION
(OSD JOYSTICK)
UP
LEFT
DOWN
RIGHT
8

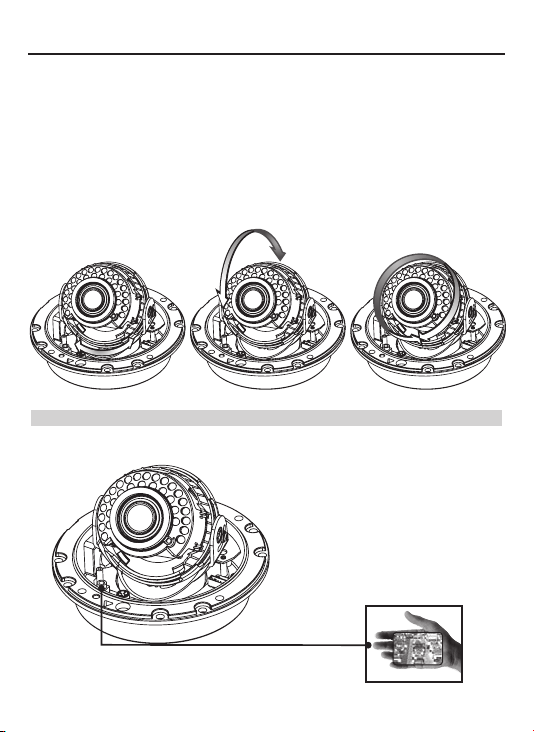

5. Installation
Mount Guide
Lens Focus Knob
Lens Zoom Knob
Separate LED Cover (Sunshield Cover)
and adjust LENS ZOOM / FOCUS KNOB
After setting the LENS, assemble the
LED Cover (Sunshield Cover).
Standard TypeLED Type
9

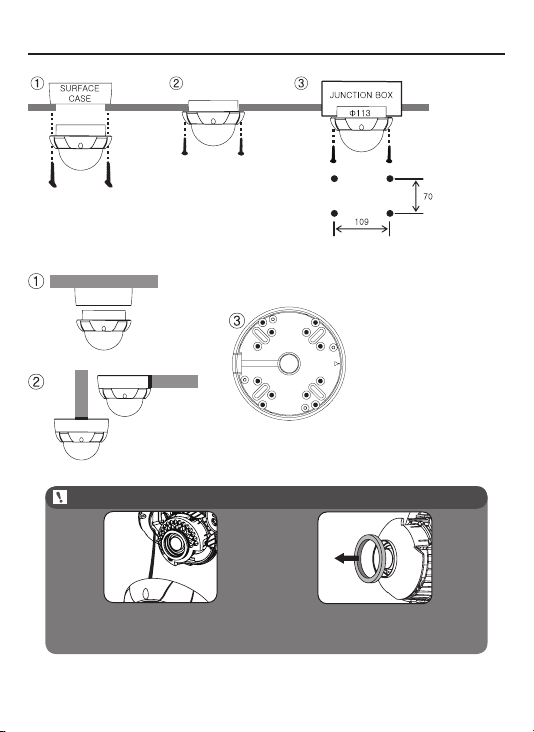

5. Installation
1. Installation of Flush Mount
①
Installation of the camera with SURFACE
CASE(using M4x40)
②
Installation of the camera with SCREWS
③
Installation of the camera with JUNCTION BOX
2. Installation of Surface Mount
PIPE
PIPE
①
Installation of the camera on the wall
②
Installation of the camera on the 3/4” NPT PIPE
③
Installation of the camera on the JUNCTION BOX
NOTE
Check the safe wire which
should be entirely inserted into camera
housing during locking the dome cover to
maintain Waterproof condition.
When using the camera
without LED take off the rubber.
10

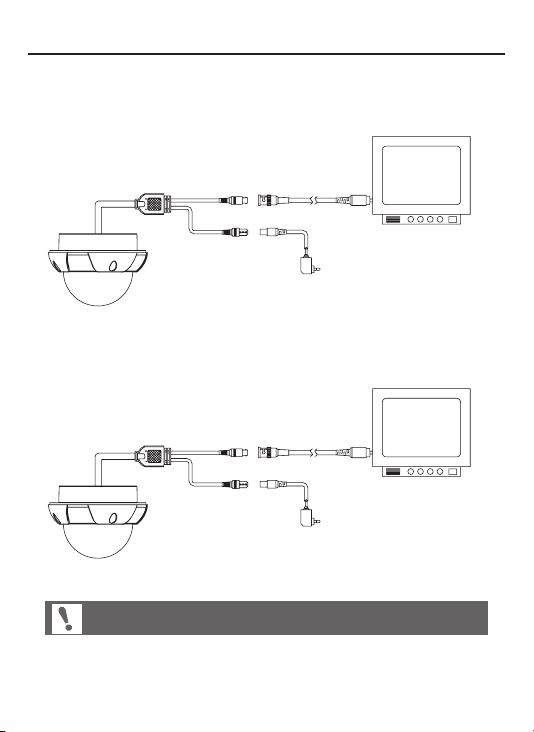

6.Connection
• MONITOR CONNECTION
• DUAL(DC 12V/AC24V)
Video inBNC Female Video
DC12V / AC24V
Regulated power supply
• DC 12V
Video inBNC Female Video
DC12V
Regulated power supply
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
11
7.Dimensions
Unit : mm
Surface Mount Type
Type A
Flush Mount Type
˚
70
Standard Type LED Type
When you x the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please
set short distance focus approximately 3M and do not set long distance focus
Type B
˚
70
12
8.Specifications
Signal Format NTSC PAL
Image Device 1/3˝ 960H SONY EXview HAD CCD II
Scanning System 2:1 Interlace
H.Resolution 750TV Lines
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
S/N Ratio More than 50dB(AGC Off)
Gamma r=0.45
Min. Illumination COLOR : 0.05Lux/F1.2, BW : 0.02 Lux/F1.2
Sync System Internal
Video Output 1.0 Vp-p Composite(75Ω)
OSD Built in (Inner Key / Joystick)
BLC OFF / BLC / HLC
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR OFF / ON (Level adjustable)
ATR OFF / ON (Level adjustable)
Function MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night AUTO
Language
IP Rating IP66 (Weatherproof)
Power
Consumption
Operating Temperature -10℃ ~ +50
Storage Temperature -20℃ ~ +60
Operating Humidity Less than 80%
Options Dual Power, Fan
Weight
Dimension(mm) 143.0(Φ) x 104.0(mm)
DC12V DC 12V (±10%) Max.120mA
Dual DC 12V (±10%) Max.150mA , AC 24V (±10%) Max. 2.3W
LED TYPE
Power
Consumption
Min. Illumination 0 Lux (IR LED ON)
IR LED 850nm, 30ea
IR Beam Range Up to 30M
IR LED Operation On : 1 Lux, Off : 3 Lux
Specifications and designs are subject to change for improving the functionality of this product without notice.
DC12V DC 12V (±10%) Max. 360mA
Dual DC 12V (±10%) Max 430mA , AC 24V (±10%) Max. 5.2W
ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN/
PORTUGUESE / SPANISH / CHINESE
℃
℃
• Surface Mount Type A : Approx. 1.38kg / Type B : Approx. 1.1kg
• Flush type : Approx. 730g
13
9. OSD MENU STRUCTURE
MAIN
MENU
LENS
1st Sub
MENU
MANUAL
AUTO
AUTO
SHUTTER
/ AGC
MANUAL
ATW
PUSH
USER1
WHITE
BAL
USER2
ANTI CR
MANUAL
PUSH LOCK
BACK LIGHT OFF,BLC,HLC
MIRROR
BRIGHTNESS
CONTRAST
PIC
SHARPNESS
ADJUST
HUE
GAIN
RETURN
ON
ATR
OFF
*SHUT+IRIS:
*Auto Iris(Default): The Shutter stays at the manually selected value and only the Mechanical Iris adjusts to brightness.
Both the Shutter and the Mechanical Iris are automatically adjusted according to brightness.
2nd Sub
MENU
TYPE DC
MODE AUTO,OPEN,CLOSE
SPEED (000 ~ 255)
RETURN
HIGH LUMINANCE
LOW LUMINANCE
RETURN
MODE SHUT+AGC
SHUTTER
AGC 6,12,18,24,30,36,42,44.8
RETURN
SPEED (000 ~ 255)
DELAY CNT (000 ~ 255)
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR,OUTDOOR
RETURN
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
LEVEL 24 ~ 103
RETURN
OFF,ON
(000 ~ 255)
(000 ~ 255)
(000 ~ 255)
(000 ~ 255)
(000 ~ 255)
LUMINANCE LOW,MID,HIGH
CONTRAST LOW,MIDLOW,MID,MIDHIGH,HIGH
RETURN
3rd Sub
MENU
MODE SHUT,AUTO IRIS, SHUT+AUTO IRIS
BRIGHTNESS (000 ~ 255)
MODE AGC,OFF
BRIGHTNESS x0.25,x0.50,x0.75,x1.00
1/50(PAL),1/100(NTSC)
1/60(NTSC),1/120(PAL)
1/250,1/500,1/1000
1/2000,1/4000,1/10000
14
4th Sub
MENU
9. OSD MENU STRUCTURE
MAIN
MENU
MOTION
DET
NEXT
EXIT
SAVE ALL
PRIVACY
NR
CAMERA
ID
LANGUAGE ENGLISH, 日本語, DEUTSCH, FRANCAIS,
CAMERA
RESET
BACK
EXIT
SAVE ALL
*Important Note :
- Any changes made to the camera settings must be saved prior to exiting the OSD menu.
Else all changes will be discarded.
- By changing the lens option in the OSD from MANUAL to AUTO will automatically change the
SHUTTER/AGC setting from AUTO IRIS to SHUT+AUTO IRIS.(Default:AUTO IRIS)
1st Sub
MENU
ON
OFF
ON
OFF
NR MODE OFF,Y,C,Y/C
C LEVEL (000 ~ 015)
Y LEVEL (000 ~ 015)
RETURN
ON EDIT MODE
OFF
2nd Sub
MENU
DETECT SENSE
BLOCK DISP
MONITOR AREA
AREA SEL
RETURN
AREA SEL
COLOR
TRANSP
MOSAIC
RETURN
RETURN
3rd Sub
MENU
(000 ~ 127)
OFF,ON,ENABLE (CONTROLER)
ON,OFF
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
(1 ~ 8)
0.00, 0.50, 0.75, 1.00
OFF,ON
Русский,
PORTUGUÊS, ESPAÑOL, 中文
4th Sub
MENU
15
