KT&C KPC-V700NUP4, KPC-V700NUP3, KPC-V700NUP1 Specsheet
KPC-V700N
750 TVL WDR Miniature Square Camera

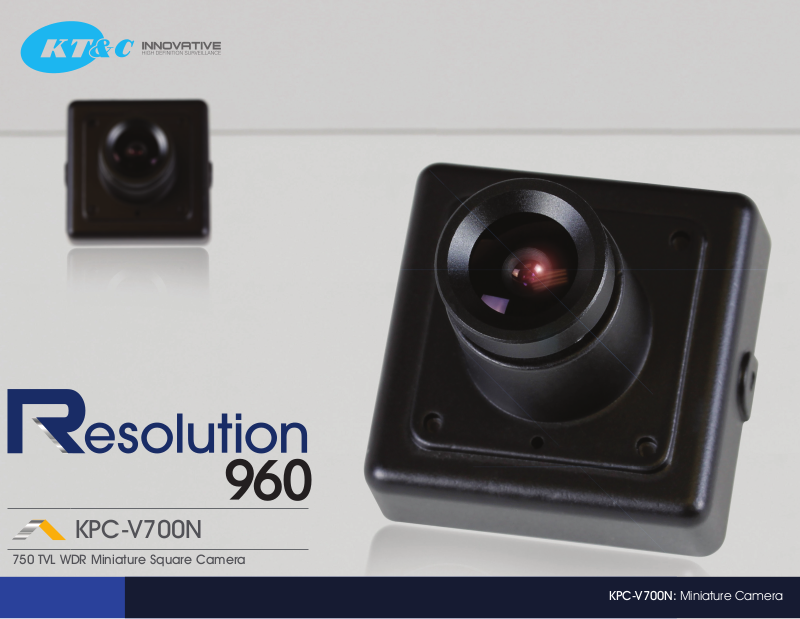

KPC-V700N: Miniature Camera
KPC-V700N
750 TVL WDR Miniature Square Camera
Features
• 750 TVL Horizontal Resolution
• 1/3” 960H SONY Double Scan SuperHAD CCD II
• Min. Illumination of 0.2 Lux, 0.03 Lux DSS On
• Size 1.2 x 1.2 Inch (30 x 30mm)
• Digital Day & Night
• True Wide Dynamic Range
• 2D DNR / BLC / AWB / AGC
• DC 12 V Power
KPC-V700NB KPC-V700NP1 KPC-V700NP3 KPC-V700NP4
1.2
1.18
1.18
AUDIO HOLE (OPTION)
KT&C America reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Joystick
0.39
0.43
Max 0.87
Technical Specifications:
Signal Format NTSC PAL
Image Sensor
Scanning System
H Resolution.
Scanning Frequency
Total Pixels
Eective Pixels
Electronic Shutter
Sense up
S/N Ratio
Min. Illumination
Sync System
Gamma
Video Output
OSD
ATR-EX
WDR
White Balance
3DNR
Digital Image Stabilizer
Defog
Function
Privacy Masking
Motion Detection
Lens
Language
Operating Temperature
Storage Temperature
Humidity
Power Consumption
Weight
External Control
Dimension(mm)
Flip / Freeze / Brightness / Contrast / Sharpness / Hue / Gain / Digital Zoom / HLC
English / Spanish / Russian / Portuguese / German / French / Chinese / Japanese
Type Board Lens
Focal Length
Aperture
Angle of View
2.45 2.95 3.6 6 8 12 16 3.7 3.7 4.3
F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0
150° 130° 92° 53° 40° 28° 19° 90° 90° 78°
Lens (mm)
15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
1020(H) X 508(V) 1020(H) X 596(V)
1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
1/3" 960H SONY Double Scan Super HAD CCD II
2 : 1 Interlace
750TV Lines
976(H) X 494(V) 976(H) X 582(V)
O / Auto
More than 50dB (AGC O, 3DNR On)
0.2 Lux (F2.0, DSS O) / 0.03 Lux (F2.0, DSS On)
Internal
r= 0.45
1.0 Vp-p Composite (75Ω)
Built in (Joystick)
O / On
O / On
ATW / PUSH / USER1 / USER2 / MANUAL / PUSH-LOCK
Level Adjust
O / On
O / Auto
15 Zones (Polygon)
4 Zones
Fixed Board, Pinhole, Varifocal Lens
-15°C~50°C (5°F~122°F)
-20°C~60°C (-4°F~140°F)
Less than 80%
12VDC (±10%) Max. 150mA
Approx. 35 g (0.08 lbs)
UTC, Option: RS485 (PELCO-D)
30(W) x 30(H)
Pinhole Lens
P1 P3 P4
Varifocal
(DC or DN)
Mount
4.0 ~ 8.0
F2.0 ~ 2.8
C/CS
89.2° ~ 44.2°
www.ktncusa.com
