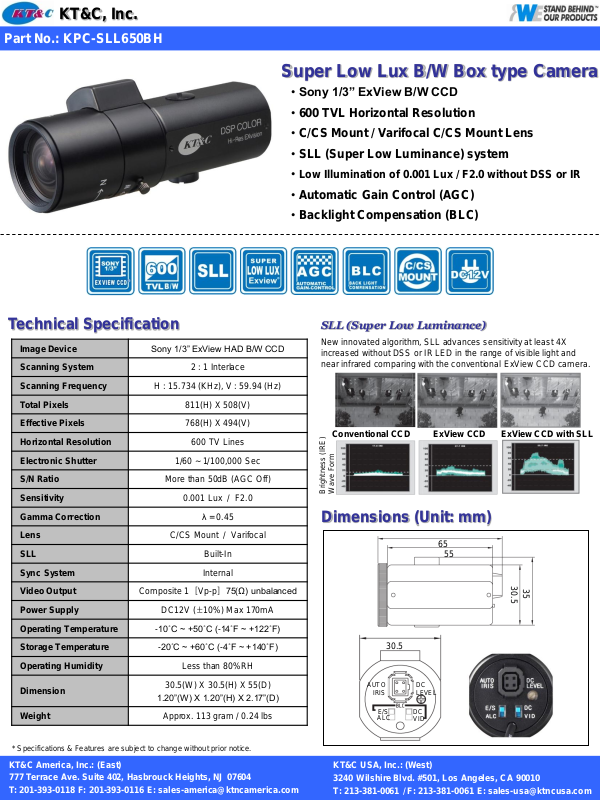

KT&C KPC-SLL650BHE Specsheet

KT&C, Inc.

Part No.: KPC-SLL650BH

Super Low Lux B/W Box type Camera

• Sony 1/3” ExView B/W CCD

• 600 TVL Horizontal Resolution

• C/CS Mount / Varifocal C/CS Mount Lens

• SLL (Super Low Luminance) system

• Low Illumination of 0.001 Lux / F2.0 without DSS or IR

• Automatic Gain Control (AGC)

• Backlight Compensation (BLC)

Technical Specification

Image Device Sony 1/3” ExView HAD B/W CCD
Scanning System 2 : 1 Interlace
Scanning Frequency H : 15.734 (KHz), V : 59.94 (Hz)
Total Pixels 811(H) X 508(V)
Effective Pixels 768(H) X 494(V)
Horizontal Resolution 600 TV Lines
Electronic Shutter 1/60 ~ 1/100,000 Sec
S/N Ratio More than 50dB (AGC Off)
Sensitivity 0.001 Lux / F2.0
Gamma Correction λ = 0.45
Lens C/CS Mount / Varifocal
SLL Built-In
Sync System Internal
Video Output Composite 1［Vp-p］75(Ω) unbalanced
Power Supply DC12V (±10%) Max 170mA
Operating Temperature -10˚C ~ +50˚C (-14˚F ~ +122˚F)
Storage Temperature -20˚C ~ +60˚C (-4˚F ~ +140˚F)
Operating Humidity Less than 80%RH

Dimension

Weight Approx. 113 gram / 0.24 lbs

30.5(W) X 30.5(H) X 55(D)

1.20”(W) X 1.20”(H) X 2.17”(D)

SLL (Super Low Luminance)

New innovated algorithm, SLL advances sensitivity at least 4X
increased without DSS or IR LED in the range of visible light and
near infrared comparing with the conventional ExView CCD camera.

Conventional CCD ExView CCD ExView CCD with SLL

Brightness (IRE)

Wave Form

Dimensions (Unit: mm)

65

55

30.5

35

30.5

AUTO

IRIS

E/S
ALC

DC
LEVEL

DC
VID

* Specifications & Features are subject to change without prior notice.
