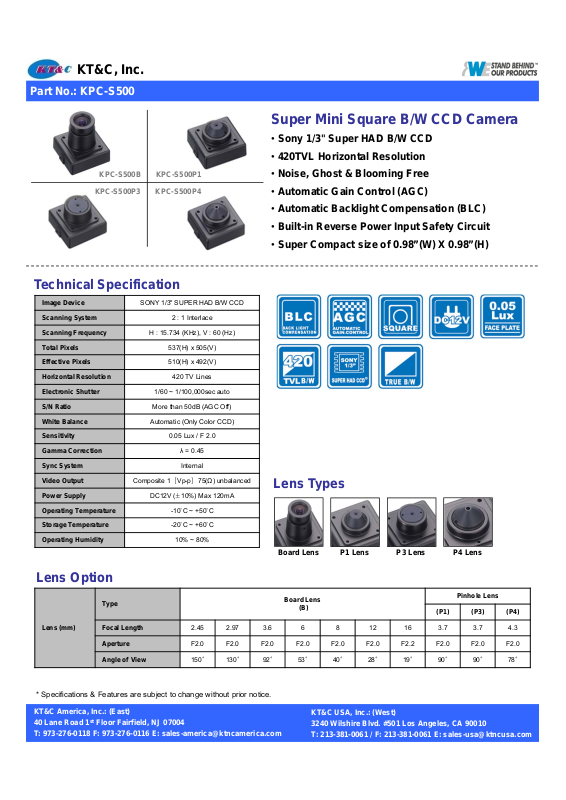

KT&C KPC-S500B Specsheet

KT&C, Inc.

Part No.: KPC-S500

Super Mini Square B/W CCD Camera

• Sony 1/3" Super HAD B/W CCD

• 420TVL Horizontal Resolution

KPC-S500B KPC-S500P1

KPC-S500P3

KPC-S500P4

• Noise, Ghost & Blooming Free

• Automatic Gain Control (AGC)

• Automatic Backlight Compensation (BLC)

• Built-in Reverse Power Input Safety Circuit

• Super Compact size of 0.98”(W) X 0.98”(H)

Technical Specification

Image Device SONY 1/3" SUPER HAD B/W CCD Scanning System 2 : 1 Interlace Scanning Frequency H : 15.734 (KHz), V : 60 (Hz) Total Pixels 537(H) x 505(V) Effective Pixels 510(H) x 492(V) Horizontal Resolution 420 TV Lines Electronic Shutter 1/60 ~ 1/100,000sec auto S/N Ratio More than 50dB (AGC Off) White Balance Automatic (Only Color CCD) Sensitivity 0.05 Lux / F 2.0 Gamma Correction λ = 0.45 Sync System Internal Video Output Composite 1 Power Supply DC12V ( Operating Temperature -10˚C ~ +50˚C Storage Temperature -20˚C ~ +60˚C Operating Humidity 10% ~ 80%

Vp-p］75(Ω) unbalanced

［

10%) Max 120mA

Lens Types

Board Lens

P1 Lens

P3 Lens

P4 Lens

Lens Option

Type

Lens (mm)

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East) 40 Lane Road 1 T: 973-276-0118 F: 973-276-0116 E: sales-america@ktncamerica.com

Focal Length 2.45 2.97 3.6 6 8 12 16 3.7 3.7 4.3

Aperture F2.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.0 F2.0 F2.0

Angle of View 150

Floor Fairfield, NJ 07004

130° 92° 53° 40° 28° 19° 90° 90° 78°

Board Lens

(B)

KT&C USA, Inc.: (West) 3240 Wilshire Blvd. #501 Los Angeles, CA 90010 T: 213-381-0061 / F: 213-381-0061 E: sales-usa@ktncusa.com

Pinhole Lens

(P1) (P3) (P4)

KT&C, Inc.

Part No.: KPC-S500

Dimensions (Unit: mm)

Mounting Position

KPC-S500B

KPC-S500P1
