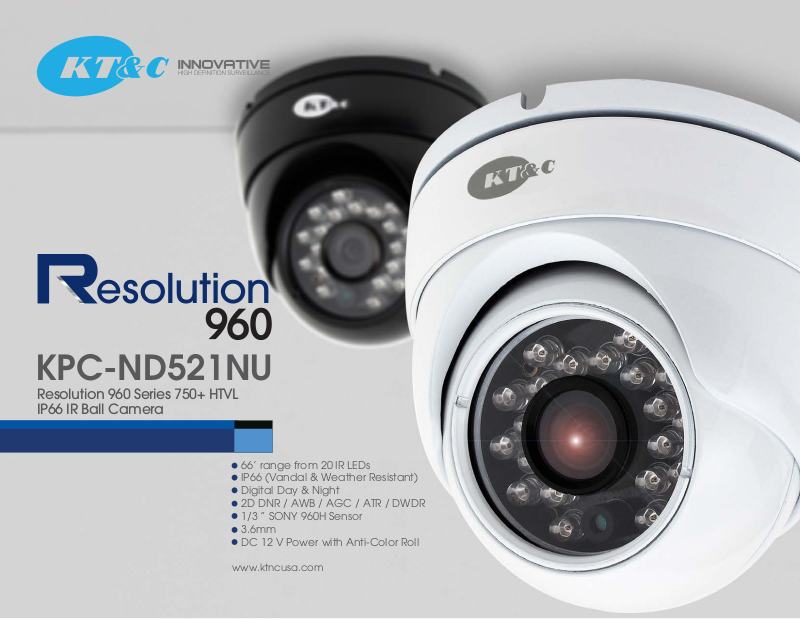

KT&C KPC-ND521NUW, KPC-ND521NUB Specsheet
KPC-ND521NU
Resolution 960 Series 750+ HTVL
IP66 IR Ball Camera
66’ range from 20 IR LEDs
IP66 (Vandal & Weather Resistant)
Digital Day & Night
2D DNR / AWB / AGC / ATR / DWDR
1/3 ” SONY 960H Sensor
3.6mm
DC 12 V Power with Anti-Color Roll
www.ktncusa.com
Technical Specification
Imaging Device
Video Format
Picture Elements
Effective Picture Elements
Horizontal Resolution
Lens Type
Sensitivity
IR LEDs
IR Range
IR LED Half Angle
S/N Ratio
KPC-ND521NU
Resolution 960 Series 750+ HTVL
IP66 IR Ball Camera
DC12V
KEY FEATURES
Superlative resolution of over 750 horizontal TV lines for amazing image quality
Flexible positioning for convenient wall or ceiling mounting
3.6mm lens to capture the desired field of view
Equipped with 20 IR LEDs for 66 foot/20m range (
Exview HAD II sensor delivers amazing low light sensitivity before IR illumination
Reflection preventing dual section cover glass isolates IR emitters from lens to
prevent image distortion
Cables protected from weather and tampering by the mounting base
IP66 weather resistant & vandal resistant
depending on scene IR reflectivity)
Video Output
Gamma Correction
Positioning
Day/Night
Auto Gain Control
Electronic Shutter
White Balance
Sync. Mode
2D-DNR
Adaptive Tone Curve
Reproduction (ATR) / Digital WDR
Power Source
Power Consumption
Operating Temperature
Storage Temperature
Environmental
Mechanical
Alignment
Dimensions
Weight
Certifications
Adaptive Tone Curve Reproduction ATR/Digital Wide Dynamic Range expansion
to deliver properly exposed images despite unbalanced lighting in the scene
2D-Noise Reduction increases picture clarity while improving DVR disk storage utilization
ATW with Anti-Color Roll for stability under fluorescent lighting
Low current draw 12VDC operation with Anti Color Roll for stability even without line lock
KPC-ND521NUW:
Resolution 960 IR IP66 Ball Camera 750+TVL, 3.6mm, 12VDC,
66’ range, with DWDR and DNR (NTSC) While color
KPC-ND521NUB:
Resolution 960 IR IP66 Ball Camera 750+TVL, 3.6mm, 12VDC,
66’ range, with DWDR and DNR (NTSC) Black color
* Models vary in different countries. Please visit our website for detailed ordering information.
KT&C America, Inc. reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Ø 93
3.66”
mm
<Front View>
<Top View>
1/3" Sony Exview HAD II 960H High Sensitivity Interline CCD
NTSC
1020 (H) x 508 (V)
976 (H) x 494 (V)
More than 750 TVL from production cameras
3.6 mm Board Type
0 lux with IR on .05 lux native from sensor
20 LEDs with output at 850 nm
~66 feet (depending on scene IR reflectivity)
+/- 22 °
Over 50 dB (AGC off)
BNC 1.0 V p-p 75 Ω Composite
y=0.45
Flexible positioning for wall or ceiling mounting
Digital Day/Night
On
1/60 ~1/100,000 sec.
ATW with Anti-Color Roll
Internal (plus Anti-Color Roll White Balance)
Auto
Auto
12 V DC +/- 10%
DC 12 V nominal 80 mA; 300 mA IR on
14 °F ~ 122 °F ; -10 °C ~ 50 °C
-4 °F ~ 140 °F ; -20 °C ~ 60 °C
IP66 weather resistant
Metal housing with base removable for easy mounting
Pan 360 ° / Tilt 140 °
3.66” (93 mm) diameter; 2.75 (70 mm)” high max.
0.7 pounds / 320 g
CE / FCC / RoHS
mm
<Side View>
2.75in
Approx. 70mm
20 - IR LED
<Bottom View>
in
Ø 69
2.71
3.3
(The maximum rotation)
4 - Ø 4.5
in
0.17
Ø 68.5
2.69
in
mm
mm
