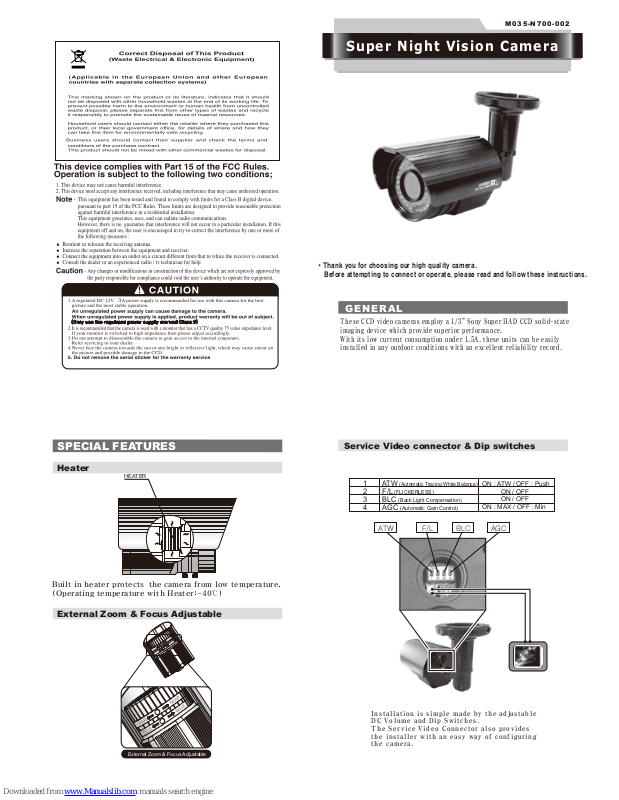

Super Night Vision Camera
Th ese C CD v id eo ca me ra s emplo y a 1/ 3”Son y Su pe r HAD C CD s olid- st at e
im aging d ev ic e whi ch p ro vide su pe ri or pe rf or ma nce.
Wi th it s lo w curre nt c on sumpt io n un der 1 .5 A, t hese un it s can b e ea si ly
in stall ed i n any o ut do or cond it io ns with a n ex celle nt r el iabil it y re cord.
* Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow these instructions.
GENER A L
M0 3 5- N7 0 0- 00 2
3
ATW
ATW
(Automatic Tracing White Balance)
ON : ATW / OFF : Push
ON / OFF
ON / OFF
ON : MAX / OFF : Min
Built in heater protects the camera from low temperature.
(Operating temperature with Heater:-40℃)
1
F/L
F/L
(FLICKERLESS)
2
BLC
BLC
(Back Light Compensation)
3
AGC
AGC
(Automatic Gain Control)
4
Service Video connector & Dip switches
SPECIAL FEATURES
Heater
External Zoom & Focus Adjustable
Ins ta lla ti o n is si mpl e m ad e b y the a d ju sta bl e
DC Vo lum e a nd Di p Swi tc h es .
The S erv ic e V ide o Con ne c to r a ls o p ro v id es
the i nst al l er wi th an e a sy wa y of co n fi gur in g
the c ame ra .
External Zoom & Focus Adjustable
HEATER
(Only use the regulated power supply marked Class 2)
Page 2
DIMENSIONS
CONNECTION
CAMERA MOUNTING POSITION
DUAL DC12V(AC24V)
Key Features
• 1 /3” Sony Su per HAD CC D, 550 TV Line s
• I R L ED : 45 ea, Max 50 m
• f =2. 9 ~ 10. 0mm / f =9. 0 ~ 22. 0mm Var ifocal( ICR )
• E xte rnal Zo om & Fo cus Adjust able
• C abl e Conce aled Th ru Bracket
• W ate rproof( IP67)
ACCESSORIES FURNISHED
159
142
116.8
M10*P1.0
SPECIFICATIONS
, 410K
1/3”Sony Super HAD CCD
F
F
Input
Power
Source
850mA(IR LED On)
DC +12.0[V] ±10%, Less than
1.1A(Heater On)
1.1A 21W(Heater On)
45ea
1.0 Vp-p Composite 75(Ω) unbalanced
Electronic Shutter Speed
Second Video Connector
±
30 Degree
850 nm
Max 50 m
On/Off detection range of automatic sensor
IR LED On: 3 Lux / IR LED Off: 12 Lux
IP67
f= 2 .9 mm ~ 10 .0 mm , f =9 .0 mm ~ 22 .0 m m Va ri f oc al L ens (I CR )
-10℃ ~+50℃(Heater on: -40℃ ~ +50℃)
-20℃ ~ +60℃
10% ~80%
Heater [Built in Heater(On: 5
℃ / Off: 15℃)]
700mA(IR LED On)
AC 24.0[V] ±10%, Less than
IR LED
IR LED Half Angle
IR LED Wavelength
IR LED Distance
IR LED On/Off
Operating Lux
Water Resistant
Lens Option
Operating Temperature
Storage Temperature
Operating Humidity
Options
DC 1 2V /A C2 4V
Du a l Vo lt age
, 470K
, 440K
, 380K
<Ca b le C o nce a led T hru B rac k et>
When you install the camera, please glue up the end of cable to keep it stable
in order to protect the camera from the humidity problems.
