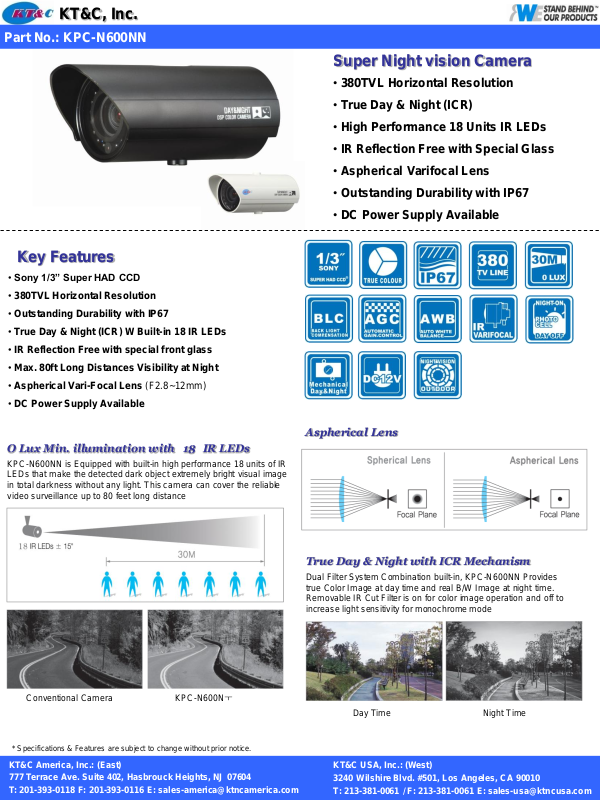

KT&C KPC-N600NN Specsheet

KT&C, Inc.

Part No.: KPC-N600NN

Key Features

• Sony 1/3” Super HAD CCD

• 380TVL Horizontal Resolution

• Outstanding Durability with IP67

• True Day & Night (ICR) W Built-in 18 IR LEDs

• IR Reflection Free with special front glass

• Max. 80ft Long Distances Visibility at Night

• Aspherical Vari-Focal Lens (F2.8~12mm)

• DC Power Supply Available

Super Night vision Camera

• 380TVL Horizontal Resolution

• True Day & Night (ICR)

• High Performance 18 Units IR LEDs

• IR Reflection Free with Special Glass

• Aspherical Varifocal Lens

• Outstanding Durability with IP67

• DC Power Supply Available

O Lux Min. illumination with 1 IR LEDs

KPC-N600NN is Equipped with built-in high performance 18 units of IR
LEDs that make the detected dark object extremely bright visual image
in total darkness without any light. This camera can cover the reliable
video surveillance up to 80 feet long distance

Conventional Camera KPC-N600Nㅜ

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

8

Aspherical Lens

True Day & Night with ICR Mechanism

Dual Filter System Combination built-in, KPC-N600NN Provides
true Color Image at day time and real B/W Image at night time.
Removable IR Cut Filter is on for color image operation and off to
increase light sensitivity for monochrome mode

Day Time Night Time

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-N600NN

True Day & Night with ICR Mechanism

Dual Filter System Combination built-in, KPC-N600NN Provides
true Color Image at day time and real B/W Image at night time.
Removable IR Cut Filter is on for color image operation and off to
increase light sensitivity for monochrome mode

Day Time Night Time

General Feature Diagram

3-Ø 4.5

41.5

36

LED-18ea

Outstanding Durability with IP6

With Dust and Rain Resistant design
witch meets IP67 rating, this camera
can be installed outdoor under building
eaves or the places that are exposed
to the dust and rain, basically IP67
means the weatherproof protection

145

PHOTOCELL

7

(Unit: mm)

1/4”-20 Mount

97(Max)

Ø 60

Mounting Position

115

65.4

Ø 60

1/4”-20 Mount

1/4”-20 Mount
