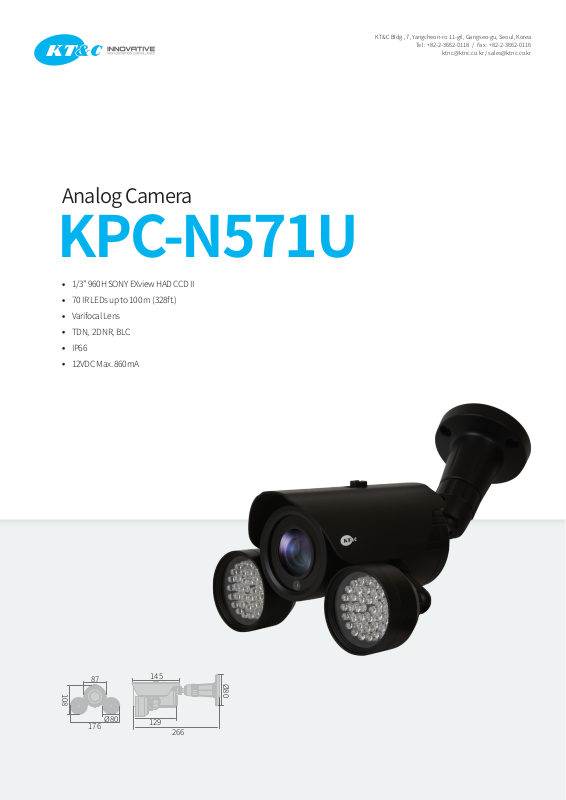

KT&C KPC-N571NU Specsheet

Analog Camera

KPC-N571U

1/3” 960H SONY EXview HAD CCD II

70 IR LEDs up to 100 m (328ft.)

Varifocal Lens

TDN, 2DNR, BLC

IP66

12VDC Max. 860mA

KT&C Bldg., 7, Yangcheon-ro 11-gil, Gangseo-gu, Seoul, Korea

Tel : [phone] / Fax : [phone]

[e-mail] / [e-mail]

108

87

176

Ø80

145

129

Ø80

266

Features

KPC-N571U

1/3” 960H SONY EXview HAD CCD II

70 IR LEDs up to 100 m (328ft.)

Varifocal Lens

TDN, 2DNR, BLC

IP66

12VDC Max. 860mA

TDN

True Day/Night feature can be used for precise color reproduction. With built-

in dual lter system, as known as Infrared Cutlter Removal (ICR) mechanism,

the infrared cutlter can be used at day time, or in bright lighting conditions,

to provide enhanced image in full-color. At night time, or in harsh lighting

conditions, it will be removed for greater light sensitivity in monochrome

mode.

2DNR

DNR technology is crucial for suveillance camera. 2DNR works by analyzing

individual frames of video in order to adjust pixels and provide clear image.

BLC

BLC technology works by reducing the dynamic range of the entire image,

while retaining the overall contrast. By compensating for unbalanced in a

scene, detail is restored throughout the eld of view so as to provide better

visibility to identify an object of interest.

IP66

Ingress Protection (IP) rating denes protection against solid objects and

liquid on a 0-6 and 0-8 scale. IP66 housing means it’s dust-tight and protected

against strong jet-water.

KT&C Bldg., 7, Yangcheon-ro 11-gil, Gangseo-gu, Seoul, Korea

Tel : [phone] / Fax : [phone]

[e-mail] / [e-mail]

Analog Camera

KPC-N571U

Dimensions

87

108

Ø80

176

Speci󽗉cations

Image Sensor

E󽗈ective Pixels

Lens
FOV
F-Stop
Min. Illumination
S/N Ratio
Shutter Speed
Flickerless
IR LED

IR Distance

Day/Night
White Balance
WDR
BLC
DNR
DSS

1/3” 960H SONY EXview HAD CCD II
NTSC: 976(H) x 494(V)

PAL: 976(H) x 582(V)
f=2.8-12mm / f=5-50mm
f=2.8-12mm (126.6° - 36°) / f=5-50mm (65.3° - 8.1°)
f=2.8-12mm (F1.2) / f=5-50mm (F1.4)
0 Lux (with IR LED On)
>50 dB (AGC O󽗈)
1/60(1/50) s

­70 LEDs (850 nm)

100 m (328 ft.)

True D/N
ATW / Push / User1 / User2 / Anti-CR / Manual / Push lock
D-WDR
O󽗈 / BLC / HLC
2DNR

-

145

129

266

Ø80

AGC

Other Function(s)

Privacy Masking
Motion Detection
Digital Zoom Ratio
OSD Control

OSD Language

Service Video Out
Housing Material
IP Rating
Operating

Temperature
Max. Power

Consumption

Dimensions
(W x H x D mm)

Weight

O󽗈/On

MIRROR/BRIGHTNESS/CONTRAST
SHARPNESS/HUE/GAIN

4 zones
4 zones

­Built-in Controller
ENGLISH / JAPANESE / GERMAN / FRENCH /

RUSSIAN / PORTUGUESE / SPANISH / CHINESE
Yes
Aluminum
IP66

-40°C to 60℃ (-40°F to 140℉)

12VDC 860mA

24VAC 11.0W / 12VDC 930mA

176 x 108 x 129

Approx. 1200 g (2.64 lbs)

Ordering Information

KPC-N571U (Not all combinations are possible)

Signal Type Lens Voltage Video Cable Silk Printing Color

NTSC f=2.8-12mm 12VDC Only BNC KT&C-printed Black

PAL f=5-50mm Dual (24VAC/12VDC) Terminal Block OEM-printed Ivory

Non-printed
