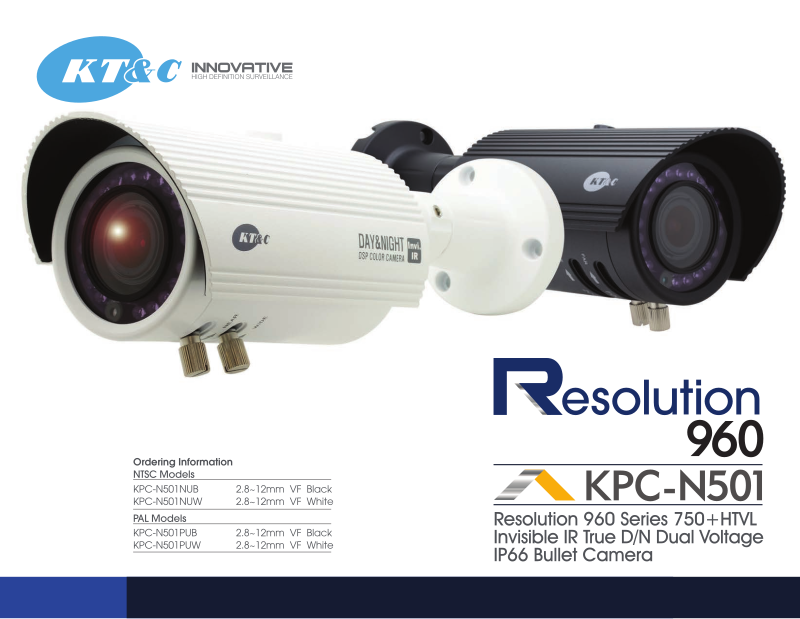

KT&C KPC-N501NUW, KPC-N501NUB Specsheet
Overview and Function
2
1
68 7
Technical Specification
4 5
1
Sunshield Fixing Bolt
1
Sunshield
2
Mounting Bracket
3
LED : 20ea
4
Photo cell
5
Body
6
Body Fixing Ring
7
External Zoom and
8
Focus adjustment
3
General Feature Diagram (Unit: inch)
5.7
4.7
8.8
0.3
3.5
3.2
M12XP1.0
Φ2.5
Key Features
Superlative resolution of over 750 horizontal TV lines for amazing image quality
EXview HAD 960H CCD II for high sensor IR sensitivity
Varifocal 2.8~12 mm DC iris lens to capture the desired field of view
True Day/Night, 20 Invisible IR LEDs (82 feet or more depending on scene reflectivity)
“Invisible” (940 nm) IR LEDs cannot be seen by the human eye
Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion
Simple and easy to use OSD setup menu
Adaptive Tone Curve Reproduction (ATR)
Electronic Wide Dynamic Range to properly expose images during unbalanced light contrast in the scene
Anti Color Roll white balance option resists fluorescent light interference
Optional Back Light Compensation (BLC) and Highlight Compensation (HLC)
Adjustable 2D-Noise Reduction to increase picture clarity and improve utilization of DVR disk storage
Privacy image masking for 4 configurable zones
Dual voltage (12V DC/ 24V AC) with Anti Color Roll
IP66 (Weather Resistant)
Extreme Operating temperature down to -40 degrees
External lens adjustment and service Video output for convenient installation, and ease of service
3-axis bracket conceals and protects cable
Five year warranty
www.ktncusa.com
Model N501NU N501PU
Imaging Device
Video Format
Picture Elements
Effective Picture Elements
Horizontal Resolution
Sensitivity
Invisible* IR LEDs 20 LEDs with output at 940 nm *IR illuminators operating at 940nm cannot be seen by the human eye.
Invisible* IR Range 82 feet or more (depending on scene Invisible IR reflectivity)
Invisible* IR Switch Points On at ~1 lux; Off at ~3 lux
S/N Ratio
Video Output
Picture Adjust
Lens Type
Positioning
Back Light Compensation
3.9
Auto Gain Control
Electronic Shutter
White Balance
Sync. Mode
Day & Night
OSD Menu
OSD Languages
2D-DNR
Adaptive Tone Curve Reproduction/
Electronic WDR (ATR)
Mirror
Motion Detection
Privacy Mask
Power Source
Power Consumption
Operating Temperature
Storage Temperature
Environmental
Mechanical
Dimensions
Weight
Certifications
Warranty 5 years
1/3" Sony Exview HAD II 960H High Sensitivity Interline CCD
NTSC
1020 (H) x 508 (V)
976 (H) x 494 (V)
More than 750 TVL
0 lux with Invisible* IR on 0.0001 lux native from sensor – no ghosting
Over 50dB (AGC off)
BNC 1.0V p-p 75 Ω; video test point inside dome, cable supplied
Gamma 0.45 nominal; adjustable brightness, contrast, saturation, hue and gain
Varifocal 2.8~12 mm Megapixel DC Iris Type
Flexible positioning for wall or ceiling mounting
OFF / BLC / HSBLC Selectable
Low light auto, Bright light auto, Manual selectable
1/60 ~1/100,000 sec.
ATW / One Push / User1 / User2 / Anti-Color Roll / Manual / Push Lock
Internal (plus Anti-Chroma Crawl White Balance option above)
True D/N with motorized Invisible IR cut filter; Choose Color, B/W, Auto
Multiple functions
English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French
On/Off (level adjustable)
On/Off (3 levels each adjustable for luminance and contrast)
Off/On
Off/On for 4 selectable zones (On screen indication on alarm)
Off/On for 4 selectable zones
12V DC / 24V AC
12V DC: max. 360mA / 24V AC: max. 4.9W
-40 °F ~ 122 °F (-40 °C ~ 50 °C)
-4 °F ~ 140 °F (-20 °C ~ 60°C)
IP66 (Weather Resistant)
Metal housing with sun shield; rear weather sealed rear access port for OSD
menu and video test point
Body alone (across sunshield): 3.23” diameter/5.12” long ;
8.72” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high
1.55 lbs (0.7 kg)
CE / FCC / ROHS
PAL
1020 (H) x 596 (V)
976 (H) x 582 (V)
