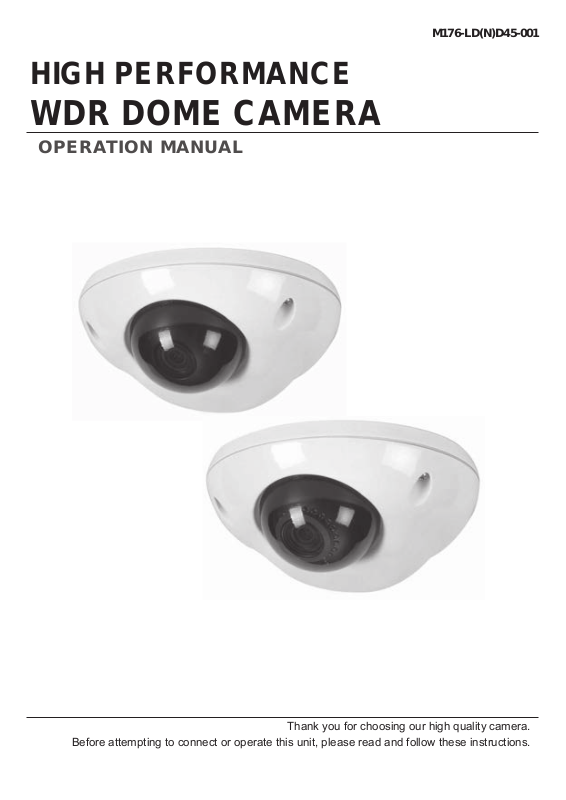

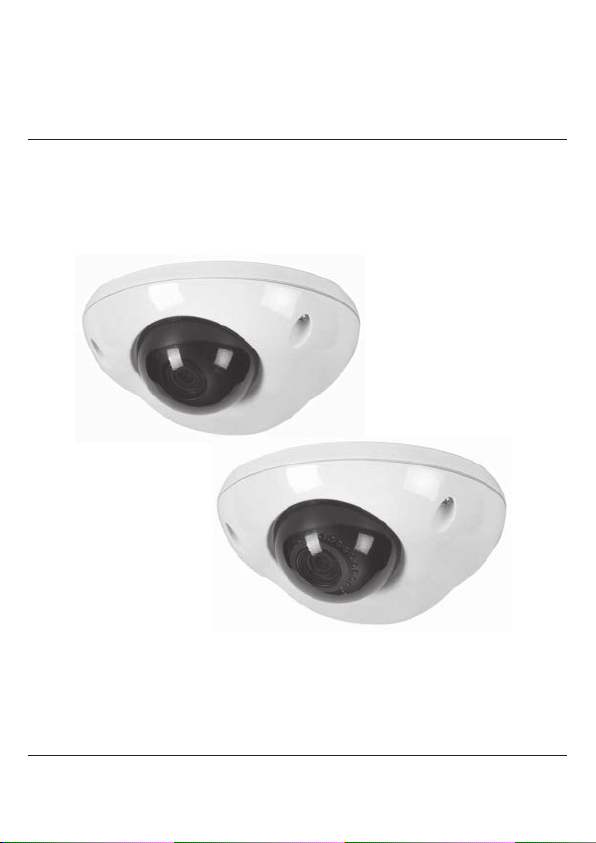

HIGH PERFORMANCE
WDR DOME CAMERA
OPERATION MANUAL
M176-LD(N)D45-001
Before attempting to connect or operate this unit, please read and follow these instructions.
Thank you for choosing our high quality camera.
Page 2
CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTIONS
3. EQUIPMENT AND ACCESSORIES
4. CAMERA COMPONENT DESCRIPTIONS
5. INSTALLATION
6. DIMENSIONS
7. SPECIFICATIONS
8. OSD MANUAL
• Menu Structure
• Function Description
CAUTION
These servicing instructions are for use by qualied service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
2
Page 3
1. CAUTIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment.
1. A regulated DC12V 500mA power supply is recommended for use with this camera for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera. When an unregulated power supply is applied, the product warranty will be void.
2. It is recommended that the camera be used with a monitor that has a CCTV quality 75 video impedance level. If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components. Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which
may cause smears on the picture and possible damage to the image sensor.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a main socket-outlet with a protective earth connection.
3
Page 4
1. CAUTIONS
WEEE
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This symbol is intended to alert the user to the presence of un­insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
4
Page 5
2. IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatuses (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
5
Page 6

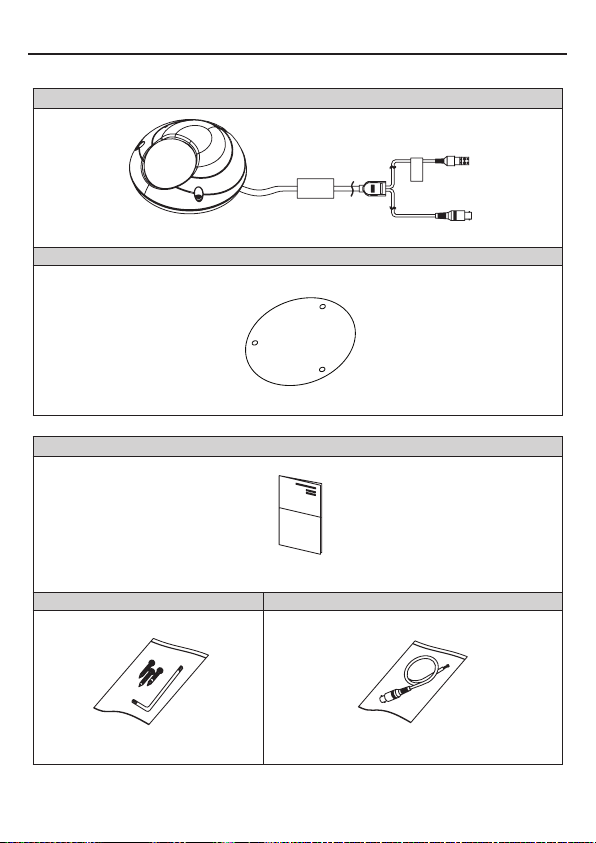

3. EQUIPMENT AND ACCESSORIES
Dome Type
Mount Guide
Manual
Screws(3ea) / L-Wrench Service Video Output Test Cable
­+
6
Page 7

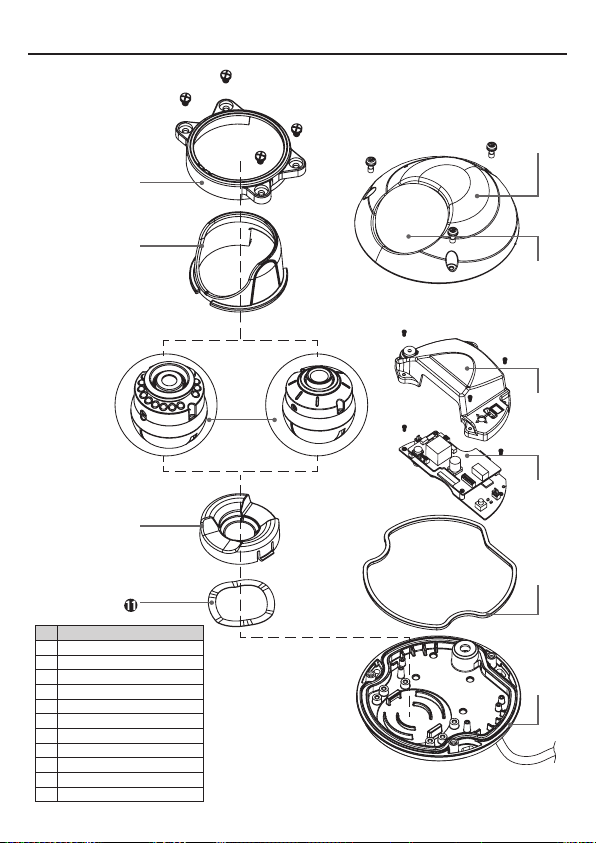

4. CAMERA COMPONENT DESCRIPTIONS
NO PART NAME
1 Housing Top 2 Window 3 Cover PCB 4 PCB Module 5 Rubber Case 6 Housing Bottom 7 Holder Middle 8 Holder Top
9 Ball Ass'y 10 Holder Bottom 11 Wave Water
LED Type Standard Type
7
Page 8

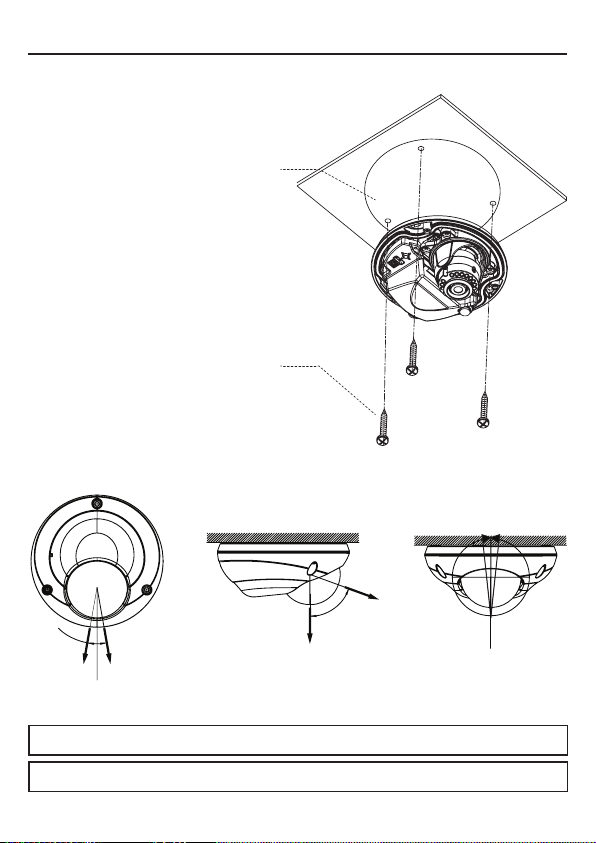

5. INSTALLATION
1. Attach the Camera to the ceiling with using the screws provided, taking into considering the camera angle required for the surveillance function.
Template
M4 Tappint Screw - 3EA
2. Adjust the LENS ANGLE to the desired location by hand.
Rotate: ±180°
Tilt:
Pan: ±15°
Pan Rotation Horizontal Rotation
Tilt Rotation
LED Type: 0~75° Standard Type: 0~90°
CAUTION: With certain wide-angle lenses, the upper part of the image may be obscured when the tilt angle exceeds 80°
CAUTION: panning(Pan + Horizontal) the bracket in excess of 1 rotations in one direction may cause damage to the cable.
8
Page 9
5. INSTALLATION

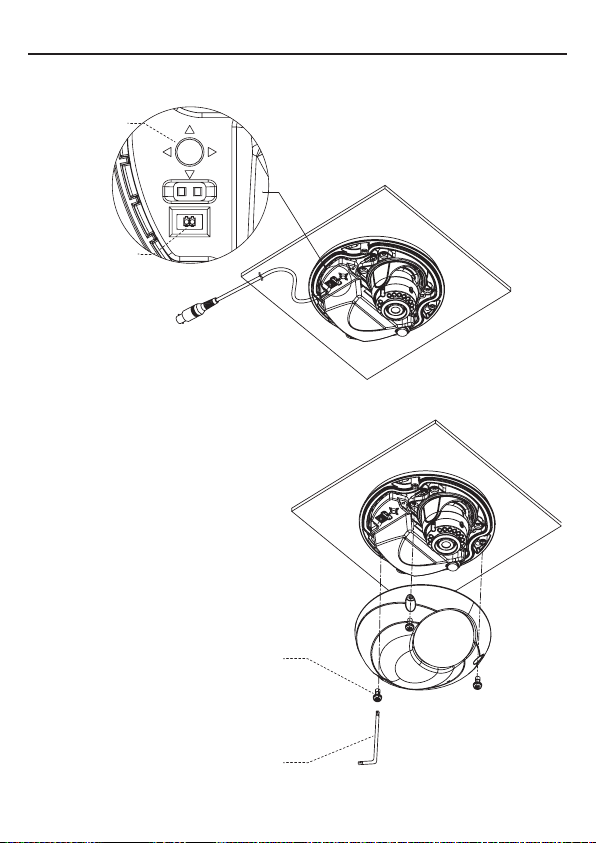

3. Connect the VIDEO OUT CABLE and check the video image. Change the SETTINGS accordingly using the OSD controller.
Controller
Test Video Connector
Video Output Test Cable
4. After the SETTING is completed, install the TOP COVER.
M4 Star Screw(T-20)
L-Wrench(T-20)
9
Page 10
5. INSTALLATION
• MONITOR CONNECTION
- DC12V/AC24V
DC12V/AC24V (TERMINAL BLOCK)
DC12V/AC24V POWER SUPPLY
MONITOR
- DC12V
BNC FEMALE
CAMERA
DC12V (DC JACK)
BNC FEMALE
CAMERA
When you install the camera, please glue the end of cable to keep it stable in order to protect the camera from humidity problems.
10
VIDEO IN
DC12V ADAPTER
MONITOR
VIDEO IN
Page 11

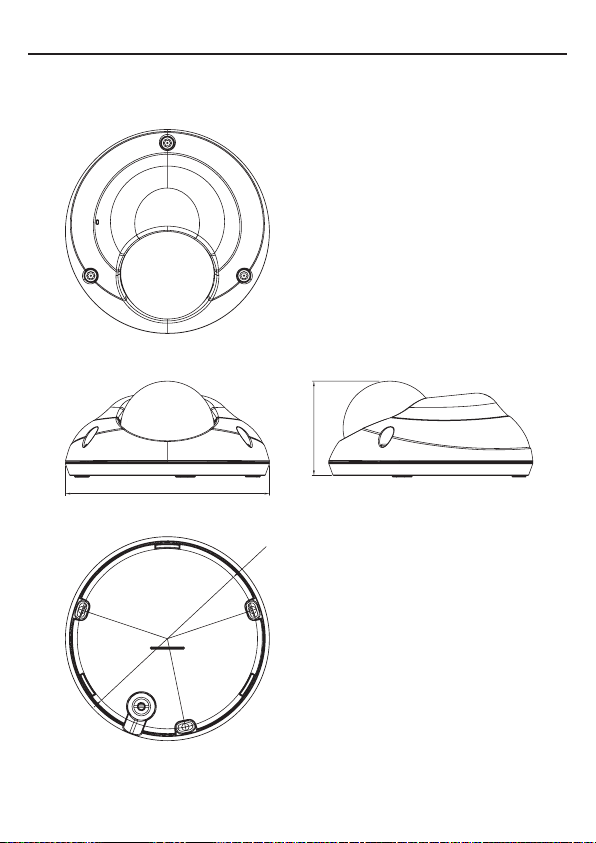

6. DIMENSIONS
Ø120
55
Ø106
Unit(mm)
11
Page 12
7. SPECIFICATIONS
Image Sensor 1/3” 960H SONY Double Scan Super HAD CCD II Scanning System 2 : 1 Interlace H Resolution. 750TV Lines Scanning Frequency NTSC: 15.734KHz(H), 59.94Hz(V) / PAL: 15.625KHz(H), 50Hz(V) Total Pixels No. NTSC: 1028(H) X 508(V) / PAL: 1028(H) X 596(V) Effective Pixels No. NTSC: 976(H) X 494(V) / PAL: 976(H) X 582(V)
S/N Ratio More than 50dB(3DNR ON) Min. Illumination 0Lux 0.1Lux Sync System Internal Gamma r= 0.45 Video Output 1.0 Vp-p Composite(75Ω) Lens Board Lens
Digital Zoom Ratio 3x Electronic Shutter NTSC: 1/60 ~1/100,000sec, PAL: 1/50 ~1/100,000sec Digital Slow Shutter OFF, 2 ~ 256 Field Flickerless ON / OFF WDR ON / OFF (Level adjustable)
BLC ON / OFF (Level adjustment, Area selection) HLC ON / AUTO / OFF (Level adjustable) AGC OFF, 6 ~ 36dB
DNR(2D/3D) ON / OFF (Level adjustable) Image Function Image reverse(NORMAL/H / V / HV), Freeze, Contrast, Sharpness
Day & Night
IR LED 850nm, 15ea ­IR LED Distance up to 15M ­Motion Detection 4 Zones (Level adjustable, Area adjustment) Privacy Masking 15 Zones (Area adjustment)
White Balance
OSD Built in (Joystick)
Language
Operating Temperature 14°F~122°F(-10°C~+50°C) Storage Temperature -4°F~140°F(-20°C~+60°C) Humidity Less than 80%
Power Consumption
Dimension (mm) Ø120mm x 55mm Weight Approx. 350g IP Rating IP 66
True Day & Night With ICR Mechanism
DC DC12V (±10%), Max. 250mA DC12V (±10%), Max. 150mA
DUAL
Specications and designs are subject to change for improving the
LED Type Standard Type
COLOR / BW / AUTO
ATW / PUSH / USER1 / USER2 / ANTI CR /
MANUAL / PUSH-LOCK
ENGLISH / JAPANESE / GERMAN / FRENCH /
RUSSIAN / PORTUGUESE / SPANISH / CHINESE
HINDI, TAMIL, TURKISH, ARABIC, FARSI
DC12V (±10%), Max. 340mA
AC24V (±10%), Max. 4.0W
DC12V (±10%), Max. 200mA
functionality of this product without notice.
12
COLOR / BW / AUTO
AC24V (±10%), Max. 2.5W
Page 13
8. OSD MANUAL
• Menu structure
Main MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU 5th Sub MENU
HIGH LUMINANCE
EXPOSURE
WHITE BALANCE
DAY&NIGHT
AUTO
MANUAL
ATW
PUSH
USER1
USER2
ANTI CR
MANUAL
PUSH LOCK COLOR
AUTO
BW
LOW LUMINANCE
RETURN MODE SHUT, SLOW
SHUT
AGC 6, 12, 18, 24, 30, 36, 42, 44.8 RETURN SPEED 0 ~ 255 DELAY CNT 0 ~ 255 ATW FRAME x0.5, x1.0, x1.5, x2.0 ENVIRONMENT INDOOR, OUTDOOR RETURN
B-GAIN 0 ~ 255 R-GAIN 0 ~ 255 RETURN B-GAIN 0 ~ 255 R-GAIN 0 ~ 255 RETURN
LEVEL UP PUSH ENTER LEVEL DOWN PUSH ENTER PRESET RETURN
BURST OFF, ON DELAY CNT 0 ~ 15
DAY > NIGHT
NIGHT > DAY
IR OPTIMIZER (LED TYPE)
RETURN BURST OFF, ON
IR OPTIMIZER (LED TYPE)
RETURN
FLICKERLESS OFF / ON BRIGHTNESS 0 ~ 255
MODE
AGC MAX 6, 12, 18, 24, 30, 36 DSS MAX 2, 4, 8, 16, 32, 64, 128, 256 BRIGHTNESS x0.25,x0.50,x0.75,x1.00
MODE (SHUT) ONLY 1/50(PAL), 1/60(NTSC), 1/100(NTSC), 1/120(PAL), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/50000, 1/100000 MODE (SLOW) ONLY 2, 4, 8, 16, 32, 64, 128, 256
(000 ~ 014) (LED TYPE) (000 ~ 254)
(001 ~ 015) (LED TYPE) (001 ~ 255)
ON
OFF
ON
OFF
OFF, AGC, SLOW, AGC->SLOW, SLOW->AGC, AGC->SLOW->AGC
MODE CENTER, AUTO LEVEL 000 ~ 031
MODE CENTER, AUTO LEVEL 000 ~ 031
13
Page 14
8. OSD MANUAL
Main MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU 5th Sub MENU
ON
OFF
ON
OFF
ON, AUTO
OFF
ON
OFF ENGLISH / 中文 /
PORTUGUÊS / 日本語 / HINDI / TAMIL / TURKISH / ARABIC / FARSI AREA SEL 1/15 ~ 15/15 MODE OFF, ON POSITION PUSH ENTER
COLOR
TRANSP 0.00, 0.50, 0.75, 1.00 MOSAIC OFF, ON RETURN
ON
OFF
WDR/BLC
DNR
SPECIAL
FACTORY DEFAULT
EXIT SAVE&EXIT
WDR MODE
BLC MODE
HLC MODE
2DNR MODE OFF, ON 2DNR LEVEL 0 ~ 15 3DNR MODE OFF, ON 3DNR LEVEL 0 ~ 63 RETURN MIRROR OFF, V-FLIP, H-FLIP, HV-FLIP FREEZE OFF, ON EZOOM 1.0x ~ 3.0x CONTRAST 0 ~ 63 SHARPNESS 0 ~ 15 RETURN
CAMERA TITLE
LANGUAGE
PRIVACY
MOTION DET
RETURN
LEVEL 0 ~ 15 CONTRAST1 0 ~ 7 CONTRAST2 0 ~ 4
BLC ZONE
LEVEL 0 ~ 254
CLIP LEVEL 0 ~ 255 SCALE 0 ~ 15
EDIT MODE RETURN
Р у с с к и й
"WHITE, BLACK, RED, GREEN, BLUE, YELLOW, CYAN, MAGENTA"
DETECT SENSE 0 ~ 127 BLOCK DISP OFF, ON
MONITOR AREA
CENTER, TOP, BOTTOM, LEFT, RIGHT
/ ESPAÑOL / DEUTSCH / FRANCAIS /
AREA SEL 1/4 ~ 4/4 MODE OFF, ON TOP 0 ~ 15 BOTTOM 0 ~ 15 LEFT 0 ~ 23 RIGHT 0 ~ 23 RETURN
14
