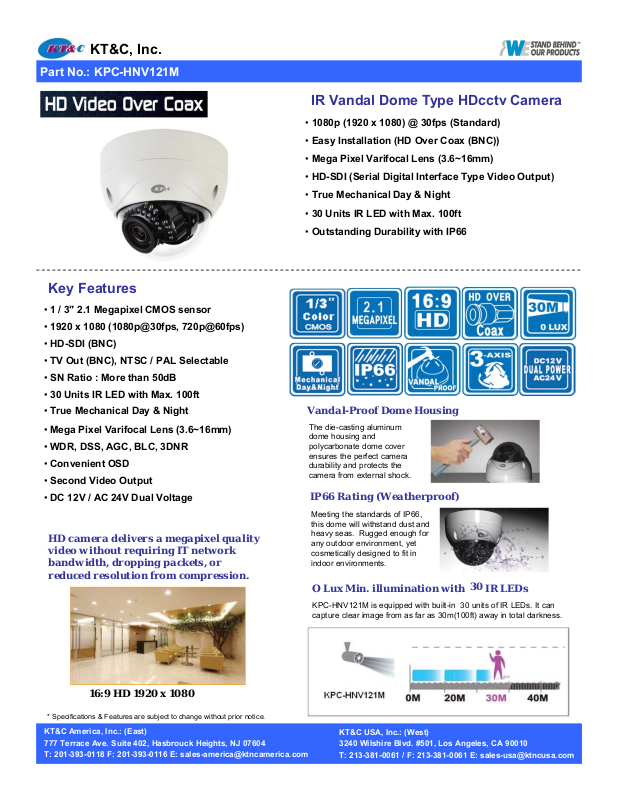

KT&C KPC-HNV121M Specsheet

KT&C, Inc.

Part No.: KPC-HNV121M

Key Features

• 1 / 3″ 2.1 Megapixel CMOS sensor

• 1920 x 1080 (1080p@30fps, 720p@60fps)

• HD-SDI (BNC)

• TV Out (BNC), NTSC / PAL Selectable

• SN Ratio : More than 50dB

• 30 Units IR LED with Max. 100ft

• True Mechanical Day & Night

• Mega Pixel Varifocal Lens (3.6~16mm)

• WDR, DSS, AGC, BLC, 3DNR

• Convenient OSD

• Second Video Output

• DC 12V / AC 24V Dual Voltage

HD camera delivers a megapixel quality
video without requiring IT network
bandwidth, dropping packets, or
reduced resolution from compression.

IR Vandal Dome Type HDcctv Camera

• 1080p (1920 x 1080) @ 30fps (Standard)

• Easy Installation (HD Over Coax (BNC))

• Mega Pixel Varifocal Lens (3.6~16mm)

• HD-SDI (Serial Digital Interface Type Video Output)

• True Mechanical Day & Night

• 30 Units IR LED with Max. 100ft

• Outstanding Durability with IP66

Vandal-Proof Dome Housing

The die-casting aluminum
dome housing and
polycarbonate dome cover
ensures the perfect camera
durability and protects the
camera from external shock.

IP66 Rating (Weatherproof)

Meeting the standards of IP66,
this dome will withstand dust and
heavy seas. Rugged enough for
any outdoor environment, yet
cosmetically designed to fit in
indoor environments.

O Lux Min. illumination with IR LEDs

KPC-HNV121M is equipped with built-in 30 units of IR LEDs. It can
capture clear image from as far as 30m(100ft) away in total darkness.

30

16:9 HD 1920 x 1080

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-HNV121M

HDcctv provides superior surveillance environment compared to conventional VGA
camera.

HDcctv

Conventional

3-Axis Rotating
Mechanism

1080p

3-Axis gimbal bracket rotates and
swifts horizontally and vertically,
so that user can install the camer
a in any place with exact pictures
needed.

General Feature Diagram

(Unit: mm)

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-HNV121M

Technical Specification

Model KPC-HNV121M

Image Sensor 1 / 3” 2.1 Megapixel Color CMOS

Effective Pixels 1944 (H) x 1092 (V)

Unit Cell Size 2.75um (H) x 2.75um (V)

Video Output

Lens 3.6 ~ 16mm mega pixel vari-focal Lens

S/N Ratio More than 50dB

Min. Illumination 1.0 Lux

Day & Night True Mechanical Day and Night

IR LED

IR LED Operation On (1Lux) / Off (3 Lux)

Min. Exposure Time On (1Lux) / Off (3 Lux)

IP Rating IP66 (Weatherproof)

Shutter Speed

HD-SDI: 1080p@30fps / 720p@60fps

TV Out: CVBS NTSC / PAL

30 IR LEDs, 850 nm

Up to 100ft

Auto / Manual

1/30 (25), 1/60 (50), 1/120, 1/250, 1/700,

1/1K, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K

OSD Menu Built-in with joystick

AGC 0 ~ 23 dB

BLC On / Off

White Balance Manual / Push Lock / Manual

Function

Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Temperature -20 °C ~ 70 °C (-4 °F ~ 140 °F)

Power Supply

Dimensions Bubble(107Φ), 151Φ x 123.4

Weight 950g

WDR Supported

3DNR Supported

DSS x2, x3, x4

Motion Detection Supported

Mirror Mode Supported (H/V / HV)

Day & Night Auto / Color / BW

DC12V (±10%), Max. 600 mA / AC24V (±10%), Max. 7 W
