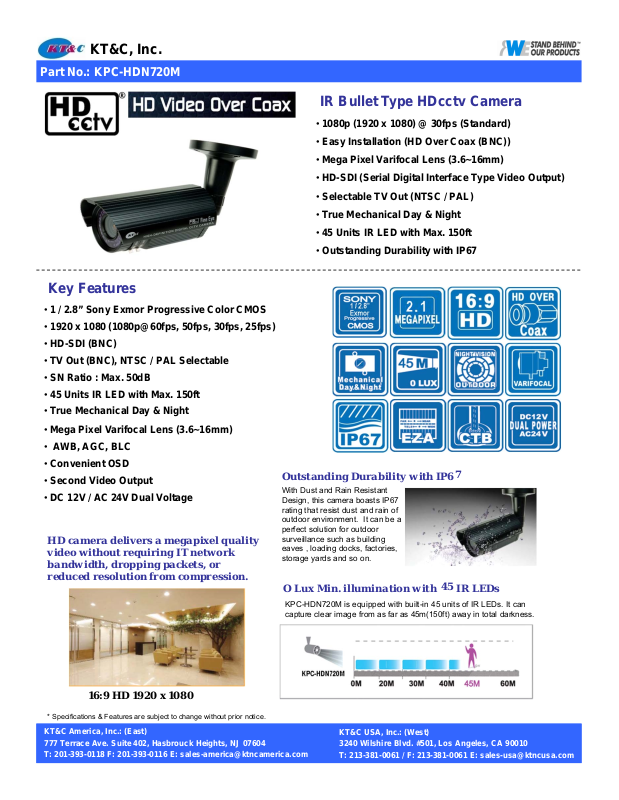

KT&C KPC-HDN720M Specsheet

KT&C, Inc.

Part No.: KPC-HDN720M

Key Features

• 1 / 2.8” Sony Exmor Progres sive Color CMOS

• 1920 x 1080 (1080p@60fps, 50fps, 30fps, 25fps)

• HD-SDI (BNC)

• TV Out (BNC), NTSC / PAL Selectable

• SN Ratio : Max. 50dB

• 45 Units IR LED with Max. 150ft

• True Mechanical Day & Night

IR Bullet Type HDcctv Camera

• 1080p (1920 x 1080) @ 30fps (Standard)

• Easy Installation (HD Ov er Coax (BNC))

• Mega Pixel Varifocal Lens (3.6~16mm)

• HD-SDI (Serial Digital Interface Type Video Output)

• Selectable TV Out (NTSC / PAL)

• True Mechanical Day & Night

• 45 Units IR LED with Max. 150ft

• Outstanding Durability with IP67

• Mega Pixel Varifocal Lens (3.6~16mm)

• AWB, AGC, BLC

• Convenient OSD

• Second Video Output

• DC 12V / AC 24V Dual Voltage

HD camera delivers a megapixel quality
video without requiring IT network
bandwidth, dropping packets, or

Outstanding Durability with IP6

With Dust and Rain Resistant
Design, this camera boasts IP67
rating that resist dust and rain of
outdoor environment. It can be a
perfect solution for outdoor
surveillance such as building
eaves , loading docks, factories,
storage yards and so on.

reduced resolution from compression.

O Lux Min. illumination with IR LEDs

KPC-HDN720M is equipped with built-in 45 units of IR LEDs. It can
capture clear image from as far as 45m(150ft) away in total darkness.

16:9 HD 1920 x 1080

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

7

45

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-HDN720M

HDcctv provides superior surveillance environment compared to conventional VGA
camera.

HDcctv

Conventional

1080p

External Zoom and Focus Adjustment

The
workmanship
to adjust
zoom and
focus,
opening the
window cap
might cause

the humidity
complication to the camera. The External Zoom and Focus
System with our state of the art technology provides easy
camera installation without opening the window cap to
adjust zoom and focus the lens.

General Feature Diagram

Second Video Connection and OSD joystick

ODS Joystick
Controller

Second Video Connector for
easy configuring the camera.

(Unit: mm)

* Specifications & Features are subject to change without prior notice.

KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [e-mail]

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]

KT&C, Inc.

Part No.: KPC-HDN720M

Technical Specification

Model KPC-HDN720M

Signal System TV Out : NTSC / PAL selectable
Image Sensor 1 / 2.8” 2.1MP SONY Exmor Progressive CMOS
Effective Pixels 2096 (H) x 1561 (V)
Unit Cell Size 2.5um (H) x 2.5um (V)
Video Output HD-SDI / 1.0 Vp-p Composite (75Ω)
Lens 3.6 ~ 16 mm Mega Pixel Varifocal Lens
Lens Control DC IRIS
S/N Ratio Max. 50dB
Min. Illumination 0 Lux(IR LED On)
Day & Night True Mechanical Day and Night

IR LED

IR LED Operation On (1 Lux) / Off (3 Lux)
Min. Exposure Time 110.86 us (1 / 9020 sec)

Video Output Mode

IP Rating IP67 (Waterproof)

1080p@30fps, 1080p@60fps, 1080p@25fps, 1080p@50fps

45 IR LEDs, 850 nm

Up to 150ft

TV Out: NTSC / PAL Selectable

OSD Menu Built-in

Function

Operating Temperature -10
Storage Temperature -20

Humidity

Power Supply
Dimensions 80.6 Φ x 168.6 mm
Weight Approx. 2 kg (4.41 lbs.)

Flickerless Off / 50Hz / 60Hz
BLC On / Off
White Balance Manual / ATW / Push

C ~ 50 °C (14 °F ~ 122 °F)

°

C ~ 70 °C (-4 °F ~ 140 °F)

°

Operation: Less than 80%

Storage: Less than 95%

DC12V (±10%), Max. 1100 mA / AC24V (±10%), Max. 12 W
