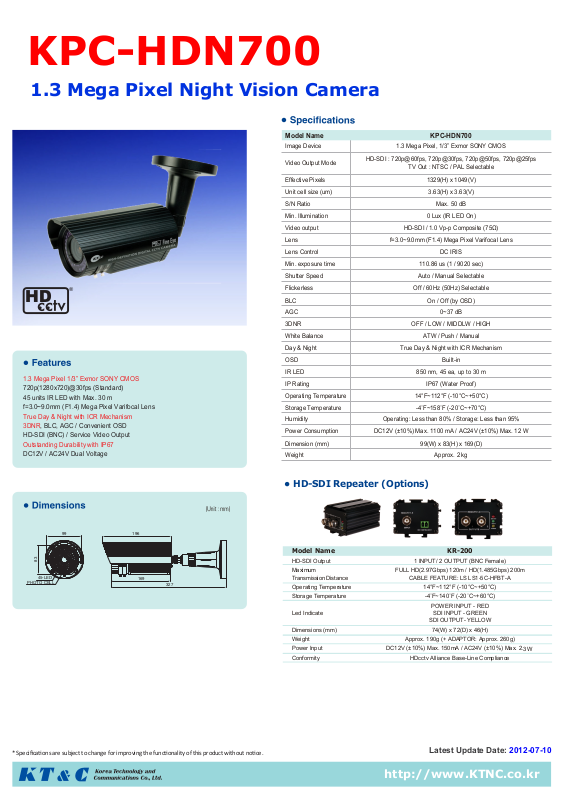

KT&C KPC-HDN700M Specsheet

KPC-HDN700

1.3 Mega Pixel Night Vision Camera

1.3 Mega Pixel 1/3” Exmor SONY CMOS

720p(1280x720)@30fps (Standard)
45 units IR LED with Max. 30 m
f=3.0~9.0mm (F1.4) Mega Pixel Varifocal Lens

True Day & Night with ICR Mechanism
3DNR, BLC, AGC / Convenient OSD

HD-SDI (BNC) / Service Video Output

Outstanding Durability with IP67

DC12V / AC24V Dual Voltage

Model Name

Image Device

Video Output Mode

Effective Pixels

S/N Ratio

Min. Illumination

Video output

Lens

Lens Control

Shutter Speed

Flickerless

AGC

3DNR

OSD

IR LED

Operating Temperature

Storage Temperature

Humidity

Power Consumption

Dimension (mm)

Weight

KPC-HDN700

1.3 Mega Pixel, 1/3” Exmor SONY CMOS

HD-SDI : 720p@60fps, 720p@30fps, 720p@50fps, 720p@25fps

TV Out : NTSC / PAL Selectable

1329(H) x 1049(V)

3.63(H) x 3.63(V)Unit cell size (um)

Max. 50 dB

0 Lux (IR LED On)

HD-SDI / 1.0 Vp-p Composite (75Ω)

f=3.0~9.0mm (F1.4) Mega Pixel Varifocal Lens

DC IRIS

110.86 us (1 / 9020 sec)Min. exposure time

Auto / Manual Selectable

Off / 60Hz (50Hz) Selectable

On / Off (by OSD)BLC

0~37 dB

OFF / LOW / MIDDLW / HIGH

ATW / Push / ManualWhite Balance

True Day & Night with ICR MechanismDay & Night

Built-in

850 nm, 45 ea, up to 30 m

IP67 (Water Proof)IP Rating

14°F~112°F (-10°C~+50°C)

-4˚F~158˚F (-20˚C~+70°C)

Operating: Less than 80% / Storage: Less than 95%

DC12V (±10%) Max. 1100 mA / AC24V (±10%) Max. 12 W

99(W) x 83(H) x 169(D)

Approx. 2 kg

99

83

45-LED

PHOTO CELL

* Specificaons are subject to change for improving the funconality of this product without noce.

196

169

327

HD-SDI Repeater (Options)

Model Name KR-200

HD-SDI Output 1 INPUT/ 2 OUTPUT (BNC Female)

Maximum
Transmission Distance

Operating Temperature

Storage Temperature

Led Indicate

Dimensions (mm)

Weight

Power Input

Conformity

FULL HD(2.97Gbps) 120m / HD(1.485Gbps) 200m

CABLE FEATURE: LS LS1-5C-HFBT-A

14°F~112°F (-10°C~+50°C)

-4˚F~140˚F (-20˚C~+60°C)

POWER INPUT - RED

SDI INPUT - GREEN

SDI OUTPUT- YELLOW

74(W) x 72(D) x 46(H)

Approx. 190g (+ ADAPTOR: Approx. 260g)

DC12V

(±10%)

Max. 150mA / AC24V

HDcctv Alliance Base-Line Compliance

(±10%)

Latest Update Date: 2012-07-10

Max. 2.3W

http://www.KTNC.co.kr
