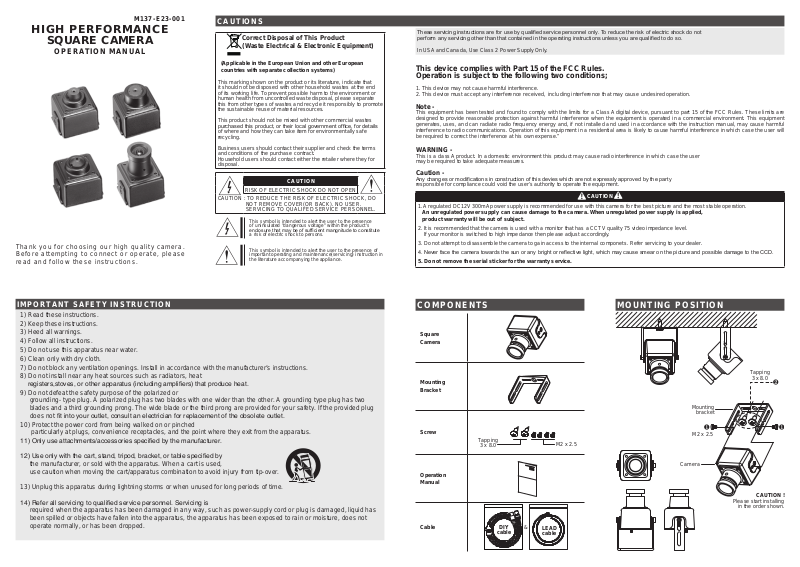

KT&C KPC-E23NU User Manual

M137-E23-001

HIGH PERFORMANCE

SQUARE CAMERA

OPERATION MANUAL

Thank you for choosing our high quality camera.
Before attempting to connect or operate, please
read and follow these instructions.

CAUTIONS

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European
countries with separate collection systems)

This marking shown on the product or its literature, indicate that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes

purchased this product, or their local government ofce, for details

of where and how they can take item for environmentally safe
recycling.

Business users should contact their supplier and check the terms
and conditions of the purchase contract.
Household users should contact either the retailer where they for
disposal.

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER(OR BACK). NO USER.
SERVICING TO QUALIFED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's

enclosure that may be of sufcient mangnitude to constitute

a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of
important operating and maintenance(servicing) instruction in
the literature accompanying the appliance.

CAUTION

These servicing instructions are for use by qualied service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating instructions unless you are qualied to do so.

In USA and Canada, Use Class 2 Power Supply Only.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Note -

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.”

WARNING -

This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.

Caution -

Any changes or modications in construction of this devies which are not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

1. A regulated DC12V 300mA power supply is recommended for use with this camera for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera. When unregulated power supply is applied,
product warranty will be out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality 75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal componets. Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

CAUTION

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat

registers,stoves, or other apparatus (including ampliers) that produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specied by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specied by

the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualied service personnel. Servicing is

required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

Square
Camera

Mounting
Bracket

Screw

Operation
Manual

Cable

Tapping

3 x 8.0

DIY

cable

MOUNTING POSITIONCOMPONENTS

Tapping

3 x 8.0

❷

Mounting

bracket

❶ ❶

Camera

M2 x 2.5

CAUTION !

Please start installing

in the order shown.

M2 x 2.5

&

LEAD
cable

CONNECTION

RED(DC+12V)

BLACK(GND)
YELLOW(VIDEO OUT)

( DIY CABLE CONNECTION )

LEAD WIRE

( LEAD WIRE CONNECTION )

DIMENSIONS

Unit(mm)

VIDEO IN

12V REGULATED POWER SUPPLY

TV MONITOR

VIDEO IN

UP

LEFT

12V REGULATED

POWER SUPPLY

TV MONITOR

MENU

(SELECTION KEY)

RIGHT

DOWN

OSD MENU STRUCTURE

MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU

AUTO

SHUTTER/AGC

MANUAL

ATW

PUSH

WHITE BAL

BACK LIGHT OFF,BLC,HLC

PIC ADJUST

ATR

MOTION DET

NEXT
EXIT

SAVE ALL

PRIVACY

USER1

USER2

ANTI CR

MANUAL

PUSH LOCK

MIRROR OFF,ON

BRIGHTNESS (000 ~ 255)
CONTRAST (000 ~ 255)
SHARPNESS (000 ~ 255)

HUE (000 ~ 255)
GAIN (000 ~ 255)
RETURN

ON

OFF

ON

OFF

ON

OFF

HIGH
LUMINANCE

LOW
LUMINANCE

RETURN
MODE SHUT+AGC

SHUTTER

AGC 6,12,18,24,30,36,42,44.8
RETURN
SPEED (000 ~ 255)
DELAY CNT (000 ~ 255)
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR,OUTDOOR
RETURN

B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN

LEVEL
RETURN

LUMINANCE LOW,MID,HIGH

CONTRAST

RETURN

DETECT SENS (000 ~ 127)

BLOCK DISP

MONITOR AREA ON,OFF

AREA SEL

RETURN

AREA SEL

COLOR (1 ~ 8)

TRANSP 0.00, 0.50, 0.75, 1.00
MOSAIC OFF,ON

RETURN

MODE SHUT
BRIGHTNESS (000 ~ 255)
MODE AGC,OFF

BRIGHTNESS x0.25,x0.50,x0.75,x1.00

1/50(PAL),1/100(NTSC)
1/60(NTSC),1/120(PAL)

1/250,1/500,1/1000
1/2000,1/4000,1/10000

NTSC(27 ~ 105)

PAL(27 ~ 115)

LOW,MIDLOW,MID,
MIDHIGH,HIGH

OFF,ON,ENABLE
(CONTROLER)

1/4, 2/4, 3/4, 4/4
TOP NTSC:
BOTTOM NTSC:

LEFT

RIGHT

1/4, 2/4, 3/4, 4/4
TOP NTSC:
BOTTOM NTSC:

LEFT

RIGHT

960H NTSC:
510H NTSC:
960H NTSC:
510H NTSC:

960H NTSC:
510H NTSC:
960H NTSC:
510H NTSC:

(000 ~ 244)
(000 ~ 244)/

(000~474)
(000~251)
(000~474)
(000~251)

(000 ~ 244)/

(000 ~ 244)/

(000~474)
(000~251)
(000~474)
(000~251)

/PAL:

PAL:

/

PAL:

/

PAL:

/

PAL:

/

PAL:

PAL:

PAL:

/

PAL:

/

PAL:

/

PAL:

/

PAL:

(000 ~ 288)
(000 ~ 288)

(000~468)
(000~246)
(000~468)
(000~246)

(000 ~ 288)

(000 ~ 288)

(000~468)
(000~246)
(000~468)
(000~246)

MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU

DAY&NIGHT

NR

CAMERA ID

LANGUAGE ENGLISH /
CAMERA

RESET

BACK
EXIT

SAVE ALL

*Important Note :

- Any changes made to the camera settings must be saved prior to exiting the OSD menu.

Else all changes will be discarded.

COLOR
B/W BURST OFF,ON

AUTO

NR MODE OFF,Y,C,Y/C
Y LEVEL (000 ~ 015)
C LEVEL (000 ~ 015)
RETURN

ON

OFF

BURST OFF,ON
DELAY CNT 0 ~ 255
DAY -> NIGHT 0 ~ 255
NIGHT ->DAY 0 ~ 255

EDIT MODE
RETURN

日本語

/ DEUTSCH / FRANCAIS /

Русский

/ PORTUGUÊS / ESPAÑOL /

中文

SPECIFICATION

Signal Format NTSC PAL NTSC PAL
Image Device 1/3” 510H SONY SUPER HAD CCD II 1/3” 960H SONY EXview HAD CCD II

Scanning System 2 : 1 Interlace

Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz

Total Pixels 537(H) x 505(V) 537(H) x 597(V) 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 510(H) x 492(V) 500(H) x 582(V) 976(H) X 494(V) 976(H) X 582(V)
H.Resolution 380TV Lines 750TV Lines

Electronic Shutter 1/60 ~ 1/100,000sec
S/N Ratio More than 48dB(AGC Off) More than 50dB(AGC OFF)

Min.Illumination 0.15Lux
Gamma

Sync System Internal
OSD Built in (Inner Key / Joystick)

BLC OFF / BLC / HLC
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR OFF / ON (Level adjustable)
ATR OFF / ON (Level adjustable)
Function MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night Digital D&N
Lens Board Lens, Pinhole Lens
Language ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / S
Video Output 1.0 Vp-p Composite (75Ω)
Operating

Temperature

Storage

Temperature
Humidity Less than 80%
Dimension 23mm(W) x 22mm(H)
Power Consumption DC 12V (±10%) Max 60mA DC 12V (±10%) Max 70mA

Specications and designs are subject to change for improving the functionality of this product without notice.

1/50 ~ 1/100,000sec 1/60 ~ 1/100,000sec 1/50 ~ 1/100,000sec

γ=

0.45

PANISH / CHINESE

14°F~122°F (-10°C~+50°C)

-4°F~140°F (-20°C~+60°C)
