KT&C KPC-DW100 Operation Manual

Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow
these instructions.

OPE R AT I ON M ANU A L

HIGH RESOLUTION DOME CAMERA

M059-DW100-001

WD R

CO NT EN TS

1. C aut i ons

2. F eat u res

3. P ack a ge

4. O ver v iew and fun c tio n

5. I nst a lla t ion

6. C onn e cti o n

7. D ime n sio n s

8. S pec i fic a tio n s

9. O SD M enu

• MENU DESCRIPTION

• GENERAL STRUCTURE

• OSD FUNCTION DESCRIPTION

- LENS

- EXPOSURE

- WHITE BALANCE

- WDR

- DAY & NIGHT

- IMAGE

- SPECIAL

- CAM TITLE

- LANGUAGE

- SYNC

- COMM ADJ

- PRIVACY

- MOTION DET

- DISPLAY

• FACTORY DEFAULF

• EXIT

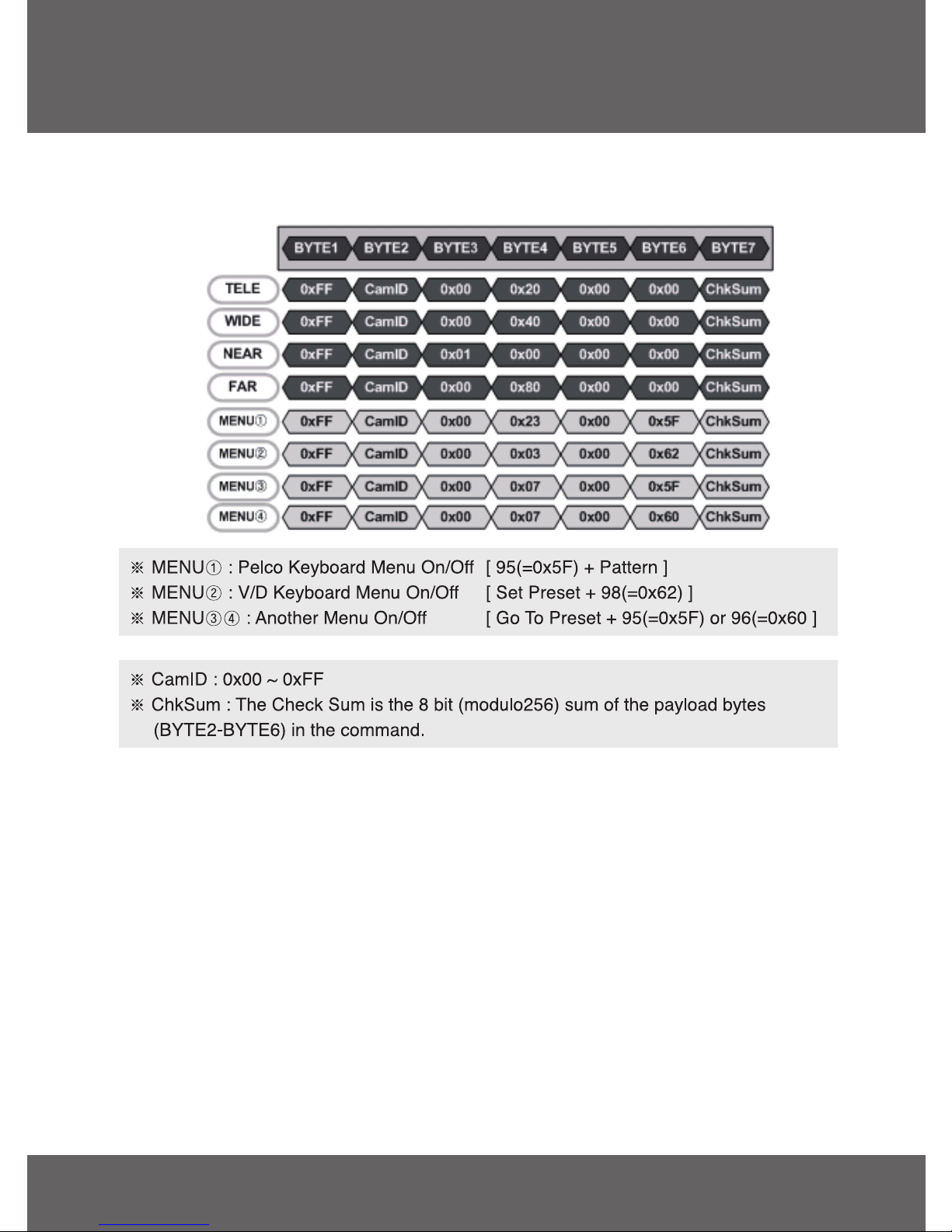

10. C omm u nic a tio n Pr o toc o l

2

1. Ca ut io ns

3

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

Note -

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio / tv technician for help.

Any changes or modications in construction of this device

which are not expressly approved by the party responsible
for compliance could void the user's authority to operate the
equipment.

Caution -

1. A regulated DC12V 1.5A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be
out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal
components. Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may

cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

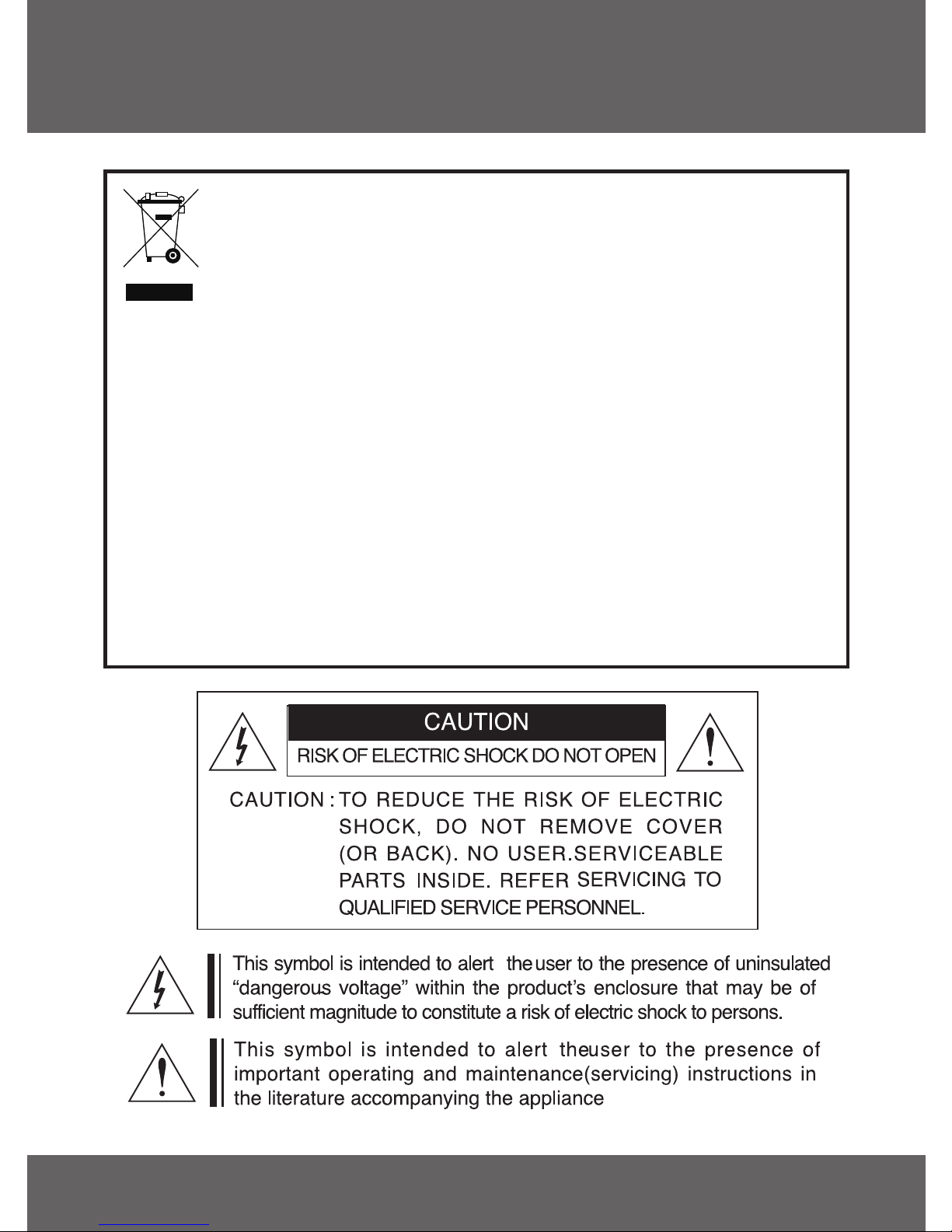

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

1. Ca ut io ns

4

CAUTIONS

1

2. Fe at ur es

5

• Sony Vertical Double - Density interline 1/3″CCD

• High Resolution of 550TV Lines

• DC Iris Varifocal Lens, Board Lens

• Powerful WDR (Wide Dynamic Range) Performance

• Intensied DSS accumulation eld number up to 500x

• Privacy Image Masking up to 8 areas

• Motion Detection with level adjustment

• Multi-Language OSD Menu
(English, Chinese, German, Russian, Spanish)

• Second Video Connector

• 3-Axis Gimbal Bracket

• Pan&Tilt(Pan 360˚ / Tilt 140˚)

• Voltage : DC12V

OPTION

• AC24V / DC12V Dual Voltage

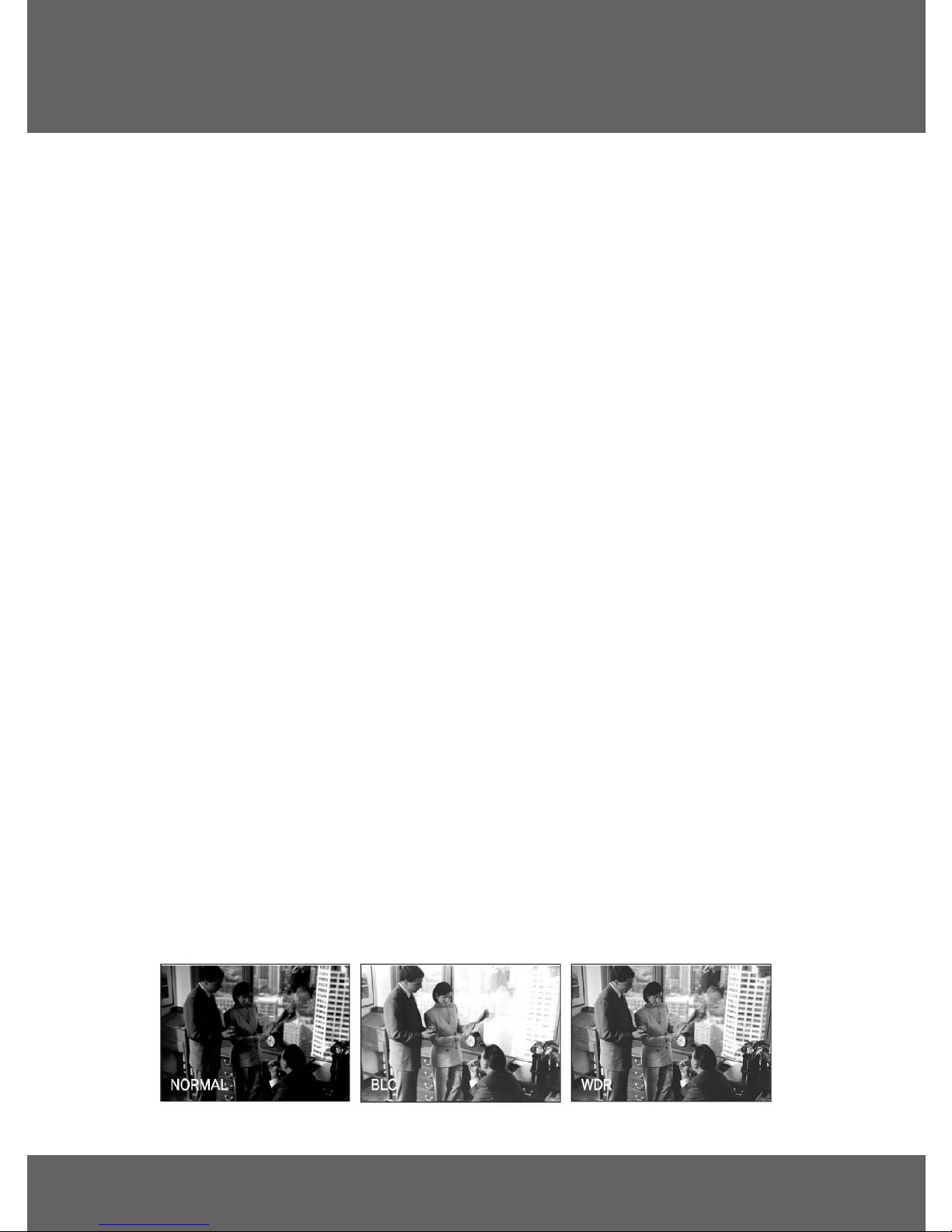

How WDR makes better image?
WDR allows every detail to be captured accurately enen if one
portion is bright while other portions are dark.
(The difference of two portions could be more than 64 time)

2. Fe at ur es

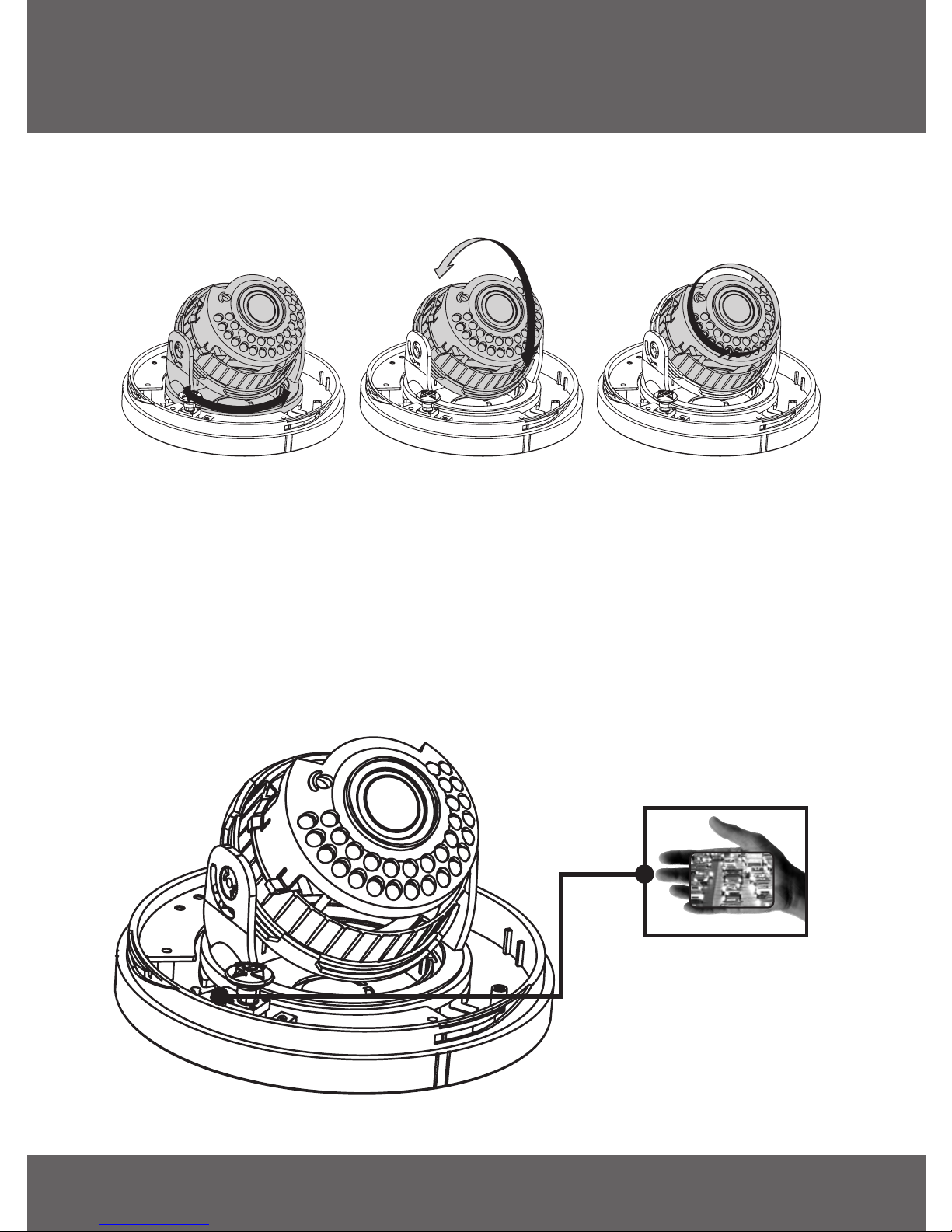

• 3-Axis Gimbal

The Service Video Connector also provides
the installer with an easy way of configuring
the camera.

• Service Video connector

6 7

FEATURES

2

CAUTIONS

1

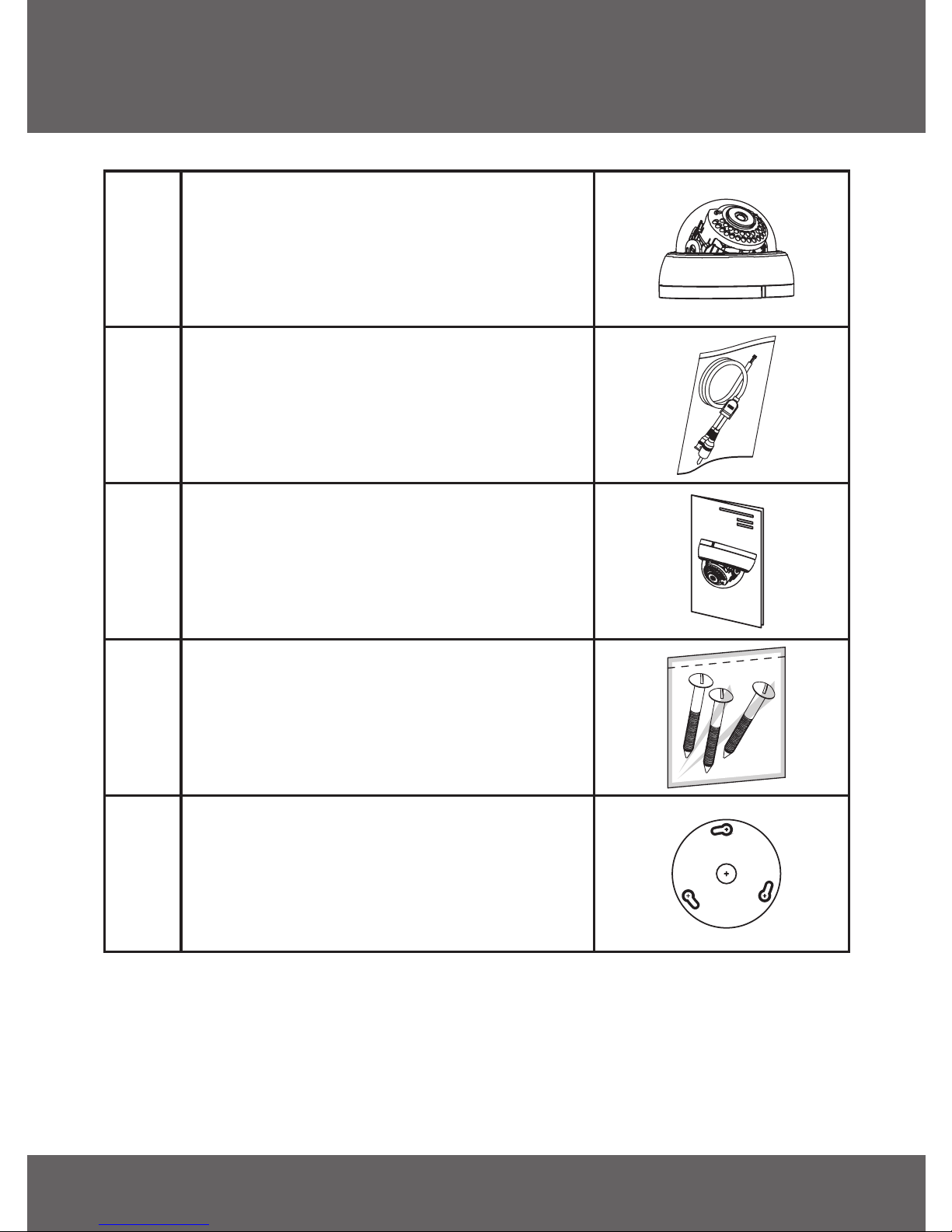

3.

Pa ck ag e

1 DOME CAMERA

2 VIDEO OUTPUT TEST CABLE

3 OPERATION MANUAL

4 SCREW - 3ea

5 MOUNT GUIDE

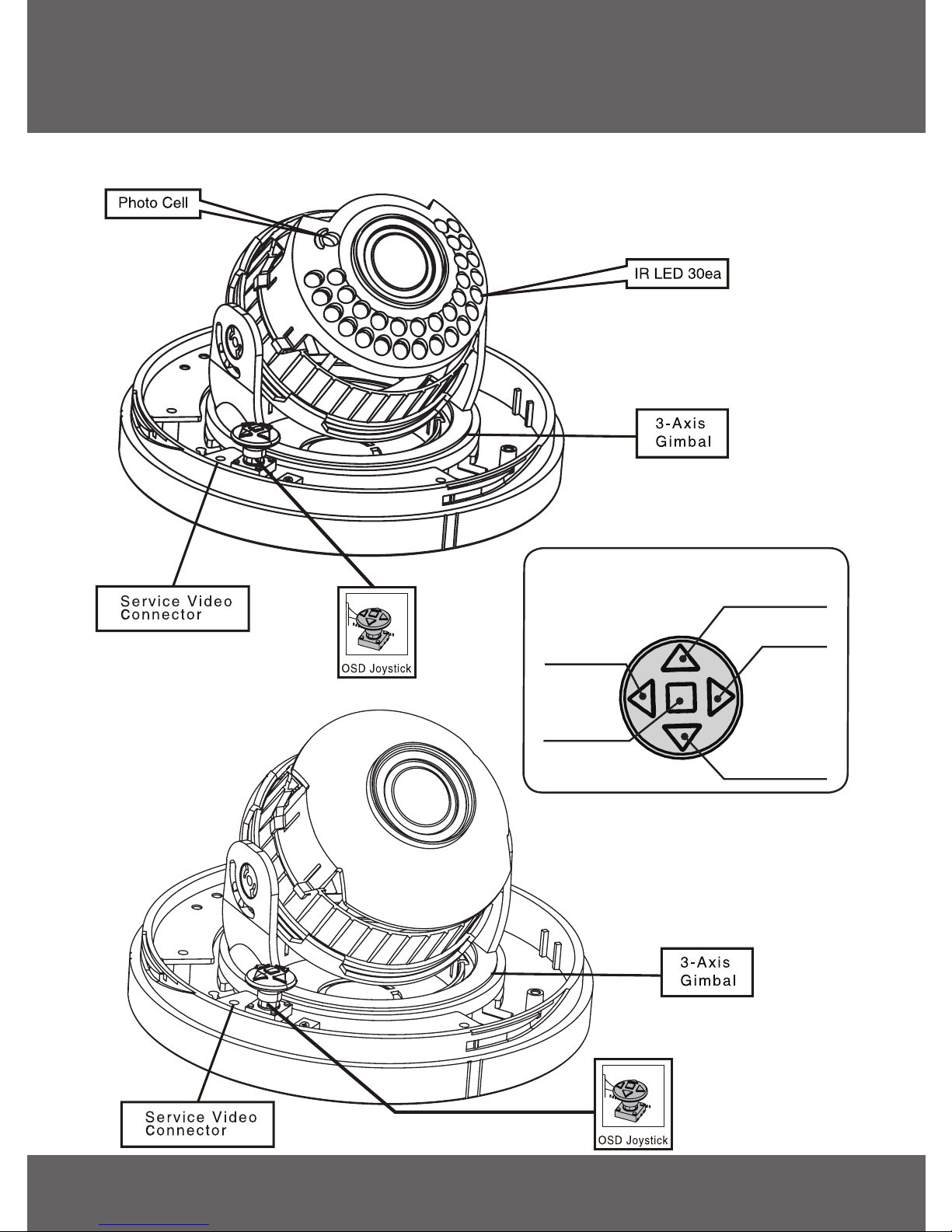

4. Ov er vi ew a nd f un ct io n

• CONTROL FUNCTION

(OSD JOYSTICK)

LEFT

UP

RIGH T

DOWN

MENU

• Name (LED Type)

• Name (Standard)

8 9

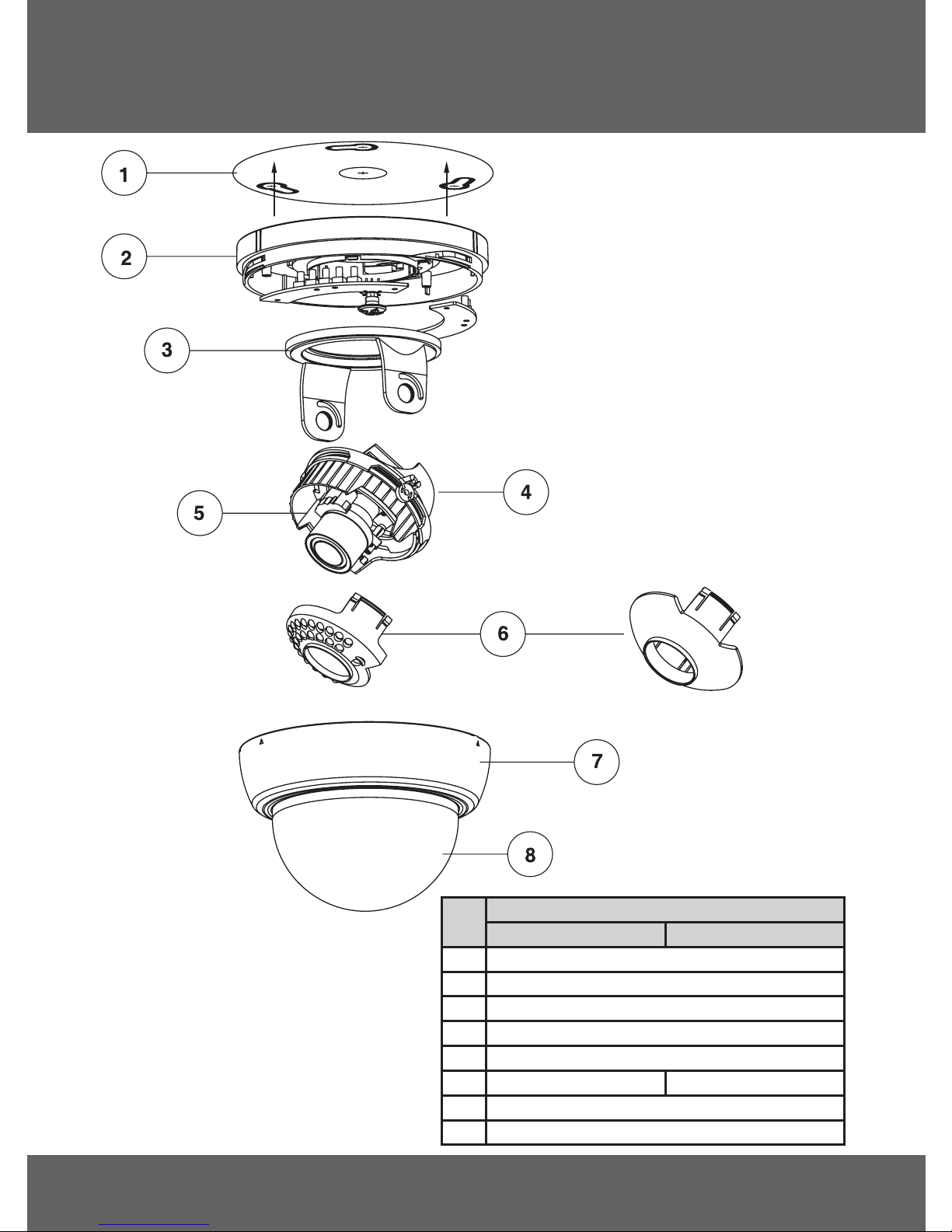

5. I ns ta ll at io n

NO

PART NAME

STANDARD Type LED Type

1 Mount Guide

2 Housing Botton

3 Holder Panning

4 Holder Tlit

5 Holder Rotate

6 Cover Sun Shield Cover LED

7 Housing Top

8 Cover, Dome

Standard Type

LED Type

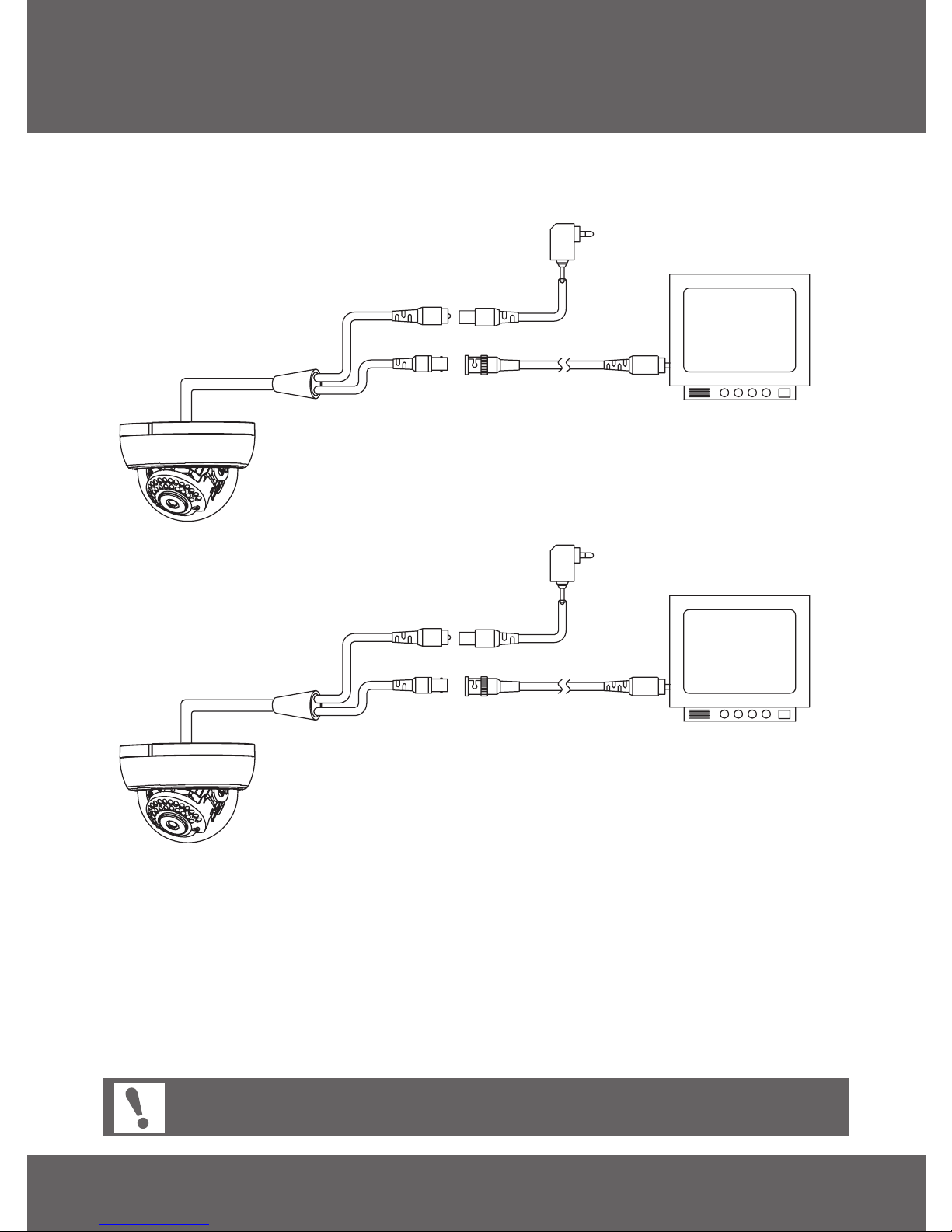

6. Co nn ec ti on

BNC FEM A LE
VID E O

VID E O I N

DC 1 2V P OWE R SU P PLY

BNC FEM A LE
VID E O

VID E O I N

DC 1 2V / AC 24V
DUA L PO W ER S UPP L Y

When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.

• DUAL(DC12V/AC24V)

• DC12V

10 11

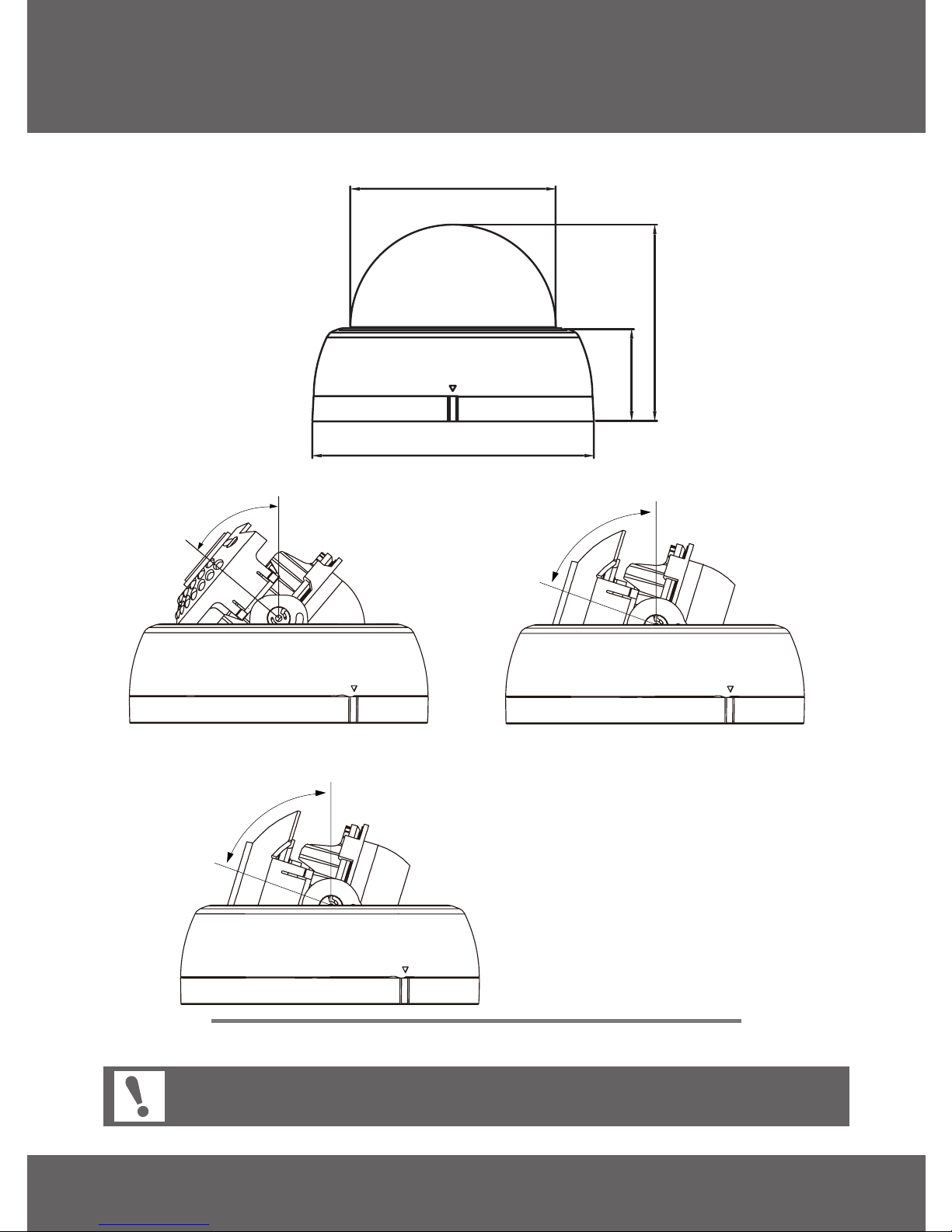

7. Di me ns io ns

Ø

136.4

45

95.3

Ø

100

Unit : mm

50˚

When you x the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please

set short distance focus approximately 3M and do not set long distance focus.

70˚

65˚

◀

When using a wide angle lens
of 2.6mm, Tilt is not available
over 65°.

8. Sp ec if ic at io ns

Signal Format NTSC PAL

Image Device 1/3" Sony Vertical double-density interline CCD image sensor

Scanning System 2:1 Interlace

H.Resolution 550TV Lines

Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz

Total Pixels 811(H) x 508(V) 795(H) x 596(V)

Effective Pixels 768(H) x 494(V) 752(H) x 582(V)

Electronic Shutter

Board Lens

1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec

Varifocal DC Lens

1/60 sec 1/50 sec

Digital Slow Shutter Off/On(1x ~ 500x)

WDR Off / On / Auto (Level Adjustable)

BLC Off / Botton / Left / Right / Top / Center

AGC LOW / MID / HIGH

Motion Detection Zone(Whole, Top, Botton, Center, Left, Right) / Level Adjustable

Privacy Masking Zone 8ea (Mask Off / On)

White Balance ATW / PUSH / PUSH LOOK / USER → R / B Gain

OSD Available

Language English / Chinese / Russian / Spanish / German

S/N Ratio More than 48dB(AGC Off)

Gamma r=0.45

Min. Illumination

1.0 Lux / 30 IRE F2.0, 0.001 Lux(DSS)

Sync System Internal

Second Video Connector 1.0 Vp-p Composite 75(Ω) unbalanced

Power
Consumption

DC12V DC 12V (±10%) Max 210 mA

Dual

DC 12V (±10%) 300 mA

AC 24V (±10%) 3.1W

Operating Temperature -10℃ ~ +50

℃

Storage Temperature -20℃ ~ +60

℃

Humidity Less than 80% RH

Options Dual Power

Weight 343g

Power
Consumption

DC12V DC 12V (±10%) Max 550 mA

Dual

DC 12V (±10%) 700 mA

AC 24V (±10%) 6.8 W

Min. Illumination 0 Lux (IR LED ON)

IR LED 30ea

IR LED Half Angle ±22 Degree

IR LED Wavelength 850nm

IR Beam Range Up to 30M

IR LED Operation On : 1 Lux, Off : 3 Lux

LED T Y PE

12 13

9. OS D Me nu

MENU DESCRIPTION

• The best clear image can be obtained color camera with
WDR(Wide Dynamic Range).

• The camera switches lenses automatically depending on the
illumination, which promotes the best possible color images during
the day and black / white image at night.

• The camera function can be controlled by OSD menu.

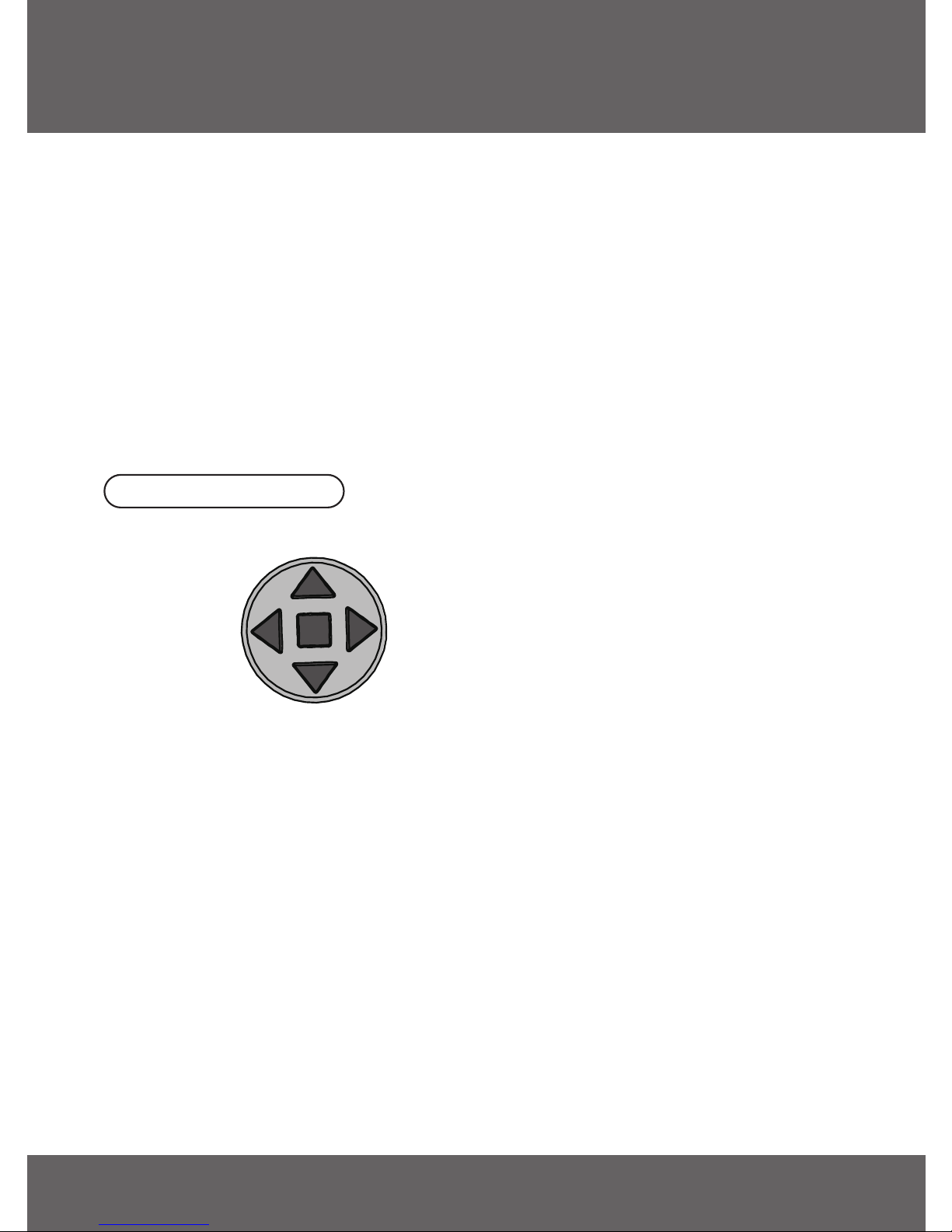

OSD STRUCTURE

•

▲,▼ :

Menu up / down

•

◀

,▶ :

Menu left / right

•

■

:

MENU

9. OS D Me nu

GENERAL STRUCTURE

SETUP

>LENS [

┛

]

EXPOSURE [

┛

]
WHITE BALANCE [┛]
WDR [

┛

]
DAY&NIGHT [

┛

]
IMAGE [

┛

]
SPECIAL [

┛

]
FACTORY DEFAULT
EXIT

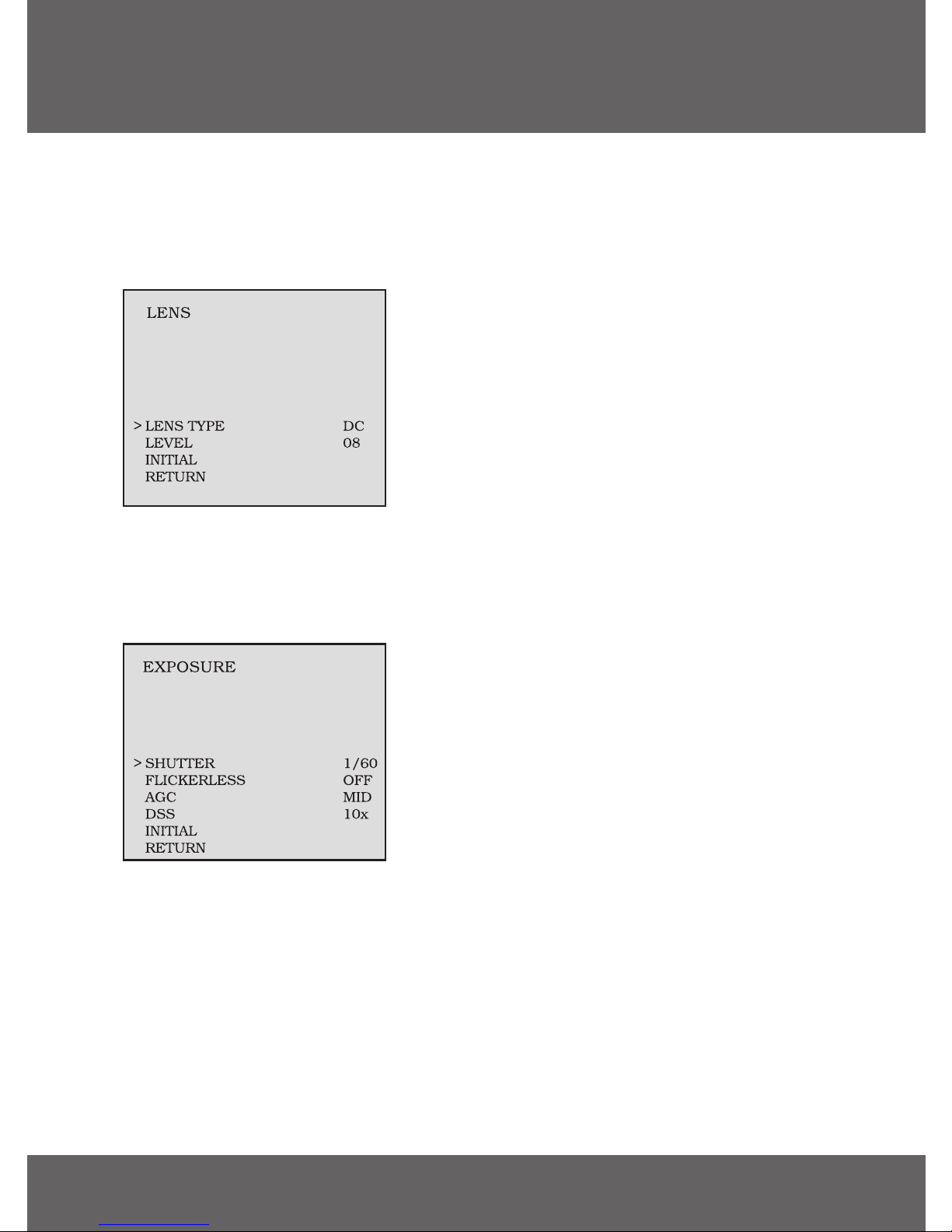

LENS

>LENS TYPE

...

DC

LEVEL

...

08
INITIAL
RETURN

EXPOSURE

>SHUTTER

...

1/60

FLICKERLESS

...

OFF

AGC

...

MID

DSS

...

10x
INITIAL
RETURN

WHITE BALANCE

>WB MODE

...

ATW

RED CONT

...

----

BLUE CONT

...

----

PUSH CONT

...

---­ INITIAL
RETURN

WDR

>WDR MODE

...

OFF

RED MODE

...

08

BLUE CONT

...

OFF

PUSH AUTO

...

CENTER

INITIAL

...

04

RETURN

14 15

MOTION DET

>MOTION MODE

...

OFF

ZONE

...

WHOLE

LEVEL

...

03
INITIAL
RETURN

PRIVACY

>ZONE

...

0

MASK

...

OFF

POSTION

...

[┛]
INITIAL
RETURN

9. OS D Me nu

DAY & NIGHT

>D&N MODE

...

COLOR

LEVEL

...

----

DWELL TIME

...

---­ INITIAL
RETURN


>REVERSE

...

NORMAL

SHARPNESS

...

10

FREEZE

...

OFF

D-ZOOM

..

1,00x
INITIAL
RETURN

SPECIAL

>CAM TITLE

...

001
LANGUAGE

...

ENG
SYNC

...

[┛]
COMM ADJ

...

[┛]
PRIVAC

...

[┛]
MOTION DETECT

...

[┛]
DISPLAY

...

[┛]
INITIAL
RETURN

CAM TITLE

0123456789ABCDEFGHIJKLMN
OPQRSTUVWXYZ!?*#$%()<>{}

SPACE

>> <<BACK

LOCATION

...

[┛]

RETURN

DISPLAY

>CAM ID

...

OFF

CAM TITLE

...

OFF

MOTION

...

OFF
INITIAL
RETURN

CAM TITLE

CAMM ADJ

>CAM ID

...

000

BAUDRATE

...

9600

INITIAL
RETURN

>LOCATION

...

[+]

WIDTH/HIGHT

...

[+]

RETURN

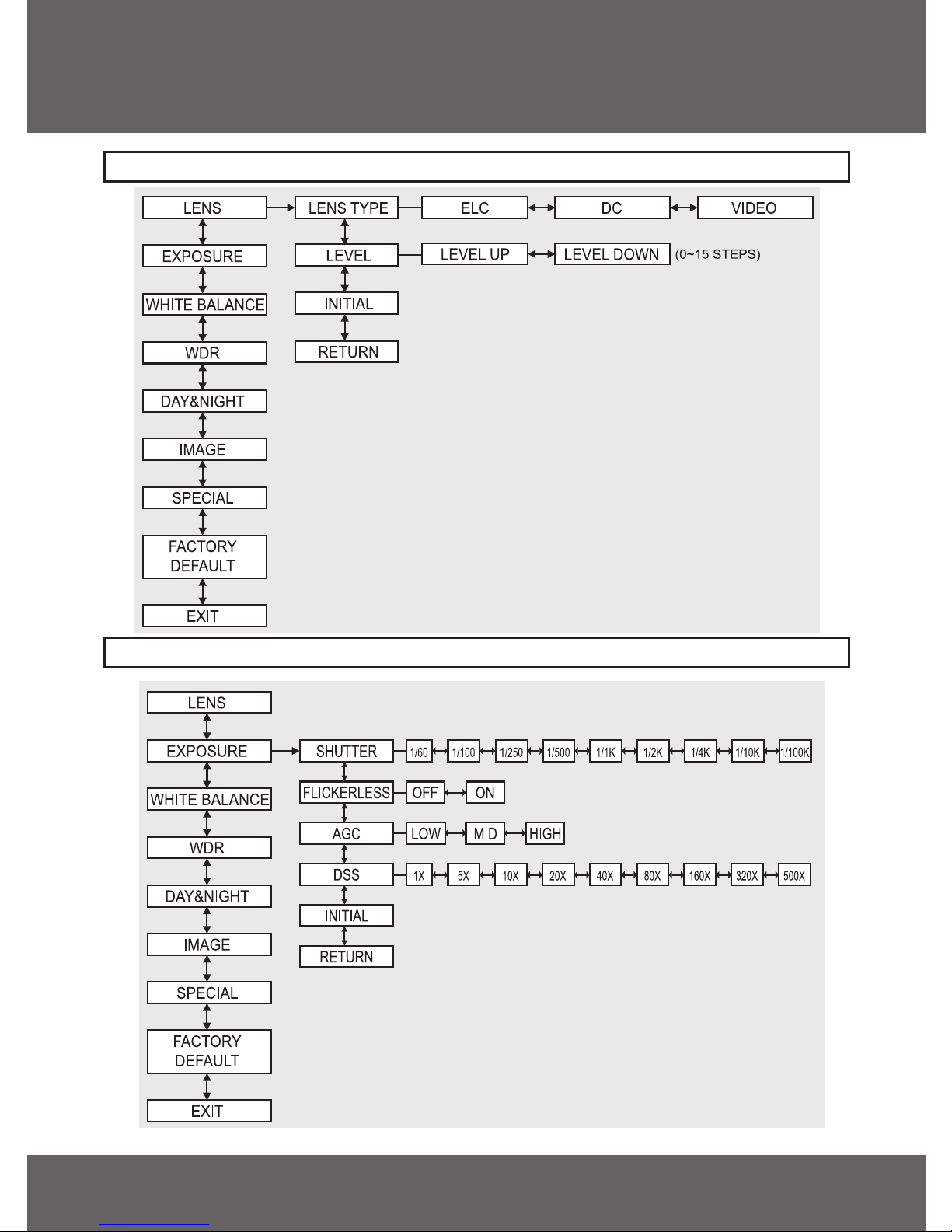

LENS MENU STRUCTURE

EXPOSURE MENU STRUCTURE

9. OS D Me nu

16 17

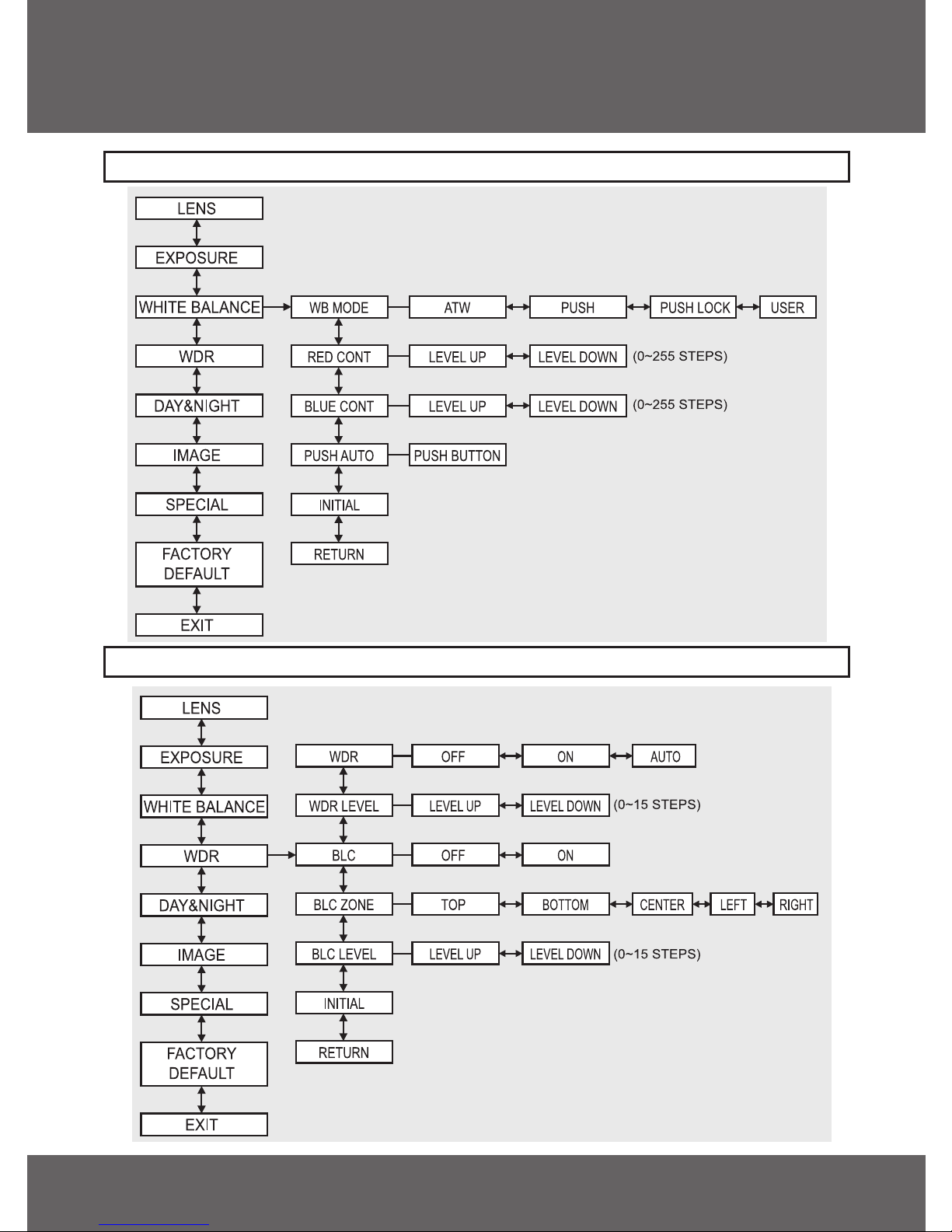

WHITE BALANCE MENU STRUCTURE

WDR MENU STRUCTURE

9. OS D Me nu

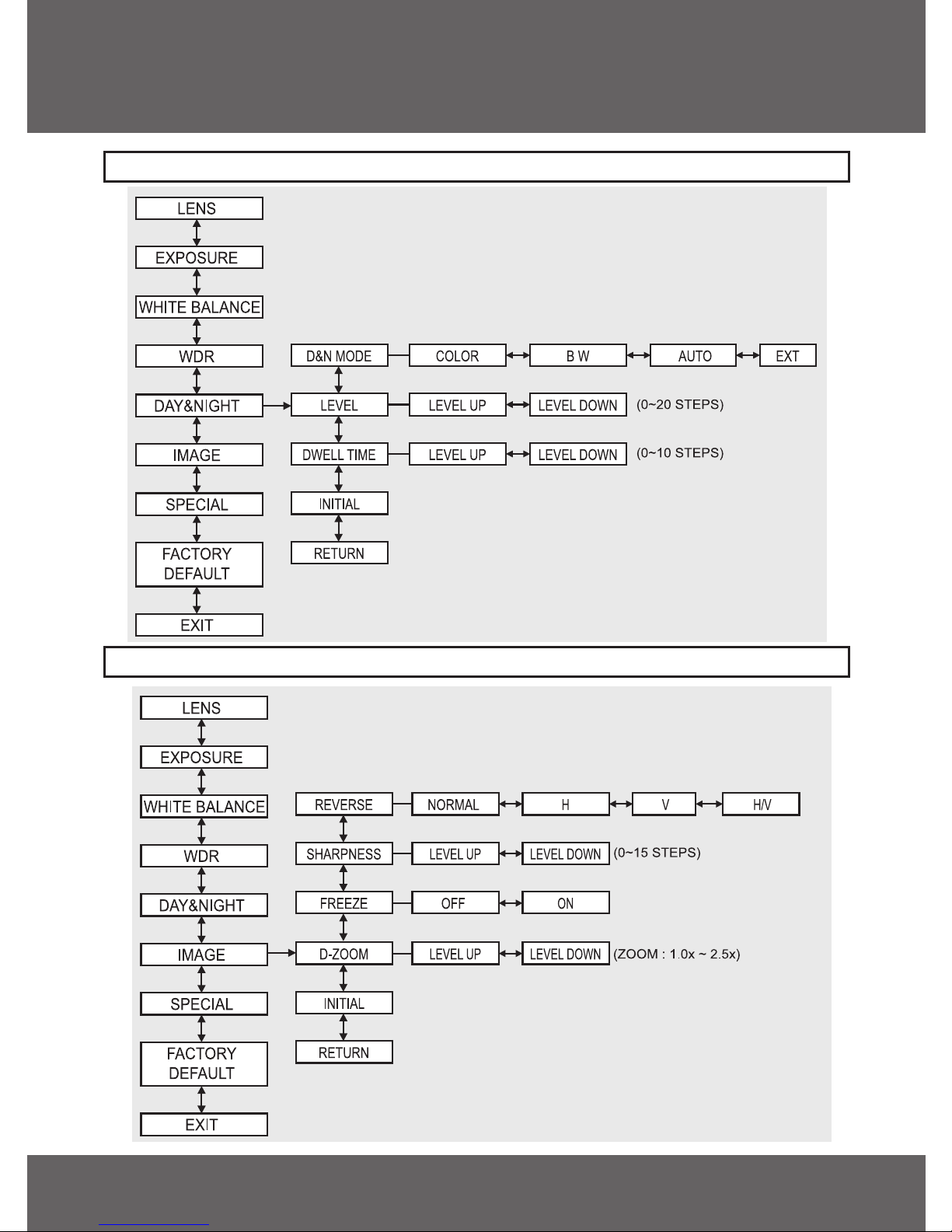

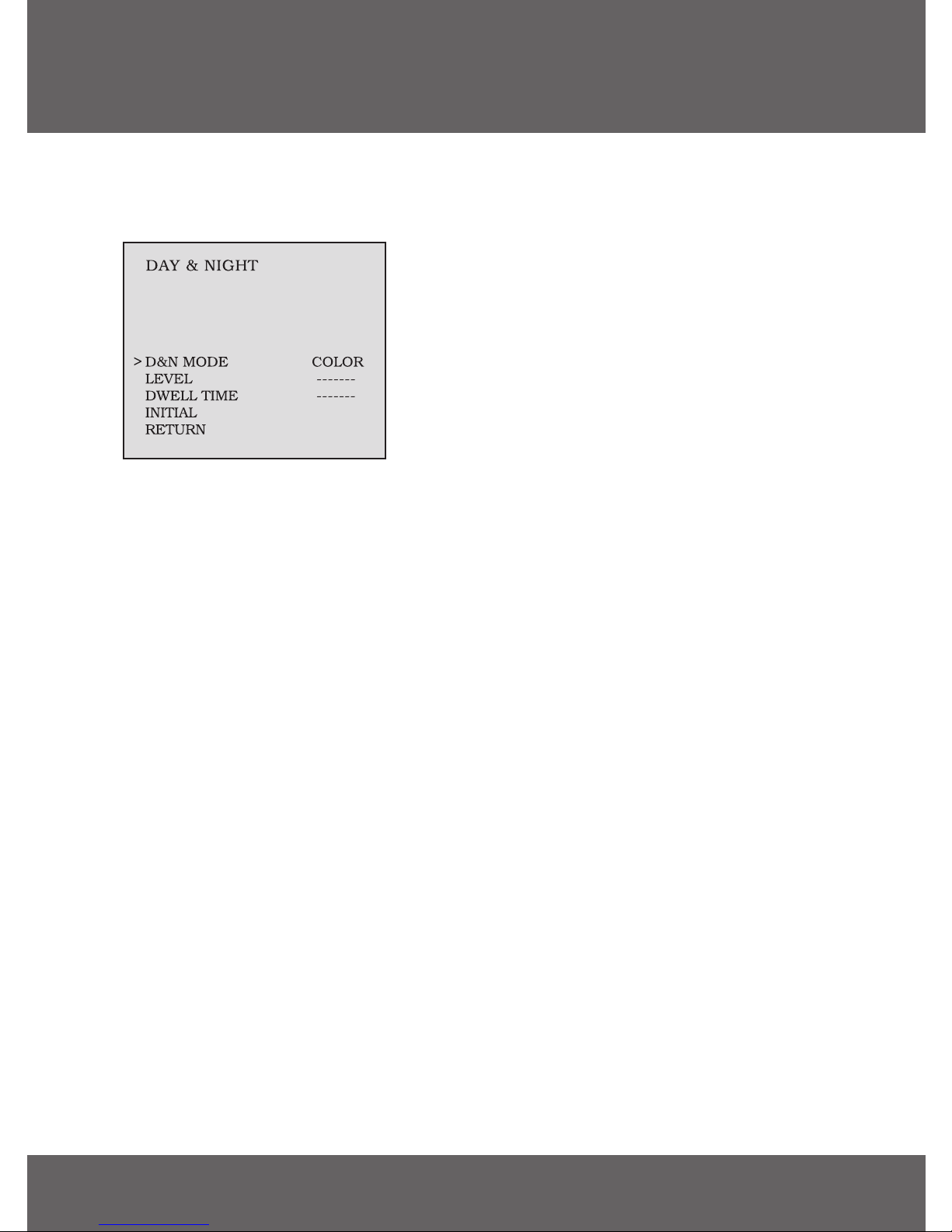

DAY & NIGHT MENU STRUCTURE

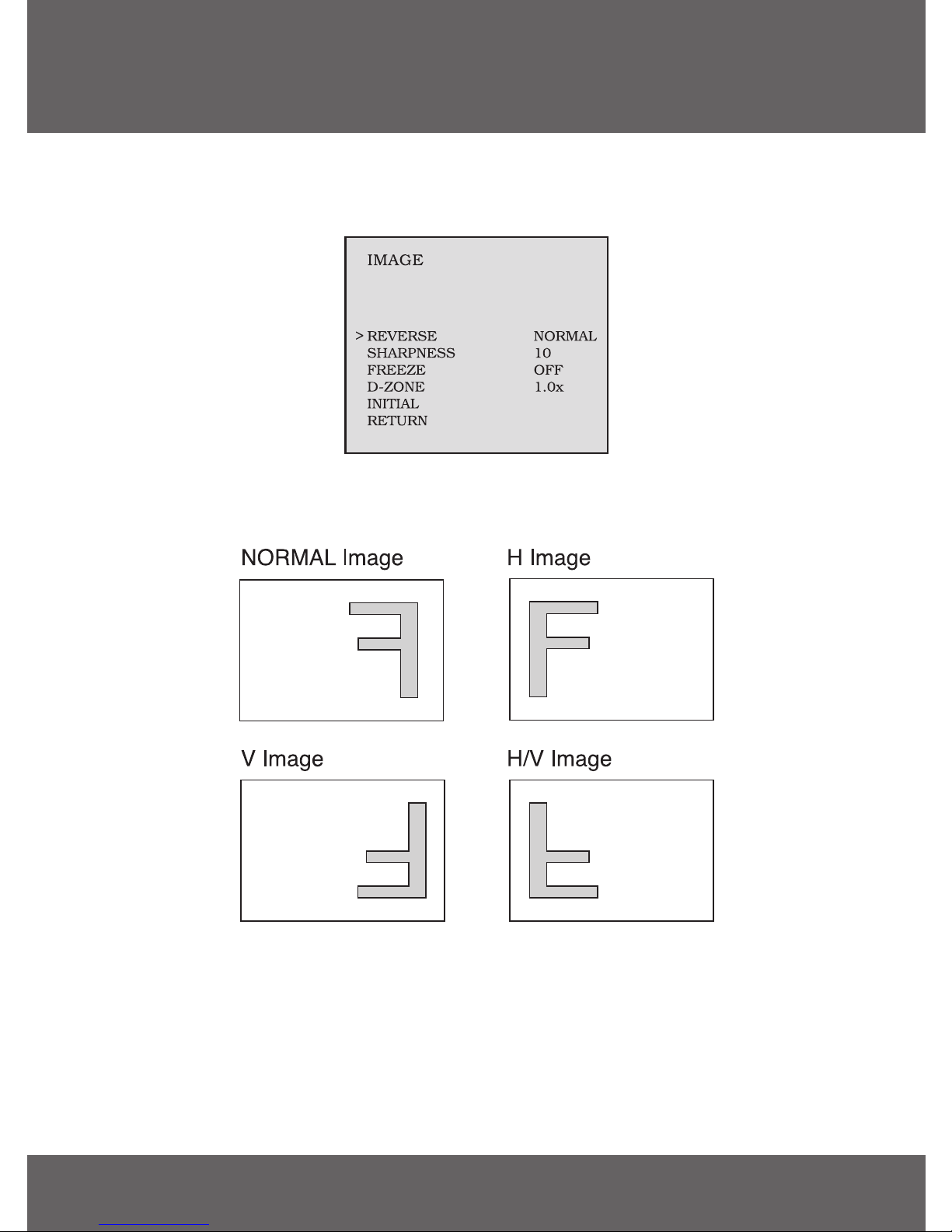

IMAGE MENU STRUCTURE

9. OS D Me nu

18 19

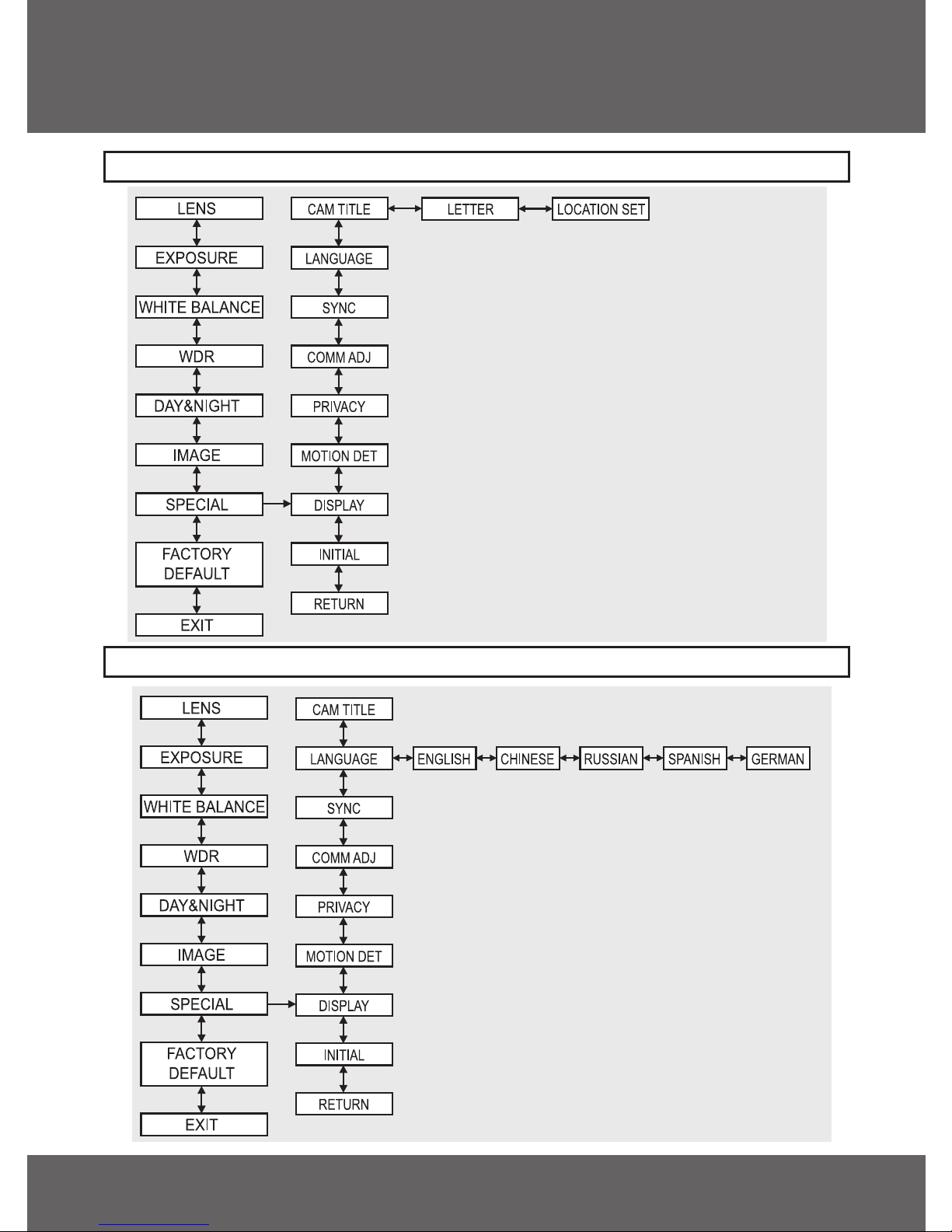

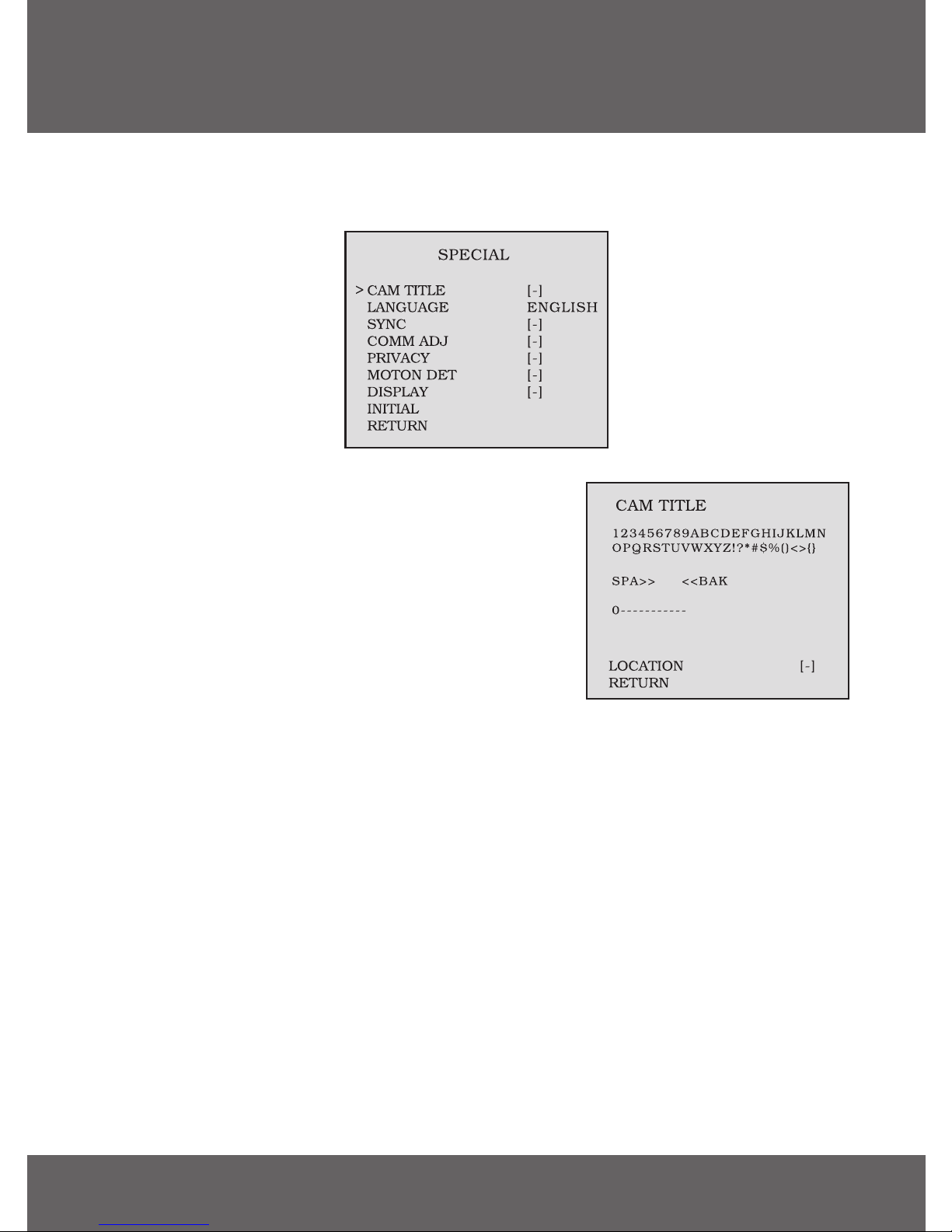

SPECIAL-CAM TITLE

SPECIAL-LANGUAGE

9. OS D Me nu

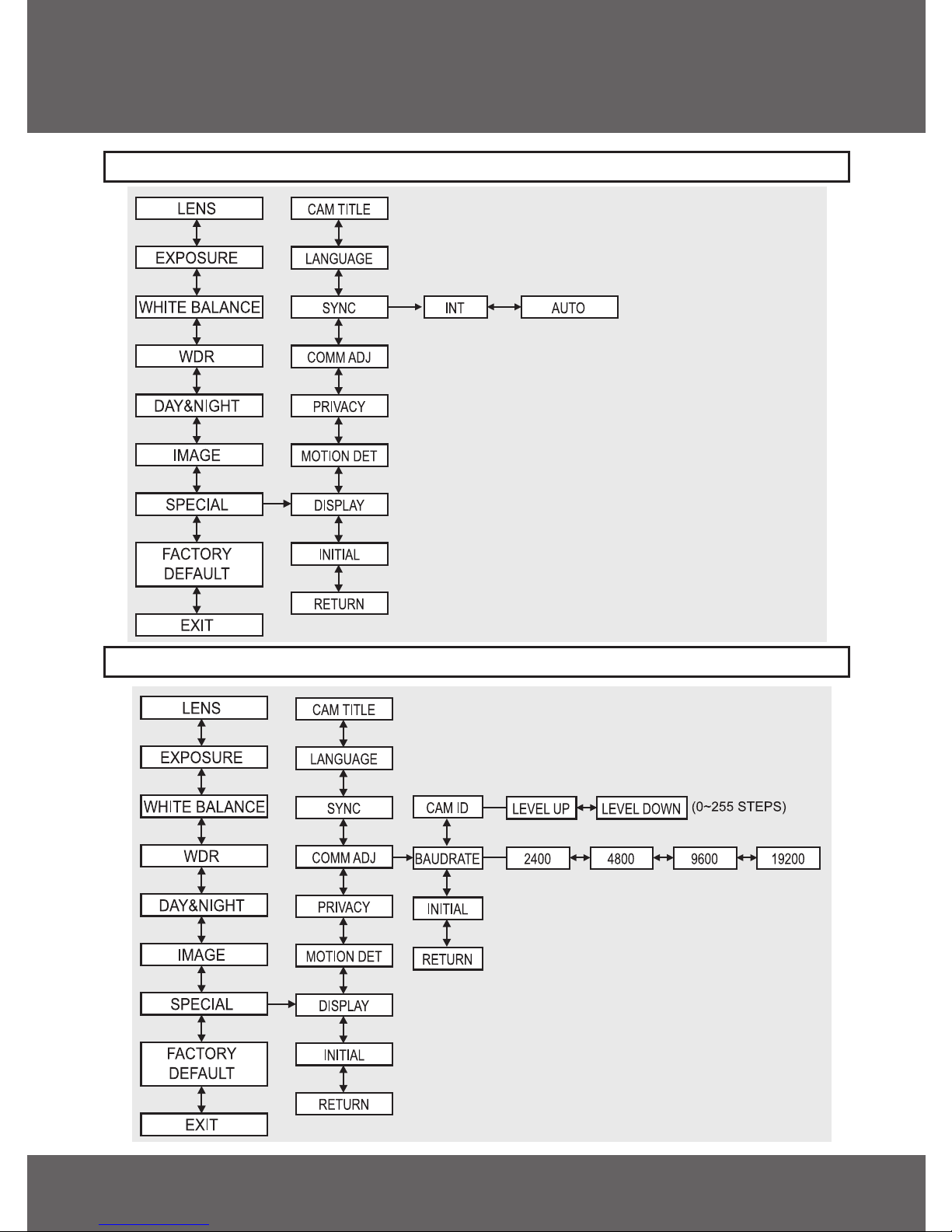

SPECIAL-SYNC

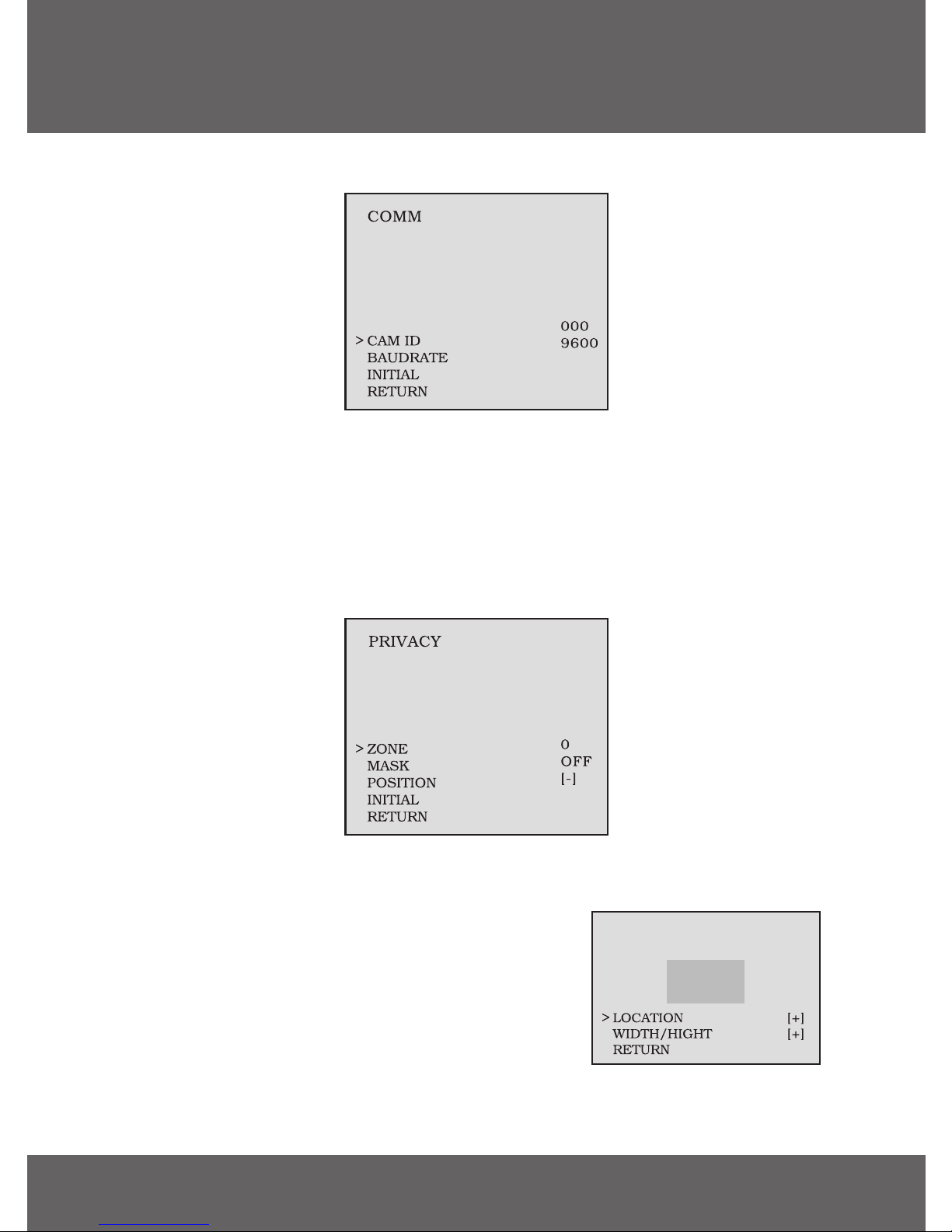

SPECIAL-COMM ADJ

9. OS D Me nu

20 21

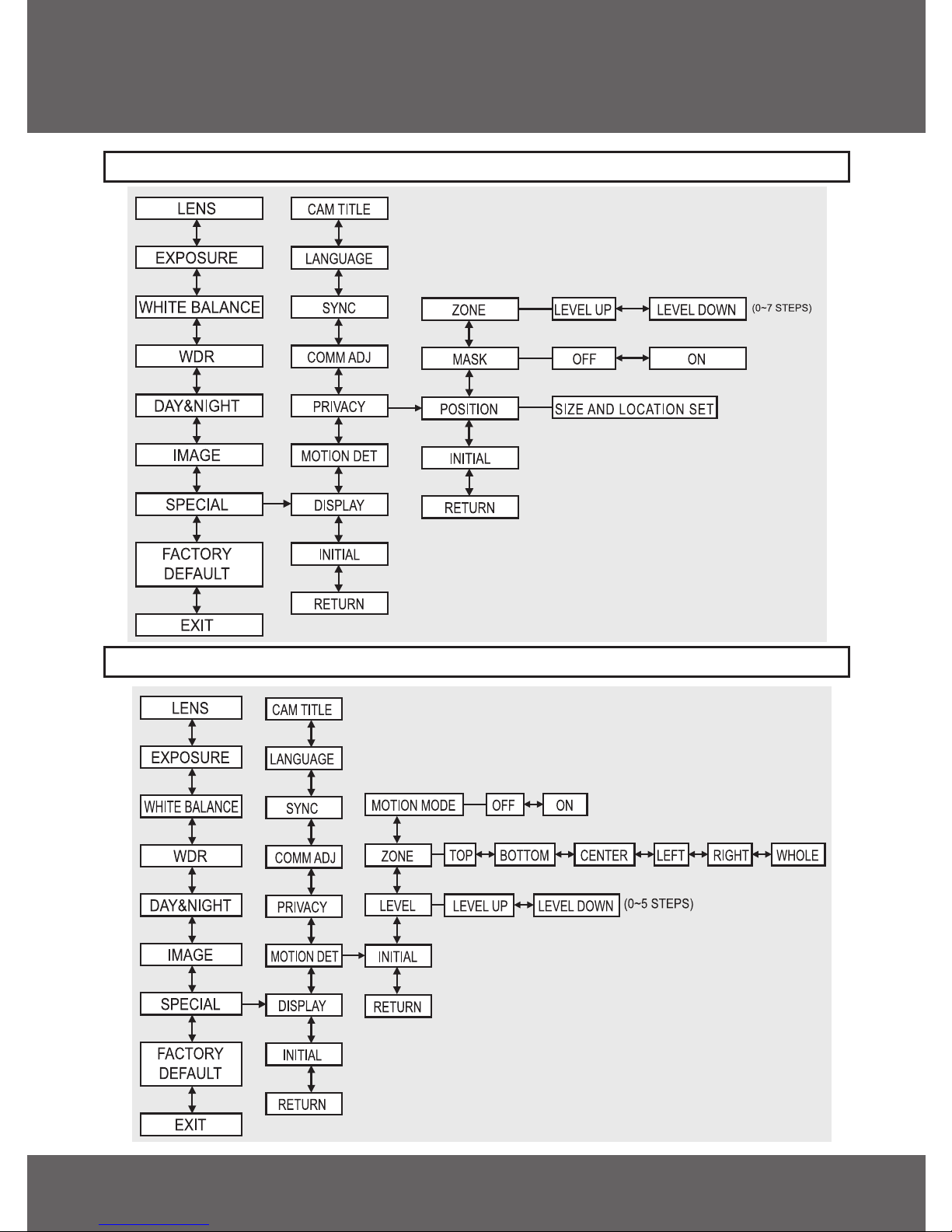

SPECIAL-PRIVACY

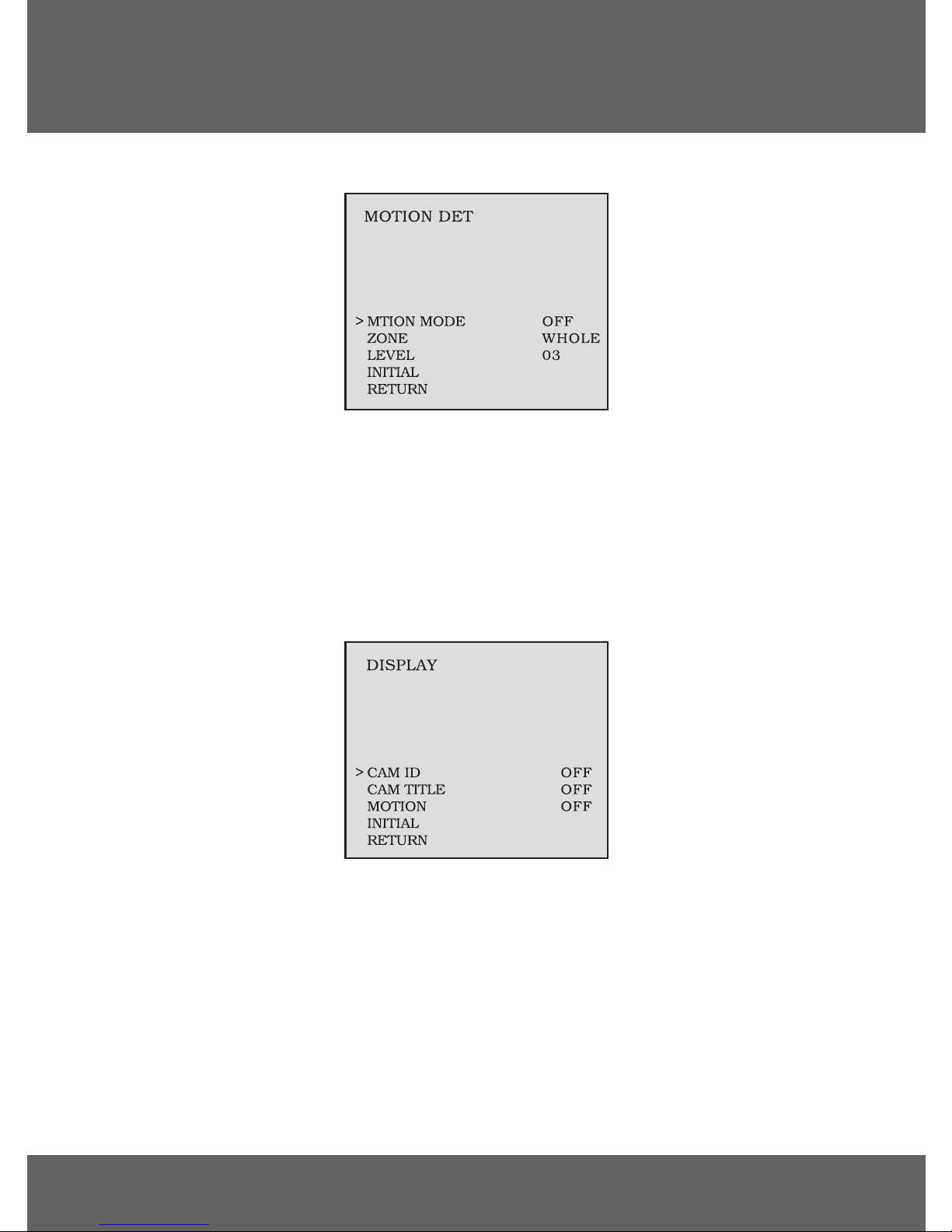

SPECIAL-MOTION DET

9. OS D Me nu

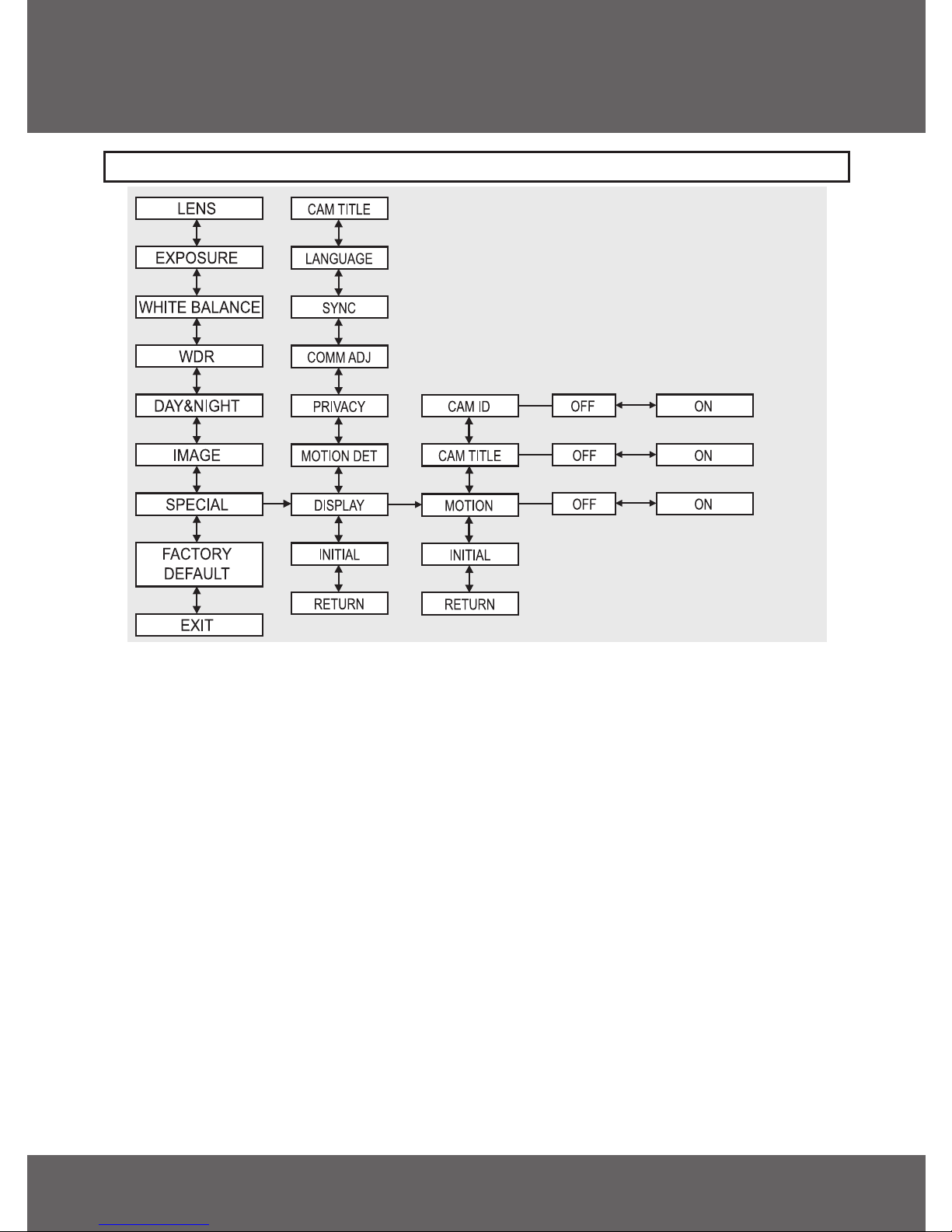

SPECIAL-DISPLAY

9. OS D Me nu

22 23

9. OS D Me nu

OSD FUNCTION DESCRIPTION

1.LENS
: Enable user to select the lens type according to equipped with camera.
Set up using LEFT, RIGHT KEY at each menu.

- LENS TYPE
①ELC : Enable user to set up for BOARD lens.
②DC : Enable user to set up for DC Iris lens.
③VIDEO : Enable user to set up for VIDEO
Iris lens.

- LEVEL
: Enable user to select the level for Brightness
of image(0~15).

- INITIAL
: Enable user to initialize the LENS menu set up.

2. EXPOSURE
: Enable user to set up the function of SHUTTER, FLICKERLESS, AGC, DSS.
Set up using LEFT, RIGHT KEY at each menu.

- SHUTTER
: Enable user to set up the Shutter Speed.

-> 1/60(50), 1/100(120), 1/250, 1/500, 1/1K,
1/2K, 1/4K, 1/10K, 1/100K
*() is for PAL TYPE

- FLICKERLESS
: Enable user to set up the FLICKERLESS
ON/OFF.

- AGC
: Enable user to make image bright to amplify
the Gain.

-> LOW, MID, HIGH

- DSS(Digital Slow Shutter)
: Enable user to enhance video quality in extreme low-light condition to slow down

the shutter speed and collect over multiple elds based on the shutter limit setting.

-> 1X, 5X, 10X, 20X, 40X, 80X, 160X, 320X, 500X

- INITIAL
: Enable user to initialize the Exposure menu set up.

9. OS D Me nu

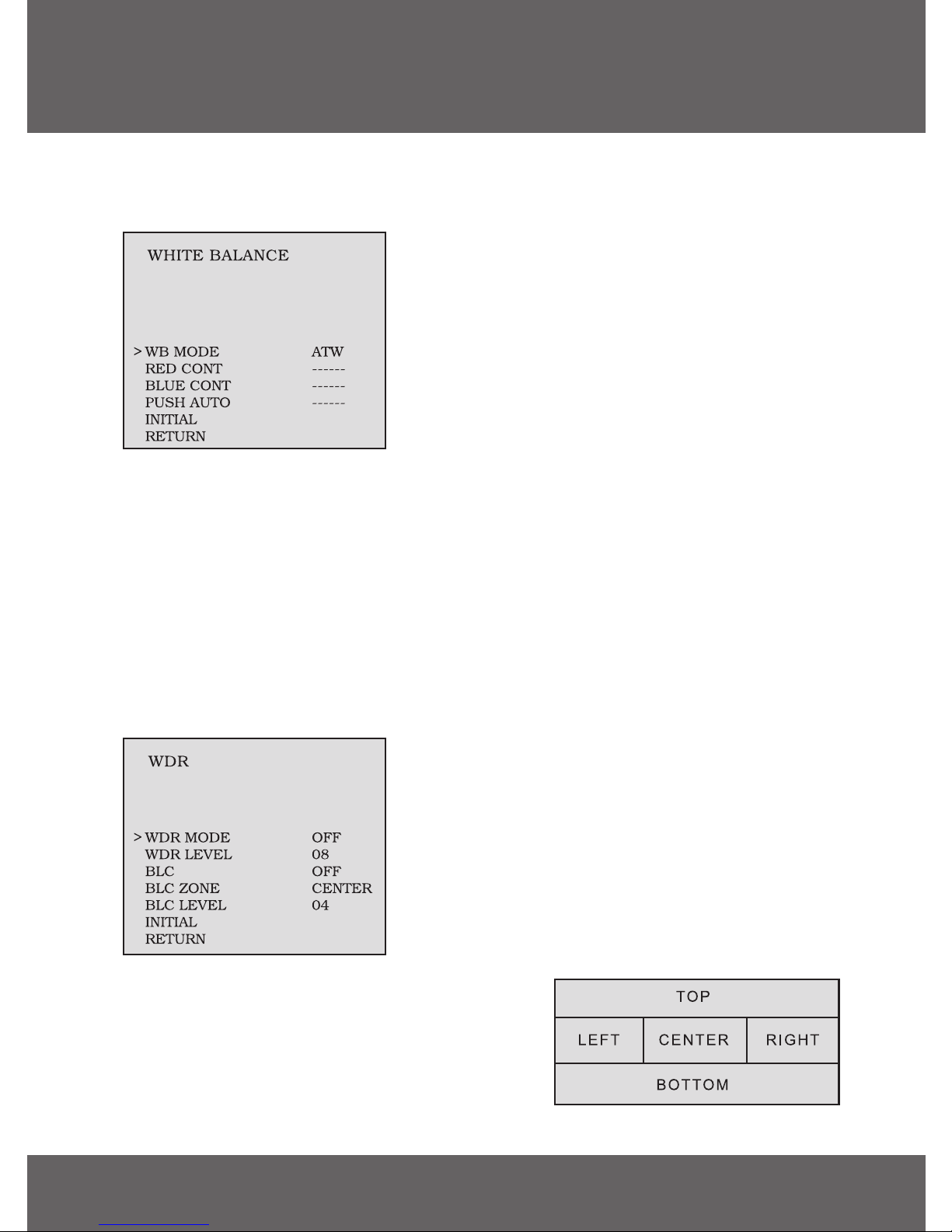

3. WHITE BALANCE
: Enable user to represent the accurate white color by controlling the R,G,B level.
Setting up LEFT, RIGHT KEY on each menu.

- WB MODE

①

ATW :

Enable user to trace the White Balance

automatically in the range of 2,500K~11,000K.

②

PUSH :

Enable user to search for White Balance
automatically. In this mode, color temperature
range is broader than ATW.

③

PUSH LOCK :

Enable user to x the White

Balance according to the color temperature in
the certain environment.

④

USER :

Enable user to sets the White Balance

according to the circumstance.

- RED CONT :

In the USER setting of WB MODE, enable user to set the RED GAIN.

- BLUE CONT :

In the USER setting of WB MODE, enable user to set the BLUE GAIN.

- PUSH AUTO :

In the PUSH LOCK setting of WB MODE, enable user to x the White Balance in

camera setting.

- INITIAL :

Enable user to reset the WHITE BALANCE menu setting.

4. WDR

: Use the condition which Image doesn’t gure out with BLC such as place

surrounded windows and lobby. Set the WDR using the LEFT, RIGHT KEY on
the each menu.

- WDR MODE

①

OFF :

None WDR

②

ON :

WDR Fixed

③

AUTO :

Enable user to control ON/OFF
automatically according to the brightness difference on
image analyzing the input image.

- WDR LEVEL

: Enable user to set WDR Level(0~15 level).

- BLC(Back Light Compensation)
:

Back Light Compensation

- BLC ZONE :

Enable user to set the BLC area.

TOP, BOTTOM, CENTER, LEFT, RIGHT

- BLC LEVEL : Enable user to set BLC in selected
area(0~15 level)

- INITIAL : Enable user to initialize the WDR setting.

24 25

9. OS D Me nu

5. DAY&NIGHT
: Conversion of output image COLOR / BW depending on exterior environment
Enable user to set the LEFT, RIGHT KEY in menu.

- D&N MODE

①

COLOR : Enable user to x the output

image in color.

②

B/W : Enable user to x the output image in B/W.

③

AUTO

- MECHANICAL D&N :Enable user to convert to
COLOR/BW by exterior sensor with illumination.

- DIGITIAL D&N : Enable user to convert to
COLOR/BW automatically by luminace element
on screen(Nonuse of photocell).

④

EXT : Enable user to convert to COLOR/BW by

signal of the exterior input.

-> Low input signal : COLOR

-> High input signal : BW

- INITIAL : Enable user to initialize the setting in DAY&NIGHT menu.

9. OS D Me nu

6. IMAGE
: REVERSE, SHARPNESS, FREEZE, D-ZOOM functions set up by
pressing LEFT, RIGHT KEY.

- REVERSE: Enable user to reverse the image.

-> NORMAL, H, V, H/V

- SHARPNESS : Enable user to control the image sharpness (0~15steps).

- FREEZE : Enable user to freeze the image.

- D-ZOOM(Digital Zoom)

-> Max. 2.5x Digital Zoom
* Zoom function is not available during WDR on.

- INITIAL : Enable user to initialize the setting on IMAGE menu.

26 27

9. OS D Me nu

7. SPECIAL
: Setting up the CAM TITLE, LANGUAGE, SYNC, COMM ADJ, PRIVACY,
MOTION DET, DISPLAY Set up using LEFT and RIGHT key in each manual.

- CAM TITLE : Enable user to choose any word in screen.
(Maximum 10 letter is available)
① A letter Choice from the screen using Menu key.
② Enable user to move to next menu using.
LEFT, RIGHT KEY in LOCATION.
③ By using UP, DOWN, LEFT, RIGHT KEY,
enable user to choose any letters in
LOCATION and then get back to previous step.
④ Enable user to nish words choice and
position by using LEFT, RIGHT KEY in RETURN.

- LANGUAGE : Enable user to set up an OSD language.

-> ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN

- SYNC : Enable user to setup an internal sync mode.
① SYNC MODE : Enable user to setup an internal sync.

- INT : Internal sync mode

- AUTO : External sync of Line Lock is worked when the external
sync is put and INT sync mode is worked as no input
of external input sync.

9. OS D Me nu

- COMM ADJ : Enable user to set up CAMERA ID, BAUDRATE.

① CAM ID : Enable user to set up Camera ID (0~255).
② BAUDRATE : A communication speed to Communicate with external device.
(2400, 4800, 9600, 19200).
③ INITIAL : Enable user to initialize the setting of menu.

- PRIVACY : Privacy is the function that covers some part on screen
to prevent private life Maximum 8 point covered.

① ZONE : Enable user to set up positions from 0 to 7.
② MASK : Enable user to set up screen output of chosen position.
③ POSITION : By using LEFT, RIGHT KEY,
Enable user to go to a next menu
and then adjust the size & position
of chosen section.

④

INITIAL : Enable user to initialize setting

of PRIVACY MENU.

28

9. OS D Me nu

29

- MOTION DET : Motion detection function.

① MOTION MODE : Enable user to set up ON/OFF.
② ZONE : Enable user to set up detection zone.

-> TOP, BOTTOM, CENTER, LEFT, RIGHT,WHOLE
③ LEVEL : Enable user to set up a sensitivity (0~5).
④ INITIAL : Enable user to initialize setting of MOTION DET.

- DISPLAY : Enable user to set up a screen marking of CAM ID,
CAM TITLE, MOTION.

① CAM ID : Enable user to set up output on Camera ID screen.
② CAM TITLE : Enable user to set up output in xed CAM TITLE.
③ MOTION : Enable user to set up out put of MOTION on the screen as
MOTION DET ON setting.
④ INITIAL : Enable user to initialize of DISPLAY menu.

8. FACTORY DEFAULT
: Enable user to reset all of the status as the factory default
Setting up using LEFT, RIGHT KEY.

9. EXIT
: Enable user to EXIT the OSD menu Setting up using LEFT, RIGHT KEY.

10 .C om mu ni ca ti on P ro to co l

30

Pelco “D” Protocol Commands

• Most widely used Commands

- TELE = UP KEY

- WIDE = DOWN KEY

- NEAR = LEFT KEY

- FAR = RIGHT KEY

- MENU = MENU KEY
