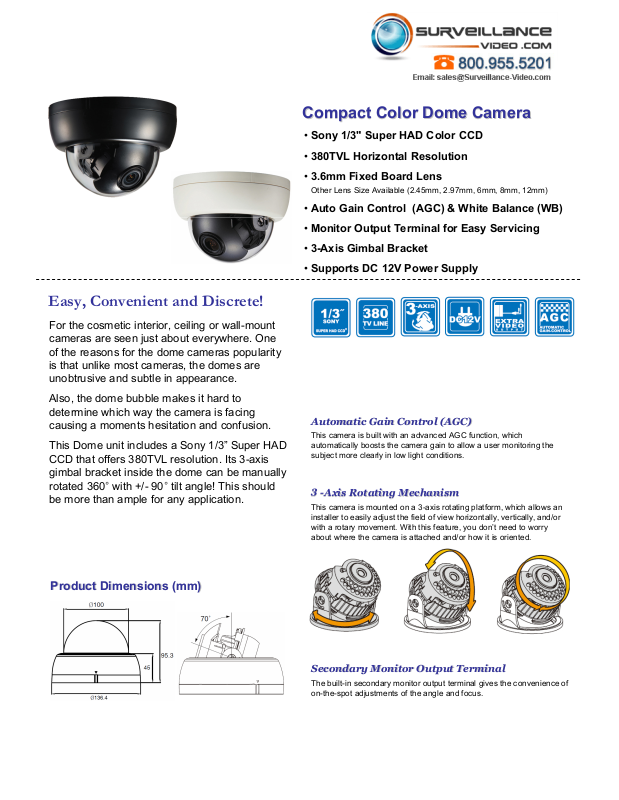

KT&C KPC-DR100NNB Specsheet
Easy, Convenient and Discrete!
For the cosmetic interior, ceiling or wall-mount
cameras are seen just about everywhere. One
of the reasons for the dome cameras popularity
is that unlike most cameras, the domes are
unobtrusive and subtle in appearance.
Also, the dome bubble makes it hard to
determine which way the camera is facing
causing a moments hesitation and confusion.
This Dome unit includes a Sony 1/3” Super HAD
CCD that offers 380TVL resolution. Its 3-axis
gimbal bracket inside the dome can be manually
rotated 360° with +/- 90° tilt angle! This should
be more than ample for any application.
Compact Color Dome Camera
Compact Color Dome Camera
• Sony 1/3" Super HAD Color CCD
• 380TVL Horizontal Resolution
• 3.6mm Fixed Board Lens
Other Lens Size Available (2.45mm, 2.97mm, 6mm, 8mm, 12mm)
• Auto Gain Control (AGC) & White Balance (WB)
• Monitor Output Terminal for Easy Servicing
• 3-Axis Gimbal Bracket
• Supports DC 12V Power Supply
Automatic Gain Control (AGC)
Automatic Gain Control (AGC)
This camera is built with an advanced AGC function, which
automatically boosts the camera gain to allow a user monitoring the
subject more clearly in low light conditions.
3
3
Axis Rotating Mechanism
--Axis Rotating Mechanism
This camera is mounted on a 3-axis rotating platform, which allows an
installer to easily adjust the field of view horizontally, vertically, and/or
with a rotary movement. With this feature, you don’t need to worry
about where the camera is attached and/or how it is oriented.
Product Dimensions (mm)
Product Dimensions (mm)
Secondary Monitor Output Terminal
Secondary Monitor Output Terminal
The built-in secondary monitor output terminal gives the convenience of
on-the-spot adjustments of the angle and focus.
Technical Specification
Technical Specification
KPC-DR100PNBKPC-DR100NNBModel
PALNTSCSignal System
1/3" Sony Super HAD CCDImage Sensor
2:1 InterlaceScanning System
15.625 KHZ15.734 KHzScanning Frequency (H)
50 Hz59.94 HzScanning Frequency (V)
537(H) x 597(V)537(H) x 505(V)Total Pixels
500(H) x 582(V)510(H) x 492(V)Effective Pixels
InternalSynchronization
More than 380 TV LinesHorizontal Resolution
Lens
Gamma
Power Supply
Dimensions
Standard 3.6mm Fixed Lens
Options
Standard
Option
2.45mm, 2.97mm, 3.6mm, 6mm, 8mm, 12mm
More than 45dB (AGC Off)S/N
0.5Lux / F2.0Min. Illumination
1Vp-p Composite (75Ω), UnbalancedVideo Output Level
= 0.45
-10 °C ~ 50 °C (14 °F ~ 122 °F)Operating Temperature
-20 °C ~ 60 °C (-4 °F ~ 140 °F)Storage Temperature
Less than 80%RHHumidity
DC 12V ±10% (Max 130mA)
DC12V / AC24V (±10%)
Dome (ø100mm), 136.4mm(ø) x 95.3mm(H)
Dome (ø3.94”), 5.37”(ø) x 3.75”(H)
1/50 sec1/60 secShutter Speed
