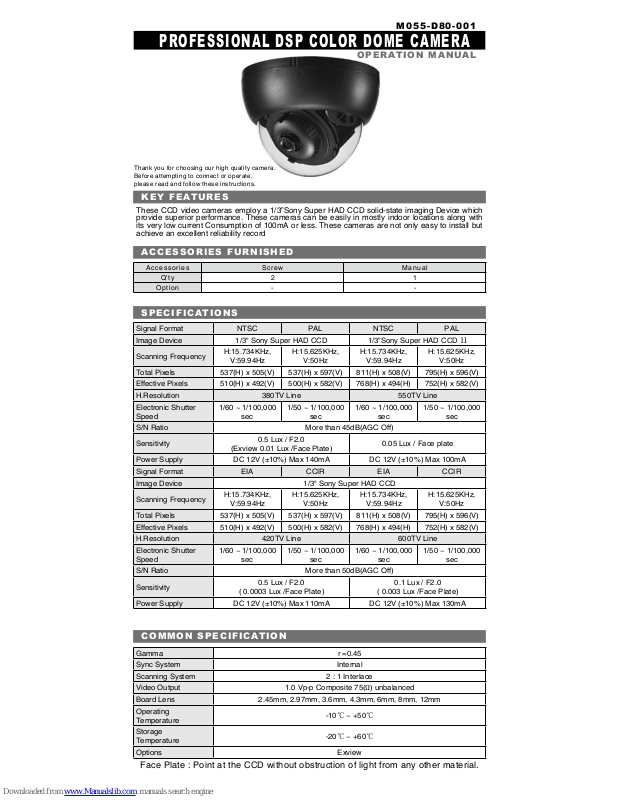

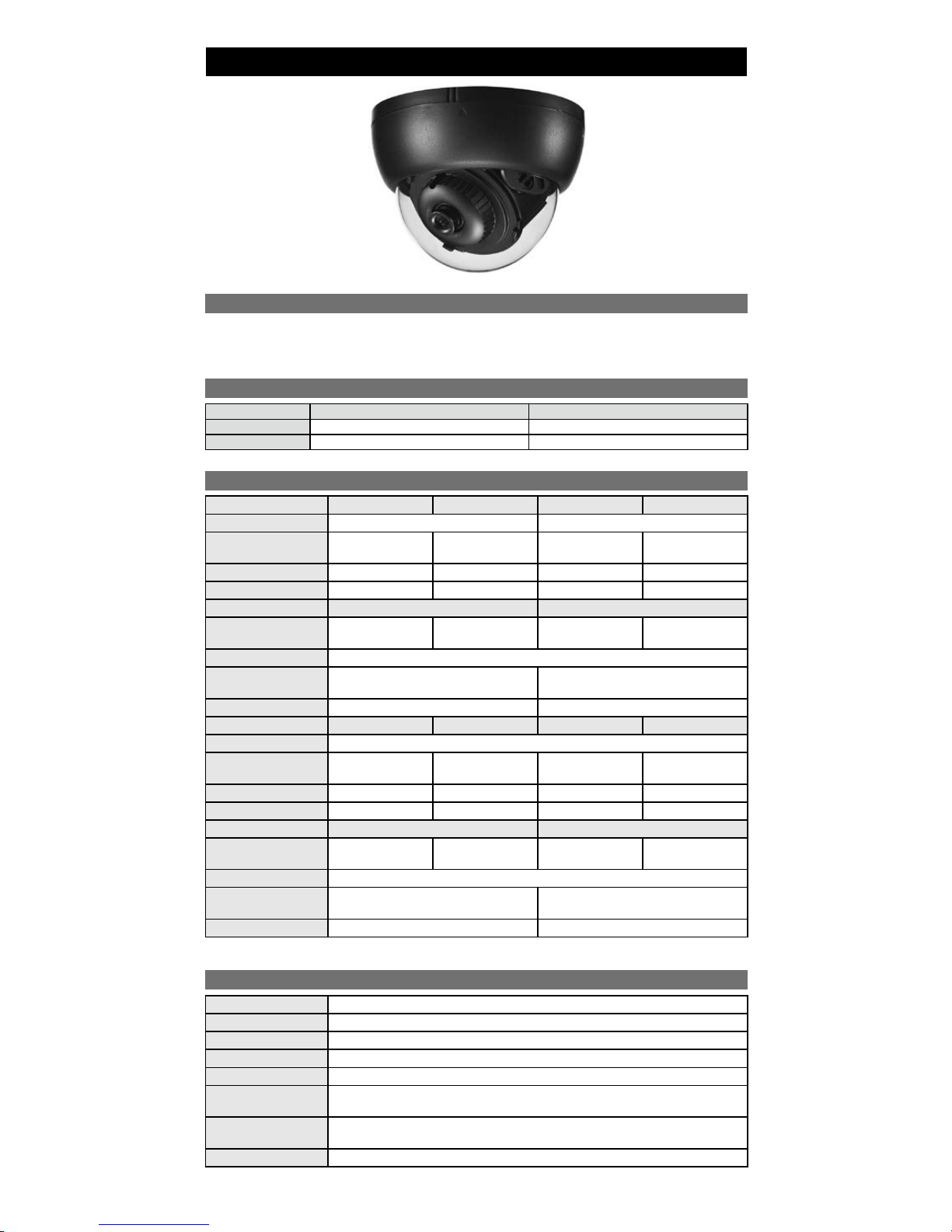

Page 1
PROFESSIONAL DSP COLOR DOME CAMERA
OPERATIO N M A NUA L
Signal Format NTSC PAL NTSC PAL
Image Device 1/3" Sony Super HAD CCD 1/3”Sony Super HAD CCD
Ⅱ
Scanning Frequency
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
Total Pixels 537(H) x 505(V) 537(H) x 597(V) 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 510(H) x 492(V) 500(H) x 582(V) 768(H) x 494(H) 752(H) x 582(V)
H.Resolution 380TV Line 550TV Line
Electronic Shutter
Speed
1/60 ~ 1/100,000
sec
1/50 ~ 1/100,000
sec
1/60 ~ 1/100,000
sec
1/50 ~ 1/100,000
sec
S/N Ratio More than 45dB(AGC Off)
Sensitivity
0.5 Lux / F2.0
(Exview 0.01 Lux /Face Plate)
0.05 Lux / Face plate
Power Supply DC 12V (±10%) Max 140mA DC 12V (±10%) Max 100mA
Signal Format EIA CCIR EIA CCIR
Image Device 1/3" Sony Super HAD CCD
Scanning Frequency
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
Total Pixels 537(H) x 505(V) 537(H) x 597(V) 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 510(H) x 492(V) 500(H) x 582(V) 768(H) x 494(H) 752(H) x 582(V)
H.Resolution 420TV Line 600TV Line
Electronic Shutter
Speed
1/60 ~ 1/100,000
sec
1/50 ~ 1/100,000
sec
1/60 ~ 1/100,000
sec
1/50 ~ 1/100,000
sec
S/N Ratio More than 50dB(AGC Off)
Sensitivity
0.5 Lux / F2.0
( 0.0003 Lux /Face Plate)
0.1 Lux / F2.0
( 0.003 Lux /Face Plate)
Power Supply DC 12V (±10%) Max 110mA DC 12V (±10%) Max 130mA
KEY F E AT U R E S
Than k you for c hoosing our high quali ty camera.
Befo re att empti ng to conne ct or opera te,
plea se rea d and follow the se instruct ions.
These CCD video cameras employ a 1/3”Sony Super HAD CCD solid-state imaging Device which
provide superior performance. These cameras can be easily in mostly indoor locations along with
its very low current Consumption of 100mA or less. These cameras are not only easy to install but
achieve an excellent reliability record
ACC E S S O RIES F U R N ISHED
SPECI F I C AT I O NS
Acc ess ori es Scr ew M a nu a l
Q't y 2 1
Opt ion - -
M055- D 8 0 -001
Face Plate : Point at the CCD without obstruction of light from any other material.
Gamma r =0.45
Sync System Internal
Scanning System 2 : 1 Interlace
Video Output 1.0 Vp-p Composite 75(Ω) unbalanced
Board Lens 2.45mm, 2.97mm, 3.6mm, 4.3mm, 6mm, 8mm, 12mm
Operating
Temperature
-10℃ ~ +50
℃
Storage
Temperature
-20℃ ~ +60
℃
Options Exview
COMMO N S PECIFI C ATI O N
Page 2
Whe n you ins t a ll t he c a mer a , p l e ase glue up t h e e n d o f cab l e t o
kee p it s tab l e in ord e r to pro t e ct t he c a mer a fro m th e hum i dit y pro b lems .
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasnoable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantree that interference will not occur in a particular installation. If this equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Note -
• R eor ien t o r r elo cat e t he rec eiv ing an t en a .
• I ncr eas e t he sep ara tio n b etw een th e e q ui p me n t a nd re c ei v er .
• C onn ect th e e qui pme nt int o a n o utl et o n a c i rc u it di ffe ren t f rom th at to
whi ce the re cei ver is co nne cte d.
•Co nsu lt the de ale r o r a n e xpe rie nce d r a di o / tv te c hn i ci a n f or he l f.
Any changes or modications in construction of this devies which are not expressly approved
by the party responsible for compliance could void the user's authority to operate the
equipment.
Cauti o n -
1. A re gul at ed D C12 V 50 0m A po we r sup ply i s re com me nd ed fo r u se w it h t hi s ca mer a
fo r t he be st p ict ur e an d t he mo st s tab le o pe rat io n.
An un reg ul ated po we r su ppl y ca n cau se da ma ge to t he c ame ra.
Wh en unr eg ulat ed po we r sup ply i s ap pli ed , pr odu ct w ar ran ty wi ll b e
ou t o f s ub ject .
2. I t is rec om mend ed th at t he cam er a is us ed w it h a m on it or tha t ha s a C CT V qu ali ty
75 vi deo i mped anc e le ve l.
If yo ur mo nito r i s sw it che d t o high im pe da nc e t he n pl eas e a dj us t acc or di ng ly.
3. D o not at te mpt to di sa ss mbl e t he cam era t o ga in ac ce ss to th e in te rna l co np one ts.
Re fer se rv icin g t o yo ur de ale r.
4. N ev er fac e the cam er a to war ds th e su n o r an y bri gh t or re fle ct iv e lig ht , wh ich ma y
ca use sm ea r on th e pi ct ure an d poss ibl e da ma ge to t he CC D.
5. D o not re mo ve t he se ri al st ick er for th e wa rr ant y se rv ice .

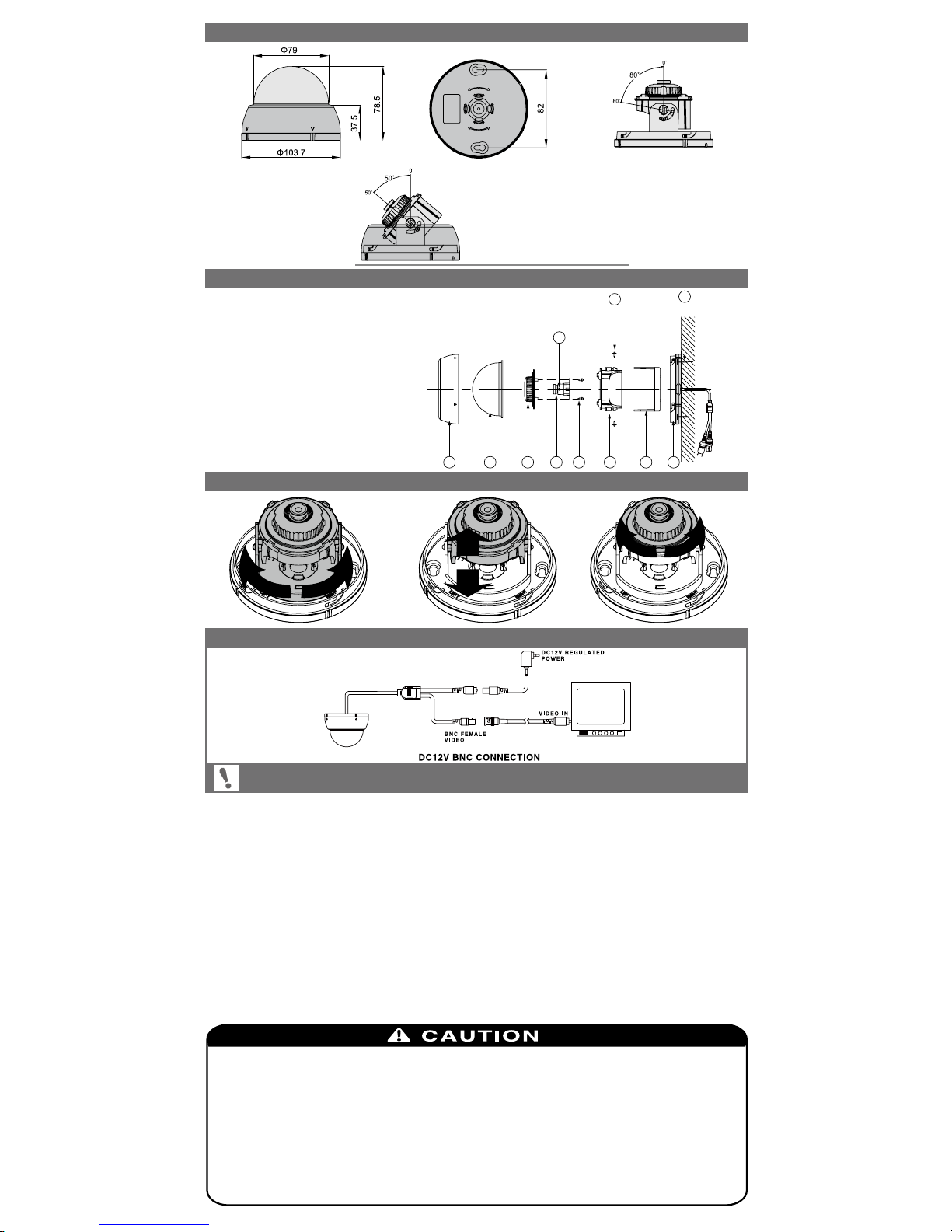

DIMEN S I O NS
CONNE C T I ON
INSTALLATION / OVE R V IEW
Unit : mm
◀
When using a wide angle lens
of 2.45mm, Tilt is not available
over 50°.
1 2 3 4 6 7 85
5
5
5
①
CASE HOUSING TOP
②
CASE HOUSING COVER
③
HOLDER ROTATION
④
LENS
⑤
SCREW
⑥
HOLDER TILTING
⑦
HOLDER PANNING
⑧
CASE HOUSING BOTTOM
3-AXI S G imbal B r a c ke t
