KT&C KPC-A700NUP4 Specsheet
KPC-A700N

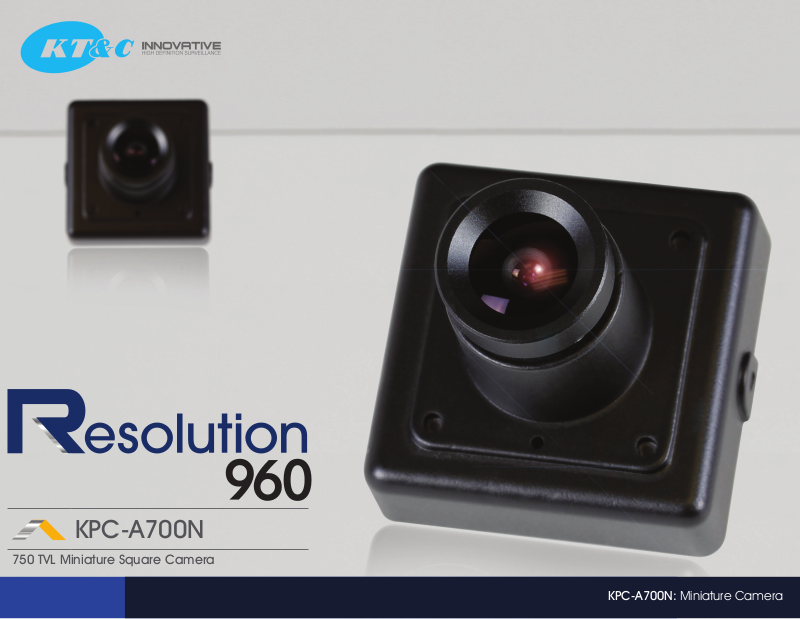

750 TVL Miniature Square Camera
KPC-A700N: Miniature Camera
KPC-A700N
750 TVL Miniature Square Camera
Features
• 750 TVL Horizontal Resolution
• 1/3” 960H SONY SuperHAD CCD II
• Min. Illumination of 0.1 Lux, 0.01 Lux DSS On
• Size 1.2 x 1.2 Inch (30 x 30mm)
• Digital Day & Night
• ATR: Wide Dynamic Range
• 2D DNR / BLC / AWB / AGC
• DC 12 V Power
KPC-A700NB KPC-A700NP1 KPC-A700NP3 KPC-A700NP4
1.2
1.18
1.18
AUDIO HOLE (OPTION)
KT&C America reserves the right to make changes to improve our products at any time without notice; we are not responsible for misprints.
Joystick
0.39
0.43
Max 0.87
Technical Specifications:
Signal Format
Image Sensor
Scanning System
H Resolution.
Scanning Frequency
Total Pixels
Eective Pixels
Electronic Shutter
Sense up
S/N Ratio
Min. Illumination
Sync System
Gamma
Video Output
OSD
ATR
White Balance
3DNR
Function
Privacy Masking
Motion Detection
Lens
Language
Operating Temperature
Storage Temperature
Humidity
Power Consumption
Weight
External Control
Dimension(mm)
MIRROR / FREEZE / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN / DIGITAL ZOOM / HLC
ENGLISH / SPANISH / RUSSIAN / PORTUGUESE / GERMAN / FRENCH / CHINESE / JAPANESE
Type Board Lens
Focal Length
Angle of View
2.45 2.95 3.6 6 8 12 16 3.7 3.7 4.3
F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0
150° 130° 92° 53° 40° 28° 19° 90° 90° 78°
Lens (mm)
NTSC PAL
1/3" 960H SONY SuperHAD CCD II
2 : 1 Interlace
750TV Lines
15.734KHz(H),59.94Hz(V) 15.625KHz(H),50Hz(V)
1020(H) X 508(V) 1020(H) X 596(V)
976(H) X 494(V) 976(H) X 582(V)
1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
O / Auto
More than 50dB(AGC OFF)
0.1 lx (F2.0, DSS O) / 0.01 lx (F2.0, DSS On)
Internal
r= 0.45
1.0 Vp-p Composite (75Ω)
Built in (Inner Key / Joystick)
OFF / ON (Level adjustable)
ATW / PUSH / USER1 / USER2 / MANUAL / PUSH-LOCK
Level Adjust
15 Zones (Polygon)
4 Zones
Fixed Board, Pinhole, Varifocal Lens
-15°C~50°C (5°F~122°F)
-20°C~60°C (-4°F~140°F)
Less than 80%
12VDC ±10% Max. 110mA
Approx. 35g
UTC, RS485(PELCO-D)
30(W) x 30(H)
Pinhole Lens
P1 P3 P4
Varifocal
(DC or DN)
4.0 ~ 8.0
F2.0 ~ 2.8
89.2° ~ 44.2°
www.ktncusa.com
Mount
C/CSAperture
