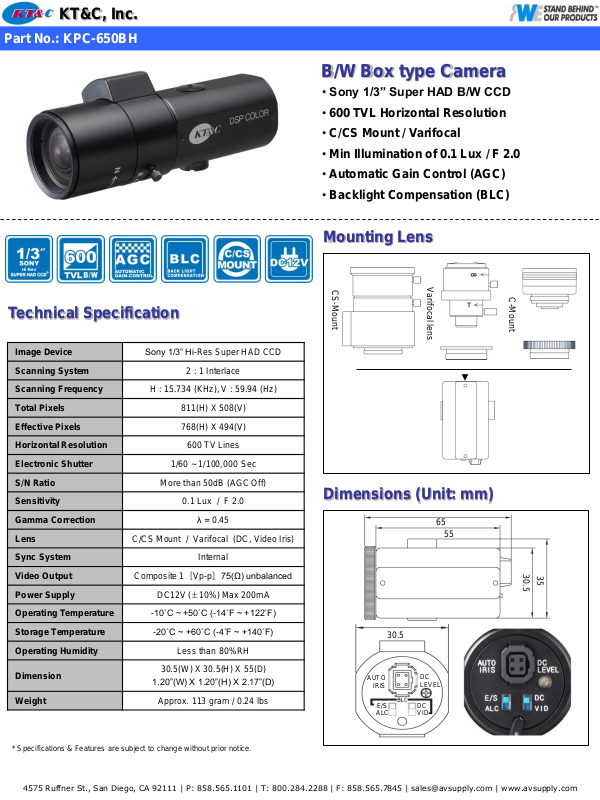

KT&C KPC-650BH Specsheet

KT&C, Inc.

4575 Ruffner St., San Diego, CA 92111 | P: 858.565.1101 | T: 800.284.2288 | F: 858.565.7845 | [e-mail] | www.avsupply.com

Part No.: KPC-650BH

Hi-Res

Technical Specification

B/W Box type Camera

• Sony 1/3” Super HAD B/W CCD

• 600 TVL Horizontal Resolution

• C/CS Mount / Varifocal

• Min Illumination of 0.1 Lux / F 2.0

• Automatic Gain Control (AGC)

• Backlight Compensation (BLC)

Mounting Lens

CS-Mount

Varifocal lens

C-Mount

Image Device Sony 1/3” Hi-Res Super HAD CCD
Scanning System 2 : 1 Interlace
Scanning Frequency H : 15.734 (KHz), V : 59.94 (Hz)
Total Pixels 811(H) X 508(V)
Effective Pixels 768(H) X 494(V)
Horizontal Resolution 600 TV Lines
Electronic Shutter 1/60 ~ 1/100,000 Sec
S/N Ratio More than 50dB (AGC Off)
Sensitivity 0.1 Lux / F 2.0
Gamma Correction λ = 0.45
Lens C/CS Mount / Varifocal (DC, Video Iris)
Sync System Internal
Video Output Composite 1［Vp-p］75(Ω) unbalanced
Power Supply DC12V (±10%) Max 200mA
Operating Temperature -10˚C ~ +50˚C (-14˚F ~ +122˚F)
Storage Temperature -20˚C ~ +60˚C (-4˚F ~ +140˚F)
Operating Humidity Less than 80%RH

Dimension

Weight Approx. 113 gram / 0.24 lbs

30.5(W) X 30.5(H) X 55(D)

1.20”(W) X 1.20”(H) X 2.17”(D)

Dimensions (Unit: mm)

65

55

30.5

AUTO

IRIS

E/S
ALC

DC
LEVEL

DC
VID

30.5

35

* Specifications & Features are subject to change without prior notice.
