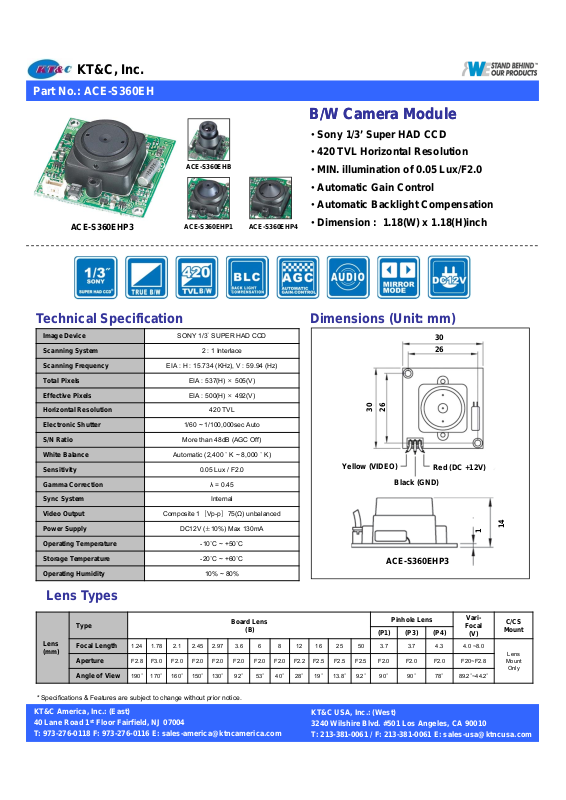

KT&C ACE-S360EHP3 Specsheet

KT&C, Inc.

Part No.: ACE-S360EH

ACE-S360EHB

B/W Camera Module

B/W Camera Module

• Sony 1/3’ Super HAD CCD

• 420 TVL Horizontal Resolution

• MIN. illumination of 0.05 Lux/F2.0

• Automatic Gain Control

• Automatic Backlight Compensation

ACE-S360EHP3

ACE-S360EHP1

ACE-S360EHP4

• Dimension : 1.18(W) x 1.18(H)inch

Technical Specification Dimensions (Unit: mm)

Image Device SONY 1/3
Scanning System 2 : 1 Interlace
Scanning Frequency EIA : H : 15.734 (KHz), V : 59.94 (Hz)
Total Pixels EIA : 537(H)
Effective Pixels EIA : 500(H)
Horizontal Resolution 420 TVL
Electronic Shutter 1/60 ~ 1/100,000sec Auto
S/N Ratio More than 48dB (AGC Off)
White Balance Automatic (2,400 ˚ K ~ 8,000 ˚ K)
Sensitivity 0.05 Lux / F2.0
Gamma Correction λ = 0.45
Sync System Internal
Video Output Composite 1
Power Supply DC12V (
Operating Temperature -10˚C ~ +50˚C
Storage Temperature -20˚C ~ +60˚C
Operating Humidity 10% ~ 80%

SUPER HAD CCD

’

505(V)

×

492(V)

×

Vp-p］75(Ω) unbalanced

［

10%) Max 130mA

±

30

26

Yellow (VIDEO)

ACE-S360EHP3

30
26

Red (DC +12V)

Black (GND)

14

1

Lens Types

Type

Lens
(mm)

* Specifications & Features are subject to change without prior notice.

Focal Length
Aperture
Angle of View

1.24 1.78 2.1 2.45 2.97 3.6 6 8 12 16 25 50 3.7 3.7 4.3 4.0 ~8.0

F2.8 F3.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.5 F2.5 F2.0 F2.0 F2.0 F20~F2.8

190° 170° 160° 150° 130° 92° 53° 40° 28° 19° 13.8° 9.2° 90° 90° 78° 89.2°~44.2°

KT&C America, Inc.: (East)
40 Lane Road 1

st

Floor Fairfield, NJ 07004

T: 973-276-0118 F: 973-276-0116 E: [e-mail]

Board Lens

(B)

Pinhole Lens

(P1) (P3) (P4)

Vari-

Focal

(V)

C/CS

Mount

Lens

Mount

Only

KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501 Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [e-mail]
