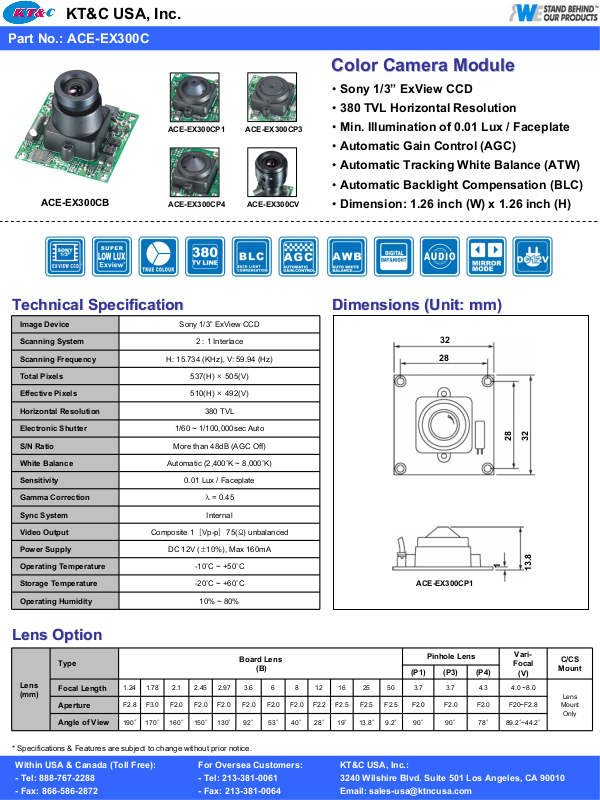

KT&C ACE-EX300CP4 Specsheet
KT&C USA, Inc.
Part No.: ACE-EX300C
Color Camera Module
Color Camera Module
• Sony 1/3” ExView CCD
• 380 TVL Horizontal Resolution
ACE-EX300CP1 ACE-EX300CP3
ACE-EX300CB
Technical Specification
Technical Specification
Image Device Sony 1/3” ExView CCD
Scanning System 2 : 1 Interlace
Scanning Frequency H: 15.734 (KHz), V: 59.94 (Hz)
Total Pixels 537(H)
Effective Pixels 510(H)
Horizontal Resolution 380 TVL
Electronic Shutter 1/60 ~ 1/100,000sec Auto
S/N Ratio More than 48dB (AGC Off)
White Balance Automatic (2,400˚K ~ 8,000˚K)
Sensitivity 0.01 Lux / Faceplate
Gamma Correction
Sync System Internal
Video Output Composite 1［Vp-p］75(Ω) unbalanced
Power Supply DC 12V (±10%), Max 160mA
Operating Temperature -10˚C ~ +50˚C
Storage Temperature -20˚C ~ +60˚C
Operating Humidity 10% ~ 80%
ACE-EX300CP4 ACE-EX300CV
505(V)
×
492(V)
×
= 0.45
λ
• Min. Illumination of 0.01 Lux / Faceplate
• Automatic Gain Control (AGC)
• Automatic Tracking White Balance (ATW)
• Automatic Backlight Compensation (BLC)
• Dimension: 1.26 inch (W) x 1.26 inch (H)
Dimensions (Unit: mm)
Dimensions (Unit: mm)
32
28
28
32
1
13.8
ACE-EX300CP1
Lens Option
Lens Option
Type
Lens
(mm)
* Specifications & Features are subject to change without prior notice.
Within USA & Canada (Toll Free):
- Tel: 888-767-2288
- Fax: 866-586-2872
Focal Length
Aperture
Angle of View
1.24 1.78 2.1 2.45 2.97 3.6 6 8 12 16 25 50 3.7 3.7 4.3 4.0 ~8.0
F2.8 F3.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.5 F2.5 F2.0 F2.0 F2.0 F20~F2.8
190°170°160°150°130°92°53°40°28°19°13.8°9.2°90
For Oversea Customers:
- Tel: 213-381-0061
- Fax: 213-381-0064
Board Lens
(B)
Pinhole Lens
(P1) (P3) (P4)
90
°
KT&C USA, Inc.:
3240 Wilshire Blvd. Suite 501 Los Angeles, CA 90010
il: sales-usa@ktncusa.com
Ema
78°89.2°~44.2
°
Vari-
Focal
(V)
°
C/CS
Mount
Lens
Mount
Only
