These fittings are Class I and must be Earthed
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician
ensuring the installation complies with current IEE wiring regulations & local building
control. These products are designed for connection to a 240V~50Hz supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or
any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal
operating ambient temperature -15 ~ +40°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as
failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing and maintenance.
Please ensure that a suitable maintenance schedule is performed including greasing all moving parts and protection from exposure
to natural elements in the form of a non-abrasive cleaner/water repellent protection to ensure the product gives you a long lasting
trouble free life.
Installation Procedure
Safely isolate the mains supply before installation.
Remove the head by loosening the grub screw and twisting anticlockwise.
Route the cable through the cable gland (8mm-12mm) and terminate wiring as per Figure 1.
Select the LED colour you require using the switch on the driver casing.
Refit the head in reverse of removal ensuring the seal is clean, in place and undamaged, grease the grub screw and tighten.
Tighten the cable gland ensuring a water tight connection.
Secure the bollard in place using suitable fixings for the application.
Turn mains supply on and test luminaire.
Do Not expose luminaire to areas where high pollution and saline maybe present.
Drg No. KSR1182-1183-IS-B
KSR Lighting Ltd, Unit E Hazleton Interchange, Lakesmere Road, Horndean, Hampshire, PO8 9JU
19.07.2019MAC

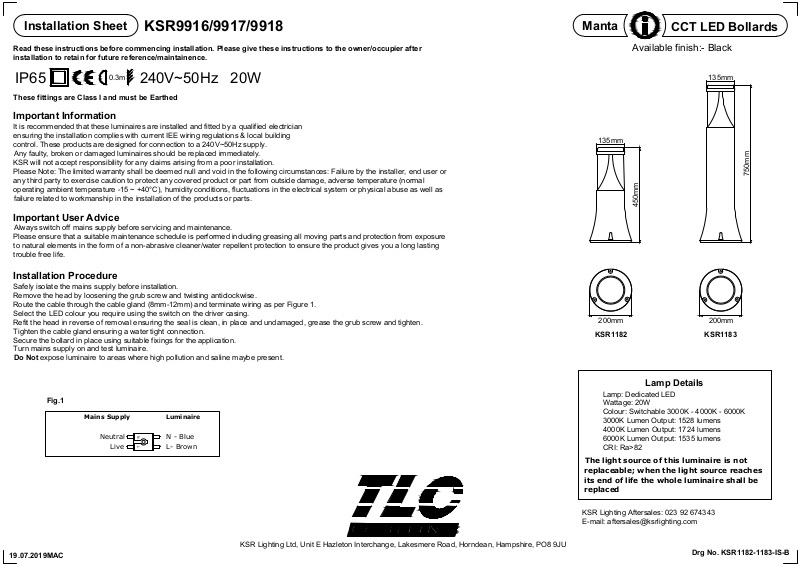

Installation Sheet
KSR9916/9917/9918
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
IP65
0.3m
240V~50Hz 20W
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
KSR1183
KSR1182
Lamp: Dedicated LED
Wattage: 20W
Colour: Switchable 3000K - 4000K - 6000K
3000K Lumen Output: 1528 lumens
4000K Lumen Output: 1724 lumens
6000K Lumen Output: 1535 lumens
CRI: Ra>82
Lamp Details
The light source of this luminaire is not
replaceable; when the light source reaches
its end of life the whole luminaire shall be
replaced
CCT LED Bollards
Manta
Available finish:- Black
450mm
200mm 200mm
135mm
135mm
750mm
Fig.1
Mains Supply Luminaire
L- Brown
Live
L
N - BlueNeutral
N
