Krypton
Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound© Passion for Accurate sound©
Passion for Accurate sound©
Electron60
Micro TL Bookshelf Speakers
Electron 60
User Manual
krypton
Passion For Accurate Sound©
Introduction
Thank you for purchasing the Krypton Audio Micro Advance Transmission Line speaker system. This
speaker system uses the finest quality of components and cabinet materials, and high quality drivers to
enhance your music listening experience. We recommend you to read the below instructions before
you start using the speaker system with your Audio Amplifier.
Important Notes
Follow this manual carefully for best result from your speakers
Clean with a dry lint free cloth
Do not use spirit based cleaners
Avoid damp
Avoid temperature extremes
Avoid direct sunlight
Safety precaution: Trailing cables are dangerous, secure all cables
Connections
Always follow all the recommended instruction from your amplifier model before connecting
and using the speakers.
Connect the Red terminal (+) from your amplifier to the Red terminal (+) of the speaker system
and the Black terminal (-) from your amplifier to the Black terminal (-) of the speaker system for
correct system phasing. If this is interchanged this could cause out of phase signal conditions.
Safe Usage
Always keep the volume levels of the amplifier from low to medium to high after switching on,
and while switching off the amplifier always reduce the volume levels in your amplifier.
Do not give a sudden jerk of amplified sound to the speakers else this would cause severe
damage to the drivers beyond repair. This is applicable from steady state conditions.
2
krypton
Passion For Accurate Sound©
Speaker Placement
Install the speakers on speaker stands or on a wall unit top.
The speakers should be placed at least 2 feet away from the side walls and about 4 feet away
from the rear walls. In case there is a loss of low frequency then the speakers can be kept 2 feet
away from the rear wall and about 1 feet away from the side walls to increase low frequency
response.
The left and right speakers should be at least 6 feet apart for good stereo imaging and channel
separation.
Ideally these speakers do not require any toeing as they are optimized for off-axis listening. If at
all required the speakers can be slightly towed in about 5 degrees to 10 degrees inwards for
correct imaging and foot print.
Do not obstruct the sound waves from your speakers by keeping an obstacle in between them.
The left and right speakers should have similar kind of furniture placement around them to
mirror each other for proper dispersion and diffraction of sound waves.
Always listen to the speakers seated on a sofa / chair approximately at the center for proper
stereo imaging. The speakers are designed to have similar on and off axis response due to
meticulous selection of the drivers / enclosures and compensation network, and should have
even dispersion in most of the seating positions.
Have floors covered with thick carpet if possible to keep floor reflections to the minimum.
Have heavy draped curtains on the windows to keep reflections from the rare and side walls to
the minimum.
Do not have heavy metal objects and glass, ceramic artifacts near the speakers so as to reflect
/deflect the sound waves causing uneven wave fronts.
Experiment and try out the best seating / speaker placements at your room for optimum sound
quality.
3
krypton
Passion For Accurate Sound©
2 to 4 feet 2 to 4 feet
L SPKR
Sofa of listener
Curtains
C
r
R
a
c
k
s
Centre
Table
AV Rack

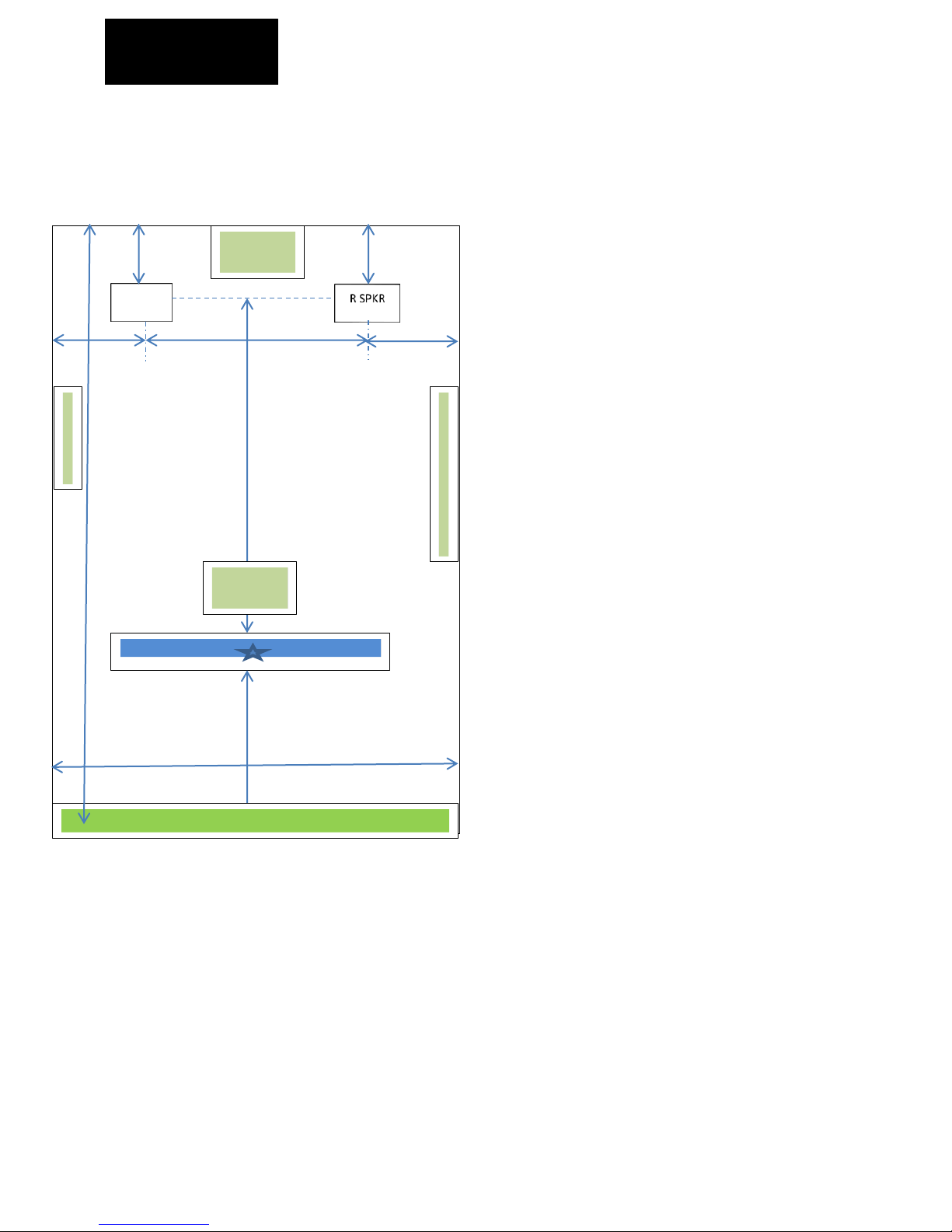

Optimum speaker placement for the micro-TL speakers in your room for balanced performance
2 feet 6 to 7 feet 2 feet
Room Area = 200 SQ.FT
h
a
i
5 to 9 feet
20 feet
2 to 6 Feet
Fig: Optimum speaker placement for your room. The above placement ideally gives the correct balance
of lows, mid-range and high frequency response. You can toe-in the speaker by 5 degrees to 10 degrees
to get the correct center imaging so that the speaker completely disappears in your listening room. The
speakers have been optimized for off-axis listening and in most cases do not require any toeing.
10 feet
4
krypton
Passion For Accurate Sound©
Problem
Action
Cause
No audio output from both
Left and Right speaker
channels
Check each speaker
cables connection with
the amplifier
Check if volume
control in amplifier is
set correctly
Check if source is
playing
“Mute” function
enabled on Amplifier
Amplifier not working
No audio output from one of
the channels [Left/Right]
Check each channel
separately with the
amplifier
Check for wrong
connection to
amplifier terminals
Amplifier not working
Tone controls set to
one channel
Speaker faulty
Distorted sound from both
speakers
Check each amplifier
and source issues
Amplifier clipping
Amplifier faulty
Source issue
Recording issue
Distorted sound from one of
the channels [Left/Right]
Check each channel
separately
Check connections
between source and
amplifier
Check source material
Speaker faulty
Amplifier clipping
Faulty amplifier
Broken cable
Recording issue
Source issue
High or Low frequencies
absent from one of the
channel [Left/Right]
Check amplifier tone
settings
Check secure
connections between
amplifier and source
Tone control not set
properly
Source issue
Recording issue
Speaker faulty
Troubleshooting
5
krypton
Passion For Accurate Sound©
Product Features
Speaker Model
ELECTRON 60
Enclosure
Diffraction and edge corrected baffle
Coherent sound stage
Wave guides for lows & mid-range
Guided wave Transmission Line enclosure ensure no boom bass stimulating
atmosphere of live performance and extended and uncompressed dynamics.
Critically damped enclosure
Compensation Network
Harmonics balanced to ensure real life performance of music and vocals.
Zero phase-shift due to single driver used across audio spectrum
Excellent Transient & Phase response due to single driver
Excellent on & off- axis response due to meticulous selection of drivers and
enclosure loading
Harmonics and Impedance corrected compensation networks
Drivers
Doped titanium
polypropylene cone for
lows, mid and high
frequency for tighter
bass, smooth midrange and detailed
highs
Wide range drivers
ensure optimum
performance in the
entire frequency bandwidth of the speaker
system
6
krypton
Passion For Accurate Sound©
Specifications
Technical Parameter
ELECTRON 60
Power Bandwidth (-3dB)
70 Hz till 15KHz
Frequency response (-6dB)
60 Hz till 18KHz
Nominal Impedance
6 Ohms
Minimum Impedance
4.71 Ohms @ 330Hz
Continuous Power
50 Watts - Unclipped
Max Power @ 4 Ohms
70 Watts - Unclipped
Enclosure Type
Advanced Transmission Line – Bookshelf
Compensation network
Harmonic Balance
Cone Break-In Time
Approximately 100 Hrs. with moderate sound pressure
Driver
Doped Titanium polypropylene cone
SPL /w/m
88.5dB
Max Recommended Speaker
Wire Impedance
0.5 Ohms
Finish
Jet Black – Matt finish / Silver - Gloss finish
Weight (Approximate)
10KG (Pair)
Dimensions (H x W x D)
13.5” X 5” X 9”
7
krypton
Passion For Accurate Sound©
Notes
Passion For Accurate Sound©
Krypton Audio Pvt. Ltd.,
Email:
Issue: January 2015
krypton
A-602, Maitri Lotus,
Next to Oswal Park, Pokhran Road No.2,
Thane – 400 601.
Phone: 9819650800
8
