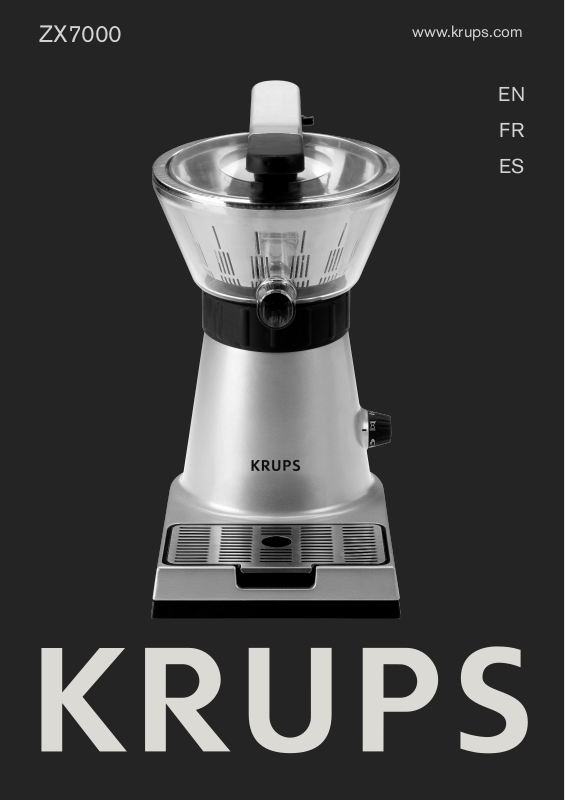

Krups ZX7000 User Manual
ZX7000
www.krups.com
EN
FR
ES
A
E
B
C
F
G
H
D
L
G1
I
J
K
Fig.1 Fig.2 Fig.3
Fig.4 Fig.5 Fig.6
Fig.7 Fig.8 Fig.9
Fig.10 Fig.11
English
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ............................................PG. 6-8
DESCRIPTION OF PARTS................................................PG. 9
BEFORE USING YOUR APPLIANCE
FOR THE FIRST TIME.........................................................PG. 9
ASSEMBLING YOUR CITRUS PRESS.........................PG. 10-11
USING YOUR CITRUS PRESS .......................................PG. 11-12
FOR BEST RESULTS ..........................................................PG. 12
CLEANING .............................................................................PG. 12
WARRANTY ...........................................................................PG. 13-14
5
English
IMPORTANT SAFEGUARDS
Read all instructions carefully before using.
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and/or injury to persons, including the following:
Use appliance only for its intended use.
To protect against risk of electrical shock, do not immerse
the base in water or any other liquid.
Close supervision is necessary when any appliance is used
near children. This appliance is not intended for use by
children.
Unplug from outlet when not in use, before putting on or
taking off parts, and before cleaning.
Avoid contact with moving parts. Keep hands, hair, clothing,
as well as spatulas and other utensils away during operation
to reduce the risk of injury to persons, and/or damage to
the appliance.
Do not operate any appliance with a damaged cord or plug
or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized
KRUPS Service Center for examination or repair.
The use of attachments not recommended or sold by
KRUPS may cause fire, electric shock or injury.
Do not use outdoors.
Do not let cord hang over edge of table or counter.
Do not let cord contact hot surface, including the stove.
The appliance is not intended to prepare large quantites of
food at one time.
A rubber/plastic spatula or wooden spoon may be used,
when the appliance is in “off” position and unplugged.
6
English
This appliance is for household use only. Any servicing other
than cleaning and user maintenance should be performed
by an authorized KRUPS Service Center.
SAVE THESE
INSTRUCTIONS
CAUTION
This appliance complies with applicable technical rules
and standards at the time of manufacture.
Do not leave the appliance within reach of children.
An electrical appliance is not a toy and should be kept
out of reach of children.
This appliance is intended for household use only. Do not
use it for commercial purposes. Any servicing other than
cleaning and user maintenance should be performed by
the nearest authorized KRUPS Service Center.
Check voltage to be sure that the voltage indicated on the
rating label matches your voltage.
Do not immerse the appliance in water or any other liquid.
To reduce the risk of fire or electric shock, do not remove
the base. No user serviceable parts inside. Repairs should
be done by an authorised KRUPS Service Center only.
Keep your hands and the cord away from hot parts during
operation.
Never clean with harsh or abrasive cleaners or sponges.
Clean using gentle dishwashing liquid and warm water.
Dry all parts carefully before next use.
Do not place or use the appliance on hot surfaces such as
stoves, hotplates, or near open gas flames.
7
English
Do not unplug the unit by pulling on the cord. Instead grasp
plug and pull to disconnect.
Only use the appliance on a stable working surface away
from water splashes.
SHORT CORD INSTRUCTIONS
A. We do not recommend using an extension cord with
this device.
B. If an extension cord is absolutely necessary,
1) the marked electrical rating of the extension cord
should be at least as great as the electrical rating of
the machine,
2) the longer cord should be arranged so that it will not
drape over the counter top or table top where it can
be pulled on by children or tripped over.
C. This machine has a polarized plug (one blade is wider
than the other). To reduce the risk of electric shock, this
plug is intended to fit into a polarized outlet only one
way. If the plug does not fit fully into the outlet, reverse
the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to modify the plug in any way.
In the interest of improving products, Krups reserves
the right to change specifications without prior notice.
8
English
DESCRIPTION OF PARTS
A
Pressing lever
B
Lever pin
C
Splash guard
D
Fruit press
E
Universal cone for all citrus fruits
F
Pulp filter
G
Transparent bowl
G1
Pouring spout
H
“Drip stopper” accessory (according to model)
I
Drip tray grid
J
Drip tray
K
ON/OFF selector knob
L
Citrus Press Arm
BEFORE USING YOUR APPLIANCE
FOR THE FIRST TIME
Before first use, remove all packaging, stickers, and accessories.
(B)
Remove the small lever pin
(A)
lever
Rinse all removable parts
Wipe the outside of the citrus press with a clean damp cloth.
, it will be needed later when assembling the citrus press.
in the bag attached to the pressing
(C-D-E-F-G-H-I-J)
and dry carefully.
9
English
ASSEMBLING YOUR CITRUS PRESS
ENSURE THE ON/OFF SELECTOR KNOB IS IN THE OFF
POSITION AND THE CITRUS PRESS IS NOT PLUGGED IN
WHEN ASSEMBLING.
Remove the small lever pin
(A) - Fig.4
lever
Holding the black portion of the pressing lever
slip the silver end of the pressing lever
top of the citrus press arm
the pressing lever
While holding the pressing lever
the right side of the lever with the hole in the shaft. Hold the black
end of the lever pin
The lever can now be moved up and down.
Put the lever
Rest the lever in the upright position so that the round notches on
the center of the underside of the handle are visible. Press the
clear splash guard
Align the notches on the black fruit press
the center of the round notches, then turn clockwise one quarter
turn to lock into place. Once locked in place, the fruit press
cannot be pulled off, but can be moved up and down
Slip the drip tray
Rest the lever in the up position. Slide the clear bowl
black plastic shaft of the citrus press. Align the clear bowl
that the plastic pouring spout
the center (7:00 position), then turn counter-clockwise so that
the pouring spout
- Fig.7
place
Place the pulp filter
Slide the juicing cone onto the center of the black axis in the
center of the pulp filter
smoothly both clockwise and counter-clockwise.
.
(A)
(A)
in its upper position.
(C)
(J)
.
(B)
in the bag attached to the pressing
(A)
horizontally,
(A)
into the notches at the
(L)
. Note the hole on the silver end of
should be on the right side
(A)
in place, align the hole on
(B)
, and push the lever pin
onto the round notches, it will click in place.
(D)
and drip tray grid
(G1)
is centered and the bowl is locked in
(F)
inside the clear bowl
(F)
and check that the cone rotates
(I)
in place
(G1)
is on the front, to the left of
- Fig.3
.
(B)
into the hole.
with the metal bar in
- Fig.5
- Fig.6
.
(G)
onto the
(G) - Fig.8
.
.
(G)
(D)
so
10
English
(K)
Ensure that the ON/OFF selector knob
the base of the appliance is in the OFF position before plugging
- Fig.9
in the citrus press
and ready to use.
Your citrus press offers two different modes of use:
“lever-operated”
- A
quickly and cleanly
- A
“manual”
mode for squeezing your fruit by hand
. Your citrus press is now assembled
function for squeezing your citrus fruits
- Fig.1
.
on the right side of
- Fig.2
.
USING YOUR CITRUS PRESS
Your citrus press can be used with or without the pressing lever
(A)
. The lever will help press citrus fruits against the rotating juicing cone for clean, efficient extraction and is helpful when pressing larger fruits, or large quantities of citrus fruits.
In manual mode, fruit is pressed by hand against the rotating jui-
(E)
cing cone
There are three positions on the ON/OFF selector knob:
Fig. 9
Fig. 10
Fig. 11
To press citrus fruit using the pressing lever:
Raise the lever to the upper position. Place a glass on the drip tray
(J)
, under the pouring spout
Place your fruit cut side down on the cone, applying gentle pres-
sure. Turn the ON/OFF selector knob
- Fig.10
(D)
and cone. The citrus press will start working automatically,
and the cone will rotate. Center fruit and maintain constant pressure for best results.
When pressing is complete, close the drip stopper
your glass.
.
OFF position
Pressing with lever
Manual pressing
(G1)
. Cut your citrus fruits in half.
(K)
to the
LEVER
. Lower the lever to press the fruit between the fruit press
(H)
and remove
position
11
English
Pressing by hand:
Raise the lever to the upper position. Place a glass on the drip tray
(J)
, under the pouring spout
Turn the ON/OFF selector knob
- Fig.11
pressure against the cone. The cone will automatically start rotating
once pressure is applied. Keep fruit centered and maintain
constant pressure for best results.
When pressing is complete, close the drip stopper
your glass.
. Place your fruit cut side down on the cone
(G1)
. Cut your citrus fruits in half.
(K)
to the
MANUAL
(H)
position
(E)
, applying
and remove
FOR BEST RESULTS
For optimal juice extraction, press fruit at room temperature. Roll
fruit on a table, using the palm of your hand to apply gentle pressure before cutting in half.
CLEANING
The removable parts
level of the dishwasher. Wash with warm water and gentle dishwashing liquid.
The pressing lever
the dishwasher. Wipe with a soft damp cloth to clean. Always dry
before re-assembling.
Rinse the pulp filter
has dried on the filter, soak in warm water to loosen the pulp and
then wipe with a sponge. Do not use abrasive or harsh chemical
cleaners or sponges to clean the removable parts.
Note the underside of the base includes a cord wrap that can be
used to organize excess powercord length or store the powercord
when the appliance is not in use.
12
(C-D-F-G-H-I-J)
(A)
and the lever pin
(F)
after juicing for easy cleaning. Once pulp
can be washed in the upper
(B)
cannot be washed in
