Krups 314, PROAROMA TIME User Manual

,

, ~~MCS@

Instructions for Use /Warranty /Guarantee of Performance

QUALITY... BY DESIGN

ProAroma Time

KRUPS

(Model # 314)

SPECIAL CORD SET INSTRUCTIONS

Regarding your Cord Set:
A. A short power-supply cord is provided to reduce risks resultingfrom beco-

ming entangled in or tripping over a longer cord.
B. Longer extension cords may be used if care is exercised in their use.
C. If a long extension cord is used,(1) the marked electrical ratingof the

extension cord should be at least as great as the electrical ratingof the

appliance, (2) if the appliance is of the grounded type, the extension cord

should be a grounding-type 3-wire cord, and (3) the longer cord should be

arranged so that.it will not drape over the counter top or table top where it

can be pulled on by children or tripped over.
D.This appliance has a polarized plug (one blade is wider than the other).To

reduce the risk of electric shock, this plug is intended to fit into a polarized

outlet only one way. If the plug does not fit fully into the outlet, reversethe

plug. If it still does not fit, contact a qualified electrician. Do notattempt to

modify the plug in any way.

CAUTION:

This appliance is for household use.Any servicing other than cleaning and user
maintenance should be performed by an authorized service representative.

Do not immerse base in water or any other liquid.

To reduce the risk of fire or electric shock, do not remove the base. No user service
able parts inside. Repair should be done by authorized service personnel only.

. Check voltage to be sure that the voltage indicated on the nameplate agrees

with your voltage.

. Never usewarm or hot water to fill the water container! Use cold water only!
. Never refillthe water chamber while this KRUPScoffee maker is in operation, in

the "on" position. Turn the KRUPS coffee maker off and let cool down for 10

minutes before'refilling with water.

. Before turning your KRUPS coffee maker on, please make sure that:

1. the filter is properly inserted into the swivel filter;

2. the swivel filter is properly closed;

3. the lid for the glass carafe is properly attached to the glass carafe;

4. the glass carafe sits flat on the inside circle of the heating plate.

. Keep your hands and the cord away from hot parts of the appliance during ope-

ration. .

. Never clean with scouring powders or hard implements.

r

~

a

b

KRUPS

c

CD,.

~J

d

~Ik

auto off

,,-+1

time

m

~:

e

f

a: hinged water chamber lid
b: release button

c: swing away filter holder
d: carafe

e: warming plate
f: hidden cord storage
g: magnifiedwater level indicator
h: LEDdisplay
i: indicator light

~. --+p

on/off

j: carafe pre-warm
k: aroma selector button

I: programmable auto shut off button
m: temperature adjustment button

n: time set button
0: programmable timer button
p: ON/OFF button, set minutes

q: set auto on/set hour button

q

2.II.....

~

,

e

,'\II \ 1T71U,

I)

I

~

C8

KRUPS
"ProAromaTime"

Your new KRUPS "ProAroma Time"
coffee maker has the following features:
0 Exclusive KRUPS deep-brew system

with special filtering action for maximum
flavor.

0 Electronically controlled 3 brewing

cycles let you select a full-flavored 1-3
cup brew, a medium strength 4-10 cup
brew or a strong 4-10 cup brew.

0 Swing away two-part filter holder with

release button is convenient to use and
easy to clean.

0 "Stop'n SeNe" feature lets you seNe a

cup or two while brewing. The automatic
filter seal allows you to remove the

carafe for 20 seconds without coffee
dripping onto the warming plate.

0 Aroma Savor System lid locks in flavor

and aroma by creating a seal on the
carafe lid.

0 Carafe Pre-Warming Cycle pre-warms

the carafe so every cup of coffee is hot,
from first to last.

0 24 hour programmable timer lets you

program the coffeemaker for convenient
"wake-up" coffee in the morning.

0 Adjustable temperature control lets you

set coffee keep-warm temperature in 6
increments.

0 Programmable auto shut-off lets you

select shut-off time from 1 to 5 hours
after brewing.

0 Electronic decalcifying detection will

automatically alert you when the
coffeemaker needs to be decalcified.

0 Magnified water level indicator is easy to

read.

0 Hinged water container lid will not get

lostandwillprotectwatercontainerfrom

dust and dirt.

6

0 KRUPSspecially designed heating and

tubing system minimizes calcification
and leaves no residual water in the

system when brewing is finished.

0 Hidden cord storage allows you to set

the desired cord length.

Setting the Time

1. Plug in the Krups "ProAroma Time". Make
sure that the coffee maker is turned off

(the red light should not be illuminated).

2. The LCD display will be flashing. This is
your signal to set the digital clock.

3. Press the "time" button - (n) on the

selector panel. Press the "auto" button ~

(q) and advance to the proper hour.

Press the "on/off" button ~ (p) and

advance to set the precise minutes.
The AM or PM indicator will be illuminated

and should you pass the time you wish to

set, just hold in the "auto" button ~ (q)

until desired time is reached.

4. To lock in the time, simply press the "time"

button.. (n) again (Note: the time will
automatically set in after 4 seconds). The
flashing dots in the LCD display will confirm
that the time has been properly set.

Preparing Coffee

Before making your first pot of delicious
coffee, we recommend operating the coffee

maker once or twice with water only,
without ground coffee or a paper filter to
remove any possible dust.

. Be sure that the water container is empty.

Remove literature, etc. if inserted in the
water container.

. The lid of the glass carafe must be

properly positioned during the brewing
process. Position the lid over the carafe

and snap the rectangular piece onto the

handle. The lid is then locked in place.

"

'r

.Make sure that the swing away filter (c)

is properly closed during the brewing
process. When closing the swivel filter
you willfeel a noticeable resistance

between the swivel filter and the base.

Push infirmlyuntil you hearthe filter

"click" into place.

. Caution: If the swivel filter is not

completely closed, the "Stop'n Serve"
trigger will not function properly, which
may cause hot water or hot coffee to

overflow.

. The "Stop'n Serve" mechanism is opened

as long as the glass carafe is inserted
into the machine and sits properly on the
warming plate and the swivel filter is
properly closed.

Filling the Water Chamber

Openthehingedlid(seefigure.):

Pour in the desired quantity of water (see

figure"). The water level indicator shows

you how much water you are filling into the
container.

The amount of freshly brewed coffee
delivered after the brewing process will
always be slightly less than the amount put

into the water container. This is due to the

minimal absorption of the water by the

ground coffee. Therefore, put in a little
more water to begin with so that you will
have the number of cups you desire.

Replace the carafe on the warming plate

with the glass carafe lid in position.

Putting in the Ground Coffee

To open the swing away filter holder, move
the release button (b) to the right to swing

the filterout (see figure.). Insert a paper
filter (we recommend KRUPS size 4) with

the seam pointing towards the handle of
the filter holder (see figure.).

Instead of filter paper you can also use the
KRUPS goldtone filter (model #053). (When
ordering filter paper or the goldtone filter
from KRUPS be sure to indicate that they
are for model #314).

Put ground coffee into the paper filter (see
figure.). We suggest using one level

KRUPS measuring spoon of ground coffee
for each cup of robust brewed coffee.

After using your KRUPS coffee maker
several times you can adjust the measure
to suit your own taste.

Close the swivel filter and make sure that it

is completely closed (see figure.) .

& Attention!

Make sure th,pt the filter paper does not tip
over when ctosing the swivel filter, or else
the water might run between the filter

paper and the filter holder producing a
very weak cup of coffee.

Aroma Selector Button

The "aroma" button provides you complete

control over brewing strength and brewing

cycles, to suit you personal taste.

Press the "aroma" button.. (k). The

current aroma setting will appear in the

LCD display. Press the "aroma" button (k)

again to display the next aroma selection,

and so on.

There are three selections from which to

choose:

I

Display

aroma

..

I Prol

I I

for 4-10 cups of

coffee; delivers a
medium and more

mellow flavor.

7

~

aroma

..

aroma

-

Display

for 4-10 cups of
coffee; delivers
a stronger, more

CYJm

stimulating
coffee, with a

powerful aroma.

for 1-3 cups' of

I L -31 I coffee; full flavor

i andaroma

& Note!

Once you press the carafe pre-warm

button, the function is stored in memory.
The next time you make coffee, the carafe
will automatically be pre-warmed.

Thefunction can be cancelled by pressing
the carafe pre-warm button during the pre-
warm stage. The light will then remain solid

red. Carafe pre-warming is automatically

cancelled in the event of a power shortage

or removal of plug.

Aroma Savor Lid

Approximately 4 seconds after you have
made your aroma selection, the time will
reappear in the display window. Please

note that the last-selected aroma setting

will remain in memory until manually

changed to a different selection.

To begin the brewing process, press the

"ON/OFF" button ~ (p). The indicator light

will illuminate, indicating the brewing
process has begun (see figure.).

Carafe Pre-Warming Cycle

This feature allows you to pre-warm the

carafe before the brewing process begins.
Follow the steps in "Filling the Water
Chamber" and "Putting in the Ground

Coffee" .
To start the process, select the coffee

strength you desire using the "aroma"
button.. (k). Within 6 seconds, press the
carafe pre-warm button Ii (j). The display

will say "on". Pressthe

indicator light will flash, indicating that you
have chosen to pre-warm the carafe. Pre-

heating takes approximately 5 minutes,
after which the brewing process will
automatically begin. Once the carafe is

pre-heated, the indicator light will stop
flashing, but remain solid red.

Oii! button (p). The

When the brewing cycle is complete, the
last drop to leave the filter seals the opening
within the lid of the carafe. When pouring,
the stream of coffee forms a seal on the

carafe lid so the remaining coffee is in an
airtight container. This reduces evaporation
and heat loss, and protects the aroma and

freshness of the coffee.

"Stop'n Serve" Feature

The "Stop'n Serve"feature is KRUPS'

answer to the impatient coffee drinker's
clamor for "a quick cup of coffee!" This
device automatically stops the flow of
brewed coffee through the filter cone if the
glass carafe is removed from the warming
plate during the brewing cycle. You have

about 20 seconds between the removal of
the carafe and its being reinserted to allow
the serving of one or two cups of coffee.
The "Stop'n Serve" device closes off the
filter cone so effectively that there is

virtuany no coffee-drip onto the warming

plate (one drop, at most!).
Once the carafe is replaced, the brewing
cycle and the flow of the coffee into the

carafe are resumed.

8

'1

& Caution

If the coffee does drip onto the warming
plate after removal of the carafe, it is
usually an indication that the small seal in
the filter holder is missing or defective. It is
also possible that too much ground coffee
has been placed into the paper filter. This
causes the water that jets into the filter
cone to overflow between the paper filter

and the sides of the filter cone.
This overflow carries coffee grounds with it

that interfere with the snap-shot action of
the filter holder, thus allowing brewed
coffee to continue to drip through.

If this blockage and subsequent
dripping do occur, replace the glass
carafe immediately and allow the full
brewing cycle to run its course. Do not
swing out the swivel filter until the
brewing cycle is completed.

Setting "Wake-Up" Time

This feature enables you to enjoy freshly
brewed coffee at any pre-selected time
within a 24-hour period. To use this feature,
you must first set the digital clock (see
Setting the Time):

1. Press the "prog" button.. (0). The
display will change from the current
clock setting to "Wake-Up" setting The

~ symbol will appear in the display

and the display will not flash.

2. Immediately select the time in which you
would like the brewing process to

commence (see diagram below).

I Display

Press the "prog"

button
Setthe

hour
Setthe

minutes

progr.

-

h

..

auto

min.

-

onioff

I []]ID

II; l:OID

[; 1:151

I

3. Once you have set the "Wake-Up" time,
either press the "prog" key or wait
approximately 4 seconds. The current
clock time will reappear and the display
colon will flash. To activate "Wake-Up"

setting press ~ button. A green light

will indicate the "Wake-Up" program has
been set. The "Wake-Up" time is now
stored in memory. If you wish to check
the "Wake-Up" time that has tieen
programmed, simply press the "prog."
button and the time will be displayed.

Preparing "Wake-Up" Coffee

To enjoy delicious "Wake-Up" coffee that is
freshly brewed and hot, first set the "Wake-

Up" time (see Setting the "Wake-Up"

Time).

. Put in ground coffee.

. Fill the water chamber to the desired

number of cups.

. Place the carafe back on the warming

plate.

. Press the "auto" button ~ (q). The

indicator light will turn green and the ~
symbol will appear in the display (see
figure G). Enter the desired aroma
setting, if you have not previously done so.

. At the pre-programmed time, the

indicator light will change from green to
red, indicating the brewing process has

begun.

Setting the "Keep-Warm"

Temperature

The ProAroma Time has a "keep-warm"

feature that maintains coffee temperature
in 6 increments. To set the "keep-warm"
temperature, press the "temp" button-
(m). The currently entered temperature

number will appear in the display.

9

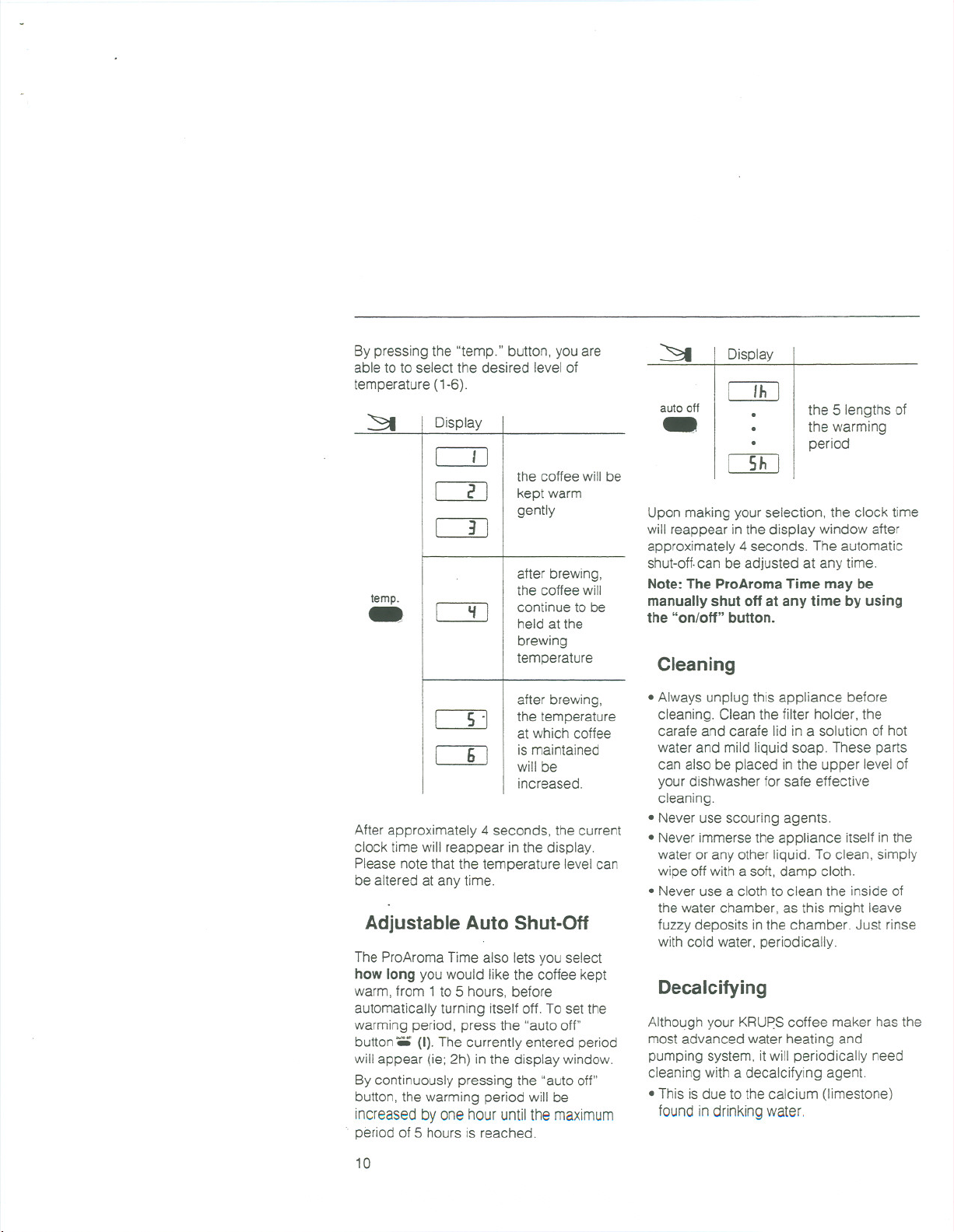

By pressing the "temp." button, you are
able to to select the desired level of

temperature (1-6).

~

Display

0

the coffee will be

C] I kept warm

gently

j]

after brewing,

temp.

..

the coffee will
continue to be

) I

held at the
brewing

temperature

IDisplay

autooff

Upon making your selection, the clock time
will reappear in the display window after
approximately 4 seconds. The automatic
shut-off. can be adjusted at any time.

Note: The ProAroma Time may be
manually shut off at any time by using

the "on/off" button.

Cleaning

lliJ

I --. I the5 lengthsof..

. the warming

Sh )

period

after brewing,

I 5-\

CIJ I

After approximately 4 seconds, the current
clock time will reappear in the display.
Please note that the temperature level can
be altered at any time.

the temperature

I

at which coffee

is maintained

will be

increased.

Adjustable Auto Shut-Off

The ProAroma Time also lets you select
how long you would like the coffee kept
warm, from 1 to 5 hours, before

automatically turning itself off. To set the
warming period, press the "auto off"
button.. (I). The currently entered period
will appear (ie; 2h) in the display window.

By continuously pressing the "auto off"
button, the warming period will be

increasedbyonehouruntilthemaximum

period of 5 hours is reached.

. Always unplug this appliance before

cleaning. Clean the filter holder, the
carafe and carafe lid in a solution of hot

water and mild liquid soap. These parts
can also be placed in the upper level of
your dishwasher for safe effective
cleaning.

. Never use scouring agents.
. Never immerse the appliance itself in the

water or any other liquid. To clean, simply
wipe off with a soft, damp cloth.

. Never use a cloth to clean the inside of

the water chamber, as this might leave
fuzzy deposits inthe chamber. Just rinse
with cold water, periodically.

Decalcifying

Although your KRUPS coffee maker has the

most advanced water heating and
pumping system, it will periodically need
cleaning with a decalcifying agent

.This is due to the calcium (limestone)

found in drinking water,

10

"

. In some areas where the water is hard,

you will need to decalcify more frequently
than in areas with soft water.

. It will also depend upon how often you

use your coffee maker.
An automatic sensor has been built into your
ProAroma Time which will indicate when your
coffee maker needs decalcifying by dis-
playing the message "CALC". This sensor is
extremely sensitive and the "CALC" message
may appear briefly in the display under

certain circumstances. This is of no
importance, however, and should be

ignored. Decalcification is necessary only
when "CALC" appears repeatedly or
permanently in the display.The "CALC"
display will remain visible until the "on/off"
key is pressed. You should now decalcify the
coffeemaker. We recommend using KRUPS
original decalcifying agent for cleaning your

KRUPS coffeemaker. When used in accor-
dance with the following instructions, it will

prolong the life of your coffeemaker.

How to decalcify

Dissolve contents of decalcifier in two cups
of cold tap water. Pour solution into the
water tank, then place the empty carafe.

and filterbasket in place. Press the "aroma"

button. Nowselect the "1-3" cup setting.

Press the "on/off" key. Allow the

decalcifying solution to completely run

through one cycle. Repeat this two orthree

times with cold liquid.

Rinse by cycling clean water through
twice, pausing and turning the

coffeemaker "off" for a few minutes in

between each rinse ses;sion.

D;splay

I ~ ~[ [RLU I aroma I L -31 ..

on/off

& Caution

KRUPS decalcifying agent is a citric acid

which is harmless. However, we recommend

keeping it out of the reach of children.

Do not take internally. If swallowed
accidently, drink several glasses of water or
milk and consult your doctor.

For best results ...

...always use fresh, cold water (warm water

might be stale and have mineral deposits which
would Impair the flavor of the coffee).

..,we recommend that you grind your own
beans. Freshly ground beans deliver more
aroma and flavor. Use one KRUPS measuring
spoon of beans per cup.

... serve coffee immediately after brewing.
... never reheat coffee.

Hidden Cord Storage

The power cord can be tailored to the

length required by utilising the hidden cord

storage located underneath the coffee

maker (see figure.).

Limited One Year Warranty

Your KRUPS # 314 is covered by the

following warranty (glass carafes are

excluded from warranty):

If from date of purchase within one year

this KRUPS product fails to function

because of defects in materials or

workmanship, KRUPS North America, will

at its option, repair or replace the unit

.without charge, provided the owner has a

proof of date of purchase.

This warranty will be void if malfunction

was caused by damage to the product by

accident, misuse, use on frequency or

voltage other than marked on the product

and/or described in the instructions, abuse

including tampering, damage in transit, or
use for commercial purposes. This

warranty gives you specific legal rights,

andyoumayalsohaveotherrightswhich

vary from state to state.

11

GUARANTEE OF PERFORMANCE

This fine KRUPS product is manufactured according to a rigid code of quality

standards, and, with minimum care, should give years of satisfying service. However,
should the need arise for repairs or for replacement parts within or after the warranty
period, please call our CONSUMERSERVICEDEPARTMENT:

[phone]

24-hours a day, 7 days a week

You will be provided with specific instruction on how to get your product repaired.

The department willalso be able to answer any general product questions you may

have.

Before calling the Consumer Service Department, please have the type number of your
Krups appliance available. You must have this information before calling our Consumer
Service Department so that we may better answer your questions. The type number can
be located by looking on the bottom of your appliance.

This product is Type #314.

Any general correspondance can be addressed to:

Krups North America, Inc.

P.O. Box 3900

Peoria, IL61612

ROBERTKRUPSGmbH &Co. KG' Postfach190460' D-42704Solingen
0594/ \:r/314

US 63623
