Kroy Europe Ltd K4350, K4350C Programming Manual

KROY

PROGRAMMING

MANUAL

KROY – K4350 / K4350C Thermal Transfer Printer Series

kroy

Kroy LLC / Kroy (Europe) Ltd

i

CONTENT

DOCUMENT CONVENTIONS...........................................................................................................1

SETUP AND SYSTEM COMMANDS.................................................................................................2

SIZE..................................................................................................................................................2

GAP ..................................................................................................................................................4

BLINE................................................................................................................................................7

OFFSET............................................................................................................................................8

SPEED............................................................................................................................................10

DENSITY.........................................................................................................................................11

DIRECTION.....................................................................................................................................12

REFERENCE ..................................................................................................................................13

COUNTRY.......................................................................................................................................14

CODEPAGE....................................................................................................................................16

CLS.................................................................................................................................................18

FEED ..............................................................................................................................................19

FORMFEED.................................................................................................................................... 20

HOME .............................................................................................................................................21

PRINT .............................................................................................................................................22

SOUND...........................................................................................................................................23

CUT.................................................................................................................................................24

LIMITFEED .....................................................................................................................................25

LABEL FORMATTING COMMANDS...............................................................................................26

BAR.................................................................................................................................................26

BARCODE.......................................................................................................................................27

BITMAP........................................................................................................................................... 32

BOX ................................................................................................................................................33

ERASE............................................................................................................................................34

DMATRIX........................................................................................................................................ 35

kroy

Kroy LLC / Kroy (Europe) Ltd

ii

MAXICODE.....................................................................................................................................36

PDF417...........................................................................................................................................40

PUTPCX.......................................................................................................................................... 42

REVERSE....................................................................................................................................... 43

TEXT...............................................................................................................................................44

STATUS POLLING COMMANDS (RS-232).....................................................................................46

<ESC>!? .........................................................................................................................................46

<ESC>!R ......................................................................................................................................... 47

~!A..................................................................................................................................................48

~!T ..................................................................................................................................................49

~!C..................................................................................................................................................50

~!I....................................................................................................................................................51

~!F ..................................................................................................................................................52

~!@.................................................................................................................................................53

MESSAGE TRANSLATION PROTOCOLS......................................................................................54

<ESC>! ...........................................................................................................................................54

<ESC>&.......................................................................................................................................... 54

~# .................................................................................................................................................... 55

COMMANDS FOR WINDOWS DRIVER .........................................................................................56

!B ....................................................................................................................................................56

!J ..................................................................................................................................................... 57

!N.................................................................................................................................................... 58

FILE MANAGEMENT COMMANDS.................................................................................................59

DOWNLOAD...................................................................................................................................59

REDRAW........................................................................................................................................ 68

EOP ................................................................................................................................................69

FILES..............................................................................................................................................70

KILL.................................................................................................................................................71

MOVE .............................................................................................................................................72

UPDATBIOS....................................................................................................................................73

kroy

Kroy LLC / Kroy (Europe) Ltd

iii

BASIC COMMANDS AND FUNCTIONS .......................................................................................... 74

ABS( ) .............................................................................................................................................74

ASC( ) .............................................................................................................................................75

CHR$( )...........................................................................................................................................76

END ................................................................................................................................................77

EOF( ).............................................................................................................................................78

OPEN..............................................................................................................................................80

READ.............................................................................................................................................. 82

SEEK ..............................................................................................................................................84

LOF( )..............................................................................................................................................86

FREAD$( )....................................................................................................................................... 87

FOR…NEXT......................................................................................................................................88

IF…THEN…ELSE...............................................................................................................................90

GOSUB…RETURN...........................................................................................................................92

GOTO .............................................................................................................................................94

INP$( )............................................................................................................................................. 96

INPUT .............................................................................................................................................97

REM................................................................................................................................................99

OUT ..............................................................................................................................................100

GETKEY( )....................................................................................................................................101

INT( ) ............................................................................................................................................. 102

LEFT$( )........................................................................................................................................103

LEN( )............................................................................................................................................ 104

MID$( ).......................................................................................................................................... 105

RIGHT$( )...................................................................................................................................... 106

STR$( )..........................................................................................................................................107

VAL( )............................................................................................................................................108

BEEP ............................................................................................................................................ 109

DEVICE RECONFIGURATION COMMANDS ................................................................................ 110

SET COUNTER............................................................................................................................. 110

kroy

Kroy LLC / Kroy (Europe) Ltd

iv

SET CUTTER ................................................................................................................................ 111

SET KEY1..................................................................................................................................... 113

SET KEY2..................................................................................................................................... 113

SET LED1, LED2, LED3................................................................................................................115

SET PEEL..................................................................................................................................... 116

SET DEBUG..................................................................................................................................117

SET GAP.......................................................................................................................................118

SET RIBBON.................................................................................................................................119

SET COM1....................................................................................................................................120

@LABEL .......................................................................................................................................122

PEEL.............................................................................................................................................123

LED1, LED2, LED3 ........................................................................................................................ 124

KEY1, KEY2..................................................................................................................................125

YEAR ............................................................................................................................................126

MONTH.........................................................................................................................................128

DATE ............................................................................................................................................ 130

WEEK ...........................................................................................................................................132

HOUR............................................................................................................................................134

MINUTE ........................................................................................................................................136

SECOND.......................................................................................................................................138

kroy

Kroy LLC / Kroy (Europe) Ltd

v

INDEX

!B......................................................................56

!J ......................................................................57

!N......................................................................58

@LABEL ........................................................122

~!@...................................................................53

~!A....................................................................48

~!C .................................................................... 50

~!F.................................................................... 52

~!I .....................................................................51

~!T.................................................................... 49

~#...................................................................... 55

<ESC>! .............................................................54

<ESC>!? ..........................................................46

<ESC>!R.......................................................... 47

<ESC>&............................................................ 54

ABS( ) ...............................................................74

ASC( )...............................................................75

BAR..................................................................26

BARCODE.......................................................27

BEEP..............................................................109

BITMAP ............................................................32

BLINE.................................................................7

BOX..................................................................33

CHR$( )............................................................ 76

CLS................................................................... 18

CODEPAGE ....................................................16

COUNTRY.......................................................14

CUT..................................................................24

DATE..............................................................130

DENSITY..........................................................11

DIRECTION.....................................................12

DMATRIX.........................................................35

DOWNLOAD ...................................................59

END..................................................................77

EOF( )..............................................................78

EOP..................................................................69

ERASE............................................................. 34

FEED................................................................19

FILES...............................................................70

FOR…NEXT...................................................... 88

FORMFEED .................................................... 20

FREAD$( ).......................................................87

GAP....................................................................4

GETKEY( ).....................................................101

GOSUB…RETURN ..........................................92

GOTO ..............................................................94

HOME .............................................................. 21

HOUR.............................................................134

IF…THEN…ELSE...............................................90

INP$( )..............................................................96

INPUT .............................................................. 97

INT( )..............................................................102

KEY1, KEY2..................................................125

KILL..................................................................71

LED1, LED2, LED3.......................................124

LEFT$( ).........................................................103

LEN( ) ............................................................. 104

LIMITFEED ......................................................25

LOF( )...............................................................86

MAXICODE......................................................36

MID$( )...........................................................105

MINUTE.........................................................136

MONTH.......................................................... 128

MOVE...............................................................72

OFFSET.............................................................8

OPEN...............................................................80

kroy

Kroy LLC / Kroy (Europe) Ltd

vi

OUT................................................................100

PDF417............................................................ 40

PEEL ..............................................................123

PRINT...............................................................22

PUTPCX........................................................... 42

READ................................................................82

REDRAW.........................................................68

REFERENCE...................................................13

REM..................................................................99

REVERSE........................................................43

RIGHT$( ) ......................................................106

SECOND........................................................138

SEEK................................................................84

SET COM1.....................................................120

SET COUNTER.............................................110

SET CUTTER................................................ 111

SET DEBUG..................................................117

SET GAP.......................................................118

SET KEY1......................................................113

SET KEY2......................................................113

SET LED1, LDE2, LED3...............................115

SET PEEL......................................................116

SET RIBBON.................................................119

SIZE...................................................................2

SOUND............................................................23

SPEED............................................................. 10

STR$( ) ..........................................................107

TEXT................................................................44

UpdatBios ........................................................ 73

VAL( ).............................................................108

WEEK ............................................................132

YEAR .............................................................126

kroy

Kroy LLC / Kroy (Europe) Ltd

1

Document Conventions

This manual uses the following typographic conventions.

Convention Description

[expression list] Items inside square brackets are optional.

<ESC> ESCAPE (ASCII 27), control code of status

polling command, which returns the printer
status immediately, no matter the printer is
ready or not.

~ (ASCII 126), control code of status polling

command, which returns the printer status
only when the printer is ready.

Note: 200 DPI: 1 mm = 8 dots Arial font in bold and italic type is used for

300 DPI: 1 mm = 12 dots notes.

DOWNLOAD “TEST.BAS” The courier font is used for program code.
SET COUNTER @1 1
@1=”0001”
TEXT 10,10,”3”,0,1,1,@1
PRINT 3,2
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

2

Setup and System Commands

l SIZE

Description

This command defines the label width and length.

Syntax

(1) English system (inch)

SIZE m, n

(2) Metric system (mm)

SIZE m mm, n mm

Parameter Description
m Label width (inch or mm)
n Label length (inch or mm)

Note: 200 DPI: 1 mm = 8 dots

*

300 DPI: 1 mm = 12 dots

Example

(1) English system (inch)

SIZE 3.5, 3.00

(2) Metric system (mm)

SIZE 100 mm, 100 mm

*

As used in the printer jargon of dot matrix. Note that like inch or millimeter, it is almost always referred to in

this manual as a measurement unit.

kroy

Kroy LLC / Kroy (Europe) Ltd

3

kroy

Kroy LLC / Kroy (Europe) Ltd

4

l GAP

Description

Define the gap distance between two labels

Syntax

(1) English system (inch)

GAP m, n

(2) Metric system (mm)

GAP m mm, n mm

Parameter Description
m The gap distance between two labels

0 ≤ m ≤ 1 (inch), 0 ≤ m ≤ 25.4 (mm)

n The offset distance of the gap

[-]n ≤ label length (inch or mm)

Note: 200 DPI : 1 mm = 8 dots

300 DPI : 1 mm = 12 dots

Example

Normal gap

(1) English system (inch)

GAP 0.12,0

(2) Metric system (mm)

GAP 3 mm,0

kroy

Kroy LLC / Kroy (Europe) Ltd

5

kroy

Kroy LLC / Kroy (Europe) Ltd

6

Special gap

(1) English system (inch)

GAP 0.30,-0.10

(2) Metric system (mm)

GAP 7.62 mm, -2.54 mm

kroy

Kroy LLC / Kroy (Europe) Ltd

7

l BLINE

Description

This command is used to set the height of the black line and the user­defined extra label feeding length each form feed takes.

Syntax

(1) English system (inch)

BLINE m, n

(2) Metric system (mm)

BLINE m mm, n mm

Parameter Description

m The height of black line either in inch or mm.

0.1 ≤ m ≤ 1 (inch), 2.54 ≤ m ≤ 25.4 (mm)

n The extra label feeding length. 0 ≤ n ≤ label length

Example

(1) English system (inch)

BLINE 0.20,0.50

(2) Metric system (mm)

BLINE 5.08 mm,12.7 mm

kroy

Kroy LLC / Kroy (Europe) Ltd

8

l OFFSET

Description

This command defines the selective, extra label feeding length each form
feed takes, which, especially in peel-off mode and cutter mode, is used to
adjust label stop position, so as for label to register at proper places for the
intended purposes. The printer back tracks the extra feeding length before
the next run of printing.

Syntax

(1) English system (inch)

OFFSET m

(2) Metric system (mm)

OFFSET m mm

Parameter Description

m The offset distance (inch or mm)

0 ≤ m ≤ 1 (inch), 0 ≤ m ≤ 25.4 (mm)

Example

(1) English system (inch)

OFFSET 0.5

(2) Metric system (mm)

OFFSET 12.7 mm

kroy

Kroy LLC / Kroy (Europe) Ltd

9

kroy

Kroy LLC / Kroy (Europe) Ltd

10

l SPEED

Description

This command defines the print speed.

Syntax

SPEED n

Parameter Description

n 1.5 Set print speed at 1.5 inch/sec (B 442, 443)

2.0 Set print speed at 2.0 inch/sec (B 442, B-

443)

3.0 Set print speed at 3.0 inch/sec (B-443)

Example

SPEED 2.0

kroy

Kroy LLC / Kroy (Europe) Ltd

11

l DENSITY

Description

This command designates the level of darkness of printing.

Syntax

DENSITY n

Parameter Description

n 0, specifies the lightest level

15, specifies the darkest level

Example

DENSITY 7

kroy

Kroy LLC / Kroy (Europe) Ltd

12

l DIRECTION

Description

This command defines the print direction.

Syntax

DIRECTION n

Parameter Description

n 0 or 1. Please refer to the illustrations below:

Example

DIRECTION 0

kroy

Kroy LLC / Kroy (Europe) Ltd

13

l REFERENCE

Description

This command defines the reference point of the label. The reference
(origin) point varies with the print direction, as shown:

Syntax

REFERENCE x, y

Parameter Description

x Horizontal coordinate, with “dot” as the unit.
y Vertical coordinate, with “dot” as the unit.

Example

REFERENCE 10,10

kroy

Kroy LLC / Kroy (Europe) Ltd

14

l COUNTRY

Description

This command defines what special character to have on the portable LCD
keyboard (KP-200, option) to orient the keyboard for use in different
countries.

Syntax

COUNTRY n

Parameter Description

n 001: USA

002: Canadian-French
003: Spanish (Latin America)
031: Dutch
032: Belgian
033: French (France)
034: Spanish (Spain)
036: Hungarian
038: Yugoslavian
039: Italian
041: Switzerland
042: Slovak
044: United Kingdom
045: Danish
046: Swedish
047: Norwegian
048: Polish
049: German
055: Brazil
061: English (International)
351: Portuguese
358: Finnish

kroy

Kroy LLC / Kroy (Europe) Ltd

15

Example

COUNTRY 001

kroy

Kroy LLC / Kroy (Europe) Ltd

16

l CODEPAGE

Description

This command defines the code page of international character set.

Syntax

CODEPAGE n

Parameter Description

n name or number of code page, which can be divided

into 7-bit code page and 8-bit code page further.
7-bit code page name
USA: USA
BRI: British
GER: German
FRE: French
DAN: Danish
ITA: Italian
SPA: Spanish
SWE: Swedish
SWI: Swiss

8-bit code page number
437: United States
850: Multilingual
852: Slavic
860: Portuguese
863: Canadian/French
865: Nordic

Note: Whether to use 7-bit or 8-bit code page is determined by the

communication parameter of DATA LENGTH

.

kroy

Kroy LLC / Kroy (Europe) Ltd

17

Example

CODEPAGE 437

kroy

Kroy LLC / Kroy (Europe) Ltd

18

l CLS

Description

This command clears the image buffer.

Syntax

CLS

Parameter Description

N/A N/A

Example

CLS

kroy

Kroy LLC / Kroy (Europe) Ltd

19

l FEED

Description

This command feeds label with the specified length (in dot).

Syntax

FEED n

Parameter Description

n unit: dot

1 ≤ n ≤ 65535

Example

FEED 40

Note: 200 DPI: 1 mm = 8 dots

300 DPI: 1 mm = 12 dots

kroy

Kroy LLC / Kroy (Europe) Ltd

20

l FORMFEED

Description

This command feeds label to the beginning of next label.

Syntax

FORMFEED

Parameter Description

N/A N/A

Example

FORMFEED

kroy

Kroy LLC / Kroy (Europe) Ltd

21

l HOME

Description

It is not expected the first label will be printed on the right position when the
printer power is turned on. This command will feed the label to find the gap
first and then back feed to the beginning of label, on condition that the size
of the label was set in advance.

Note: The label length must be longer than 30 mm when using this
command.

Syntax

HOME

Parameter Description

N/A N/A

Example

HOME

kroy

Kroy LLC / Kroy (Europe) Ltd

22

l PRINT

Description

This command prints the label form stored in the image buffer.

Syntax

PRINT m [,n]

Parameter Description

m Specifies how many sets of labels will be printed.

1 ≤ m ≤ 65535

n Specifies how many copies should be printed for
each set of label.

1 ≤ n ≤ 65535

Example

DOWNLOAD “TEST.BAS”
SET COUNTER @1 1
@1=”0001”
TEXT 10,10,”3”,0,1,1,@1
PRINT 3,2
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

23

l SOUND

Description

This command is used to control the sound frequency of the beeper. There
are 10 levels of sounds. The timing control of the sound can be set by the
“interval” parameter.

Syntax

SOUND level, interval

Parameter Description

level Sound level: 0~9
interval Sound interval: 1~4095

Example

SOUND 5,200
SOUND 3,200
SOUND 3,200
SOUND 4,200
SOUND 2,200
SOUND 2,200
SOUND 1,120
SOUND 2,200
SOUND 3,200
SOUND 4,200
SOUND 5,200
SOUND 5,200
SOUND 5,400
SOUND 5,200
SOUND 3,200
SOUND 3,200
SOUND 4,200
SOUND 2,200

kroy

Kroy LLC / Kroy (Europe) Ltd

24

l CUT

Description

At this command, the printer will activate the cutter to cut the labels.
Applicable models: B-443

Syntax

Cut

Parameter Description

None N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

25

l LIMITFEED

Description

When feeding labels, if the gap sensor is not set to a suitable strength, the
printer will be unable to locate the correct position of the gap. This
command is used to stop label feeding and make the red LED flash if the
printer does not locate gap after feeding the length of one label plus one
preset value. Applicable models: B-443

Syntax

LIMITFEED n (inch, the English system)
LIMITFEED n mm (mm, the metric system)

Parameter Description

n inch or mm

Remark

The setting will remain resident in memory.
The default value is 4 inches when printer initializes.
For metric system, there must be a space between parameter n and mm.

kroy

Kroy LLC / Kroy (Europe) Ltd

26

Label Formatting Commands

l BAR

Description

This command is used to draw a line or a bar on the label form.

Syntax

BAR x, y, width, height

Parameter Description

x The upper left corner x-coordinate in dot
y The upper left corner y-coordinate in dot
width The width of bar in dot
height The height of bar in dot

Note: 200 DPI: 1 mm = 8 dots

300 DPI: 1 mm = 12 dots

Example

BAR 100, 100, 300, 200

kroy

Kroy LLC / Kroy (Europe) Ltd

27

l BARCODE

Description

This command is used to print 1D barcodes on label form.
The available bar codes in B-443 are listed below:

n Code 128 (switching code subset automatically)
n Code 128M (switching code subset manually)
n EAN 128 (switching code subset automatically)
n Interleaved 2 of 5
n Interleaved 2 of 5 with check digit
n Code 39
n Code 39 with check digit
n Code 93
n EAN 13
n EAN 13 with 2 digits add-on
n EAN 13 with 5 digits add-on
n EAN 8
n EAN 8 with 2 digits add-on
n EAN 8 with 5 digits add-on
n Codabar
n Postnet
n UPC-A
n UPC-A with 2 digits add-on
n UPC-A with 5 digits add-on
n UPCE
n UPCE with 2 digits add-on
n UPCE with 5 digits add-on

Syntax

BARCODE X, Y, ”code type”, height, human readable, rotation, narrow,
wide, “code”

kroy

Kroy LLC / Kroy (Europe) Ltd

28

Parameter Description

X Specify the x-coordinate of the bar code on label
Y Specify the y-coordinate of the bar code on label
code type

128 Code 128, switching code subset A, B, C

automatically

128M Code 128, switching code subset A, B, C manually.

Control code A B C

096 FNC3 FNC3 NONE
097 FNC2 FNC2 NONE
098 SHIFT SHIFT NONE
099 CODE C CODE C NONE
100 CODE B FNC4 CODE B
101 FNC4 CODE A CODE A
102 FNC1 FNC1 FNC1
103 Start (CODE A)
104 Start (CODE B)
105 Start (CODE C)

Use “!” as a starting character for the control code followed by three
control codes.
If the start subset is not set, the default starting subset is B.

EAN128 Code 128, switching code subset A, B, C

automatically
25 Interleaved 2 of 5
25C Interleaved 2 of 5 with check digits
39 Code 39
39C Code 39 with check digits
93 Code 93
EAN13 EAN 13
EAN13+2 EAN 13 with 2 digits add-on
EAN13+5 EAN 13 with 5 digits add-on

kroy

Kroy LLC / Kroy (Europe) Ltd

29

EAN8 EAN 8

kroy

Kroy LLC / Kroy (Europe) Ltd

30

EAN8+2 EAN 8 with 2 digits add-on
EAN8+5 EAN 8 with 5 digits add-on
CODA Codabar
POST Postnet
UPCA UPC-A
UPCA+2 UPC-A with 2 digits add-on
UPCA+5 UPC-A with 5 digits add-on
UPCE UPC-E
UPCE+2 UPC-E with 2 digits add-on
UPCE+5 UPC-E with 5 digits add-on

height bar code height in dot
human readable 0: human not readable

1: human readable

rotation Rotate bar code clockwise

in degrees
0 non rotation
90 rotate 90 degrees clockwise
180 rotate 180 degrees clockwise
270 rotate 270 degrees clockwise

narrow width of narrow element in dot
wide width of wide element in dot

narrow : wide

1:1

Narrow : wide

1:2

narrow : wide

1:3

narrow : wide

2:5

128 10x N/A N/A N/A

EAN128 4x N/A N/A N/A

25 N/A 10x 10x 5x

25C N/A 10x 10x 5x

39 N/A 10x 10x 5x

39C N/A 10x 10x 5x

93 N/A N/A 10x N/A

EAN13 4x N/A N/A N/A
EAN13+2 4x N/A N/A N/A
EAN13+5 4x N/A N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

31

EAN 8 4x N/A N/A N/A
EAN 8+2 4x N/A N/A N/A
EAN 8+5 4x N/A N/A N/A

CODA N/A 10x 10x 5x

POST 1x N/A N/A N/A

UPCA 4x N/A N/A N/A

UPCA+2 4x N/A N/A N/A
UPCA+5 4x N/A N/A N/A

UPCE 4x N/A N/A N/A

UPCE+2 4x N/A N/A N/A
UPCE+5 4x N/A N/A N/A

code number the bar code content

Example

BARCODE 100,100,”39”,96,1,0,2,4,”1000”
BARCODE 10,10,”128M”,48,1,0,2,2,”!104!096ABCD!101EFGH”
(The above example of code 128M encoded with CODE B start character.
The next character will be the code 128 function character FNC3 which is
then followed by the ABCD characters and EFGH characters encoded as
CODE A subset.)

kroy

Kroy LLC / Kroy (Europe) Ltd

32

l BITMAP

Description

This command is used to draw bitmap images (Not BMP graphic file).

Syntax

BITMAP X, Y, width, height, mode, bitmap data…

Parameter Description

X Specify the x-coordinate of the bitmap image
Y Specify the y-coordinate of the bitmap image
width The width of the image in bytes
height The height of the image in dot
mode Graphic mode is listed below:

0 OVERWRITE
1 OR
2 XOR

bitmap data The bitmap data

Example

BITMAP 100,100,10,1,2,1111111111

kroy

Kroy LLC / Kroy (Europe) Ltd

33

l BOX

Description

This command is used to draw rectangles on the label.

Syntax

BOX X_start, Y_start, X_end, Y_end, line thickness

Parameter Description

X_start Specify x-coordinate of upper left corner in dot
Y_start Specify y-coordinate of upper left corner in dot
X_end Specify x-coordinate of lower right corner in dot
Y_end Specify y-coordinate of lower right corner in dot
line thickness Line thickness of the box in dot

Example

BOX 100,100,200,200,5

kroy

Kroy LLC / Kroy (Europe) Ltd

34

l ERASE

Description

This command is used to blot out a specified region from image.

Syntax

ERASE X_start, Y_start, X_width, Y_height

Parameter Description

X_start The x-coordinate of the starting point in dot
Y_start The y-coordinate of the starting point in dot
X_width The region width in x-axis direction in dot
Y_height The region height in y-axis direction in dot

Example

ERASE 100,100,200,200

kroy

Kroy LLC / Kroy (Europe) Ltd

35

l DMATRIX

Description

This command is used to define the DataMatrix 2D bar code.

Syntax

DMATRIX x, y, width, height, [xm, row, col], expression

Parameter Description

x Horizontal start position in dot
y Vertical start position in dot
width The width of barcode area in dot
height The height of barcode area in dot
xm Module size in dot
row Rows of the bar code
col Columns of the bar code

Example

DMATRIX 10,10,400,400,”DMATRIX”

kroy

Kroy LLC / Kroy (Europe) Ltd

36

l MAXICODE

Description

This command is used to define a 2D Maxicode.

Syntax

MAXICODE x, y, ”class, country, post, message”
For mode 2 or 3:
MAXICODE x, y, "class, country, postal code, low priority message"
if country is 840, the postal code could be 999999999 or 99999,9999
( Both expressions are acceptable, with or without comma in
between)
for all the other countries, the code is up to 6 alphanumeric
characters.
For mode 4,5,6
MAXICODE x, y, "message"
SET MAXIMODE [2..6]
* if the SET MAXIMODE is not used, the printer will use mode 2 or 3
(mode 2 for country 840, mode 3 for all the other countries)
If the input command is neither regular format
(service code, country code, postal code), nor AIM special format,
then mode 4 will be used.

* Mode 4, 5, 6 do not have any syntax in the HPM and LPM. But the
SET MAXICODE command has to be used to select mode.

* AIM special format is supported, see page 23 in the spec.
Example:
MAXICODE
24,24,"[)>-01961523828028400011Z00004951UPSN06X61015
912345671/1Y634 ALPHA DRPITTSBURGHPA -"

Parameter Description

kroy

Kroy LLC / Kroy (Europe) Ltd

37

x X-coordinate of the staring point in dot
y Y-coordinate of the starting point in dot
class Class of service, 3-digit number
country Country code, 3-digit number
post Post code

USA: 5-digit, 4-digit number
Canada: 6-digit number

message Barcode content

Example

For USA:
MAXICODE 100,100,”300,840,06810,7317,DEMO FOR MAXICODE”

For Canada:
MAXICODE 100,100,”300,840,107317,DEMO FOR MAXICODE”

EXAMPLES:
REM MODE 4
SPEED 2
CLS
SIZE 4.00,3.00
GAP 0.10,0
DENSITY 10
MAXICODE 24,24,"THIS IS A 93 CHARACTER CODE SET A
MESSAGE THAT FILLS A MODE 4, UNAPPENDED, MAXICODE
SYMBOL..."
BOX 424,16,700,60,2
DIRECTION 0
PRINT 1

REM MODE 5
SPEED 2
CLS
SIZE 4.00,3.00
GAP 0.10,0
DENSITY 10

kroy

Kroy LLC / Kroy (Europe) Ltd

38

SET MAXIMODE 5
MAXICODE 24,24,"THIS IS A 93 CHARACTER CODE SET A
MESSAGE THAT FILLS A MODE 4, UNAPPENDED, MA"
BOX 424,16,700,60,2
DIRECTION 0
PRINT 1

REM this will use mode 2 automatically
REM please check the difference of the 3 MAXICODE commands
REM all 3 MAXIMODE produce same symbol

SPEED 2
CLS
SIZE 4.00,3.00
GAP 0.10,0
DENSITY 10
MAXICODE
24,24,"[)>-01961523828028400011Z00004951UPSN06
X61015912345671/1Y634 ALPHA
DRPITTSBURGHPA -"
MAXICODE
24,300,"001,840,152382802,[)>-01961Z00004951UPSN06X
61015912345671/1Y634 ALPHA
DRPITTSBURGHPA -"
MAXICODE
400,24,"001,840,15238,2802,[)>-01961Z00004951UPSN06X
61015912345671/1Y634 ALPHA
DRPITTSBURGHPA -"
DIRECTION 0
PRINT 1

REM this will use mode 3 automatically
SPEED 2
CLS
SIZE 4.00,3.00

kroy

Kroy LLC / Kroy (Europe) Ltd

39

GAP 0.16,0
DENSITY 10
MAXICODE
24,24,"[)>-0196B10500569991Z00004951UPSN06X61
015912345671/1Y634 ALPHA
DRPITTSBURGHPA -"
MAXICODE
24,300,"001,056,B1050,[)>-01961Z00004951UPSN06X610
1512345671/1Y634 ALPHA
DRPITTSBURGHPA -"
MAXICODE
400,24,"001,056,B1050,[)>-01961Z0 0004951UPSN06X610
1512345671/1Y634 ALPHA
DRPITTSBURGHPA -"
DIRECTION 0
PRINT 1

kroy

Kroy LLC / Kroy (Europe) Ltd

40

l PDF417

Description

This command is used to define a PDF417 2D barcode.

Syntax

PDF417 x, y, width, height, rotate, [option], expression

Parameter Description

x X-coordinate of the starting point in dot
y Y-coordinate of the starting point in dot
width The width of barcode in dot
height The height of barcode in dot
rotate Rotation counterclockwise.

0: 0 degree
90: 90 degrees
180: 180 degrees

270: 270 degrees
expression Barcode text or string expression to be printed on
label.

[option]
P Data compression method

0: Auto encoding

1: Binary mode
E Error correction level

Range: 0~8
M Center pattern in barcode area.

Range: 0~1

0: The pattern will print upper left justified in the
area.

1: The pattern is printed middle of area.
U x,y,c Human readable.

x: Human readable characters in the specified x-

coordinate.

kroy

Kroy LLC / Kroy (Europe) Ltd

41

Y: Human readable characters in the specified y-

coordinate.
c: Maximum characters of human readable
character

per line.

W Module width in dot

Range: 2~9
H Bar height in dot

Range: 4~99
R Maximum number of rows
C Maximum number of columns
T Truncation.

0: Not truncated

1: Truncated

Example

PDF417 100,200,200,300,0,P0,E1,U100,400,10,”abcdef”

kroy

Kroy LLC / Kroy (Europe) Ltd

42

l PUTPCX

Description

This command is used to print PCX format image.

Syntax

PUTPCX X, Y, ”filename”

Parameter Description

X The x-coordinate of the PCX image
Y The y-coordinate of the PCX image
filename The downloaded PCX filename.

Note: Only two colors (black and white) are supported by this

command.

Example

PUTPCX 100,100,”LOGO.PCX”

kroy

Kroy LLC / Kroy (Europe) Ltd

43

l REVERSE

Description

This command is used to reverse a region of image.

Syntax

REVERSE X_start, Y_start, X_width, Y_height

Parameter Description

X_start The x-coordinate of the starting point in dot
Y_start The y-coordinate of the starting point in dot
X_width The region width in x-axis direction in dot
Y_height The region height in y-axis direction in dot

Example

REVERSE 100,100,200,200

kroy

Kroy LLC / Kroy (Europe) Ltd

44

l TEXT

Description

This command is used to print text on label

Syntax

TEXT X, Y, ”font”, rotation, x-multiplication, y-multiplication, “content”

Parameter Description

X The x-coordinate of the text
Y The y-coordinate of the text
font: font name

1 8 x 12 dot font
2 12 x 20 dot font
3 16 x 24 dot font
4 24 x 32 dot font
5 32 x 48 dot font
TST24.BF2 Traditional Chinese 24 x 24 font (Big-5 code)
TST16.BF2 Traditional Chinese 16 x 16 font (Big-5 code)
TTT24.BF2 Traditional Chinese 24 x 24 font (TEL code)
TSS24.BF2 Simplified Chinese 24 x 24 font (GB code)
TSS16.BF2 Simplified Chinese 16 x 16 font (GB code)
K Japanese 24 x 24 font (Shift JIS code for Windows,

JIS for DOS mode)

L Japanese 16 x 16 font (Shift JIS code, JIS for DOS

mode)

K Korea 24 x 24 font (KS code)

rotation: The rotation angle of text

0 0 degree
90 90 degrees, in clockwise direction
180 180 degrees, in clockwise direction
270 270 degrees, in clockwise direction

x-multiplication: Horizontal multiplication, up to 8x

1~8

y-multiplication: Vertical multiplication, up to 8x

kroy

Kroy LLC / Kroy (Europe) Ltd

45

1~8

NOTE: Font “5” supports capital characters only.

If there is any double quote (“) within the text, please change it “ to \[“]
If there is any carriage return within the text, please change CR to \[R].
If there is any line feed within the text, please change LF to \[L]

Example

TEXT 100,100,”4”,0,1,1,”DEMO FOR TEXT”

kroy

Kroy LLC / Kroy (Europe) Ltd

46

Status Polling Commands (RS-232)

l <ESC>!?

Description

This command is used to obtain the printer status. An inquiry request is
solicited by sending an <ESC> (ASCII 27, escape character) as the
beginning control character to the printer. It can be sent any time, even in
the event of printer error. One byte character is returned, of which one
bit is used to flag the printer’s current readiness status. If 0 is returned,
the printer is ready to print labels.

Bit Status

0 Carriage opened (B-443)
1 Paper jam
2 Out of paper
3 Out of ribbon
4 Pause (B-443) Reserved (B-442)
5 Printing
6 Cover opened, Reserved (B-442, B-443)
7 Error

Syntax

<ESC>!?

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

47

l <ESC>!R

Description

This command is used to reset the printer. It can be sent at any time as long
as the printer is powered on and not in the dump mode. The beginning
of the command is an ESCAPE character (ASCII 27). The files downloaded
in memory will be deleted.

Syntax

<ESC>!R

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

48

l ~!A

Description

This command is used to inquire the free memory of the printer. The
number of bytes of free memory is returned in decimal digits, with 0x0d as
ending code to PC.

Syntax

~!A

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

49

l ~!T

Description

This command is used to inquire the model name and number of the printer.
They are returned in ASCII characters.

Printer type Returned string

B-443 B-443

Syntax

~!T

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

50

l ~!C

Description

This command is used to inquire the presence of Real Time Clock. One
byte is returned from the printer, indicating whether or not the RTC is
installed.

Return value Description

0 RTC is not installed.
1 RTC is installed.

Syntax

~!C

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

51

l ~!I

Description

The command is used to inquire the code page and country setting of the
printer.
The returned information is given in the following format

codepage, country code

ex: 8 bit: 437, 001
7 bit: USA, 001
Regarding the codepages and country codes supported by the printer,
please refer to the CODEPAGE and COUNTRY command respectively.

Syntax

~!I

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

52

l ~!F

Description

This command is used to inquire about files resident in the printer memory
and fonts installed in the memory module.
The filename is returned in ASCII characters. Each file name ends with
0x0D. The ending character of the last filename is 0x0D or 0x1A.

Syntax

~!F

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

53

l ~!@

Description

This command is used to inquire the mileage of the printer. The integer part
of mileage is returned (the decimal part of mileage is not returned). It is
returned to PC in ASCII characters. The ending character of mileage is
0x0D.

Syntax

~!@

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

54

Message Translation Protocols

l <ESC>!, <ESC>&

Description

The error message is returned by printer either to label or through RS-232
to PC by setting SET DEBUG LABEL or SET DEBUG RS232.
The error message is enclosed in between the beginning <ESC>! identifier
and the ending <ESC>& identifier.

Note: <ESC> is the ESCAPE (ASCII 27) character

Syntax

<ESC>!Error Message<ESC>&

Parameter Description

N/A N/A

Example

<ESC>!Syntax Error<ESC>&

kroy

Kroy LLC / Kroy (Europe) Ltd

55

l ~#

Description

The beginning identifier of the prompt message is sent from the printer to
the portable keyboard (KP-200). The ending identifier is ~&.

Syntax

~#Prompt~&

Parameter Description

N/A N/A

Example

~#SELF TEST~&

kroy

Kroy LLC / Kroy (Europe) Ltd

56

Commands for Windows Driver

l !B

Description

This command is used to store bitmap image data in the memory.
Behind the nnn is the bitmap data.

Syntax

!Bnnn

Parameter Description

nnn The number of bytes of image data sent from PC

to printer,expressed in 3 decimal digits.

Example

!B100

kroy

Kroy LLC / Kroy (Europe) Ltd

57

l !J

Description

This command is used to print the bitmap data at the specified position
(in y-direction).

Syntax

!Jnnnn

Parameter Description

nnnn Print image at the specified position in y-direction.

The position is expressed in 4 decimal digits.

Example

!J0100

kroy

Kroy LLC / Kroy (Europe) Ltd

58

l !N

Description

This command is used to print specified number of labels.

Syntax

!Nnnn

Parameter Description

nnn Specifies the number of copies to be printed.

Example

!N001

kroy

Kroy LLC / Kroy (Europe) Ltd

59

File Management Commands

l DOWNLOAD

Description

“DOWNLOAD” is a header of the file that is to be saved in the printer's
memory.
The downloaded files can be programs, data files, PCX graphic files and
bitmap font files
The detailed descriptions regarding the download syntax for different files
are shown below:

Syntax

1. Download a program file

The program listed below will download to printer memory.

DOWNLOAD “EXAMPLE.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
TEXT 100,100,”3”,0,1,1,”EXAMPLE PROGRAM”
PRINT 1
EOP

Note: When writing a download program, “DOWNLOAD”

header must be placed in the beginning of file, and
“EOP” must be placed at the end of program.

2. Download a data file

The syntax of earlier version format (B-442) is as shown:

kroy

Kroy LLC / Kroy (Europe) Ltd

60

DOWNLOAD “FILENAME”, DATA SIZE, DATA CONTENT…where

FILENAME is the name of data file that will remain resident in the

printer memory.

DATA SIZE parameter is the actual size of the data file without

header.

Note: CR (carriage return) 0x0D and LF (Line Feed) 0x0A are

accepted by printer.

3. Download a PCX graphic file

This printer accepts the two color (black and white) PCX graphic format. To

download a PCX file to printer, users have to add header in the beginning
of PCX file. The format is as follows:

DOWNLOAD “FILENAME.PCX”, FILE SIZE, PCX CONTENT…

where

FILENAME.PCX is the name of the file resident in the printer

memory.

FILESIZE is the original size of PCX graphic file in bytes without
header.
PCX CONTENT is the original graphic data.

There are two methods to add header to PCX graphic file:
(1) Use HEX editor to add header to the beginning of PCX file.
(2) Under DOS environment, follow the steps below to add header file to

printer.

A. C:\>MODE COM2 96,N,8,1
B. C:\>COPY CON COM2

DOWNLOAD “LOGO.PCX”,4910,^Z

C. C:\>COPY LOGO.PCX COM2

4. Download font file

Two categories of fonts are available in this printer, which are fixed pitch

font and variable pitch font respectively. Double byte character set is also
supported by the two categories of fonts. The detailed specifications of
fonts are as describedbelow:

kroy

Kroy LLC / Kroy (Europe) Ltd

61

(1) Fixed pitch font

A. BF1 font file

Extension with BF1 font file is the format of ASCII sequential

arrangement.

File format as follows:

DOWNLOAD “FILENAME.BF1”, FILE SIZE, FONT DATA ….

where

FILE SIZE: The original size of *.BF1 file; “DOWNLOAD

“FILENAME.BF1”, FILE SIZE” are not
included.

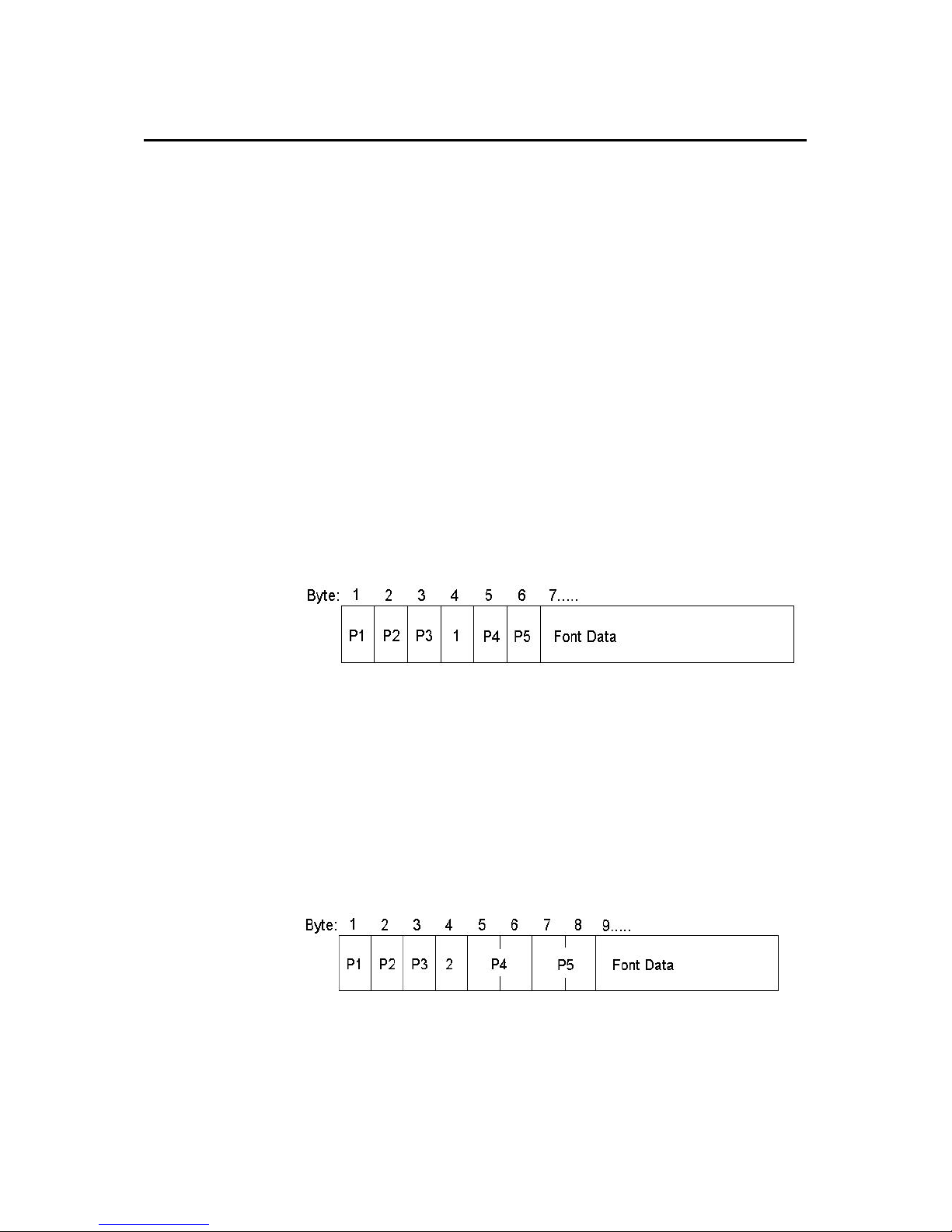

FONT DATA: The font arrangement is as shown below:

Single byte character set:

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
P4: ASCII code of first character
P5: ASCII code of last character

Double bytes character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)

kroy

Kroy LLC / Kroy (Europe) Ltd

62

P4: ASCII code of first character
P5: ASCII code of last character

B. BF2 font file

BF2 font file is characterized by the feature that its font is searched

by a specified address formula. The semi-colon must be added
at the end of formula, which serves as the separator
between formula and font data.

File format is as follows:

DOWNLOAD “FILENAME.BF2”, FILE SIZE, FONT DATA ….

where

FILE SIZE: The original size of *.BF2 file; “DOWNLOAD

“FILENAME.BF2”, FILE SIZE” are not
included.

FONT DATA: The font arrangement is as shown:

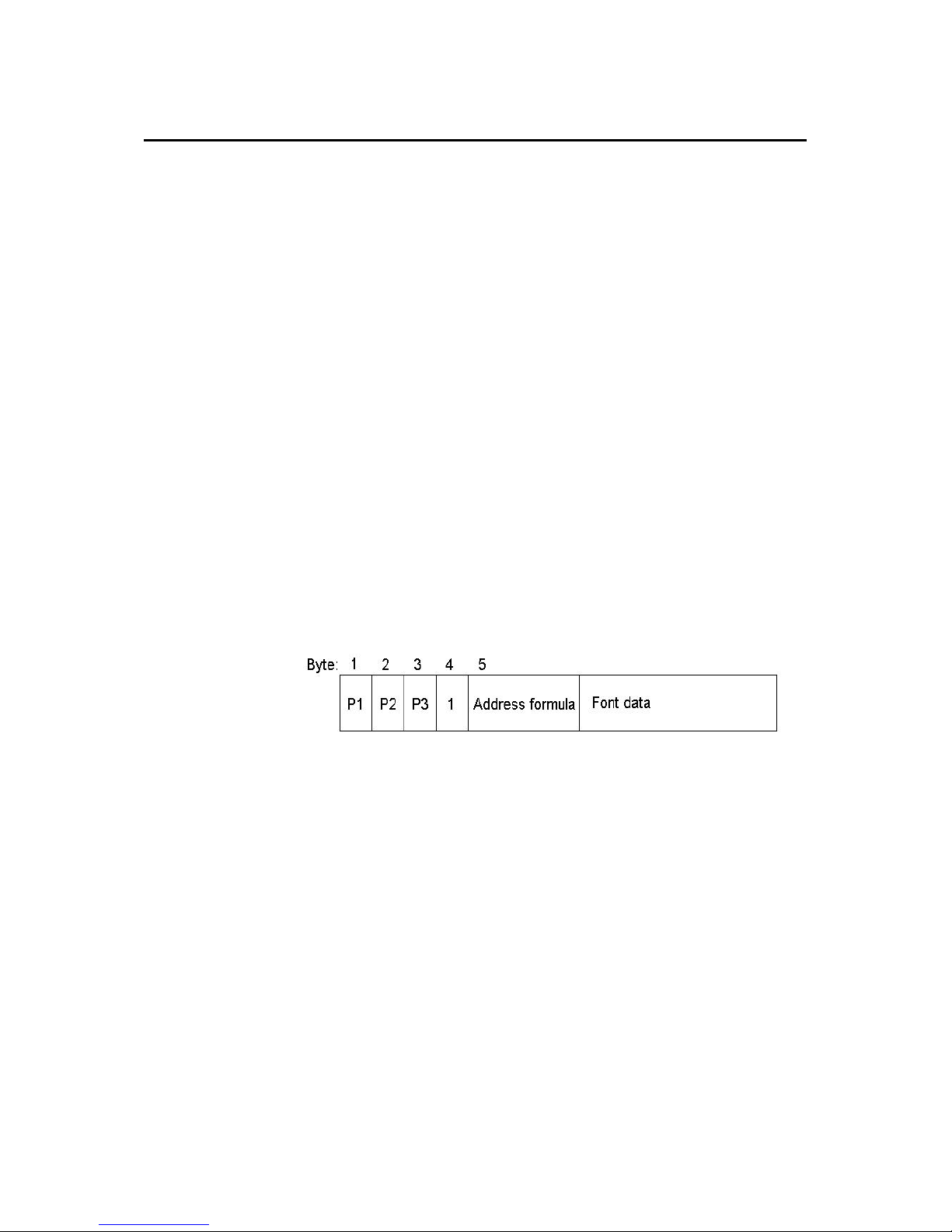

Single byte character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
Address formula:

Example: (LB-32)*24+18;
where

LB: A fixed variable for single byte

character

32: The starting ASCII code
24: The size of character in bytes
18: The offset bytes which begin from P1

to ;

;: Semi-colon, the ending of formula

kroy

Kroy LLC / Kroy (Europe) Ltd

63

Double bytes character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
Address formula:

Example: (94*(HB-163)+LB-161)*72+128;
where

HB: A fixed variable for double byte

character, which means high byte
LB: A fixed variable which means low byte
163: The starting ASCII code of high byte
161: The staring ASCII code of low byte
72: The size of character in byte
128: The offset bytes which begin from P1

to ;
;: Semi-colon, the ending of formula

C. BF3 font file

BF3 font file is characterized by the feature that the font is searched

by an address table; and BF3 character set, that it only
encloses a few daily used characters, not the whole character
set. For example, there are around 13,000 Chinese
characters in the general font file, but maybe only 100 of them
are actually used in your application. In this situation, you may
choose BF3 font because it takes up less memory of the printer.
BF3 font supports double-byte character only.

File format is as following:

kroy

Kroy LLC / Kroy (Europe) Ltd

64

DOWNLOAD “FILENAME.BF3”, FILE SIZE, FONT DATA….

where

FILE SIZE: The original size of *.BF3 file. “DOWNLOAD

“FILENAME.BF3”, FILE SIZE” are not
included.

FONT DATA: The font arrangement is as shown below:

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
P4: Character counts
P5: Character code. Character codes are arranged

in increasing order, not decreasing order.

P6: Character address

(2) Variable pitch font

A. VF1 font file

Font files with VF1 extension name use address table to index

fonts.

File format is as follows:

DOWNLOAD “FILENAME.VF1”, FILE SIZE, FONT DATA….

where

FILE SIZE: The original size of *.VF1 file, “DOWNLOAD

“FILENAME.VF1”, FILE SIZE” are not
included.

FONT DATA: The font arrangement is as shown below:

Single byte character set

.

kroy

Kroy LLC / Kroy (Europe) Ltd

65

where

P1: 0 (constant)
P2: Character height (in dot)
P3: ASCII code of first character
P4: ASCII code of last character
P5: Character width (in dot)

Double byte character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: ASCII code of first character
P4: ASCII code of last character
P5: Character width (in dot)

B. VF2 font

Font files with VF2 extension name use address formula to index

fonts

File format is as follows:

DOWNLOAD “FILENAME.VF2”, FILE SIZE, FONT DATA….

where

FILE SIZE: The original size of *.VF2 file, “DOWNLOAD

“FILENAME.VF2”, FILE SIZE” are not
included.

FONT DATA: The font arrangement is as shown below:

kroy

Kroy LLC / Kroy (Europe) Ltd

66

Single byte character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
Address formula:

Example: (LB-32)*24+18;
where

LB: A fixed variable for single byte

character

32: The starting ASCII code
24: The size of character in bytes
18: The offset bytes beginning from P1 to ;
;: Semi-colon, the ending of formula

Double byte character set

where

P1: 0 (constant)
P2: Character height (in dot)
P3: Character width (in dot)
Address formula:

Example: (94*(HB-163)+LB-161)*72+128;
where

HB: A fixed variable for double byte

character, meaning high byte

kroy

Kroy LLC / Kroy (Europe) Ltd

67

LB: A fixed variable, meaning low byte
163: The starting ASCII code of high byte
161: The staring ASCII code of low byte
72: The size of character in byte
128: The offset bytes beginning from P1 to ;
;: Semi-colon, the ending of formula

kroy

Kroy LLC / Kroy (Europe) Ltd

68

l REDRAW

Description

This command is used to copy font file to the flash memory of the font
cartridge

Syntax

REDRAW n, size, font data…

Parameter Description

n The Number of flash memory.

Available numbers are 1~4.
The size of each flash memory is 1MB.

size The file size of font file

Note: If the size of font file is larger that 1MB, you have to split it into two files
and redraw to the next flash memory respectively.

kroy

Kroy LLC / Kroy (Europe) Ltd

69

l EOP

Description

End of program. To declare the start and end of BASIC language
commands used in a program, the “DOWNLOAD “FILENAME.BAS” must
be added in the first line of the program, and EOP the last. .

Syntax

EOP

Example

DOWNLOAD “DEMO.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
TEXT 100,100,”3”,0,1,1,”DEMO PROGRAM”
FOR I=1 TO 10
I=I+1
NEXT
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

70

l FILES

Description

This command lists the files that are resident in the printer memory. The
total memory size as well as available memory size are also listed.

Syntax

FILES

Example

Follow the steps below to list the files that are saved in printer memory in
DOS environment.
C:\>MODE COM2 96,N,8,1
C:\>COPY CON COM2

FILES
^Z

C:\>

kroy

Kroy LLC / Kroy (Europe) Ltd

71

l KILL

Description

This command deletes a file in the printer memory. The wild card can be
called into use in this command.

Syntax

KILL “FILENAME”
KILL “*.PCX”
KILL “*”

Example

Users can use printer SELF TEST utility to list printer configurations and
files saved in the printer memory, or use the FILES command to inquire the
files saved in printer.
Follow the steps below to delete files in the printer memory.
C:\>MODE COM2 96,N,8,1
C:\>COPY CON COM2
C:\>FILES
C:\>COPY CON COM2

KILL “DEMO.BAS”
^Z

C:\>FILES

kroy

Kroy LLC / Kroy (Europe) Ltd

72

l MOVE

Description

This command is used to move downloaded files to the FLASH memory.

Syntax

MOVE

Parameter Description

N/A N/A

kroy

Kroy LLC / Kroy (Europe) Ltd

73

l UpdatBios

Description

This command is used to upgrade the printer firmware. To upgrade, the
printer must be in Ready status before the command can be issued. When
updating the firmware, the checksum will be calculated and compared with
the value of the pre-calculated checksum stored at address FE00h. If the
two values are different, the upgrade process is a failure and the SYNTAX
ERROR message is printed. The checksum is the summation of firmware
data of 2000h~EFFFH and 10000h~2FFFFh. After upgrading the firmware,
the checksum of the flash memory will be calculated. If it is not equal to the
checksum of address FE00h, the flash memory will be upgraded
continuously until the two values are equivalent.

Syntax

UpdatBios (space) (Firmware Total Page) (Firmware Data).

Parameter Description

(Space) Space character (hex: 20h)
Firmware Total Page Indicated in hexademical system digits; one page is

64K bytes (For example,
total firmware data are 320KB, or 05h)

Firmware Data Binary code of the firmware program

Example

UpdatBios 05 (Firmware Data)

kroy

Kroy LLC / Kroy (Europe) Ltd

74

BASIC Commands and Functions

l ABS( )

Description

This function returns the absolute value of an integer, floating point or variable.

Syntax

ABS (-100)
ABS (-99.99)
ABS (VARIABLE)

Example

DOWNLOAD “TEST.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
A=ABS(-100)
B=ABS(-50.98)
C=-99.99
TEXT 100,100,”3”,0,1,1,STR$(A)
TEXT 100,150,”3”,0,1,1,STR$(B)
TEXT 100,200,”3”,0,1,1,STR$(ABS(C))
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

75

l ASC( )

Description

This function returns the ASCII code of the character.

Syntax

ASC (“A”)

Example

DOWNLOAD “TEST.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
CODE1=ASC(“A”)
TEXT 100,100,”3”,0,1,1,STR$(CODE1)
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

76

l CHR$( )

Description

This function returns the character that has the specified ASCII code.

Syntax

CHR$(n)

Parameter Description

n The ASCII code

Example

DOWNLOAD “TEST.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
A=65
WORD$=CHR$(A)
TEXT 100,100,”3”,0,1,1,WORD$
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

77

l END

Description

This command stops the execution of program.

Syntax

END

Example

DOWNLOAD “TEST.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
A=1
:START
IF A>10 THEN END ELSE A=A+1
GOTO START
TEXT 100,100,”3”,0,1,1,STR$(A)
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

78

l EOF( )

Description

This function is used to detect an opened download file to see whether it
has reached the end of file.

Syntax

EOF (File Handle)

Parameter Description

File handle Either 0 or 1.

Return value Description

None-zero End of file
0 Not end of file

Example

DOWNLOAD “DEMO.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
OPEN "DATA",0
SEEK 0,4
:A
ITEM$=""
READ 0,ITEM$,PRICE,QTY
TEXT 10,10,"3",0,1,1,"SEEK COMMAND TEST (SHIFT 4
CHARACTERS)"
BOX 98,48,502,514,2

kroy

Kroy LLC / Kroy (Europe) Ltd

79

A$="ITEMS:"+ITEM$
B$="PRICE:"+STR$(PRICE)
C$="QTY:"+STR$(QTY)
TEXT 128,114,"2",0,1,1,A$
TEXT 130,198,"2",0,1,1,B$
TEXT 132,268,"2",0,1,1,C$
BARCODE 132,365,"39",96,1,0,2,4,"PRICE-2000"
PRINT 1
I=EOF(0)
IF I=0 THEN GOTO A
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

80

l OPEN

Description

This command is used to open a downloaded file and establish the file
handle. Up to 2 files can be opened at the same time. The file to be opened
should be downloaded prior to using this command.

Syntax

OPEN “Filename”, File handle

Parameter Description

Filename The file downloaded in the printer memory
File handle Either 0 or 1.

Example

If a file by the name of "DATA" is to be downloaded,
The file format contains:

DOWNLOAD "DATA",20,Computer<CR>
20000<CR>
15<CR>

Saving the above contents of data under the file name of “DATA”. Follow
the steps below to download data to the printer

<under MS-DOS mode>:
C:\>MODE COM2:96,N,8,1 ↵
C:\>COPY DATA /B COM2 ↵

The above example sets the following: baud rate at 9600 bps, no parity, 8
bits data, 1 top bit. If a file by name of “DEMO.BAS" is to be downloaded,
the file format contains:

DOWNLOAD “DEMO.BAS”
SIZE 3.00,3.00

kroy

Kroy LLC / Kroy (Europe) Ltd

81

CLS
SPEED 2
DENSITY 8
SET CUTTER OFF
SET PEEL OFF
DIRECTIO 0
REFERENCE 0,0
OPEN “DATA”,1
SEEK 1,0
READ 1,ITEM$,PRICE,QTY
I=EOF(1)
IF I>0 THEN END
BOX 98,48,502,514,2
A$=”ITEMS:”+ITEM$
B$=”PRICE:”+STR$(PRICE)
C$=”QTY:”+STR$(QTY)
TEXT 128,114,”2”,0,1,1,A$
TEXT 130,198,”2”,0,1,1,B$
TEXT 132,268,”2”,0,1,1,C$
BARCODE 132,365,”39”,96,1,0,2,4,”PRICE-2000”
PRINT 1
CLOSE 1
EOP

Saving the above contents of data under the file name of “DEMO”.
Follow the steps below to download data to the printer
<under MS-DOS mode>:
C:\>MODE COM1:96,N,8,1 ↵
C:\>COPY DEMO COM1 ↵

The above example sets the following: baud rate at 9600 bps, no parity, 8
bits data, 1 stop bit. Saving the following command of program under the
file name of “EXECUTE”: DEMO
C:\>COPY EXECUTE COM1↵
The above example instructs the printer to open the file “DATA” with a file
handle of 1 and read items from the file.

kroy

Kroy LLC / Kroy (Europe) Ltd

82

l READ

Description

This command is used to read data from downloaded data file

Syntax

READ file handle, variables

Parameter Description
file handle 0 or 1
variables string, integer or float point variable

Example

DOWNLOAD “OPEN1.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS
OPEN "DATA",0
OPEN "DATA1",1
SEEK 0,4
:A
ITEM$=""
READ 0,ITEM$,PRICE,QTY
TEXT 10,10,"3",0,1,1,"SEEK COMMAND TEST (SHIFT 4
CHARACTERS)"
BOX 98,48,502,514,2
A$="ITEMS:"+ITEM$
B$="PRICE:"+STR$(PRICE)
C$="QTY:"+STR$(QTY)

kroy

Kroy LLC / Kroy (Europe) Ltd

83

TEXT 128,114,"2",0,1,1,A$
TEXT 130,198,"2",0,1,1,B$
TEXT 132,268,"2",0,1,1,C$
BARCODE 132,365,"39",96,1,0,2,4,"PRICE-2000"
PRINT 1
I=EOF(0)
IF I=0 THEN GOTO A
SEEK 1,0
:B
READ 1,ITEM$,PRICE,QTY
TEXT 10,10,"4",0,1,1,"OPEN, READ, EOF() COMMAND TEST"
BOX 98,48,502,514,2
A$="ITEMS:"+ITEM$
B$="PRICE:"+STR$(PRICE)
C$="QTY:"+STR$(QTY)
TEXT 128,114,"2",0,1,1,A$
TEXT 130,198,"2",0,1,1,B$
TEXT 132,268,"2",0,1,1,C$
BARCODE 132,365,"39",96,1,0,2,4,"PRICE-2000"
PRINT 1
I=EOF(1)
IF I=0 THEN GOTO B
OPEN "DATA2",0
CLS
Z$=""
Z$=FREAD$(0,6)
TEXT 10,20,"4",0,1,1,"FREAD$() FUNCTION TEST"
TEXT 10,70,"4",0,1,1,"ITEM3$= "+Z$
J=LOF("DATA2")
TEXT 10,140,"3",0,1,1,"THE FILE SIZE OF DATA2 IS:
"+STR$(J)+" Bytes"
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

84

l SEEK

Description

This command is used to shift the specified file pointer to a certain position.

Syntax

SEEK file handle, offset

Parameter Description
file handle 0 or 1
offset the offset characters which are shifted to the

beginning of a new position

Example

DOWNLOAD “TEST.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS

OPEN "DATA",0
SEEK 0,4
ITEM$=""
READ 0,ITEM$,PRICE,QTY
TEXT 10,10,"3",0,1,1,"SEEK COMMAND TEST (SHIFT 4

CHARACTERS)"

BOX 98,48,502,514,2
A$="ITEMS:"+ITEM$
B$="PRICE:"+STR$(PRICE)
C$="QTY:"+STR$(QTY)
TEXT 128,114,"2",0,1,1,A$

kroy

Kroy LLC / Kroy (Europe) Ltd

85

TEXT 130,198,"2",0,1,1,B$
TEXT 132,268,"2",0,1,1,C$
BARCODE 132,365,"39",96,1,0,2,4,"PRICE-2000"
PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

86

l LOF( )

Description

This function returns the size of the specified file.

Syntax

LOF (“FILENAME”)

Parameter Description
FILENAME The file downloaded in the printer memory.

Example

DOWNLOAD “OPEN2.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS

OPEN "DATA2",0
CLS
Z$=""
Z$=FREAD$(0,6)
TEXT 10,20,"4",0,1,1,"FREAD$() FUNCTION TEST"
TEXT 10,70,"4",0,1,1,"ITEM3$= "+Z$
J=LOF("DATA2")
TEXT 10,140,"3",0,1,1,"THE FILE SIZE OF DATA2 IS:

"+STR$(J)+" Bytes"

PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

87

l FREAD$( )

Description

This function reads a specified number of bytes of data from a file.

Syntax

FREAD$ (file handle, byte)

Parameter Description
file handle Either 0 or 1
byte Number of bytes to be read

Example

DOWNLOAD “FREAD.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS

OPEN "DATA2",0
CLS
Z$=""
Z$=FREAD$(0,6)
TEXT 10,20,"4",0,1,1,"FREAD$() FUNCTION TEST"
TEXT 10,70,"4",0,1,1,"ITEM3$= "+Z$
J=LOF("DATA2")
TEXT 10,140,"3",0,1,1,"THE FILE SIZE OF DATA2 IS:

"+STR$(J)+" Bytes"

PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

88

l FOR…NEXT LOOP

Description

Loop is used to execute one or more lines of program repetitively.
Before anything, a value should be assigned the loop counter to specify the
execution times. Nested loop is allowed (up to 10 nested loops) in this
printer. Jumping out in the middle of the FOR…NEXT loop is prohibited
because it is not a good programming skill..

Syntax

For variable = start TO end STEP increment
statement
NEXT

Parameter Description
variable The variable name is up to 8 characters
start Can be integer or floating point numbers
end Can be integer of floating point numbers
increment Integer or floating point, positive or negative.

Example

DOWNLOAD “FREAD.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF
CLS

A$=""
B$=""
C$=""
H$=""

kroy

Kroy LLC / Kroy (Europe) Ltd

89

FOR I=1 TO 10 STEP 1
A$=A$+STR$(I)+" "
TEXT 10,10,"3",0,1,1,A$
NEXT

FOR I=1 TO 1000 STEP 100
B$=B$+STR$(I)+" "
TEXT 10,50,"3",0,1,1,B$
NEXT

FOR I=50 TO 10 STEP -10
C$=C$+STR$(I)+" "
TEXT 10,100,"3",0,1,1,C$
NEXT

FOR I=1 TO 5 STEP 0.5
H$=H$+STR$(I)+" "
TEXT 10,150,"3",0,1,1,H$
NEXT

PRINT 1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

90

l IF…THEN…ELSE

Description

Use the IF…THEN…ELSE to execute programs conditionally.

Syntax

IF condition THEN statement [ ELSE statement ]

The syntax of IF…THEN…ELSE requires that the command be typed

in one single line in less than 255 characters.

Parameter Description
condition Available relational operator: <, >, =, <=, >=
statement Only one statement is available in IF…THEN…ELSE

Example

DOWNLOAD “IFTHEN.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF

CLS
A=50
B=5
C$=""
D$=""

:L1
IF A>100 THEN GOTO L1 ELSE A=A+10
C$=STR$(A)+" IS SMALLER THAN 100"
TEXT 100,10,"4",0,1,1,C$

kroy

Kroy LLC / Kroy (Europe) Ltd

91

PRINT 1
END

:L2
A=A+B
D$=STR$(A)+" IS LARGER THAN 100"
TEXT 100,100,"4",0,1,1,D$
PRINT 1
GOTO L1
EOP

kroy

Kroy LLC / Kroy (Europe) Ltd

92

l GOSUB…RETURN

Description

Branch to and return from a subroutine. Branch to the specified label and

execute subroutines until “RETURN” is reached and then go back to the
statement following the GOSUB statement.

Syntax

GOSUB LABEL

statement

END

:LABEL

statement

RETURN

Parameter Description
LABEL Beginning of the subroutine. The maximum

length of the label is 8 characters.

Example

DOWNLOAD “GOSUB1.BAS”
SIZE 4,4
GAP 0,0
DENSITY 8
SPEED 3
DIRECTION 0
REFERENCE 0,0
SET CUTTER OFF
SET PEEL OFF

CLS
TEXT 10,600,"5",0,1,1,"GOSUB & RETURN COMMAND TEST"
X=300

kroy

Kroy LLC / Kroy (Europe) Ltd

93

Y=300
GOSUB DASH
GOSUB DR_LINE
PRINT 1
END

:DR_LINE
BOX X,Y,X+200,Y+200,5
RETURN

:DASH
SET PEEL OFF
DENSITY 13
FOR I=21 TO 50
TEXT 10,I,100,”3”,0,1,1,”==============================”
NEXT
RETURN

EOP
