Krell Industries KAV-250cd-2 User Manual

The Leader in Audio Engineering

Instructions for Use

KAV-250cd/2

Front Loading

Compact Disc Player

Owner’s Reference

KAV-250cd/2
Front Loading Compact Disc Player
Instructions for Use

CONTACT
INFORMATION

Krell Industries, Inc.

45 Connair Road
Orange, CT 06477-3650 USA

TEL [phone]

FAX [phone]
E-MAIL krell @ krellonline.com

WEB SITE httpE/www.krellonline.com

This product complies with the EMC directive (89/336/EEC) and the low-voltage
directive (73/23/EEC).

WARNINGS Do not place the compact disc player where it could be exposed to dripping or

splashing.

Do not remove or bypass the ground pin on the end of the AC cord. This may cause
radio frequency interference (RFI) to be introduced into your playback system.

The ventilation grids on top of the KAV-250cd/2 must be unobstructed at all times
during operation. Do not place flammable material on top of or beneath the compo­nent.

Turn off all systems’ power before connecting the KAV-250cd/2 to any component.

Make sure all cable terminations are of the highest quality, free from frayed ends,

short circuits, or cold solder joints.

THERE ARE NO USER-SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT.

Please contact your authorized dealer, distributor, or Krell if you have any questions
not addressed in this reference manual.

equipped

This product is manufactured in the United State of America. Kmll® is a registered trademark of Krell

Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents.

®,

[~’, HDCD

trademarks or trademarks of Pacific Microsonios, Inc. in the United States and/or other countries.

HDCD system manufactured under license from Pacific Microsonios, Inc. This product is covered by
one or more of the following: in the USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274,
5,854,600, 5,864,311,5,872,531, and in Australia: 669114. Other patents pending. TosUnk~ is a
trademark of Toshiba CorporalJon. All other trademarks and tradenames are registered to their respective

companies.

© 2000 by Krell Industries, Inc. All rights reserved P/N 304666

High Definition Compatible Digital® and Pacific Microsonics

TM

are either registered

Contents

Page

INTRODUCTION

Read This First
DEFINITION OF TERMS
UNPACKING
PLACEMENT

AC Power Guidelines
FRONT PANEL DESCRIPTION
BACK PANEL DESCRIPTION
REMOTE CONTROL DESCRIPTION

Battery Installation and Removal

Remote Control Functions
CONNECTING THE KAV-250cd/2 TO YOUR SYSTEM

Connection Steps
OPERATING YOUR KAV-250cd/2

1

1

2
3

4
4

6
9

12
12

12
14

14
15

Power On

How to Play a Compact Disc

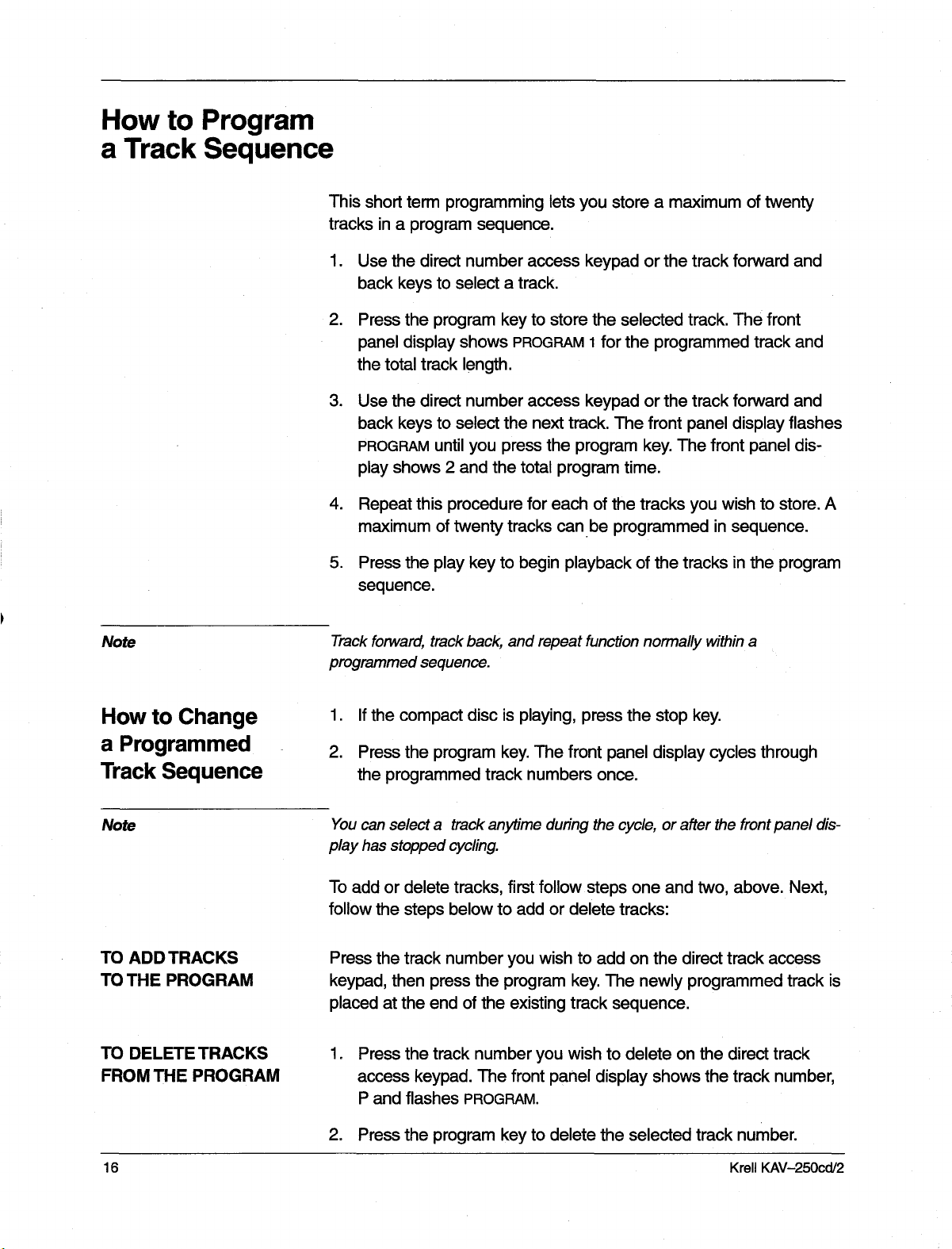

HOW TO PROGRAM A TRACK SEQUENCE

How to Change a Programmed Track Sequence

How to Clear a Programmed Track Sequence

WARRANTY

RETURN AUTHORIZATION PROCEDURE
SPECIFICATIONS

Krell KAV-250cd/2 iii

Back cover

15
15

16
16

17

18
19

Illustrations

Page

FIGURE 1
FIGURE 2

FIGURE 3

The KAV-250cd/2 Front Panel
The KAV-250cd/2 Back Panel
The KAV-250cd/2 Remote Control

5

8

11

iv Krell KAV-250cd/2

Introduction

Thank you for your purchase of the Krell KAV-250cd/2 Front Loading
Compact Disc Player. The KAV-250cd/2 features a high precision
disc transport mechanism and high performance analog circuitry that
provide Krell sound quality at an exceptional value. The HDCD®
decoding capability adds further dimension to the KAV-250cd/2’s
superb resolution and clarity.

Krell Class A direct coupled circuitry means that the KAV-250cd/2

can be easily integrated into your system, via a preamp/processor,
using either balanced or single-ended analog outputs, or digital
outputs. The wireless infrared remote control as well as the remote
control connection options on the back panel allow you to integrate
the KAV-250cd/2 into whole house systems and easily operate it and
other system components.

This owner’s reference manual contains important information on
placement, installation, and operation of the KAV-250cd/2. Please

read this information carefully. A thorough understanding of these

details will help ensure satisfactory operation and long life for your

KAV-250cd/2 and related system components.

READ THIS FIRST

The first time the KAV-250ccY2 is plugged in, there is a 30-second delay

before you can switch to the operational mode. Do not press the power button

or key until the front panel display illuminates.

Krell KAV-250cd/2 1

Definition of Terms

Following are the definitions of key terms used in your owner’s refer­ence manual.

INPUT AND OUTPUT
CONNECTIONS

OPERATION

Balanced

A symmetrical input or output circuit that has equal impedance from

both input terminals to a common ground reference point. The indus-

try standard for professional and sound recording installations, bal-

anced connections have 6 dB more gain than single-ended connec-

tions and allow the use of long interconnect cables. Balanced con-

nections are completely immune to induced noise from the system or

the environment.

Single-ended

A two-wire input or output circuit. Use care when using single-ended

connections as the ground connection is made last and broken first.
Turn the system off prior to making or breaking single-ended connec­tions, Single-ended connections are not recommended for connec-

tions requiring long cable runs.

Off

When power button on the front panel or remote control is pressed

and the blue power LED tums off, the component is off.

Operational Mode

When the power button on the front panel or remote control is

pressed and the blue power LED illuminates, the component is in
the operational mode and ready to play music,

Stand-by Mode

A low power consumption status that keeps the audio and regulator

circuits at idle. Krell recommends leaving the component in the

stand-by mode when it is not playing music.

2 Krell KAV-250cd/2

Unpacking

Follow these steps to safely unpack your amplifier:

Open the shipping box and remove the top layer of foam. You
see these items:

1 KAV-250cd/2

1 IEC connector (AC power) cord
1 12 VDC (12 V trigger) cable
1 KAV-250cd/2 remote control

2 AAA batteries

1 packet containing the owner’s reference manual

and the warranty registration card

Grasp the underside of the foam end-caps that encase the
amplifier and lift the amplifier straight outof the shipping box.

Place the amplifier in a safe location and remove the protective
plastic wrapping.

Notes

ff any of these items are not included in the shipping box, please contact your

authofzed Krell dealer, disttYbutor, or Krell for assistance.

Save all packing materials, ff you ship your amplifier in the future, repack the
unit in its original packaging to prevent transit damage. See Return

Authorization Procedure, on page 19, for more informa~on.

Krell KAV-250cd/2 3

Placement

Before you install the KAV-250cd/2 into your system, review the
following guidelines to choose the location for the KAV-250cd/2. This

will facilitate a clean, trouble-free installation. The KAV-250cd/2 does

not require any type of special rack or cabinet for installation. For the
dimensions of the KAV-250cd/2, see Specifications, on the back

cover.

Place the KAV-250cd/2 on a firm, level surface, away from exces-

sive heat, humidity, or moisture. The KAV-250cd/2 requires at least
two inches (5 cm) of clearance on each side and at least two inches

(5 cm) of clearance above the component to provide adequate venti-

lation. Installations inside cabinetry may need extra ventilation.

Do not place the KAV-250cd/2 near hum sensitive components such

as preamplifier phono stages or tumtables. Although the

KAV-250cd/2 is well shielded, placing it near these components

could create interference and cause hum.

Note The KA V-250cd/2 incorporates an advanced suspension system and does

not require additional mass coupling or isolation. You may experiment with
feet or cones as long as they are not permanently affixed to the unit. Any

unauthorized modifications to the unit or electronics will void the warran~

IMPORTANT Do not attach enhancement accessories such as rings, mats, or

dampers to individual compact discs. These accessories may interfere

with the compact disc transport, resulting in erratic playback and~or
poor sound.

AC Power
Guidelines

The KAV-250cd/2 has superb regulation and does not require a ded-

icated AC circuit. Avoid connections through extension cords or multi-

ple AC adapters. High quality 15 amp grounded AC strips are accept-

able. High quality AC line conditioners or filters may be used if they

are grounded and meet or exceed the unit’s power supply rating of

100 VA.

4 Krell KAV-250cd/2
