"rilE I--EAr’~ER IN AUCIIO ENCtINEERINO

Home Theater

Standard

Surround

Preamp/Processor

Instructions for Use

Owner’s Reference

Home Theater Standard Surround Preamp/Processor Instructions for Use

v 01.2

Krell Industries, Inc.

45 Connair Road Orange, CT 06477-3650 USA

TEL 203-799-9954 FAX 203-891-2028 E-MAIL krell@krellonline.com

WEBSITE http://www.krellonline.com

This product complies with the EMC directive (89/336/EEC) and the low-voltage directive (73/23/EEC).

WARNINGS

The Home Theater Standard must be placed on a firm level surface where it is not exposed to dripping or

splashing.

The ventilation grids on the top and bottom of the Home Theater Standard must be unobstructed at all

times during operation. Do not place flammable material above or beneath the component. Do not remove or bypass the ground pin on the end of the AC power cord. This could cause radio frequen-

cy interference (RFI) to be introduced into your playback system. Before making connections to The Home Theater Standard, make sure the back panel power switch is off.

Make sure all cable terminations are of the highest quality and free from frayed ends, short circuits, or cold solder joints.

THERE ARE NO USER SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT.

Please contact your authorized Krell dealer, distributor, or Krell if you have any questions not addressed in

this Owner’s Reference.

This product is manufactured in the United States of America. Krell® is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. Krell Current Mode

is a trademark of Krell Industries, Inc. "DTS" and "DTS Digital Surround" are

registered trademarks of Digital Theater Systems, Inc. TosLink is a trademark of Toshiba Corporation. PHAST Link is a trademark of Phast Corporation. Manufactured under license from Dolby Laboratories. "Dolby," "Pro Logic," and the double-D symbol are trademarks of Dolby Laboratories. Confidential

Contents

INTRODUCTION DEFINITION OF TERMS

UNPACKING PLACEMENT

AC Power Guidelines

GETTING STARTED

Read This First

An Introduction to System Setup

FRONT PANEL DESCRIPTION BACK PANEL DESCRIPTION REMOTE CONTROL DESCRIPTION

Battery Installation and Removal

CONNECTING THE HOME THEATER STANDARD

TO YOUR SYSTEM

First: Connect Analog and Digital Sources Next: Connect Video Sources

Last: Connect Amplifier(s)

SYSTEM SETUP AND CONFIGURATION OVERVIEW SYSTEM SETUP AND CONFIGURATION

Navigating the Menu

Accessing the Main Menu Configure Speakers

Listening Room Setup Calibrate Volume . Configure Devices

Configure Level Adjustment Operation

SAVING SETUP, RECALLING SETUP, AND RESTORING FACTORY

DEFAULT SYSTEM CONFIGURATION SETTINGS

OPERATING THE HOME THEATER STANDARD

On/Off/Stand-by Tape Input and Output

Main Zone and Zone 2 Operation

Other Operation Features

WARRANTY

RETURN AUTHORIZATION PROCEDURE SPECIFICATIONS

Page

1 1

4 4

14 18

23 23

32 39

53 53

53 54

57 58

59-60

Krell Home Theater Standard

iii

Illustrations

FIGURE 1 The Home Theater Standard Front Panel FIGURE 2 The Home Theater Standard Back Panel FIGURE 3 The Home Theater Standard Remote Control

Page

iV Krell Home Theater Standard

Introduction

Thank you for your purchase of the .Krell Home Theater Standard Surround

Preamp/Processor.

The Home Theater Standard provides optimum music and cinema soundtrack

reproduction quality through Krell Current Mode, discrete Class A direct-coupled circuitry, and balanced outputs on all six channels. Broadcast quality switching and circuitry--including component video, S-video, and composite video--ensure unmatched video performance. Built-in Dolby Digital, Dolby Pro Logic, and DTS decoding make the Home Theater Standard compatible with virtually any surround sound source, including digital videodisc (DVD) software and digital television broadcasts.

Dual zone capability gives you a variety of configuration possibilities for whole-house systems. A handheld remote control, RS-232 and optional PHAST Link communications ports, RC-5 baseband, and 12 VDC input/output (12 V trigger) interface integrate the

Home Theater Standard into any system. The Home Theater Standard’s flexible, modular architecture allows you to upgrade hardware and software to accommodate

future surround sound formats and design enhancements. The owner’s reference manual contains important information on placement,

installation, and operation of the Krell Home Theater Standard. Please read this information carefully. A thorough understanding of these details helps ensure

satisfactory operation of and long life for your Home Theater Standard and related system components.

Definition of Terms

Following are the definitions of key terms used in your owner’s reference manual.

INPUT AND OUTPUT CONNECTIONS Balanced

A symmetrical input or output circuit that has equal impedance from both input terminals to a common ground reference point. The industry standard for professional and sound recording installations, balanced connections have 6 dB more gain than single-ended connections and allow the use of long interconnect cables. Balanced connections are

completely immune to induced noise from the system or the environment.

Krell Home Theater Standard

Definition of Terms, continued

Multi-channel (DB-25)

A balanced input or output circuit that allows for the simultaneous connection of all audio outputs plus one 5 VDC (5 Volt trigger) via a single cable. DB-25 inputs and outputs are becoming popular for connecting an audio/video surround sound processor and power amplifiers, simplifying the integration of the two components into your

system.

Single-ended

A two-wire input or output circuit. Use care when using single-ended connections as the ground connection is made last and broken first. Turn the system off prior to making or breaking single-ended connections. Single-ended connections are not recommended

for connections requiring long cable runs.

OPERATION Off

When the power switch on the back panel is placed in the down position and LEDs turn off, the component is off.

Stand-by Mode

When the HTS is connected to AC power and the back panel power switch is in the up (on) position, the red stand-by LED illuminates. This indicates that the component is stand-by mode, a low power consumption status that keeps the audio and regulator circuits at idle. Krell recommends leaving the component in the stand-by mode when it

is not playing music.

Operational Mode

When the component is in the stand-by mode, and you press the power button on the front panel or the power key on the remote control, the blue power LED illuminates. The

component is in the operational mode and is ready to play music.

TECHNOLOGY

Krell Current Mode

A proprietary Krell circuit topology in which the audio gain stages of a component operate in the current rather than the voltage domain. This unique technology provides the component with exceptional speed and a wide bandwidth.

Krell HEAT

The Krell term HEAT, or High End Audio Theater, is a design application incorporated into Krell components to enhance multi-channel home entertainment systems. A Krell

HEAT system is an integrated home theater system consisting of a state-of-the-art Krell preamp/processor and matching amplifiers that reproduce two channel and multichannel sources with audiophile sound quality, placing the audience in the middle of a

lifelike environment.

2 Krell Home Theater Standard

Unpacking

Open the box and remove the top.layer of foam. You see these items:

1 Home Theater Standard 1 IEC connector (AC power) cord 1 Home Theater Standard handheld remote control 1 CR2025 lithium battery 1

T-15 Torx wrench (small "L" type) 1 T-10 Torx wrench (small "L" type) 1 12 VDC output (12 V trigger) cables 1 packet containing the owner’s reference manual, the RS-232 Port developer’s

reference, the "read this first" insert, and the warranty registration card.

Carefully remove the unit and accessories from the box. Remove the foam end caps and protective plastic wrap from the unit.

Note

If any of these items are not included in the shipping box, p/ease contact your

authorized Krell dealer, distributor, or Krell for assistance. Save all packing materials. If you must ship your Home Theater Standard in the future, repack the unit in its originaJ packaging to prevent transit damage. See Return Authorization Procedure, on page 58.

Krell Home Theater Standard

Placement

Before you install the Home Theater Standard into your system, review the following guidelines to choose the location for the component. This will facilitate a clean, troublefree installation.

The Home Theater Standard does not require any type of special rack or cabinet for installation. For the dimensions of your Home Theater Standard see Specifications, on pages 59-60.

The Home Theater Standard requires at least two inches (5 cm) of clearance on each side and at least two inches (5 cm) of clearance above and below the component

provide adequate ventilation. Further, the Home Theater Standard requires at least

three inches (7 cm) of clearance between other connected components. For

installations inside cabinetry, extra ventilation may be necessary.

AC POWER GUIDELINES

The Home Theater Standard has superb regulation and does not require a dedicated AC circuit. Avoid connections through extension cords or multiple AC adapters. High quality 15 amp grounded AC strips are acceptable. High quality AC line conditioners or filters may be used if they are grounded.

Power Cord

The Home Theater Standard should be used only with the power cord supplied. Contact your authorized Krell dealer, distributor, or Krell before using any devices designed to

alter or stabilize the AC power for the Home Theater Standard.

Krell Home Theater Standard

Getting Started

READ THIS FIRST

Perform the following steps to make the On-Screen Display (OSD) viewable on your

video monitor. The video format and video signals of the Home Theater Standard and the video monitor need to match before the OSD is viewable. The video format of the

video signal can be set to either NTSC or PAL. The following table details the different video signals and video formats supported by

the Home Theater Standard:

Video Type of Connector Most Commonly Format Signal Labeled As Standard

Composite Single-Ended RCA Video, Composite NTSC or PAL S-Video DIN

S, SV, S-Video

NTSC or PAL

Component 3 Single-Ended RCA

Y, Cr, Cb NTSC or PAL

To select the initial video signal and video format:

Connect your video monitor to the video output connectors on the Home Theater Standard that corresponds to the input connectors on your video monitor (refer to

the above table).

2. Power on the Home Theater Standard by switching the back panel power switch to on. Wait for the HTS to initialize. Then press the power button on the front panel.

The following diagram shows the front panel device buttons on the Home Theater Standard and the default video signals and video formats associated with each button:

FRONT o o o o o o PANEL DVD LD SAT VCR1 TV CD DEVICE

o o o o o o

BUTTON

~ ~ ~ ~ ~ ~ SIGNAL Composite S-Video Component Composite S-Video Component FORMAT NTSC NTSC NTSC PAL PAL PAL

Press the front panel device button that matches both the video format and video

signal compatible with your connected video monitor (refer to the above diagram). This becomes the currently selected video signal output.

Krell Home Theater Standard 5

4. Verify that the video monitor’s video signal input corresponds to the Home Theater Standard video signal output. Press the menu key on the remote control to verify that the OSD is now viewable on the video monitor. The system configuration main menu appears when the video format and video signals between the Home Theater Standard and your video monitor are compatible.

If you have any questions regarding the selection of the video format, please call your authorized Krell dealer, distributor, or Krell.

AN INTRODUCTION TO SYSTEM SETUP

The Home Theater Standard provides a variety of connection and operation options for outstanding music and cinema soundtrack reproduction. To take full advantage of the features the Home Theater Standard offers, you’ll need to set up your system in this order:

1, Connect your Home Theater Standard to the desired analog and digital audio

sources, video sources, and amplifiers. See Connecting the Home Theater Standard to Your System, on page 23.

2. Configure your Home Theater Standard’s speaker volume, input devices, and trims

using the built-in, easy-to-follow System Setup and Configuration menus. Step-bystep instructions begin on page 26, System Setup and Configuration.

3. Review the Front Panel, Back Panel, and Remote Control descriptions for information

on input, zone, and mode selections, speaker adjustment, input and output connections for analog, digital, and video sources, and remote control operation. See

pages 7-22 for illustrations and descriptions.

After you’ve connected and configured your Home Theater Standard and know its basic

features, you’re ready to go. See Operating the Home Theater Standard, on page 53.

Krell Home Theater Standard

Figure 1 The Home Theater Standard Front Panel

10 5 11 6

--00

-C) "©

12 7 13 8 14 9

SAT VOR

-00 --00

AUX1 AUX2

----00

15 16

STAND-BY

POWER

-----0

3 2

HTS

Basic Operation

1 Power Button 2 Power LED 3 Stand-by LED 4 Infrared Sensor

Input Device Selection Buttons and LEDs

5 DVD Button and LEDs 6 LD Button and LEDs 7 SAT Button and LEDs 8 VCR1 Button and LEDs 9 TV Button and LEDs

ZONE

00----

18 19

Home Theater Standard

USER

23 29

STEREO MUSlO1

--0 ----O

25 26 30

10 CD Button and LEDs 11 Tuner Button and LEDs 12 Auxl Button and LEDs 13 Aux2 Button and LEDs 14 TapeNCR2 Button and LEDs 15 Main Zone and Zone 2 Button 16 Main Zone and Zone 2 LEDs 17 Infrared Emitter

Processing Mode Buttons and LEDs

18 Stereo Button and LED 19 Music1 Button and LED 20 Music2 Button and LED

21 Pro Logic Button and LED 22 Preamp Button and LED 23 Front Panel Display

User Button

25 Balance Button

Individual Channel Buttons

26 Center Button 27 Rear Button 28 Sub Button 29 Save Button 30 Level Down and Up Buttons 31 Recall Button

MUSICB PRO LOGIC

---O

O--

27 28

Front Panel Description

See Figure 1 on page 7

The Home Theater Standard front panel provides power on and off; input, zone, and processing mode selection; monitoring and display of processor status; and balance and volume control. The front panel components are described below.

Basic Operation

1 Power Button

The power button switches the Home Video Standard from the stand-by to the operational mode.

Note

When you power off while zone 2 is se/ected, on/y zone 2 turns off. Press the power button or HTS key a second time to power off the main zone.

2 Power LED

The blue power LED illuminates when the Home Theater Standard is in the operational

mode.

3 Stand-by LED

The red stand-by LED illuminates when the back panel power switch (54) is on,

indicating that the Home Theater Standard is in stand-by mode. Krell recommends that

the back panel power switch remain in the up position at all times.

4 Infrared Sensor

The infrared sensor receives commands from the Home Theater Standard remote control. For proper remote control operation, make sure the infrared sensor is not covered or obstructed.

Input Device Selection Buttons and LEDs

When properly configured, the Home Theater Standard keeps track of each device and its associated connections. For example, DVD uses Coax1 for digital audio, Composite1 for video, and S-1 for analog audio. The Home Theater Standard automatically engages the correct inputs when you press a front panel device selection button.

The Home Theater Standard is equipped with the following input selections, which allow you to select the device connected to your Home Theater Standard. Above each device are two LEDs: one red and one green. The red LED illuminates when the input is engaged and playing in the main zone. The green LEE) illuminates when the input is engaged and playing in zone 2.

5 DVD Button and LEDs

Use this button to select the digital videodisc device.

8 Krell Home Theater Standard

Front Panel Description, continued

6 LD Button and LEDs

Use this button to select the laser disc device.

7 SAT Button and LEDs

Use this button to select the satellite feed device.

8 VCR1 Button and LEDs

Use this button to select the VCR device.

9 TV Button and LEDs

Use this button to select the television device.

10 CD Button and LEDs

Use this button to select the compact disc device. 11 Tuner Button and LEDs Use this button to select the AM/FM tuner device. 12 Auxl Button and LEDs

Use this button to select an auxiliary device, such as phono, tape, or an additional DVD, LD, CD, or VCR.

13 Aux2 Button and LEDs Use this button to select a second auxiliary device, such as phono, tape, or an

additional DVD, LD, CD, or VCR.

14 Tape/VCR2 Button and LEDs

Use this button to playback pre-recorded tapes. You may also use this button to compare the output signal of an analog tape recorder to an audio source. See Tape Input and Output, on page 53.

15 Main Zone and Zone 2 Button

Use this button to select either main zone or zone 2 device control. See Main Zone and Zone 2 Operation, on page 54.

16 Main Zone and Zone 2 LEDs The Home Theater Standard has two zone device controls, main or zone 2. Above each

device are two LEDs: one red and one green. The red LED illuminates when the input is engaged and playing in the main zone. The green LED illuminates when the input is engaged and playing in zone 2.

Krell Home Theater Standard

Front Panel Description, continued

17 Infrared Emitter

Emits the Home Theater Standard remote operation code to a learning remote, which

can be programmed to operate the Home Theater Standard. See Program Remote, on

page 48.

Processing Mode Buttons and LED$

18 Stereo Button and LED

Use this button to select the stereo decoding mode, which allows you to listen to a

stereo recording in two channel (left and right) mode. The red LED illuminates when this

mode is activated.

Note

The stereo decoding mode operates only with an analog input or a digital PCM input (for

example, a compact disc).

19 Music1 Button and LED 20 Music2 Button and LED

Use these buttons to engage Krell Music Surround mode. This music-decoding mode allows you to listen to a stereo recording in a multi-channel mode. This mode can also

be programmed to create different simulated acoustic environments. The red LED

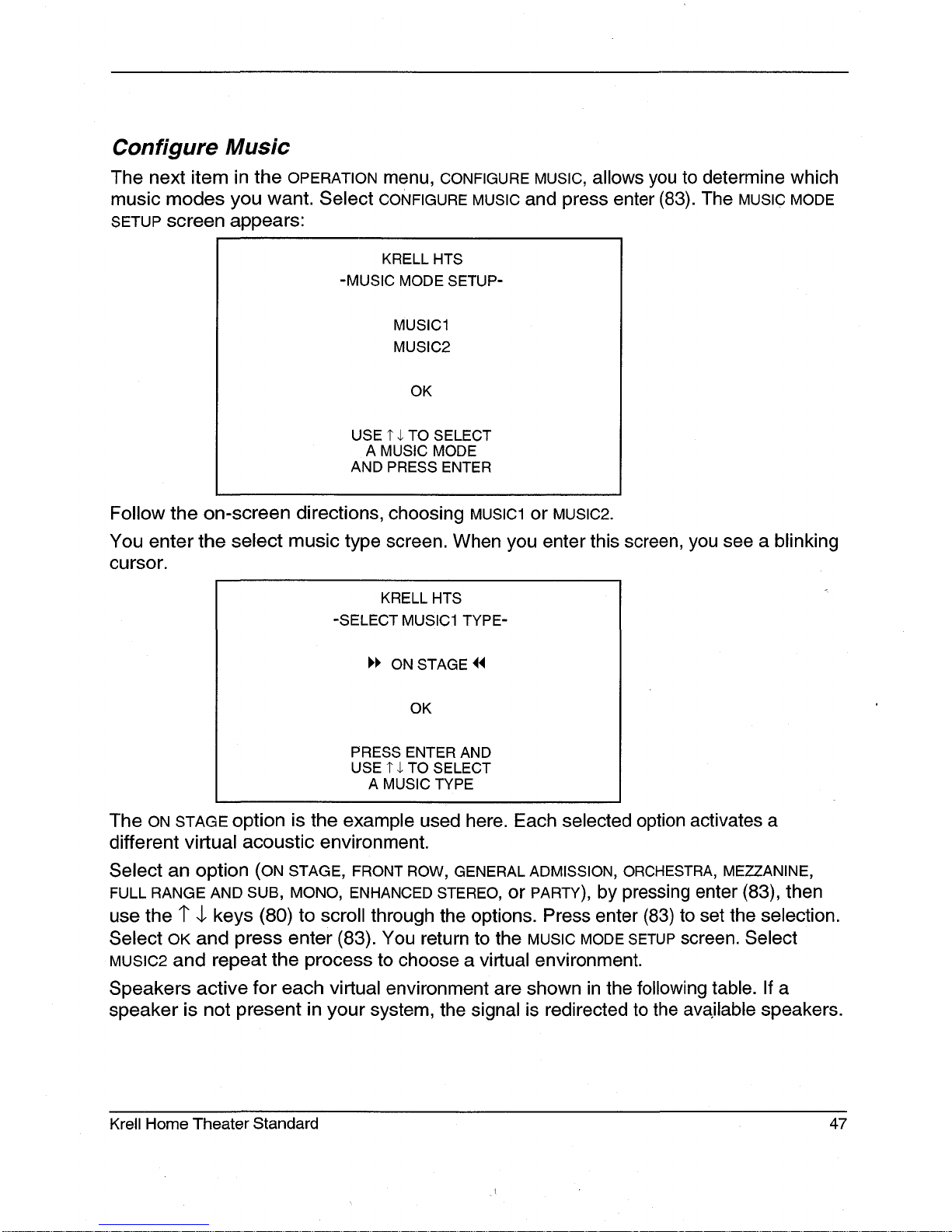

illuminates when this circuitry is engaged. See Configure Music, on page 47.

Note

The Krell Music Surround decoding mode operates only with an analog input or a digital

PCM input (for example, a compact disc).

21 Pro Logic Button and LED

Use this button to engage Dolby Pro Logic circuitry for use with all Dolby Surround encoded material, including laser discs, videotapes, television broadcasts, and compact

discs. The red LED illuminates when the Home Theater Standard is in the Dolby Pro

Logic decoding mode.

Note

This mode is selected automatically if Do/by Digital source material is encoded for Pro

Logic. If you wish to turn off this mode, press the Pro Logic button.

22 Preamp Button and LED

Use this button to send the signal from the analog input directly to the volume control, with no digital processing, using the analog stage of the preamp. This avoids possible

digital signal degradation and can be used for components with a high quality signal such as the KPS 28c. See Configure Mode, on page 36, for information on assigning

the analog input to one of the device buttons (DVD, LD, SAT, VCR, TV).

Krell Home Theater Standard

Front Panel Description, continued 23 Front Panel Display

The front panel display provides status messages for Home Theater Standard operations, including volume and balance level, decoding mode, and zone information.

In addition, when a new device is selected, the physical inputs are displayed. The display turns off after five seconds of inactivity.

24 User Button

Use this programmable button to select one of three available dynamic range compression modes: normal (11 dB), max(imum) (no compression), or night (22

See User Button Setup, on page 50. In addition, the user button can be deactivated.

25 Balance Button

Press this button to adjust the main left/right speaker balance. This button converts the

volume level controls to balance controls. BAL 0 in the front panel display window

indicates the center position. Balance may be adjusted in .5 dB increments, up to 6 dB. Balance levels are shown numerically on the front panel display. The balance level

buttons revert to their original functions as main volume level controls after three seconds of inactivity.

Individual Channel Buttons

Use the Center, Rear, and Sub buttons to change taste trims (make temporary speaker

output adjustments of +/- 10 dB). These temporary changes revert to 0 dB when a new device is selected or the system is powered down. For more information on taste trims and master (programmable) trims, see Configure Level Adjustment, on page 39.

26 Center Button

Press the center button, then use the level up and down buttons (30) to adjust the center speaker volume.

27 Rear Button

Press the rear button, then use the level up and down buttons (30) to adjust the rear speaker volume.

28 Sub Button

Press the sub (subwoofer) button, then use the level up and down buttons (30) to adjust

the subwoofer speaker volume.

29 Save Button

Use this button to save system configuration settings and during learning remote programming. See Saving Setup, Recalling Setup, and Restoring Factory Default System Configuration Settings, on page 52, and Program Remote, on page 48.

Krell Home Theater Standard 11

Front Panel Description, continued

30 Level Down and Up Buttons

Use the volume level buttons to adjust the output for the entire system as well as balance and individual levels for the center speaker, rear speakers, and subwoofers. The volume level is shown in the front panel display. See System Setup and

Configuration, on page 26.

31 Recall Button

Use this button to recall previously stored system configuration settings. See Saving Setup, Recalling Setup, and Restoring Factory Default System Configuration

Settings, on page 52.

12 Krell Home Theater Standard

Figure 2 The Home Theater Standard Back Panel

33 34

RIQH’I" LEFT

39 40 37 36

DIQITAL AUDIO

INPUTS

42 45

Analog Audio Outputs and Inputs

Balanced Analog Audio Outputs 33 Single-ended Analog Audio Outputs 34

Multi-Channel Audio Output Connector 35 B-1 Left and B-1 Right Inputs 36

Tape In Left and Right 37 Tape Out Left and Right 38

VCR1 In Left and Right 39

VCR1 Out Left and Right 40 Zone 2 Out Left and Right 41 S-1, S-2, S-3, S-4, S-5 Left and Right Inputs

41 44 43 47 49

Digital Audio Inputs and Outputs

42 Digital Optical Inputs 43 Digital Audio Inputs 44 Digital Audio Outputs

Video Inputs and Outputs

45 S-video Outputs 46 S-video Inputs 47 Composite Video Outputs 48 Composite ~/ideo Inputs

49 Component Video Outputs 50 Component Video Inputs

0 o

oOO

50 48

54 55

Remote Control

51 RS-232 Remote or

Optional PHAST Link Connector 52 RC-5 In 53 12 VDC Out and In

Power

54 Back Panel Power Switch 55 IEC Connector

Back Panel Description

See Figure 2 on page 13

The back panel of the Home Theater Standard provides all input and output connections, remote control inputs and outputs, power on and off, and power

connection. The back panel functions are described below.

Analog Audio Outputs and Inputs

32 Balanced Analog Audio Outputs

The Home Theater Standard is equipped with six balanced analog audio channel

outputs, with XLR connectors, for the left, center, right, left rear, right rear, and

subwoofer.

33 Single-ended Analog Audio Outputs

The Home Theater Standard is equipped with six single-ended analog audio channel outputs, with RCA connectors, for the left, center, right, left rear, right rear, and subwoofer.

34 Multi-Channel Audio Output Connector

The Home Theater Standard is equipped with a multi-channel audio output, with a DB25 connector, which contains the output connections for all the output channels (left, center, right, left rear, right rear, and subwoofer).

35 B-1 Left and Right Inputs

The Home Theater Standard is equipped with one set of balanced inputs with connectors.

The XLR pin configurations are as follows:

Pin 1: Shield (ground) Pin 2: Non-inverting (0

°) Pin 3: Inverting (180

)

36 Tape In Left and Right

The Home Theater Standard is equipped with one set of single-ended tape inputs with RCA connectors.

37 Tape Out Left and Right

The Home Theater Standard is equipped with one set of single-ended tape outputs with RCA connectors.

38 VCR1 In Left and Right

The Home Theater Standard is equipped with one set of single-ended inputs with RCA connectors, for a VCR audio source.

14 Krell Home Theater Standard

Back Panel Description, continued

39 VCR1 Out Left and Right

The Home Theater Standard is equipped with one set of single-ended outputs with RCA connectors, for a VCR audio source.

40 Zone 2 Out Left and Right

The Home Theater Standard is equipped with one set of single-ended zone 2 audio

outputs with RCA connectors.

41 S-l, S-2, S-3, S-4, S-5 Left and Right Inputs The Home Theater Standard is equipped with five sets of single-ended audio inputs with

RCA connectors.

Digital Audio Inputs and Outputs

42 Digital Optical Inputs

The Home Theater Standard is equipped with two digital EIAJ optical inputs with TosLink connectors.

43 Digital Audio Inputs

The Home Theater Standard is equipped with six coaxial digital audio inputs with RCA connectors.

44 Digital Audio Outputs

The Home Theater Standard is equipped with two digital audio outputs: one coaxial with an RCA connector, and one EIAJ optical with a TosLink connector.

Video Inputs and Outputs

45 S-video Outputs

The Home Theater Standard is equipped with two S-video outputs with DIN connectors. The main S-video output (labeled OSD on back panel) includes on-screen display. For dubbing purposes, the second S-video output does not include on-screen display.

Note

The OSD and non-OSD outputs are not interchangeable.

46 S-video Inputs

The Home Theater Standard is equipped with four S-video inputs with DIN connectors.

47 Composite Video Outputs

The Home Theater Standard is equipped with two composite video outputs with RCA connectors. The main composite video output (labeled OSD on back panel) includes onscreen display. For dubbing purposes, the second composite video output does not include on-screen display.

Krell Home Theater Standard 15

48 Composite Video Inputs

The Home Theater Standard is equipped with four RCA composite video inputs with

RCA connectors.

49 Component Video Outputs

The Home Theater Standard is equipped with one set of component video outputs with

RCA connectors. Component video uses three wires (labeled Y, Cr, and Cb on back

panel) to convey the video signal, including the OSD.

50 Component Video Inputs

The Home Theater Standard is equipped with two sets of component video inputs.

Remote Control

51 RS-232 Remote or Optional PHAST Link Connector

The Home Theater Standard is equipped with an RS-232 port, which receives messages from a computer based control system, providing more intelligent control of

the Home Theater Standard. For more information, see RS-232 Port: Sending Commands and Interpreting Data, developer’s reference shipped with the Home Theater Standard.

The Home Theater Standard may be outfitted with an optional PHAST Link connector instead of an RS-232 connector, for integrating the HTS within a PHAST system. Contact your authorized Krell dealer, distributor, or Krell for information about this connection option.

52 RC-5 In

The RC-5 input makes custom installation easy and secure by accepting baseband RC-5 input commands from hardwired remote controllers.

53 12 VDC Out and In The 12 VDC output sends a 12 Volt power on/off signal to other Krell components via a

12 V trigger cable, as well as to other devices that incorporate 12 Volt power on/off trigger input. The Home Theater Standard has four programmable 12 Volt outputs:

Out1, Out2, Out3, and Out4; one input is available.

Note

When the HTS is in the operational mode, the 12 VDC Out provides 12 V of DC output.

When the HTS is in the stand-by mode or off, the DC output is 0 V. Power

54 Back Panel Power Switch

Use this switch to change the Home Theater Standard from off to stand-by.

55 lEO Connector

The Home Theater Standard is equipped with a standard female IEC power connector, for use with the AC power cord.

16 Krell Home Theater Standard

Figure 3 The Home Theater Standard Remote Control

Power Functions

56 Amp Key 57 HTS Key

Zone Selection

58 Main Key

59 Z2 Key

Device Selection Keys

60 DVD Key

61 LD Key 62 SAT Key

63 TV Key 64 CD Key

65 Tuner Key 66 Auxl Key 67 Aux2 Key

68 VCR Key

69 Tape Key

Processing Mode

Keys

70 Stereo Key

71 M1 Key

72 M2 Key 73 Pro Logic Key 74 Preamp Key

Control Function 71 Keys

75 Bal Key

76 Cntr Key

77 Rear Key 78 Sub Key 79 Prey Key 80 Level Keys 81 Menu Key 82 Mute Key 83 Enter Key 84 THX Key

Power Zone

--59 58

--81

--79

78 77

63 62

--67 66

--69 68

84 73

Krell Home Theater Standard 17

Remote Control Description

See Figure 3 on page 17

The Home Theater Standard remote control provides on and off, input selection, processing mode selection, speaker volume and balance adjust, and mute functions, as well as access to the System Setup and Configuration menu.

To send operational instructions directly into the Home Theater Standard using an RS232 based external control device, see RS-232 Port: Sending Commands and Interpreting Data, the developer’s reference shipped with the Home Theater Standard.

BATTERY INSTALLATION AND REMOVAL

The HTS remote control uses one CR2025 lithium battery, which is included with the shipment.

To open the battery compartment on the back of the remote control:

1. Place the remote face down on the table.

2. Use your thumbnail or a small jeweler’s or eyeglass screwdriver to move the small tab toward the center of the remote, while using your index fingernail or screwdriver to pull down gently on the slot to the right of the tab. The battery compartment will slide out.

3. Place the battery, plus side up, in the battery tray.

4. Slide battery compartment back into the remote until you hear a click. The remote control is ready for operation.

Notes

Do not use a knife or other sharp objects to open the battery compartment; they will scratch the remote control finish.

Replace battery when remote control function becomes intermittent. Remove battery if the remote control is not used for a long period of time. Battery

leakage can damage the remote control

Krell Home Theater Standard

Remote Control Description, continued

Home Theater Standard remote control keys and their functions are described below.

Power Functions

56 Amp Key Use this key to power on/off a Krell remote control amplifier.

57 HTS Key

Use this key to switch the Home Theater Standard unit between the stand-by mode and

the operational mode.

Note

When you power off while zone 2 is selected, only zone 2 turns off. Press the power

button or the/-/TS key a second time to power off the main zone.

Zone Selection

58 Main Key

Use this key to select the main zone for a device.

59 Z2 Key

Use this key to select zone 2 for a device. See Main Zone and Zone 2 Operation, on

page 54.

Note

The Home Theater Standard defaults to the main zone. To activate a device in zone 2,

you must press the remote control Z2 key (59) before selecting a.device.

Device Selection Keys

60 DVD Key Use this key to select the digital videodisc device.

61 LD Key Use this key to select the laser disc device.

62 SAT Key

Use this key to select the satellite feed device.

63 TV Key Use this key to select the television device.

64 CD Key Use this key to select the compact disc device.

65 Tuner Key

Use this key to select the AM/FM tuner device.

Krell Home Theater Standard

Remote Control Description, continued

66 Auxl Key Use this key to select the auxiliary device, such as phono, tape, or an additional DVD,

LD, CD, or VCR.

67 Aux2 Key

Use this key to select a second auxiliary device, such as phono, tape, or an additional DVD, LD, CD, or VCR.

68 VCR Key

Use this key to select the VCR device.

69 Tape Key

Use this key to select the output from an analog tape recorder connected to the tape

inputs.

Note

Once a device is se/ected, press the device se/ection key again to change the tape output source bus to the zone current/y se/ected. See Tape Input and Output, on page

53.

Processing Mode Keys

The Home Theater Standard automatically engages the appropriate decoding format, Dolby Digital or DTS, if one of these signals is present.

70 Stereo Key

Use this key to select the stereo decoding mode, which allows you to listen to a stereo recording (for example, a compact disc) in two-channel (left and right) mode.

Note

The stereo decoding mode operates only with an analog input or a digital PCM input (for

example, a compact disc).

71 M1 Key 72 IV12 Key

Use these keys to engage a Krell Music Surround mode, which allows you to listen to a stereo recording (for example, a compact disc) in a multi’channel mode. This mode can be programmed to create different simulated acoustic environments. The red LED illuminates when this circuitry is engaged. See Configure Music, on page 47.

Note

The Krell Music Surround decoding mode operates only with an analog input or a digital

PCM input (for example, a compact disc).

20 Krell Home Theater Standard

Remote Control Description, continued

73 Pro Logic Key

Use this key to engage Dolby Pro Logic circuitry for use with all Dolby Surround encoded material, including laser discs, videotapes, television broadcasts, and compact discs.

Note

This mode is selected automatically when Dolby Digital source material is encoded for Pro Logic. If you wish to turn off this mode, press the Pro Logic button.

74 Preamp Key

Use this key to send the signal from the analog input directly to the volume control, with no digital processing, using the analog stage of the preamp. This avoids possible digital

signal degradation and can be used for components with a high quality signal such as the KPS 28c. See Configure Mode, on page 36, for information on assigning the analog input to one of the device buttons (DVD, LD, SAT, VCR, TV).

Control Function Keys

75 Bal Key

Press this key to convert the volume level controls to balance controls. See Balance Button (25), on page 11.

Use the Center, Rear, and Sub keys to change taste trims (make temporary speaker

output adjustments of +/- 10 dB). These temporary changes revert to 0 dB when a new device is selected, or the system is powered down. For more information on taste trims and master (programmable) trims, see Configure Level Adjustment, on page 39.

76 Cntr Key

Use this key to select the center speaker, then use the 1" $ keys (80) to adjust volume. 77 Rear Key

Use this key to select the rear speaker, then use the 1" $ keys (80) to adjust volume.

78 Sub Key

Use this key to select the subwoofer, then use the 1" $ keys (80) to adjust volume.

79 Prey Key

Use this key to escape from a System Setup and Configuration on-screen menu to the previously displayed screen. You can also use this key to keep triggers on while switching devices. See Other Operation Features, on page 55.

80 Level Keys

Use these keys to adjust volume level, balance level, and to scroll through System Setup and Configuration menus.

Krell Home Theater Standard 21

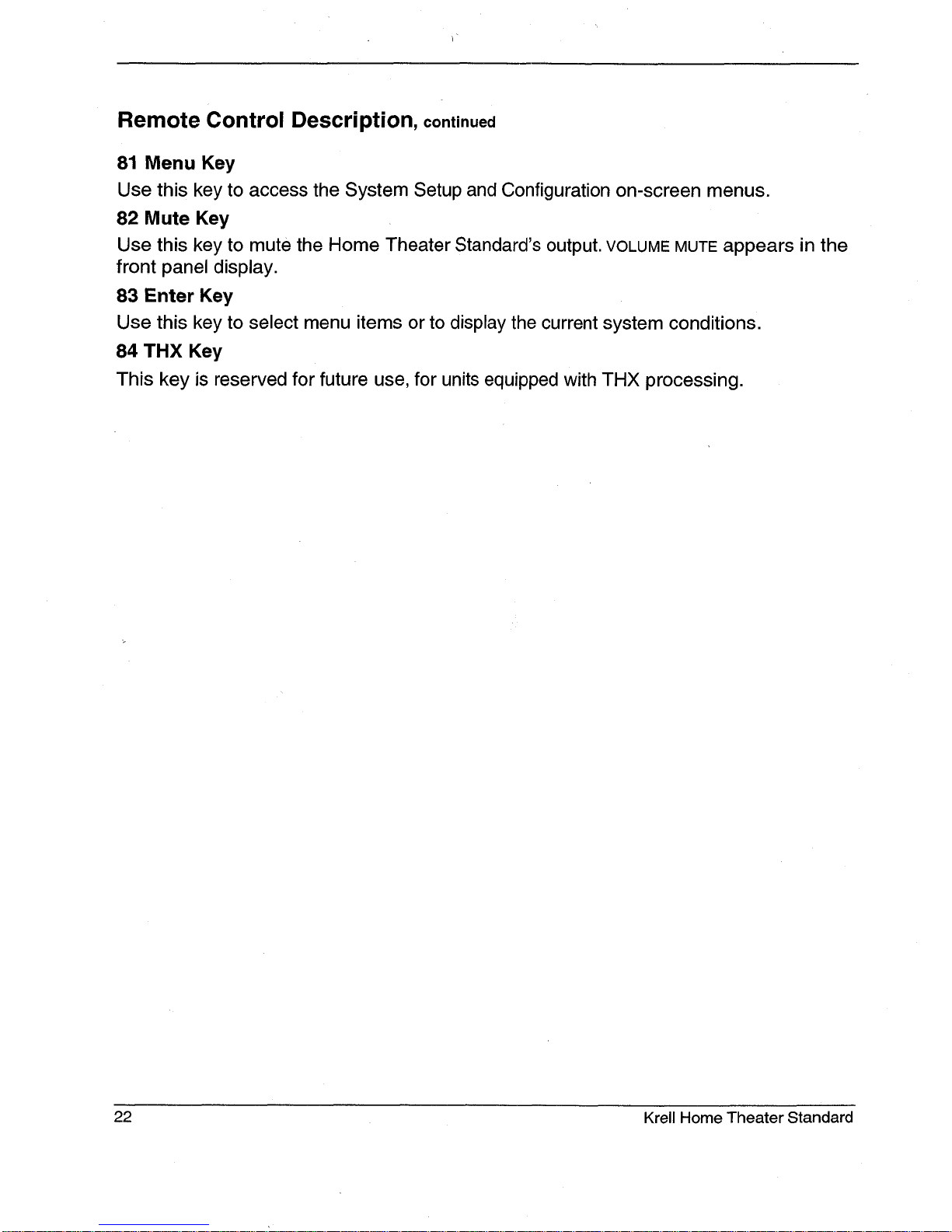

Remote Control Description, continued 81 Menu Key

Use this key to access the System Setup and Configuration on-screen menus.

82 Mute Key

Use this key to mute the Home Theater Standard’s output. VOLUME MUTE appears in the front panel display.

83 Enter Key

Use this key to select menu items or to display the current system conditions. 84 THX Key This key is reserved for future use, for units equipped with THX processing.

22 Krell Home Theater Standard

Connecting the Home Theater Standard

to Your System

This section provides information about connecting your Home Theater Standard to analog and digital sources, video sources, and amplifiers. The HTS is equipped with balanced and single-ended inputs, and a multi-channel (DB-25) connector.

Krell recommends using balanced interconnect cables. Balanced interconnect cables not only can minimize sonic loss but also are immune to induced noise, especially for installations using long cables. Balanced connections have 6 dB more gain than

single-ended connections. When level matching is critical, keep this specification in mind. Krell recommends that you use balanced inputs for components that will use the

preamp mode.

Follow these steps to connect the Home Theater Standard to your system.

FIRST: CONNECT ANALOG AND DIGITAL SOURCES

1. Make sure all power sources and components are off before connecting inputs and outputs.

Neatly arrange and organize wiring to and from the Home Theater Standard and all components. Separate AC wires from audio cables to prevent hum or other

unwanted noise from being introduced into the system.

For analog input sources, connect the right and left outputs of your source components to the inputs on the Home Theater Standard. The Home Theater Standard is equipped with six sets of single-ended analog audio inputs (S-1 through S-5 and tape) via RCA connectors and one set of balanced analog audio inputs

(B-l) via XLR connectors. For digital audio sources, connect the digital audio output of your source

components to the digital inputs on the Home Theater Standard. The Home Theater

Standard is equipped with six coaxial digital inputs via RCA connectors and two

digital EIAJ optical inputs via TosLink connectors.

Note

For source units that are equipped with both digita/ and ana/og outputs, the digita/ outputs shou/d be connected for/istening in the main zone; the ana/og outputs shou/d be connected for/istening in zone 2 and for recording from the main or zone 2.

Krell Home Theater Standard 23

Connecting the Home Theater Standard to Your System, continued

NEXT: CONNECT VIDEO SOURCES

Note

See Read This First, on page 5, for information on making the on-screen display visible on your video monitor.

1. Connect the output of your video components to the appropriate video input of the Home Theater Standard.

Connect the video outputs of the Home Theater Standard to the inputs of video

recorders or additional video monitors, if desired.

The component video signal uses three wires that convey luminance (Y), red minus luminance [R - Y] (Cr), and blue minus luminance [B - Y] (Cb) signals.

Use the component connection when the source device (DVD) and output device (TV) both feature component connections. See the user manuals included with these devices

for more information. The Home Theater Standard is also equipped with four S-video inputs and four

composite video inputs. S-video cables transmit the color and luminance components of the video signal separately. The comb filter within the source unit performs this separation. If the source’s comb filter is superior to the one within the video monitor, use the S-video connections. Otherwise, use composite video input.

The Home Theater Standard is equipped with two S-video outputs, two composite video outputs, and one set of component video outputs. One S-video output, one composite video output, and the component video output include on-screen display. For dubbing purposes, only the output labeled OSD displays on-screen information.

Note

S-video inputs can be seen only on S-video outputs. The same is true for composite and component video signals.

LAST: CONNECT AMPLIFIER(S)

Connect the outputs of the Home Theater Standard to the input(s) of your power amplifier(s).

The Home Theater Standard has balanced outputs with XLR connectors and single-

ended outputs with RCA connectors. Both outputs are active at all times, allowing simultaneous connection to separate amplifiers. Only one of these output formats should be connected to a single amplifier. Use the DB-25 connector to connect to a

DB-25-equipped amplifier.

Krell Home Theater Standard

System Setup and Configuration Overview

This page outlines the System Setup and Configuration Menus. These easy-to-follow, step-by-step menus let you set up your Home Theater Standard for optimum

performance. Detailed instructions begin on page 26. Krell recommends that you configure your component in the following order:

1. CONFIGURE SPEAKERS

Configure Speakers Setup lets you select speakers that are in your system and configure their bass range.

2. LISTENING ROOM SETUP

Listening Room Setup Jets you to enter the exact location of each speaker in your system, so that the Home Theater Standard can calculate the proper arrival and delay settings.

3. CALIBRATE VOLUME

Calibrate Volume Setup lets you match the level of different speakers and amplifiers in your system.

4. CONFIGURE DEVICES

Configure Devices Setup lets you assign each device’s inputs, modes, and triggers.

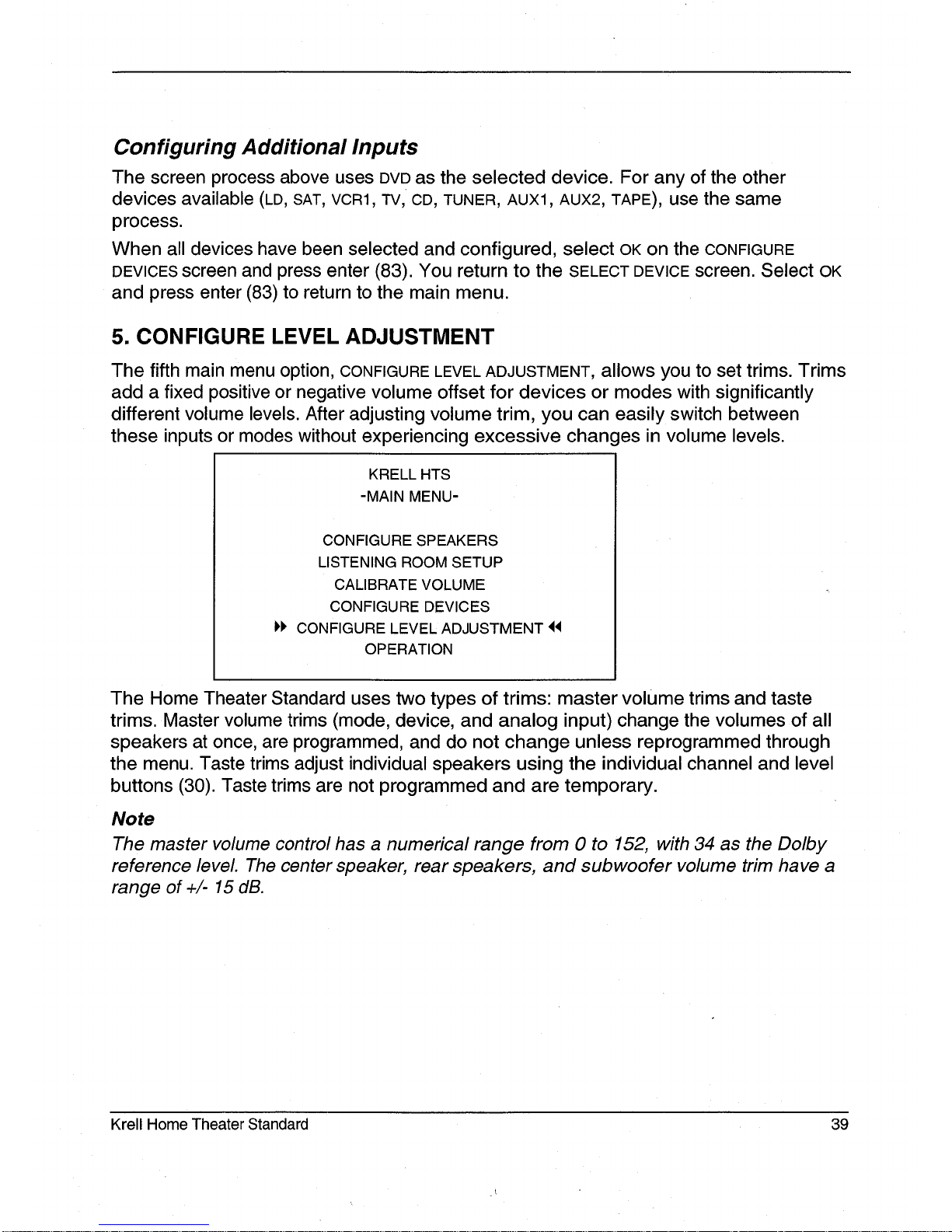

5. CONFIGURE LEVEL ADJUSTMENT

Configure Level Adjustment Setup lets you select mode, device, and analog input trims.

These fixed positive or negative volume offsets let you maintain level matching while

switching between inputs with significantly different volume levels.

6. OPERATION

The Operation Setup lets you choose the menu display’s background color, the position

and display time for on-screen display, and video display brightness. This menu also lets you choose your serial control, set up virtual acoustic environments, program another remote to accept Home Theater Standard commands, and set up dynamic range compression modes.

Krell Home Theater Standard 25

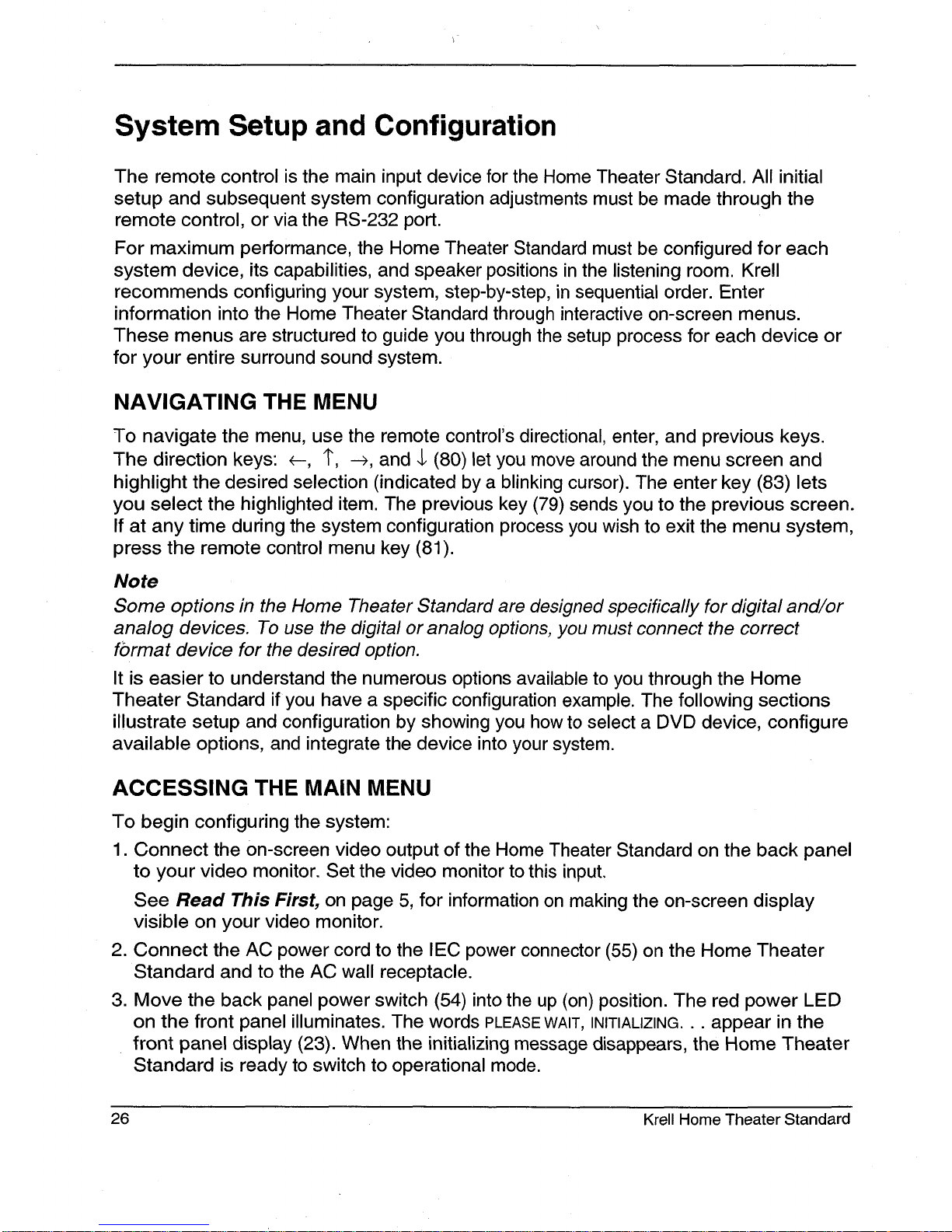

System Setup and Configuration

The remote control is the main input device for the Home Theater Standard. All initial setup and subsequent system configuration adjustments must be made through the

remote control, or via the RS-232 port. For maximum performance, the Home Theater Standard must be configured for each

system device, its capabilities, and speaker positions in the listening room. Krell recommends configuring your system, step-by-step, in sequential order. Enter

information into the Home Theater Standard through interactive on-screen menus. These menus are structured to guide you through the setup process for each device or

for your entire surround sound system.

NAVIGATING THE MENU

To navigate the menu, use the remote control’s directional, enter, and previous keys. The direction keys: ~, 1", ~, and 4, (80) let you move around the menu screen and

highlight the desired selection (indicated by a blinking cursor). The enter key (83)

you select the highlighted item. The previous key (79) sends you to the previous screen.

If at any time during the system configuration process you wish to exit the menu system, press the remote control menu key (81).

Note

Some options in the Home Theater Standard are designed specifically for digital and~or analog devices. To use the digital or analog options, you must connect the correct

format device for the desired option.

It is easier to understand the numerous options available to you through the Home

Theater Standard if you have a specific configuration example. The following sections illustrate setup and configuration by showing you how to select a DVD device, configure available options, and integrate the device into your system.

ACCESSING THE MAIN MENU

To begin configuring the system:

Connect the on-screen video output of the Home Theater Standard on the back panel

to your video monitor. Set the video monitor to this input.

See Read This First, on page 5, for information on making the on-screen display visible on your video monitor.

Connect the AC power cord to the IEC power connector (55) on the Home Theater Standard and to the AC wall receptacle.

Move the back panel power switch (54) into the up (on) position. The red power on the front panel illuminates. The words PLEASE WAIT, INITIALIZING... appear in the front panel display (23). When the initializing message disappears, the Home Theater

Standard is ready to switch to operational mode.

26 Krell Home Theater Standard

4. Use either the front panel power button (1) or the remote control HTS key (57) power on the Home Theater Standard. The blue power LED (2) on the front panel

illuminates. The Home Theater Standard is now in operational mode and ready to be configured.

IMPORTANT

Make sure that any source devices are off when you configure the HTS. Signals from

source devices can interfere with remote control operation.

5. Press the remote control menu key (81). The MAIN MENU screen appears:

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

CALIBRATE VOLUME

CONFIGURE DEVICES

CONFIGURE LEVEL ADJUSTMENT

OPERATION

1. CONFIGURE SPEAKERS ~

The first menu option, configure speakers, allows you to engage or disable speakers in your system and select bass range based on your speakers’ low frequency capabilities.

Speaker Setup

Use the $ key to highlight CONFIGURE SPEAKERS, then press the enter (83) key. The

SPEAKER SETUP screen appears:

KRELL HTS

-SPEAKER SETUP-

FRONT FULL-RANGE

YES

CENTER FULL-RANGE

YES

REARS FULL-RANGE

YES SUB

The FRONT, CENTER, REARS, and sub indicate possible.speaker locations. YES indicates speakers currently present in the system. FRONT speakers are always present.

Krell Home Theater Standard 27

Bass Range

The speaker setup screen also shows the bass ranges for the front, center, and rear speakers. Options available are not bass limited (FULL-RANGE) or bass limited (LIMITED). The option you select depends on the low frequency capabilities of each speaker in your system. See Modify Speaker Settings, below.

Note

The speaker setup screen shows the default settings for each speaker. If your system corresponds to the default settings, select OK at the bottom of the menu screen, then press enter (83). You retum to the main menu and can proceed to the next system configuration, listening room setup.

Modify Speaker Settings

If the default settings do not correspond to your speakers, you can modify the speaker settings, using the following steps:

Enable/Disable a Speaker

Use the direction keys (80) to select the speaker you wish to enable. Press enter (83)

select YES.

Use the direction keys to select the speaker you wish to disable. Press enter (83)

select NO.

Select Bass Range

To change the settings for the front, center, or rear speakers, use the direction keys to

highlight the speaker whose settings you wish to change and press enter (83). The

SPEAKER RANGE screen appears:

KRELL HTS

-SPEAKER RANGE-

IFTHESESPEAKERS ARE NOT

DESIGNED TO REPRODUCE

DEEP BASS, PRESS ENTER

TO CHANGE STATUS

NOT BASS LIMITED

Select NOT if the selected speaker can reproduce low frequencies (deep bass). Select

YES if the selected speaker cannot reproduce deep bass.

28 Krell Home Theater Standard

After selecting the appropriate option for your speakers, press enter (83), highlight OK, and press enter (83) again. You return to the speaker system setup menu. The onscreen phrase for the selected speaker now reads LIMITED or

FULL-RANGE.

2. LISTENING ROOM SETUP

The second main menu screen, listening room setup, allows you to tell the Home Theater Standard the exact location of each speaker in your system, so that the Home

Theater Standard can calculate the proper arrival and delay settings.

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

I~I~ LISTENING ROOM SETUP ~

CALIBRATE VOLUME

CONFIGURE DEVICES

CONFIGURE LEVEL ADJUSTMENT

OPERATION

Use the 1" $ keys (80) to highlight LISTENING ROOM SETUP and press enter (83).

LISTENING ROOM SETUP screen appears:

KRELL HTS

-LISTENING ROOM SETUP-

LEFT CENTER RIGHT

0 FT ~ 0 FT 0 FT

L REAR SUB R REAR 0 FT 0 FT

0 FT

Use the ~ key (80) procedure to input the set the selection.

When you access the LISTENING ROOM SETUP screen, the cursor is blinking at the LEFT

speaker. Press enter (83), then use the ~ key (80) to increase the number to the correct distance (in feet, up to 30 feet) from the main listening position to the left speaker. Press

enter (83) again to set the selection.

highlight the 0 FT under CENTER. Press enter (83). Use the same correct distance for the center speaker. Press enter (83) again

Do the same for the remaining speakers in the system. After all the distances are set, press the previous key (79) to return to the main menu.

Krell Home Theater Standard 29

Note

Any speaker not configured in the speaker system setup menu displays N/A (not available) for the distance specification.

3. CALIBRATE VOLUME

The third menu option, calibrate volume, allows you to calibrate each channel using the Home Theater Standard’s internal noise generator.

Note

A sound pressure level (SPL) meter is required for this procedure.

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

I~) CALIBRATE VOLUME

CONFIGURE DEVICES

CONFIGURE LEVEL ADJUSTMENT

OPERATION

Use the $ $ keys (80) to highlight CALIBRATE VOLUME on the main menu and press enter (83). The CALIBRATE VOLUME screen appears:

KRELL HTS

-CALIBRATE VOLUME-

SELECT THE CHANNEL

LEVEL CALIBRATION

METHOD

AUTO NOISE SEQUENCE

MANUAL NOISE SEQUENCE

PROGRAM MATERIAL

The auto noise sequence scrolls through the different speaker channels automatically, allowing you to quickly calibrate channels. The manual noise sequence requires that you select each channel before calibrating.

Highlight your preferred choice and press enter (83). The message INITIALIZING... blinks while the Home Theater Standard loads its noise generator, or receives a signal from external program material.

Krell Home Theater Standard

The following screen appears:

KRELL HTS

-CALIBRATE VOLUME-

LEFT CENTER RIGHT

0 dB ~ 0 dB

0 dB

L REAR SUB R REAR 0 dB 0 dB

0 dB

Auto Noise Sequence

Set the SPL meter to C weighting and slow response. After initializing, the LEFT channel dB setting blinks, and you hear band-limited white noise through the left speaker. This noise continues for two seconds and then moves clockwise to the next speaker in the system.

Note

The adjustment must be made while the channel is blinking.

While the individual channel is blinking, use the $ $ keys (80), to adjust each speaker’s

setting until the SPL meter reads 75 dR. Repeat this process for the remaining speakers. When all the speakers are set, press

the previous key (79) twice to return to the main menu.

Manual Noise Sequence

Set the SPL meter to C weighting and slow response. After initializing, the LEFT channel dB setting is highlighted. Press enter (83). You hear white noise from the left speaker

the dB setting starts blinking. Use the T $ keys (80) to adjust the setting until the SPL

meter reads 75 dR. Press enter (83) and use the --~ key (80)to highlight the CENTER channel dB setting.

the 1" $ keys (80) to adjust the setting, as above. Repeat this procedure for all remaining speakers.

When all the speakers are set, press the previous key (79) twice to return to the main

menu.

Note

Any speaker not configured in the speaker setup menu displays N/A (not available) for

the dB specification.

Krell Home Theater Standard 31

Program Material

The program material option uses the same screen as manual noise sequence, but with external material such as a test disc. The source plays, simultaneously, from all configured speakers. This allows you to individually adjust speaker balances based on your listening preferences rather than SPL readings.

The program material option uses surround mode. If all channels are not present in the source material, they will not be heard during this process.

4. CONFIGURE DEVICES The fourth main menu option, configure devices, allows you to configure inputs, modes,

and triggers for each device in the system. First, select a device that you want to configure. Next, assign a video input, video format, audio input(s), and default decoding mode for each connected device. You may also define 12 V trigger operation for each device.

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

CALIBRATE VOLUME

H’ CONFIGURE DEVICES ~

CONFIGURE LEVEL ADJUSTMENT

OPERATION

Use the 1" $ keys (80) to highlight CONFIGURE DEVICES on the main menu and press enter (83). The SELECT DEVICE screen appears:

KRELL HTS

-SELECT DEVICE-

DVD~ LD SAT

VCR TV CD

TUNER AUX1 AUX2 TAPE

Krell Home Theater Standard

After selecting the device (the example used is DVD) that you want to configure, press enter (83). The CONFIGURE DVD screen appears:

KRELL HTS

-CONFIGUREDVD

CONFIGURE VIDEO

CONFIGURE AUDIO

CONFIGURE MODE

CONFIGURE TRIG

Configure Video Input

Press enter 83) to select this option. The ASSIGN VIDEO INPUT screen appears:

KRELL HTS

-ASSIGN VIDEO INPUTDVD

I~I~ COMPOSITE1 ~

PRESS ENTER AND

USE 1" $ TO SWITCH

BETWEEN VIDEO INPUTS

When you access this screen, you see the blinking cursor at COMPOSITE1. To select a video input option (COMPOSITE1, COMPOSITE2, COMPOSITE3, or COMPOSITE4; UNASSIGNED;

S-VIDEO1, S-VIDEO2, S-VIDEO3, or S-VIDEO4; COMPONENT1 or COMPONENT2), follow

directions at the bottom of the screen. Select the UNASSIGNED video input option if the selected device does not use a video input, for example, a CD player. Press enter (83)

to confirm this setting. The ASSIGN VIDEO FORMAT screen appears.

Note Unassigned does not turn off the video; the last video input used stays selected.

Krell Home Theater Standard 33

Assign Video Format

KRELL HTS

-ASSIGNVIDEO FORMAT-

DVD

NTSC

PRESS ENTER AND

USE 1" $ TO SWITCH

BETWEEN NTSC AND PAL

After selecting the appropriate video format, select OK and press enter (83) to return the ASSIGN VIDEO INPUT screen. Select OK and press enter (83) to return to the CONFIGURE DEVICES screen.

Note See your video device’s operating manual. You must select the correct format for the

video device to function properly with the Home Theater Standard.

Configure Audio

The next option on the CONFIGURE DEVICES menu is CONFIGURE AUDIO. Use the 1" 4, keys

(80) to select CONFIGURE AUDIO and press enter (83). The CONFIGURE AUDIO INPUT screen

appears:

KRELL HTS

-CONFIGURE AUDIO INPUT-

DVD

ANALOG

DIGITAL

34 Krell Home Theater Standard

Note

If the selected device has both digital and analog outputs, use the digital outputs for the

main zone, and the analog outputs for zone 2.

To use an analog input only, set the digital input to UNASSIGNED.

If both analog and digital are unassigned, the last settings will stay selected when you switch to this device.

Assign Analog Input

If you select ANALOG, the ASSIGN ANALOG INPUT screen appears:

KRELL HTS

-ASSIGN ANALOG INPUT-

DVD

PRESS ENTER AND

USE 1",[, TO SWITCH

BETWEEN ANALOG INPUTS

When this screen appears, you see the blinking cursor at s-1. To select another analog device option (S-l, s-2, s-3, s-4, s-5, TAPE, VCR1, UNASSIGNED, B-l), follow directions at the bottom of the screen. Select the UNASSIGNED analog input option if the selected device does not use an analog output, for example, a CD player. Press enter (83) confirm this setting.

After you have selected the desired analog input, select OK and press enter (83). You return to the CONFIGURE AUDIO INPUT screen.

Krell Home Theater Standard 35

Assign Digital Input

If you select DIGITAL, the ASSIGN DIGITAL INPUT screen appears:

KRELL HTS

-ASSIGN DIGITAL INPUT-

DVD

I,I, COAX1 ~

PRESS ENTER AND USE 1" $ TO SWITCH

BETWEEN DIGITAL INPUTS

When you enter this screen, you see the blinking cursor at COAX1. To select another

digital input option (COAX1, COAX2, COAX3, COAX4, COAX5, COAX6, OPT1, OPT2,

UNASSIGNED), follow directions at the bottom of the screen. Select the UNASSIGNED digital

input option if the selected device does not use a digital output, for example, an analog VCR. Press enter (83) to confirm this setting.

Select OK and press enter (83) to return to the CONFIGURE AUDIO INPUT screen. Select OK and press enter (83) again, to return to the CONFIGURE DEVICES screen.

Configure Mode

The next option for the CONFIGURE DEVICES screen is configure mode. Select CONFIGURE

MODE and press enter (83). The ASSIGN MODE screen appears.

KRELL HTS

-ASSIGN MODE-

DVD

MOVIE

PREAMP

Note Digital input must be unassigned to use preamp mode.

36 Krell Home Theater Standard

When you enter this screen, you see the blinking cursor at MOVIE. Selecting MOVIE directs the Home Theater Standard to select Dolby Digital or DTS processing if one of

these signals is present; otherwise Dolby Pro Logic is engaged. To assign another mode option (STEREO, MUSIC1, MUSIC2, UNASSIGNED, PREAMP), press enter (83), then use

the 1" ,1. keys (80) to select the desired mode. Press enter (83) to confirm the setting. Select OK and press enter (83) to return to the CONFIGURE DEVICES screen.

Note

Unassigned holds the last selected mode (if it is valid) or switches to a valid mode.

Configure Trigger

The final option on the CONFIGURE DEVICES screen is configure trigger. This option allows you to customize the operation of the four remote output 12 VDC (12 Volt trigger) connectors (53) on the back panel.

Select CONFIGURE TRIGGER and press enter (83). The CONFIGURE 12 V TRIGGER screen appears:

KRELL HTS

-CONFIGURE 12 V TRIGGER-

DVD

I,I, MODE <<

DELAY TRIGGER1 0 1 SEC. TRIGGER2 0 1 SEC. TRIGGER3 0 1 SEC. TRIGGER4 0 1 SEC.

Krell Home Theater Standard

Select Trigger Mode

Use the 1" 4. keys (80) to move the blinking cursor to the MODE for the desired trigger,

and press enter (83). The SELECT A TRIGGER MODE screen ap 3ears:

KRELL HTS

-SELECT A TRIGGER MODE-

0 ALWAYS OFF 1 MAIN AND ZONE 2

2 MAIN ONLY

3 ZONE 2 ONLY

Trigger Mode 0: This trigger is not activated when the configured device is selected. Trigger Mode 1: The trigger activates when the configured device is selected for main

or zone 2 listening. Trigger Mode 2: The trigger activates only when the configured device is selected for

main zone listening.

Trigger Mode 3: The trigger activates only when the device is selected for zone 2 listening.

Use the 1" $ keys (80) to select the desired trigger mode and press enter (83) to select.

You return to the CONFIGURE 12 V TRIGGER screen, which now reflects the change you

just entered.

Note

If you press the prev button (79) on the remote before you switch devices, the triggers that are on remain on, even if they are specified as off on the newly selected device. This is for simulcast operation.

Adjust Trigger Delay

On the CONFIGURE 12 V TRIGGER screen, use the --> key to move the blinking cursor to DELAY and press enter (83). Use the 1" $ keys (80) to increase or decrease the number of seconds (range is from 0 to 30).

When desired trigger mode and trigger delays are set for all triggers, select OK in the

CONFIGURE 12 V TRIGGER screen, and press enter (83) to return to the CONFIGURE DEVICES

screen.

38 Krell Home Theater Standard

Configuring Additional Inputs

The screen process above uses DVD as the selected device. For any of the other devices available (LD, SAT, VCR1, TV, CD, TUNER, AUX1, AUX2, TAPE), use the same

process. When all devices have been selected and configured, select OK on the CONFIGURE

DEVICES screen and press enter (83). You return to the SELECT DEVICE screen. Select and press enter (83) to return to the main menu.

5. CONFIGURE LEVEL ADJUSTMENT

The fifth main menu option, CONFIGURE LEVEL ADJUSTMENT, allows you to set trims. Trims add a fixed positive or negative volume offset for devices or modes with significantly

different volume levels. After adjusting volume trim, you can easily switch between these inputs or modes without experiencing excessive changes in volume levels.

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

CALIBRATE VOLUME

CONFIGURE DEVICES

CONFIGURE LEVEL ADJUSTMENT

OPERATION

The Home Theater Standard uses two types of trims: master volume trims and taste trims. Master volume trims (mode, device, and analog input) change the volumes of all speakers at once, are programmed, and do not change unless reprogrammed through

the menu. Taste trims adjust individual speakers using the individual channel and level

buttons (30). Taste trims are not programmed and are temporary.

Note

The master volume control has a numerical range from 0 to 152, with 34 as the Do/by

reference level. The center speaker, rear speakers, and subwoofer volume trim have a range of +/- 15 dB.

Krell Home Theater Standard 39

When you select CONFIGURE LEVEL ADJUSTMENT on the main menu, the LEVEL ADJUSTMENTS screen appears:

KRELL HTS

-LEVEL ADJUSTMENTS-

MODE TRIM

DEVICE TRIM

ANALOG INPUT TRIM

Select Mode Trim

Mode trim increases or decreases the volume automatically when you change decoding

modes (DOLBY DIGITAL, DTS, DOLBY PRO LOGIC, STEREO, MUSIC1, MUSIC2) to match listening

levels between modes.

Select MODE TRIM and press enter (83). The SELECT MODE screen appears:

KRELL HTS

-SELECT MODE-

STEREO

PRESS ENTER AND USE 1" ,1. TO SWITCH

BETWEEN MODES

40 Krell Home Theater Standard

When you enter this screen, you see the blinking cursor at STEREO. To select another option (DOLBY DIGITAL, DTS, DOLBY PRO LOGIC, STEREO, MUSIC1, MUSIC2) press enter (83),

then use $ $ keys (80) to scroll through the options. Select the desired mode, and press enter (83). The TRIM ADJUSTMENT screen appears:

KRELL HTS

-STEREO TRIM ADJUSTMENT-

H, 0 dB ~

PRESS ENTER AND

USE 1" 4, TO CHANGE

MODE TRIM

The blinking cursor is on the 0 dB. Press enter (83). Use 1" $ keys (80) to select appropriate trim adjustment (range is from -15 dB to +15 dB). Press enter (83) to the selection.

Select OK and press enter (83) to return to the SELECT MODE screen. When all trims have been adjusted as desired, select OK on the SELECT MODE screen and press enter (83). You return to the LEVEL ADJUSTMENT screen.

Select Device Trim

The device trim is a master volume trim that is activated when an input device is selected; it has a range of +/- 15

Select DEVICE TRIM and press enter (83). The SELECT DEVICE screen appears:

KRELL HTS

-SELECT DEVICE-

PRESS ENTER AND USE 1" 4, TO SWITCH

BETWEEN DEVICES

Krell Home Theater Standard

When you enter this screen, you see the blinking cursor at DVD. To select another option

(LD, SAT, VCR, TV, CD, TUNER, AUX1, AUX2, TAPE), press enter (83), then use 1" $ keys (80)

to scroll through the options. Press enter (83). The DVD TRIM ADJUSTMENT screen appears:

KRELL HTS

-DVD TRIM ADJUSTMENT-

I’ 0dB~

PRESS ENTER AND

USE 1" $ TO CHANGE

DEVICE TRIM

The flashing cursor is on the 0 dR. Press enter (83), then use 1" $ keys (80) to select appropriate trim adjustment (range is from -15 dB to +15 dR). Press enter (83) to

the selection.

Select OK and press enter (83). You return to the SELECT DEVICE screen. Select OK and press enter (83). You return to the LEVEL ADJUSTMENTS screen.

Select Analog Input Trim IMPORTANT

An analog device must be selected for this option to function.

The ANALOG INPUT TRIM screen is used to measure the level of an analog input source to the Home Theater Standard. When the ANALOG INPUT TRIM screen appears an upwardly pulsing graphic meter is displayed. This meter is an on-screen equivalent of a signal gain monitor.

KRELL HTS

-ANALOG INPUT TRIM-

DVD $1

0dR

-2 dB

-4 dB

-6 dB

INPUT ANTI GAIN 0dR

CLIP ON

42 Krell Home Theater Standard

Input Gain

You can boost weaker signals by increasing the input gain value at the bottom left of

this screen (in 3 dg, 6 dg, and 9 dg gain increments).

To maximize your system’s signal to noise ratio for a particular input, the input gain value applied to the signal should be increased (if needed) to maintain a signal strength close to 0 dB gain. The optimal signal gain value is 0 dB.

Anti Clip

Setting anti clip to ON engages automatic distortion protection. Anti clip measures the

signal level and prevents the input signal from distorting (clipping) the analog-to-digital converters. Set anti clip to OFF if you want to disengage distortion protection. This is

particularly useful if you need to maintain maximum signal-to-noise thresholds when recording from a source.

If you select a non-analog source to configure, you see the following screen:

KRELL HTS

-ANALOG INPUT WARNING-

YOU CANNOT SET AN INPUT LEVEL FOR A NON-ANALOG SOURCE

Select OK and press enter (83) to return to the level adjustment menu. Select OK and press enter (83) again to return to the main menu.

Krell Home Theater Standard 43

6. OPERATION

The final option, OPERATION, allows you to choose background color for your video

display, configure on-screen display and front panel display brightness, choose serial

control format, ~elect music modes, program a learning remote control to operate the

Home Theater Standard, and program user button setup and DTS autoswitch.

KRELL HTS

-MAIN MENU-

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

CALIBRATE VOLUME

CONFIGURE DEVICES

CONFIGURE LEVEL ADJUSTMENT

OPERATION

Use the 1" 4, keys (80) to select OPERATION and press enter (83). The OPERATION appears:

KRELL HTS

-OPERATION-

1,I~ BACKGROUND COLOR ~

OSD CONFIGURE

FPD DISPLAY CONFIGURE

SERIAL CONTROL CONFIGURE

CONFIGURE MUSIC

PROGRAM REMOTE

44 Krell Home Theater Standard

Background Color

To change the background color for your video menu display, select BACKGROUND COLOR and )ress enter (83). The MENU BACKGROUND COLOR screen appears:

KRELL HTS

-BACKGROUND COLOR-

I,I, MENU BACKGROUND COLOR ~

BLACK

BLUE

GREEN

RED

The blinking cursor appears at MENU BACKGROUND COLOR. Use the 1" $ keys (80) to move

the cursor to the desired color (black is the factory default). Press enter (83).

background menu color changes immediately. Select OK and press enter (83) to return

to the operation menu.

Note

With component video, black is the available background color.

Configure On-Screen Oisplay

The on-screen display feature allows you to choose the position and message display time for on-screen displays and messages. To configure the on-screen display, select OSD CONFIGURE and press enter (83). The CONFIGURE OSD screen appears:

KRELL HTS

-CONFIGURE OSD-

ON SCREEN TIME: 3 SEC. <4

LINE NUMBER: 1

The blinking cursor appears at ON SCREEN TIME. To change the length of on-screen display, press enter (83), then use 1" $ keys (80) to adjust the number of second (range

is 0-5 seconds). Press enter (83) to set the selection.

Krell Home Theater Standard 45

To change the line number on which the display appears, use the 1" $ keys (80) to move to LINE NUMBER. With the blinking cursor next to LINE NUMBER, press enter (83), then use 1" $ keys (80) to select the screen line. The range is 0 (top line of screen) through (bottom line of screen). A double arrow on the right side of the screen moves up and down, indicating line position. Press enter (83) to set the selection. Select OK and press enter (83) to return to the operation menu.

Configure FPD Display

The front panel display (FPD) feature allows you to adjust the FPD display brightness. Select FPD DISPLAY CONFIGURE and press enter (83). The FPD DISPLAY CONFIGURE screen

appears:

KRELL HTS

-FPD DISPLAY CONFIGURE-

H’ BRIGHTNESS 3 ~

Press enter (83), then use 1" 4, keys (80) to select BRIGHTNESS. The range is 0 (off) (brightest, the factory default). Press enter (83) to set the selection. Select OK and press

enter (83) to return to the operation menu.

Configure serial control

This screen allows you to choose between PHASTLink and RS-232 serial control sources. Select SERIAL CONTROL CONFIGURE and press enter (83). The REMOTE FORMAT

screen appears:

KRELL HTS

-REMOTE FORMAT-

RS232

The flashing cursor appears at RS232. Press enter (83), and then use 1" 4, keys (80) to select RS232 or PHAST. Press enter (83) to set the selection. Select OK and press enter (83) to return to the operation menu.

For more information, see RS-232 Port: Sending Commands and Interpreting Data, developer’s reference shipped with the Home Theater Standard.

46 Krell Home Theater Standard

Configure Music

The next item in the OPERATION menu, CONFIGURE MUSIC, allows you to determine which music modes you want. Select CONFIGURE MUSIC and press enter (83). The MUSIC MODE SETUP screen appears:

KRELL HTS

-MUSIC MODE SETUP-

MUSIC1 MUSIC2

USE 1" $ TO SELECT

A MUSIC MODE

AND PRESS ENTER

Follow the on-screen directions, choosing MUSIC1 or MUSIC2.

You enter the select music type screen. When you enter this screen, you see a blinking cursor.

KRELL HTS

-SELECT MUSIC1 TYPE-

I,I, ON STAGE

PRESS ENTER AND USE 1" $ TO SELECT

A MUSIC TYPE

The ON STAGE option is the example used here. Each selected option activates a different virtual acoustic environment.

Select an option (ON STAGE, FRONT ROW, GENERAL ADMISSION, ORCHESTRA, MEZZANINE,

FULL RANGE AND SUB, MONO, ENHANCED STEREO, or PARTY), by pressing enter (83), then

use the $ ,[. keys (80) to scroll through the options. Press enter (83) to set the selection. Select OK and press enter (83). You return to the MUSIC MODE SETUP screen. Select

MUSIC2 and repeat the process to choose a virtual environment. Speakers active for each virtual environment are shown in the following table. If a

speaker is not present in your system, the signal is redirected to the ava.ilable speakers.

Krell Home Theater Standard 47

Virtual Acoustic Environments

ON STAGE L/R/C/S/RR

.FRONT ROW L/R/S/RR

GENERAL ADMISSION L/R/S/RR

ORCHESTRA L/R/C/S/RR MEZ.ZANIN E L/R/C/S/RR

FULL RANGE AND SUB L/R/S

MONO C/S ENHANCED STEREO L/R/C/S

PARTY L/R/C/S/RR

L=Left R=Right C=Center Speaker Speaker Speaker

S=Sub RR=Rear Speaker Speaker(s)

After the desired options are selected, select OK and then enter (83) in the MUSIC MODE SETUP SCREEN to return to the operation menu.

Program Remote

Program Remote allows you to program a learning remote control to operate the Home

Theater Standard. Select PROGRAM REMOTE and press enter (83). The PROGRAM REMOTE screen appears:

KRELL HTS

-PROGRAM REMOTE-

USE FRONT PANEL ]" $

TO SELECT A COMMAND

SAVE SENDS COMMAND

AND RECALL EXITS MODE

REMOTE INPUT IS INACTIVE

START

48 Krell Home Theater Standard

KRELL HTS

-PROGRAM REMOTE MODE-

ONLY ~’AND ,J, SAVE AND

RECALL ARE ALLOWED

ON FRONT PANEL. REMOTE

INPUT IS INACTIVE. PRESS ENTER

TO CONTINUE

Note

The infrared sensor on the front panel is rendered inactive until programming is

complete.

1. Use the 1" 4. keys (80) to select START on the PROGRAM REMOTE screen and press enter (83).

Press the front panel level buttons (30) to select a command (commands appears

the front panel display).

3. Place the programmable remote in program mode (see learning remote user manual).

Place the infrared sensor of the programmable remote so that it faces the infrared emitter (17) on the Home Theater Standard front panel.

Press and hold the save button (29) on the Home Theater Standard front panel until

the programmable remote has learned the code. (See your remote’s user manual for

information on time needed).

6. Repeat steps 2 through 5 for as many commands as desired.

7. Press the recall button (31) on the front panel to exit the program mode.

When all remote control programming is finished, press the menu key (81) to return

the main menu.

¸4.

Krell Home Theater Standard 49

Configure More

Use this menu to select dynamic range cbmpression modes with the user button or to

change the DTS autoswitch setting.

KRELL HTS

- CONFIGURE MORE-

USER BUTTON SETUP

DTS AUTOSWITCH

User Button Setup

This function allows you to either deactivate the user button or select from three

dynamic range compression modes using the programmable user button (24) on the

front panel.

KRELL HTS

-USER-

DYN RANGE TOGGLE

NONE

1. Use the 1" $ keys (80) on the remote control to select MORE on the OPERATION menu screen, and press enter (83).

The CONFIGURE MORE screen appears. Press the 1" $ keys (80) to select USER BUTTON

SETUP. Select OK and press enter (83). The USER BUTTON SETUP screen appears.

3. Highlight DYN RANGE TOGGLE to enable the user button to adjust the dynamic range of the HTS or to deactivate the user button (none).

Press enter (83) to set the selection.

5. Press menu (81) to leave the menu mode.

50 Krell Home Theater Standard

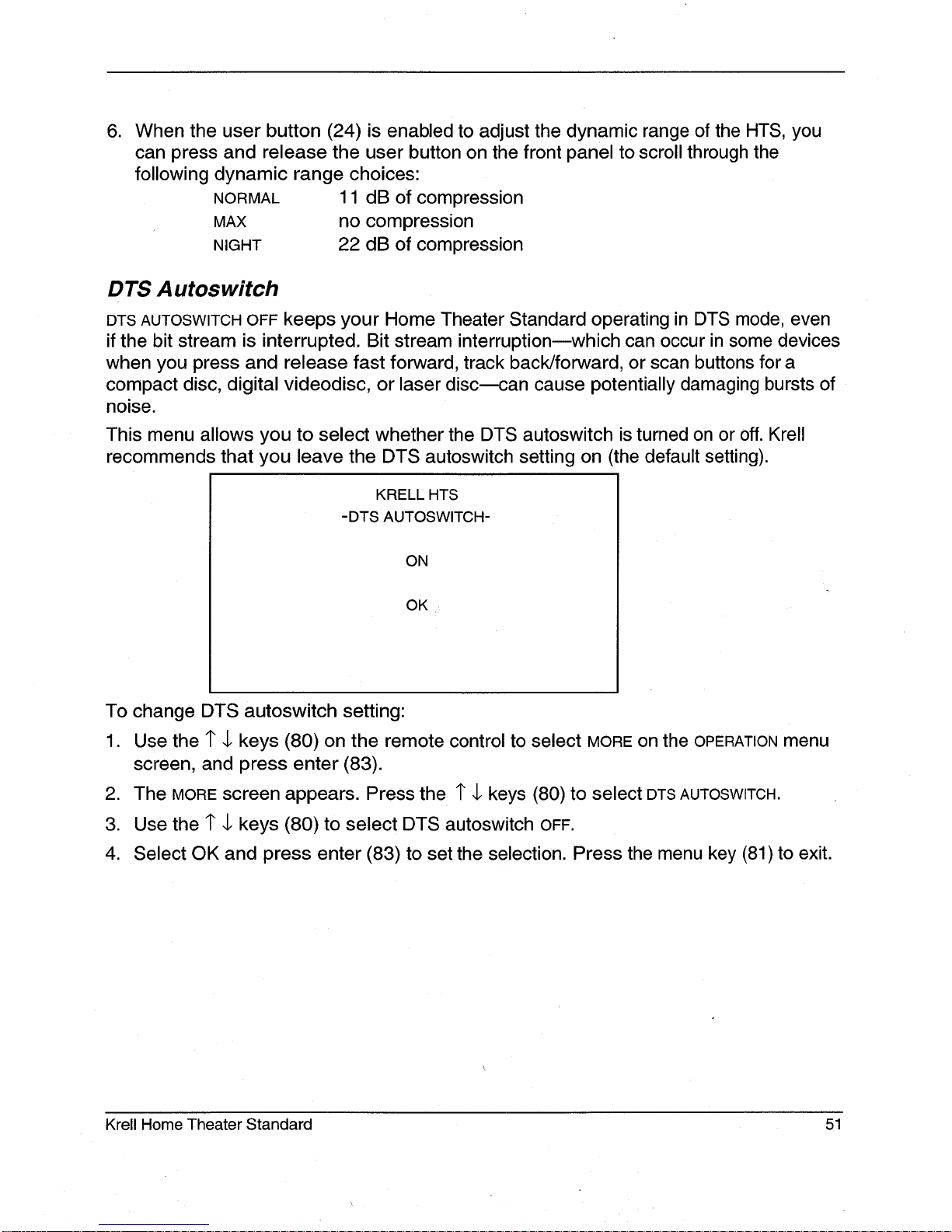

When the user button (24) is enabled to adjust the dynamic range of the HTS, you can press and release the user button on the front panel to scroll through the

following dynamic range choices:

NORMAL

11 dB of compression

MAX

no compression

NIGHT

22 dB of compression

DTS A utoswitch

DTS AUTOSWITCH OFF keeps your Home Theater Standard operating in DTS mode, even if the bit stream is interrupted. Bit stream interruptionnwhich can occur in some devices

when you press and release fast forward, track back/forward, or scan buttons for a compact disc, digital videodisc, or laser discmcan cause potentially damaging bursts of

noise.

This menu allows you to select whether the DTS autoswitch is turned on or off. Krell

recommends that you leave the DTS autoswitch setting on (the default setting).

KRELL HTS

-DTS AUTOSWITCH-

To change DTS autoswitch setting:

1. Use the 1" 4, keys (80) on the remote control to select MORE on the OPERATION menu screen, and press enter (83).

The MORE screen appears. Press the 1" $ keys (80) to select DTS AUTOSWITCH.

Use the 1" $ keys (80) to select DTS autoswitch OFF.

4. Select OK and press enter (83) to set the selection. Press the menu key (81) to exit.

Krell Home Theater Standard 51

Saving Setup, Recalling Setup, and Restoring Factory Default System Configuration Settings

SAVING SETUP SETTINGS

To save the settings that you have entered, press and hold the save button (29) for approximately four seconds. The front panel displays SAVING SETUP while the settings

are being stored in the Home Theater Standard’s nonvolatile memory.

RECALLING SETUP SETTINGS

To determine your system’s current settings, press and hold the recall button (31) for approximately four seconds. The front panel displays RECALL SETUP while the settings are being retrieved from the Home Theater Standard’s nonvolatile memory. Any settings

that have been saved will be available through recalling system setup.

RESTORING FACTORY DEFAULT SYSTEM CONFIGURATION SETTINGS

To replace all system settings with the factory default settings, follow these steps:

1. Press the front panel power button (1) to put your system into stand-by mode.

2. Simultaneously press the recall button (31) and the power button (1). The front panel displays:

PLEASE WAIT INITIALIZING

Your customized Home Theater Standard’s settings are reset to their factory default settings.

52 Krell Home Theater Standard

Operating the Home Theater Standard

After the Home Theater Standard is connected to source devices and amplifiers, and system setup configured, the Home Theater Standard is ready for operation.

ON/OFF/STAND-BY

1. Insert the AC power cord into the IEC power connector (55) on the Home Theater Standard. Insert the other end into the AC wall receptacle.

2. Move the back panel power switch (54) into the up (on) position.

3. The red stand-by LED on the front panel illuminates. The words PLEASE WAIT, INITIALIZING appear in the front panel display (23). When the initializing message

disappears, the Home Theater Standard is ready to be powered on. The front panel display shows volume, input information, and selected mode. After

five seconds of inactivity, the display becomes blank.

Use either the front panel power button (1) or the remote control HTS key (57) power on the Home Theater Standard. The blue power LED (2) on the front panel illuminates. The Home Theater Standard is now in the operational mode.

5. To return to stand-by, press the power button (1) or HTS key (57) again.

Note

Krell recommends that the back panel power switch remain up (on) at all times.

TAPE INPUT AND OUTPUT

The Home Theater Standard has a discrete tape input and output. The tape output is used to send an input signal from S-1, S-2, S-3, S-4, B-l, or an input signal from VCR1

to a recording device or processor. You can use the tape feature in three ways:

1. Use the tape input to playback pre-recorded tapes.

Use the tape input to compare the output signal of a three-head analog tape recorder to the output signal of an audio source. Press the tape button (14) or key (69) switch between the tape recorder output (LED illuminated) and the input source (LED

not illuminated).

Press a device key a second time, after the device has been selected, to change the tape output source bus to the currently selected zone. Tape out can come from the

main zone or zone 2.

Use the tape output to create a processor loop, when the Home Theater Standard is connected to a graphic equalizer or other ancillary equipment. Connect the equipment to the Home Theater Standard tape outputs (37) as described in the equipment manufacturer’s manual. Press the tape button (14) or key (69) to switch between the processor output (LED illuminated) and the input source (LED illuminated).

Krell Home Theater Standard 53

Operating the Home Theater Standard, continued

Notes ~

The tape output functions only with analog sources. When changing sources, lower the volume to off or mute the output. This ensures that

the next source played does not damage your system with a high output transient.

MAIN ZONE AND ZONE 2 OPERATION

The Home Theater Standard has two audio zones, main and zone 2. The main zone consists of the main viewing or listening area, and zone 2 consists of another listening

area. You can select a digital or analog audio, or a video device for the main zone. Zone 2 can only be used with an analog audio device. To configure a device that has both

digital and analog outputs, see Configure Devices, on page 32. The Home Theater Standard’s two-zone operation offers a number of listening options. ¯

You can play both zones simultaneously, with the main zone playing a device in one part of the house and zone 2 playing a different (or the same) device in another part of the house.

¯ With the Home Theater Standard in operational or stand-by mode, you can activate

the main zone only. Or, while the Home Theater Standard is still in stand-by mode, you can set up zone 2 listening so that when you switch to operational mode, only zone 2 plays.

You can play a device using the main zone while using zone 2 to record.

The red LED illuminates when the input is engaged and playing in the main zone. The green LED illuminates when the input is engaged and playing in zone 2.

Play Both Zones

With the Home Theater Standard in the stand-by mode:

1. Press and release the HT$ key (57) until the blue power LED illuminates,

2. Press the input device selection button or key for the device you wish to play, 3, Begin playing the device,

4. Press the Z2 key (59).

5. Press the input device selection button or key for another device to play in

zone 2. Or select the same input device button if you want the same device to play in both zones.

Begin playing the device, 7, Press the HTS key again to turn off zone 2, 8, Press the Z2 key and the HTS key again to turn off the main zone.

Krell Home Theater Standard

Play Either Zone

Main Zone

1. With the Home Theater Standard in the operational or stand-by mode, press the HTS

key (57) to activate the main zone.

2. Select the device you wish to play.

3. Press HTS key again to turn off the main zone.

Zone 2

1. With the Home Theater Standard in the stand-by mode, press the Z2 key (59).

2. Select a device; it will play in zone 2 only.

3. Press the Z2 key again to turn off zone 2. For additional remote control options, see RS-232 Port: Sending Commands and

Interpreting Data, the developer’s reference shipped with the Home Theater Standard.

Play in Main Zone and Record in Zone 2

1. Press the HTS key (57), then select the input device that you want to play through the

main zone. The main zone LEE) illuminates. Begin playing the device.

2. To record at the same time, press the zone 2 key (59), then select the device that you want to record by pressing the input device selection key. After the zone 2 device

LED illuminates, press the input device selection key again. The front panel display reads TAPE OUT CHANGED TO ZONE 2. Start playing the device that you wish to record.

Recording begins when you start playing the device.

To monitor the output being recorded, switch back to the main zone, then press the input device selection key for the device being recorded. The material being recorded play through the main zone.

4. Press the input selected for main zone playback to return the main zone to playing its original material. The recording will continue uninterrupted through zone 2.

OTHER OPERATION FEATURES

When you are listening to or viewing different devices that have different trigger settings

(configured through the setup menus), you can retain a trigger setting using the prev (79) key.

For example, you have configured your Home Theater Standard to turn on your TV

monitor when trigger 4 is on and your CD player is set for trigger 4 off. You want to watch TV and listen to a CD at the same time. If you press the TV button or key

followed by the CD button or key, the TV monitor will turn off.

Krell Home Theater Standard 55

To keep the monitor on and turn on the CD player, follow these steps:

1. Press the TV button (9) or key (63) to ~select the device. Begin playing the device.

2. Press the prev key (79).

3. Press the CD button (10) or key (64). Begin playing the device.

56 Krell Home Theater Standard

Warranty

This Krell product has a limited warranty of five years for parts and labor on circuitry. Should this product.fail to per-

form at any time during the warranty, Krell will repair it at no cost to the owner, except as set forth in this warranty.

The warranty does not apply to damage caused by acts of God or nature.

The warranty on this page shall be in lieu of any other warranty, expressed or implied, including, but not limited to,

any implied warranty of merchantability or fitness for a particular purpose. There are no warranties which exceed

beyond those described in this document. If this product does not perform as warranted herein, the owner’s sole remedy shall be repair. In no event will Krell be liable for incidental or consequential damages arising from purchase, use, or inability to use this product, even if Krell has been advised of the possibility of such damages.

Proof of purchase in the form of a bill of sale or receipted invoice substantiating that the unit is within the warranty period must be presented to obtain warranty service. The warranty begins on the date of the original retail purchase, as noted on the bill of sate or receipted invoice from an authorized Krell dealer or distributor. Previously owned equipment, when re-purchased from an authorized Krell dealer or distributor, has the balance of the original war-

ranty, based on the original date of manufacture. The warranty for Kr.ell products is valid only in the country to

which they were originally shipped, through the authorized Krell distributor for that country, and at the factory. There may be restrictions on or changes to Krell’s warranty

because of regulations within a specific country. Please check with your distributor for a complete understanding of

the warranty in your country. If a unit is serviced by a distributor who did not import the

unit, there may be a charge for service, even if the product is within the warranty period.

Freight to the factory is your responsibility. Return freight within the United States (U.S.A.) is included in the warranty.

If you purchased your Krell product outside the U.S.A. and wish to have it serviced at the factory, all freight and associated charges to the factory are your responsibility.

Krell will pay return freight to the U.S.A.-based freight forwarder of your choice. Freight and other charges to ship the

unit from the freight forwarder to you are also your responsibility.

Krell is not responsible for any damage incurred in transit. Krell will file claims for damages as necessary for units damaged in transit to the factory. You are responsible for filing

claims for shipping damages during the return shipment.

Krell does not supply replacement parts and/or products to the owner of the unit. Replacement parts and/or products will be furnished only to the distributor performing service on this unit on an exchange basis only; any parts and/or prod-

ucts returned to Krell for exchange become the property of

Krell.

No expressed or implied warranty is made for any Krell product damaged by accident, abuse, misuse, natural or personal disaster, or unauthorized modification.

Any unauthorized voltage conversion, disassembly, component replacement, perforation of chassis,

updates, or modifications performed to the unit will void the warranty.

The operating voltage of this unit is determined by the factory and can only be changed by an authorized Krell distributor or at the factory. The voltage for this product in, the U.S.A. cannot be changed until six months from the original purchase date.

In the event that Krell receives a product for warranty service that has been modified in any way without Krell authorization, all warranties on that product will be void. The product will be returned to original factory layout specifications at the owner’s expense before it is repaired. All repairs required after the product has been returned to original factory specifications will be charged to the customer, at current parts and labor rates.

All operational features, functions, and specifications and policies are subject to change without notification.

To register your product for warranty benefits,

please complete and return the Warranty

Registration Card enclosed in the shipping box within 15 days of purchase. Thank you.

Krell Home Theater Standard 57

Return Authorization Procedure

If you believe there is a problem with your component, ple&se contact your dealer, distributor, or the Krell factory to discuss the problem before you return the component for repair. To expedite service, you may wish to complete and e-mail the Service Request Form in the Service Section of our website at:

http://www.krellonline.com

To contact the Krell Service De )artment

TEL

203-799-9954

Monday-Friday 9:00 AM to 5:00 PM EST

FAX 203-799-9796 E-MAIL service @ krellonline.com

WEBSITE www.krellonline.com

Home Theater Standard

PRODUCT SERIAL NUMBER

To return this product to Krell, please

follow this procedure so that we may

serve you better:

1. Obtain a Return Authorization Number (R/A number) and shipping address

from the Krell Service Department.

2. Insure and accept all liability for loss of or damage to this product during shipment to the Krell factory and prepay all

shipping charges. Please see the Warranty page in this manual, concern-

ing liability for shipping damage and

shipping charges.

This product may also be hand delivered if arrangements with the Service Department

have been made in advance. Proof of purchase will be required for warranty validation at the time of hand delivery.

IMPORTANT

Use the original packaging to ensure safe

transit of this product to the dealer, distribu-

tor, or factor Krell may, at its discretion,

return this product in new packaging and bill

the owner for such packaging if the product

received by Krell was boxed in non-stan-

dard packaging or if the original packaging

was so damaged that it was unusable. If

Krell determines that new packaging is

required, the owner will be notified before

this product is returned.

To purchase additional packaging, please contact your authorized Krell dealer, distributor, or the Krell Service Department.

58 Krell Home Theater Standard

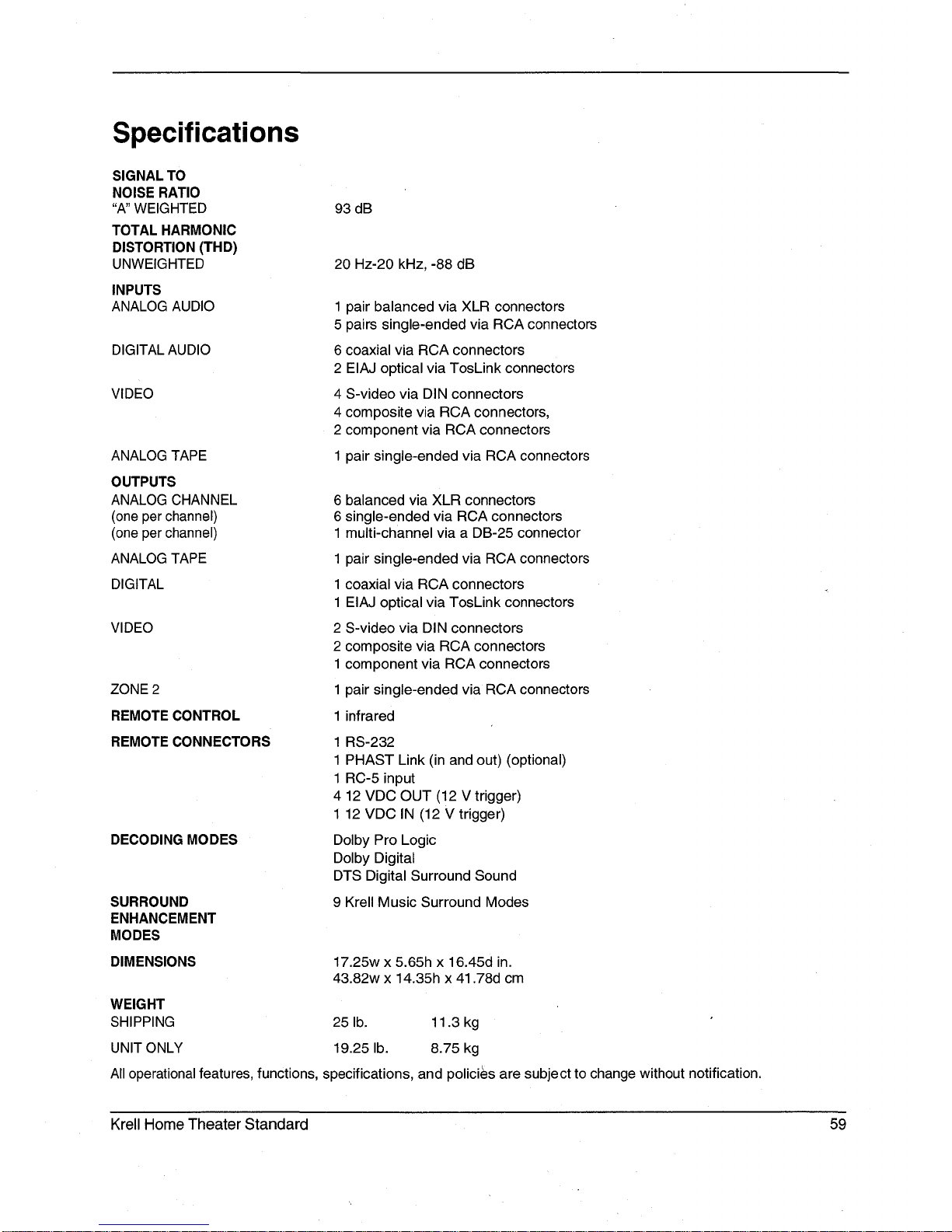

Specifications

SIGNAL TO NOISE RATIO

"A" WEIGHTED

TOTAL HARMONIC DISTORTION (THD)

UNWEIGHTED

INPUTS

ANALOG AUDIO

DIGITAL AUDIO

VIDEO

ANALOG TAPE

OUTPUTS

ANALOG CHANNEL (one per channel)

(one per channel) ANALOG TAPE

DIGITAL

VIDEO

ZONE2

REMOTE CONTROL REMOTE CONNECTORS

DECODING MODES

SURROUND ENHANCEMENT

MODES DIMENSIONS

93 dB

20 Hz-20 kHz, -88 dB

1 pair balanced via XLR connectors

5 pairs single-ended via RCA connectors 6 coaxial via RCA connectors

2 EIAJ optical via TosLink connectors 4 S-video via DIN connectors

4 composite via RCA connectors, 2 component via RCA connectors

1 pair single-ended via RCA connectors

6 balanced via XLR connectors 6 single-ended via RCA connectors

1 multi-channel via a DB-25 connector 1 pair single-ended via RCA connectors

1 coaxial via RCA connectors 1 EIAJ optical via TosLink connectors

2 S-video via DIN connectors 2 composite via RCA connectors 1 component via RCA connectors

1 pair single-ended via RCA connectors 1 infrared

1 RS-232 1 PHAST Link (in and out) (optional)

1 RC-5 input

12 VDC OUT (12 V trigger)

1 12 VDC IN (12 V trigger)

Dolby Pro Logic Dolby Digital DTS Digital Surround Sound

9 Krell Music Surround Modes

17.25w x 5.65h x 16.45d in.

43.82w x 14.35h x 41.78d cm

WEIGHT

SHIPPING

25 lb. 11.3 kg UNIT ONLY 19.25 lb. 8.75 kg All operational features, functions, specifications, and policies are subject to change without notification.

Krell Home Theater Standard 59

Krell Industries, Inc.

45 Connair Road Orange, CT 06477-3650

USA

TEL 203-799-9954

FAX 203-891-2"028 E-MAIL krell@krellonline.com

WEBSITE http://www.krellonline.com

Home Theater

Standard

Surround

Preamp/Processor

v 01.2

Krell Industries HTS 2, Home Theater Standard Instructions For Use Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
