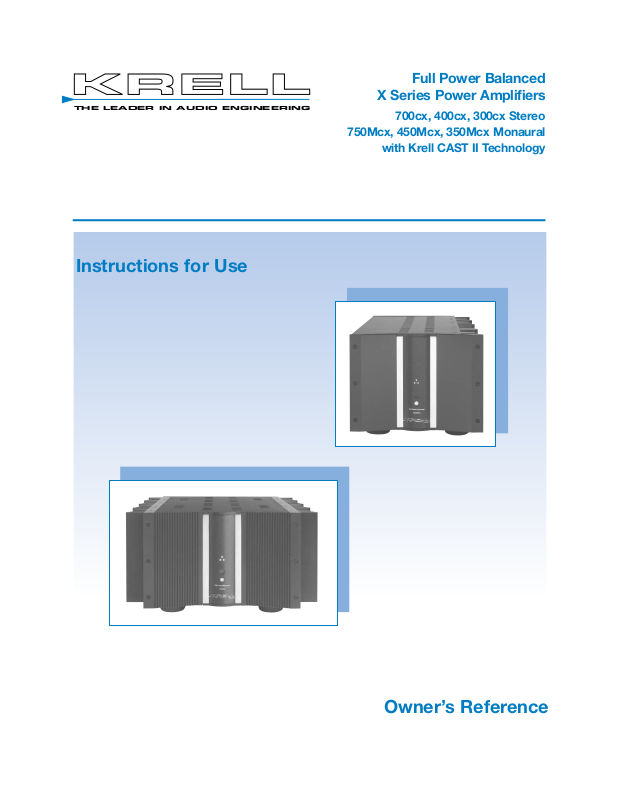

Krell 350-MCX, FPBX Owners manual

Full Power Balanced
X Series Power Amplifiers
700cx, 400cx, 300cx Stereo
750Mcx, 450Mcx, 350Mcx Monaural
with Krell CAST II Technology
THE LEADER IN AUDIO ENGINEERING
Instructions for Use
Krell Industries, Inc. 45 Connair Road Orange, CT 06477-3650 USA TEL 203-799-9954 FAX 203-891-2028 E-MAIL krell@krellonline.com WEB SITE http://www.krellonline.com
This product complies with the EMC directive (89/336/EEC) and the low-voltage directive (73/23/EEC).
The Full Power Balanced amplifier must be placed on a firm, level surface where it is not exposed to dripping or splashing.
The ventilation grids on the top of the Full Power Balanced amplifier must be unob­structed at all times during operation. Do not place flammable material on top of or beneath the component.
Before making connections to the Full Power Balanced amplifier, ensure that it is off and the preamplifier is in mute or stand-by mode. Make sure all cable termina­tions are of the highest quality and free from frayed ends, short circuits, or cold solder joints.
The differential circuitry employed with Full Power Balanced amplifiers requires special attention when connecting speakers. Do not connect the negative speaker terminals together. Do not connect the negative speaker terminals to ground or attempt to bridge the left and right speaker binding posts of Full Power Balanced stereo amplifiers.
Do not connect a Full Power Balanced amplifier to a speaker selector device that employs a common ground scheme, as it may short-circuit the amplifier output.
THERE ARE NO USER SERVICEABLE PARTS INSIDE ANY KRELL PRODUCT. Please contact your authorized Krell dealer, distributor, or Krell if you have any ques-
tions not addressed in this reference m anual.
© 2003 by Krell Industries, Inc. All rights reserved P/N 305976
Full Power Balanced X Series Power Amplifiers
700cx, 400cx, 300cx Stereo 750Mcx, 450Mcx, 350Mcx Monaural with Krell CAST II Technology
Instructions for Use
v 03.0
CONTACT INFORMATION
WARNINGS
This product is manufactured in the United States of America. Krell®is a registered trademark of Krell Industries, Inc., and is restricted for use by Krell Industries, Inc., its subsidiaries, and authorized agents. Sustained Plateau Bias III™ is a trademark of Krell Industries, Inc. and is a Krell technology based on U.S. Patent No. 5,331,291. CAST™, CAST II™, Krell Current Mode™, Krell Link™, and Krell Playback System™ are trademarks of Krell Industries, Inc. All other trademarks are registered to their respective companies.
Contents
Krell Full Power Balanced X Series Power Amplifiers iii
Page
INTRODUCTION 1 DEFINITION OF TERMS 2 REVOLUTIONARY KRELL CAST and CAST II TECHNOLOGY 4 UNPACKING 6 PLACEMENT 7
AC Power Guidelines 7
FRONT P ANELDESCRIPTION 8
700cx, 400cx, and 300cx Stereo Power Amplifiers 8 750Mcx, 450Mcx, and 350Mcx Monaural Power Amplifiers 8
BACK PANEL DESCRIPTION 10
700cx, 400cx, and 300cx Stereo Power Amplifiers 10 750Mcx, 450Mcx, and 350Mcx Monaural Power Amplifiers 10
CONNECTING THE FULL POWER BALANCED AMPLIFIER TO YOUR SYSTEM 13
Input and Output Connections 13 Krell Trigger Connections 14 DC Protection Circuitry 14 Using a Tube Preamplifier 15
AMPLIFIER OPERATION 16
On/Off and Stand-by Operation 16 Krell Trigger Operation 17
REMOTE CONTROL OPERATION 18
How to Turn Off the Amplifier LEDs 18 How to Turn On the Amplifier LEDs 18 How to Switch between Krell CAST and XLR Inputs 18 Using a Dedicated Wall Outlet and Switch 18
AMPLIFIER TROUBLESHOOTING 19
How to Troubleshoot System Noise 19
How to Evaluate Amplifier Operation 19 QUESTIONS AND ANSWERS 21 WARRANTY 23 RETURN AUTHORIZA TION PROCEDURE 24 SPECIFICA TIONS 25
Illustrations
Page
FIGURE 1 The Full Power Balanced Stereo Amplifier 8
Front Panel
FIGURE 2 The Full Power Balanced Monaural Amplifier 8
Front Panel
FIGURE 3 The Full Power Balanced Stereo Amplifier 10
Back Panel
FIGURE 4 The Full Power Balanced Monaural Amplifier 10
Back Panel
iv Krell Full Power Balanced X Series Power Amplifiers
Krell Full Power Balanced X Series Power Amplifiers 1
Introduction
Thank you for your purchase of a Full Power Balanced X Series Power Amplifier.
The Full Power Balanced X Series consists of three stereo ampli­fiers, the Full Power Balanced 700cx, 400cx, and 300cx Stereo Power Amplifiers and three monaural amplifiers, the Full Power Balanced 750Mcx, 450Mcx, and 350Mcx Monaural Power Amplifiers. Installation, connection, and operation of all amplifiers in the Full Power Balanced series are identical; however, a pair of Full Power Balanced Monaural amplifiers are required for stereo operation.
Full Power Balanced amplifiers can be configured to accommodate any sophisticated music or home theater system and can be oper­ated by an optional remote control or through the remote control of other Krell components.
This owner’s reference manual contains important information on placement, installation, and operation of the Full Power Balanced amplifiers. Please read this information carefully. Athorough under­standing of these details will help ensure satisfactory operation and long life for your Full Power Balanced amplifier and related system components.
2 Krell Full Power Balanced X Series Power Amplifiers
Definition of Terms
Following are the definitions of key terms used in your owner’s ref­erence manual.
Krell Trigger
Amethod of synchronizing remote control operation for Krell sys­tems that include multiple preamplifiers, amplifiers, and associated components. When Krell Trigger in/out connections are used, the remote capabilities of the linked components are controlled from one component, called the control component. The linked compo­nents respond to stand-by and operational mode commands from the control component via MIDI cables.
Balanced
A symmetrical input or output circuit that has equal impedance from both input terminals to a common ground reference point. The industry standard for professional and sound recording installations, balanced connections have 6 dB more gain than single-ended con­nections and allow the use of long interconnect cables. Balanced connections are completely immune to induced noise from the sys­tem or the environment.
Krell Current Audio Signal Transmission (CAST)
Aproprietary Krell circuit technology for connecting analog compo­nents, in which the audio waveform is transmitted between compo­nents in the current rather than voltage domain. The speed and bandwidth provided by Krell CAST and the CAST circuitry update, Krell CAST II, yield accurate, realistic music reproduction. Krell com­ponents connected via CAST and CAST II perform as if they are all part of a single circuit.
Single-ended
A two-wire input or output circuit. Use care when using single­ended connections as the ground connection is made last and bro­ken first. Turn the system off prior to making or breaking single­ended connections. Single-ended connections are not recommend­ed for connections requiring long cable runs.
CONFIGURATIONS
INPUT AND OUTPUT CONNECTIONS
Krell Full Power Balanced X Series Power Amplifiers 3
Off
When the power switch on the back panel is placed in the down position and the blue power LEDs turn off, the component is off.
Operational Mode
When the power button on the front panel is pressed and the three blue power LEDs illuminate, the component is in the operational mode and ready to play music.
Stand-by Mode
A low power consumption status that keeps the audio and regulator circuits at idle. Krell recommends leaving the component in the stand-by mode when it is not playing music.
Krell Current Mode
A proprietary Krell circuit topology in which the audio gain stages of a component operate in the current rather than voltage domain. This unique technology provides the component with exceptional speed and a wide bandwidth.
Krell Sustained Plateau Bias III
A patented microprocessor control system that maintains Class A bias operation regardless of musical demand. Class Abias is the most accurate method used to amplify musical signals. The new Sustained Plateau Bias III software is featured in the Full Power Balanced X Series amplifiers and was developed from the algo­rithm utilized in the Master Reference Amplifier. Sustained Plateau Bias III maximizes an amplifier’s efficiency both in power consump­tion and heat generation.
Definition of Terms,
continued
OPERATION
TECHNOLOGY
4 Krell Full Power Balanced X Series Power Amplifiers
Revolutionary Krell CAST and CAST II Technology
Current Audio Signal Transmission, termed CAST, is a revolutionary method of connecting analog audio components for unparalleled sonic performance. CAST circuitry, and the CAST circuitry update, Krell CAST II, combine innovative engineering with existing Krell Current Mode technology to create entire CAST systems that reproduce music with incredible range, tonality, and precision.
Voltage Signal Transmission and the Traditional Audio System
Traditionally, signal is transmitted in the voltage domain between two components. In an audio system, each component is a discrete entity with unique characteristics that act upon the musical signal independently. Each component is unaware of the other compo­nents in the system. The cables that connect the components each have their own electrical characteristics, which affect the sonic presentation of the entire system.
CAST: A New Approach
CAST circuitry recognizes signal transmitted in the current domain instead of the voltage domain between each component. CAST transmission unifies the individual components and their intercon­nects into an electrically linked whole. The sonic presentation of the entire system remains intact.
CAST Basics
Here’s how a CAST audio system works. Internally, each CAST source transfers, or amplifies, current using Krell Current Mode cir­cuitry. This current signal is then output using CAST circuitry. When the signal is received by a CAST input, Krell Current Mode circuitry again takes over until the signal reaches the loudspeaker. By main­taining the musical signal in the current domain from beginning to end, an entire CAST II system behaves as if it is one component. With CAST, anomalies of signal transmission between components are eliminated. Cable impedances and their effects on the transmit­ted signal are non-existent.
How CAST and Krell Current Mode Interact
While CAST is a new method of transferring the musical signal between components, its origin stems from Krell Current Mode, the technology developed to transfer the musical signal within a com­ponent. CAST combined with Krell Current Mode takes circuitry signal transmission to the next evolutionary level. In essence, Krell Current Mode maintains the integrity of the signal within the compo-
Krell Full Power Balanced X Series Power Amplifiers 5
nent and CAST preserves the transmitted signal between compo­nents. Together, CAST and Krell Current Mode technologies unify separate Krell components into a single global circuit.
CAST Cable Construction
A CAST system uses cables manufactured by Krell and other man­ufacturers specially licensed by Krell. Thin and flexible CAST cables are constructed with the same build quality as other Krell products and are aesthetically matched to the components that Krell manufactures. An all-metal body and locking connectors with gold contacts are part of the standard no-compromise specification developed for every CAST cable made.
The Best Musical Performance
When you operate a CAST system, you will hear significant improvements in every performance area: speed, precision, dynam­ic range, depth and width of the sound stage, transient impact, tonal balance, harmonic distortion, and more. The goal for CAST is the same company goal used for all Krell products. Krell strives for the delivery of the best performance of a musical event for you, using the full expression of technology to date.
Revolutionary CAST Technology,
continued
6 Krell Full Power Balanced X Series Power Amplifiers
Unpacking
Two people are needed to remove the Full Power Balanced amplifi­er from its shipping box safely and easily.
1. Open the shipping box and remove the top layer of foam. You
see these items: 1 Full Power Balanced Amplifier
1 Packet containing the Quick Setup Guide and the warranty
registration card
2. Orient the shipping box so that one person stands at the front of
the amplifier and one person stands at the back of the amplifier. Both people need to grab a pair of the cardboard handle cutouts (one pair located at the front of the amplifier and one pair located at the back of the amplifier) and simultaneously lift the amplifier straight up, out of the carton.
3. Place the amplifier in a safe location and remove the protective
plastic wrapping.
If any of the items mentioned above are not included in the ship­ping box, please contact your authorized Krell dealer, distributor, or Krell for assistance.
Save all packing materials. If you ship your Full Power Balanced amplifier in the future, repack the unit in its original packaging to prevent transit damage. See Return Authorization Procedure on page 24, for more information.
Notes
Krell Full Power Balanced X Series Power Amplifiers 7
Placement
Before you install the Full Power Balanced amplifier into your sys­tem, please follow the guidelines in this section to choose its proper location. This will facilitate a clean, trouble-free installation.
The Full Power Balanced amplifier requires at least two inches (5 cm) of clearance on each side and at least eight inches (20 cm) of clearance above the component to provide adequate ventila­tion.
Although Sustained Plateau Bias III circuitry reduces the high heat dissipation and heat output of traditional Class Acircuitry, Full Power Balanced amplifiers still can become hot under normal oper­ation.
When the front and rear of a cabinet are open the air space between the chassis and shelf must be unobstructed. If you place the amplifier in a closed cabinet, you may need to modify shelf spacing or use small fans to increase ventilation. For the dimen­sions of your Full Power Balanced amplifier, see Specifications, on pages 25–26.
Place the amplifier as close to the loudspeakers as possible. Krell CAST technology permits you to use interconnect cables of any length, see Revolutionary CAST II Technology, on page 4; how- ever, try to keep the cable length to a minimum.
All Full Power Balanced amplifiers drive the lowest impedances with ease. When impedance is added due to long speaker cable lengths, amplifier power is wasted in the cable. Long speaker cables reduce the maximum power that is delivered in the speak­ers.
The Full Power Balanced 300cx and 350Mcx amplifiers need to be operated from a dedicated AC power line rated at a minimum of 15 amps. The Full Power Balanced 700cx, 750Mcx, 400cx, and 450Mcx amplifiers need to be operated from a dedicated AC power line rated at a minimum of 20 amps.
Please contact your authorized Krell dealer, distributor, or Krell before using any devices designed to alter or stabilize the AC power for Full Power Balanced amplifiers
AC Power Guidelines
8 Krell Full Power Balanced X Series Power Amplifiers
Figure 1 The Full Power Balanced Stereo Amplifier Front Panel
Figure 2 The Full Power Balanced Monaural Amplifier Front Panel
Krell Full Power Balanced X Series Power Amplifiers 9
Front Panel Description
The front panel accesses power on/stand-by and remote control functions. The power stand-by , bias, regulator, and Krell CAST II LEDs, arranged in a triangle on the front panel above the power button, illuminate to indicate amplifier status.
1 Power Stand-by LED
The blue power stand-by LED (top of LED triangle) illuminates when the back panel power breaker switch has been moved to on, engaging the input circuitry and placing the amplifier in stand-by mode.
2 Bias LED
The blue bias LED (lower left of triangle) illuminates after the front panel power button is pressed, indicating that the Sustained Plateau Bias III is engaged.
3 Power Button
The silver power button powers on the amplifier from stand-by mode.
4Infrared Sensor
The infrared sensor receives the signal from a remote control.
5Krell CAST LED
The red Krell CAST LED (center of triangle) illuminates when a Krell CAST input on the back panel is connected to another Krell product with a Krell CAST output.
6Regulator LED
The blue regulator LED (lower right of triangle) illuminates after the front panel power button is used to power on from stand-by mode, indicating that the regulator is providing power to the output stage.
An optional remote control is available for Full Power Balanced amplifiers.
Note
10 Krell Full Power Balanced X Series Power Amplifiers
Figure 3 The Full Power Balanced Stereo Amplifier Back Panel
Figure 4 The Full Power Balanced Monaural Amplifier Back Panel
Krell Full Power Balanced X Series Power Amplifiers 11
Back Panel Description
The back panel provides connections for all inputs and outputs, power on/off, and remote control links. The back panel also has handles that allow you to safely and easily move the amplifier.
13 Left and Right Loudspeaker Binding Posts
Stereo. These amplifiers are equipped with four pairs of loud-
speaker binding posts (upper left, lower left, upper right, and lower right).
Monaural. These amplifiers are equipped with two pairs of
loudspeaker binding posts.
Two pairs of loudspeaker binding posts are used for each channel of amplification. On the stereo or monaural Full Power Balanced ampli­fiers, either the upper or the lower pair can be used with loudspeakers having two pairs of binding posts. For biwiring applications, with loud­speakers having more than one pair of binding posts, use both upper and lower pairs of loudspeaker binding posts. See the loudspeaker’s instruction manual for biwiring connections.
Loudpeaker binding posts for stereo and monaural amplifiers accept spade lugs only. Bare wire, banana lugs, or pins will not work. Use the red terminal for the positive connection and the blue terminal for the negative connection.
14 Krell CAST Inputs
The Krell CAST inputs allow the Full Power Balanced amplifier to be connected to the KPS 25sc Krell Playback System and other CAST-equipped components.
Stereo. These amplifiers are equipped with one left Krell CAST
input and one right Krell CAST input via 4-pin bayonet connec­tors.
Monaural. These amplifiers are equipped with one Krell CAST
input via 4-pin bayonet connectors.
15 Back Panel Power Breaker Switch
Place the back panel power breaker switch in the up position to put the amplifier in stand-by mode.
Krell recommends that the amplifier remain on, in stand-by mode, even when not in use, once it is powered on from the back panel power breaker switch (15).
Notes
Note
12 Krell Full Power Balanced X Series Power Amplifiers
16 Balanced Inputs
Stereo. These amplifiers are equipped with one left balanced
input and one right balanced input via XLR connectors.
Monaural. These amplifiers are equipped with one balanced
input via XLR connectors.
17 Krell Trigger Out/In
(Labeled
KRELL LINK on the back panel.)
Krell Trigger remote out/in connectors that allow a remote control to operate a linked amplifier configuration. See Krell Trigger Connections, on page 14 for more information.
An optional remote control is available for Full Power Balanced ampli­fiers.
18 AC Mains Power Cord
All Full Power Balanced amplifiers are equipped with a perma­nently attached AC power cord.
19 Handles
The handles help to move the amplifier easily and safely.
Stereo. These amplifiers are equipped with two handles,
beside the loudspeaker binding posts.
Monaural. These amplifiers are equipped with one handle,
beside the loudspeaker binding posts.
Back Panel Description,
continued
Note
Krell Full Power Balanced X Series Power Amplifiers 13
Connecting the Full Power Balanced Amplifier to Your System
Krell recommends using its proprietary Krell CAST system for unparalleled sonic performance between the Full Power Balanced amplifiers and other CAST-equipped components and the KPS 25sc Krell Playback System.
Full Power Balanced amplifiers also offer balanced operation. The circuitry and connections associated with balanced operation not only can minimize sonic loss but also are immune to induced noise, especially for installations using long cables.
Aone piece RCA-to-XLR adapter is available from Krell Industries, to allow single-ended operation using the balanced XLR inputs.
The following steps describe how to connect cables to the Full Power Balanced Amplifiers.
1. Turn all pwer sources and components off before connecting
inputs and outputs.
2. Neatly arrange and organize wiring to and from the amplifier
and all components. Separate AC wires from audio cables to prevent hum or other unwanted noise from being introduced into the system.
3. Connect the Krell CAST cables from your CAST-enabled pre-
amplifier/source component to the left and right Krell CAST 4-pin bayonet inputs (14) on the amplifier back panel. For bal­anced operation, connect the interconnect cable from your pre­amplifier to the left and right balanced XLR input (16) on the amplifier back panel.
4. Connect the loudspeaker cables to the Full Power Balanced
amplifier’s loudspeaker binding posts (13), located on the ampli­fier back panel. Loudspeaker binding posts for both stereo and monaural amplifiers accept spade lugs only.
5. Insert the end of the AC mains power cord (18) into the AC wall
receptacle.
6. Proceed with Krell Trigger Connections, if desired, or turn to
Amplifier Operation, on page 16.
INPUT AND OUTPUT CONNECTIONS
CONNECTION STEPS
14 Krell Full Power Balanced X Series Power Amplifiers
Krell Trigger remote out/in connectors (17) on the back panel of the Full Power Balanced amplifier (labeled
KRELL LINK) allow you to syn-
chronize remote control operation for systems that include multiple amplifiers and associated components. When the Krell Trigger remote out/in connectors are used, the remote capabilities of the linked components are controlled from one amplifier or preamplifier, called the control component. The linked components respond to stand-by and operational mode commands from the control compo­nent via MIDI cables.
Krell Trigger uses standard five pin MIDI communication cables, sometimes referred to as MIDI Plus cables. MIDI cables can be purchased from your authorized distributor or dealer, or from an audio supply store.
1. Turn all components off, using the back panel power breaker
switch. This ensures that the components are synchronized when the MIDI cable is connected.
2. Select the component to be the control component. The control
component must be in plain view for proper remote control oper­ation.
3. Connect one end of the MIDI cable to the Krell Trigger out con-
nector (17) on the back panel of the component.
4. Connect the other end of the MIDI cable to the Krell Trigger in connector on the next component.
To link another component, connect a second MIDI cable to the Krell Trigger out connector on the back panel of the second com­ponent. Connect the remaining end of the MIDI cable to the Krell Trigger in connector on the back panel of a third component.
5. To link additional components, if desired, see Steps 3 and 4.
The components are now ready for operation with Krell Trigger.
Full Power Balanced amplifiers use unobtrusive direct current (DC) protection circuitry that strips DC from the signal without corrupting sound reproduction. Full Power Balanced amplifiers feature direct coupled circuitry from input to output. This topology eliminates all coupling capacitors from the audio signal path. Coupling capacitors block damaging DC but have sonic characteristics that corrupt sound reproduction.
For more information about DC protection circuitry features, see Amplifier Troubleshooting, on page 19.
How to Connect Components Using Krell Trigger
Note
Note
KRELL TRIGGER CONNECTIONS
DC PROTECTION CIRCUITRY
Connecting,
continued
Krell Full Power Balanced X Series Power Amplifiers 15
The high DC output of tube preamplifiers may exceed the DC pro­tection circuitry of Full Power Balanced amplifiers. Excessive DC level in a signal can damage amplifiers, speakers, or both. The coupling capacitors in Full Power Balanced amplifiers must be engaged when using a tube preamplifier. An authorized Krell deal­er, distributor, or Krell must activate these capacitors.
Coupling capacitors must be inserted into the signal path by your authorized Krell dealer, distributor, or Krell before you can use your Full Power Balanced amplifier with a tube preamplifier.
Please read Warranty, on page 23, to understand the warranty limi­tations of Full Power Balanced amplifiers when used with tube pre­amplifiers.
USING A TUBE PREAMPLIFIER
Connecting,
continued
IMPORTANT
16 Krell Full Power Balanced X Series Power Amplifiers
Amplifier Operation
Full Power Balanced amplifiers are easy to install and operate. How­ever, it is important to exercise care during operation, due to the amplifiers’ enormous power output. Switching between active sources (such as a CD player, tape monitor, or VCR) without muting the preamplifier output, or bumping or miscuing a source can gener­ate large transients at low frequencies. Full Power Balanced ampli­fiers may generate enough power with these transients to damage loudspeakers.
Always mute or fully attenuate the preamplifier level when switching sources.
Do not change input connections to the amplifier when the amplifier is on.
Use care when setting high playback levels. Because of their tremen­dous reserves of clean power, Full Power Balanced amplifiers can safely drive speakers to higher sound pressure levels than other amplifiers. Lower the volume level at the first sign of loudspeaker dis­tress.
When powering on any system, turn on amplifiers last. Turn off ampli­fiers first.
1. Move the back panel power breaker switch (15) to the up position
to engage the input circuitry and place the amplifier into the stand-by mode. The front panel blue power stand-by LED (1) illu­minates.
2. Press the silver power button (3) on the amplifier front panel. The
blue regulator LED (6) illuminates. Once the regulator provides power to the output stage, the blue bias LED (2) illuminates. The Sustained Plateau Bias III system is now engaged. After the pro­tection circuitry has confirmed that safe operating conditions exist, the input relays engage. You hear a click. The amplifier is ready for operation.
If the Krell CAST input is being used, the Krell CAST red LED (5) illuminates and remains illuminated at all times during stand-by or on modes.
3. With the preamplifier muted or volume control completely low-
ered, select a source. Increase the volume control to the desired listening level.
4. To turn the amplifier off, place the Full Power Balanced amplifier
in the stand-by mode by pressing the power button on the front panel. It is now safe to turn off the rest of the system.
For best Full Power Balanced amplifier performance, leave the back panel power breaker switch on at all times.
ON/OFF AND STAND-BY OPERATION
Note
IMPORTANT
Krell Full Power Balanced X Series Power Amplifiers 17
1. When all components are linked, see How to Connect Com-
ponents Using Krell Trigger, on page 14, place each compo­nent in the stand-by mode by moving the back panel power breaker switch to the up position. This ensures that all compo­nents will be synchronized when signals from the control com­ponent are sent to the linked components in the system.
2. When the components are in stand-by, switch the control com-
ponent to the operational mode from the control component’s front panel or by using the component’s remote control.
The linked components switch to the operational mode simulta­neously.
KRELL TRIGGER OPERATION
Operation,
continued
18 Krell Full Power Balanced X Series Power Amplifiers
Remote Control Operation
Full Power Balanced amplifiers are compatible with the remote con­trols included with Krell preamplifiers, the Home Theater Standard
7.1, and the KPS 25sc Krell Playback System.
Please contact your authorized Krell dealer, distributor, or Krell to purchase a remote control for Full Power Balanced amplifiers.
Full Power Balanced amplifiers can be located in a room or space close to the speakers but out of sight, and powered on or off remotely from the listening room, through a control amplifier. See Krell Trigger Connections, on page 14.
The amplifier must be in the stand-by mode with the rear panel power breaker switch on. While holding the silver power button in, press the power key on the remote control. After the amplifier fin­ishes its turn-on sequence, the front panel blue LEDs turn off. The blue LEDs remain off throughout normal operation as long as the amplifier’s rear panel power breaker switch is not turned off.
With the amplifier in the stand-by mode, turn the rear panel power breaker switch to the off position. Then turn the rear panel power breaker switch back to the on position. The next time the amplifier is powered up from the front panel or the remote control, the blue LEDs illuminate during the turn-on sequence.
Press the meter key on a Krell remote to switch between CAST inputs and the balanced XLR inputs.
Full Power Balanced amplifiers default to CAST operation upon start­up, if the amplifier is turned off from the rear panel power breaker switch and a CAST source and cable are connected to the CAST inputs. The operational mode does not change if the Full Power Balanced amplifier is in stand-by mode.
Full Power Balanced amplifiers can be powered on from an AC wall receptacle with a dedicated switch, rather than from the front panel power button or optional remote control.
Please contact your authorized Krell dealer, distributor, or Krell for more information before you connect your Full Power Balanced amplifier to a dedicated AC wall outlet with a switch.
HOW TO TURN OFF THE AMPLIFIER LEDs
HOW TO TURN ON THE AMPLIFIER LEDs
HOW TO SWITCH BETWEEN KRELL CAST AND XLR INPUTS
USING A DEDICATED WALL OUTLET AND SWITCH
Krell Full Power Balanced X Series Power Amplifiers 19
Amplifier Troubleshooting
AC grounding becomes critical when connecting high performance audio components. When you mix and match audio components, each with its own ground potential, a low frequency hum may occur in one or both loudspeakers. This often occurs when introducing a new component into a system.
If a low frequency hum emanates from the loudspeakers when you place the Full Power Balanced amplifier into the system, follow these simple troubleshooting steps:
During these steps, the back panel power breaker switch remains in the on position.
1. Check all input and output connections, making sure they are of
sound construction. With the amplifier in stand-by mode, remove the interconnect cables, then press the front panel power button. If the hum disappears, press the power button to return to stand-by mode, and reinsert one of the interconnect cables. Press the power button again. If the hum reappears with one or both interconnects inserted, there may be a defec­tive cable. Have the interconnect cables checked before pro­ceeding.
2. If the interconnect cables are sound, you may be experiencing
a ground loop. This can often be easily eliminated. Please con­tact your authorized Krell dealer, distributor, or Krell for sugges­tions on how to solve this problem.
Full Power Balanced amplifiers are protected by a series of nonin­trusive circuits that constantly evaluate the amplifier’s operation. This circuitry protects against damaging DC input or output and short circuits, see also DC Protection Circuitry, on page 14, and monitors regulator operation, ensuring constant voltage to the out­put stage. The protection circuitry in a Full Power Balanced amplifi­er is designed to prevent damage to the amplifiers or loudspeakers caused by other defective components, faulty wiring, system mis­handling, or amplifier failure.
In addition, when a Full Power Balanced amplifier’s DC protection circuitry senses a problem within the system, it identifies, then indi­cates the problem by illuminating the front panel blue LEDs, as described in the following table.
The Krell CAST LED illuminates only if a Krell CAST input is being used.
There are no output fuses in Full Power Balanced amplifiers.
HOW TO TROUBLESHOOT SYSTEM NOISE
HOW TO EVALUATE AMPLIFIER OPERATION
Notes
Note
20 Krell Full Power Balanced X Series Power Amplifiers
If the course of action listed in the table below does not correct the situation, please contact your authorized Krell dealer, distributor, or Krell.
Amplifier Operation,
continued
AMPLIFIER CONDITION
The output mutes during play­back and the following LEDs illuminate: power stand-by, and regulator bias
The amplifier switches to stand-by mode and the power stand-by LED illuminates
The amplifier switches to stand-by at high volumes and the power stand-by LED illu­minates
The amplifier powers down completely and no LEDs illu­minate
POSSIBLE CAUSES
Excessive DC at the amplifier input
Electrical short in loudspeaker cables or inside loudspeaker
Insufficient AC current from the wall outlet
Excessive heat
DC present at the output stage
Internal amplifier problem
COURSE OF ACTION
Have source unit and preamplifier checked for high DC output
If preamplifier is a tube model, see Using a Tube Preamplifier, on page 15.
Check all loudspeaker cables for any cuts or frayed edges that might form a connection between the positive and neg­ative speaker binding post ter­minals
Make sure the AC line is at least 15 amps for 300cx and 350Mc amplifiers; 400cx, 450Mcx, 700cx, and 750Mcx amplifiers should be operated from a dedicated 20 amp line.
Allow amplifier to cool before resuming operation. See Placement, on page 7, for ventilation requirements
Contact your authorized Krell dealer, distributor, or Krell
Contact your authorized Krell dealer, distributor, or Krell
Krell Full Power Balanced X Series Power Amplifiers 21
Questions and Answers
Q. Should I leave my Full Power Balanced amplifier on at all times? A. For maximum amplifier performance, leave the back panel power
breaker switch on at all times. This places the amplifier in stand­by mode. Full Power Balanced amplifiers are designed to be powered on and off from stand-by, using the front panel power button. This eliminates “cold start” degradations. The amplifier will operate at full performance within minutes.
Q. When I turn on the amplifier there is a loud hum through the loud-
speakers. What should I do?
A. When a new component is introduced, a low frequency hum may
occur in one or both loudspeakers. Check all input and output connections and cables, making sure they are of sound construc­tion. See How to Troubleshoot System Noise, on page 19. If the interconnects and cables are sound, you may be experienc­ing a ground loop. This can often be easily eliminated. Please contact your authorized Krell dealer, distributor, or Krell for sug­gestions on how to solve this problem.
Q. My system includes multiple pairs of loudspeakers. Can I connect
them to my Full Power Balanced amplifiers through a loudspeak­er selector box?
A. No. Most loudspeaker selector boxes use a common ground
scheme. The differential circuitry in Full Power Balanced ampli­fiers prohibits the use of these devices. Do not connect a Full
Power Balanced amplifier to a loudspeaker selector device that employs a common ground scheme, as it may shortcir­cuit the amplifier output.
Q. My loudspeakers have only one pair of binding posts, but my Full
Power Balanced stereo amplifier has two pairs. Which pair of loudspeaker binding posts should I use, the upper or the lower?
A. The upper and lower pair of loudspeaker binding posts on Full
Power Balanced stereo amplifiers are identical. You can use either the upper or lower pair; they work and sound the same. See Connecting the Full Power Balanced Amplifier to Your System, on page 13.
Q. My loudspeakers are rated for 150 Watts. Are the Full Power
Balanced 400cx or 700cx models too powerful for them?
A. No. Aloudspeaker seldom is damaged from overdriving. More
often, damage occurs when an amplifier that lacks sufficient power is asked to handle heavy demand situations such as high playback levels. These amplifiers may have very high 8 Ohm
22 Krell Full Power Balanced X Series Power Amplifiers
power ratings, but in heavy demand situations they can be driven into clipping (in which DC current goes to the loudspeakers due to loss of amplifier power). Clipping can damage loudspeakers. Avoid damage to your speakers by reviewing your loudspeaker specifications and exercise caution in heavy demand situations.
Questions and Answers,
continued
Krell Full Power Balanced X Series Power Amplifiers 23
Warranty
This Krell product has a limited warranty of five years for parts and labor on circuitry. Should this product fail to perform at any time during the warranty, Krell will repair it at no cost to the owner, except as set forth in this warranty.
The warranty does not apply to damage caused by acts of God or nature. The warranty on this page shall be in lieu of any other warranty, expressed or implied, includ-
ing, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. There are no warranties which exceed beyond those described in this document. If this product does not perform as warranted herein, the owner’s sole remedy shall be repair. In no event will Krell be liable for incidental or consequential damages arising from purchase, use, or inability to use this product, even if Krell has been advised of the possibility of such damages.
Proof of purchase in the form of a bill of sale or receipted invoice substantiating that the unit is within the warranty period must be presented to obtain warranty service. The warranty begins on the date of the original retail purchase, as noted on the bill of sale or receipted invoice from an authorized Krell dealer or distributor. Previously owned equipment, when re-purchased from an authorized Krell dealer or distributor, has the balance of the original warranty, based on the original date of manufacture.
The warranty for Krell products is valid only in the country to which they were originally shipped, through the authorized Krell distributor for that country, and at the factory. There may be restric­tions on or changes to Krell’s warranty because of regulations within a specific country. Please check with your distributor for a complete understanding of the warranty in your country.
If a unit is serviced by a distributor who did not import the unit, there may be a charge for serv­ice, even if the product is within the warranty period.
Freight to the factory is your responsibility. Return freight within the United States (U.S.A.) is included in the warranty. If you have purchased your Krell product outside the U.S.A. and wish to have it serviced at the factory, all freight and associated charges to the factory are your responsibility. Krell will pay return freight to the U.S.A.-based freight forwarder of your choice. Freight and other charges to ship the unit from the freight forwarder to you are also your responsibility.
Krell is not responsible for any damage incurred in transit. Krell will file claims for damages as necessary for units damaged in transit to the factory. You are responsible for filing claims for shipping damages during the return shipment.
Krell does not supply replacement parts and/or products to the owner of the unit. Replacement parts and/or products will be furnished only to the distributor performing service on this unit on an exchange basis only; any parts and/or products returned to Krell for exchange become the property of Krell.
No expressed or implied warranty is made for any Krell product damaged by accident, abuse, misuse, natural or personal disaster, or unauthorized modification.
Any unauthorized voltage conversion, disassembly, component replacement, perfora­tion of chassis, updates, or modifications performed to the unit will void the warranty.
The operating voltage of this unit is determined by the factory and can only be changed by an authorized Krell distributor or at the factory. The voltage for this product in the U.S.A. cannot be changed until six months from the original purchase date.
In the event that Krell receives a product for warranty service that has been modified in any way without Krell authorization, all warranties on that product will be void. The product will be returned to original factory layout specifications at the owner’s expense before it is repaired. All repairs required after the product has been returned to original factory specifications will be charged to the customer, at current parts and labor rates.
All operational features, functions, specifications, and policies are subject to change without notification.
IMPORTANT The user is responsible for noti­fying his or her Krell dealer, dis­tributor, or Krell that a tube pre­amplifier will be used with the Full Power Balanced amplifier, so that the Krell dealer, distribu­tor, or Krell can activate the cou­pling capacitors. If the user does not notify the Krell dealer, dis­tributor, or Krell and uses a tube preamplifier without the Full Power Balanced amplifier’s cou­pling capacitor engaged, Krell reserves the right to refuse war­ranty related service due to DC­related damage.
To register your product for warranty benefits, please complete and return the Warranty Registration Card enclosed in the shipping box within 15 days of purchase. Thank you.
24 Krell Full Power Balanced X Series Power Amplifiers
Return Authorization Procedure
If you believe there is a problem with your component, please con­tact your dealer, distributor, or the Krell factory to discuss the problem before you return the component for repair. To expedite service, you may wish to complete and e-mail the Service Request Form in the Service section of our website at:
http://www.krellonline.com
To return a product to Krell, please follow this procedure so that we may serve you better:
1. Obtain a Return Authorization Number (R/Anumber) and ship­ping address from the Krell Service Department.
2. Insure and accept all liability for loss or damage to the product during shipment to the Krell factory and ensure all freight (ship­ping) charges are prepaid.
The product may also be hand delivered if arrangements with the Service Department have been made in advance. Proof of purchase will be required for warranty validation at the time of hand delivery.
Use the original packaging to ensure the safe transit of the product to the factory, dealer, or distributor. Krell may, at its discretion, return a product in new packaging and bill the owner for such packaging if the product received by Krell was boxed in nonstandard packaging or if the original packaging was so damaged that it was unusable. If Krell determines that new packaging is required, the owner will be notified before the product is returned.
HOW TO RETURN A PRODUCT
IMPORTANT
To purchase additional packaging, please contact your authorized Krell dealer, distributor, or the Krell Service Department for assis­tance.
HOW TO PURCHASE ADDITIONAL PACKING
To contact the Krell Service Department:
TEL 203-799-9954
Monday-Friday, 9:00 am to 5:00 pm EST FAX 203-799-9796 E-MAIL service@krellonline.com WEB SITE http://www.krellonline.com
HOW TO EXPEDITE SERVICE
Krell Full Power Balanced X Series Power Amplifiers 25
Specifications for Full Power Balanced X-Series Stereo Amplifiers
FPB 300cx FPB 400cx FPB 700cx
FREQUENCY RESPONSE 20 Hz to 20 kHz 20 Hz to 20 kHz 20 Hz to 20 kHz
+0 dB, -0.05 dB +0 dB, -0.05 dB +0 dB, -0.05 dB
0.1 Hz to 240 kHz 0.1 Hz to 240 kHz 0.1 Hz to 240 kHz +0 dB, -3 dB +0 dB, -3 dB +0 dB, -3 dB
SIGNAL TO NOISE RATIO 113 dB 117 dB 120 dB
“A” WEIGHTED
GAIN 26.4 dB 26.4 dB 26.4 dB TOTAL HARMONIC 1 kHz <0.03% 1 kHz <0.03% 1 kHz <0.03%
DISTORTION (THD) 20 kHz <0.16% 20 kHz <0.16% 20 kHz <0.16%
ALL BALANCED, UNWEIGHTED
INPUT IMPEDANCE 100 kOhms 100 kOhms 100 kOhms INPUT SENSITIVITY 2.34 Vrms 2.71 Vrms 3.58 Vrms OUTPUT POWER 8 Ohms 300 W 8 Ohms 400 W 8 Ohms 700 W
EACH CHANNEL DRIVEN 4 Ohms 600 W 4 Ohms 800 W 4 Ohms 1,400 W
2 Ohms 1200 W 2 Ohms 1,600 W 2 Ohms 2,800 W
OUTPUT VOLTAGE Peak to Peak138 V Peak to Peak170 V Peak to Peak240 V
RMS 49 V RMS 60 V RMS 84 V
POWER CONSUMPTION Stand-by 60 W Stand-by 75 W Stand-by 85 W
Idle 175 W Idle 350 W Idle 430 W Max. 1,700 W Max. 3,000 W Max. 6,000 W
INPUTS 1 pair balanced via 1 pair balanced via 1 pair balanced via
XLR connectors XLR connectors XLR connectors 1 pair CAST via 4-pin 1 pair CAST via 4-pin 1 pair CAST via 4-pin bayonet connectors bayonet connectors bayonet connectors
OUTPUTS 4 pair (upper left, 4 pair (upper left, 4 pair (upper left
SPEAKER BINDING POSTS lower left, upper right lower left, upper right lower left, upper right
lower right) lower right) lower right)
REMOTE CONTROL Optional Optional Optional
DIMENSIONS
INCHES 19.0w x 10.3h x 17.0d 19.0w x 10.3h x 19.7d 19.0w x 10.3hx 25.5 CENTIMETERS 48.3w x 26.2h x 43.2d 48.3w x 26.2h x 50.0d 48.3wx 26.2hx 64.8d
WEIGHT
SHIPPING 107.0 lb., 48.6 kg 127.0 lb., 57.7 kg 200.0 lb., 90.9 kg UNIT ONLY 90.0 lb., 40.9 kg 110.0 lb., 50.0 kg 180.0 lb., 81.8 kg
All operational features, functions, specifications, and policies are subject to change without notification.
26 Krell Full Power Balanced X Series Power Amplifiers
Specifications for Full Power Balanced X-Series Monaural Amplifiers
FPB 350Mc FPB 450Mc FPB 750Mc
FREQUENCY RESPONSE 20 Hz to 20 kHz 20 Hz to 20 kHz 20 Hz to 20 kHz
+0 dB, -0.05 dB +0 dB, -0.05 dB +0 dB, -0.05 dB
0.1 Hz to 240 kHz 0.1 Hz to 240 kHz 0.1 Hz to 240 kHz +0 dB, -3 dB +0 dB, -3 dB +0 dB, -3 dB
SIGNAL TO NOISE RATIO 114 dB 118 dB 121 dB
“A” WEIGHTED
GAIN 26.4 dB 26.4 dB 26.4 dB TOTAL HARMONIC 1 kHz <0.03% 1 kHz <0.03% 1 kHz <0.03%
DISTORTION (THD) 20 kHz <0.16% 20 kHz <0.16% 20 kHz <0.16%
ALL BALANCED, UNWEIGHTED
INPUT IMPEDANCE 100 kOhms 100 kOhms 100 kOhms INPUT SENSITIVITY 2.53 Vrms 2.87 Vrms 3.71 Vrms OUTPUT POWER 8 Ohms 350 W 8 Ohms 450 W 8 Ohms 750 W
EACH CHANNEL DRIVEN 4 Ohms 700 W 4 Ohms 900 W 4 Ohms 1,500 W
2 Ohms 1,400 W 2 Ohms 1,800 W 2 Ohms 3,000 W
OUTPUT VOLTAGE Peak to Peak138 V Peak to Peak170 V Peak to Peak240 V
RMS 49 V RMS 60 V RMS 84 V
POWER CONSUMPTION Stand-by 30 W Stand-by 37.5 W Stand-by 42.5 W
Idle 150 W Idle 175 W Idle 220 W Max. 1,700 W Max. 3,000 W Max. 6,000 W
INPUTS 1 balanced via 1 balanced via 1 balanced via
XLR connectors XLR connectors XLR connectors 1 Krell CAST via 4-pin 1 Krell CAST via 4-pin 1 Krell CAST via 4 pin bayonet connectors bayonet connectors bayonet connectors
OUTPUTS 2 pair (one upper, 2 pair (one upper, 2 pair (one upper,
SPEAKER BINDING POSTS one lower) one lower) one lower)
REMOTE CONTROL Optional Optional Optional
DIMENSIONS
INCHES 12.5w x 10.5h x 16.0d 12.5w x 10.5h x 19.0d 12.5w x 10.5h x 25.0d CENTIMETERS 31.8w x 26.7h x 40.6d 31.8w x 26.7h x 48.3d 31.8w x 26.7h x 67.3d
WEIGHT
SHIPPING 79.0 lb., 35.9 kg 110.0 lb., 50.0 kg 155.0 lb., 70.5 kg UNIT ONLY 68.0 lb., 31.0 kg 98.0 lb., 44.5 kg 140.0 lb., 63.6 kg
All operational features, functions, specifications, and policies are subject to change without notification.
Krell Industries, Inc. 45 Connair Road Orange, CT 06477-3650 USA
TEL 203-799-9954, FAX 203-891-2028 E-MAIL krell@krellonline.com WEB SITE www.krellonline.com
Full Power Balanced
X Series Power Amplifiers
700cx, 400cx, 300cx Stereo
750Mcx, 450Mcx, 350Mcx Monaural
with Krell CAST II Technology
v03.0
Loading...
