Krell Industries Audio + Video Standard Surround Preamp/Processor, Standard Surround Preamp/Proce Owner's Reference Manual

Audio + Video Standard

Surround

Preamp/Processor

Instructions for Use, v 98.3

Owner’s Reference

Audio + Video Standard
Surround Preamp/Processor

CONTENTS

Krell® Industries, Inc.
45 Connair Road
Orange, CT 06477-3650

USA

TEL [phone]

FAX [phone]
E-MAIL krell @ krellonli ,ne.com

WEB SITE ~.krellonline.com

INTRODUCTION
UNPACKING
PLACEMENT

FRONT PANEL
DESCRIPTION

BACK PANEL
DESCRIPTION

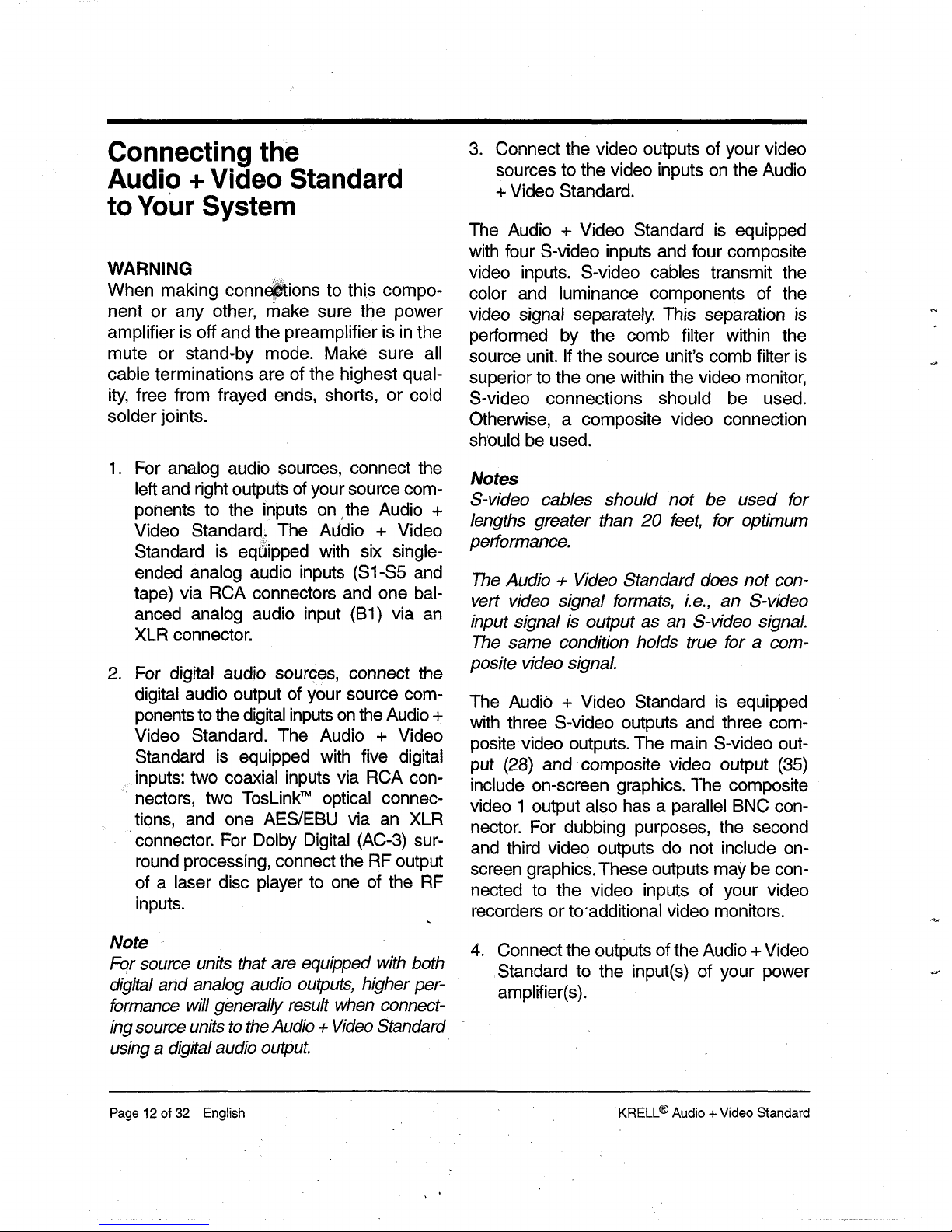

CONNECTING THE AUDIO + VIDEO
STANDARD TO YOUR SYSTEM

REMOTE CONTROL
DESCRIPTION

SYSTEM CONFIGURATION
OPERATION
SAVING, RECALLING, AND

CLEARING CONFIGURATION
SET-rINGS

WARRANTY
RETURN AUTHORIZATION

PROCEDURE
SPECIFICATIONS

3
3
4

5

9

12

13

18

26

29
3O

31

Back Cover

ILLUSTRATIONS

Figure 1 FRONT PANEL
Figure 2 BACK PANEL

Figure 3 REMOTE CONTROL

Page

8

11

16

998 by KRELL® Industries, Inc. All rights reserved

P/N 1960101900389

CE Marking

This ’product complies with the EMC direc­tive (89/336/EEC) and the low-voltage direc­tive (73/23/EEC).

¯

Introducbon

Thank you for your purchase of the Krell

®

Audio + Video Standard. To obtain the best

performance from your Audio + Video

Standard surround preamp/processor, pay

careful attention to its placement, installa-

tion, and operation. A thorough understand-

ing of these details will help insure satisfac-

tory operation andlong life for the Audio +

Video Standard and related’ system compo-

nents.

~

THERE ARE NO USER-SERVICEABLE

PARTS INSIDE ANY KRELL® PRODUCT.

Please contact your authorized dealer,

distributor, or KrelP, if you have any ques-

tions not addressed in this reference

manual.

Unpacking

1. Open the box and remove the top layer of
foam. You will see these items:

1 Audio + Video Standard
1 AC power cord

1 Audio + Video remote control
4 AAA batteries
1 T-10 Torx wrench

1 packet containing an introductory

letter from Dan D’Agostino, C.E.O.,

the Owner’s Reference, and the
Warranty Registration Card

Note

If any of these items are not included, please
contact your authorized Krell® dealer or dis­tributor immediately for assistance.

Carefully remove the unit and acces-

sories from the box. Remove the protec-

tive plastic wrap from the unit.

Note

Save all packing materials, ff you must ship
your Audio + Video Standard in the future,
repack the unit in its original packaging to
prevent transit damage.

KRELL® Audio + Video Standard English Page 3 of 32

Placement

WARNING

The surround preamp/processor must not

be located where it could be exposed to drip­ping or splashin~luids.

IMPORTANT

The ventilation grids and cooling fan on the
top of the Audio + Video Standard need to
be unobstructed at all times during opera­tion. Do not place flammable material on
top of or beneath the Audio + Video
Standard. For installations inside cabinet04,
make sure the Audio ÷ Video Standard has
adequate air circulation. Contact your dealer,
distributor or Krell~ for further information.

Before you install the Audio + Video
Standard. into your system, review the

following guidelines to choose the opti-

mum location for placement. This will
help ensure a clean, trouble-free installa-

tion. For the dimensions of the Audio +

Video Standard, see Specifications on
back cover.

Place the Audio + Video Standard surround
preamp/processor on a firm level surface
away from dirt or moisture. A minimum spac­ing of three inches must exist between the
Audio + Video Standard and surrounding
components to ensure proper ventilation.

AC POWER GUIDELINES

WARNING

Do not remove or bypass the ground pin
on the end of the AC cord. This may cause

RFI (radio frequency interference) to

induced into your playback system.

The Audio + Video Standard has superb reg­ulation and does not require a dedicated AC
circuit. Avoid connections through extension
cords or multiple AC adapters. High quality,

15 ampere, grounded AC strips are accept­able. High quality AC line conditioners or fil­ters may be used if they are grounded.

Page 4 of 32 English KRELL® Audio + Video Standard

Front Panel
Description

See Figure 1 on page 8

1 Tape

A tape monitor al!~ws you to compare the
output from your a~log tape recorder to the

original source while making a recording.
After selecting a source for recording (B1,
$1-$5), press the tape button to toggle
between the tape recorder output (LED illu­minated) and the input source (LED not illu-

minated).

2 Analog In

The Analog In button activates the analog

input and cycles .through the six analog
audio inputs. B1 is a balanced input via XLR
connectors. $1-$5 are single-ended inputs
via RCA connectors.

3 Digital In

The Digital In button activates the digital

input and cycles through the six digital audio

inputs (C1, C2, T1, T2, XLR, and RF). The

main display will show RF IN when the RF

input for Dolby Digital (AC-3) is selected.

C1 and C2 are coaxial inputs via RCA
connectors.

T1 and T2 are TosLink

TM

inputs.

XLR is an AES/EBU connection.

RF is available via RCA or BNC connec­tors. There is no front panel LED for this
digital input.

4 Main Display ,

The main display provides status.messages
for a variety of Audio + Video Standard oper­ations.

5 Composite

The composite video input button cycles

through the four composite video inputs.

6 S-Video

The S-video input button cycles through the
four S-video inputs.

7 Volume Control Knob

The volume control knob adjusts the output
level for the entire system as well as individ­ual levels for the center speaker, side speak­ers, rear speakers, and subwoofers. The vol­ume control knob normally adjusts the mas-

. ter volume as indicated by the LED illuminat-

ed above the master button (19). The
change in volume is indicated in the main

display and also on-screen. Adjustments to
the center speaker, side speakers, rear
speakers, and subwoofers are made by
pressing the corresponding individual chan­nel volume buttons (20) and rotating the vol­ume control knob to the desired setting. The
master volume control has a numerical

range from 0 to 152 with 89 being the Dolby
reference. The center speaker, side speak­ers, rear speakers, and subwoofer volume
trim have a range of __.12 dB.

8 Power Button

The powerbutton toggles the Audio + Video
Standard from standby to operate and also
switches the 12 VDC output between on and
off.

9 Power LED

The power LED illuminates when the. rear

panel main power switch [see Figure 2 (38)

on page 11] is placed in the on position.

During remote control operation, the power

LED will flash, indicating the Audio + Video

Standard is receiving remote control com-

mands.

KNELL® Audio + Video Standard English Page 5 of 32

10-16 Audio Mode Buttons

The five buttons (10, 13, 14, 15, and 16)
select one of the Audio + Video Standard’s
audio modes.

The Audio + Vid~.o Standard automatically
selects which di~al decodingformat to use,

based on the input signal it receives.
When a silent digital signal .is present, the

Audio+Video Standard will automatically

mute its output until program material
resumes and the Audio+Video Standard
identifies the correct processing mode. This

occurs while changing laser, DVD or com-

pact discs, and between tracks on a cd.
Mute protects your syste ,m by preventing the

Audio + Video ~Standard from playing back

digital data in an incorrect format. If the Audio
+ Video Standard is going to be used as a
digital to analog converter for music play­back, this muting may seem awkward
because the beginning of each track may be
affected. You can change the format auto-

sensing to eliminate this muting, if you wish.
To do so, switch the unit into standby. Press
the DTS button (13) on the front panel and

switch the Audio+Video Standard out of

standby to power on (operate). This will dis-

able the automatic muting feature of the

Audio+Video Standard and will alter the way

in which the automatic format sensing oper-

ates. For best results, select DTS prior to lis-

tening to any DTS encoded material and be

careful to select the proper format for each

piece of softWare played through the. digital

inputs.

To re-engage the automatic muting feature,

switch the Audio+Video Standard into stand-

by and toggle the main power switch (38)

the rear panel to the off position. When. you

restart your Audio + Video Standard, the

automatic muting feature will be active. Be
sure to turn all amplifiers off when switching

the main power switch on and off.

10 Dolby Digital engages Dolby Digital
(AC-3) processing for use with Dolby
Digital (AC-3) encoded source material.
The Audio + Video Standard automati­cally switches to Dolby Digital (AC-3) pro­cessing upon receiving a Dolby Digital
(AC-3) encoded signal. No user interven­tion is required after the appropriate digi­tal input is selected and connected.

Dolby Pro Logic engages Dolby Pro
Logic circuitry for use with all Dolby sur-

round processing encoded material. This
includes laser discs, videotapes, televi­sion broadcasts, and compact discs.

11 The Dolby Digital LED is lit and the

Dolby Pro Logic LED (12) is not lit when
the Audio+ Video Standard is in the

Dolby Digital (AC-3) decoding mode.
When both the Dolby Digital LED and the

Dolby Pro Logic LED are lit, the Audio +
Video Standard is decoding a Dolby

Digital (AC-3) encoded Dolby Pro Logic
signal.

12 The Dolby Pro Logic LED is lit and
the Dolby Digital LED (11) is not lit when

the Audio+ Video Standard is in the

Dolby Pro Logic decoding, mode. When

both the Dolby Digital LED and the Dolby

Pro Logic LED are lit, the Audio + Video

Standard is decoding a Dolby Digital

(AC-3).encoded Dolby Pro Logic Signal.

13 DTS engages DTS digital surround

processing for use with DTS encoded

source material. The Audio + Video

$tandard automatically switches to DTS

processing upon receiving a DTS signal.

No user intervention is required after the

Page 6 of 32 English

KRELL® Audio + Video Standard

appropriate digital input is selected and
connected.

14 Music engages Krell Music Surround

TM

circuitry for use with stereo recordings.

15 Mono is for use with monophonic
recordings. This provides monaural out­put from the ~nter speaker and sub-

woofer(s) only.~lf the system does not

include a center speaker, the monaural
signal is split between theleft and right
speakers.

16 Preamp disengages all surround

processing circuitry for use with stereo

recordings. When fed an analog source,
the Audio + Video Standard functions as

a pure Class Ai~ high resolution, analog

preamplifier. For digita, I sources, the
Audio + Vide£ Standard employs 24-bit,

custom KrelP-written, digital-to-analog

conversion software before being sent to
the analog preamplifier stage.

17 Recall Button

This button saves and recalls system config-

uration settings..

18 Infrared Sensor

The infrared sensor receives commands
from the Audio + Video Standard remote
control. For proper remote control operation,

make sure the infrared sensor is clear of any

obstructions.

19-21 Volume Control Buttons

The following six buttons select one of the
Audio + Video Standard’s volume chant~els:

19 Master Volume Button

When the LED above this button is illu-

minated, the volume control knob (7)

affects the entire system equally. The vol-

ume adjustment is indicated in the main

display and also on-screen.

20 Individual Channel
VolumeTrim

When the LED above any of these but­tons is illuminated, the volume control

knob (7) changes the level of the select-

ed channel. These new changes will
clear when a new input mode is selected.
The volume control knob reverts back to
controlling the default level, Master, after
four seconds of inactivity.

21 Balance Button

(Preamp mode only)

When the LEE) above this button is illu-

minated, the volume control knob (7)

affects the left-to-right balance of the sys­tem. The center position is indicated by

CNTR in the main display. Balance may be

adjusted in 1 dB increments up to 9 dB.

The next adjustment mutes either chan-

nel, indicated by ROFF or LOFF for the right

channel and left channel respectively.

The on-screen representation for bal-

ance is graphical:

L ......... : ......... R

The center position is indicated by two

vertical dots, Each dB of adjustment is

represented by one individual dot.

Moving the cursor so that it covers the L
indicates a completely muted right chan­nel. Conversely, positioning the cursor so
that it covers the R indicates a complete-

ly muted-left channel. The volume control

knob (7) reverts back to controlling the
default level, Master, after four seconds

of inactivity.

KRELL® Audio + Video Standard English Page 7 of 32

FIGURE 1 AUDIO + VIDEO STANDARD FRONT PANEL

2 3

4 6 5

9

11

1 Tape

2

Analog ~’~

3

Digital In
4 Main Display
5

Composite
6 S-Video
7 Volume Control Knob

10 13

12

15 17

14 16 .. 18 19

8 Power Button

9 Powe~ LED

10 Dolby Audio Mode Button

11 Dolby Digital (AC-3) Audio Mode LED
12 Dolby Pro Logic Audio Mode LED
13 DTS Audio Mode Button
14 Music Audio Mode Button

2O 21

15 Mono Audio Mode Button
16

Preamp Audio Mode Button

17 Recall Button
18 Infrared Sensor

19 Master Volume Button
20 Individual Channel Volume Buttons
21 Balance Button

Back Panel
Description

See Figure 2 on page 11

22 Balanced Channel Outputs

The Audio + Vid~p Standard is equipped
with nine channel ~utputs. All nine channels

are equipped with balanced outputs via XLR
connectors as well as single-ended connec­tors (30). The nine channel outputs are for
the center, left, right, left and right side, left
and right rear, and two subwoofer outputs

(labeled Sub1, Sub2).

The XLR pin configurations are as follows:

Pin

1" Shield (g~round)

Pin2: Non-inverting (0,

°,)

Pin

3: InvertiNg (180

°

)

23 Analog Tape Input

The Audio + Video Standard is equipped
with one single-ended tape input.

24 Balanced Analog Inputs

The Audio + Video Standard is equipped
with one balanced input (labeled B1) via
XLR connectors.

The XLR pin configurations are as follows:

Pin 1: Shield (ground)
Pin2: Non-inverting (0

°)

Pin

3: Inverting (180

°

)

25 Single-Ended Analog Inputs

The Audio + Video Standard is equipped

with five single-ended in puts (labeled S’1-$5)
via RCA connectors.

26 RF Inputs

The Audio + Video Standard is equipped with
an RF input for use with the Dolby Digital

(AC-3) RF output of a laser disc player.

Connections are via RCA or BNC coaxial
digital cable.

27 S-Video Inputs

The Audio + Video Standard is equipped
with four S-video inputs (labeled 1-4).

28 S-Video Outputs

The Audio + Video Standard is equipped
with three S-video outputs. The main S-video
output (labeled on screen) includes on­screen graphics. For dubbing purposes, the
second and third S-video outputs do not

include on-screen graphics.

29 Infrared Remote Sensors

The Audio + Video Standard is equipped
with an additional infrared sensor and a male

baseband RC-5 remote input for custom
installations.

30 Single-Ended Channel Outputs

The Audio + Video Standard is equipped
with nine channel outputs. All nine channels

are equipped with single-ended outputs via
RCA connectors as well as balanced con-

nectors (22). The nine channel outputs are

for the center, left, right, left and right side,

left and right rear, and two subwoofer out­puts (labeled Sub1, Sub2).

31 Digital Audio Outputs

The Audio + Video Standard is equipped
with two digital audio outputs in the following

formats:

One coaxial via RCA connector
One TosLink

TM

32 Tape Outputs

The Audio + Video Standard is equipped
with three analog tape outputs. Two are for

use with video sources (labeled VCR1,
VCR2), and.the third is for use with an audio
tape deck (labeled tape).

KRELL® Audio + Video Standard English Page 9 of 32

33 Digital Audio Inputs

The Audio + Video Standard is equipped
with five digital audio inputs in the following
formats:

Two coaxial via RCA connectors
Two TosLink

TM

One AES/EBU vixen XLR connector

34 Composite Video Inputs

The Audio + Video Standard is equipped
with four RCA composite video inputs

(labeled 1-4).
35 Composite Video Outputs

The Audio + Video Standard is equipped
with three RCA composite video outputs.
The main composite video output (labeled
on screen) includes on-screen;graphics. For
dubbing purposes, ~the second and third
composite video outputs do not include on­screen graphics.

36 Composite Video (BNC) Input/Output

The Audio + Video Standard includes one
composite video input and one composite
video output via BNC connectors. These

ports are electrically identical to the RCA
composite video inputs (34) and, outputs

(35).

Note

You may simultaneously use both RCA and

BNC outputs, but only one of the inputs.

37 IEC Power Connector

The Audio + Video Standard is equipped
with a standard female IEC power connec­tor.

38 Main Power Switch

Toggles the Audio + Video Standard between
off and standby.

39 12 VDC Output

Activated by the front panel power button (8),
the 12 VDC output sends a 12-volt power
on/off signal to other Krell® components, as
well as to other devices that incorporate a

12-volt power on/off trigger input. This allows

for remote turning on/off of other compo-

nents when the Audio + Video Standard is

dowered on.

Page 10 of 32 English KRELL® Audio + Video Standard

FIGURE 2 AUDIO +VIDEO STANDARD BACK PANEL

22 30

23 24 25 26 27 28 36 39 29

22

22

Balanced Ch~l Outputs

23 Analog Tape ~nput
24 Balanced Analog Inputs
25 Single-Ended Analog Inputs
26 Dolby Digital Inputs
27 S-Video Inputs

32 31 33 34 35

S-Vid oO uts

29 In~rared Remote Sensors

30

Single-Ended Channel Outputs
31 Digital Audio Outputs
32

Tape Outputs
33 Digital Audio Inputs

34 Composite Video Inputs
35

Composite Video Outputs
36 Cdmposite Video (BNC) Input/Output
37 IEC Power Connector
38 Main Power Switch
39 12 VDC Output

Connecting the
Audio + Video Standard

to Your System

WARNING

When making conn~ions to thi.s compo-

nent or any other, make sure the power
amplifier is off and the preamplifier is in the
mute or stand-by mode. Make sure all
cable terminations are of the highest qual­ity, free from frayed ends, shorts, or cold
solder joints.

For analog audio sources, connect the

left and right outputs of your source com­ponents to the inputs on ,the Audio +
Video Standard. The Addio + Video
Standard is equipped with six single­ended analog audio inputs ($1-$5 and
tape) via RCA connectors and one bal­anced analog audio input (B1) via
XLR connector.

2. For digital audio sources, connect the
digital audio output of your source com-

ponents to the digital inputs on the Audio +

Video Standard. The Audio + Video

Standard is equipped with five digital
inputs: two coaxial inputs via RCA con­nectors, two TosLink

TM

optical connec-

tions, and one AES/EBU via an XLR

connector. For Dolby Digital (AC-3) sur-

round processing, connect the RF output
of a laser disc player to one of the RF
inputs.

Note

For source units that are equipped with both
digital and analog audio outputs, higher per-

formance will generally result when connect­ing source units to the Audio + Video Standard
using a digital audio output.

Connect the video outputs of your video
sources to the video inputs on the Audio
+ Video Standard.

The Audio + Video Standard is equipped
with four S-video inputs and four composite
video inputs. S-video cables transmit the
color and luminance components of the
video signal separately. This separation is
performed by the comb filter within the
source unit. If the source unit’s comb filter is
superior to the one within the video monitor,
S-video connections should be used.
Otherwise, a composite video connection
should be used.

Notes

S-video cables should not be used for
lengths greater than 20 feet, for optimum
performance.

The Audio + Video Standard does not con­vert video signal formats, Le., an S-video
input signal is output as an S-video signal

The same condition holds true for a com-

posite video signal

The Audio + Video Standard is equipped
with three S-video outputs and three com-

posite video outputs. The main S-video out­put (28) and composite video output (35)
include on-screen graphics. The composite

video 1 output also has a parallel BNC con-

nector. For dubbing purposes, the second
and third video outputs do not include on­screen graphics. These outputs may be con­nected to the video inputs of your video

recorders or to:additional video monitors.

Connect the outputs of the Audio + Video
Standard to the input(s) of your power

amplifier(s).

Page 12 of 32 English KRELL® Audio + Video Standard

Connect the outputs of the Audio + Video
Standard to the input(s) of your power

amplifier(s).

The Audio + Video Standard has balanced
outputs via XLR connectors and single-

ended outputs ~,, RCA connectors. Both
outputs are act~e at all times, allowing
simultaneous connection to separate ampli-

fiers. Only one of these output formats
should be connected to a single amplifier.

Note

When connecting inputs or outputs to the

Audio + Video Standard, remember that the

balanced connections will have 6 dB more

gain than the single-ended connections. If

level matching becomes difficult in your
installation, keep this spe~’fication in mind.

5.

Plug the AC cord into the receptacle on
the back of the Audio + Video Standard.
Plug the remaining end into the AC wall
receptacle. Toggle the main power
switch (38) to the up position. The red
power LED (9) will illuminate, and the
main display (4) will show AC-3 for three
seconds. The Audio + Video Standard is
now ready for operation.

Press either the front panel power button
(8) or the remote control power button

[see Figure 3 (44) on page 15]. The word
WAIT will appear in the main display and
the initializing message will appear on-

screen. To configure the Audio + Video

Standard for operation, see System

Configuration on page 18.

Remote Control
Description

See Figure 3 on page 16

40 Analog Audio Input Buttons

These buttons select the analog audio

source. B1 is a balanced input via XLR con-.
nectors while $1-$5 are single ended inputs

via RCA connectors. The tape button allows

access to an analog tape recorder.

41 Digital Audio Input Buttons

These buttons select the digital audio
source. C1 and C2 are coaxial inputs via

RCA connectors, T1 and T2 are TosLink

TM

inputs, XLR is an AES/EBU connection, and
RF is available via RCA or BNC connectors.

42 Processing Mode Buttons

The following six buttons select one of the
Audio + Video Standard’s processing

modes. FCN, the function button, is reserved

for future use.
The Audio + Video Standard automatically

selects which digital decoding format to use,

based on the input signal it receives.

When a silent digital signal is present, the
Audio +Video Standard will automatically

mute its output until program material
resumes and the Audio +Video Standard
identifies the correct processing mode. This
occurs while changing laser, DVD or com-

pact discs, and between tracks on a cd.

Mute protects your system by preventing the
Audio + Video Standard from playing back
digital data in an incorrect format. If the
Audio + Video Standard is going to be used
as-a digital to analog converter for music

playback, this muting may seem awkward

because the beginning of each track may be
affected. You can change the format auto-

KRELL® Audio + Video Standard English Page 13 of 32

sensing to eliminate this muting, if you wish.
To do so, switch the unit into standby. Press
the DTS button (13) on the front panel and
switch the Audio+Video Standard out of
standby to power on (operate). This will dis­able the automatic muting feature of the

Audio+Video Stan,~ard and will alter the way

in which the automatic format,sensing oper­ates. For best results, select DTS prior to lis­tening to any DTS encoded material and be

careful to select the proper format for each
piece of software played through the digital
inputs.

To re-engage the automatic muting feature,
switch the Audio+Video Standard into stand­by and toggle the main power switch (38)
the rear panel to the off position. When you

restart your Audio + Video Standard, the
automatic mutin~ feature will be active. Be
sure to turn all amplifiers off when switching
the main power switch on and off.

Dolby Digital engages Dolby Digital
(AC-3) processing for use with Dolby
Digital (AC-3) encoded source material.

The Audio + Video’ Standard automati-

cally switches to Dolby Digital (AC-3) pro­cessing upon receiving a Dolby Digital

(AC-3) encoded signal. No user interven­tion is required after the appropriate digi­tal input is selected and connected.

Dolby Pro Logic engages Dolby Pro

Logic circuitry for use with all Dolby sur-

round processing encoded material. This

includes laser discs, videotapes, televi-

sion broadcasts, and compact discs.

DTS engages DTS digital surround pro-

cessing for use with DTS encoded

source material. The Audio + Video

Standard automatically switches to DTS

processing upon receiving a DTS signal.

No user intervention is required after the

appropriate digital input is selected and
connected.

Music engages Krell Music Surround

T"
circuitry for use with stereo recordings.

Mono is for use with monophonic
recordings. This provides monaural out­put from the center speaker and sub-

woofer(s) only. If the system does not

include a center speaker, the monaural
signal is split between the left and right
speakers.

Prearnp disengages all surround pro­cessing circuitry for use with stereo
recordings. When fed an analog source,

the Audio + Video Standard functions as

a pure Class A, high resolution, analog
preamplifier. For digital sources, the
Audio + Video Standard employs 24-bit,
custom Krell®-written, digital-to-analog
conversion software before being sent to

the analog preamplifier stage.

43 Levels Buttons

These buttons select one of the Audio +
Video Standard’s volume channels.

Master selects all channels for system­wide volume control.

Balance (Preamp Mode Only) adjusts

the left-to-right balance of the system.

Mute interrupts any audio signal to

source equipment.

44 Power Button

The power button toggles the Audio + Video
Standard from standby to operate.

45 Vol Down/Vol Up.Buttons

The-vol down and vol up buttons control the
volume for either the entire system or for an

Page 14 of 32 English KRELL® Audio + Video Standard

individual channel, a~: selected by the levels

buttons (4,3).

46 Amplifier Buttons

The power and meter buttons operate Krell

®
amplifiers.

47 System Button~

These buttons select a preassigned video
input. Once a video in put is assigned, it may
then be linked to a specific audio input and
surround mode. For details on this assigning

and linking procedure, see Direct Access
Remote Control System Programming on

page 24.

48 Video Buttons

These buttons select the video source. CV1 ­CV4 are composite video inj~uts, and SV1-

SV4 are S-video in.puts.

49 Enter Button

This button inputs on-screen menu selec­tions (functions only in the menu mode).

50 Scroll Buttons

These four buttons scroll on-screen menu
options, and also are used for volume con­trol.

51 Menu Button

This button accesses, the on-screen menu
functions.

52 Previous Button

This button escapes or ends certain
screen menu operations.

on-

KRELL® Audio .- Video Standard English Page 15 of 32

FIGURE 3 AUDIO + VIDEO STANDARD REMOTE CONTROL

46

49

4O

41

42

50

52

44 43 45 47

48

40 Analog Audio input Buttons
41 Digital Audio Input Buttons

42 Processing Mode Buttons
43

Levels Buttons

44 Power Button
45

Vol Down /Vol Up Buttons
46 Amplifier Buttons
47 System Buttons

48 Video Buttons
49 Enter Button

50 Scroll Buttons
51 Menu Button
52 Previous Button

Page 16 of 32 English

KRELL® Audio + Video Standard

BATrERY INSTALLATION

AND REMOVAL

Note

Batteries should be replaced when functions

from the remote control become intermittent.

The Audio + Video Standard remote uses

four AAA size 1.~olt batterie

s

.

1.

Remove the backplate to expose the bat­teries.

2. Remove the old batteries.
Install the new batteries, following the

battery position diagram on the plastic
battery receptacle.

4. Re-install the backplate.

5. Check to make sure the remote control is
functioning properly.

KRELL® Audio + Video Standard English Page 17 of 32

System Configuration

The remote control is the main input device
for the Audio + Video Standard. All initial
setup and subsequent system configuration
adjustments m~.~t be made via the remote

control. The remote control, also includes
functions for KrelP power amplifiers.

For maximum performance, the Audio +

Video Standard needs to be configured for

system elements, their capabilities, and
positions within the listening room. This infor­mation is entered into the Audio + Video
Standard via on-screen menus. These
menus are structured to guide you through

the setup process.

ACCESSING THE MAIN MENU

To begin the system configuration proce­dure, connect the on-screen video output of
the Audio + Video Standard (28 or 35)

your video monitor. Set the video monitor to
this input, Press the remote control menu

button (51)and the’main menu screen will
appear:

KRELL A+V STANDARD

- MAIN MENU -

CONFIGURE SPEAKERS

LISTENING ROOM SETUP

CALIBRATE VOLUME
CONFIGURE INPUTS

CONFIGURE MUSIC MODE

OPERATION

The Audio + Video Standard is now ready for

configuration.

STEP 1
CONFIGURE SPEAKERS

To configure the Audio + Video Standard for
the specific types of speakers used in the
system, highlight CONFIGURE SPEAKERS and
press the enter button (49). The speaker sys-.
tem setup menu will appear:

KRELL A+V STANDARD

- SPEAKER SYSTEM SETUP

PRSNT

TYPE

FRNT: FULL-RANGE

(X)

CNTR: FULL-RANGE

(X)

SIDE: FULL’RANGE
(X) REAR: FULL’RANGE
(X)

SUBS: DUAL MONO

OK

The FRNT (front), CNTR (center), SIDE, REAR,

,and SUBS (subwoofers) indicate possible

speaker locations. The (x) indicates speak­ers that are currently present in the system

(the front speakers cannot be defeated,
hence the absence of parentheses).

Forthe FRNT, CNTR, SIDE, and REAR selections,

the on-screen menu offers the options of full

range or bass limited. The proper choice
depends upon the low frequency capabilities
of each speaker. For the SUBS selection, the
on-screen menu offers the options of mono,
dual mono, stereo, or front and rear.

The default settings are displayed for each

speaker. If your system corresponds to the
default settings, highlight OK and press Enter.
You will be returned to the main menu, and
you may proceed to Step 2, listening room
setup, if you need to modify the speaker set­tirfgs, proceed as follows:

Page 18 of 32 English KRELL® Audio + Video Standard

Modifying speaker settings

To disable a speaker, highlight the appropri­ate (×) and press Enter.

To enable a speaker, highlight the appropri­ate ( ) and press Enter.

To change the ~ttings for the FRNT, CNTR,

SIDE, or REAR, highlight the appropriate

phrase and press Enter. The speaker setup
menu will appear:

KRELL A+V STANDARD

-SPEAKER SETUP-

F THESE SPEAKERS ARE NOT

DESIGNEDTO

REPRODUCE
DEEP BASS, CHECK THE BOX
BELOW:

(

BASS LIMITED SPKR

OK

If the selected speaker does not have the

capability to reproduce low frequencies, high-

light the (), press Enter, highlight OK and
press Enter again. You will be returned to the

speaker system setup menu. The on-screen

phrase for the selected speaker will now read

BASS LIMITED.

To change the settings for the subwoofers,

highlight SUBS and press Enter. The configure

subwoofers menu will appear:

KRELL A-I-V STANDARD

- CONFIGURE SUBWOOFERS -

SELECT A CONFIGURATION:

(

SINGLE MONO SUB

(x)

DUAL MONO SUBS

( STEREO SUBS
(

FRONT & REAR SUBS

OK

Highlight the appropriate ( ) that represents
the subwoofer configuration in your system
and press Enter. The (x) will now appear
next to the new subwoofer setting. Highlight
OK and press Enter. You will be returned to
the speaker system setup menu. Highlight
OK and press Enter again to return to the
main menu.

STEP 2

LISTENING ROOM SETUP

To tell the Audio + Video Standard where
each speaker is located within the listening

room, highlight LISTENING ROOM SETUP and
press Enter. The listening room setup menu
will appear:

KRELL A+V STANDARD

- LISTENING ROOM SETUP -

LEFT

CENTER RIGHT

OFT OFT OFT
L SIDE SUB 1 R SIDE

OFT

OFT

OFT

L REAR SUB 2 R REAR

OFT OFT OFT

The 0 Fm under LEFT will be highlighted. Press

Enter and the 0 will start blinking. Use the up
scroll button (50) to increase the number
the correct distance in feet from the main lis­tening position to the left speaker. Press

Enter again and the number will stop blink-

ing. Use the right scroll button to highlight the
0 FT under CENTER. Press Enter and the o will
start blinking. Using the same procedure as
before, input the correct distance for the cen­ter speaker. Do the same for the remaining
speakers in the system. After all the dis­tances are se

t,

press the Previous button

(52) to return to the main menu.

KRELL® Audio: + Video Standard English Page 19 of 32

Note

Any speaker not Configured in the speaker

system setup menu will display N/A (not
available) for the distance specification.

STEP 3

CALIBRATE THE VOLUME

Note

~

.~ ~

A sound pressure/eve/(SPL) meter is nec-

essary for this procedure ....

To adjust individual speaker outputs for prop-

er balance throughout the system, highlight
CALIBRATE VOLUME and press Enter. The cali­brate volume menu will appear:

KNELL A+V STANDARD

- CALIBRATE VOLUME -

SELECT THE CHANNEL CAI~IBRATION METHOD

AUTO NOISE SEQUENCE

MANUAL NOISE SEQUENCE

PROGRAM MATERIAL

Highlight one of the choices and press Enter. If
you choose AUTO NOISE SEQUENCE or MANUAL
NOISE SEQUENCE, the message INITIALIZING...
will blink while the Audio + Video Standard
loads its internal noise generator. The follow­ing screen will then appear:

KNELL A+V STANDARD

- CALIBRATE VOLUME -

LEFT CENTER RIGHT

0 DB 0 DB

0 DB

L SIDE SUB 1 R SIDE
0 DB 0 DB 0 DB

L REAR

SUB 2 R REAR

0 DB 0 DB 0 DB

Auto Noise Sequence

Set the SPL meter to C weighting and slow
response. After initializing, the LEFT channel
dB setting will be blinking, and banded white
noise will be heard through the left speaker.
This noise will continue for two seconds and

then move clockwise to the next speaker in
the system. Using the up or down scroll but­tons, adjust each speaker’s setting until the

SPL .meter reads 75dR. This adjustment
must be made while the individual channel is
blinking. Repeat for all remaining speakers.
When all the speakers are set, press
Previous twice to return to the main menu.

Manual Noise Sequence

Set the SPL meter to C weighting and slow
response. After initializing, the LEFT channel
dB setting will be highlighted. Press Enter
and white noise will be heard from the left
speaker as the o starts blinking. Using the up
or down scroll buttons, adjust the setting until
the SPL meter reads 75dR. Press Enter and
use the right scroll button to highlight the
CENTER channel dB setting. Using the same
procedure as before, set the CENTER channel
volume to 75 dB. Repeat for all remaining
speakers. When all the speakers are set,
press Previous twice to return to the main
menu.

Notes

When using an external noise generator for

volume configuration, sound will output simul­taneously from all speakers in the system.
Adjustments can be made to any speaker in

the systehn with the results immediately
apparent to the balance of the whole system.

Any speaker not configured in the speaker
system setup menu will display N/’A (Not
available) for the dB specification.

Page 20 of 32 -English KNELL® Audio + Video Standard

The subwoofer designation will change
depending on the configuration entered in
the speaker system setup menu. For a mono

setup, the subwoofers are designated SUB 1

and SUB 2. For a left and right stereo setup,
the subwoofers are designated sue L and

sue R. For a fro~ and rear setup, the sub-

woofers are designated SUB F and SUB R.

STEP 4
CONFIGURE THE INPUTS

To configure inputs, highlight CONFIGURE INPUTS
and press Enter. The configure inputs menu
will appear:

KRELL A+V STANDARD

- CONFIGURE INPUTS ­E~ T INPUT NAMES

SET ANALOG INPUT LEVEL

SET VIDEO INPUT LINKS

PAL VIDEO SETUP

Highlight EDIT INPUT NAMES and press Enter.

The input name type menu will appear:

KRELL A+V STANDARD

- INPUT NAME -

WHAT TYPE OF INPUT NAME

DO YOU WANT TO CHANGE?

VIDEO

ANALOG

DIGITAL

Highlight VIDEO and press Enter. The input
name menu will appear:

KRELL A+V STANDARD

- INPUT NAME -

WHICH INPUT NAME

DO YOU WANT TO CHANGE?

S-VIDEO INPUTS

SVl SV2 SV3 SV4

COMPOSITE VIDEO INPUTS

CVl CV2 CV3 CV4

Highlight any of the S-video or composite
video inputs and press Enter. A secondary
screen will appear (S-video 1 is shown as an
example):

KRELL A+V STANDARD

- INPUT NAME -

INPUT: S-VIDEO 1
NAME: S-VIDEO 1

e-- & --> TO MOVE CURSOR

1" & $ TO CHANGE TEXT

PRESS ENTER WHEN DONE

The first letter of the input name will blink and
can be changed using the up or down scroll

buttons. Move the blinking cursor to the letter
you want to change and adjust to the letter of

your choice. The name field is limited to a

maximum of 12 characters. Available char-

acters are:

A-Z 1-9 ’ < >

and a blank space. When completed, press

Enter to finish the editing and return to the

input name menu. Choose another input to

adjust or press Previous to return to the input

name menu, Choose another input name to
modify or press Previous to return to the

configure inputs menu.

KRELL® Audio + Video Standard English Page 21 of 32

Special Analog Sources

The analog input sensitivity of the Audio +
Video Standard is set for the standard 2 Volts
that Dolby Laboratories mandates for proper

Dolby Pro Logic processing. For analog
sources (components connected to $1-$5
and tape) that do n~correspon.d to a stan-

dard 2 Volt output ~pecificationl, it may be

necessary to adjust individual input levels on
the Audio + Video Standard.

Press Menu to exit the menu system, select
the desired analog input and return to the
configure inputs menu.

Highlight SET ANALOG INPUT LEVEL and press

Enter. The set input .levels menu will appear:

- SET It~PUT LEVELS ­INPUT: B1
L R

- OVERLOAD ­LEVEL: 0 DB

OK

Begin playback of the selected source using
program material with loud passages. Press
Enter. The LEVEL dB specification will begin
blinking.

If the source unit’s output is greater than the

standard 2 Volts, OVERLOAD will blink indicat-

ing an input signal greater than standard.
Using the down scroll button, lower the level
db setting until OVERLOAD stops blinking. "

Conversely, if the source unit’s output .is less

than the standard 2 Volts, it will be necessary
to raise the input level sensitivity for proper

Doiby surround processing. Using the up

scroll button, raise the level dB setting until
OVERLOAD starts blinking and then reduce the
setting just below this threshold.

When the input level has been properly set,
highlight OK and press Enter to return to the
configure inputs menu. To adjust additional
inputs, exit the menu system by pressing
Menu, select the desired input, return to the
set input levels menu within the configure
inputs menu, and follow the same procedure
as above.

Linking a Video Input

to an Audio Input

Each video input (S-video and composite
video) may be linked to a specific audio input
and surround mode. Therefore, when a
video input is configured and then selected,
its matching audio input and surround mode
will also engage. Highlight sET VIDEO INPUT
LINKS within the configure inputs menu and
press Enter. The set video input links menu
will appear:

KRELL A+V STANDARD

- SET VIDEO INPUT LINKS ­WHICH VIDEO INPUT LINKS

WOULD YOU LIKE TO SET?

S-VIDEO INPUTS

SVl SV2 SV3 SV4

COMPOSITE VIDEO INPUTS

CV1 CV2 CV3 CV4

Highlight any of the S-video or composite

video inputs and press Enter. A secondary

screen will appear:

Page 22 of 32 - English KNELL® Audio + Video Standard

KRELL A+V STANDARD

- LINK INPUT -

WHICH INPUT LINK

DO YOU WANT TO CHANGE?

ANALOG

%~,DIGITAL

~ MODE

Highlight the audio input style, either ANALOG
or DIGITAL, and press Enterl If ANALOG is

selected, an additional screen appears:

KRELL A+V STANDARD

- LINK INPUT -

SELECT AN ANALOG INPUT

TO ~INK TO SVI:

( )B1 ( )Sl
( ( )s4

OK

Highlight the appropriate analog input and
press Enter. When completed, highlight OK
and press Enter to return to the link input
menu. At this point you may choose a digital
input or operating mode to link with the
selected video input.

To select a linked digital input, highlight DIGITAL
and press Enter. The digital link input screen
will appear:

KRELL A+V STANDARD

- LINK INPUT -

SELECT A DIGITAL INPUT

TO LINK TO SV1 :

( ).COAX ( ) OPTIC
( ) COAX ( ) OPTIC

( ) AES-EBU ( )

OK

Note

If a video input is linked to both a digital and
an analog input, the Audio + Video Standard

will select the digital input as the main audio

source whenever the video input is selected.

When completed, highlight OK and press
Enter to return to the link input menu. At this
point you may choose to change the linked
operating mode. To change a linked operat­ing mode, highlight MODE and press Enter.

The operating mode link input screen will

appear:

KRELL A+V STANDARD

- LINK INPUT o

SELECTA MODE TO LINK

TO SVl :

(X) MOVIE

( ) MUSIC

( ) PREAMP

OK

Notes

If a video input is linked to a digital input and

MOVIE is in the linked mode, the Audio + Video

Standard will select the appropriate digital
surround processing mode, either Dolby Pro
Logic, Dolby Digital or DTS, depending upon
which signal is present.

If a video input is linked to an analog input
and MOVIE is the linked mode, the Audio +

Video Standard will select Dolby Pro Logic

as the surround processing mode.
If a video ir~put is linked to any analog or digi-

tal input and MUSIC or PREAMP is the linked
mode, the Audio + Video Standard will
proce, ss the linked audio signal in the select­ed mode, unless the input is a digital signal
containing either Dolby Digital or DTS data. In

KRELL® Audio -+ Video Standard English Page 23 of 32

this case, the appropriate processing mode
will be selected.

Highlight the desired mode and press Enter.
When completed, highlight OK and press
Enter to return to the link input menu. Select

another video input to I!#~k or press Previous
to return to the configu~ inputs menu.

Direct Access Remote Control

System Programming

System programming functions allow you to
simplify the use of your Audio + Video
Standard by naming three sets of linked
inputs, System 1, 2, and 3 (47). Other links
may be created in the Audio + Video
Standard, but primary, links may be set up
and remembered more easily with the
System function. For example:

System button 1 A laser disc con­nected to the RF input and a video
input, set for MOVIE MODE.

System button 2 A DVD player con-

nected to the C1 input and a video
input, set for MOVIE MODE,

System button 3 A CD player con­nected to an analog input and an
unused video input, set for preamp

mode.

To use the system programming function,
the basic input links need to be created.

For details, see Linking a Video Input to

an Audio Input on page 22. To assign

input links to System 1, 2, or 3, follow the
instructions below.

Push and release one of the three sys-

teaq buttons.

Decide which video input you want to
assign to the system button. Push and

hold the appropriate video button down
for approximately five seconds. Note that
the red LED in the upper left corner of the

remote control will blink. When the blink-

ing stops and the light stays lit for one
second the system is linked to the video

input you selected.

Link the video inputs to a specific audio

input and surround mode.

Selecting the Broadcast Standard

The Audio + Video Standard will operate in
both the NTSC and PAL broadcasting stan­dards. For countries that only use the NTSC
broadcasting standard, all S-video and com­posite video inputs are already set for prop­er NTSC operation. For countries that use
both the NTSC and PAL broadcasting sys­tems, the SV-3, SV-4, CV-3, and CV-4 are
factory set to the PAL operating system. To
adjust the broadcast operating settings for
any of the video inputs, enter the PAL video
setup menu located within the configure
inputs menu:

KRELL A+V STANDARD

- PAL VIDEO SETUP -

SELECT THE INPUTS THAT

HAVE PAL VIDEO SOURCES:

( )sv-1()cv-1

( ) sv-2( ) cv-2
( ) sv-3( ) cv-3
( ) sv-4( ) cv-4

OK

Highlight the inputs that have PAL video
sources attached to them and press Enter
so that an,(x) appears next to the desired
input. To defeat a PAL video source, press

Enter so the x disappears. When completed,

highlight OK and press Enter to return to the

Page 24 of 32 English KRELL® Audio + Video Standard

configure inputs menu. Press Previous to

return to the main menu.

STEP 5
CONFIGURE THE MUSIC MODE

It is often desiral~e to have the settings for
music listening dl~erent from movie listening.
Highlight CONFIGURE MUSIC MODE and press
Enter. The configure music mode screen will

appear:

KRELL A+V STANDARD

- CONFIGURE MUSIC MODE ­THE A+V STANDARD WILL

BE SET TO MUSIC MODE.

OK TO CONTINUE?

YES NO

Highlight YES and press Enter. The configure
music mode screen will appear:

KRELL A-I-V STANDARD

- CALIBRATE MUSIC MODE ­ADJUST OUTPUT LEVELS

CONFIGURE SPEAKERS

- NOTE -

THESE ADJUSTMENTS ARE

FOR MUSIC MODE ONLY!

Highlight CONFIGURE SPEAKERS and press
Enter. A second screen will appear:

KRELL A+V STANDARD

- CONFIGURE MUSIC MODE ­SELECT THE SPEAKERS TO

BE ACTIVE IN MUSIC MODE.

( ) SIDE SPEAKERS

( ) REAR SPEAKERS

OK

Highlight the speakers to be active in the

music mode and press Enter. When com­pleted, highlight OK and press Enter to return
to the main configure music mode menu.

Before proceeding, highlight ADJUST OUTPUT

LEVELS and press Enter. The configure music

mode menu will appear:

KRELL A+V STANDARD

- CALIBRATE MUSIC MODE -

LEFT RIGHT

0 DB 0 DB

L SIDE SUB 1 R SIDE

0 DB 0 DB 0 DB

L REAR SUB 2 R REAR

0 DB 0 DB 0 DB

The displayed speaker array will duplicate
the system profile input into the speaker sys­tem setup menu. The center speaker is not
displayed because it is not active in the

music mode. The Audio + Video Standard is

now calibrated and setup for all movie

modes and music mode, Select the appro-

priate audio and video input and simply turn

up the volume.

KRELL® Audio + Video Standard English Page 25 of 32

Operation

The operation menu offers options for a vari­ety of Audio + Video Standard user opera-

tions and features. From the main menu, high-

light OPERATION and press Enter. This opera-

tion menu will appe~:

KRELL A-IV STANDARD

- OPERATION -

BACKGROUND COLOR

MAIN VOLUME DISPLAY
ON-SCREEN DELAY TIME
INPUT LINK PROPERTIES

REMOTE CONTROL SENSOR

FULL SURROUND SETUP

ANTI-CLIP CONTROL

BACKGROUNI~~ COLOR

Highlight BACKGROUND COLOR and press
Enter. The background color menu will
appear:

KRELL A+V STANDARD

- BACKGROUND COLOR -

MENU BACKGROUND COLOR:

(X) BLACK

( ) BLUE
( ) GREEN
( ) RED

OK

The default background color is black. If blue,
green, or red is preferred, highlight the
appropriate ( ) and press Enter. The back-

ground color will immediately change to the
.new setting. When you are finished, highlight
(~K and press Enter to return to the operation

menu.

VOLUME

The default on-screen volume display is
numerical. The Audio + Video Standard’s vol­ume control ranges from 0 to 152 with 89
representing the Dolby reference level. To
change the main volume to a bar graph dis­play, highlight MAIN VOLUME DISPLAY and press
Enter. The main volume display menu will
appear:

KRELL A+V STANDARD

- MAIN VOLUME DISPLAY -

HOW WOULD YOU LIKE THE
MAIN VOLUME DISPLAYED?

(X) BARGRAPH DISPLAY
( ) NUMERIC DISPLAY

OK

Highlight the ( ) beside BARGRAPH DISPLAY
and press Enter. The on screen display will
now show the current volume setting relative
to maximum volume. Total volume is repre­sented by sixteen dots. As volume increas­es, squares replace the dots. At Dolby refer­ence level 89, the volume control pauses
and displays REF on screen. When finished,
highlight OK and press Enter to return to the
operation menu.

ON-SCREEN DELAY TIME

On-screen information remains visible for
three seconds. The on-screen delay time

has a range from one to five seconds. To
adjust, highl!ght ON-SCREEN DELAY TIME and

press Enter. The on-screen delay time menu
will appear:

Page 26 of 32 -English KRELL® Audio + Video Standard

KRELL A+V STANDARD

- ON-SCREEN DELAY -

HOW LONG WOULD YOU LIKE

THE TEXT TO REMAIN ON

THE SCREEN AFTER VOLUME

ADJUSTMENT OR CHANGING

INPUT~AND MODES?

3 SECONDS

Press Enter and the 3 will begin blinking. Use
the up or down scroll buttons to increase or
decrease the on-screen time setting and
then press Enter to lock in the new setting.
When finished, press Previous to return to
the operation menu.

INPUT LINK PROPERT, IES

y

The input linking feature activates as soon
as the inputs are joined in the configure
inputs menu. These links are not shown on­screen unless instructed. To change either of
these settings, highlight INPUT LINK PROPER­TIES and press Enter. The input link proper­ties menu will appear:

KRELL A+V STANDARD

- INPUT LINK PROPERTIES -

(X) ENABLE INPUT LINKS

( ) SHOW LINKS WHILE

CHANGING INPUTS

OK

To disable the input links, highlight the (x)

next to ENABLE INPUT LINKS and press Enter.

The video, audio, and mode settings now

operate independently. To display the input
links, highlight the ( ) next to SHOW LINKS

"WHILE CHANGING INPUTS and press Enter. The

video, audio, and mode settings of the active
link plus the current volume setting will be

displayed on-screen whenever a video input
is changed.

REMOTE CONTROL SENSOR

The Audio + Video Standard receives infrared

remote commands at the front panel infrared
sensor (18). Additionally, the Audio + Video
Standard features a duplicate remote sensor
and a male baselJand infrared connector (29)

on the rear panel. These rear panel infrared
components may be used to facilitate a cus­tom installation. To activate these features,

highlight REMOTE CONTROL SENSOR and press

Enter. The remote control sensor menu will

appear:

KRELL A+V STANDARD

- REMOTE CONTROL SENSOR ­(X) USE FRONT SENSOR

( ) USE REAR SENSOR

OK

Highlight the ( ) next to USE REAR SENSOR and
press Enter. The rear infrared sensor will
now be active and the front ~panel infrared
sensor will be disabled. When finished, high­light OK and press Enter to return to the oper­ation menu.

Note

To reactivate the front infrared sensor, the

Audio + Video Standard must be in standby

mode. While holding the front panel S-video
button (6) and the composite video button (5)
down, simultaneously press the power but­ton (8).

FULL SURROUND SETUP

For systems with both side and rear speak­ers, the Audio + Video Standard offers the

option of operating both pairs of surround

KRELL® Audio ÷ Video Standard English Page 27 of 32

speakers in all theater modes. To activate
both pairs of speakers in any theater mode,
highlight FULL SURROUND SETUP OI3 the opera-
tion menu and press Enter. The full surround
setup menu will appear:

KNELL~.{~V STANDARD

- FULL S~OUND SETUp ­IF YOU WOULD LIKE BOTH

THE SIDES AND REARS ACTIVE

IN ALL THEATER MODES

CHECK THE BOX BELOW:

( ) FULL SURROUND MODE

OK

Highlight the ( ) next to FULL SURROUND MODE
and press Enter. When finished, highlight OK
and press Enter to return to the operation
menu.

ANTI CLIP CONTROL

For proper Dolby Pro Logic surround pro-

cessing when using an analog source, alq

anti-clip circuit is used to prevent over-driving

the Dolby surround processing circuitry. The

Audio + Video Standard presents a CD or

DAT recordable signal to the digital outputs
when an analog signal is inputted. When
recording an analog music source onto a
digital medium, the use of the anti-clip con-

trol may limit dynamics and impart an

unwanted compression to the music.

To disable the anti-clip control, highlight ANTI-

CLIP CONTROL OI3 the operation menu and
press Enter. The anti-clip control menu will

appear:

KNELL A+V STANDARD

- ANTI-CLIP CONTROL ­(X) ENABLE
( ) DISABLE

OK

Highlight the ( ) next to DISABLE and press
Enter. When finished, highlight OK and press
Enter to return to the operation menu.

Note

The anti-clip control will be reactivated when

an input is changed.

Page 28 of 32 -English KNELL® Audio + Video Standard

Saving, Recalling, and
Clearing Configuration
settings

To save your configuration settings, turn the
Audio + Video Standard off from the front
panel or the rem~e control. While pressing
the recall button (’~7), press the power button

(8) on the front panel. The main display will
read SAVE CNFG when the settings have been
stored in the Audio + Video Standard’s non­volatile memory.

To recall your stored configuration settings,
press Recall until RSTR CNFG appears in the
main display. This will take thirteen seconds.

To clear all settings, turn the Audio + Video

Standard off from the front panel or the remote
control. While pressing both master (19) and
balance (21) buttons, press the power button
on the front panel. The main display will read
CLR when the settings have been erased from
the Audio + Video. Standard’s non-volatile

memory.

KRELL® Audio ÷ Video Standard English Page 29 of 32

Warranty

KrelP warrants this product to be free from

defects in material or workmanship for a

period of five years for circuitry from the orig­inal date of purchase. Should this product fail

to perform at any time during the warranty,

Krell® will repair~ at no cost to the owner,

except as set fo~h in this warranty. Transfer
of warranty to a second owner occurs auto-

matically. Please contact Krell® to have the

name on the warranty changed. Transfer of
warranty does not extend the duration of the
original warranty period.

Note

This warranty does not apply to damage

caused by acts of God or nature.

The warranty period begins on the date of

retail purchase~as noted on the retail sales
slip provided by an authorized Krell® dealer
or distributor, or on the warranty registration
card sent to Krell

®.

In the event that an ade­quate proof of purchase date is unavailable,
the warranty period will begin on the date the
product was originally shipped from the fac­tory. The warranty described in this para­graph shall be in lieu of any other warranty,
express or implied, including, but not limited
to, any implied warranty of merchantability or
fitness for a particular purpose. There are no
warranties which exceed beyond those
described in this document. If this product
does not perform as warranted herein, the
owner’s sole remedy shall be repair. In no
event will Krell® be liable for incidental or con-

sequential damages arising from purchase,
use, or inability to use this product, even if
KrelP has been advised of the possibility of
such damages.

The warranty for this KrelP product is valid

only in the country to which the product was
originally shipped, through the authorized
Krell® distributor for that country, and at the
factory. There may be restrictions on or
changes to Krell’s warranty because of reg­ulations within a specific country. Please
check with your distributor for a complete
understanding of the warranty in your coun-

try.

Freight to the factory is your responsibility.
Return freight within the United States
(U.S.A.) is included in the warranty, if you

have purchased your Krell® product outside
the U.S.A. and wish to have it serviced at the
factory, all freight and associated charges to
the factory are your responsibility. Krell® will

pay return freight to the U.S.A.-based freight
forwarder of your choice. Freight and other
charges to ship the product from the freight
forwarder to you are also your responsibility.

The operating voltage of this product is

determined at the factory and can only be
changed by an authorized Krell® distributor

or at the factory. The voltage for this product

in the U.S.A. cannot be changed for six

months from the original purchase date.

Any unauthorized voltage conversion,
disassembly, component replacement,

perforation of chassis, Updates, or

modifications performed to the product
will void the warranty.

Page 30 of 32 - English KRELL® Audio + Video Standard

Return Authorization

Procedure

IMPORTANT
ff you believe there is a problem with your
component, please contact your dealer, dis­tributor, or the ~IP factory to discuss the

problem before you return the component for

repair. To expedite service, you may wish to
complete and e-mail the Service Request
Form on our website at wwvckrel/online.com.

To return a product to KrelP, please fol-

low this procedure so that we may serve

you better:

1. Obtain a Return Authorization Number
(R/A number)and shipping address from
the Krell® Service Department.

2.

Insure and accept all liability for loss or
damage to the product during shipment
to the Krell® factory and prepay all ship­ping charges. The product may also be
hand delivered if arrangements with the
Service Department have been made in
advance. Proof of purchase may be
required for warranty validation at the
time of hand delivery.

3. Use the original packaging to insure the
safe transit of the product to the factory,
dealer, or distributor. The use of any
packaging material other than the origi­nal packaging materials is not recom­mended. Krell® may, at its discretion,
return a product in new packaging and
bill the owner for such packaging if the
product received by Krell® was boxed in
non-standard packaging or if the original
packaging was so damaged thatit was
unusable. If Krell® determines that new
packaging is required, the owner will be
notified before the product is returned. To
purchase-additional packaging, please

contact your authorized Krell® dealer, dis­tributor, or the Krell® Service Department
for assistance.

Krell® is not responsible for any damage
incurred in transit. Krell® will file claims for
damages as necessary for products dam­aged in transit to the factory. The owner is
responsible for filing claims for shipping
damages that occur during the return ship­ment.

Replacement parts and/or products will be
furnished on an exchange basis only; any
parts and/or products returned to Krell® for
exchange become the property of Krell

®
No expressed or implied warranty is made

for any Krell® product damaged by accident,
abuse, misuse, natural or personal disaster,
or unauthorized modification.

In the event Krell® receives a product for war­ranty service which has been modified in any
way without Krell® authorization, all war­ranties on that product will be void, The prod­uct will be returned to original factory layout
specifications at the owner’s expense before
it is repaired. All repairs required after the
product has been returned to original factory
specification will be charged to the customer,
at current parts and labor rates.

To contact the Krell® Service De ~artment

TEL [phone]

Monday-Friday

9:00 AM to 5:00 PM EST

FAX [phone]
E-MAIL krell @ krellonline.com

Audio + Video Standard

PRODUCT SERIAL NUMBER

~’~ register your product for warranty benefits,
complete and return the Warranty Registration

Card enclosed in the shipping box within 15
days of purchase.

KRELL® Audio-q- Video Standare

English Page 31 of 32

Krell® Industries, Inc.
45 Cohnair Road
Orange, CT 06477-3650 USA

TEL [phone] FAX [phone]

E-MAIL krell @ krellon!i~.com

WEB SITE www.krell~line.com

Audio + Video Standard

Surround

Preamp/Processor

Specifications

ANALOG AUDIO INPUTS

5 single-ended via RCA

1 balanced via XLR
1 single-ended tape input

DIGITAL AUDIO ~NPUTS

2 coaxial, 2 TosLink

’M

1 AES/EBU
1 RF input for Dolby Digital (AC-3)

VIDEO INPUTS

4 S-Video
4

Composite

1 BNC

ANALOG CHANNEL OUTPUT

heft, center, right, side surrounds, rear sur-

rounds, 2 subwoofers

Balanced via XLR,

or single-ended via RCA

ANALOG TAPE OUTPUTS

"

1 audio via RCA

2 video via RCA

DIGITAL OUTPUTS

1 coaxial
1 TosLink"

VIDEO OUTPUTS

3 S-Video

(1 with on-screen graphics)

3 Composite

(1 with on-screen graphics)

1 BNC

(with on-screen graphics)

LISTENING MODES

Dolby Digital (AC-3), DTS, Dolby Pro

Logic, Music, Mono, Preamp

DIMENSIONS

19w x 6.75h x 17d in.

48.3w x 17.2h x 43.2d cm.

WEIGHT

Shipped 42 Ibs., 19.1 kg
Unit only " 24 Ibs., 10.9 kg

All operational features, functions, specifications, and

policies are subject to change without notification.
