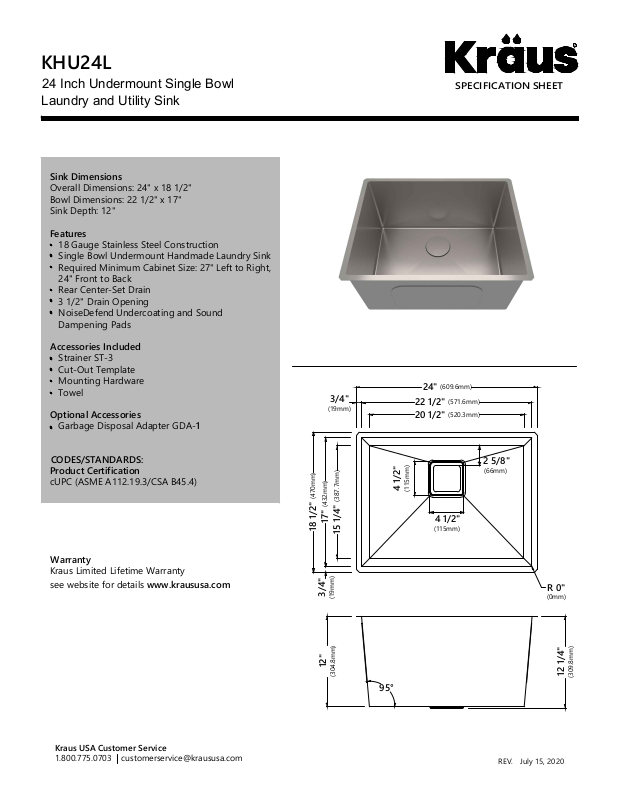

Page 1
KHU24L
24 Inch Undermount Single Bowl
Laundry and Utility Sink
Sink Dimensions
Overall Dimensions: 24" x 18 1/2"
Bowl Dimensions: 22 1/2" x 17"
Sink Depth: 12"
Features
18 Gauge Stainless Steel Construction
Single Bowl Undermount Handmade Laundry Sink
Required Minimum Cabinet Size: 27"
Left to Right,
24" Front to Back
Rear Center-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-3
Cut-Out Template
Mounting Hardware
Towel
Optional Accessories
Garbage Disposal Adapter GDA-1
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. July 15, 2020
R
SPECIFICATION SHEET
17"
(432mm)
18 1/2"
(470mm)
22 1/2"
(571.6mm)
24"
(609.6mm)
12"
(304.8mm)
3/4"
(19mm)
3/4"
(19mm)
2 5/8"
(66mm)
4 1/2"
(115mm)
4 1/2"
(115mm)
95°
20 1/2"
(520.3mm)
12 1/4"
(309.8mm)
R 0"
(0mm)
15 1/4"
(387.7mm)
Page 2
KPF-1610
Single Handle Commercial Style Pull Down Kitchen Faucet
Faucet Dimensions
Overall Height: 18"
Spout Height: 6 3/8"
Spout Reach: 8 3/4"
Features
Commercial Style Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Braided Nylon Waterway
180° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Dual Function Sprayhead - Spray/Stream
Silicone Nozzles
35mm Ceramic Cartridge
26.5" Integrated Nylon Waterlines
Dome Shaped Screen Washer
Quick Weight
Quick Connect Sprayer Hose
16" Hose Length
Connections 3/8" Compression
Max Deck Thickness: 1 1/2"
TPI of aerator in the Sprayer - M24*1
Accessories Included
Weight
Hex Wrench
Available Finishes
Chrome
Matte Black
Stainless Steel
Stainless Steel/Chrome
Stainless Steel/Matte Black
Matte Black/Black Stainless
Brushed Gold
Spot Free Antique Champagne Bronze
Spot Free Antique Champagne Bronze/Matte Black
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, EPA, MASS, FTC, DOE, CEC, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 10, 2020
R
SPECIFICATION SHEET
4 1/2"
(116mm)
18"
(456mm)
2 1/4"
(56mm)
6 3/8"
(162mm)
8 3/4"
(221mm)
3 1/2"
(88mm)
Ø1 7/8"
(48mm)
Ø2 1/8"
(54mm)
10 3/4"
(274mm)
22 3/4"
(578mm)
17"
(432mm)
90°
25°
4 1/2"
(115mm)
3/8" Compression
Page 3
Kraus USA Customer Service
1.800.775.0703 I [email protected]
REV.
June 22, 2020
Kraus One Year Limited Warranty:
See website for details www.kraususa.com
Features
Solid Brass Construction
Self-Priming Pump
Refillable from Above
Holds up to 17 oz. of Liquid
Max. Deck Thickness: 2 3/8"
Pump Height: 2 3/8"
Spout Reach: 3 7/8"
Available Finishes
Brushed Gold
Chrome
Spot Free Stainless Steel
Matte Black
Oil Rubbed Bronze
Stainless Steel
Spot Free Antique Champagne Bronze
Spot Free Stainless Steel/Matte Black
Brushed Brass
KSD-53
Soap Dispenser
Ø1 3/4"
(45mm)
2 3/8"
(61mm)
1 5/8"
(41.7mm)
3 7/8"
(98mm)
4 3/4"
(120.5mm)
R
SPECIFICATION SHEET
MAX 2 3/8"
(61mm)
Page 4
ST-3
Stainless Steel Strainer
Strainer Dimensions
Overall Dimensions: 4 1/2" x 4 1/2" x 2 5/8"
Features
Premium Stainless Steel Construction
Modern Square Drain Design
Removable Strainer with Gasket for Secure Seal
Designed to Use with all Pax and R0 Pro Series Sinks
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 26, 2019
R
SPECIFICATION SHEET
4 1/2"
(114mm)
2 5/8"
(65.8mm)
4 1/2"
(114mm)
R1/2" (13mm)
1 1/2" - 11 1/2" NPSM
TM TM
