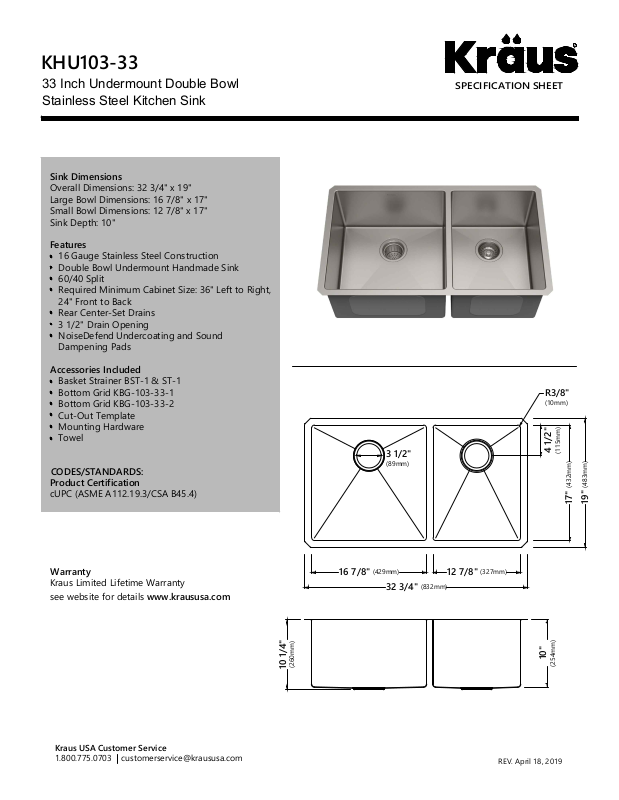

Page 1
KHU103-33
33 Inch Undermount Double Bowl
Stainless Steel Kitchen Sink
Sink Dimensions
Overall Dimensions: 32 3/4" x 19"
Large Bowl Dimensions: 16 7/8" x 17"
Small Bowl Dimensions: 12 7/8" x 17"
Sink Depth: 10"
Features
16 Gauge Stainless Steel Construction
Double Bowl Undermount Handmade Sink
60/40 Split
Required Minimum Cabinet Size: 36" Left to Right,
24" Front to Back
Rear Center-Set Drains
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Basket Strainer BST-1 & ST-1
Bottom Grid KBG-103-33-1
Bottom Grid KBG-103-33-2
Cut-Out Template
Mounting Hardware
Towel
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. April 18, 2019
R
SPECIFICATION SHEET
3 1/2"
(89mm)
17"
(432mm)
19"
(483mm)
12 7/8"
(327mm)
32 3/4"
(832mm)
10"
(254mm)
16 7/8"
(429mm)
10 1/4"
(260mm)
4 1/2"
(115mm)
R3/8"
(10mm)
Page 2
KPF-1610
Single Handle Commercial Style Pull Down Kitchen Faucet
Faucet Dimensions
Overall Height: 18"
Spout Height: 6 3/8"
Spout Reach: 8 3/4"
Features
Commercial Style Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Braided Nylon Waterway
180° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Dual Function Sprayhead - Spray/Stream
Silicone Nozzles
35mm Ceramic Cartridge
26.5" Integrated Nylon Waterlines
Dome Shaped Screen Washer
Quick Weight
Quick Connect Sprayer Hose
16" Hose Length
Connections 3/8" Compression
Max Deck Thickness: 1 1/2"
TPI of aerator in the Sprayer - M24*1
Accessories Included
Weight
Hex Wrench
Available Finishes
Chrome
Matte Black
Stainless Steel
Stainless Steel/Chrome
Stainless Steel/Matte Black
Matte Black/Black Stainless
Brushed Gold
Spot Free Antique Champagne Bronze
Spot Free Antique Champagne Bronze/Matte Black
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, EPA, MASS, FTC, DOE, CEC, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 10, 2020
R
SPECIFICATION SHEET
4 1/2"
(116mm)
18"
(456mm)
2 1/4"
(56mm)
6 3/8"
(162mm)
8 3/4"
(221mm)
3 1/2"
(88mm)
Ø1 7/8"
(48mm)
Ø2 1/8"
(54mm)
10 3/4"
(274mm)
22 3/4"
(578mm)
17"
(432mm)
90°
25°
4 1/2"
(115mm)
3/8" Compression
Page 3
KBG-103-33-1
Stainless Steel Kitchen Sink Bottom Grid
Grid Dimensions
Overall Dimensions:
16 1/2” x 16 1/2” x 1 3/8”
Features
Commercial grade stainless steel construction
For Use with the KHU103-33 kitchen sink
Protects bottom of sink from daily wear and tear
Rubber feet provide additional protection
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 5, 2020
R
SPECIFICATION SHEET
16 1/2"
(419mm)
4 1/4"
(109mm)
Ø4 1/2"
(115mm)
1 3/8"
(35mm)
16 1/2"
(419mm)
Page 4
KBG-103-33-2
Stainless Steel Kitchen Sink Bottom Grid
Grid Dimensions
Overall Dimensions:
12 1/2” x 16 1/2” x 1 3/8”
Features
Commercial grade stainless steel construction
For Use with the KHU103-33 kitchen sink
Protects bottom of sink from daily wear and tear
Rubber feet provide additional protection
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 5, 2020
R
SPECIFICATION SHEET
16 1/2"
(419mm)
4 1/4"
(109mm)
Ø4 1/2"
(115mm)
1 3/8"
(35mm)
12 1/2"
(319mm)
Page 5
ST-1
Stainless Steel Kitchen Sink Strainer
Strainer Dimensions
Overall Dimensions: ∅4 1/2" x 3 3/4"
Features
Premium Stainless Steel construction
Fits Standard 3 1/2" or 4" Drain Opening
Open/Close Stopper Prevents Debris from Clogging
Drain Pipe
Available Finishes
Stainless Steel
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. September 1, 2020
R
SPECIFICATION SHEET
Ø4 1/2"
(115mm)
3 3/4"
(94mm)
Ø4 3/4"
(119mm)
1 1/2" - 11 1/2" NPSM
Page 6
Kraus USA Customer Service
1.800.775.0703 I [email protected]
REV.
June 22, 2020
Kraus One Year Limited Warranty:
See website for details www.kraususa.com
Features
Solid Brass Construction
Self-Priming Pump
Refillable from Above
Holds up to 17 oz. of Liquid
Max. Deck Thickness: 2 3/8"
Pump Height: 2 3/8"
Spout Reach: 3 7/8"
Available Finishes
Brushed Gold
Chrome
Spot Free Stainless Steel
Matte Black
Oil Rubbed Bronze
Stainless Steel
Spot Free Antique Champagne Bronze
Spot Free Stainless Steel/Matte Black
Brushed Brass
KSD-53
Soap Dispenser
Ø1 3/4"
(45mm)
2 3/8"
(61mm)
1 5/8"
(41.7mm)
3 7/8"
(98mm)
4 3/4"
(120.5mm)
R
SPECIFICATION SHEET
MAX 2 3/8"
(61mm)
Page 7
BST-1
Stainless Steel Basket Strainer
Basket Strainer Dimensions
Overall Dimensions: 4 1/2" x 4 1/2"
Features
Premium Stainless Steel Construction
Fits Standard 3 1/2" or 4" Drain Openings
Removable Basket Prevents Debris from Clogging
Drain Pipe
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. February 12, 2019
R
SPECIFICATION SHEET
4 1/2"
(114mm)
4 1/2"
(114mm)
4 5/8"
(116mm)
1 1/2" - 11 1/2" NPSM
