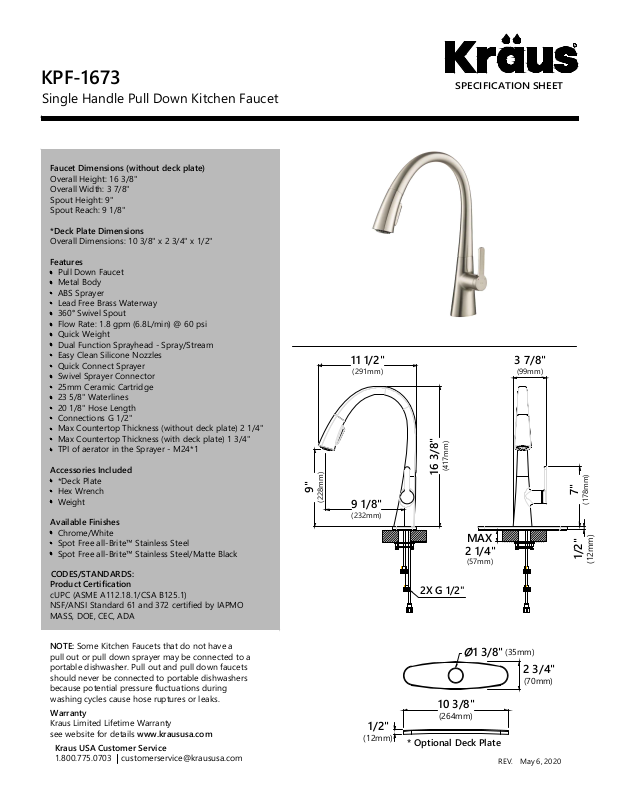

Page 1
KPF-1673
Single Handle Pull Down Kitchen Faucet
Faucet Dimensions (without deck plate)
Overall Height: 16 3/8"
Overall Width: 3 7/8"
Spout Height: 9"
Spout Reach: 9 1/8"
*Deck Plate Dimensions
Overall Dimensions: 10 3/8" x 2 3/4" x 1/2"
Features
Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Brass Waterway
360° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Quick Weight
Dual Function Sprayhead - Spray/Stream
Easy Clean Silicone Nozzles
Quick Connect Sprayer
Swivel Sprayer Connector
25mm Ceramic Cartridge
23 5/8" Waterlines
20 1/8" Hose Length
Connections G 1/2"
Max Countertop Thickness (without deck plate) 2 1/4"
Max Countertop Thickness (with deck plate) 1 3/4"
TPI of aerator in the Sprayer - M24*1
Accessories Included
*Deck Plate
Hex Wrench
Weight
Available Finishes
Chrome/White
Spot Free all-Brite™ Stainless Steel
Spot Free all-Brite™ Stainless Steel/Matte Black
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
MASS, DOE, CEC, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
R
SPECIFICATION SHEET
16 3/8"
(417mm)
9"
(228mm)
9 1/8"
(232mm)
7"
(178mm)
MAX
2 1/4"
(57mm)
3 7/8"
(99mm)
11 1/2"
(291mm)
REV. May 6, 2020
* Optional Deck Plate
2 3/4"
(70mm)
Ø1 3/8"
(35mm)
10 3/8"
(264mm)
1/2"
(12mm)
1/2"
(12mm)
2X G 1/2"
