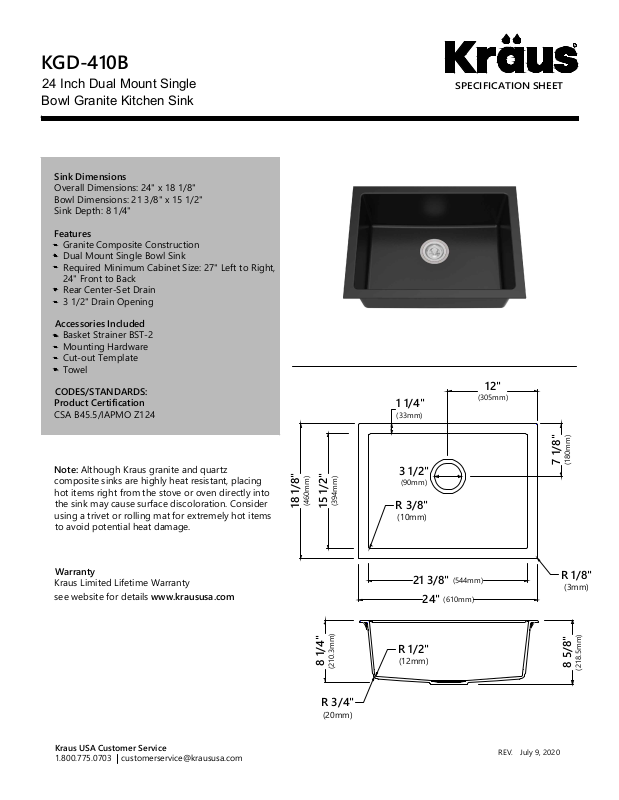

Page 1
KGD-410B
24 Inch Dual Mount Single
Bowl Granite Kitchen Sink
Sink Dimensions
Overall Dimensions: 24" x 18 1/8"
Bowl Dimensions: 21 3/8" x 15 1/2"
Sink Depth: 8 1/4"
Features
Granite Composite Construction
Dual Mount Single Bowl Sink
Required Minimum Cabinet Size: 27" Left to Right,
24" Front to Back
Rear Center-Set Drain
3 1/2" Drain Opening
Accessories Included
Basket Strainer BST-2
Mounting Hardware
Cut-out Template
Towel
CODES/STANDARDS:
Product Certification
CSA B45.5/IAPMO Z124
Note: Although Kraus granite and quartz
composite sinks are highly heat resistant, placing
hot items right from the stove or oven directly into
the sink may cause surface discoloration. Consider
using a trivet or rolling mat for extremely hot items
to avoid potential heat damage.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. July 9, 2020
R
SPECIFICATION SHEET
24"
(610mm)
21 3/8"
(544mm)
3 1/2"
(90mm)
18 1/8"
(460mm)
15 1/2"
(394mm)
8 1/4"
(210.3mm)
12"
(305mm)
7 1/8"
(180mm)
1 1/4"
(33mm)
R 3/8"
(10mm)
R 1/8"
(3mm)
R 3/4"
(20mm)
R 1/2"
(12mm)
8 5/8"
(218.5mm)
