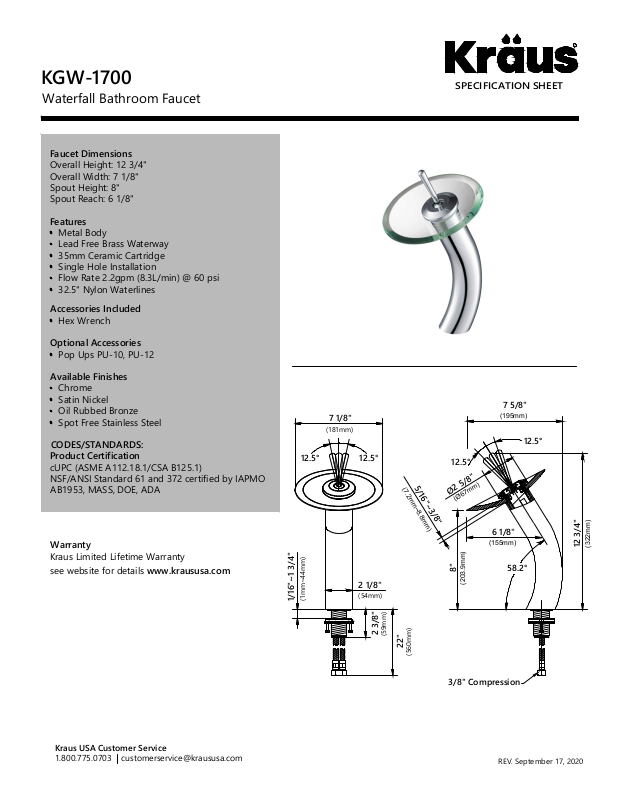

KGW-1700
Waterfall Bathroom Faucet
Faucet Dimensions
Overall Height: 12 3/4"
Overall Width: 7 1/8"
Spout Height: 8"
Spout Reach: 6 1/8"
Features
Metal Body
Lead Free Brass Waterway
35mm Ceramic Cartridge
Single Hole Installation
Flow Rate 2.2gpm (8.3L/min) @ 60 psi
32.5" Nylon Waterlines
Accessories Included
Hex Wrench
Optional Accessories
Pop Ups PU-10, PU-12
Available Finishes
Chrome
Satin Nickel
Oil Rubbed Bronze
Spot Free Stainless Steel
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, MASS, DOE, ADA
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. September 17, 2020
R
SPECIFICATION SHEET
7 1/8"
(181mm)
12.5°
2 1/8"
(54mm)
1/16"~1 3/4"
(1mm~44mm)
2 3/8"
(59mm)
22"
(560mm)
7 5/8"
(195mm)
12.5°
12.5°
58.2°
6 1/8"
(155mm)
3/8" Compression
12 3/4"
(322mm)
Ø2 5/8"
(Ø67mm)
5/16"~3/8"
(7.2mm~8.8mm)
12.5°
8"
(203.9mm)
