Glass Vessel Sinks
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. September 2, 2020
R
INSTALLATION MANUAL
Page 2
Congratulations on the purchase of your new Kraus plumbing fixture!
Please keep the box and packaging materials until your product is completely installed. If you have
any questions, require technical assistance or have any problems with your product:
2
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your receipt with purchase date for
reference.
If for any reason this product does not meet your expectations, please be sure to repack this
product in the original box and packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP
Page 3
3
Prior to Installation:
• Unpack your new product and ensure that all the parts are contained in the
packaging
• Keep the product in its original box until you’re ready to install it
• The counter top must be flat
• Shut off the water supply if replacing a previously-installed vessel sink
• Observe all plumbing and building codes in your area
• It is recommended that installation of the product be done by a professional
plumber
For technical assistance or replacement parts, please contact Kraus Customer Service
and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should
there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a
licensed professional.
Page 4
44

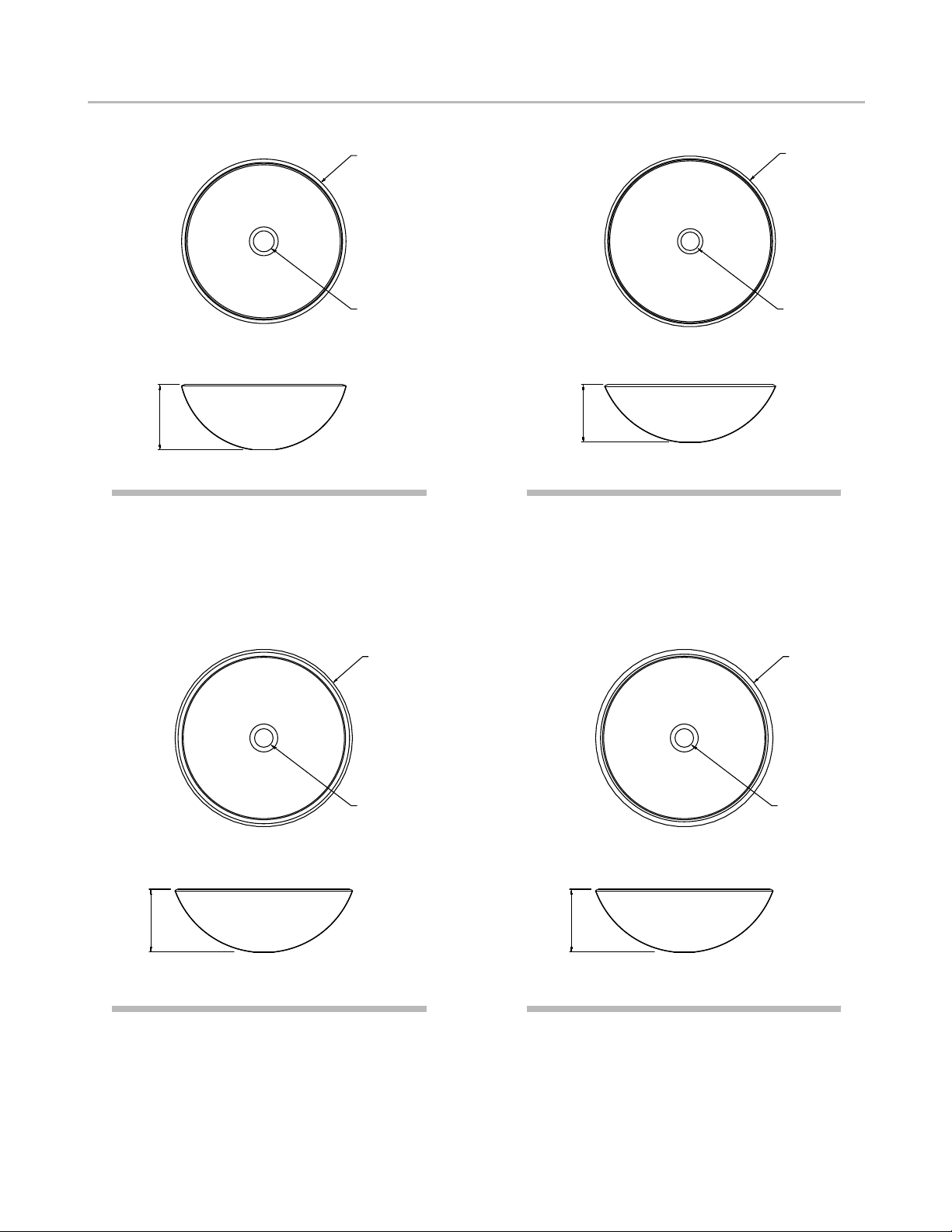

Dimensions
Model #: GV-101-14, GV-101FR-14,
GV-103-14, GV-104-14
Sink Dimensions: Ø14” x 5 1/2”
Glass Thickness: 12mm
5 1/2"
(140mm)
Ø14"
(356mm)
Ø17"
(432mm)
Ø1 3/4"
(45mm)
Model #: GV-100, GV-101, GV-101FR,
GV-104, GV-200, GV-204, GV-580,
GV-651, GV-684
Sink Dimensions: Ø16 1/2” x 5 1/2”
Glass Thickness: 12mm
5 1/2"
(140mm)
Ø16 1/2"
(419mm)
Ø1 3/4"
(45mm)
Model #: GV-101-19mm, GV-391-19mm,
GV-398-19mm, GV-399-19mm, GV-680-19mm
Sink Dimensions: Ø17” x 6”
Glass Thickness: 19mm
Model #: GV-150-19mm
Sink Dimensions: Ø17” x 6”
Glass Thickness: 19mm
Rim Thickness: 34mm
Ø1 3/4"
(45mm)
6"
(152mm)
Ø17"
(432mm)
Ø1 3/4"
(45mm)
6"
(152mm)
Page 5
55
Model #: GVR-204-RE, GVR-210-RE

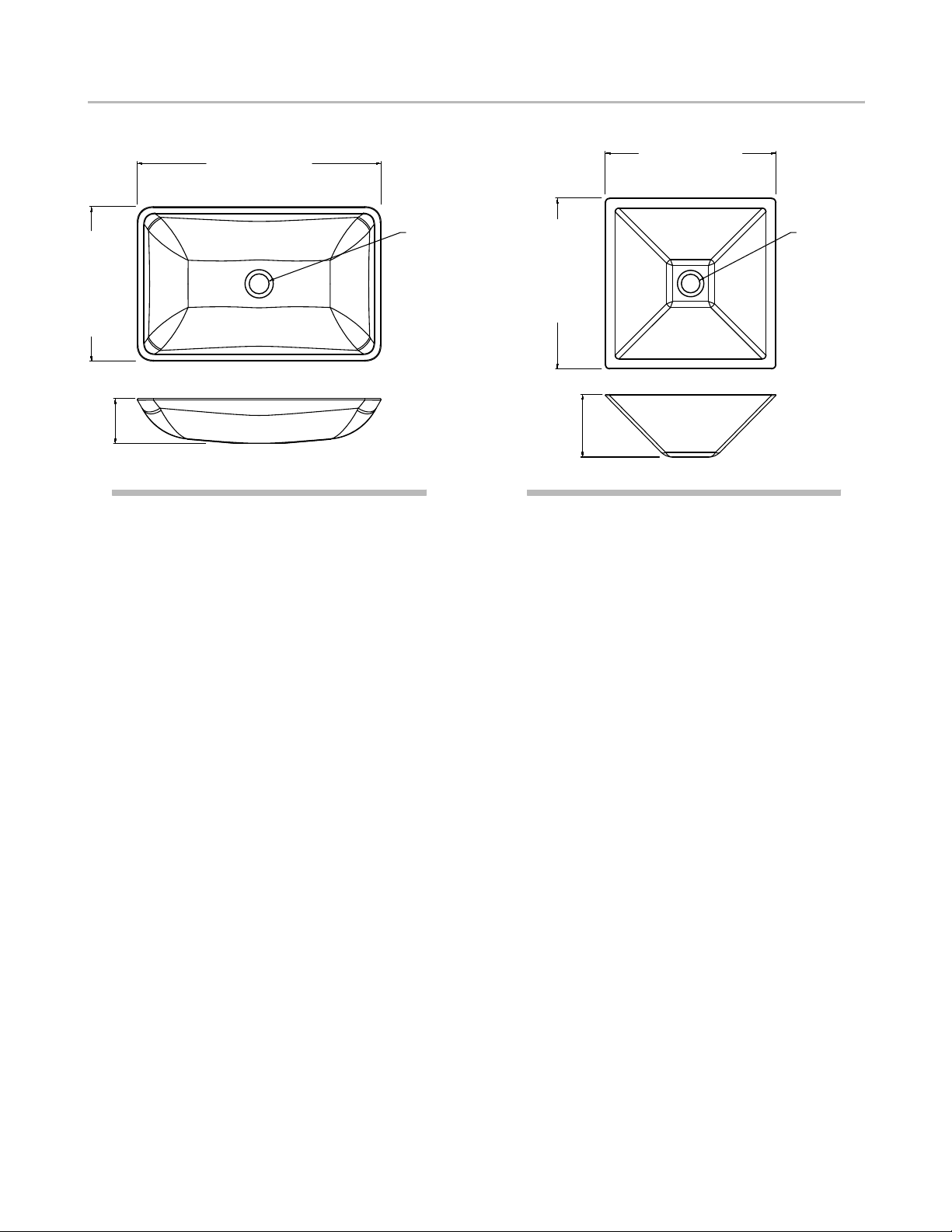

Sink Dimensions: 21 7/8” x 13 7/8" x 4”
Glass Thickness: 15mm
Model #: GVS-901-19mm
Sink Dimensions:
16 1/2” x 16 1/2" x 6”
Glass Thickness: 19mm
Dimensions
Ø1 3/4"
(45mm)
13 7/8"
(353mm)
21 7/8"
(556mm)
4"
(101.6mm)
16 1/2"
(419mm)
16 1/2"
(419mm)
Ø1 3/4"
(45mm)
6"
(152mm)
Page 6
66

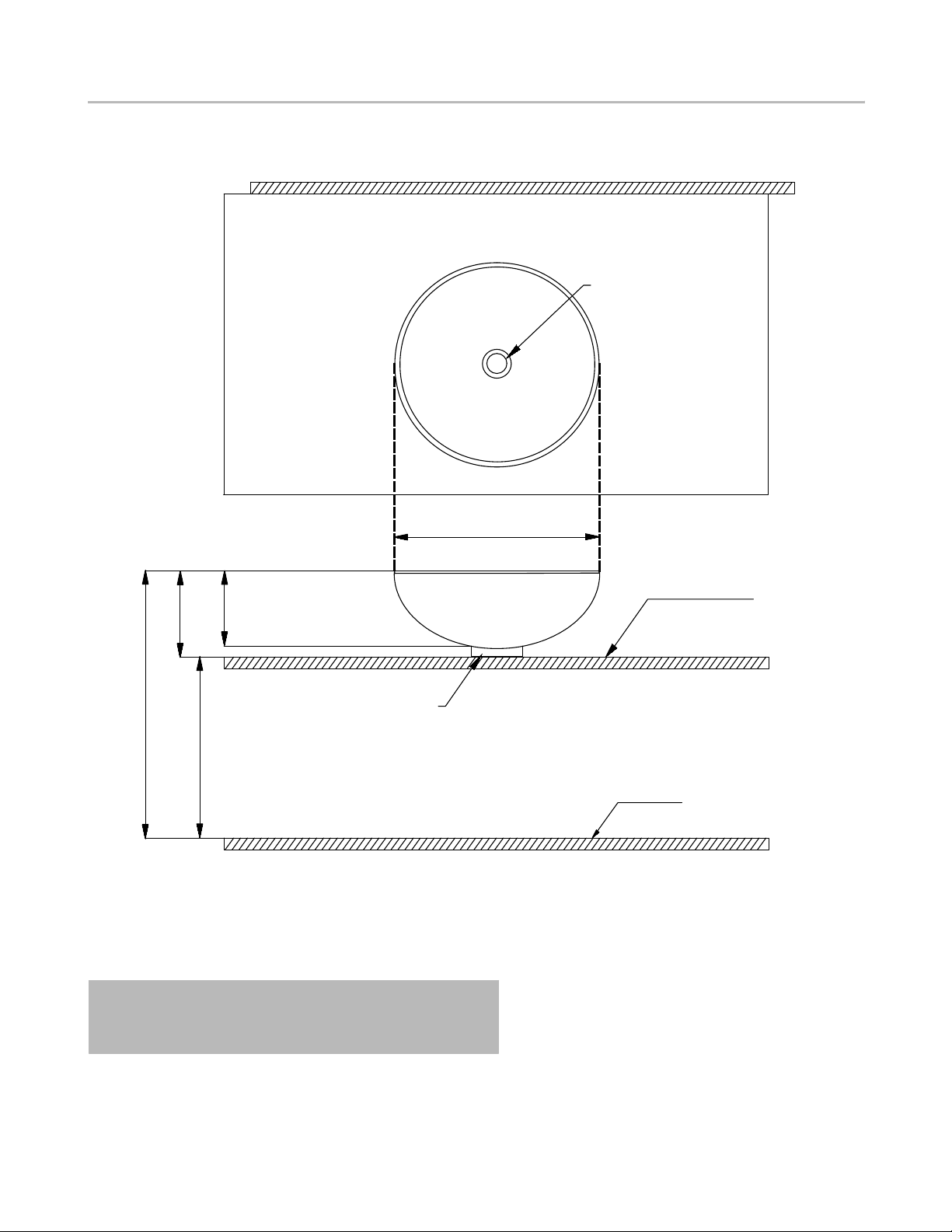

Rough-In Dimensions
Installer Tip
Shut off main water supply before installation.
Finished Wall
Ø1 3/4” Drain Hole
Top View
14” - 17”
Countertop
Mounting Ring 1/2”
Floor
34” Suggested
28” Suggested
5 1/2”
6”
Page 7
7
Above Counter Installation Instructions
Before You Begin

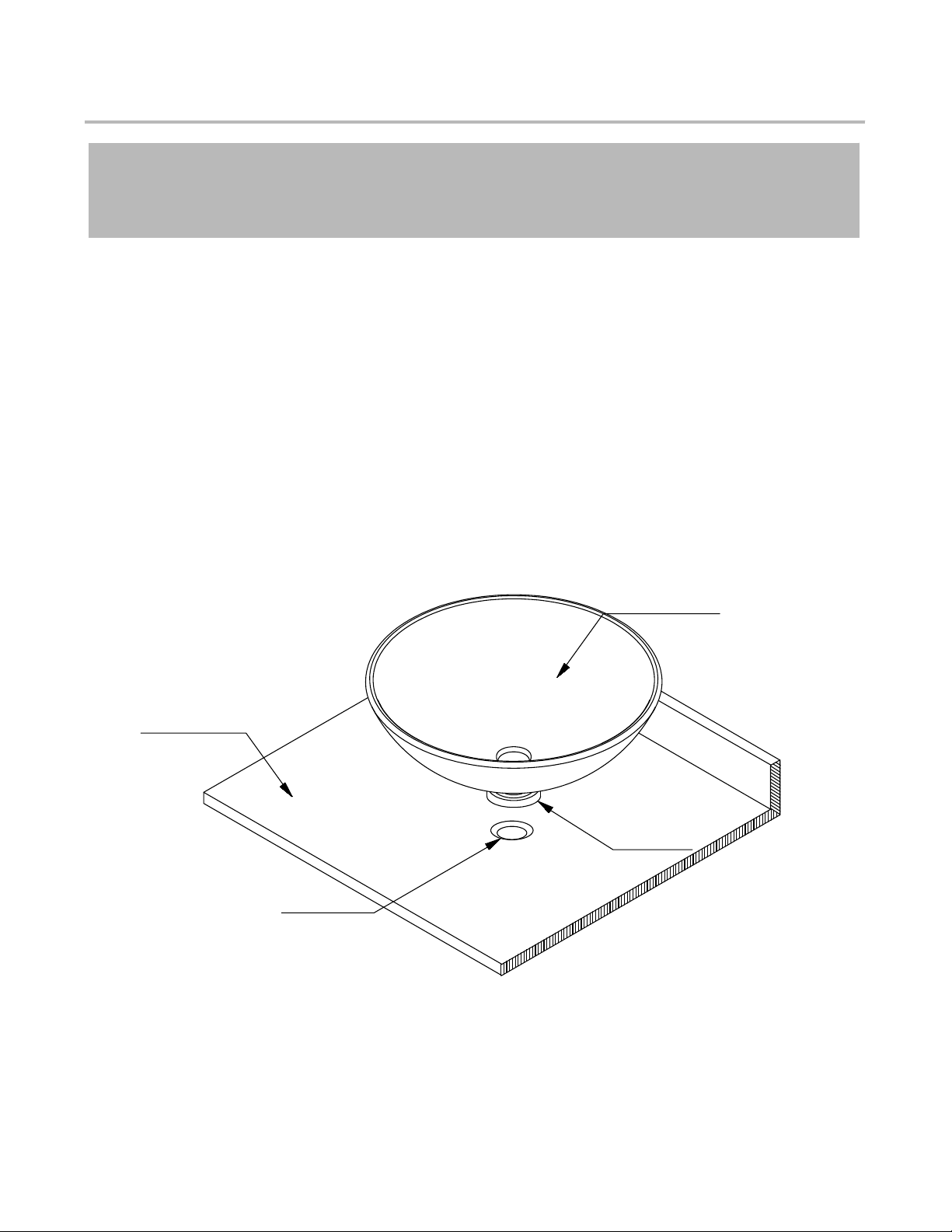

Prepare counter top by drilling a 1 3/4’’ diameter drain hole at the desired location. Install
mounting ring. Place vessel sink on the mounting ring or counter top as shown below.
Vessel Sink
Countertop
Mounting
Ring
Ø1 3/4”
(Suggested)
1. Make sure the vessel sink is not scratched, chipped or broken prior to installation.
2. Check to see if your set contains the following parts:
· Vessel sink
· Pop up drain (optional, may be sold separately)
· Mounting Ring (optional, may be sold separately)
3. Locate and place the mounting ring over the drain hole with the rubber side facing down and
the white washer side facing up.
4. Gently set your sink on top of the mounting ring.
Page 8
8
Pop Up Drain & Mounting Ring Installation (Only if Included)
Locate and disassemble your pop up drain in the following order:
· Unscrew the tail piece
· Unscrew the brass nut
· Remove the firm washer
· Remove the concave washer, leaving the top thin rubber washer on.

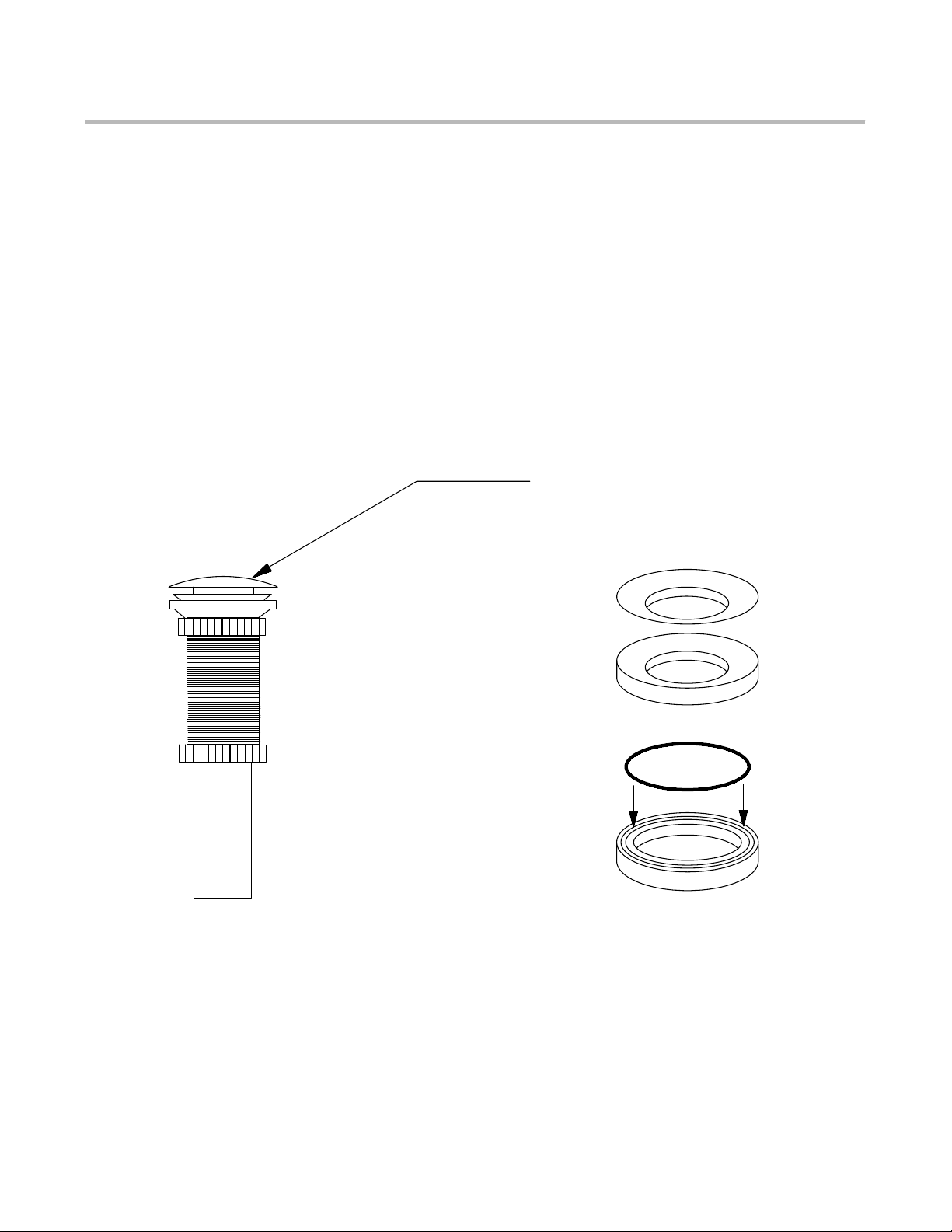

Pop Up Drain
Mounting Ring
White Rubber Washer
Top View
Inner Black Rubber Washer
Bottom View
Page 9
9

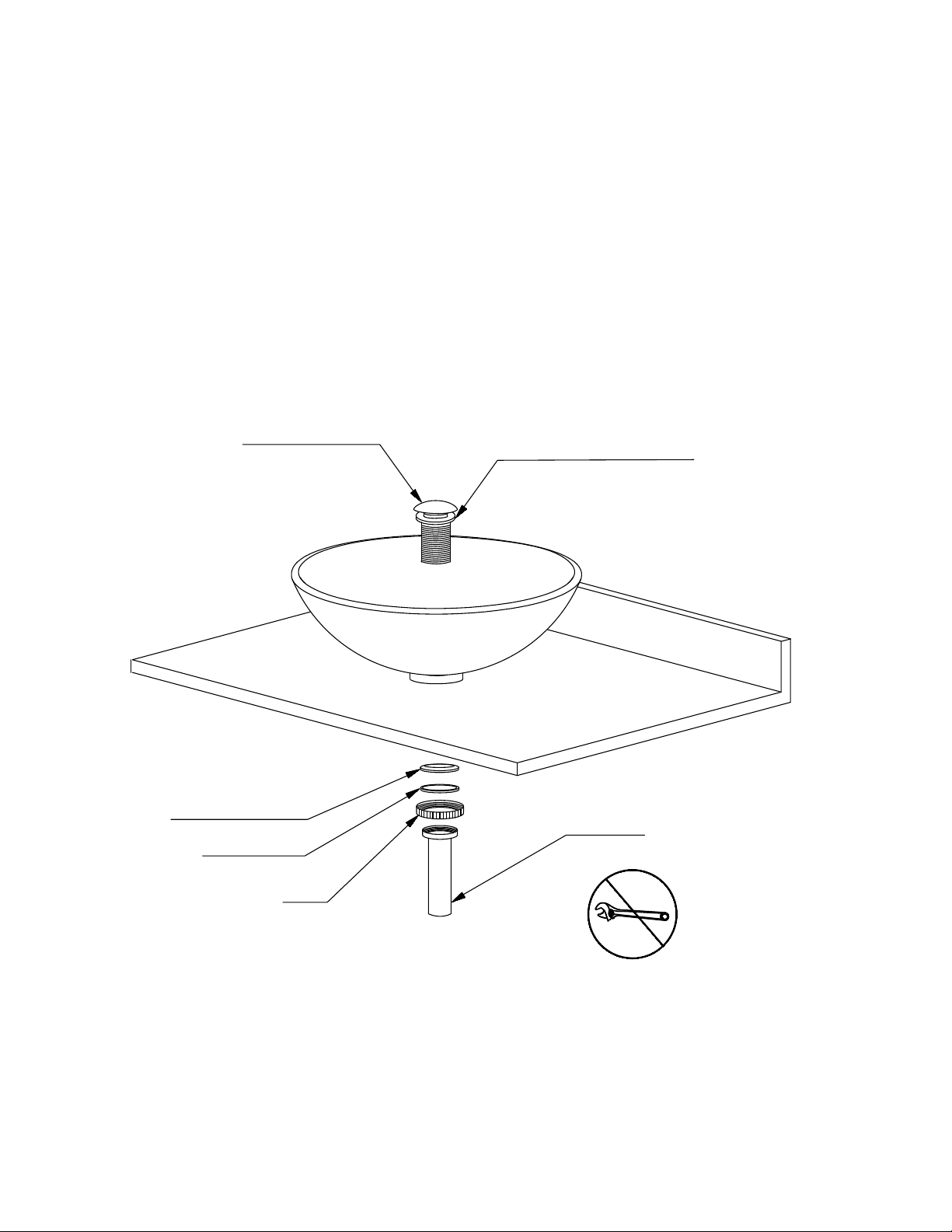

1. From above the countertop, insert the drain body into the 1 3/4” drain opening of your sink.
2. From underneath the countertop, insert the concave white rubber washer onto the drain.
3. Pushing the washer all the way up until it is in contact with the countertop.
4. Insert the firm washer onto the drain body until it comes into contact with the concave white
rubber washer.
5. Screw the brass nut onto the drain body until it touches the firm washer.
Pop Up Drain Top
Thin Soft Rubber Washer
Concave Washer
Firm Washer
Nut
DO NOT OVER TIGHTEN THE DRAIN!!!
Tail Pipe
Page 10
10
Glass Bathroom Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the “Glass Sink” in its original location.
The warranty is non-transferable.
Kraus warrants the structure and finish of the product (Glass Sink) to be free from defects in material and workmanship under normal
usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional,
from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced
with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable
to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets,
unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water
or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the
product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as
powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and
wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus
and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists
that such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow
recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages,
and Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of merchantability and
fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping
charges may apply). International shipping fees are not included.
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including
but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date
comprehensive warranty, go to www.kraususa.com/warranty
Codes/Standards Applicable
U
P
C
C
R
