Page 1

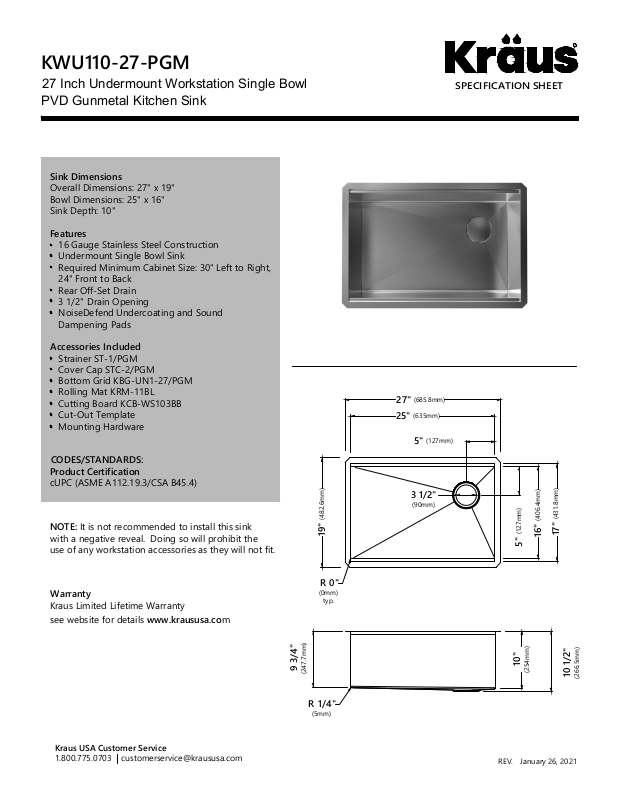

KWU110-27-PGM
27 Inch Undermount Workstation Single Bowl
PVD Gunmetal Kitchen Sink
Sink Dimensions
Overall Dimensions: 27" x 19"
Bowl Dimensions: 25" x 16"
Sink Depth: 10"
Features
16 Gauge Stainless Steel Construction
Undermount Single Bowl Sink
Required Minimum Cabinet Size: 30" Left to Right,
24" Front to Back
Rear Off-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1/PGM
Cover Cap STC-2/PGM
Bottom Grid KBG-UN1-27/PGM
Rolling Mat KRM-11BL
Cutting Board KCB-WS103BB
Cut-Out Template
Mounting Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
NOTE: It is not recommended to install this sink
with a negative reveal. Doing so will prohibit the
use of any workstation accessories as they will not fit.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 26, 2021
R
SPECIFICATION SHEET
27"
(685.8mm)
25"
(635mm)
16"
(406.4mm)
10"
(254mm)
17"
(431.8mm)
5"
(127mm)
5"
(127mm)
9 3/4"
(247.7mm)
3 1/2"
(90mm)
19"
(482.6mm)
10 1/2"
(266.5mm)
R 1/4"
(5mm)
R 0"
(0mm)
typ.
Page 2
KBG-UN1-27
Stainless Steel Kitchen Sink Bottom Grid
Grid Dimensions
Overall Dimensions: 24 5/8" x 15 5/8" x 7/8"
Features
Commercial grade stainless steel construction
For Use with the KWF210-27, KWF210-27-PGM,
KWU110-27 and KWU110-27-PGM kitchen sinks
Protects bottom of sink from daily wear and tear
Rubber feet provide additional protection
Available Finishes
Stainless Steel
PVD Gunmetal
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. October 30, 2021
R
SPECIFICATION SHEET
R 3/8"
(10mm)
15 5/8"
(396mm)
4 3/4"
(122mm)
7/8"
(23mm)
4 3/4"
(122mm)
4 3/4"
(121.8mm)
24 5/8"
(625mm)
Page 3
ST-1/PGM
Stainless Steel Kitchen Sink Strainer
Strainer Dimensions
Overall Dimensions: Ø4 1/2" x 3 3/4"
Features
Premium Stainless Steel construction
Fits Standard 3 1/2" or 4" Drain Opening
Open/Close Stopper Prevents Debris from Clogging
Drain Pipe
Available Finishes
PVD Gunmetal
Warranty
Kraus 1 Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. April 6, 2021
R
SPECIFICATION SHEET
Ø4 1/2"
(115mm)
3 3/4"
(94mm)
Ø4 3/4"
(119mm)
1 1/2" - 11 1/2" NPSM
Page 4
STC-2
Removable Decorative Drain Cover
Drain Cap Dimensions
Overall Dimensions: Ø4 1/2" x 5/8"
Features
Premium Stainless Steel Construction
Fits Standard 3 1/2" Drain Opening
Allows Water to Drain Easily When Installed
Conceals Garbage Disposal and Waste Fittings for a
Seamless Look
Compatible with Standart ProTM, PaxTM, KoreTM,
Outlast MicroshieldTM and Premier
TM
Kitchen sinks
Available Finishes
Stainless Steel
PVD Gunmetal
Warranty
Kraus 1 Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. April 6, 2021
R
SPECIFICATION SHEET
Ø4 1/2"
(115mm)
5/8"
(15.5mm)
Ø4"
(100mm)
Ø3 1/8"
(80mm)
1/2"
(13mm)
Page 5
KRM-11
Multipurpose Roll-Up Dish Drying Rack
Rolling Mat Dimensions
Overall Dimensions: 16 7/8" x 12" x 3/8"
Features
Roll-up over-the-sink drying rack
Stainless steel construction with non-slip silicone
coating
Rolls up into a compact cylinder for storage
Dishwasher safe
Heat-safe up to 400° F
Holds up to 85 lbs
BPA-free and FDA-approved
For Use with KFR4-33, KGF1-30, KGF1-33, KGF2-30,
KGF2-33, KWF210-30, KWF210-33, KWF210-36,
KWF410-30, KWF410-33, KWF410-36, KWT310-30,
KWT310-33, KWT311-25, KWU110-27, KWU110-30,
KWU110-32, KWU111-17, KWU111-23, KWU112-33,
KWU120-45 and KWU210-57 kitchen sinks
Available Colors
Black
Brown
Dark Blue
Dark Grey
Light Grey
Aqua
Green
Red
Yellow
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
REV. March 8, 2022
R
SPECIFICATION SHEET
12"
(305mm)
16 7/8"
(428.5mm)
1"
(24.5mm)
1/4"
(6mm)
Kraus USA Plumbing LLC Customer Service
1.800.775.0703 [email protected]
Page 6
KCB-WS103
Cutting Board
Cutting Board Dimensions
Overall Dimensions: 16 3/4" x 12" x 3/4"
Features
Designed to Use Over the Sink and On the Counter
Outer Groove Traps Liquids to Prevent Messy Counter
BPA-free and FDA-approved
Available Finishes
Bamboo
Acacia
Sapele
NOTE: Each piece may feature unique color variations
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 15, 2021
R
SPECIFICATION SHEET
12"
(304.8mm)
16 3/4"
(425.5mm)
R 1/4"
(5mm)
3 1/8"
(80mm)
3/4"
(20mm)
1"
(25mm)
