Page 1
KWF210-27-PGM
27 Inch Farmhouse Workstation Single Bowl
PVD Gunmetal Kitchen Sink
Sink Dimensions
Overall Dimensions: 26 7/8" x 20 1/4"
Bowl Dimensions: 25" x 16"
Sink Depth: 10"
Features
16 Gauge Stainless Steel Construction
Farmhouse Single Bowl Sink
Required Minimum Cabinet Size: 30" Left to Right,
24" Front to Back
Rear Off-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1/PGM
Cover Cap STC-2/PGM
Bottom Grid KBG-UN1-27/PGM
Rolling Mat KRM-11BL
Cutting Board KCB-WS103BB
Cut-Out Template
Mounting Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
NOTE: It is not recommended to install this sink
with a negative reveal. Doing so will prohibit the
use of any workstation accessories as they will not fit.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 26, 2021
R

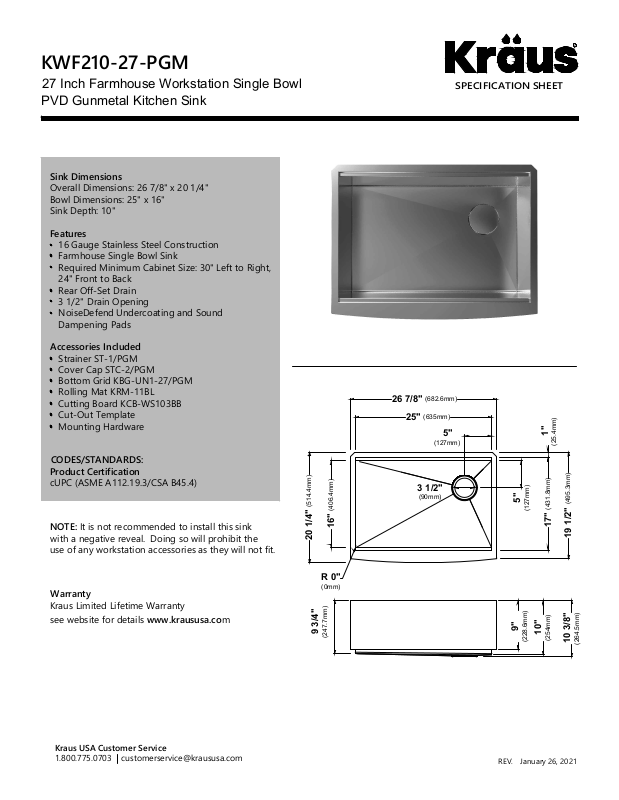

SPECIFICATION SHEET
26 7/8"
(682.6mm)
25"
(635mm)
5"
(127mm)
20 1/4"
(514.4mm)
16"
(406.4mm)
17"
(431.8mm)
5"
(127mm)
19 1/2"
(495.3mm)
9 3/4"
(247.7mm)
10"
(254mm)
9"
(228.6mm)
1"
(25.4mm)
10 3/8"
(264.5mm)
3 1/2"
(90mm)
R 0"
(0mm)
