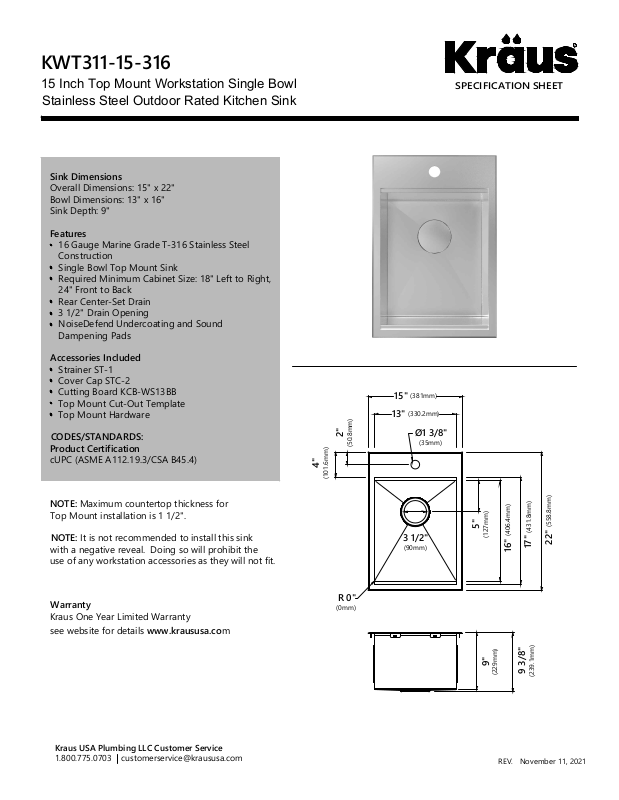

Page 1
KWT311-15-316
15 Inch Top Mount Workstation Single Bowl
Stainless Steel Outdoor Rated Kitchen Sink
Sink Dimensions
Overall Dimensions: 15" x 22"
Bowl Dimensions: 13" x 16"
Sink Depth: 9"
Features
16 Gauge Marine Grade T-316 Stainless Steel
Construction
Single Bowl Top Mount Sink
Required Minimum Cabinet Size: 18" Left to Right,
24" Front to Back
Rear Center-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1
Cover Cap STC-2
Cutting Board KCB-WS13BB
Top Mount Cut-Out Template
Top Mount Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
NOTE: Maximum countertop thickness for
Top Mount installation is 1 1/2".
NOTE:
It is not recommended to install this sink
with a negative reveal. Doing so will prohibit the
use of any workstation accessories as they will not fit.
Warranty
Kraus One Year Limited Warranty
see website for details www.kraususa.com
R
SPECIFICATION SHEET
16"
(406.4mm)
17"
(431.8mm)
5"
(127mm)
22"
(558.8mm)
15"
(381mm)
13"
(330.2mm)
Ø1 3/8"
(35mm)
2"
(50.8mm)
4"
(101.6mm)
3 1/2"
(90mm)
R 0"
(0mm)
9"
(229mm)
9 3/8"
(239.1mm)
Kraus USA Plumbing LLC Customer Service
1.800.775.0703 [email protected]
REV. November 11, 2021
