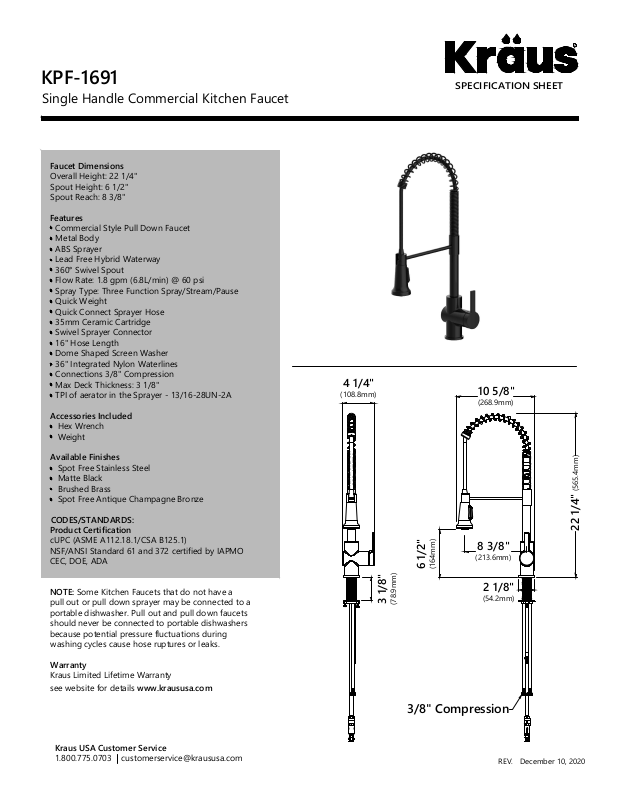

Page 1
KPF-1691
Single Handle Commercial Kitchen Faucet
Faucet Dimensions
Overall Height: 22 1/4"
Spout Height: 6 1/2"
Spout Reach: 8 3/8"
Features
Commercial Style Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Hybrid Waterway
360° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Spray Type: Three Function Spray/Stream/Pause
Quick Weight
Quick Connect Sprayer Hose
35mm Ceramic Cartridge
Swivel Sprayer Connector
16" Hose Length
Dome Shaped Screen Washer
36" Integrated Nylon Waterlines
Connections 3/8" Compression
Max Deck Thickness: 3 1/8"
TPI of aerator in the Sprayer - 13/16-28UN-2A
Accessories Included
Hex Wrench
Weight
Available Finishes
Spot Free Stainless Steel
Matte Black
Brushed Brass
Spot Free Antique Champagne Bronze
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
CEC, DOE, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 10, 2020
R
SPECIFICATION SHEET
10 5/8"
(268.9mm)
22 1/4"
(565.4mm)
8 3/8"
(213.6mm)
6 1/2"
(164mm)
2 1/8"
(54.2mm)
3/8" Compression
4 1/4"
(108.8mm)
3 1/8"
(78.9mm)
