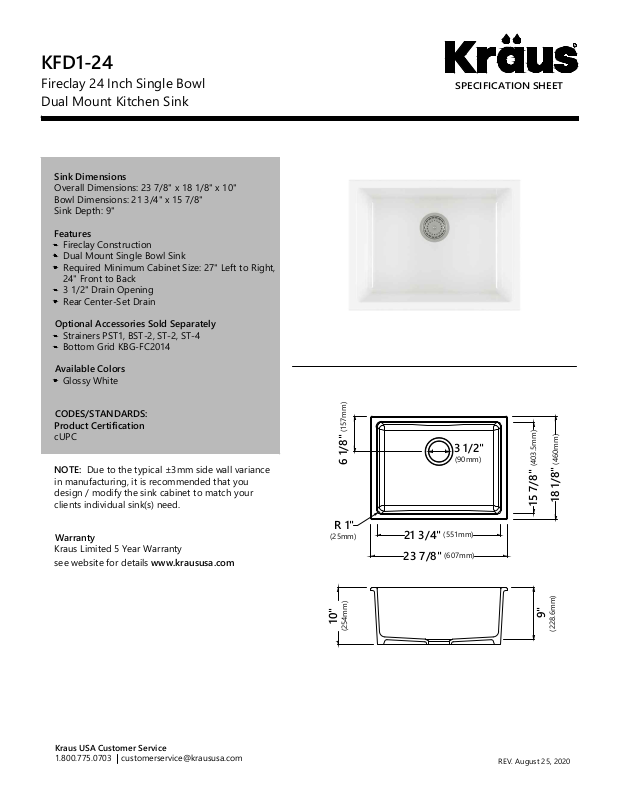

Page 1
KFD1-24
Fireclay 24 Inch Single Bowl
Dual Mount Kitchen Sink
Sink Dimensions
Overall Dimensions: 23 7/8" x 18 1/8" x 10"
Bowl Dimensions: 21 3/4" x 15 7/8"
Sink Depth: 9"
Features
Fireclay Construction
Dual Mount Single Bowl Sink
Required Minimum Cabinet Size: 27" Left to Right,
24" Front to Back
3 1/2" Drain Opening
Rear Center-Set Drain
Optional Accessories Sold Separately
Strainers PST1, BST-2, ST-2, ST-4
Bottom Grid KBG-FC2014
Available Colors
Glossy White
CODES/STANDARDS:
Product Certification
cUPC
NOTE: Due to the typical ±3mm side wall variance
in manufacturing, it is recommended that you
design / modify the sink cabinet to match your
clients individual sink(s) need.
Warranty
Kraus Limited 5 Year Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. August 25, 2020
R
SPECIFICATION SHEET
23 7/8"
(607mm)
18 1/8"
(460mm)
21 3/4"
(551mm)
15 7/8"
(403.5mm)
6 1/8"
(157mm)
3 1/2"
(90mm)
10"
(254mm)
9"
(228.6mm)
R 1"
(25mm)
