Page 1
33"
838mm
18 1/4"
465mm
16 1/2"
419mm
9 1/8"
232.5mm
8 7/8"
227mm
30 1/4"
768mm
1 3/8"
35mm
1 3/8"
35mm
5/8"
15mm
32 1/4"
820mm
5/8"
15mm
10"
254mm
3 1/2"
90mm
R 2"
50mm
(typ.)
Apron Front "A" Traditional
Apron Front "B" Contemporary
R 1/4"
5mm
(typ.)
R 1/2"
12mm
(typ.)
KFR1-33
Fireclay 33 Inch Single Bowl
Farmhouse Kitchen Sink
Sink Dimensions
Overall Dimensions: 33" x 18 1/4" x 10"
Bowl Dimensions: 30 1/4" x 15 1/2"
Sink Depth: 8 7/8"
Features
Fireclay Construction
Apron Front Farmhouse Single Bowl Sink
Reversible Traditional and Contemporary Designs
Required Minimum Cabinet Size: 33" Left to Right,
24" Front to Back
3 1/2" Drain Opening
Center Set Drain
Accessories Included
Bottom Grid KBG-FC2914
Optional Accessories Sold Separately
Strainers PST1, BST-2, ST-2, ST-4
Available Colors
Glossy White
Matte White
Matte Grey
CODES/STANDARDS:
Product Certification
cUPC
NOTE: Due to the typical ±3mm side wall variance
in manufacturing, it is recommended that you
design / modify the sink cabinet to match your
clients individual sink(s) need.
Warranty
Kraus Limited 5 Year Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. August 25, 2020
R

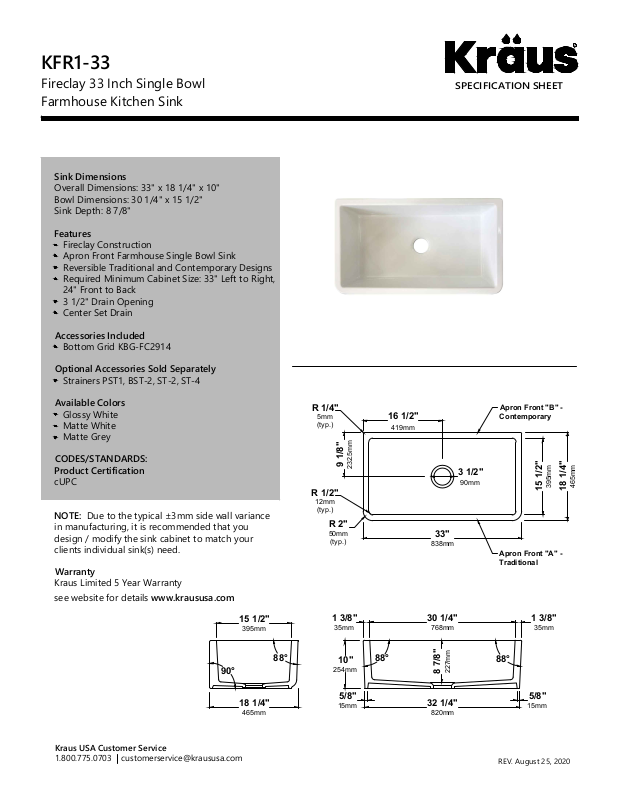

SPECIFICATION SHEET
15 1/2"
395mm
88°
88°
18 1/4"
465mm
15 1/2"
395mm
88°
90°
