Page 1
KGTW2-33
33 Inch Workstation Single Bowl Granite
Top Mount Kitchen Sink
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 26, 2021
Sink Dimensions
Overall Dimensions: 33" x 22"
Bowl Dimensions: 30" x 16"
Sink Depth: 9 5/8"
Features
Granite Composite Construction
Top Mount Single Bowl Sink
Required Minimum Cabinet Size: 36" Left to Right,
24" Front to Back
Rear Off-Set Drain
3 1/2" Drain Opening
Accessories Included
Cutting Board KCB-WS303SA
Sink Strainer ST-4
Rolling Mat KRM-11BL
Available Colors
Metallic Black
Metallic Brown
Metallic Grey
CODES/STANDARDS:
Product Certification
cUPC
NOTE: 1 3/8" (35mm) diameter faucet holes are
pre-scored. The installer can knock out up to
6 faucet holes.
NOTE: Although Kraus granite and quartz
composite sinks are highly heat resistant, placing
hot items right from the stove or oven directly into
the sink may cause surface discoloration. Consider
using a trivet or rolling mat for extremely hot items
to avoid potential heat damage.
NOTE:
It is not recommended to install this
sink with a negative reveal. Doing so will prohibit
the use of any workstation accessories as they
will not fit.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
R

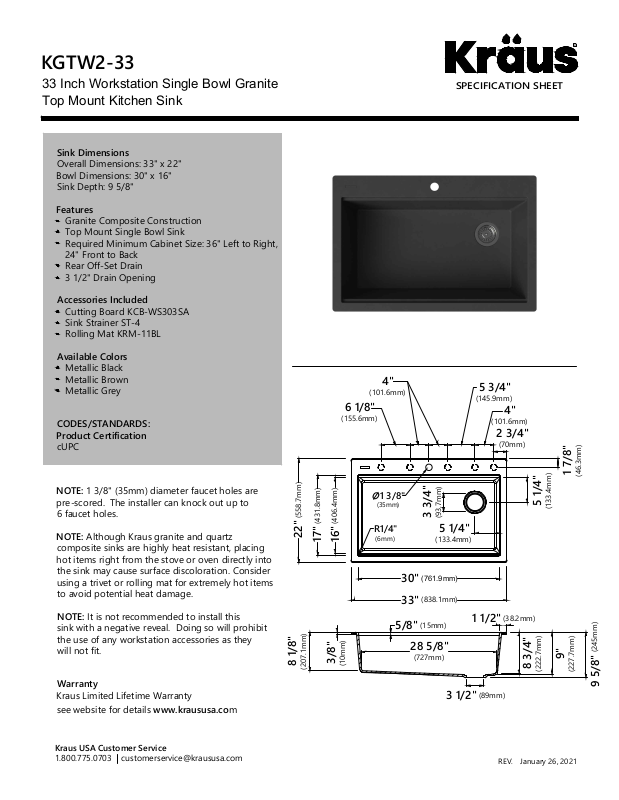

SPECIFICATION SHEET
33"
(838.1mm)
30"
(761.9mm)
5 1/4"
(133.4mm)
9 5/8"
(245mm)
9"
(227.7mm)
8 3/4"
(222.7mm)
8 1/8"
(207.1mm)
22"
(558.7mm)
17"
(431.8mm)
16"
(406.4mm)
5 1/4"
(133.4mm)
3 3/4"
(93.7mm)
R1/4"
(6mm)
3 1/2"
(89mm)
28 5/8"
(727mm)
3/8"
(10mm)
1 1/2"
(38.2mm)
5/8"
(15mm)
Ø1 3/8"
(35mm)
4"
(101.6mm)
6 1/8"
(155.6mm)
2 3/4"
(70mm)
1 7/8"
(46.3mm)
5 3/4"
(145.9mm)
4"
(101.6mm)
