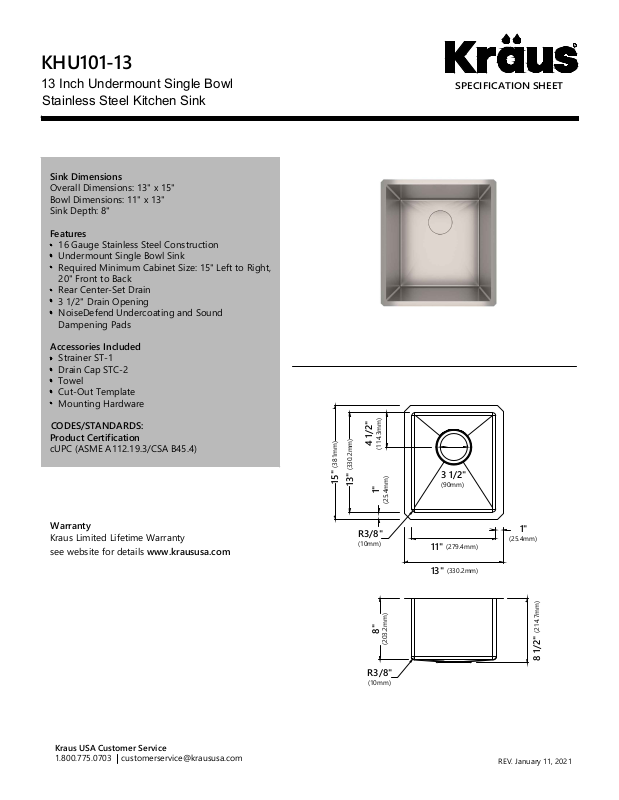

KHU101-13
13 Inch Undermount Single Bowl
Stainless Steel Kitchen Sink
Sink Dimensions
Overall Dimensions: 13" x 15"
Bowl Dimensions: 11" x 13"
Sink Depth: 8"
Features
16 Gauge Stainless Steel Construction
Undermount Single Bowl Sink
Required Minimum Cabinet Size: 15" Left to Right,
20" Front to Back
Rear Center-Set Drain
3 1/2" Drain Opening
NoiseDefend Undercoating and Sound
Dampening Pads
Accessories Included
Strainer ST-1
Drain Cap STC-2
Towel
Cut-Out Template
Mounting Hardware
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.19.3/CSA B45.4)
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 11, 2021
R
SPECIFICATION SHEET
8 1/2"
(214.7mm)
13"
(330.2mm)
15"
(381mm)
13"
(330.2mm)
11"
(279.4mm)
R3/8"
(10mm)
R3/8"
(10mm)
3 1/2"
(90mm)
8"
(203.2mm)
4 1/2"
(114.3mm)
1"
(25.4mm)
1"
(25.4mm)
