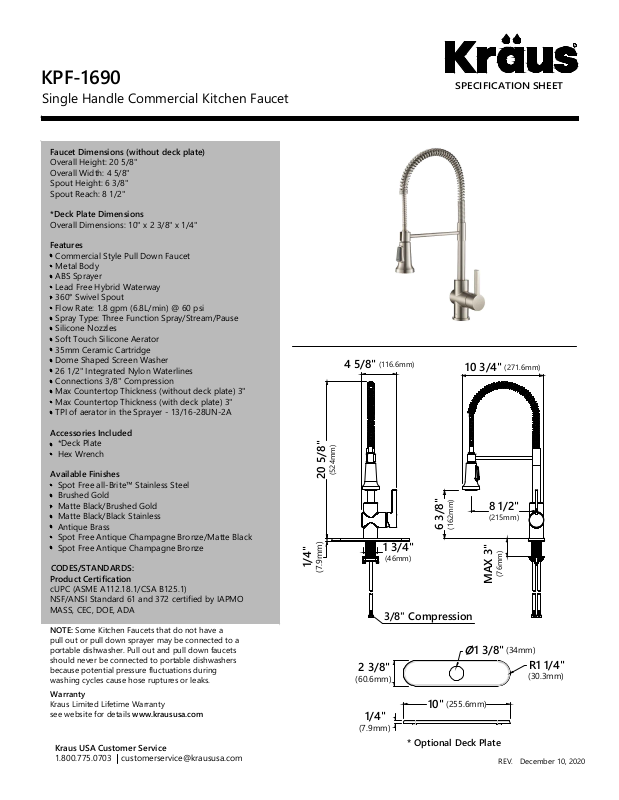

KPF-1690
Single Handle Commercial Kitchen Faucet
Faucet Dimensions (without deck plate)
Overall Height: 20 5/8"
Overall Width: 4 5/8"
Spout Height: 6 3/8"
Spout Reach: 8 1/2"
*Deck Plate Dimensions
Overall Dimensions: 10" x 2 3/8" x 1/4"
Features
Commercial Style Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Hybrid Waterway
360° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Spray Type: Three Function Spray/Stream/Pause
Silicone Nozzles
Soft Touch Silicone Aerator
35mm Ceramic Cartridge
Dome Shaped Screen Washer
26 1/2" Integrated Nylon Waterlines
Connections 3/8" Compression
Max Countertop Thickness (without deck plate) 3"
Max Countertop Thickness (with deck plate) 3"
TPI of aerator in the Sprayer - 13/16-28UN-2A
Accessories Included
*Deck Plate
Hex Wrench
Available Finishes
Spot Free all-Brite™ Stainless Steel
Brushed Gold
Matte Black/Brushed Gold
Matte Black/Black Stainless
Antique Brass
Spot Free Antique Champagne Bronze/Matte Black
Spot Free Antique Champagne Bronze
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
MASS, CEC, DOE, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
R
SPECIFICATION SHEET
3/8" Compression
20 5/8"
(524mm)
1 3/4"
(46mm)
4 5/8"
(116.6mm)
10 3/4"
(271.6mm)
6 3/8"
(162mm)
8 1/2"
(215mm)
REV. December 10, 2020
2 3/8"
(60.6mm)
Ø1 3/8"
(34mm)
10"
(255.6mm)
1/4"
(7.9mm)
* Optional Deck Plate
R1 1/4"
(30.3mm)
MAX 3"
(76mm)
1/4"
(7.9mm)
