Kraus KUS10315 Installation & Assembly

Bolden

TM

Single Handle Pull

Down Kitchen Faucet

KPF-1610

R

INSTALLATION MANUAL

2

Congratulations on the purchase of your new Kraus plumbing fixture!

Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your receipt with purchase date for reference.

If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

3

Prior to Installation:

· Make sure you have all necessary parts by checking the diagram and

parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement.

· Turn off the hot and cold water supply at the angle stops and turn on

the old faucet to release any built up pressure. Remove existing faucet. Clean sink or countertop to remove any debris, plumber’s putty, or silicone.

· Flush angle stops to release any debris prior to installation.

· Pre-drilled hole size requirement: 1 3/8" (min)

· Max countertop thickness: 1 3/4”

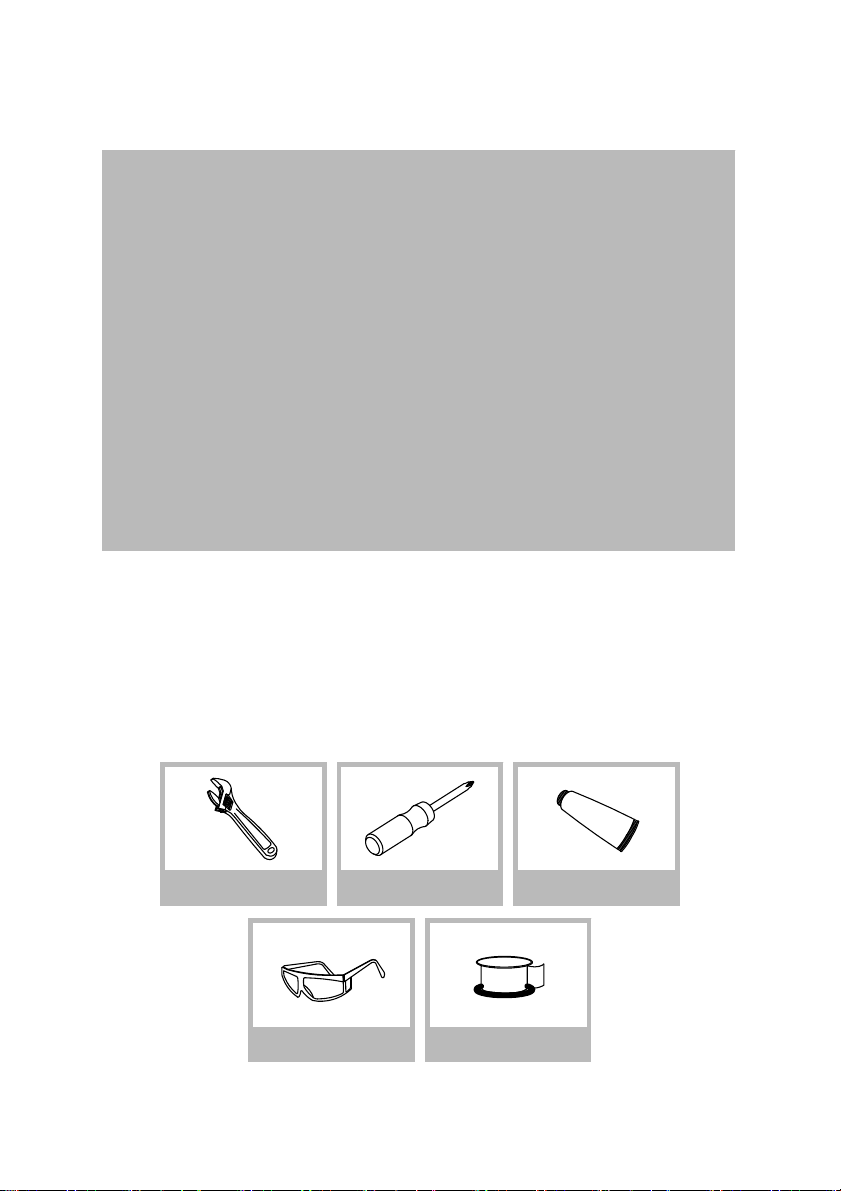

Tools Required

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

Adjustable Wrench Phillips Screwdriver

Safety Goggles

Pipe Tape

Silicone Sealant

44

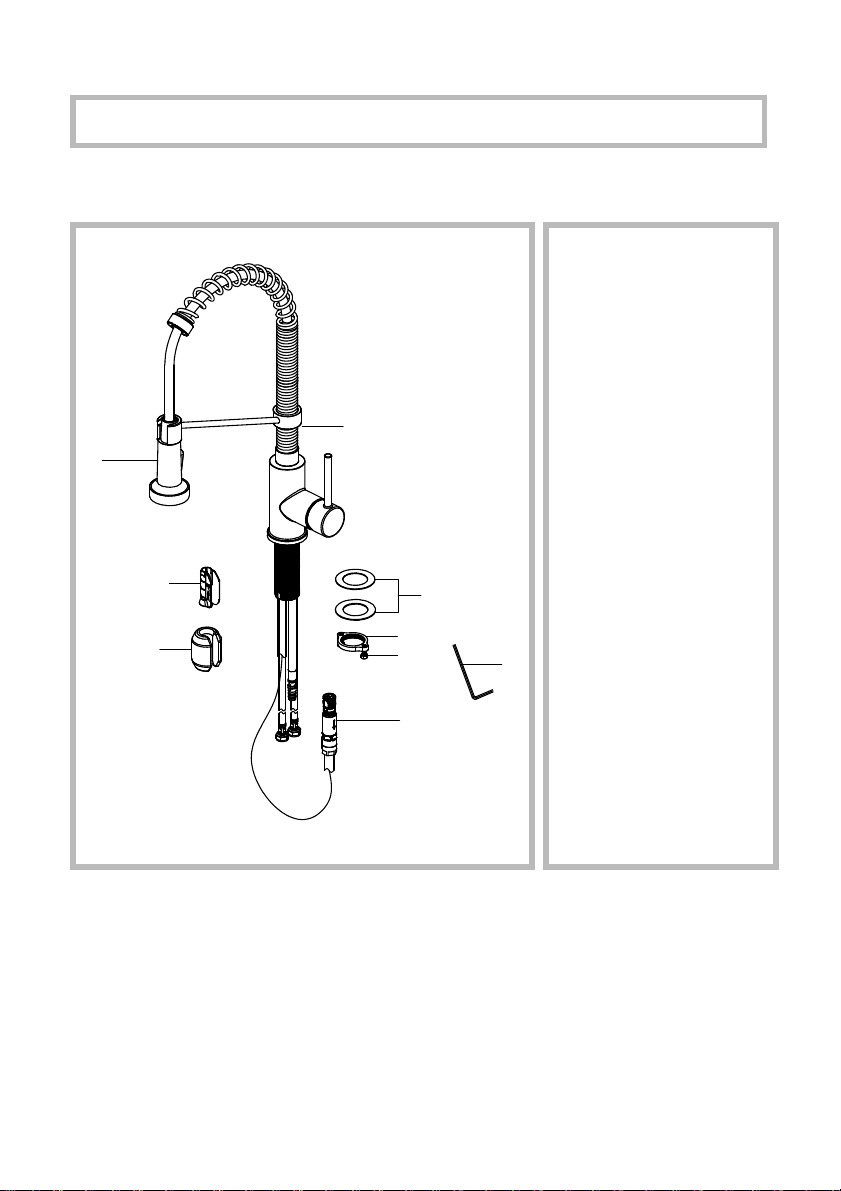

Diagram and Parts List

A. Spray Head B. Faucet Body C. Mounting Hardware

C1. Rubber & Metal

Washer

C2. Mounting Nut

C3. Mounting Screws D. Quick Connector E. Weight

E1. Weight Clip

E2. Weight F. 2.5mm Hex Wrench

A

B

E1

C1

E2

C2

C3

D

F

55

Installer Tip:

Shut off main water supply before installing new faucet.

4 1/2"

(116mm)

18"

(456mm)

2 1/4"

(56mm)

6 3/8"

(162mm)

8 3/4"

(221mm)

3 1/2"

(88mm)

Ø1 7/8"

(48mm)

Ø2 1/8"

(54mm)

10 3/4"

(274mm)

22 3/4"

(578mm)

17"

(432mm)

90°

25°

9/16" - 24UNF

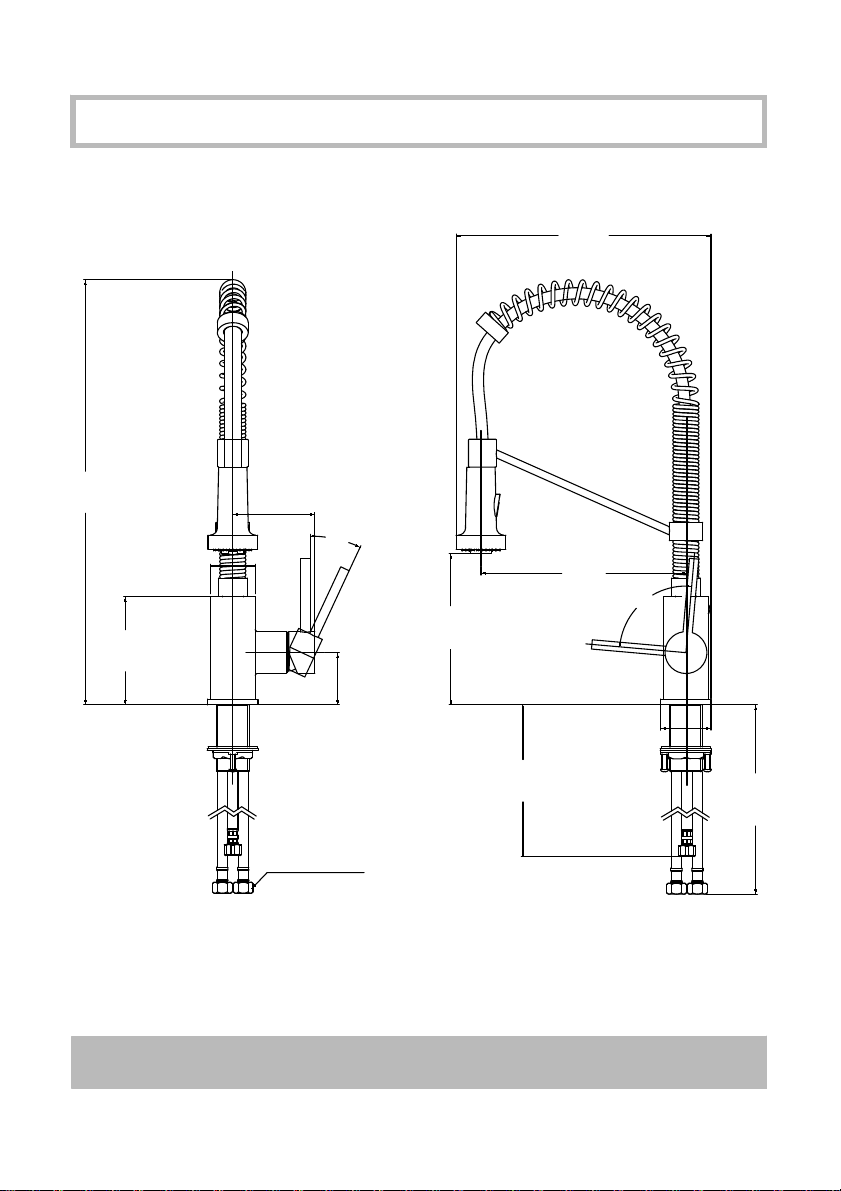

Faucet Dimension

66

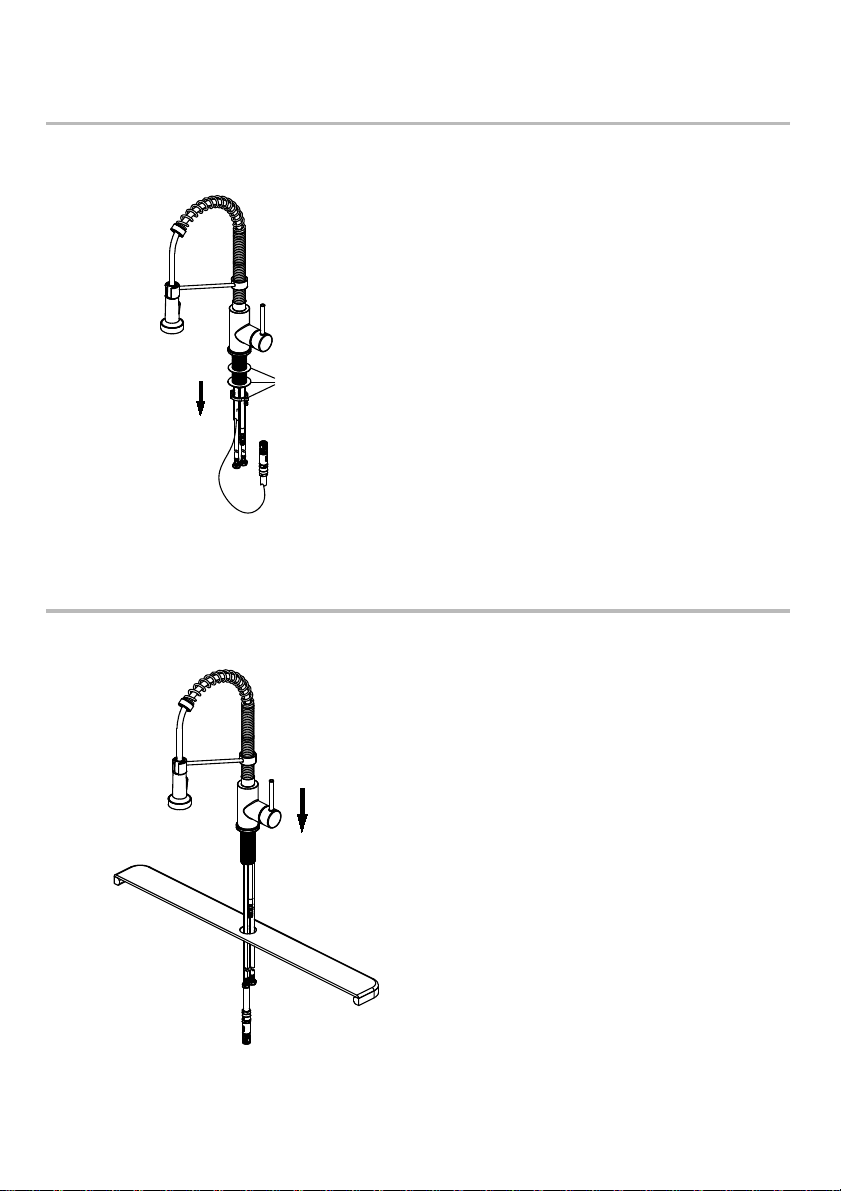

Step 1. Remove mounting hardware

Step 2. Installing the faucet assembly

Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove mounting hardware (C) from faucet body (B).

Optional No Escutcheon Installation. Insert faucet body through the hole in the sink.

C

7

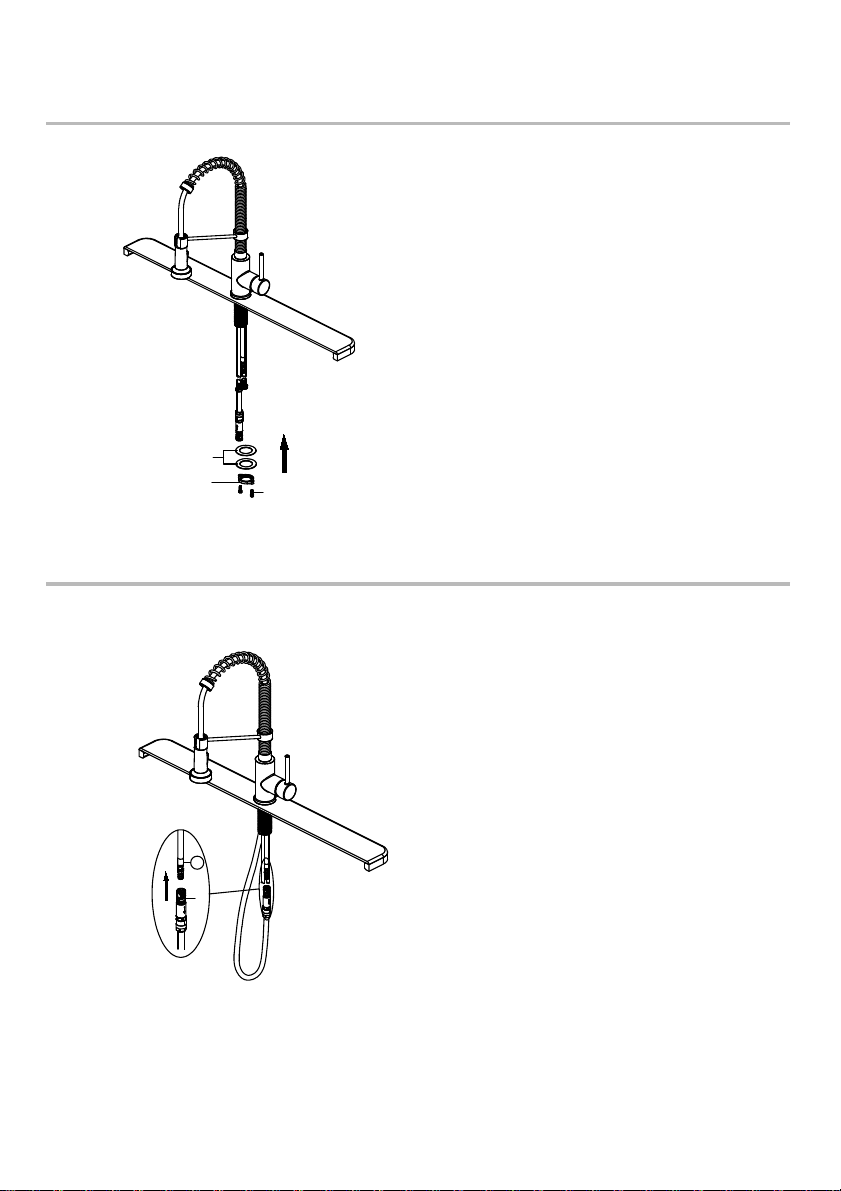

Step 3. Securing the faucet assembly

Install the rubber washer and metal washer (C1) onto the threaded mounting shank. Thread the nut (C2) onto the mounting shank. Lock the nut (C2) into position by tightening the screws (C3). Do not overtighten.

Step 4. Securing the faucet assembly

Push the quick connector (D) firmly upward and attach it to the receiving block (1). Pull down moderately to ensure the connection has been made.

C1

C2

C3

1

D

8

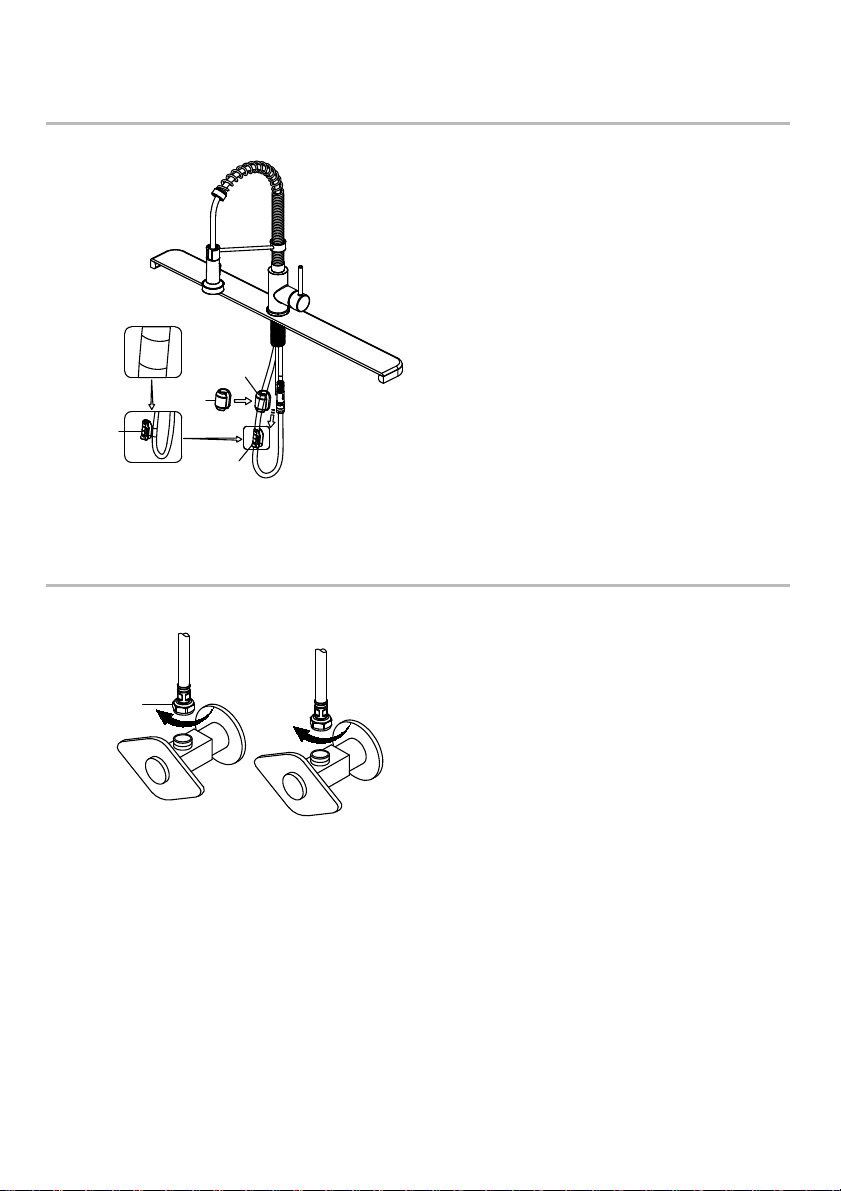

Step 5. Securing the faucet assembly

Step 6. Making the waterline connections

Install the weight clip (E1) at the point of the hose marking "weight here". Insert the weight (E2) onto the clip (E1) by sliding it down onto the clip (E1).

Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench. Do not overtighten.

Weight

here

Weight

here

1

E1

E2

E1

E2

9

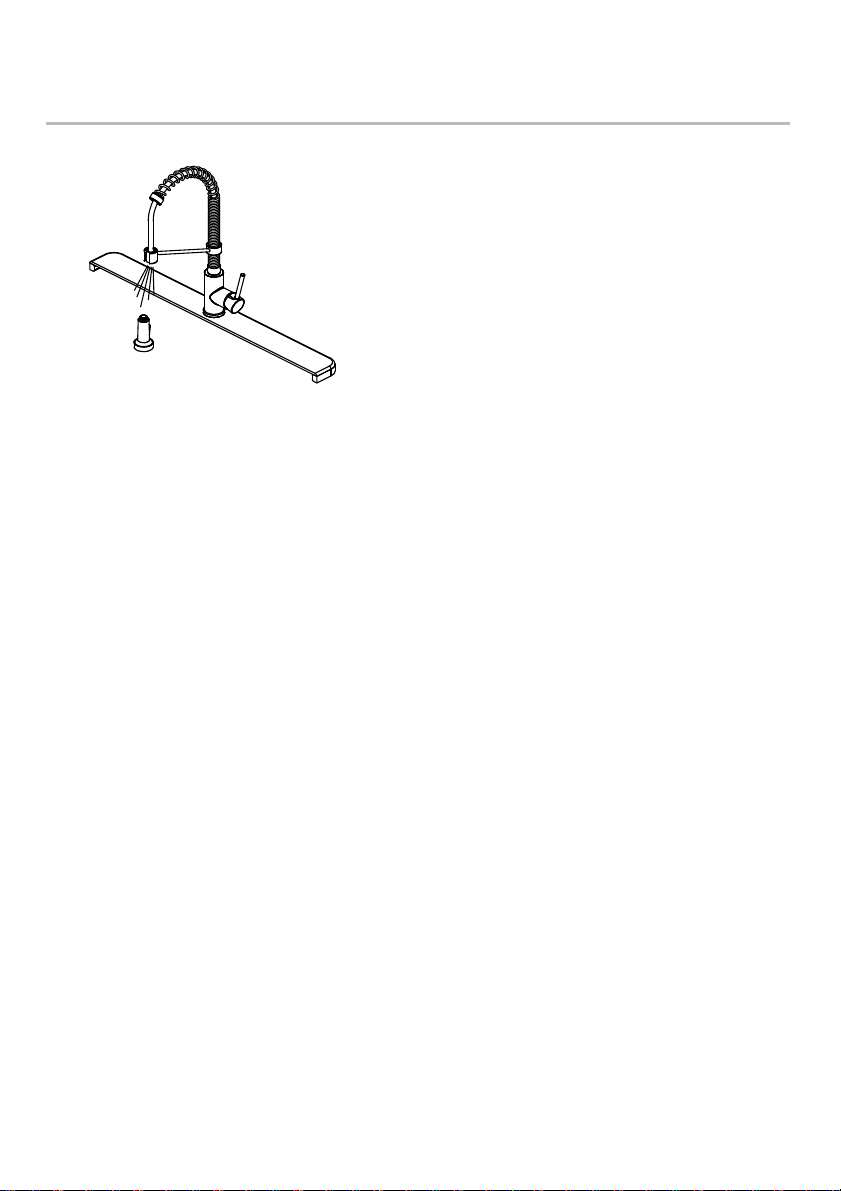

Step 7. Flushing and checking for leaks

Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water. Flush the water lines for one minute. This flushes away any debris that could cause damage to internal parts. Check for leaks. Re-tighten any connections if necessary, but do not overtighten. Reinstall the spray head by hand tightening it back onto the spray hose. After installation is completed, turn on the hot and cold water supplies. Check for leaks.

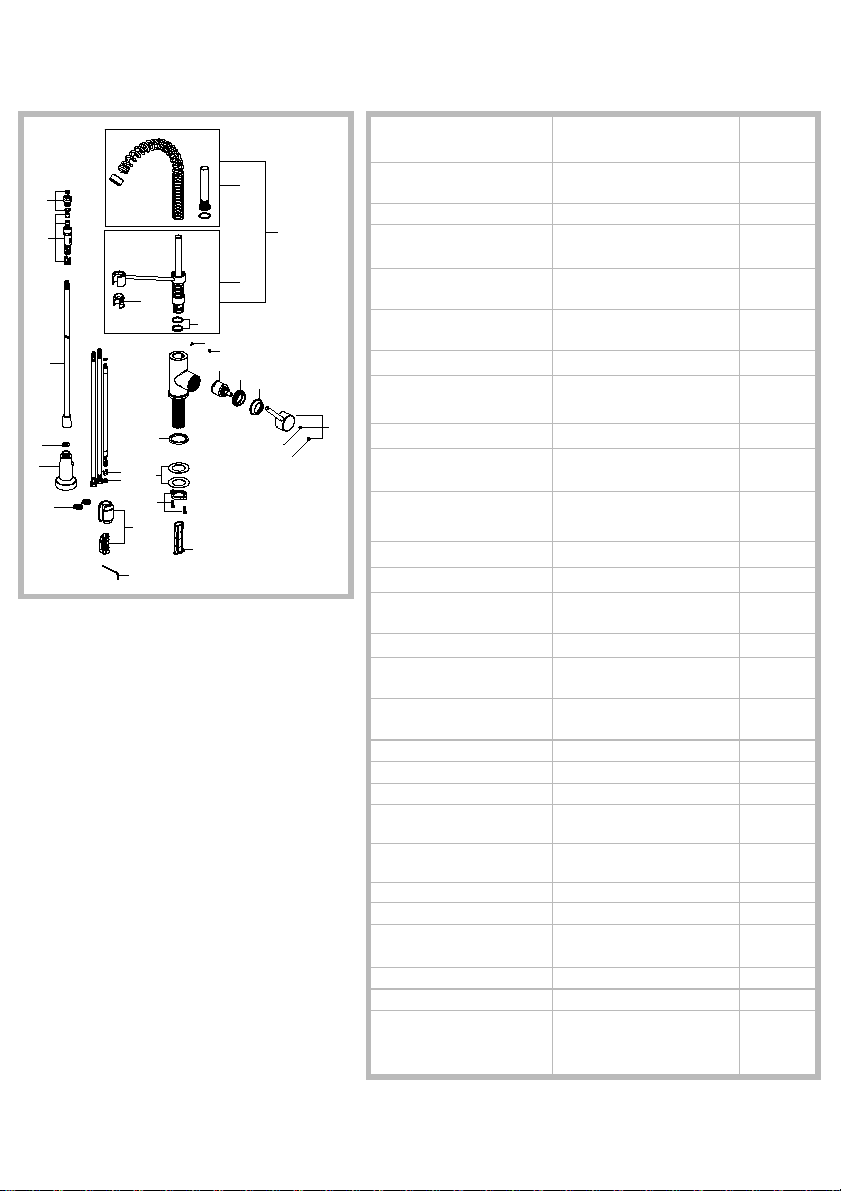

Replacement Parts

Replacement Finish/Color Part # Parts List

KP27087

KP27088 KP27089

KP27020

*Denotes spray hose assembly color options: Spray hose assembly color options: Black hose w/ Brushed Gold connector (BLBG), Black hose with Spot-Free Stainless connector (BLSFS), Gray hose with Chrome connector (GRCH), Gray hose with Spot-Free Stainless connector (GRSFS), Gray hose with Stainless Steel connector (GRSS), Black hose with Matte Black connector (BLMB), Black hose with Stainless Steel connector (BLSS), Black hose with Spot-Free Antique Champagne Bronze (BLSFACB)

**Denotes faucet component color options: CH - Chrome SFS - Spot Free Stainless Steel SS - Stainless Steel MB - Matte Black BG - Brushed Gold SB - Black Stainless MBSFSB - Matte Black/Spot Free Stainless Steel SFACB - Spot Free Antique Champagne Bronze SFACBMB - Spot Free Antique Champagne Bronze/Matte Black MBSB - Matte Black/Black Stainless SFSCH - Spot Free Stainless Steel/Chrome BGMB - Brushed Gold/Matte Black SFSB - Spot Free Black Stainless SFSMB - Spot Free Stainless Steel/Matte Black SSMB - Stainless Steel/Matte Black SSCH - Stainless Steel/Chrome BL - Black WH - White GR- Grey

1. Sprayer

2. Screen Washer

3. Sprayer Hose

4. Flow Regulator Assembly (1.8GPM)

5. Quick Connector Assembly

6. Spring Assembly

7.1. Inverter

7.2. Wearable Ring &

O-ring Assembly

9. Set Screw

11. Cartridge Kerox

K-35

12. Bonnet Nut

13. Cap

14. Handle Assembly

15. Set Screw

16. Cover Button

17. Washer

18. Rubber & Metal

Washer

19. Mounting Nut &

Screws

20. Block

21. O-ring

22. Weight & Clip

23. Hex Wrench

BLBG,BLMB,BLSFS,BLSS,GRCH BLSFACB,GRSFS,GRSS**

WH**

BL,GR**

KP27074

KP27090

KP27220

KP27122 KP27085

KP27084

KP27083

KP27082 KP27081

KP27072

KP27001 KP27002 KP27091 KP27028

KP27079

KP27073 KP27092 KP27093

4

5

7

7.1

7.2 9

3

10

11

12

13

14

1

2

25

20 21

17

18

19

22

23

24

15

16

6

8

KP27123

24. Inverter KP27167

25. Filter Washers

Assembly

10. Index

8. Sprayer Support

Assembly

CH, SFS, SS, SB, MB, BG, SFACB, SFSB**

KP27124

KP27232

7. Sprayer Holder

CH,SFS,SS,SB,SFSMB,BG,SFACB, MB,SFACBMB,BGMB,SFSB,MBSB, SFSCH,SSCH,SSMB,MBSFSB**

KP27231

Assembly

CH,MB,SB,SFACB,SFS,BG,SFSB**

CH,SFS,SS,SB,MB,SFSB,BG, SFACB,SFACBMB,BGMB**

CH, SFS, SS, SB, MB, BG, SFACB, SFSB**

BL,GR**

CH,SFS,SS,SB,SFSMB,BG,SFACB, MB,SFACBMB,BGMB,SFSB,SSMB, SFSCH,SSCH,MBSB,MBSFSB**

11

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Leakage under faucet handle

Bonnet nut (11) has come loose

Remove the cover button (15). Loosen set screw (14) with hex wrench (22). Remove the handle. Unscrew cap (12). Tighten bonnet nut (11) with an adjustable wrench.

The water pressure is low.

The connector underneath the deck is clogged with debris

The aerator is clogged

Turn off the water supply and disconnect the connector / aerator. Unscrew the connector / aerator and clean under running water. Screw the connector / aerator back. Test water flow. If water pressure is still low then replace the connector / aerator.

Care & Maintenance

To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners

3. Do not use cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

This installation manual is subject to change without further notice.

The aerator has an irregular or reduced water flow

The aerator is dirty or mis-fitted

Remove the aerator and check for debris. Ensure that the rubber washer is properly installed.

There is a low flow of water.

The screen filter in the hose connectors is dirty.

Turn off the water supply at water valve and unscrew the hose connectors from water supply lines. Clean the screen in the water lines with hot water, removing any debris or calcium build up.

ACID

PROBLEM CAUSE ACTION

12

FAUCET WARRANTY

Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. ("Kraus").

Kraus extends this warranty to the original purchaser for personal household use of the "Faucet" in its original location. The warranty is non-transferable.

Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.

Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators, structure, restrictors, back flow preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel,etc) of the product to be free from defects in material and workmanship under normal usage for a period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the one (1) year term of the original owner or end-user.

Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and workmanship under normal usage for a period of five (5) years. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the five (5) year term of the original owner or end-user.

Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.

RESTRICTIONS

This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets, unauthorized dealers, and/or sold on clearance.

This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these will damage and wear down the finish.

This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.

This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.

This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages, and Kraus accepts no liability for such damages.

This warranty does not cover Marine or Outdoor Installation.

Codes/Standards Applicable:

U

P

C

R

U

P

C

R

NSF/ANSI 372 NSF/ANSI 61-9

ASME A112.18.1

1.8GPM 6.8L/min maximum

13

Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, or compliance with any code.

Shipping charges will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included.

COMMERCIAL WARRANTY

Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.

All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given,

including but not limited to any implied warranty of merchantability or fitness for a particular purpose.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty

If you are a homeowner please contact a Kraus Customer Service Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 [email protected]

If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 [email protected]

If you are an Authorized Partner please contact a Partner Support Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8954 [email protected]

In requesting warranty service, please be ready to provide:

1. Proof of purchase.

2. A description of the problem.

Download the Kraus Care & Maintenance Guide at:

http://www.kraususa.com/maintenance

Register Your Kraus Product

Activate Your Warranty

Access Premium Customer Support

Get Product Information

REGISTER TODAY

http://www.kraususa.com/registration

R

www.kraususa.com

IMPORTANT

INSTALLATION GUIDE

Purita™ Single Handle Water

Filtration Faucet

FF-100

Congratulations on the purchase of your new

Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product:

DO NO T RETU RN TO STORE

Please contact our Customer Service Team 1-800-775-0703 / [email protected]

Have the model number available, and retain a copy of your receipt with purchase date for reference.

If for any reason this product does not meet your expectations, please be sure to repack this product in the original box and packaging material to avoid damage during transit.

1

Prior to Installation:

Make sure you have all necessary parts by checking the diagram and parts list. If

•

any part is missing or damaged, please contact Kraus Customer Service at 800-775-

0703 for a replacement

•

Turn oﬀ the hot and cold water lines at the angle stops and turn on the old faucet

to release any built-up pressure

•

Pre-drilled countertop hole size requirement: 1 1/4”(min)

• Max countertop thickness: 3 1/16”

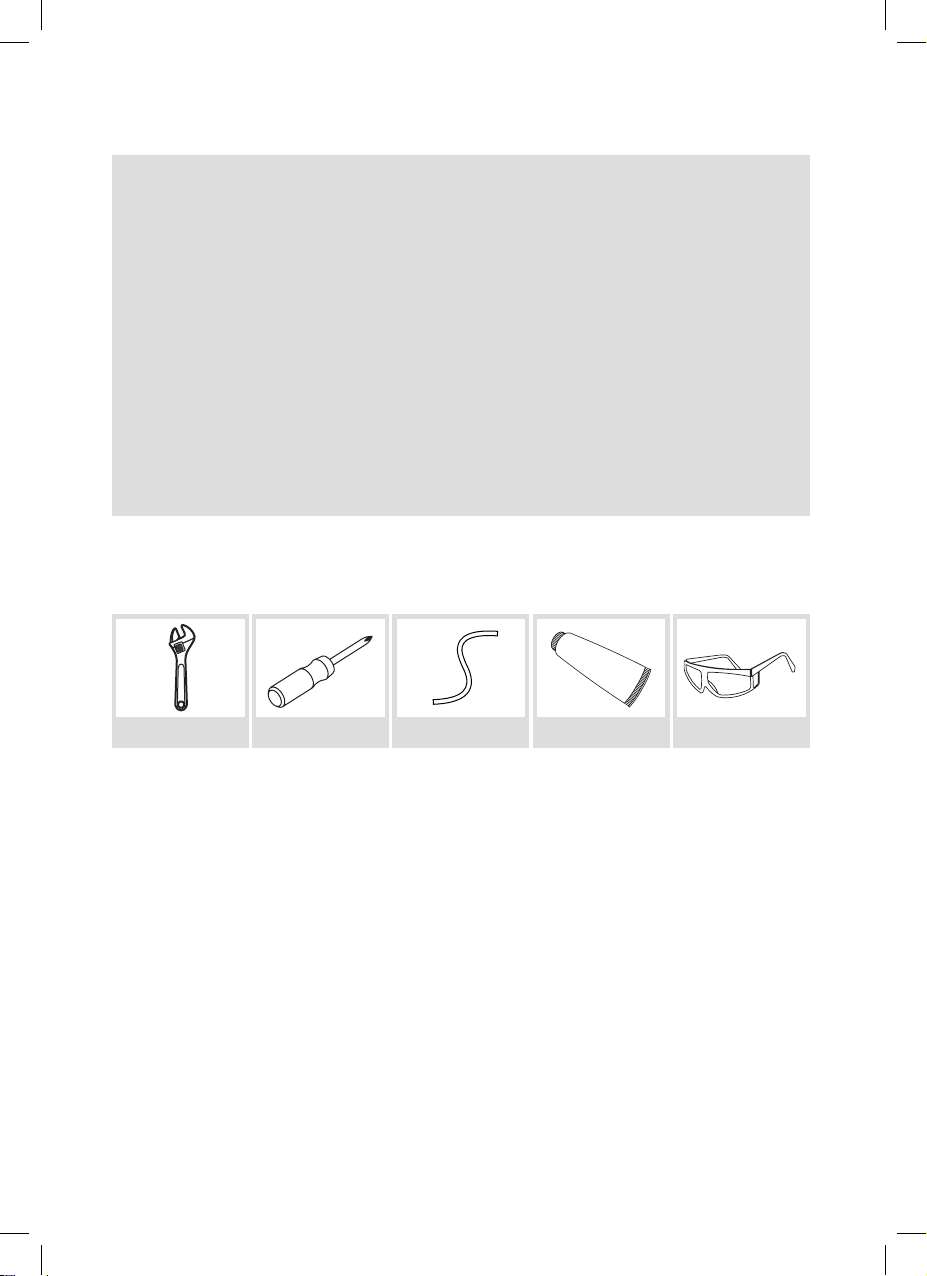

Tools you will need:

Adjustable Wrench Phillips Screwdriver

Supply Lines

Silicone Sealant

(optional)

Safety Goggles

2

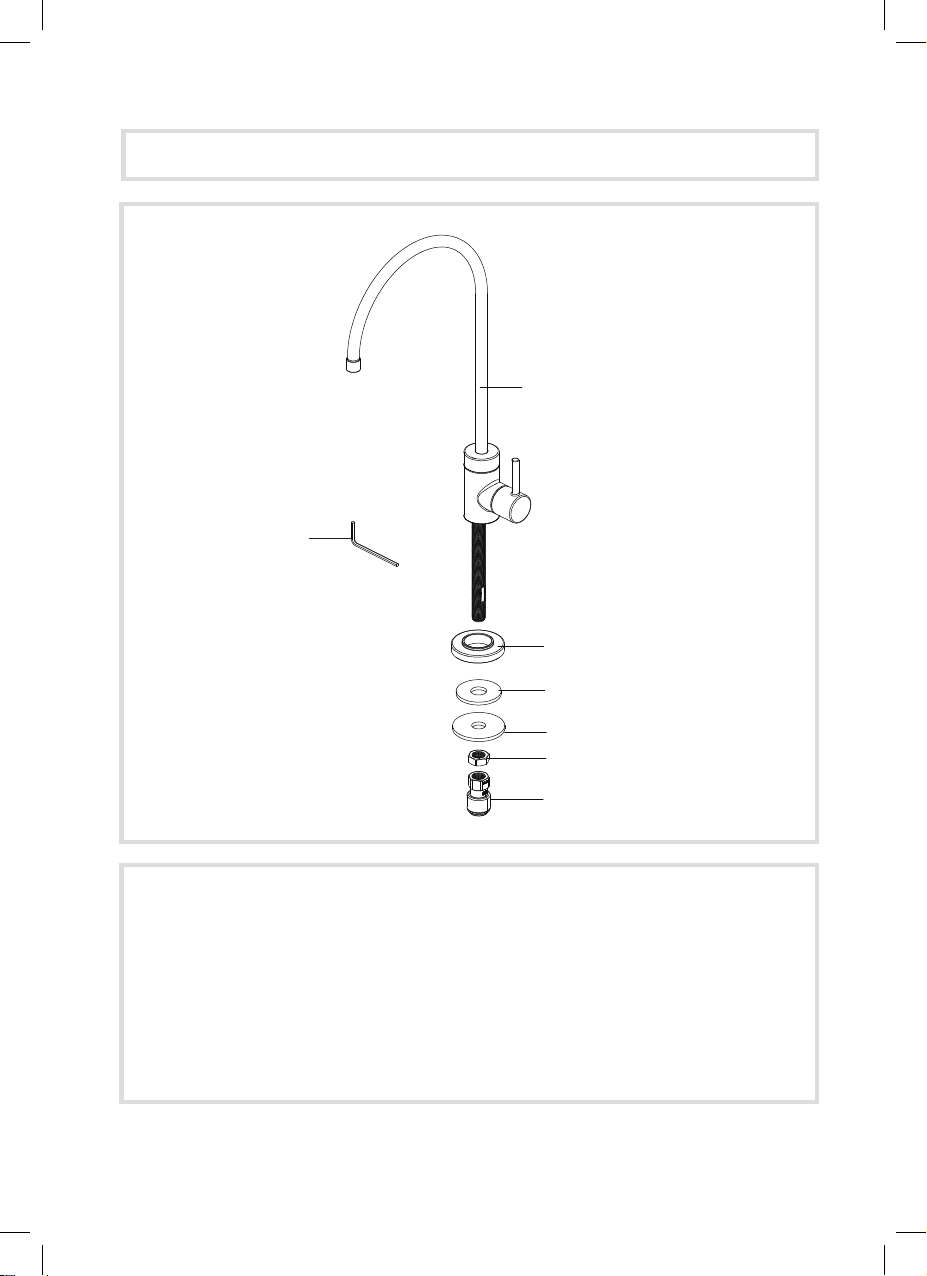

Diagram and Parts List

G

A

B

C

D E

F

A. Faucet Assembly B. Flange C. Rubber Washer D. Metal Washer E. Mounting Nut F. Connector G. Hex Wrench

3

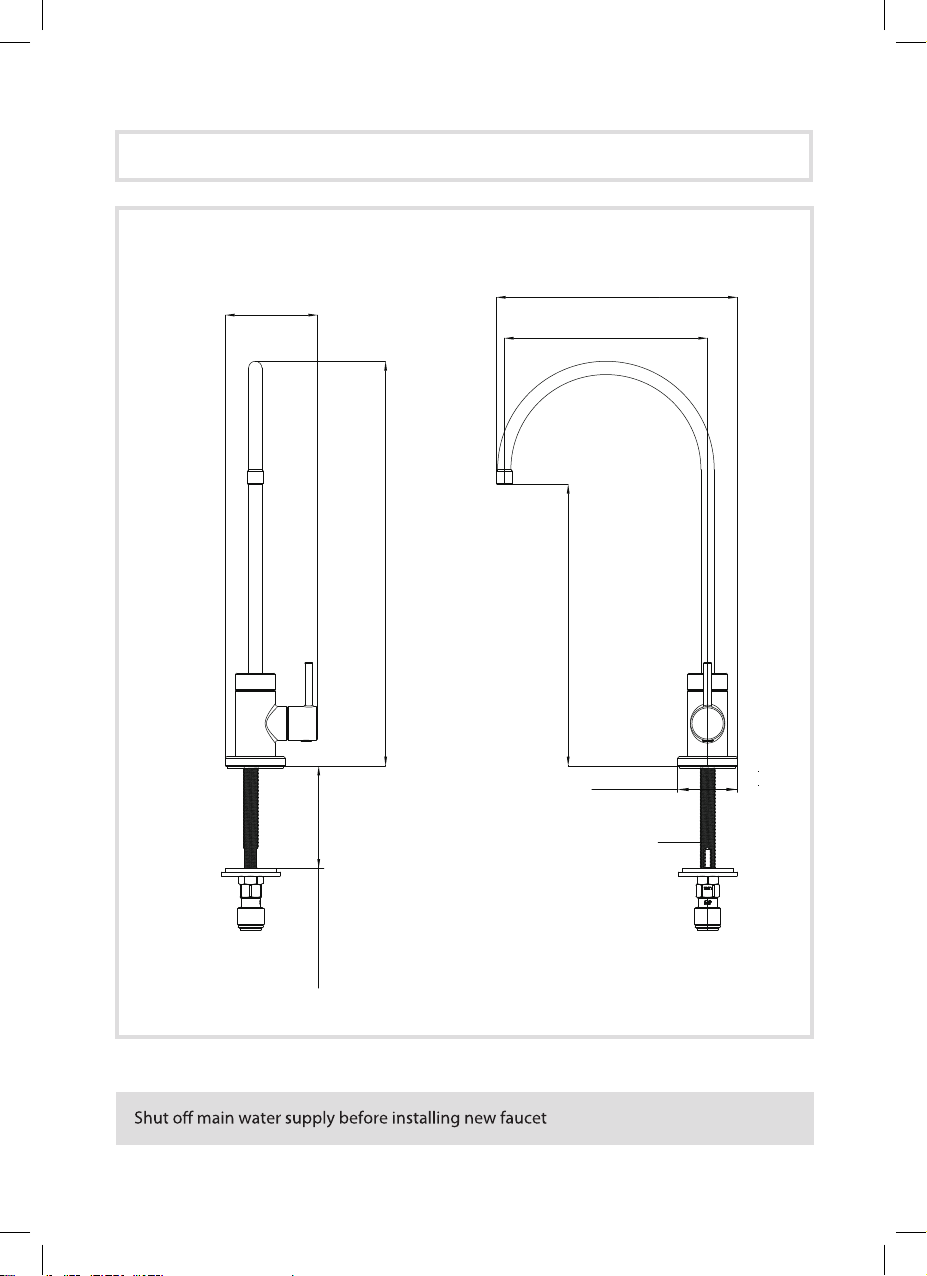

Faucet Dimension

2 3/4“

[69.5mm]

12”

[304.5mm]

7 1/8”

[181.5mm]

6”

[153.0mm]

8 3/8“

[212.0mm]

Ø1 3/4"

[Ø45.0mm]

7/16-24UNS-2A

Installer Tip:

[77.0mm]

MAX 3 1/16”

4

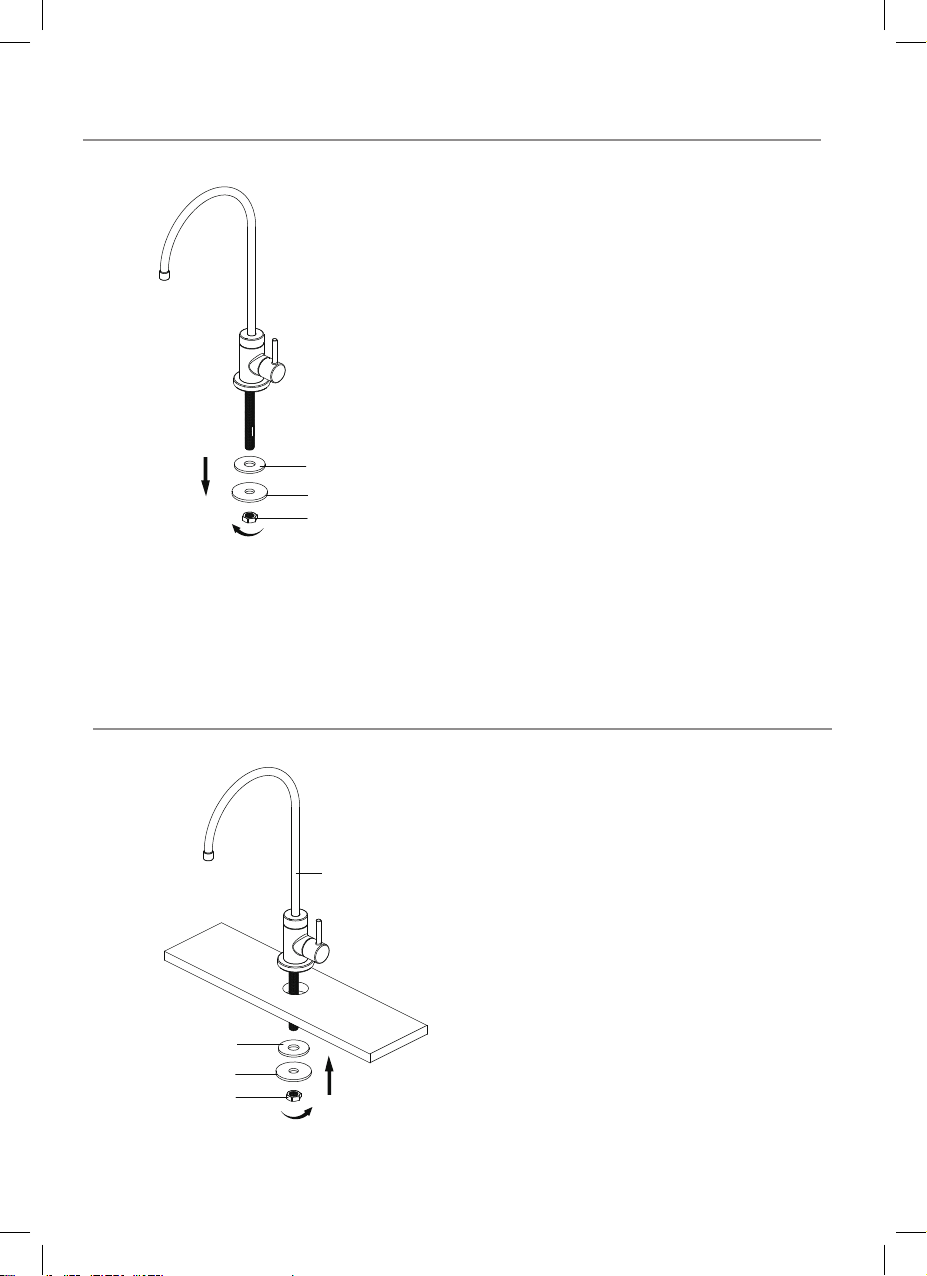

Step 1: Preparing for installation

C

D E

Remove the rubber washer (C), metal washer (D), and mounting nut (E) from the end of the stud.

Step 2: Installing the faucet assembly

A

C

D E

5

Place the faucet assembly (A) through the selected hole in the sink or countertop. On the underside of the sink or countertop, slide the rubber washer (C) and metal washer (D) onto the stud. Thread the mounting nut (E) onto the stud, and tighten securely using your wrench.

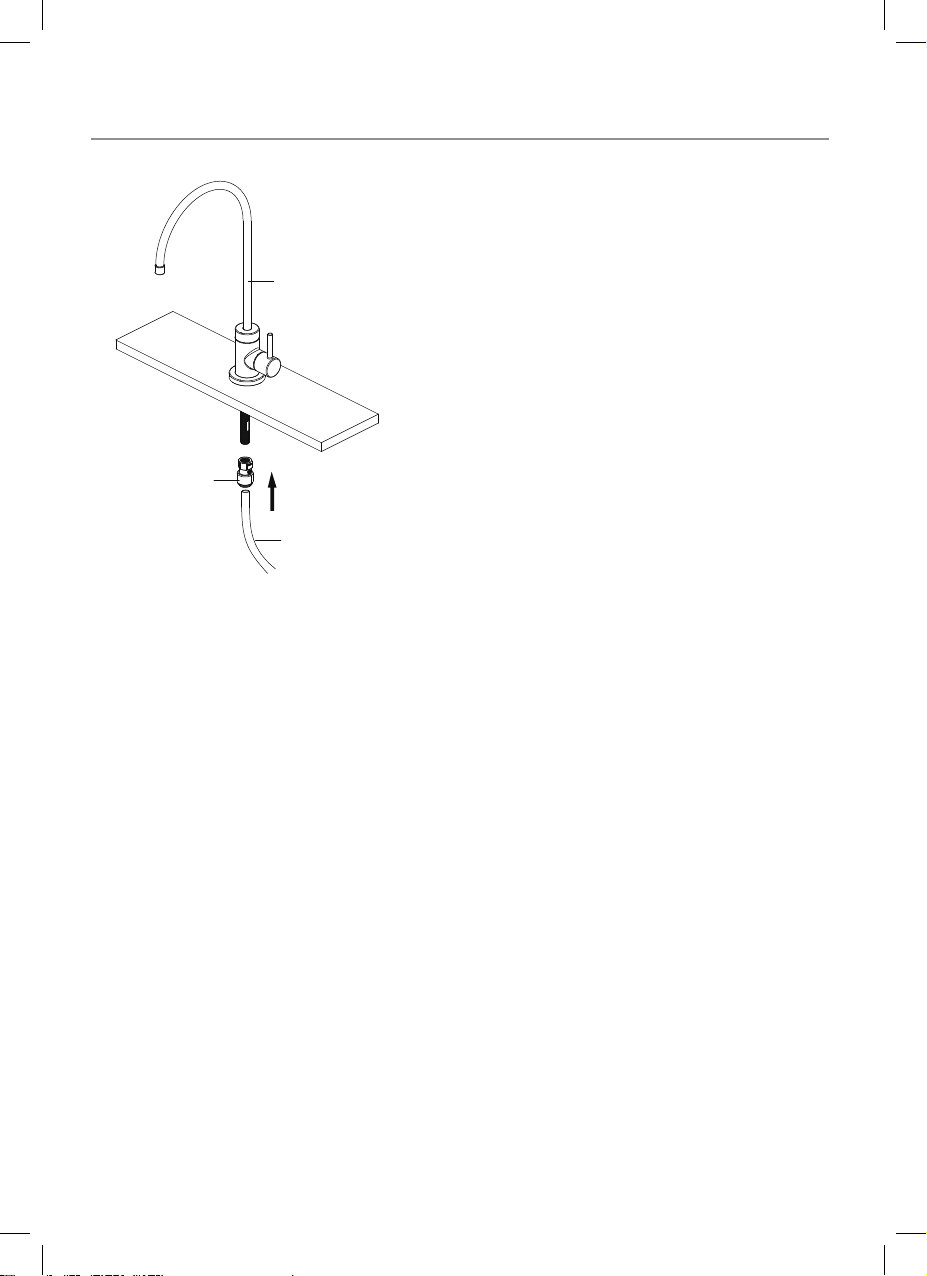

Step 3: Connecting the quick connect adaptor and water line

Thread the quick connect adaptor (F) onto the end of the faucet assembly (A) stud, and tighten securely using a wrench.

A

F

3/8 in. Water line from ﬁltration system

Connect the 3/8 in. water line from the ﬁltration system by pushing the line into the connector (F). Pull down on the 3/8 in. line slightly to ensure the quick connect ﬁtting has engaged.

6

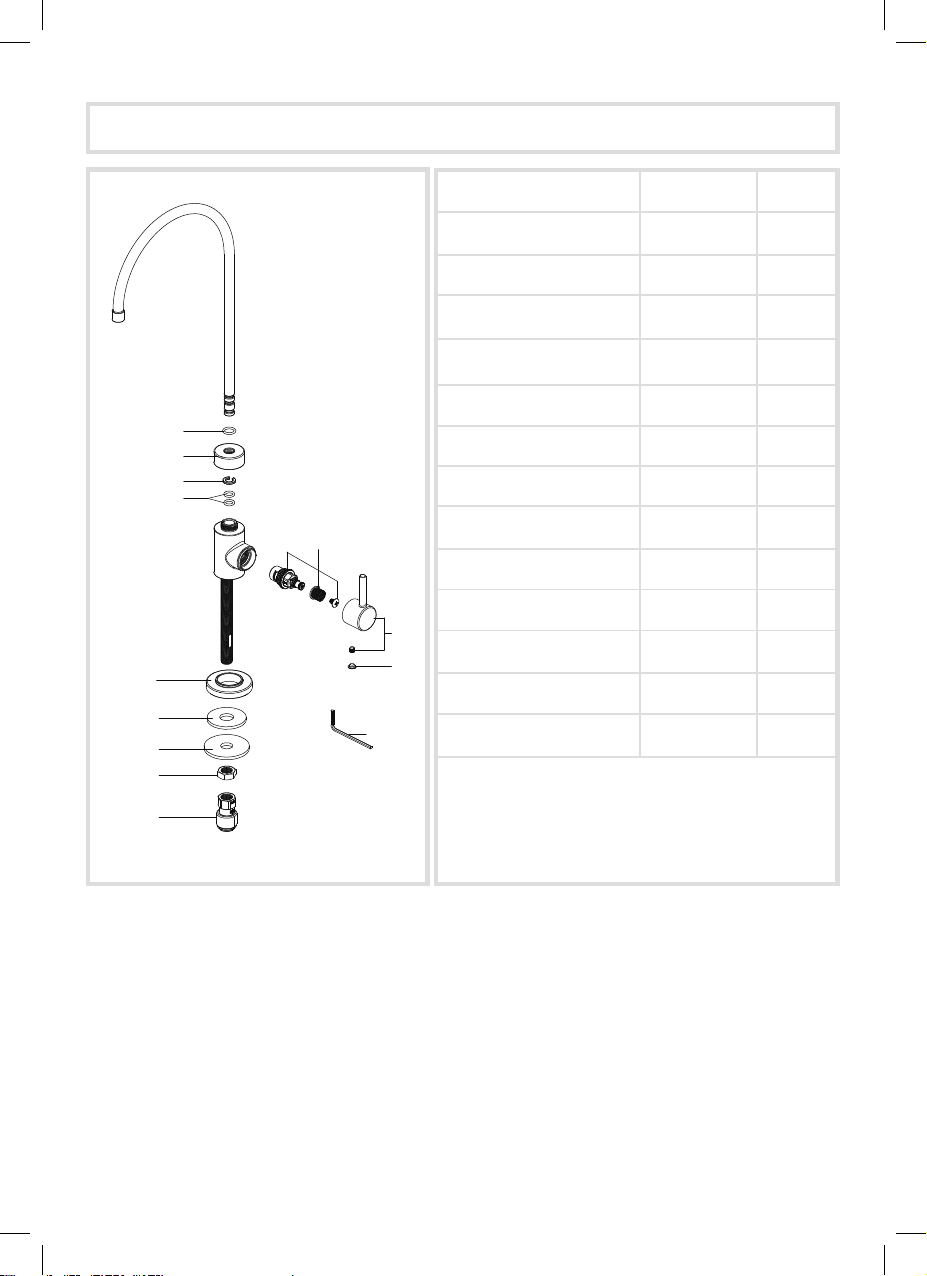

Replacement Parts

8

9

10

11

Replacement Parts List Part #

1. O-ring

2. Spout Nut KP27169

3. Locking Ring

4. O-ring

5. Cartridge

1

2

3 4

5

13

6. Handle

7. Index

8. Flange

9. Rubber Washer

10. Metal Washer

6

11. Mounting Nut KP27177

7

12. Connector KP27178

13. Hex Wrench KP27020

Finish / Color

CH, SFS, MB, BG, BB, SFACB, SFSB*

GR, BL*

CH, SFS, MB, BG, BB, SFACB, SFSB*

KP27168

KP27170

KP27171

KP27172

KP27173

KP27194

KP27174

KP27175

KP27176

12

*Denotes faucet component color options: CH - Polished Chrome SFS - Spot Free Stainless Steel MB - Matte Black BG - Brushed Gold BB - Brushed Brass SFACB - Spot Free Antique Champagne Bronze SFSB - Spot Free Black Stainless GR - Grey BL - Black

7

Trouble - Shooting

Hot Water

Cold Water

Push

If you have followed the instructions carefully and your faucet still does not work properly, take the following coorective steps:

PROBLEM CAUSE ACTION

Leakage under the handle

Water will not shut oﬀ completely

Care & Maintenance

Cartridge (5) has come loose

Cartridge may need to be adjusted or replaced

Remove index (7) and loosen set screw with hex wrench (13). Remove the handle. Tighten cartridge (5) with a adjustable wrench

Remove index (7) and loosen set screw with hex wrench (13). Remove the handle . Tighten cartridge (5) with a adjustable wrench. Remove the cartridge (5). Check for cracks

*To keep the product clean & shining, follow the steps below：

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners

3. Do not use cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

*This installation manual is subject to change without further notice.

8

Codes/Standards Applicable:

LEAD FREE

NSF/ANSI 372

I

A

P

M

O

R

&

NSF/ANSI 61

T

ASME A112.18.1 1GPM 3.8L/min maximum

Faucet Warranty

Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (”Kraus”). Kraus extends this warranty to the original purchaser for personal household use of the “Faucet” in its original location. The warranty is non-transferable. Kraus warrants the structure and ﬁnish of the product to be free from defects in material and workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.

Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators, structure, restrictors, back ﬂow preventers, sprayer hoses, braided supply line hoses which encompasses nylon,silicon and stainless steel, etc) of the product to be free from defects in material and workmanship under normal usage for a period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the one (1) year term of the original owner or end-user.

Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and workmanship under normal usage for a period of ﬁve (5) years. The warranty commences from the initial date of purchase by the owner or trade professional, from an authorized Kraus dealer, through the ﬁve (5) years term of the original owner or end-user.

Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.

Restrictions

This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at discount outlets, unauthorized dealers, and/or sold on clearance.

This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire

brushes, as these will damage and wear down the ﬁnish. This warranty does not apply to Products that have not been installed or operated in accordance with instructions supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.

This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional. Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.

This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does not allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other consequential damages, and Kraus accepts no liability for such damages. This warranty does not cover Marine or Outdoor Installation.

Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of

merchantability and ﬁtness for a particular purpose, or compliance with any code.

9

Shipping charges will be covered foe the ﬁrst (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included.

Commercial Warranty

Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use.

All incidental or consequential damages are speciﬁcally excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or ﬁtness for a particular purpose. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you speciﬁc legal rights, and you may also have other rights which vary from state to state.

If you are a homeowner please contact a Kraus Customer Service Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 [email protected]

If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 [email protected]

If you are an Authorized Partner please contact a Partner Support Representative at:

Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8954 [email protected]

In requesting warranty service, please be ready to provide:

1. Proof of purchase.

2. A description of the problem.

Download the Kraus Care & Maintenance Guide at:

http://www.kraususa.com/maintenance

10

IMPORTANT

Register Your Kraus Product

Activate Your Warranty

Access Premium Customer Support

Get Product Information

REGISTER TODAY

http://www.kraususa.com/registration

www.kraususa.com
