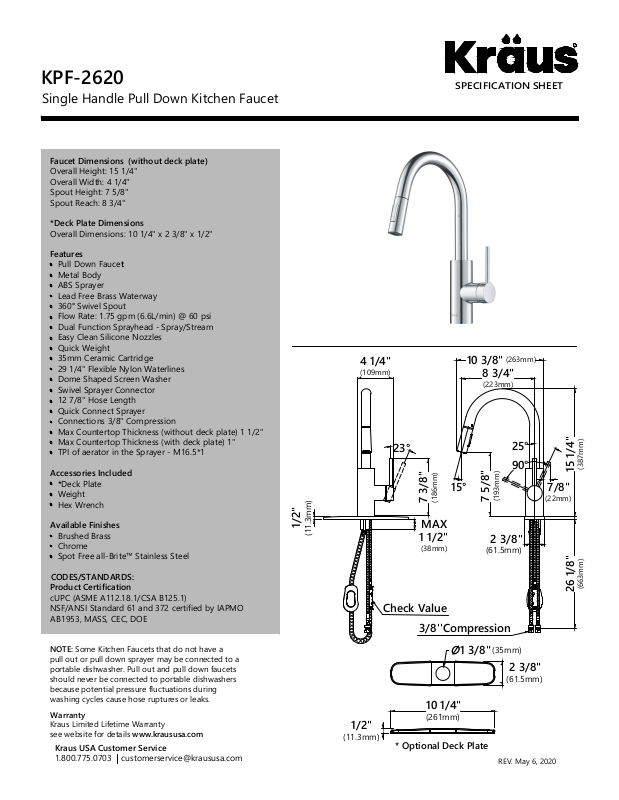

Page 1
KPF-2620
Single Handle Pull Down Kitchen Faucet
Faucet Dimensions (without deck plate)
Overall Height: 15 1/4"
Overall Width: 4 1/4"
Spout Height: 7 5/8"
Spout Reach: 8 3/4"
*Deck Plate Dimensions
Overall Dimensions: 10 1/4" x 2 3/8" x 1/2"
Features
Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Brass Waterway
360° Swivel Spout
Flow Rate: 1.75 gpm (6.6L/min) @ 60 psi
Dual Function Sprayhead - Spray/Stream
Easy Clean Silicone Nozzles
Quick Weight
35mm Ceramic Cartridge
29 1/4" Flexible Nylon Waterlines
Dome Shaped Screen Washer
Swivel Sprayer Connector
12 7/8" Hose Length
Quick Connect Sprayer
Connections 3/8" Compression
Max Countertop Thickness (without deck plate) 1 1/2"
Max Countertop Thickness (with deck plate) 1"
TPI of aerator in the Sprayer - M16.5*1
Accessories Included
*Deck Plate
Weight
Hex Wrench
Available Finishes
Brushed Brass
Chrome
Spot Free all-Brite™ Stainless Steel
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, MASS, CEC, DOE
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
R
SPECIFICATION SHEET
4 1/4"
(109mm)
7 3/8"
(186mm)
MAX
1 1/2"
(38mm)
10 3/8"
(263mm)
7 5/8"
(193mm)
8 3/4"
(223mm)
2 3/8"
(61.5mm)
15 1/4"
(387mm)
15°
26 1/8"
(663mm)
Check Value
3/8''Compression
7/8"
(22mm)
25°
90°
23°
REV. May 6, 2020
2 3/8"
(61.5mm)
Ø1 3/8"
(35mm)
10 1/4"
(261mm)
1/2"
(11.3mm)
* Optional Deck Plate
1/2"
(11.3mm)
Page 2
FF-100
Drinking Water Filtration Faucet
Faucet Dimensions
Overall Height: 12"
Spout Height: 8 3/8"
Spout Reach: 6"
Features
Filter Faucet
Brass Construction
Lead Free Brass Waterway
Flow Rate: 1.0 gpm (3.79L/min) @ 60 psi
Stream Function
Quarter Turn Ceramic Disk Cartridge
3/8" Push In Water Supply Connection
Max Deck Thickness: 3 1/16"
Fits Most Under-Counter Drinking Water Systems
Accessories Included
Hex Wrench
Available Finishes
Spot Free Stainless Steel
Matte Black
Brushed Gold
Chrome
Brushed Brass
Spot Free Antique Champagne Bronze
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
CAL GREEN, CEC, DOE, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 30, 2020
R
SPECIFICATION SHEET
2 3/4“
[69.5mm]
7 1/8”
[181.5mm]
6”
[153.0mm]
7/16-24UNS-2A
Ø1 3/4"
[Ø45.0mm]
MAX 3 1/16”
[77.0mm]
12”
[304.5mm]
8 3/8“
[212.0mm]
