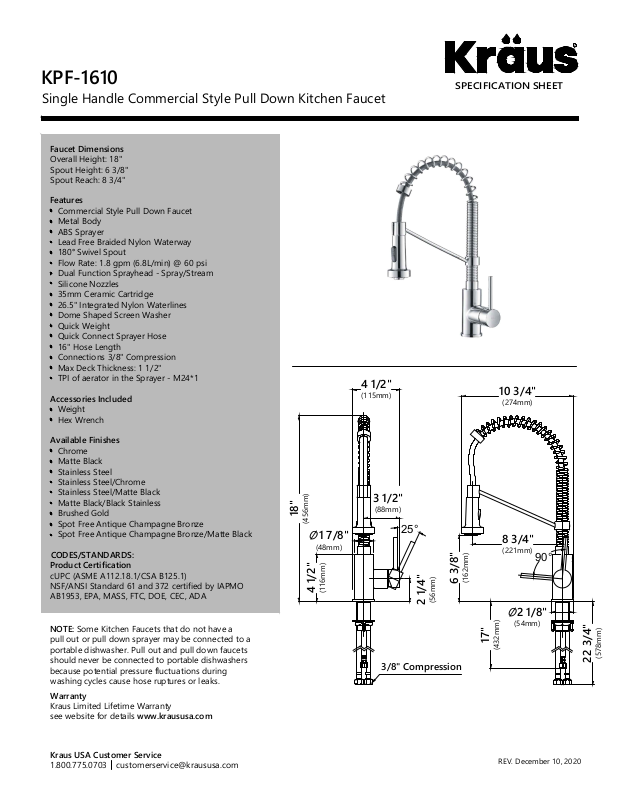

Page 1
KPF-1610
Single Handle Commercial Style Pull Down Kitchen Faucet
Faucet Dimensions
Overall Height: 18"
Spout Height: 6 3/8"
Spout Reach: 8 3/4"
Features
Commercial Style Pull Down Faucet
Metal Body
ABS Sprayer
Lead Free Braided Nylon Waterway
180° Swivel Spout
Flow Rate: 1.8 gpm (6.8L/min) @ 60 psi
Dual Function Sprayhead - Spray/Stream
Silicone Nozzles
35mm Ceramic Cartridge
26.5" Integrated Nylon Waterlines
Dome Shaped Screen Washer
Quick Weight
Quick Connect Sprayer Hose
16" Hose Length
Connections 3/8" Compression
Max Deck Thickness: 1 1/2"
TPI of aerator in the Sprayer - M24*1
Accessories Included
Weight
Hex Wrench
Available Finishes
Chrome
Matte Black
Stainless Steel
Stainless Steel/Chrome
Stainless Steel/Matte Black
Matte Black/Black Stainless
Brushed Gold
Spot Free Antique Champagne Bronze
Spot Free Antique Champagne Bronze/Matte Black
CODES/STANDARDS:
Product Certification
cUPC (ASME A112.18.1/CSA B125.1)
NSF/ANSI Standard 61 and 372 certified by IAPMO
AB1953, EPA, MASS, FTC, DOE, CEC, ADA
NOTE: Some Kitchen Faucets that do not have a
pull out or pull down sprayer may be connected to a
portable dishwasher. Pull out and pull down faucets
should never be connected to portable dishwashers
because potential pressure fluctuations during
washing cycles cause hose ruptures or leaks.
Warranty
Kraus Limited Lifetime Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. December 10, 2020
R
SPECIFICATION SHEET
4 1/2"
(116mm)
18"
(456mm)
2 1/4"
(56mm)
6 3/8"
(162mm)
8 3/4"
(221mm)
3 1/2"
(88mm)
Ø1 7/8"
(48mm)
Ø2 1/8"
(54mm)
10 3/4"
(274mm)
22 3/4"
(578mm)
17"
(432mm)
90°
25°
4 1/2"
(115mm)
3/8" Compression
Page 2
DP03
10 1/4" Deck Plate
Deck Plate Dimensions
Overall Dimensions: 10 1/4" x 2 1/2" x 1/4"
Features
Metal Construction
For Use with Single Hole Mount Kitchen Faucets
Covers Unused Kitchen Sink Holes
Available Finishes
Brushed Gold
Chrome
Matte Black
Black Stainless
Spot Free Stainless Steel
Spot Free Antique Champagne Bronze
Warranty
Kraus 1 Year Limited Warranty
see website for details www.kraususa.com
Kraus USA Customer Service
1.800.775.0703 [email protected]
REV. January 30, 2020
R
SPECIFICATION SHEET
10 1/4"
(259mm)
2 1/2"
(65mm)
Ø1 3/8"
(35mm)
1/4"
(6mm)
2"
(50mm)
